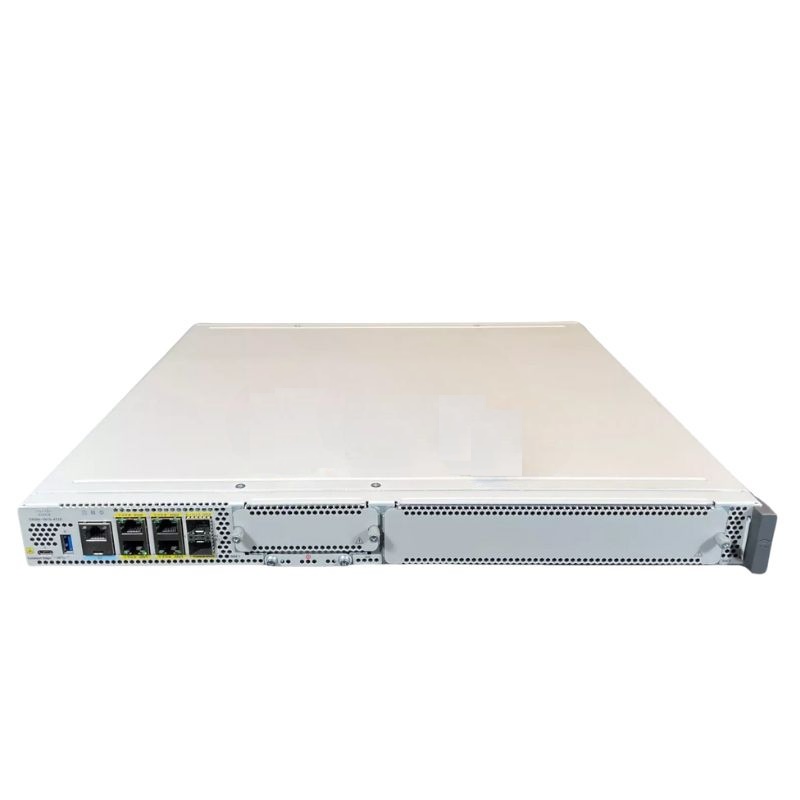

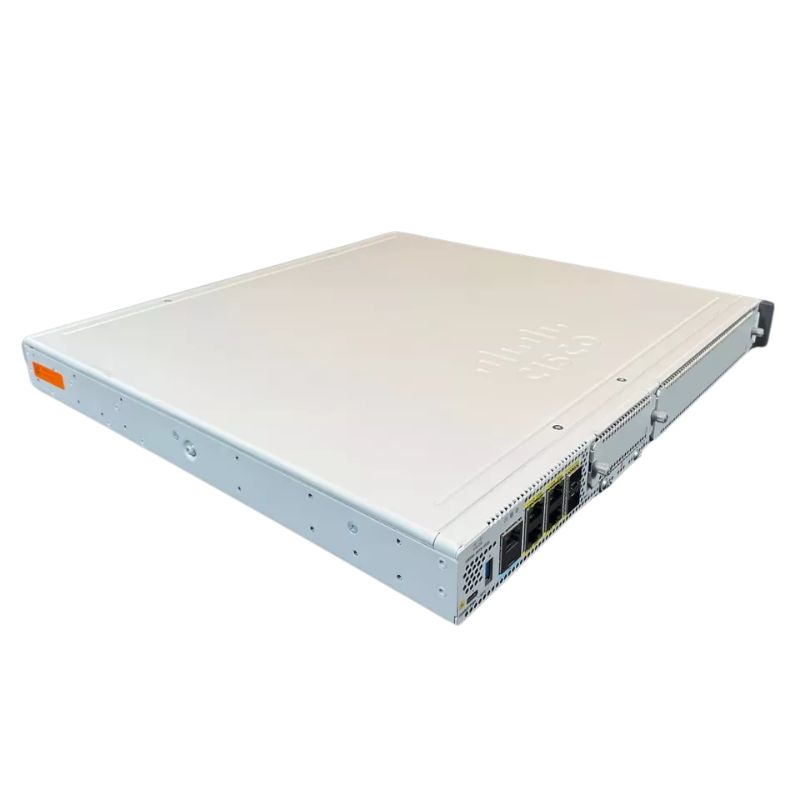

Cisco C8300-1N1S-6T Catalyst 8300 Gigabit Ethernet 6 Ports Router

General Product Information

• Manufacturer: Cisco
• Model Number: C8300-1N1S-6T
• Product Type: Ethernet Router

Device Specifications

Physical Attributes

• Device Type: Router

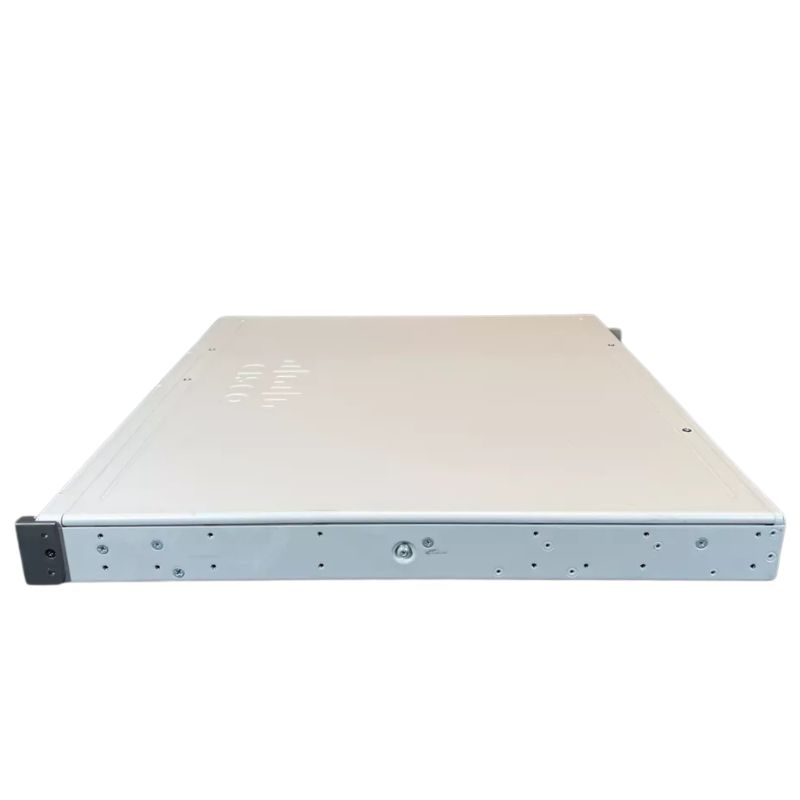

• Enclosure: Rack-mountable, 1U

Connectivity and Protocols

• Connection Technology: Wired
• Data Link Protocol: Gigabit Ethernet
• Network/Transport Protocols: RSVP, NTP, IPSec, PPPoE, DHCP, DNS, L2TPv3, RTCP
• Routing Protocols: OSPF, RIP, IS-IS, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, IGMPv3, GRE, OSPFv3, Policy-based Routing (PBR), MPLS, BFD

Performance and Capacity

Throughput

• VPN Throughput (IMIX IPSec): 5 Gbps
• VPN Throughput (1400 B IPSec): 1.9 Gbps
• IPv4 Forwarding Throughput (1400-byte Packet Size): 19.7 Gbps

Capacity Details

• Maximum Overlay Tunnels: 6000
• Access Control Entries (ACEs) per System (IPv4): 72,000
• IPv4 Routes: 1,600,000
• IPv6 Routes: 1,500,000
• Queues: 16,000
• NAT Sessions: 1,200,000
• Firewall Sessions: 512,000
• Virtual Routing and Forwarding (VRF) Entries: 4,000

Encryption and Security

Encryption Algorithms

• DES, Triple DES, MD5, IKE, TLS, SHA-1, PKI
• 128-bit AES, SHA-2, 1024-bit RSA, 2048-bit RSA, 256-bit SHA
• 256-bit AES-GCM, 256-bit AES-CBC, 512-bit SHA, 748-bit RSA
• 384-bit SHA, ECDSA 256-bit, ECDSA 384-bit, HMAC

Authentication Methods

• Secure Shell (SSH)
• RADIUS

Additional Features

• NAT and PAT Support
• Syslog and URL Filtering
• Class-based Weighted Fair Queuing (CBWFQ)
• Weighted Random Early Detection (WRED)
• Access Control List (ACL) Support
• Quality of Service (QoS) and DHCP Server
• Bidirectional Forwarding Detection (BFD)
• Forward Error Correction (FEC)
• Class of Service (CoS) and Call Admission Control (CAC)
• Flexible NetFlow (FNF) and Application Visibility and Control (AVC)
• Source-specific Multicast (SSM) and Authentication, Authorization, and Accounting (AAA)
• Hierarchical QoS (HQoS) and Encapsulated Remote SPAN (ERSPAN)
• Embedded Event Manager (EEM) and Protocol Independent Multicast (PIM)
• Ethernet Virtual Connections (EVC) and Cisco IOS IP SLA
• Network-based Application Recognition (NBAR) and Datagram Transport Layer Security (DTLS)
• Point-to-Point Protocol (PPP) and High-level Data Link Control (HDLC)
• Multilink PPP (MLPPP) and Multilink Frame Relay (MLFR)
• Application Aware Routing (AAR) and Interactive Voice Response (IVR)
• Service Advertisement Framework (SAF)

Compliance and Standards

• IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag
• EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3
• EN 61000-3-3, EN55024, EN 61000-6-1
• AS/NZS 60950-1, ICES-003 Class A, UL 60950-1
• IEC 60950-1, EN 60950-1, FDA, FCC CFR47 Part 15 B Class A
• CNS 13438 Class A, EN 300 386, KN35
• IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5
• IEC/EN 61000-4-6, IEC/EN 61000-4-8
• AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11
• IEC/EN 61000-4-2, EN 55032 Class A, EN 55032
• CISPR 32 Class A, EN 55035, IEC/EN 60825
• CAN/CSA C22.2 No. 60950-1

Hardware Specifications

• Processor: Intel
• RAM: 8 GB
• Flash Memory: 8 GB
• Hard Drive: 16 GB

IP Telephony

VOIP Protocols

• SRTP

Expansion and Connectivity

Interfaces and Slots

• WAN/LAN Interfaces: 6 x Ethernet 1000
• USB Ports: 1 x
• Expansion Slots: 1 (total) / 1 (free) for Service Module (SM)
• Expansion Slots: 1 (total) / 1 (free) for NIM
• Installed Modules Quantity (Max): 0 (installed) / 2 (max)

Power Specifications

• Power Device: Internal Power Supply

Ports

The Cisco C8300-1N1S-6T Router is equipped with six high-performance ports, making it an ideal choice for businesses and organizations that require a reliable and efficient network solution. The number of ports available on a router plays a crucial role in determining its capabilities, and the Cisco C8300-1N1S-6T Router's six ports offer numerous benefits for users.

Increased Connectivity

One of the primary advantages of having six ports on the Cisco C8300-1N1S-6T Router is the increased connectivity it provides. With six ports, users can connect multiple devices simultaneously, such as computers, printers, servers, and other networking equipment. This ensures efficient and seamless communication between devices, enabling smooth data transfer and collaboration.

Flexibility in Network Design

The six ports on the Cisco C8300-1N1S-6T Router also offer flexibility in network design. Users can create different network segments or VLANs to segregate traffic based on specific requirements. This allows for better network management and optimization of resources. For example, one port can be dedicated to guest Wi-Fi access, while another can be used for critical business applications. The flexibility provided by the six ports enables businesses to tailor their network infrastructure to suit their specific needs.

Improved Performance and Bandwidth

Having six ports on the Cisco C8300-1N1S-6T Router contributes to improved performance and bandwidth. Each port operates at Gigabit Ethernet speeds, allowing for high-speed data transfer between devices. This is especially beneficial for bandwidth-intensive tasks such as large file transfers, video streaming, and VoIP calls. The increased bandwidth ensures that network traffic flows smoothly without any bottlenecks or slowdowns.

Furthermore, the six ports on the Cisco C8300-1N1S-6T Router support link aggregation, also known as port bonding. Link aggregation combines multiple ports into a single logical link, effectively increasing the available bandwidth. This feature is particularly useful in scenarios where high-speed and reliable connections are required, such as in data centers or for connecting multiple switches.

Overall, the six ports on the Cisco C8300-1N1S-6T Router provide users with increased connectivity, flexibility in network design, and improved performance and bandwidth. These features make it an excellent choice for businesses and organizations that require a robust and efficient network solution.

Interface

The Cisco C8300-1N1S-6T Router boasts Gigabit Ethernet interfaces, offering users numerous benefits and advantages. The interface of a router is a critical component that determines the speed and efficiency of data transfer between devices. The Gigabit Ethernet interface on the Cisco C8300-1N1S-6T Router ensures high-speed connectivity and optimal performance.

High-Speed Data Transfer

The Gigabit Ethernet interface on the Cisco C8300-1N1S-6T Router enables high-speed data transfer between devices. With a data transfer rate of up to 1000 Mbps, users can enjoy fast and seamless communication within their network. This is particularly beneficial for businesses that rely on real-time collaboration, large file transfers, or video conferencing.

Compatibility and Future-Proofing

The Gigabit Ethernet interface is widely compatible with various devices and network equipment. It ensures seamless integration with existing infrastructure, allowing businesses to upgrade their network without significant disruptions. Additionally, the Gigabit Ethernet interface offers future-proofing capabilities by providing ample speed and bandwidth for emerging technologies and applications.

Reliable Performance

The Gigabit Ethernet interface on the Cisco C8300-1N1S-6T Router ensures reliable performance even under heavy network loads. It can handle large amounts of data traffic without compromising speed or stability. This is crucial for businesses that rely on uninterrupted connectivity and require a robust network infrastructure to support their operations.

Furthermore, the Gigabit Ethernet interface supports advanced features such as Quality of Service (QoS) and VLAN tagging. QoS allows users to prioritize specific types of traffic, ensuring that critical applications receive the necessary bandwidth and minimizing latency for real-time applications. VLAN tagging enables segmentation of network traffic, enhancing security and improving network performance.

In conclusion, the Gigabit Ethernet interface on the Cisco C8300-1N1S-6T Router offers high-speed data transfer, compatibility with existing infrastructure, and reliable performance. These features make it an essential component for businesses seeking a fast and efficient network solution.

Series

The Cisco C8300-1N1S-6T Router belongs to the Catalyst 8300 series, which offers significant benefits and importance for users. The Catalyst 8300 series is designed to meet the evolving demands of modern networks, providing advanced features and capabilities to enhance network performance and security.

Advanced Security

The Catalyst 8300 series incorporates advanced security features to protect networks from potential threats and cyber-attacks. It includes integrated firewalls, intrusion prevention systems, and VPN capabilities to ensure secure communication and data transfer. These security measures help safeguard sensitive information and prevent unauthorized access, giving users peace of mind regarding their network's integrity.

Scalability and Future Growth

The Catalyst 8300 series is highly scalable, allowing businesses to expand their network infrastructure as needed. Whether it's adding more ports or integrating additional modules, the series provides flexibility to accommodate future growth. This scalability ensures that businesses can adapt their network infrastructure based on evolving requirements without the need for significant investments or disruptions.

Enhanced Network Performance

The Catalyst 8300 series offers enhanced network performance through its advanced features and technologies. It includes support for high-speed connections, such as Gigabit Ethernet and fiber optic interfaces, enabling fast and reliable data transfer. The series also incorporates intelligent traffic management capabilities, ensuring optimal performance and minimizing latency for critical applications.

Moreover, the Catalyst 8300 series supports software-defined networking (SDN) capabilities, enabling centralized network management and automation. SDN simplifies network administration tasks, improves efficiency, and reduces the complexity of network operations. This allows businesses to allocate resources more effectively and respond quickly to changing network demands.

In summary, the Catalyst 8300 series, to which the Cisco C8300-1N1S-6T Router belongs, offers advanced security features, scalability for future growth, and enhanced network performance. These benefits make it an essential choice for businesses that require a reliable, scalable, and secure network infrastructure.
