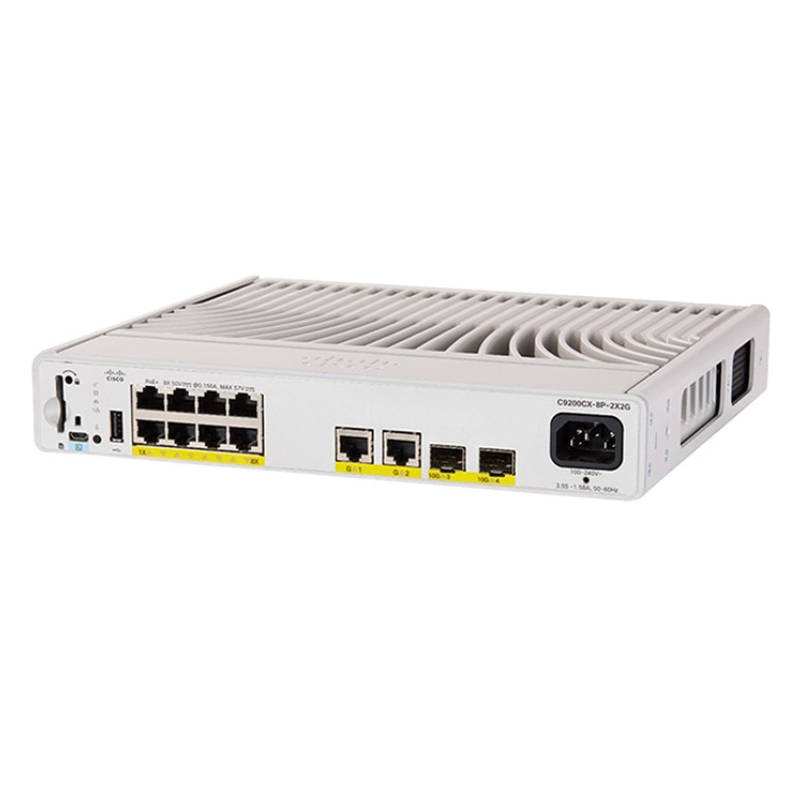

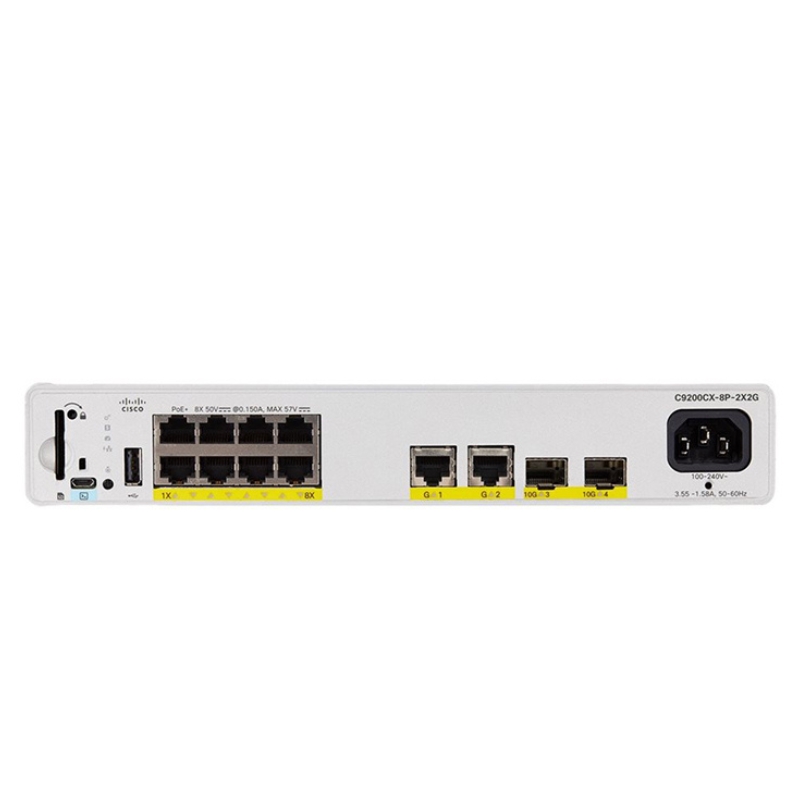

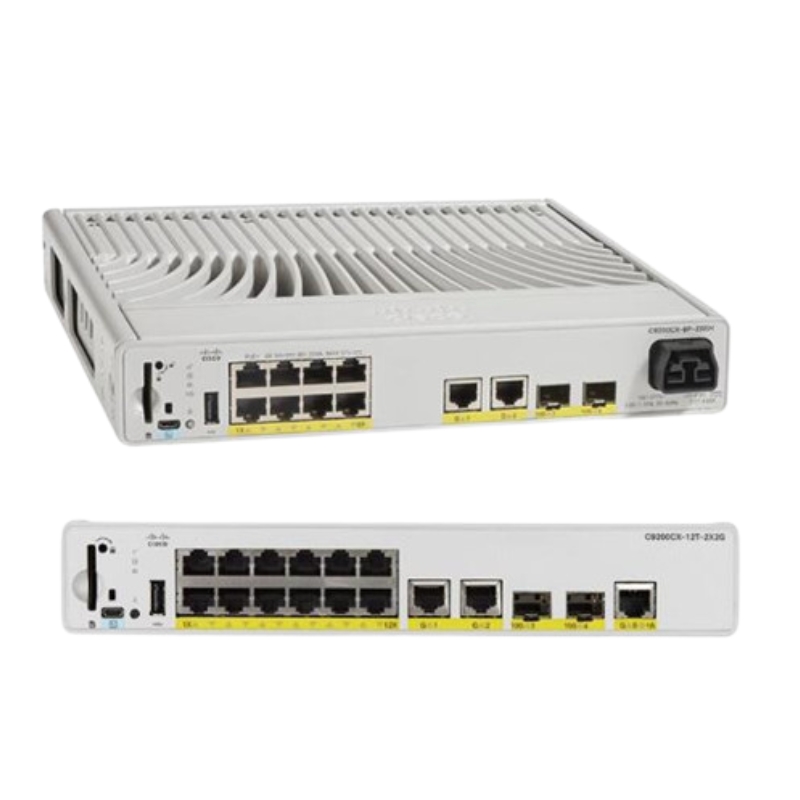

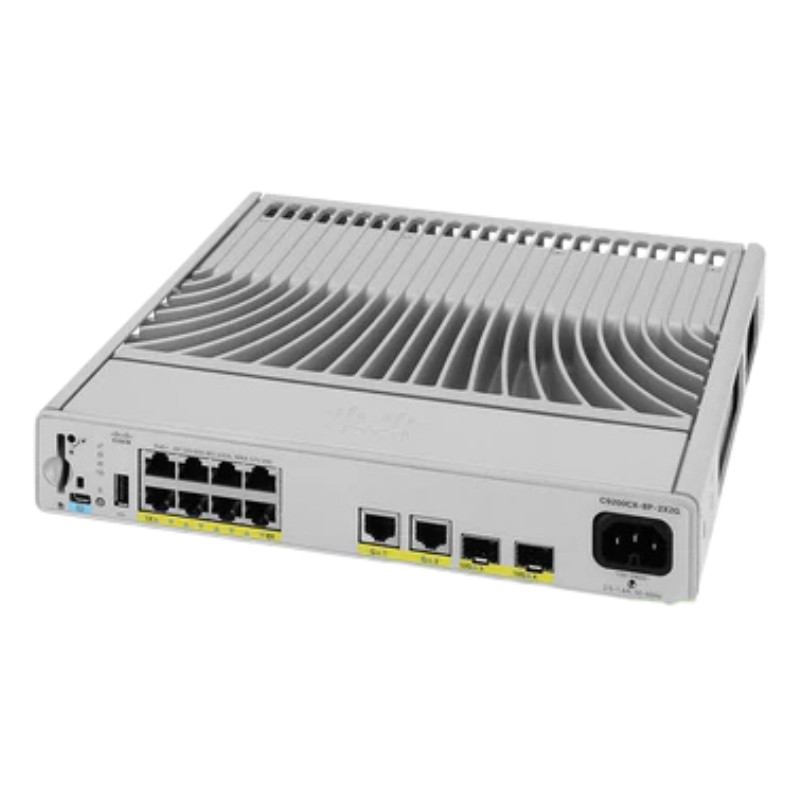

Cisco C9200CX-8P-2X2G-E Catalyst 9200cx PoE+ SFP+ Network Essentials

Overview of Cisco C9200CX-8P-2X2G-E

• Brand: Cisco
• Part Number/SKU: C9200CX-8P-2X2G-E
• Type: Managed Network Switch
• Form Factor: 1U Rack-Mountable

Port Configuration and Technical Details

• Total Ports:
  • 8 x 10/100/1000 Mbps (PoE+)
  • 2 x 1000Base-T
  • 2 x 10 Gigabit SFP+ (Uplink)
• Power over Ethernet (PoE) Budget: 240W
• Virtual Network Support: 16
• IPv4 Routing:
  • Total Routes: 14,000
  • Direct Routes: 10,000
  • Indirect Routes: 4,000
• IPv6 Routing Entries: 2,000
• Multicast Scaling: 1,000
• Quality of Service (QoS) Entries: 1,000
• Access Control List (ACL) Entries: 1,600
• Flexible NetFlow Entries: 16,000
• VLAN Support: 4,096 VLAN IDs
• Spanning Tree Protocol (STP) Instances:
  • PVST Instances: 128
  • MST Instances: 13,000

Performance Specifications

• Switching Capacity: 60 Gbps
• Forwarding Rate: 95.23 Mpps
• Packet Buffer Size: 6 MB
• Access Control List (ACL) Support
• Quality of Service (QoS)
• Rapid Per-VLAN Spanning Tree Plus (PVRST+)
• Fanless Design
• Shaped Round Robin (SRR)
• Preboot Execution Environment (PXE) Support
• Remote Switch Port Analyzer (RSPAN)
• Energy-Efficient Ethernet
• Management Information Base (MIB)
• Class of Service (CoS)
• Flexible NetFlow (FnF)
• 802.1X Authentication
• DiffServ Code Point (DSCP) Support
• MACsec Encryption Support
• Control Plane Protection (CoPP)
• Zero-Touch Provisioning (ZTP)
• Switched Port Analyzer (SPAN)
• Embedded Event Manager (EEM)
• Protocol Independent Multicast (PIM)
• First Hop Security (FHS)
• Private VLAN (PVLAN) Support
• Committed Information Rate (CIR)
• CISCO Unified Access Data Plane (UADP) 2.0
• Trustworthy Systems

Compliance and Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.1D
• IEEE 802.1Q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3af
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1X
• IEEE 802.1s
• IEEE 802.1ae
• IEEE 802.3at

Expansion and Connectivity Options

• 8 x 1000Base-T RJ-45 PoE+ Ports (30W)
• 2 x 1000Base-T RJ-45 Ports
• 2 x 10GBase-X SFP+ Uplink Ports
• 1 x USB 2.0 Port
• 1 x Console Port (Micro-USB)
• Expansion Slots: 1 (total) / 1 (free) x SD Memory Card

Power Specifications

• Power Supply: Internal
• Power Output: 310 Watts
• Voltage Requirement: AC 100-240 V (50/60 Hz)

Ports

The Cisco C9200CX-8P-2X2G-E Managed Switch is equipped with 8 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and scalable network solution. These ports provide the essential connectivity needed to connect various devices within a network, including computers, printers, servers, and other networking equipment.

Increased Connectivity

With 8 ports, this switch allows for increased connectivity options, enabling users to connect multiple devices simultaneously. This feature is particularly beneficial in environments where a large number of devices need to be connected, such as offices or classrooms. The availability of multiple ports ensures that users can easily expand their network as their needs grow without the hassle of additional hardware or complex configurations.

Improved Network Performance

The 8-port configuration of the Cisco C9200CX-8P-2X2G-E ensures optimal network performance by distributing the network traffic evenly across all connected devices. This helps to prevent congestion and bottlenecks that can occur when multiple devices compete for limited network resources. With improved network performance, users can experience faster data transfer speeds and seamless communication between devices.

Flexibility and Versatility

The 8 ports on this switch offer flexibility and versatility in network design and deployment. Users have the freedom to connect devices using different types of Ethernet cables, such as CAT5e or CAT6, depending on their specific requirements. Additionally, the switch supports various network protocols and technologies, allowing for seamless integration with existing network infrastructure.

Power Over Ethernet

One of the standout features of the Cisco C9200CX-8P-2X2G-E Managed Switch is its Power over Ethernet (PoE) capability. With a single PoE port, this switch provides power and data transmission over a single Ethernet cable, eliminating the need for separate power cables and adapters for connected devices.

Simplified Installation

The PoE feature simplifies the installation process by reducing the number of cables required. Users can conveniently power compatible devices, such as IP phones, wireless access points, and surveillance cameras, directly from the switch. This eliminates the need for additional power outlets near each device, reducing clutter and making the overall setup more organized and streamlined.

Cost Savings

By leveraging the PoE capability of the Cisco C9200CX-8P-2X2G-E switch, users can save on installation costs. Traditional network deployments often involve the installation of separate power outlets for each device, which can be time-consuming and expensive. With PoE, users can centralize power distribution and reduce the need for costly electrical work. Additionally, the switch intelligently manages power consumption, optimizing energy usage and further reducing operational costs.

Enhanced Device Flexibility

The PoE feature enhances device flexibility by enabling users to deploy network devices in locations where power outlets are not readily available. This is particularly useful in scenarios where devices need to be installed in hard-to-reach areas or where adding power outlets would be impractical or disruptive. With PoE, users have the freedom to strategically position devices based on their network needs rather than being limited by power constraints.

Interface Type

The Cisco C9200CX-8P-2X2G-E Managed Switch features an SFP+ interface type. This high-speed interface offers numerous benefits and is well-suited for demanding network environments that require high-performance connectivity.

Superior Bandwidth

The SFP+ interface provides superior bandwidth capabilities compared to traditional Ethernet interfaces. It supports data transfer rates of up to 10 Gigabits per second (Gbps), allowing for fast and reliable communication between network devices. This high bandwidth is essential for bandwidth-intensive applications, such as video streaming, large file transfers, and data backup.

Scalability and Future-Proofing

The SFP+ interface offers scalability and future-proofing for network infrastructure. It allows users to connect to a wide range of fiber-optic or copper cables, offering flexibility in network design and deployment. The interface's compatibility with various cable types ensures that the switch can adapt to evolving network requirements and technologies, providing a long-term solution for network expansion.

Low Latency and High Reliability

With its low latency characteristics, the SFP+ interface minimizes delays in data transmission, ensuring real-time communication and responsiveness. This is crucial in time-sensitive applications, such as video conferencing or online gaming, where even the slightest delay can greatly impact user experience. Furthermore, the SFP+ interface offers high reliability, reducing the risk of data loss or interruptions, which is essential in mission-critical environments.

Feature: Network Essentials

The Cisco C9200CX-8P-2X2G-E Managed Switch comes with the Network Essentials feature set. This feature set provides essential capabilities and functionalities required for efficient network management and operation.

Comprehensive Security

Network security is a top priority for any organization, and the Network Essentials feature set offers robust security features to protect against potential threats. It includes features such as access control lists (ACLs), Secure Shell (SSH) protocol, and port security, which help prevent unauthorized access and ensure data confidentiality. This ensures that sensitive information remains secure and protected from potential breaches.

Simplified Management

The Network Essentials feature set simplifies network management through intuitive and user-friendly interfaces. It provides a range of management options, including a web-based graphical interface, command-line interface (CLI), and Simple Network Management Protocol (SNMP) support. These management tools enable administrators to configure, monitor, and troubleshoot the switch efficiently, reducing the complexity of network administration tasks.

Enhanced Reliability

The Network Essentials feature set incorporates features that enhance network reliability and availability. It includes technologies such as Rapid Spanning Tree Protocol (RSTP) and Virtual Router Redundancy Protocol (VRRP), which provide redundancy and failover capabilities. These features ensure that the network remains operational even in the event of a link or device failure, minimizing downtime and maximizing productivity.

In conclusion, the Cisco C9200CX-8P-2X2G-E Managed Switch offers a comprehensive set of features designed to meet the needs of small to medium-sized businesses. With its 8 ports, Power over Ethernet capability, SFP+ interface type, and Network Essentials feature set, this switch provides users with increased connectivity options, simplified installation, enhanced performance, and advanced security features. Whether it's for expanding an existing network or setting up a new one, the Cisco C9200CX-8P-2X2G-E is a reliable and versatile solution that ensures a seamless and efficient network operation.
