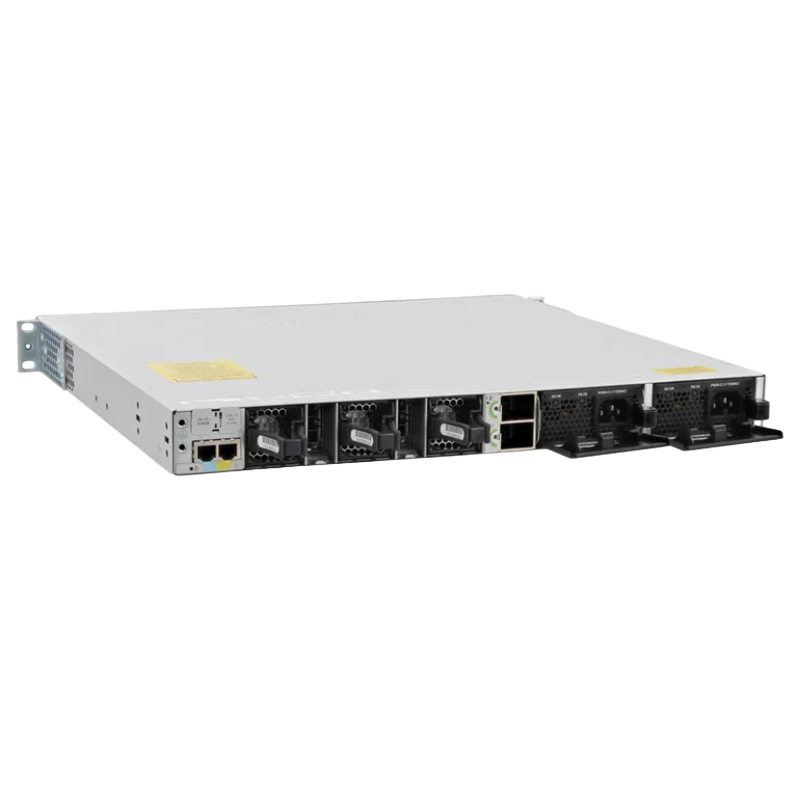

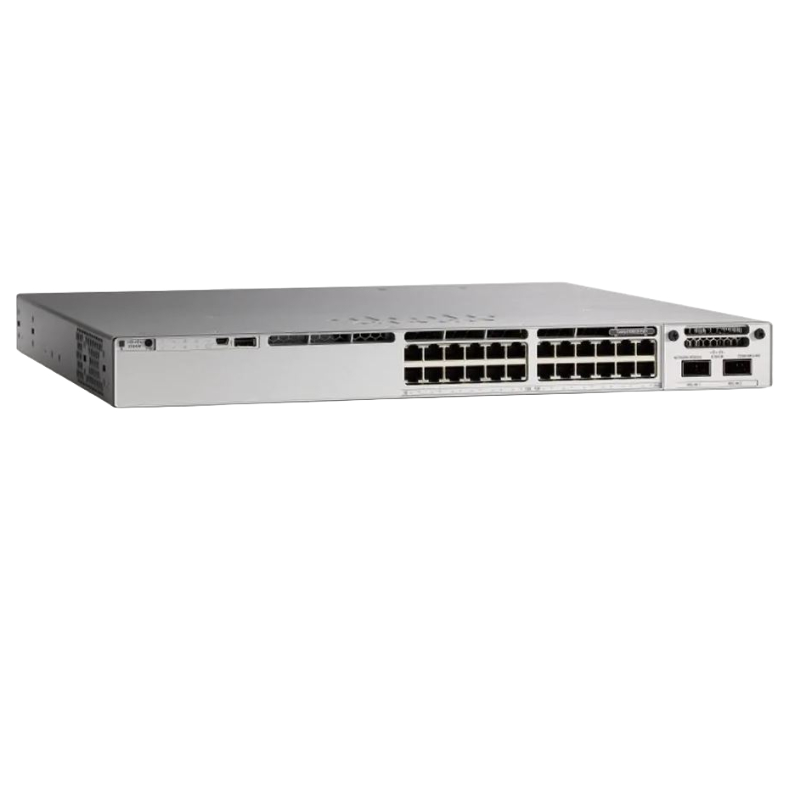

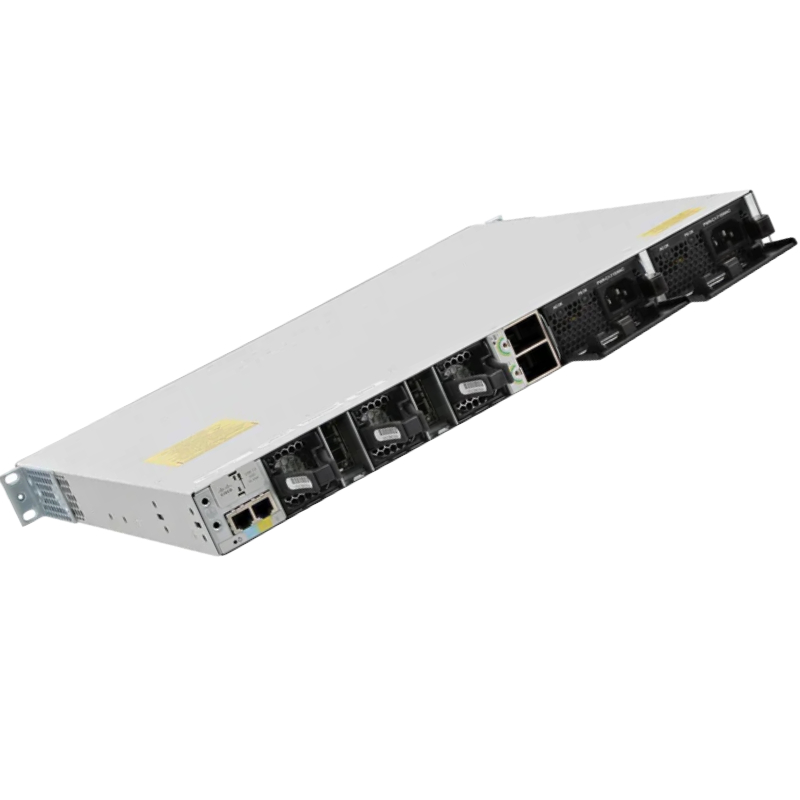

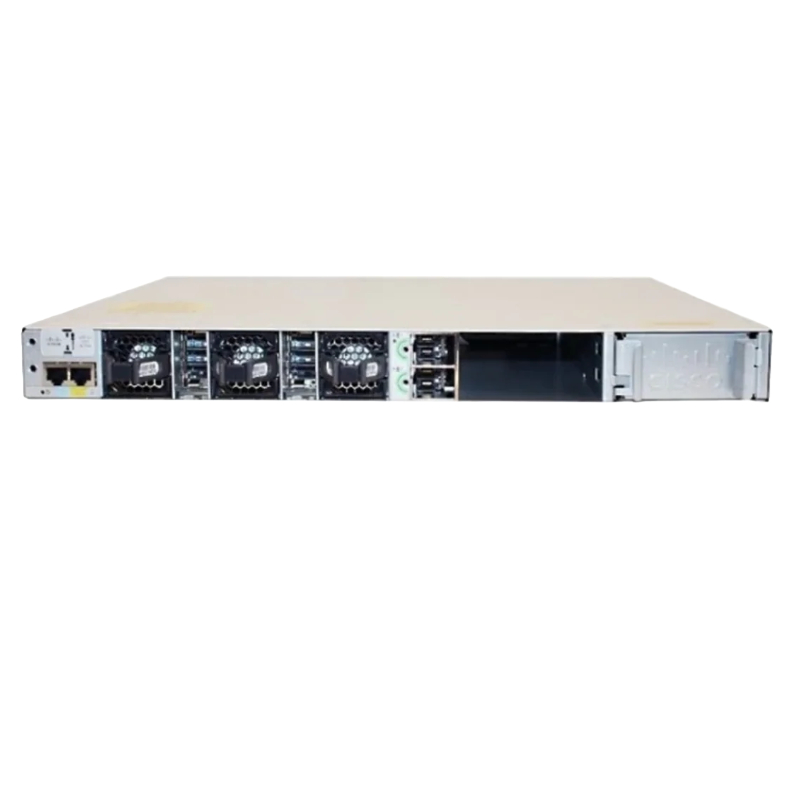

Cisco C9300-24U-A Catalyst 9300 24 Ports Ethernet Switch

Number Of Ports

The Cisco C9300-24U-A Ethernet Switch is equipped with a remarkable 24 ports, making it an ideal choice for businesses and organizations that require a high-density network solution. With its extensive number of ports, this switch offers unparalleled connectivity options, allowing users to connect numerous devices simultaneously without compromising on performance or speed.

Overview of Cisco C9300-24U-A

Manufacturer Information

• Brand: Cisco
• Part Number: C9300-24U-A
• Product Line: Catalyst
• Series: 9300
• Model: C9300-24U

Product Specifications

• Type: Ethernet Switch
• Number of Network Ports: 24
• Uplink Ports: Yes
• Modular Design: No
• Stacking Ports: Yes
• Expansion Slots: 24 x Gigabit Ethernet

Layer 2 Switching Performance

• Supported Media: Twisted Pair
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T

Networking and Communication

• Supported Layer: 2

Management and Protocols

• Manageable: Yes
• Remote Management: SNMP (v1, v2c, v3), RMON (v1, v2), CLI, NETCONF, RESTCONF
• Encryption: 128-bit AES

Protocols and Routing

• Supported Routing Protocols: OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, PBR, RIPng

Power Specifications

• Power Over Ethernet (PoE): UPOE
• PoE Budget: 830 W

Features and Capabilities

• Support for DHCP, trunking, Syslog
• Full Duplex Mode
• Stateful Switchover (SSO)
• Class-Based Weighted Fair Queuing (CBWFQ)
• Weighted Random Early Detection (WRED)
• Spanning Tree Protocol (STP) Support
• Access Control List (ACL) Support
• Quality of Service (QoS)
• Non-Stop Routing (NSR)
• Remote Switch Port Analyzer (RSPAN)
• Management Information Base (MIB)
• Cisco StackWise-480 Technology
• Cisco StackPower Technology
• Flexible NetFlow (FNF)
• Multicast Source Discovery Protocol (MSDP)
• 802.1x Authentication
• 16MB Packet Buffer
• FTP Client
• MACsec Support
• Three Fans
• Control Plane Protection (CoPP)
• Virtual Extensible LAN (VXLAN)
• Application Visibility and Control (AVC)
• Source-Specific Multicast (SSM)
• Integrated Wireshark
• VLAN Double Tagging (Q-in-Q)
• Ethernet over MPLS (EoMPLS)
• Hierarchical Virtual Private LAN Service (H-VPLS)
• Private VLAN
• Layer 3 VPN (L3VPN) Support
• Encapsulated Remote SPAN (ERSPAN)
• Security Group Tag (SGT) Caching
• Security Group Access Control List (SGACL)
• IT Service Management (ITSM) Integration
• Third-Party IP Address Management (IPAM) Integration

Memory Specifications

• RAM: 8 GB
• Flash Memory: 16 GB

Power and Environmental Details

• Power Source: Power Supply
• Redundant Power Supply: Not Supported
• Operating Temperature Range: 23 °F to 113 °F
• Storage Temperature Range: -40 °F to 158 °F
• Operating Humidity Range: 5 – 90% (non-condensing)
• Storage Humidity Range: 5 – 90% (non-condensing)

Compliance and Standards

• MTBF: 238,410 hours
• Compliance: CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1

Unmatched Connectivity

One of the primary benefits of the Cisco C9300-24U-A's 24 ports is the ability to connect a variety of devices to the network infrastructure. Whether it's computers, printers, servers, or any other network-enabled device, this switch provides abundant connection possibilities. This feature is particularly beneficial for small to medium-sized businesses that rely on multiple devices to perform their daily operations. With the Cisco C9300-24U-A, you can effortlessly interconnect all your essential devices, ensuring smooth and efficient communication across your network.

Scalability and Future-Proofing

Having 24 ports at your disposal means that the Cisco C9300-24U-A Ethernet Switch offers excellent scalability options. As your business grows and expands, you can easily add more devices to your network without worrying about running out of available ports. This scalability ensures that your network infrastructure can adapt to your organization's evolving needs and can accommodate future hardware additions without requiring significant upgrades or replacements.

Additionally, the Cisco C9300-24U-A provides future-proofing capabilities. With its numerous ports, you can plan for future growth and technological advancements. By having more ports available than you currently require, you can be prepared for any additional devices or services that may become essential in the future. This foresight saves you from potential costly upgrades down the line and ensures a seamless transition as your business expands.

Improved Network Performance

The 24 ports on the Cisco C9300-24U-A play a vital role in optimizing network performance. By distributing network traffic across multiple ports, this switch effectively reduces congestion and prevents bottlenecks. Each port operates independently, allowing for efficient data flow and minimizing the risk of network slowdowns or downtime. This enhanced performance is crucial for businesses that rely on real-time data processing, video streaming, or bandwidth-intensive applications.

Enhanced Network Flexibility

The ample number of ports on the Cisco C9300-24U-A also provides enhanced network flexibility. With 24 ports, you have the freedom to configure your network in various ways to suit your specific requirements. You can establish separate VLANs (Virtual Local Area Networks) to segment your network for different departments or purposes. This segmentation allows for improved security, easier network management, and more efficient resource allocation.

Furthermore, the Cisco C9300-24U-A supports various networking protocols, including Ethernet, Fast Ethernet, and Gigabit Ethernet. This wide compatibility ensures that you can connect devices with different networking capabilities without any issues. Whether you need to connect legacy devices or cutting-edge technologies, this switch has you covered.

Cost-Effective Solution

The Cisco C9300-24U-A's 24 ports offer a cost-effective solution for businesses seeking extensive connectivity options. Instead of investing in multiple switches or complex networking equipment, this switch consolidates your network infrastructure into a single device. By reducing the number of required switches, you save on hardware costs, cabling expenses, and power consumption. Moreover, managing and maintaining a unified network is more straightforward and less time-consuming compared to managing multiple devices.

In conclusion, the Cisco C9300-24U-A Ethernet Switch's 24 ports provide unmatched connectivity options, scalability, future-proofing capabilities, improved network performance, enhanced network flexibility, and cost-effectiveness. Whether you are a small business or a large enterprise, this switch ensures seamless connectivity, optimal performance, and the ability to adapt to your organization's evolving needs. With the Cisco C9300-24U-A, you can confidently build a robust and efficient network infrastructure that supports your business growth and technological advancements.
