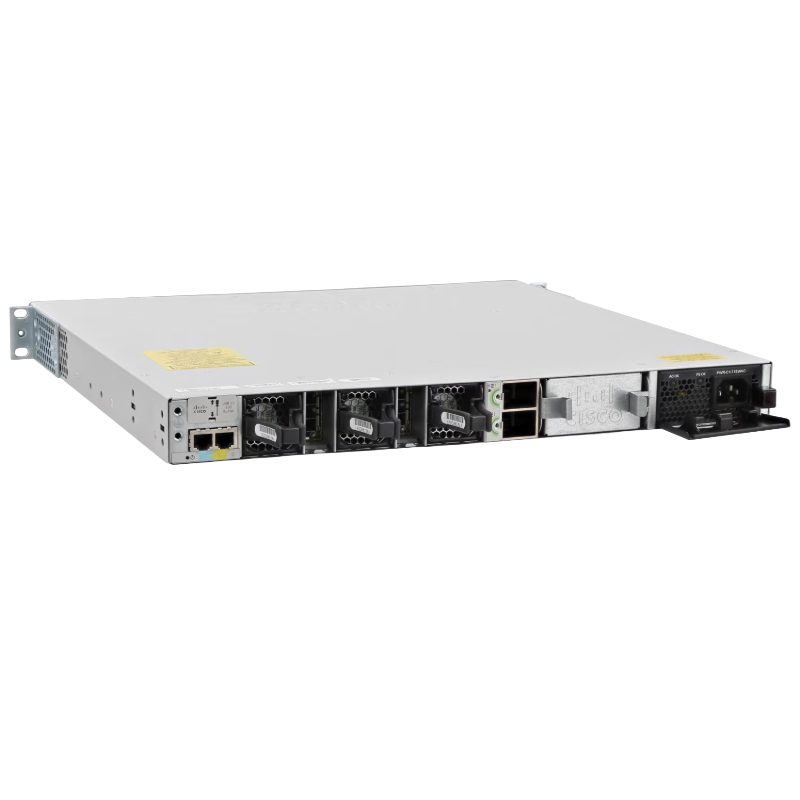

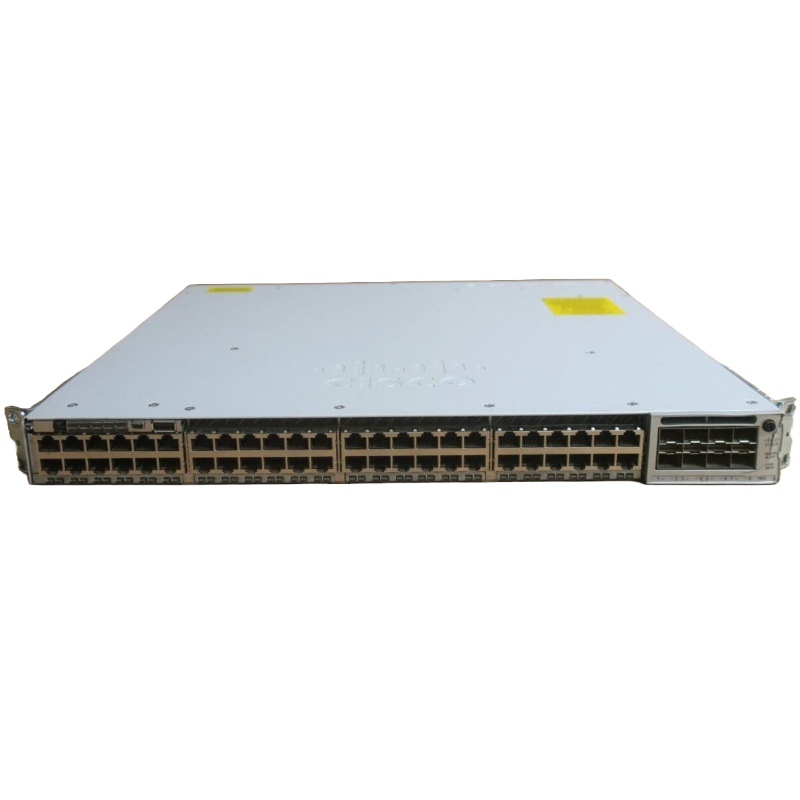

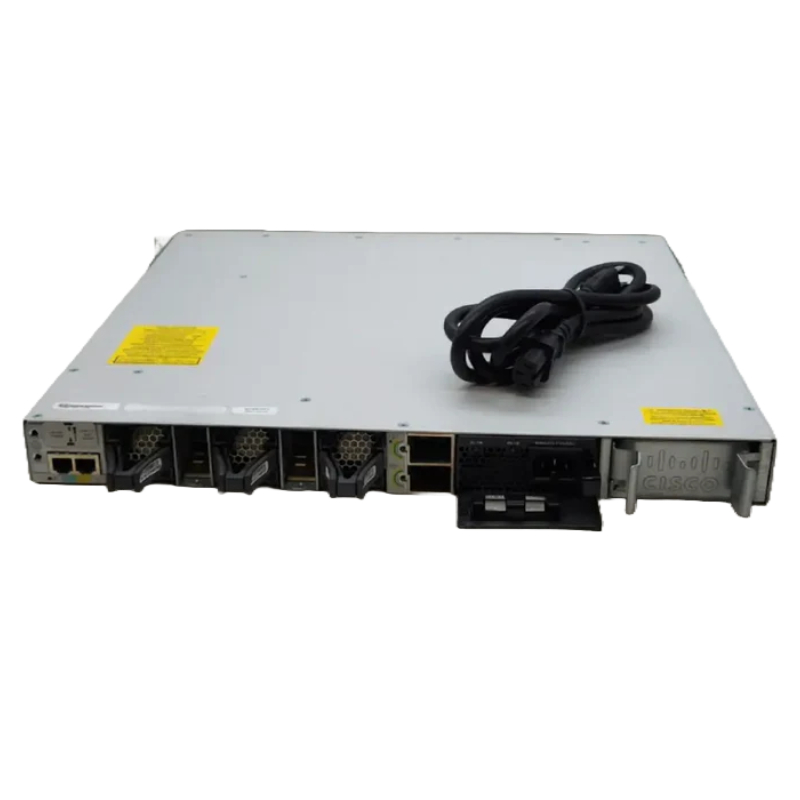

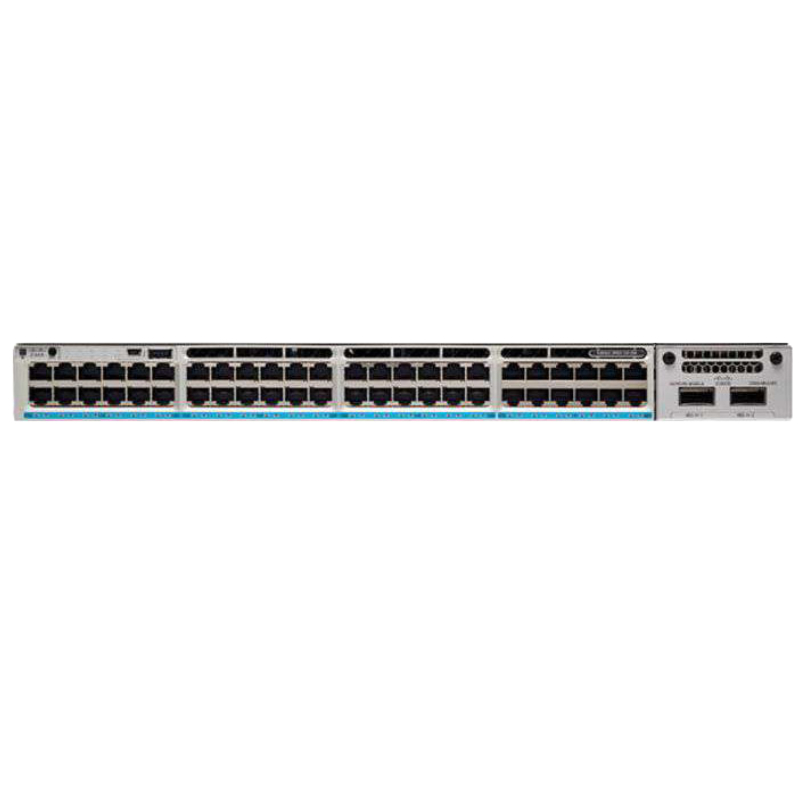

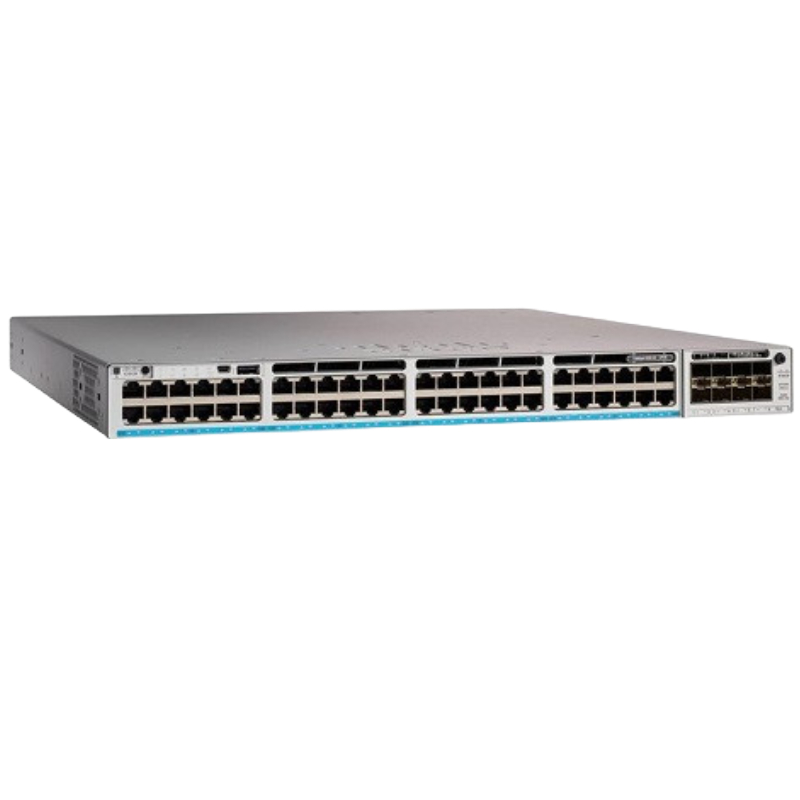

Cisco C9300-48H-E Catalyst 9300 Net Adv Expansion Slot UPoE+ 48 Ports Switch

Product Overview

• Device Type: 48-Port L3 Managed Stackable Switch
• Rack Mountable: 1U Enclosure
• Network Type: Gigabit Ethernet

Port and Power Specifications

Port Configuration

• Ports: 48 x 10/100/1000 Mbps (UPOE+)
• Power Over Ethernet: UPOE+
• Power Budget: 822 Watts

Performance Metrics

• Switching Capacity: 256 Gbps
• Stacking Bandwidth: 736 Gbps
• Forwarding Rate: 190.48 Mpps
• Forwarding Rate with Stacking: 547.62 Mpps

Capacity and Table Entries

Routing Table Entries

• IPv4 Routing Table: 32,000 Entries
• IPv6 Routing Table: 16,000 Entries
• Flexible NetFlow Entries: 64,000 Entries
• VLAN IDs: 4,000
• Switched Virtual Interfaces (SVIs): 2,000

Additional Specifications

• MAC Address Table Size: 32,000 Entries
• Jumbo Frame Support: 9,198 Bytes

Routing and Management Protocols

Supported Protocols

• Routing Protocols: OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, Policy-Based Routing (PBR), RIPng
• Remote Management: SNMP (v1, v2c, v3), RMON (v1, v2), CLI, NETCONF, RESTCONF

Security and Features

Security Protocols

• Encryption: 128-bit AES
• Security Features: Access Control Lists (ACLs), 802.1X Authentication, MACsec Support, Security Group Tag (SGT) Caching, Security Group ACL (SGACL)

Additional Features

• DHCP Support
• Trunking
• Syslog Support
• Full Duplex Mode
• Stateful Switchover (SSO)
• Class-Based Weighted Fair Queuing (CBWFQ)
• Weighted Random Early Detection (WRED)
• Spanning Tree Protocol (STP)
• Quality of Service (QoS)
• Non-Stop Routing (NSR)
• Remote Switch Port Analyzer (RSPAN)
• Management Information Base (MIB)
• Cisco StackWise-480 Technology
• Cisco StackPower Technology
• Flexible NetFlow (FNF)
• Multicast Source Discovery Protocol (MSDP)
• Application Visibility and Control (AVC)
• Source-Specific Multicast (SSM)
• Integrated Wireshark
• VLAN Double Tagging (Q-in-Q)
• Ethernet Over MPLS (EoMPLS)
• Hierarchical Virtual Private LAN Service (H-VPLS)
• Private VLAN
• Layer 3 VPN (L3VPN) Support
• Encapsulated Remote Span (ERSPAN)
• IT Service Management (ITSM) Integration
• Third-Party IP Address Management (IPAM) Integration

Compliance and Connectivity

Standards Compliance

• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1d, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at

Memory and Expansion

• RAM: 8 GB
• Flash Memory: 16 GB
• Expansion Slots: 1 Total (1 Free)
• Interfaces: 48 x 1000Base-T RJ-45 UPOE+, 1 x USB 2.0

Power Requirements

• Power Supply: Internal Hot-Plug Power Supply
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Power Redundancy: Optional
• Power Provided: 1,100 Watts
• Voltage Required: AC 120/230 V (50 - 60 Hz)

Ports

The Cisco C9300-48H-E Rack-mountable Switch boasts an impressive 48 ports, making it a highly versatile and efficient networking solution for businesses of all sizes. With this extensive number of ports, users can connect a wide range of devices and expand their network capabilities without any limitations.

Increased Connectivity

Having 48 ports on the Cisco C9300-48H-E allows users to connect numerous devices simultaneously, including computers, servers, printers, IP phones, and more. This enables seamless communication and data transfer within the network, ensuring that employees can collaborate efficiently and access resources without any bottlenecks.

Scalability

In today's dynamic business environment, scalability is crucial. The Cisco C9300-48H-E provides ample room for growth by offering 48 ports. Whether you have a small business with limited networking needs or a large enterprise requiring extensive connectivity options, this switch can adapt to your requirements. You can easily add or remove devices as your business expands or changes, ensuring that your network remains agile and future-proof.

Flexible Network Design

The 48 ports on the Cisco C9300-48H-E allow for flexible network design and topology. Users can create VLANs (Virtual Local Area Networks) to isolate traffic, prioritize certain devices or applications, and enhance overall network performance. Additionally, with a large number of ports available, organizations can design redundant network paths for increased reliability.

Feature

One of the standout features of the Cisco C9300-48H-E Rack-mountable Switch is its Network Advantage Expansion Slot UPoE+. This feature provides users with numerous benefits and plays a crucial role in enhancing network capabilities.

Power over Ethernet+

The UPoE+ capability allows the switch to provide both power and data to connected devices. This eliminates the need for separate power cables, simplifying installation and reducing clutter. With UPoE+, the switch can deliver up to 60 watts of power per port, making it suitable for power-hungry devices such as wireless access points, IP cameras, and video conferencing equipment. This feature is particularly advantageous in environments where power outlets are limited or difficult to access.

Cost Savings

By utilizing UPoE+ technology, businesses can save on infrastructure costs. Traditional power outlets require additional wiring and electrical work, which can be expensive and time-consuming. With the Cisco C9300-48H-E's Network Advantage Expansion Slot UPoE+, organizations can power devices directly through the switch, eliminating the need for costly electrical installations. This not only reduces upfront expenses but also lowers ongoing maintenance costs.

Future-Proofing

As technology advances, devices require more power to operate efficiently. The Network Advantage Expansion Slot UPoE+ ensures that your network is ready for the future by providing sufficient power to support the latest devices and technologies. Whether it's deploying high-definition IP cameras or implementing advanced wireless access points, this feature guarantees that your network infrastructure can handle the demands of tomorrow.

In conclusion, the Cisco C9300-48H-E Rack-mountable Switch with its 48 ports offers users increased connectivity, scalability, and flexible network design options. Additionally, its Network Advantage Expansion Slot UPoE+ feature provides Power over Ethernet+ capabilities, resulting in cost savings, simplified installations, and future-proofing. With these features, businesses can build a robust and efficient network infrastructure that meets their current needs while accommodating future growth and technological advancements.
