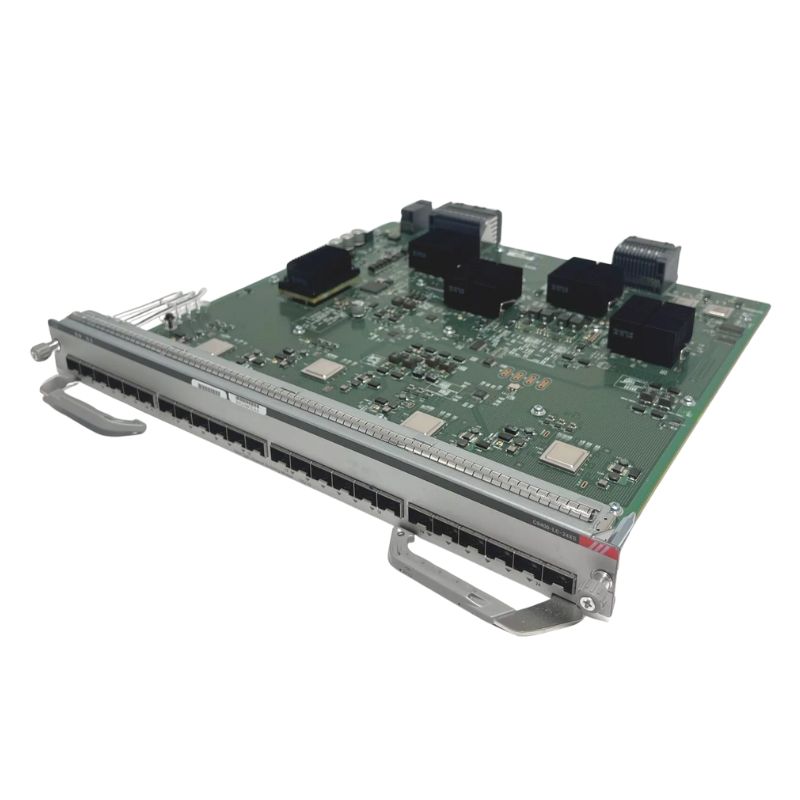

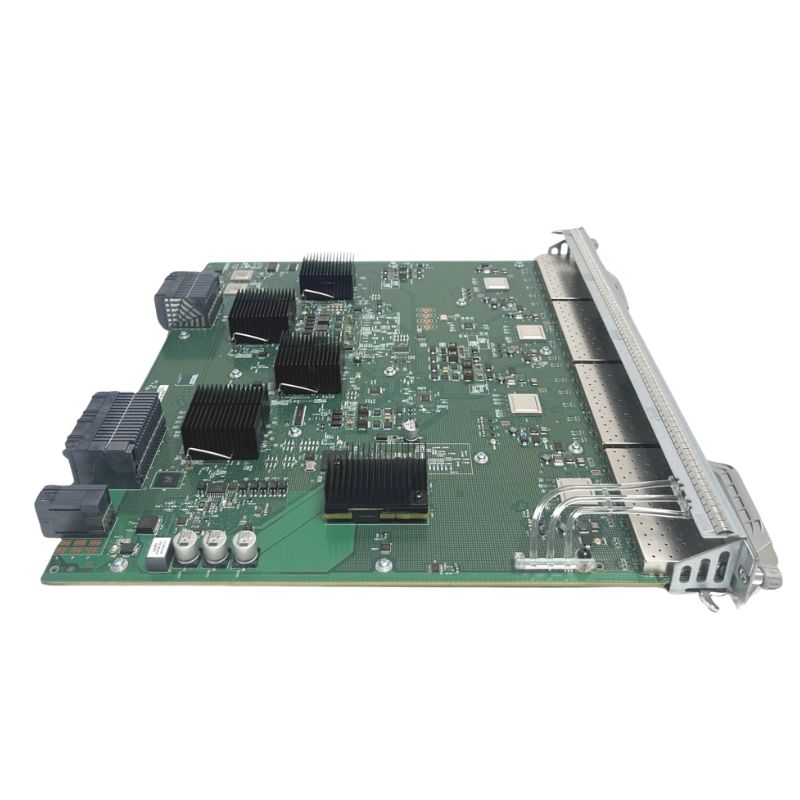

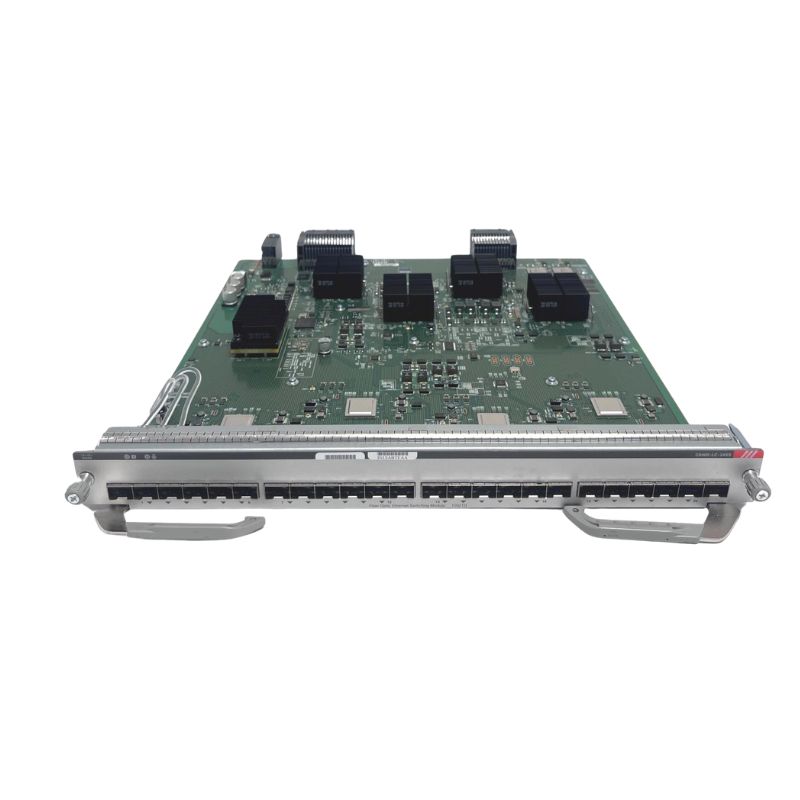

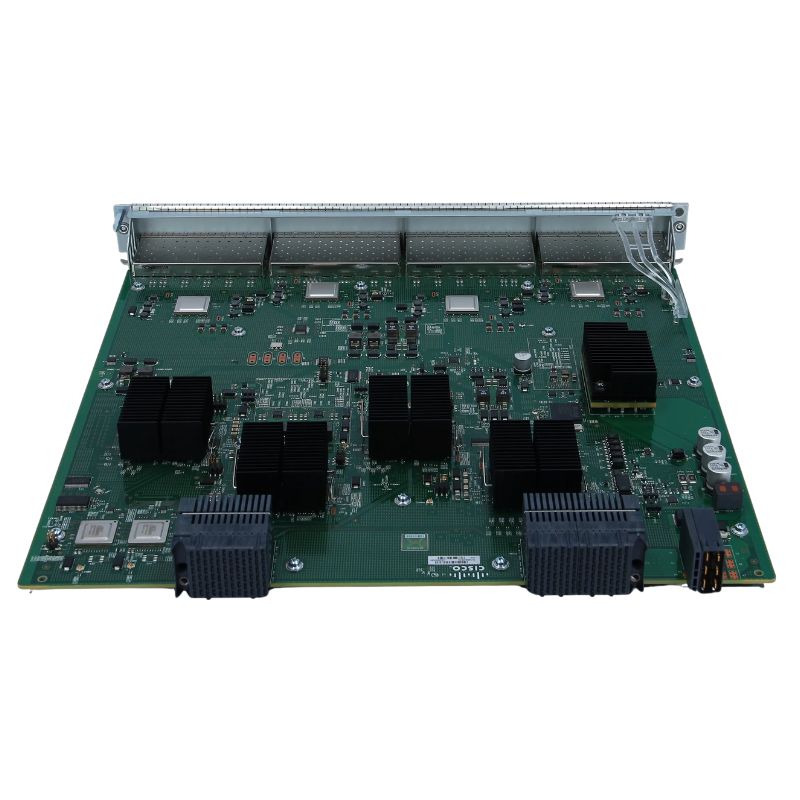

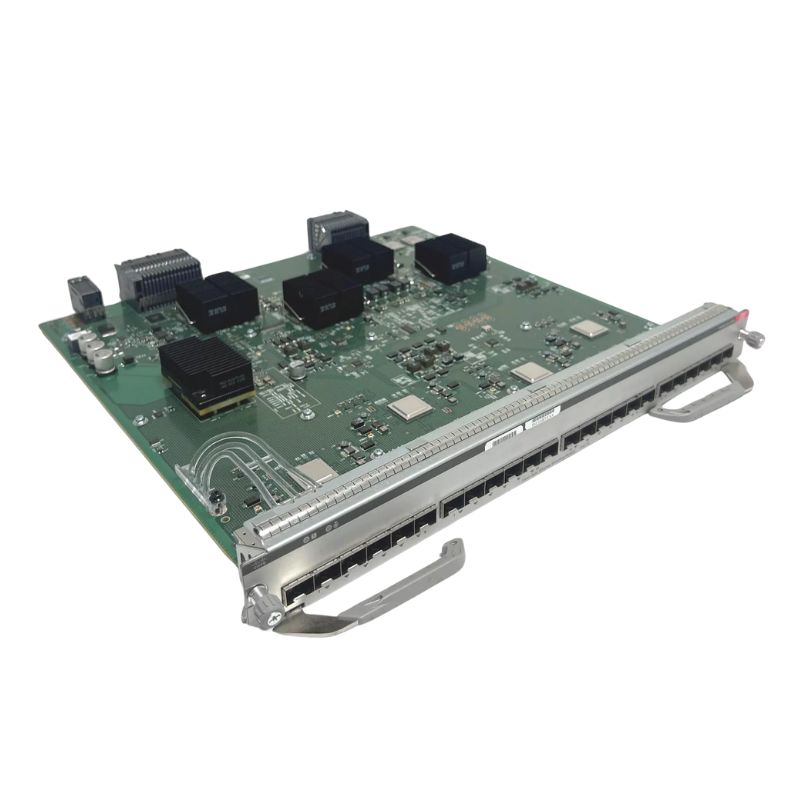

Cisco C9400-LC-24XS Catalyst 9400 Series Ethernet Module

Series: Cisco Catalyst 9400

The Cisco C9400-LC-24XS Ethernet Module is part of the Cisco Catalyst 9400 Series, which is a family of modular switches designed for enterprise networks. The Catalyst 9400 Series offers exceptional performance, scalability, and flexibility, making it an ideal choice for organizations of all sizes.

Product Specifications

• Brand: Cisco
• Part Number: C9400-LC-24XS
• Product Type: Expansion Module

Technical Specifications

Application and Usage

• Purpose: Data Networking, Optical Network Integration
• Supported Media: Optical Fiber
• Ethernet Technology: Gigabit Ethernet
• Network Standard: 1000Base-X

Ports and Expansion

• Total Ports: 24 Gigabit Ethernet Ports
• Expansion Slot Types: SFP+, SFP (mini-GBIC)
• Form Factor: Desktop

Performance Metrics

• Number of Expansion Slots: 24

Environmental Conditions

Operating Temperature Range

• Minimum: 23 °F
• Maximum: 113 °F

Storage Temperature Range

• Minimum: -40 °F
• Maximum: 158 °F

Humidity Specifications

• Operating Humidity Range: 10% – 95% (non-condensing)
• Storage Humidity Range: 10% – 95% (non-condensing)

Key Features

• Jumbo Frames Support for larger packet sizes
• Energy Efficient Ethernet for reduced power consumption
• Precision Time Protocol (PTP) for accurate time synchronization
• TrustSec Support for enhanced network security

Compliance and Standards

• Certifications: CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3
• Safety Standards: AS/NZS 60950-1, ICES-003 Class A
• Laser Safety: Laser Class 1
• Regulations: FCC CFR47 Part 15, UL 60950-1, IEC 60950-1
• Additional Compliance: RoHS, EN 300 386 V1.6.1, EN 55022 Class A
• Network Standards: IEEE 1588, EN 55032 Class A, CISPR 32 Class A
• Canadian Standards: CAN/CSA-C22.2 No. 60950-1

Benefits of the Catalyst 9400 Series

The Catalyst 9400 Series switches provide numerous benefits for users:

1. High Performance

With the Catalyst 9400 Series, users can enjoy high-performance switching with advanced features. The switches are equipped with powerful processors and high-speed interfaces, ensuring fast data transfer and low latency. This enables organizations to handle high-bandwidth applications and deliver a seamless user experience.

2. Scalability

The modular design of the Catalyst 9400 Series allows for easy expansion and scalability. Organizations can start with a smaller configuration and add modules as their network needs grow. This flexibility ensures that the switches can adapt to changing requirements and accommodate future technology advancements.

3. Enhanced Security

Cisco understands the importance of security in today's digital landscape. The Catalyst 9400 Series switches come with integrated security features that protect networks from threats and unauthorized access. These switches support advanced encryption protocols, access control lists, and network segmentation, providing a robust security framework for organizations.

4. Simplified Management

The Catalyst 9400 Series switches are designed to simplify network management. They support Cisco's intuitive network management platform, which provides a single interface to configure, monitor, and troubleshoot the switches. This centralized management approach saves time and resources, allowing IT teams to focus on more strategic tasks.

5. High Availability

With redundant power supplies and modular components, the Catalyst 9400 Series switches offer high availability and minimize downtime. Organizations can implement hot-swappable modules and power supplies, ensuring continuous operation even during hardware upgrades or failures. This reliability is crucial for businesses that rely heavily on their network infrastructure.

Number Of Ports: 24

The Cisco C9400-LC-24XS Ethernet Module comes with 24 ports, making it suitable for medium to large-scale network deployments. The number of ports is an essential feature for users as it determines the connectivity options and capacity of the switch.

Benefits of 24 Ports

The 24-port configuration offers several advantages for users:

1. Increased Connectivity

Having 24 ports allows organizations to connect a variety of devices to the switch. This includes servers, computers, printers, IP phones, access points, and other network devices. The ample number of ports ensures that there is enough capacity to support the connectivity needs of a growing network.

2. Flexibility

The 24-port configuration provides flexibility in network design and deployment. Organizations can allocate ports for different purposes, such as separating VLANs or creating dedicated connections for critical devices. This flexibility allows for efficient traffic management and improves overall network performance.

3. Future-Proofing

By choosing a switch with 24 ports, organizations can future-proof their network infrastructure. As technology advances and more devices require network connectivity, having extra ports ensures that there is room for expansion without the need for additional hardware investments.

4. Simplified Cable Management

A switch with a sufficient number of ports helps in maintaining a clean and organized cabling infrastructure. With 24 ports, organizations can neatly route cables without overburdening any single port. This simplifies cable management, reduces clutter, and makes troubleshooting easier.

5. Cost-Effective Solution

The 24-port configuration strikes a balance between cost and capacity. It offers an adequate number of ports for most medium-sized networks without the excessive cost associated with high-density switches. This makes it a cost-effective solution for organizations looking to expand their network without breaking the bank.

Conclusion

The Cisco C9400-LC-24XS Ethernet Module, part of the Catalyst 9400 Series, is an excellent choice for organizations seeking high-performance, scalable, and secure network switches. With its 24 ports, it provides ample connectivity options while ensuring flexibility, future-proofing, simplified management, and cost-effectiveness. By choosing this module, users can build a robust and reliable network infrastructure that meets their current needs and can adapt to future growth and technological advancements.
