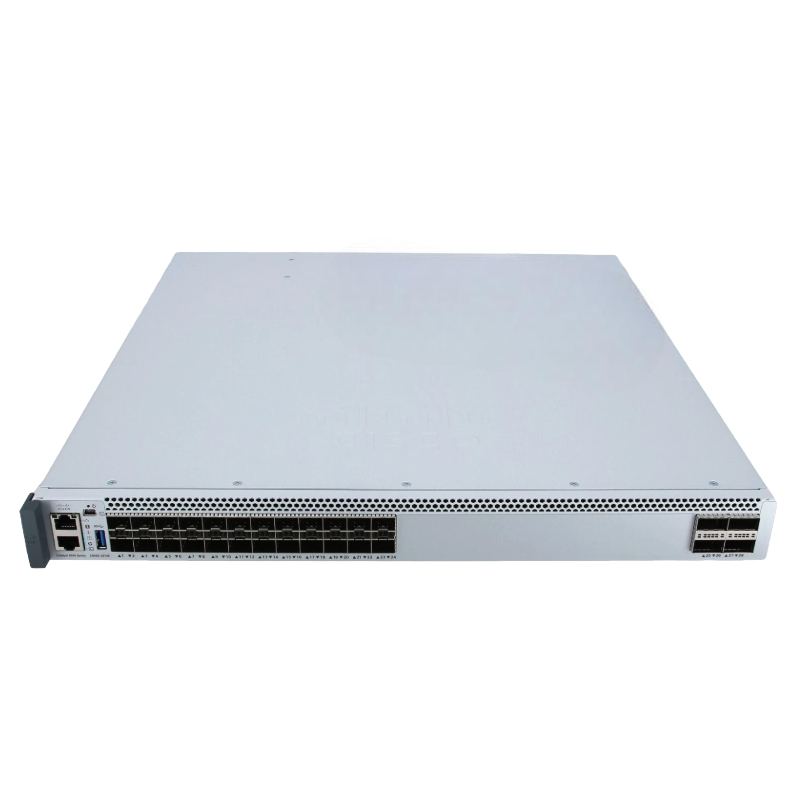

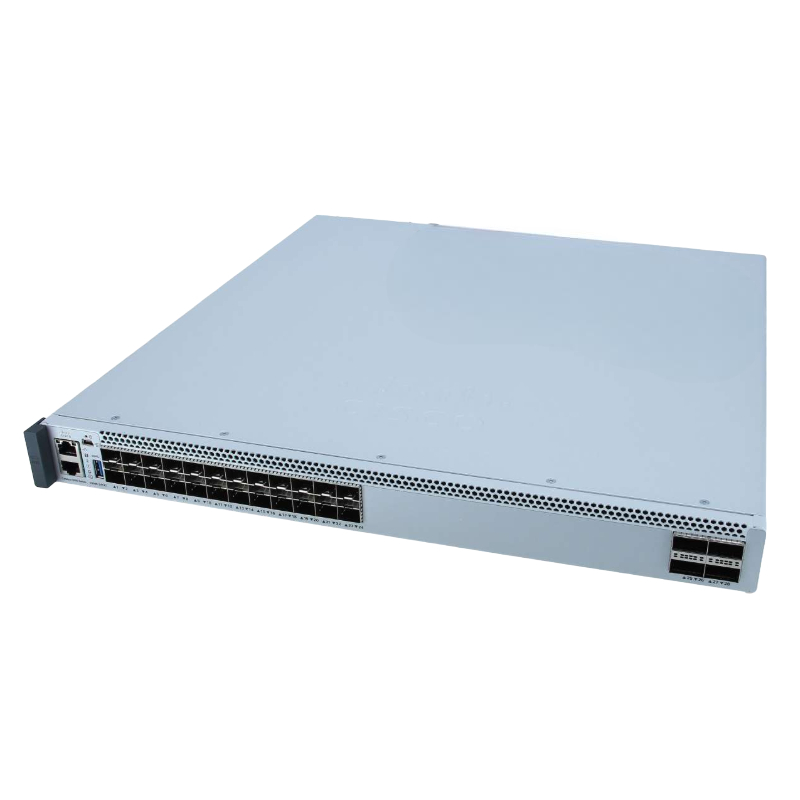

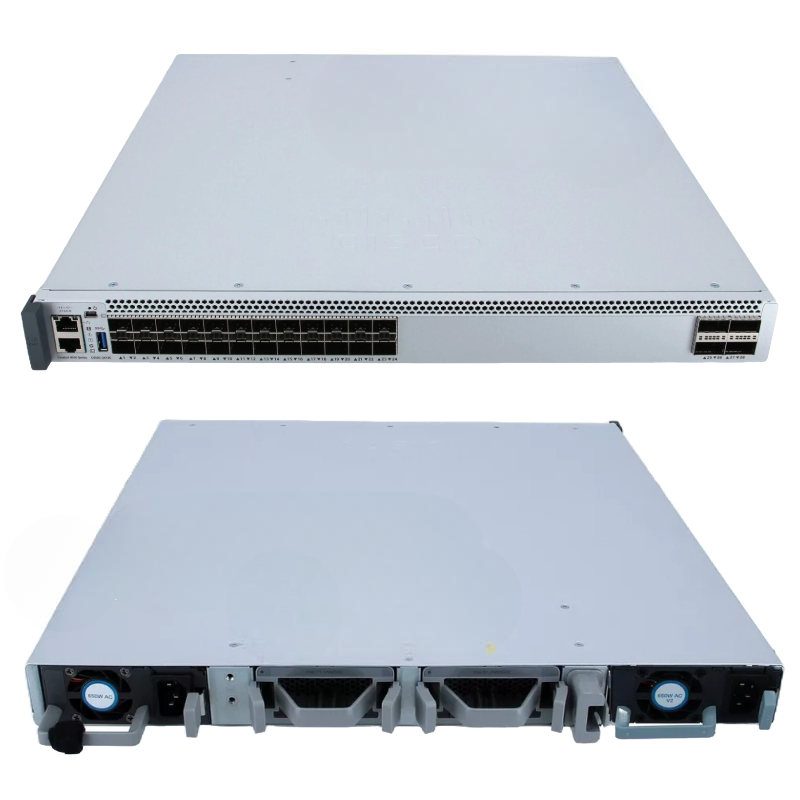

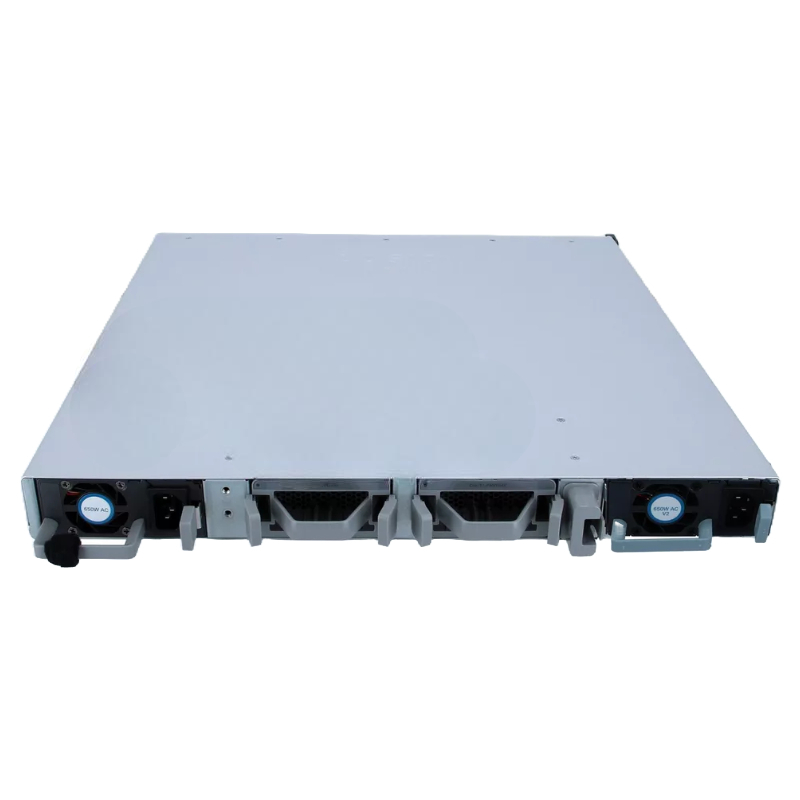

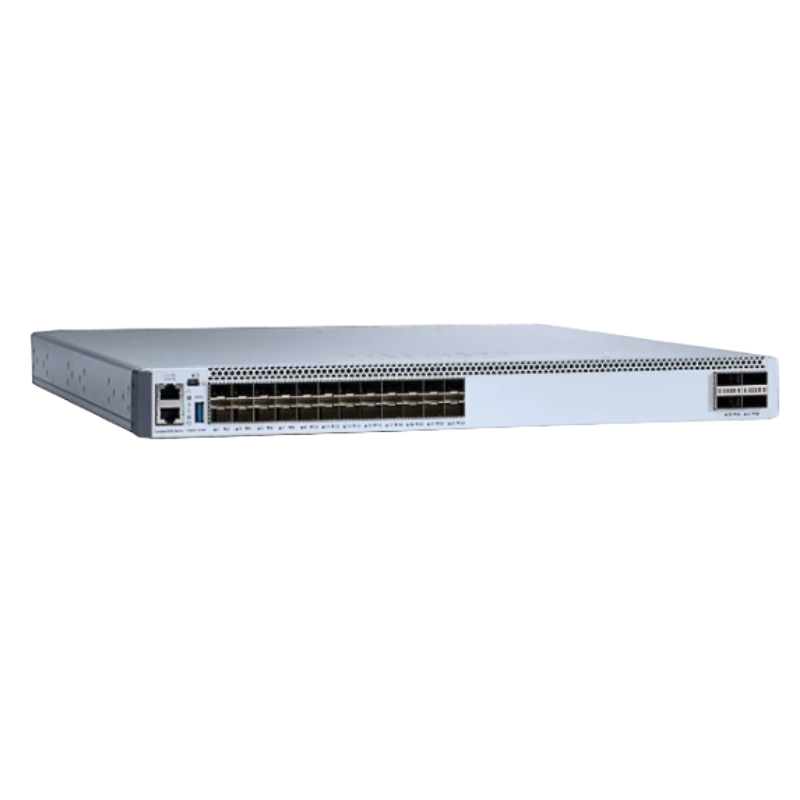

Cisco C9500-24Y4C-E Catalyst 9500 24-Ports 40/100G Network Essential Switch

Product Overview

The CISCO Catalyst 9500-24Y4C-E is a high-performance network switch designed for robust network management and connectivity. This rack-mountable switch offers a range of advanced features for efficient network operations.

Device Details

• Type: Managed Network Switch
• Port Configuration: 24 Ports
• Form Factor: Rack-mountable (1U)
• Subtype: 25 Gigabit Ethernet

Port and Interface Specifications

• Ports: 24 x 25 Gigabit SFP28
• Additional Interfaces:
  • 4 x 100 Gigabit LAN
  • 2 x USB 3.0

Performance Metrics

• Switching Capacity: 1.6 Tbps (Full Duplex)
• Forwarding Rate: 1 Bpps

Capacity and Scalability

• Routing Table Entries: 80,000
• IPv4 Routes:
  • Indirect: 212,000
  • Host: 90,000
• IPv6 Routes:
  • Indirect: 212,000
  • Host: 90,000
• Multicast Scale: 32,000
• QoS ACL Scale: 16,000
• Security ACL Scale: 270,000
• FNF Entries: 96,000
• VLAN IDs: 4,000
• Switched Virtual Interfaces (SVIs): 4,000

Routing Protocol Support

• OSPF
• RIP-1 & RIP-2
• BGp
• EIGRP
• IGMP
• VRRP
• MSDP
• Policy-based Routing (PBR)
• RIPng

Management Protocols

• SNMP v1, v2c, v3
• RMON v1, v2
• NETCONF
• RESTCONF

Power Specifications

• Power Supply: Internal, Hot-plug
• Installed Quantity: 1
• Max Supported Quantity: 2
• Power Redundancy: Optional, 1+1 Scheme
• Power Provided: 650 Watts
• Voltage Required: AC 120/230 V (50 - 60 Hz)

Physical Dimensions

• Dimensions (W x D x H): 17.5 in x 18 in x 1.7 in
• Weight: 20.99 lbs

Ports

The Cisco Catalyst 9500 Switch is equipped with 24 ports, making it an ideal choice for businesses that require a high-performance networking solution. These ports offer numerous benefits and play a crucial role in ensuring seamless connectivity and efficient data transfer.

Increased Connectivity

With 24 ports, the Catalyst 9500 Switch provides ample connectivity options for businesses of all sizes. Whether you need to connect multiple computers, printers, servers, or other network devices, these ports offer the flexibility to accommodate your requirements. This allows you to build a robust and scalable network infrastructure that can support your growing business needs.

Improved Productivity

The abundance of ports on the Catalyst 9500 Switch enhances productivity by enabling simultaneous connections and data transfers. With more ports available, employees can connect their devices without worrying about limited availability. This eliminates the need for additional network switches or hubs, simplifying the network architecture and reducing potential bottlenecks.

Efficient Data Transfer

Each port on the Cisco Catalyst 9500 Switch is designed to deliver high-speed data transfer rates. With support for advanced technologies like Gigabit Ethernet, these ports ensure that data flows seamlessly across the network. This is particularly important for businesses that rely on data-intensive applications or deal with large file transfers regularly. The 24 ports provide sufficient bandwidth to handle the increased data traffic, resulting in faster and more efficient operations.

Rack Mountable

One of the key features of the Cisco Catalyst 9500 Switch is its rack-mountable design. This means that the switch can be easily mounted on a standard server rack, offering several advantages for businesses.

Space Efficiency

By mounting the Catalyst 9500 Switch on a server rack, businesses can optimize their space utilization. Traditional switches often occupy valuable desk or floor space, which can be better utilized for other purposes. The rack-mountable design allows the switch to be neatly organized and secured on the rack, freeing up space in the office environment.

Improved Cable Management

Rack-mounted switches, such as the Catalyst 9500, promote better cable management. The switch can be positioned conveniently within the rack, reducing cable clutter and minimizing the risk of accidental disconnections. This not only improves the aesthetics of the network setup but also enhances overall reliability and reduces maintenance efforts.

Scalability and Flexibility

The rack-mountable design of the Catalyst 9500 Switch enables businesses to easily expand their network infrastructure. As the business grows, additional switches can be added to the server rack without any major disruptions. This scalability ensures that the network can accommodate future expansion and evolving requirements. Furthermore, the flexibility offered by a rack-mounted switch allows for easy reconfiguration or relocation of network equipment, facilitating changes in office layout or network design.

Network Speed

The Cisco Catalyst 9500 Switch boasts impressive network speeds of 40/100G. This feature is of utmost importance for businesses that demand high-performance networking capabilities.

Fast Data Transfer

The 40/100G network speed of the Catalyst 9500 Switch enables lightning-fast data transfer rates. This is particularly beneficial for businesses that rely on real-time data analysis, video conferencing, or other bandwidth-intensive applications. The high-speed connections ensure minimal latency and allow for smooth and uninterrupted data flow across the network.

Future-Proofing

The 40/100G network speed is future-proofing your network infrastructure. As technology advances and data demands continue to grow, having a switch capable of handling high-speed connections is essential. By investing in a switch with 40/100G capabilities like the Catalyst 9500, businesses can ensure that their network infrastructure remains capable of supporting emerging technologies and increased data requirements.

Enhanced Network Performance

The high network speed offered by the Catalyst 9500 Switch translates into improved network performance. It enables faster response times, reduced network congestion, and seamless connectivity across devices. This is particularly advantageous for businesses that rely on real-time collaboration or deal with high volumes of data traffic. With the 40/100G network speed, businesses can expect a significant boost in overall network performance and user experience.

License

The Cisco Catalyst 9500 Switch comes with an Essential license, which offers a range of benefits and plays a crucial role in ensuring the smooth operation of your network infrastructure.

Advanced Features

The Essential license unlocks a wide array of advanced features on the Catalyst 9500 Switch. These features include enhanced security capabilities, advanced quality of service (QoS) settings, and comprehensive management options. By leveraging these advanced features, businesses can fine-tune their network operations to meet their specific requirements and ensure optimal performance.

Scalability

The Essential license provides scalability options for businesses that anticipate future growth or changing needs. With this license, the Catalyst 9500 Switch can be seamlessly integrated into existing network environments or expanded to accommodate additional devices or users. This allows businesses to maintain a flexible and scalable infrastructure that can adapt to their evolving needs without requiring significant investments in new hardware.

Support and Updates

The Essential license also includes access to ongoing support and software updates from Cisco. This ensures that businesses can stay up-to-date with the latest security patches, bug fixes, and feature enhancements. By regularly updating the switch's firmware and software, businesses can mitigate potential vulnerabilities and benefit from improved performance and reliability.

In conclusion, the Cisco Catalyst 9500 Switch offers a range of features and benefits that cater to the needs of modern businesses. The 24 ports provide increased connectivity, improved productivity, and efficient data transfer. The rack-mountable design enhances space efficiency, cable management, and scalability. The 40/100G network speed ensures fast data transfer, future-proofing, and enhanced network performance. Lastly, the Essential license unlocks advanced features, scalability options, and ongoing support. By leveraging these features, businesses can build a robust and reliable network infrastructure that meets their current and future requirements.
