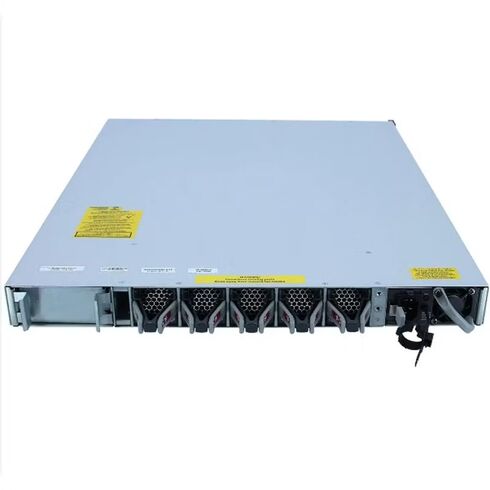

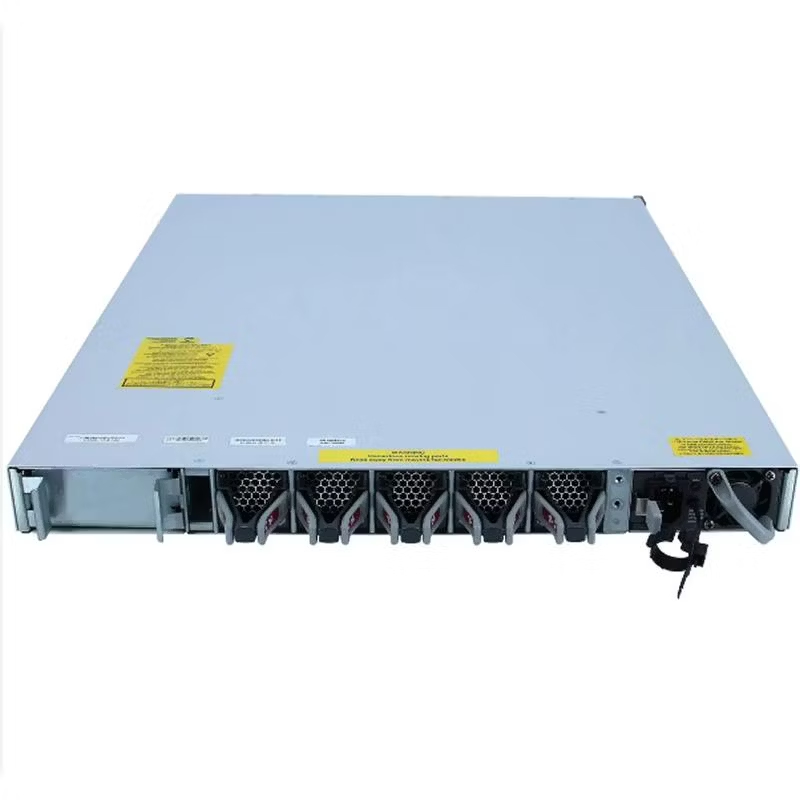

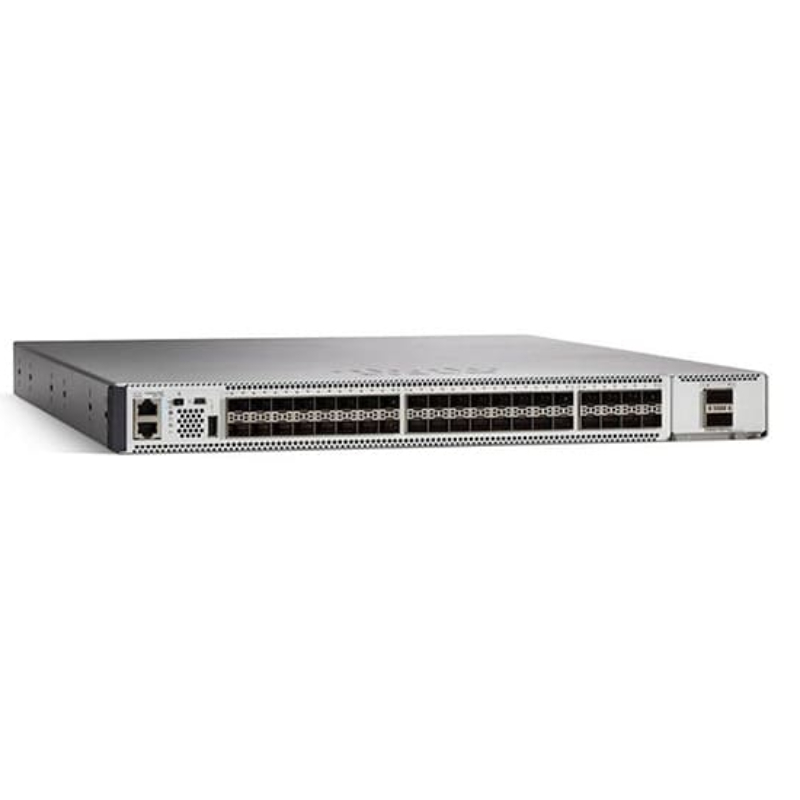

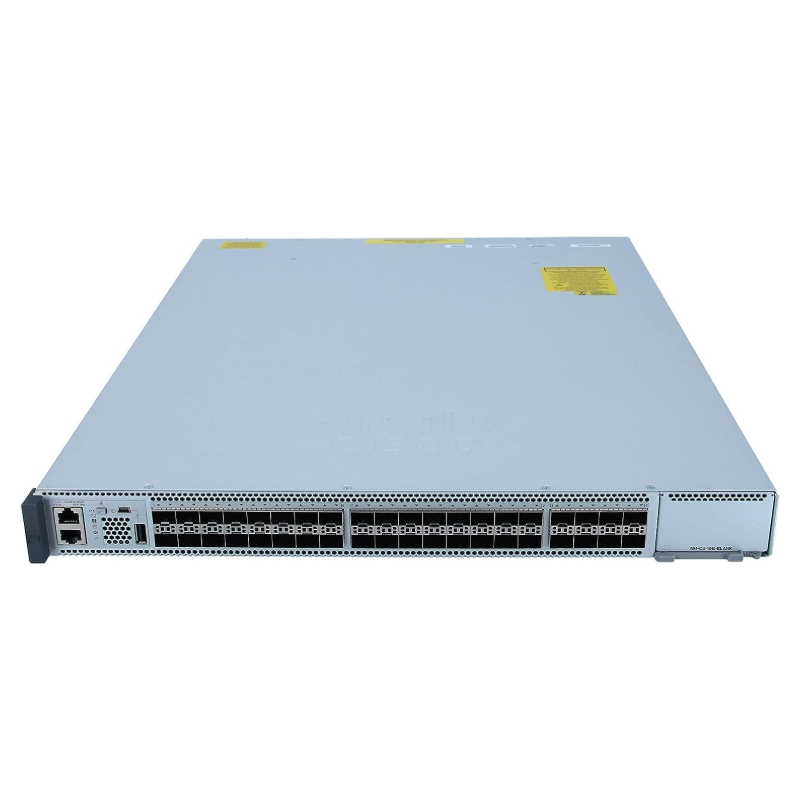

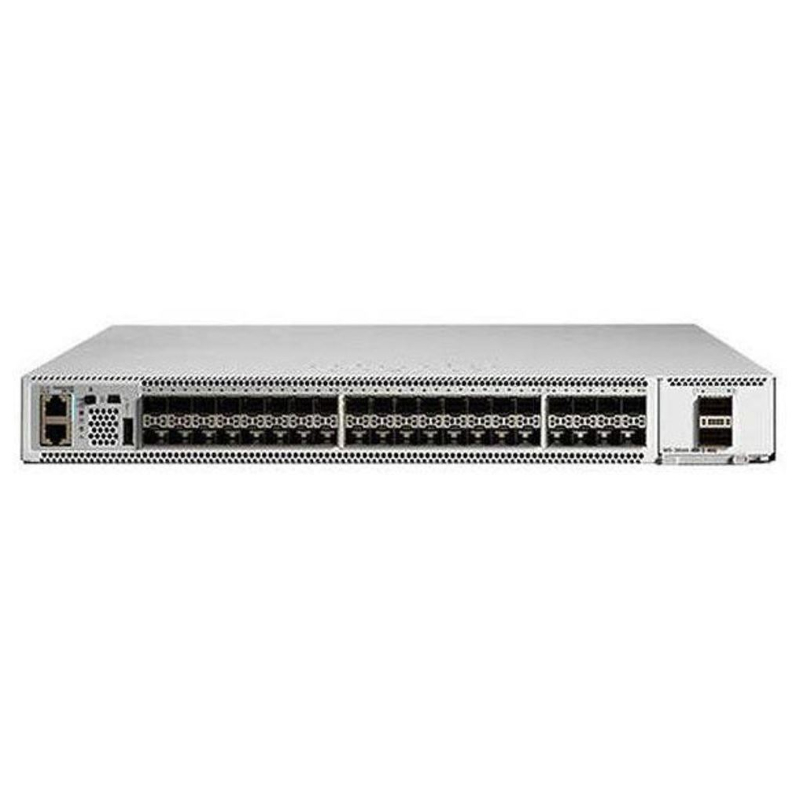

Cisco C9500-40X-E Catalyst 9500 40 Ports Switch Layer 3 Rack-mountable

Overview of Cisco C9500-40X-E

General Information

• Manufacturer: Cisco
• Model Number/SKU: C9500-40X-E
• Type: Ethernet Shared Port Adapter
• Product Line: Catalyst
• Series: 9500

Ethernet Switch Interfaces and Ports

• Uplink Port: Not available
• Expansion Slot Details: 40 x 10 Gigabit Ethernet
• Modular Design: Yes

Media and Performance

• Supported Media Type: Optical Fiber
• Ethernet Technology: 40 Gigabit Ethernet
• Network Technology: 40GBase-X

I/O Expansion for SFP+ Switch

• Total Expansion Slots: 40
• Types of Expansion Slots: SFP+ and SFP
• SFP+ Slots: 40

Key Features

• Access Control List (ACL) Support
• Integrated ASIC
• Cisco StackWise Virtual
• Flexible NetFlow (FNF)
• IGMP Snooping
• IPv6 Compatibility
• LLDP Support
• Location ID Separation Protocol (LISP)
• MACsec Support
• MLD Snooping
• NetFlow Integration
• Non-Stop Forwarding (NSF)
• Open Shortest Path First (OSPF)
• Quality of Service (QoS)
• Remote Switch Port Analyzer (RSPAN)
• Stateful Switchover (SSO)
• Switched Port Analyzer (SPAN)
• Syslog Support
• Virtual Route Redundancy Protocol (VRRP) Support
• VLAN Double Tagging (Q-in-Q)
• Weighted Random Early Detection (WRED)
• Zero-Touch Provisioning (ZTP)

Network and Communication

Layer Supported: 3

Management and Protocols

Manageable: Yes

Power Specifications

• Power Source: Power Supply
• Redundant Power Supply Supported: Yes
• Required Frequency: 50 – 60 Hz
• Power Output: 950 Watts
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V
• Power Redundancy: Optional
• Redundancy Scheme: 1+1

Ports

The Cisco Catalyst 9500 Switch is equipped with an impressive 40 ports, making it an ideal choice for businesses and organizations that require high-performance networking capabilities. These ports offer several benefits and play a crucial role in ensuring seamless communication and connectivity within a network.

Increased Connectivity

With 40 ports, the Cisco Catalyst 9500 Switch provides users with a significant increase in connectivity options. This allows for the connection of a wide range of devices, including computers, servers, printers, and other networking equipment. The abundance of ports ensures that there is ample room for expansion and future growth, enabling businesses to easily accommodate additional devices as their needs evolve.

Flexibility

The numerous ports on the Cisco Catalyst 9500 Switch offer users the flexibility to configure their network in a way that best suits their requirements. With multiple ports available, users can create separate VLANs (Virtual Local Area Networks) to segment their network traffic based on different departments or security levels. This flexibility allows for efficient network management and improved security.

Reduced Network Congestion

By providing a large number of ports, the Cisco Catalyst 9500 Switch helps to reduce network congestion. With more ports available, network traffic can be evenly distributed across multiple devices, preventing bottlenecks and ensuring smooth data transmission. This is especially important in environments where high network traffic is common, such as large businesses or data centers.

Layer

The Cisco Catalyst 9500 Switch operates at Layer 3 of the OSI model, which brings several benefits and is of great importance for users seeking advanced networking capabilities.

Enhanced Routing Functionality

Operating at Layer 3 means that the Cisco Catalyst 9500 Switch can perform advanced routing functions. It can make intelligent decisions about how to route network traffic based on IP addresses, allowing for efficient forwarding of data packets. This enhances the overall performance and efficiency of the network, especially in complex environments with multiple subnets or interconnected networks.

Improved Network Security

Layer 3 switches, such as the Cisco Catalyst 9500, offer enhanced network security features compared to Layer 2 switches. With Layer 3 capabilities, the switch can implement Access Control Lists (ACLs) to control traffic flow based on specific criteria, such as source or destination IP addresses. This provides an additional layer of security by preventing unauthorized access and protecting sensitive data.

Scalability

Layer 3 switches are highly scalable, making them suitable for networks that require expansion and growth. The Cisco Catalyst 9500 Switch can handle larger networks with ease, accommodating more devices and supporting increased network traffic. This scalability is crucial for businesses that anticipate future growth or have dynamic network requirements.

Mounting

The Cisco Catalyst 9500 Switch is rack-mountable, offering users a convenient and space-saving solution for their networking infrastructure.

Optimal Space Utilization

With rack-mountable capabilities, the Cisco Catalyst 9500 Switch allows for efficient use of limited space in server rooms or data centers. By mounting the switch in a rack, users can consolidate their networking equipment in one central location, saving valuable floor space. This is particularly important for businesses with limited physical space or those looking to optimize their infrastructure layout.

Improved Cable Management

Rack-mounting the Cisco Catalyst 9500 Switch provides users with improved cable management options. With all networking equipment neatly organized within the rack, cables can be neatly routed and managed, reducing clutter and minimizing the risk of cable damage or accidental disconnections. This not only improves the overall aesthetics of the network setup but also simplifies troubleshooting and maintenance tasks.

Easy Installation and Maintenance

The rack-mountable design of the Cisco Catalyst 9500 Switch ensures easy installation and maintenance. The switch can be quickly mounted in a standard 19-inch rack, allowing for hassle-free setup. Additionally, the accessibility provided by rack mounting simplifies maintenance tasks, such as replacing or upgrading components, as everything is easily accessible from the front of the rack.

Sku

The Cisco Catalyst 9500 Switch is available with the SKU (stock-keeping unit) C9500-40X-E, which offers unique benefits and importance for users seeking specific features and capabilities.

High Performance

The C9500-40X-E SKU of the Cisco Catalyst 9500 Switch is designed to deliver high-performance networking capabilities. With its powerful hardware and advanced software features, this SKU is optimized for demanding network environments. It can handle high bandwidth applications, large data transfers, and heavy network traffic without compromising performance or reliability.

Advanced Features

The C9500-40X-E SKU includes advanced features that cater to the needs of enterprise-level networks. It supports advanced routing protocols, such as OSPF (Open Shortest Path First) and BGP (Border Gateway Protocol), enabling efficient and scalable network routing. Additionally, this SKU offers advanced security features, such as MACsec (Media Access Control Security), which ensures secure communication between network devices.

Future-Proofing

By choosing the Cisco Catalyst 9500 Switch with the C9500-40X-E SKU, users can future-proof their network infrastructure. This SKU provides ample room for growth and expansion, allowing businesses to adapt to evolving requirements without the need for significant hardware upgrades or replacements. With its robust performance and advanced features, this SKU ensures that the network can support future technologies and demands.

In conclusion, the Cisco Catalyst 9500 Switch offers an impressive array of features, with each feature providing unique benefits and importance for users. The 40 ports enable increased connectivity, flexibility, and reduced network congestion. The Layer 3 functionality enhances routing capabilities, improves network security, and offers scalability. The rack-mountable design optimizes space utilization, improves cable management, and simplifies installation and maintenance. Finally, the C9500-40X-E SKU provides high performance, advanced features, and future-proofing capabilities. Overall, the Cisco Catalyst 9500 Switch is a versatile and reliable networking solution that caters to the needs of businesses and organizations of all sizes.
