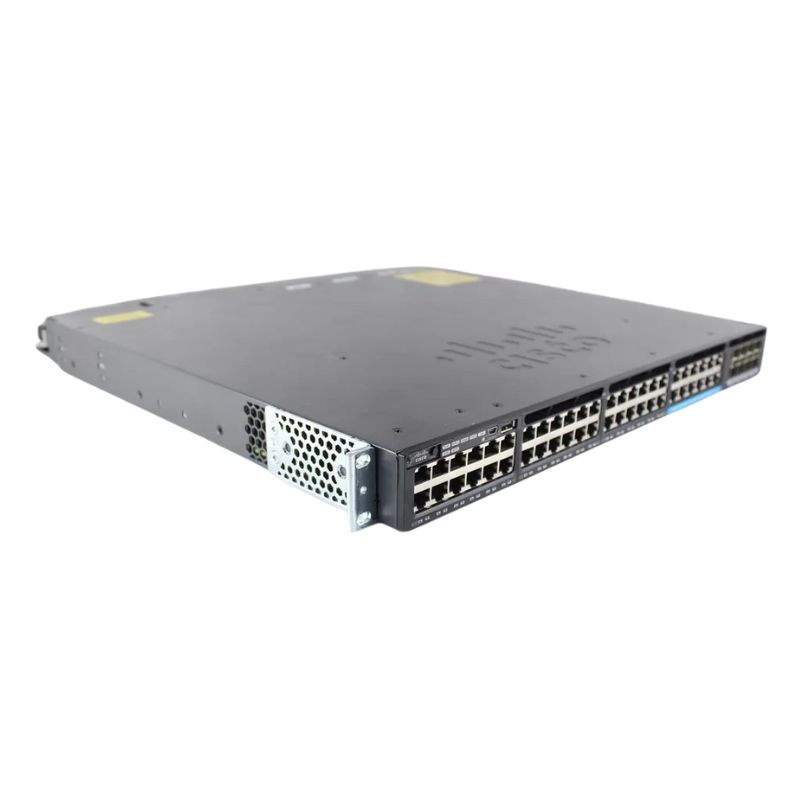

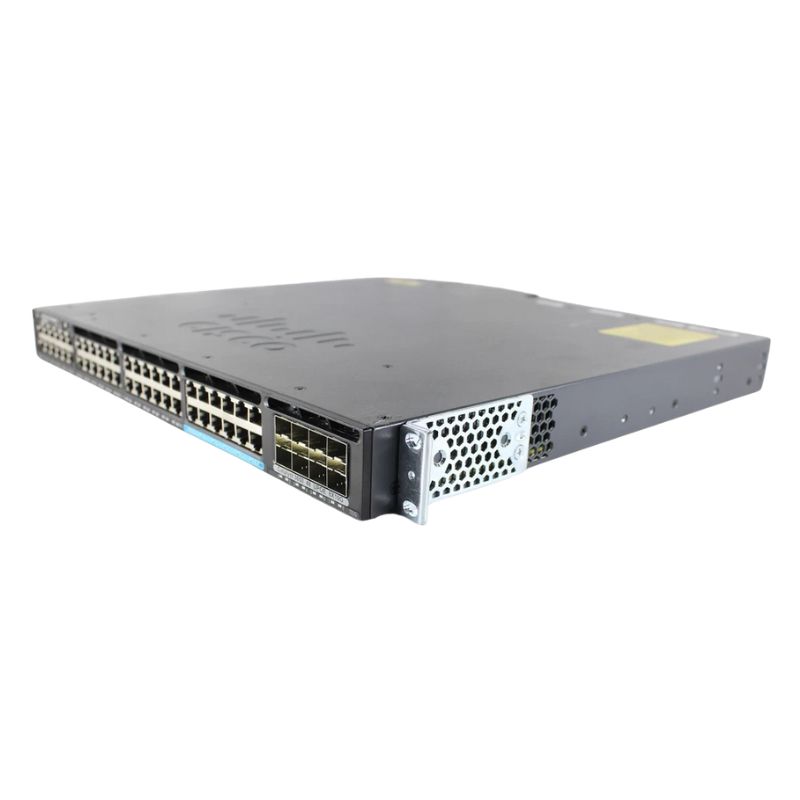

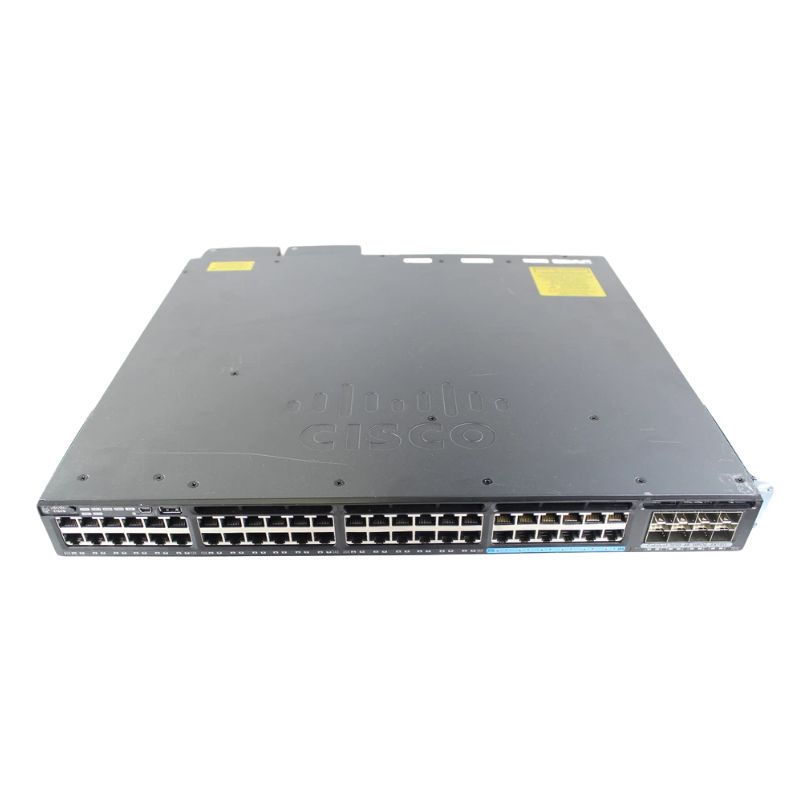

Cisco Catalyst 3650 48P mGig, 8x10G Uplink, LAN Base WS-C3650-12X48UR-L

Cisco Catalyst 3650-12X48UR-L Ethernet Switch Overview

Product Information

• Manufacturer: Cisco Systems, Inc.
• Part Number: WS-C3650-12X48UR-L
• Series: Catalyst 3650
• Model: 3650-12X48UR-L
• Product Type: Ethernet Switch

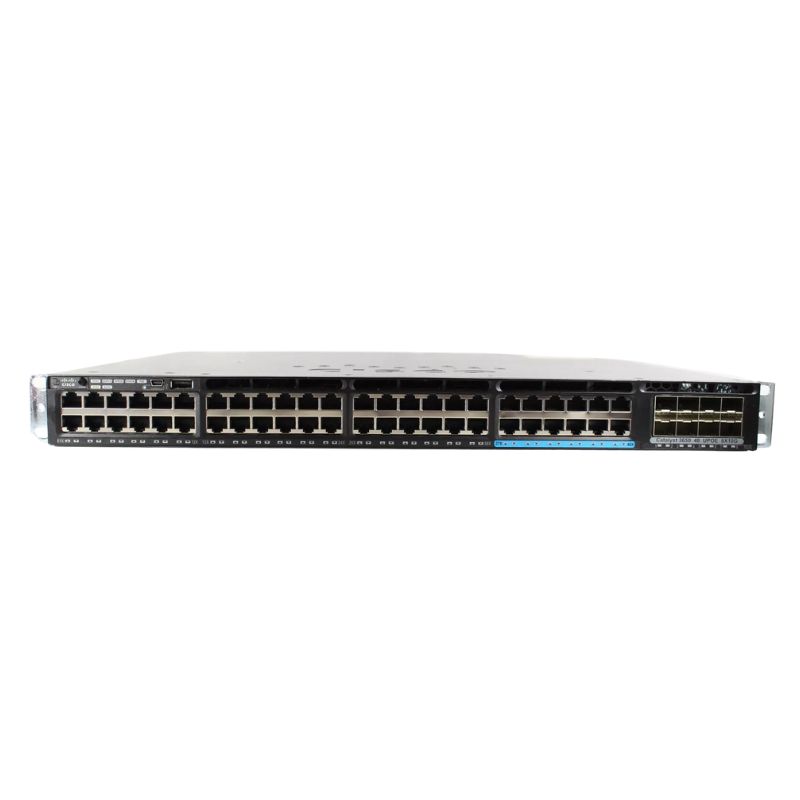

Interfaces and Ports

Network Ports

• 48 Total Network Ports
• 36 Gigabit Ethernet RJ-45 Ports
• 12 Multi-Gigabit Ethernet Ports (up to 10Gbps)
• 8 SFP+ Uplink Ports (10 Gigabit)

Management and Console Ports

• 1x Management Console RJ-45
• 1x Ethernet Management RJ-45
• 1x USB Type-A

Performance and Networking

• Switching Capacity: 472 Gbps
• Stacking Bandwidth: 160 Gbps
• Forwarding Rate: 351.19 Mpps
• Layer Support: Layer 3
• MAC Address Table: Up to 32,000
• Routing Table: Up to 24,000 IPv4 Routes

Expansion Slots and Stacking

• 8 SFP+ Expansion Slots for Uplinks
• Supports Cisco StackWise®-160 Stacking
• Optional Stacking Kit: C3650-STACK-KIT (sold separately)

Power and PoE Features

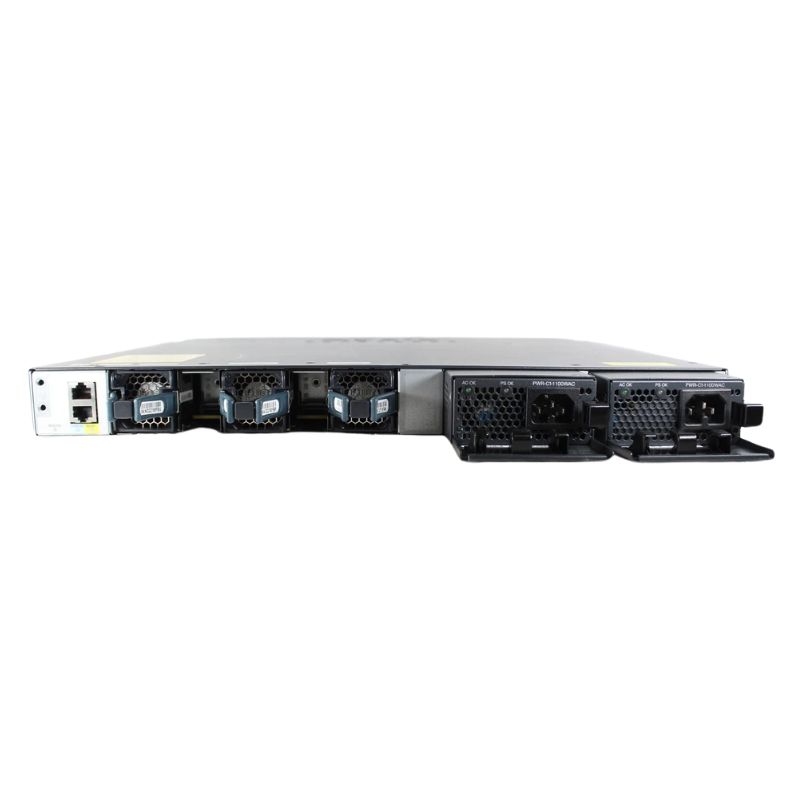

Power Supply

• Includes 1100WAC Power Supply
• Supports Dual Power Supply for Redundancy
• Compatible with Additional Power Options (PWR-C1-715WAC, PWR-C2-1025WAC)

PoE Capabilities

• Power over Ethernet (PoE+) Budget: 660W
• Supports Cisco Universal PoE (UPOE®) for increased power efficiency

Physical and Environmental Specifications

Dimensions

• Form Factor: 1U Rack-Mountable
• Dimensions: 1.7" x 17.5" x 19.1"
• Weight: Approximately 17.8 lbs

Environmental Properties

• MTBF: 201,680 Hours
• Operating Temperature Range: 23°F to 113°F (varies with altitude)
• Storage Temperature: -40°F to 158°F
• Maximum Operating Altitude: Up to 16,400 ft (5000 m)

Management and Protocols

• Manageable: Yes, via CLI, SNMP (v1, v2c, v3)
• Supported Networking Protocols: ACL, ARP, CoS, DHCP, DSCP, VLAN, IGMP v2/v3, QoS, RADIUS, SSH, TACACS+, and more
• Advanced Layer 3 Routing Support: RIP-1, RIP-2, Static Routing, RIPng

Key Features

• Supports 802.11ac Wave 2 for high-speed wireless access
• Enables wired-wireless convergence with Cisco Unified Access™ Data Plane
• Field-replaceable fans and power supplies for increased uptime

Compliance and Standards

• RoHS Compliant
• Certified under multiple standards: FCC Part 15 Class A, CISPR 22, CISPR 24, EN 55024, ISO 7779, UL 60950-1

Ports

The Cisco WS-C3650-12X48UR-L LAN Switch is equipped with 48 ports, making it an ideal choice for businesses and organizations that require a high number of network connections. With 48 ports available, users can easily connect multiple devices such as computers, printers, servers, and IP phones to the switch.

Increased Connectivity

Having 48 ports means that users can connect a large number of devices to the switch without the need for additional networking equipment. This is particularly beneficial for businesses with a growing number of employees or organizations that require a high level of connectivity.

Flexibility and Scalability

The 48 ports on the Cisco WS-C3650-12X48UR-L LAN Switch provide users with the flexibility to connect multiple devices simultaneously. This enables businesses to expand their network infrastructure without having to invest in additional switches or routers. The scalability of the switch allows for future growth and ensures that businesses can easily accommodate new devices or users as needed.

Improved Productivity

With 48 ports available, employees can connect their devices directly to the switch, resulting in faster and more reliable network connections. This improved connectivity leads to increased productivity as employees can access resources and collaborate with colleagues more efficiently.

Uplink Ports

The Cisco WS-C3650-12X48UR-L LAN Switch comes with 8 uplink ports, offering users the ability to connect the switch to other networking devices or extend the network infrastructure. These uplink ports are essential for businesses that require a high-performance network with seamless connectivity.

Enhanced Network Performance

The 8 uplink ports on the Cisco WS-C3650-12X48UR-L LAN Switch provide high-speed connections between switches, routers, or other networking devices. This ensures that data can be transmitted quickly and efficiently across the network, resulting in enhanced network performance and reduced latency.

Expanded Network Reach

By utilizing the uplink ports, businesses can extend their network infrastructure to reach distant locations or connect multiple switches together. This enables organizations to create a more extensive and interconnected network, providing seamless connectivity for all devices and users.

Increased Bandwidth

The 8 uplink ports on the Cisco WS-C3650-12X48UR-L LAN Switch support higher bandwidths, allowing for the transmission of large amounts of data simultaneously. This is particularly important for businesses that deal with data-intensive tasks such as video streaming, file transfers, or data backups. The increased bandwidth provided by the uplink ports ensures that these tasks can be completed quickly and efficiently.

Uplink Speed

The Cisco WS-C3650-12X48UR-L LAN Switch offers uplink speeds of 10G, providing users with a high-performance network infrastructure. The 10G uplink speed is essential for businesses that require fast and reliable connectivity between switches or other networking devices.

Reduced Network Bottlenecks

With a 10G uplink speed, the Cisco WS-C3650-12X48UR-L LAN Switch can handle large amounts of data traffic without causing network bottlenecks. This ensures that data can flow smoothly and quickly across the network, resulting in improved network performance and reduced latency.

Support for Bandwidth-Intensive Applications

The 10G uplink speed enables businesses to support bandwidth-intensive applications such as video conferencing, virtualization, or cloud computing. These applications require a high-speed network infrastructure to ensure smooth and uninterrupted operation. The Cisco WS-C3650-12X48UR-L LAN Switch with its 10G uplink speed can handle the demands of these applications, providing users with a seamless and reliable experience.

Future-Proofing

The 10G uplink speed of the Cisco WS-C3650-12X48UR-L LAN Switch ensures that businesses are prepared for future network requirements. As technology continues to advance, the demand for faster and more reliable networks will increase. By investing in a switch with a 10G uplink speed, businesses can future-proof their network infrastructure and avoid the need for costly upgrades in the near future.

Features

The Cisco WS-C3650-12X48UR-L LAN Switch is packed with advanced features, including mGig support and LAN Base software. These features offer users enhanced network capabilities and improved security for their network infrastructure.

mGig Support

The mGig support feature on the Cisco WS-C3650-12X48UR-L LAN Switch provides users with the ability to connect devices that require higher speeds than traditional Ethernet. This is particularly beneficial for businesses that utilize devices such as wireless access points, high-definition cameras, or virtual reality headsets, which require higher bandwidths for optimal performance. The mGig support ensures that these devices can be connected to the switch without any performance degradation.

Future-Proofing Network Infrastructure

By supporting mGig, the Cisco WS-C3650-12X48UR-L LAN Switch allows businesses to future-proof their network infrastructure. As technology continues to advance, the demand for higher speeds will increase. With mGig support, businesses can ensure that their network can handle the demands of future devices and applications without the need for a complete infrastructure overhaul.

Improved Network Performance

The mGig support feature on the Cisco WS-C3650-12X48UR-L LAN Switch improves network performance by providing higher speeds for devices that require it. This ensures that data can be transmitted quickly and efficiently, resulting in improved overall network performance and user experience.

LAN Base Software

The LAN Base software on the Cisco WS-C3650-12X48UR-L LAN Switch offers users a comprehensive set of features and functionalities to manage and secure their network infrastructure. This software provides advanced security features, network management tools, and quality of service (QoS) capabilities.

Advanced Security

The LAN Base software includes advanced security features such as access control lists (ACLs), secure shell (SSH), and port security. These features help protect the network infrastructure from unauthorized access, data breaches, and other security threats. By utilizing the LAN Base software, businesses can ensure that their network remains secure and protected.

Network Management

The LAN Base software provides users with powerful network management tools to monitor and control their network infrastructure effectively. These tools enable businesses to optimize network performance, troubleshoot issues, and make informed decisions regarding their network configuration. With the LAN Base software, businesses can easily manage their network infrastructure and ensure that it operates at its full potential.

Series

The Cisco WS-C3650-12X48UR-L LAN Switch belongs to the Catalyst 3650 series, which is known for its high-performance and reliable networking solutions. The Catalyst 3650 series offers a range of switches with various port configurations, allowing businesses to choose the model that best suits their networking needs.

High-Performance Networking

The Catalyst 3650 series is designed to deliver high-performance networking capabilities for businesses of all sizes. These switches are equipped with advanced features such as high-speed uplink ports, mGig support, and advanced security functionalities. The high-performance networking provided by the Catalyst 3650 series ensures that businesses can meet the demands of today's data-intensive applications and devices.

Reliability and Resilience

The Catalyst 3650 series switches are built with reliability and resilience in mind. These switches are designed to withstand heavy workloads, ensuring uninterrupted operation even in demanding environments. The redundant power supply options and hot-swappable fans further enhance the reliability and resilience of the Catalyst 3650 series switches, minimizing downtime and maximizing network availability.

Scalability and Flexibility

The Catalyst 3650 series switches offer scalability and flexibility, allowing businesses to expand their network infrastructure as needed. With various port configurations available, businesses can choose the model that best suits their current requirements while having the flexibility to upgrade or add more switches in the future. The scalability and flexibility of the Catalyst 3650 series ensure that businesses can adapt their network infrastructure to meet evolving needs and technologies.

In conclusion, the Cisco WS-C3650-12X48UR-L LAN Switch offers a range of features and capabilities that make it an excellent choice for businesses and organizations. With its 48 ports, users can easily connect multiple devices, increasing connectivity, flexibility, and productivity. The 8 uplink ports provide enhanced network performance, expanded network reach, and increased bandwidth. The 10G uplink speed ensures reduced network bottlenecks, support for bandwidth-intensive applications, and future-proofing. The mGig support and LAN Base software offer improved network performance, advanced security, and effective network management. Finally, being part of the Catalyst 3650 series guarantees high-performance networking, reliability, resilience, scalability, and flexibility. Overall, the Cisco WS-C3650-12X48UR-L LAN Switch is a powerful networking solution that meets the needs of modern businesses.
