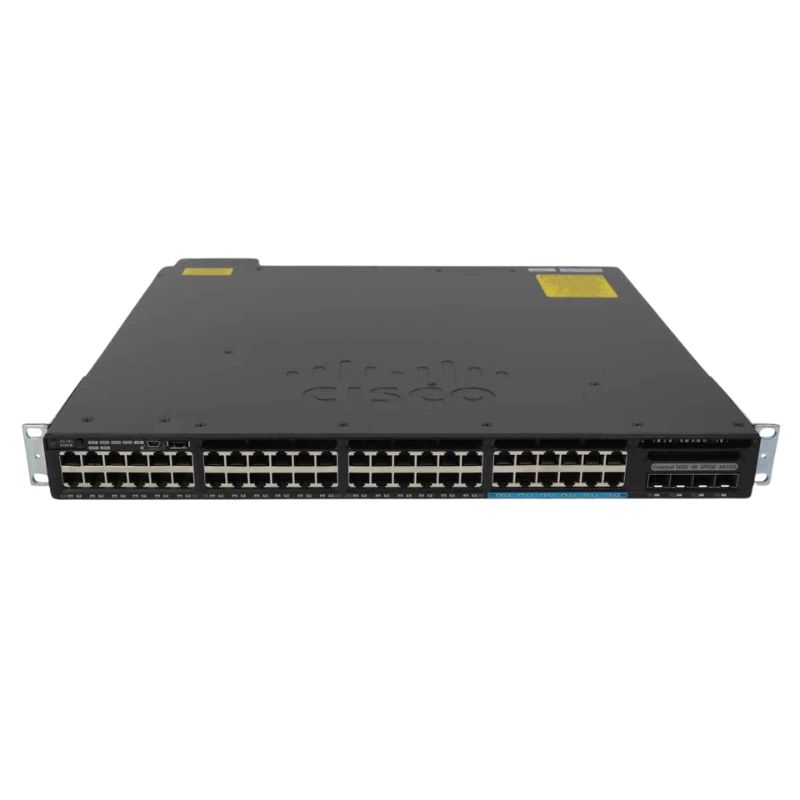

Cisco Catalyst 3650 Series Switch WS-C3650-12X48UQ-E

Product Overview: Cisco Catalyst WS-C3650-12X48UQ-E

General Information

• Brand: Cisco
• Series: Catalyst
• Model: WS-C3650-12X48UQ-E

Port Configuration and Connectivity

Network Ports

• 48 total ports (36x Gigabit Ethernet and 12x multi-speed Ethernet ports)
• Support for 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, and 10Gbps connections via UPoE RJ-45

Uplink Options

• 4x SFP+ ports for 10 Gigabit Ethernet uplinks

Management Ports

• 1x RJ-45 console port
• 1x RJ-45 Ethernet management port
• 1x USB (Type A) for external devices
• 1x USB (Mini Type A) for additional configuration options

Stacking Capabilities

StackWise-160 Support

• 2x StackWise-160 connectors available for stacking (optional kit required)

Compatible Stacking Cables

• STACK-T2-50CM (50 cm)
• STACK-T2-1M (1 meter)
• STACK-T2-3M (3 meters)

Power and Cooling Specifications

Included Power Supply

• 1x PWR-C1-1100WAC (1100W AC power supply)

Optional Power Supply Units

• PWR-C1-715WAC (715W)
• PWR-C1-1100WAC (additional 1100W option)
• PWR-C2-1025WAC (1025W)

Power over Ethernet (PoE) Budget

• 660W PoE budget to support multiple devices

Cooling Features

• 3x hot-swappable FAN-T1 modules for efficient airflow

Performance and Capacity

Switching Capacity

• Maximum switching capacity of 392 Gbps

Forwarding Rate

• 291.66 million packets per second (Mpps)

MAC Address Table

• Supports up to 32,000 MAC address entries

Physical and Mounting Details

Rack-Mountable

• 1-RU form factor for space-efficient rack installation
• Rack mounts included for easy deployment

Software and Firmware

Firmware Version

• Ships with IP Services firmware, providing advanced routing and security features

Part Number Details

• WS-C3650-12X48UQ-E
• WS-C3650-12X48UQ-E=
• WS-C3650-12X48UQ-E-WS

Ports

The Cisco WS-C3650-12X48UQ-E Switch is equipped with 48 ports, making it an ideal choice for medium to large-sized networks that require a high number of connections. These ports are essential for connecting various devices such as computers, servers, printers, and other networking equipment.

Increased Connectivity

The 48 ports on the Cisco WS-C3650-12X48UQ-E Switch provide users with increased connectivity options. With this switch, you can easily connect multiple devices to your network without the need for additional hardware. This allows for efficient and streamlined communication between devices, improving productivity and collaboration within your organization.

Flexibility

The abundance of ports gives users the flexibility to expand their network and accommodate future growth. Whether you need to add more devices or connect new offices, the Cisco WS-C3650-12X48UQ-E Switch has you covered. Its 48 ports ensure that you have enough capacity to support your network requirements, reducing the need for costly upgrades in the future.

Reduced Cable Clutter

Having 48 ports in a single switch eliminates the need for multiple switches, which in turn reduces cable clutter. With fewer switches and cables in your network infrastructure, you can achieve a cleaner and more organized setup. This not only improves the aesthetics of your workspace but also simplifies troubleshooting and maintenance tasks.

Series

The Cisco WS-C3650-12X48UQ-E Switch belongs to the Catalyst 3650 series, which is renowned for its advanced features and performance. This series offers a range of benefits that make it a popular choice among network administrators.

Reliability

The Catalyst 3650 series is designed to deliver reliable and uninterrupted network connectivity. Cisco, a trusted name in networking, has implemented robust hardware and software components in this series to ensure high availability. With the Catalyst 3650, you can count on a stable and dependable network infrastructure for your critical business operations.

Scalability

As your network grows, the Catalyst 3650 series provides scalability options to accommodate your evolving needs. You can easily add more switches to expand your network without experiencing any performance degradation. This scalability feature saves you from the hassle of replacing your entire network infrastructure when you need to scale up.

Advanced Security

Security is a top concern for any network administrator, and the Catalyst 3650 series addresses this with its advanced security features. These switches offer comprehensive security measures such as access control lists (ACLs), Secure Shell (SSH) protocol, and support for Virtual Private Network (VPN) technologies. With the Catalyst 3650, you can protect your network from unauthorized access and potential threats.

Features

The Cisco WS-C3650-12X48UQ-E Switch boasts several essential features that enhance its performance and versatility. These features are key to meeting the demanding requirements of modern networks.

Layer 3 Routing

The Layer 3 routing capability of the Cisco WS-C3650-12X48UQ-E Switch allows for efficient routing between different subnets or VLANs within your network. This feature enhances network performance by reducing congestion and improving overall data transfer speeds. It also enables advanced networking functionalities such as inter-VLAN routing and IP multicast.

Stackable

The stackable feature of the Cisco WS-C3650-12X48UQ-E Switch enables you to combine multiple switches into a single logical unit. This simplifies network management by providing a unified interface to configure and monitor the stacked switches. Additionally, stacking increases overall network capacity and resilience, as it allows for load balancing and automatic failover in case of a switch failure.

PoE+ Support

The Cisco WS-C3650-12X48UQ-E Switch supports Power over Ethernet (PoE+) technology, which enables you to power network devices such as IP phones, wireless access points, and surveillance cameras directly from the switch. This eliminates the need for separate power adapters and simplifies cable management. PoE+ support also provides flexibility in device placement, as it allows you to deploy them in locations where power outlets may be limited.

Uplink Ports

In addition to the 48 standard ports, the Cisco WS-C3650-12X48UQ-E Switch features uplink ports. These ports are designed to connect the switch to other switches or network devices at higher speeds, typically using fiber optic cables or copper cables with higher bandwidth capabilities. Uplink ports enable efficient data transfer between switches and help prevent bottlenecks in your network infrastructure.

In conclusion, the Cisco WS-C3650-12X48UQ-E Switch offers an impressive array of features. With its 48 ports, users can enjoy increased connectivity options, flexibility for future expansion, and reduced cable clutter. As part of the Catalyst 3650 series, this switch provides reliability, scalability, and advanced security features. Its Layer 3 routing capability, stackable design, PoE+ support, and uplink ports further enhance its performance and versatility. Whether you need to build a robust network infrastructure or upgrade your existing setup, the Cisco WS-C3650-12X48UQ-E Switch is an excellent choice.
