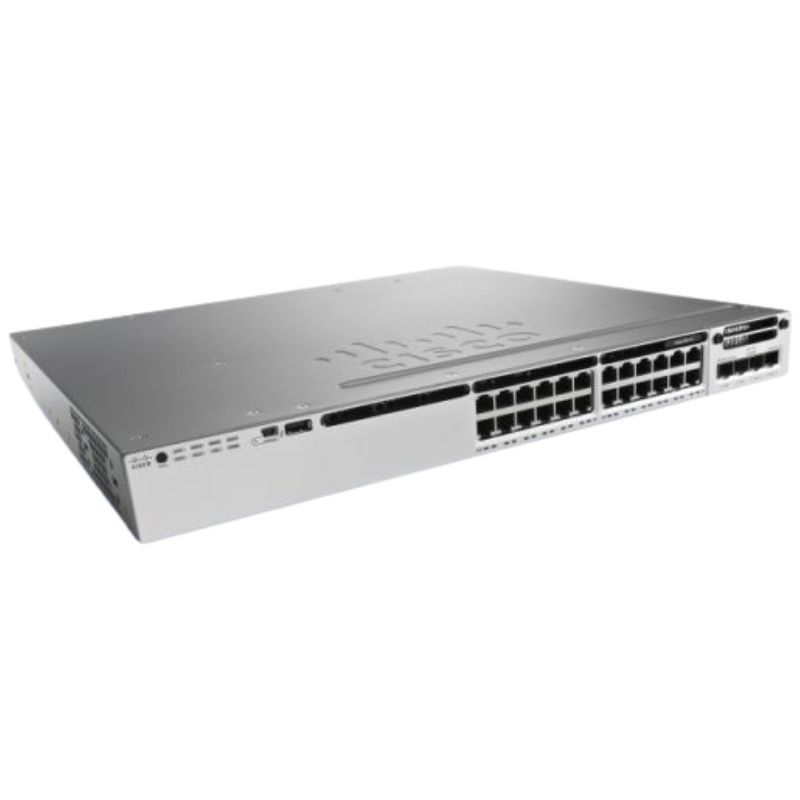

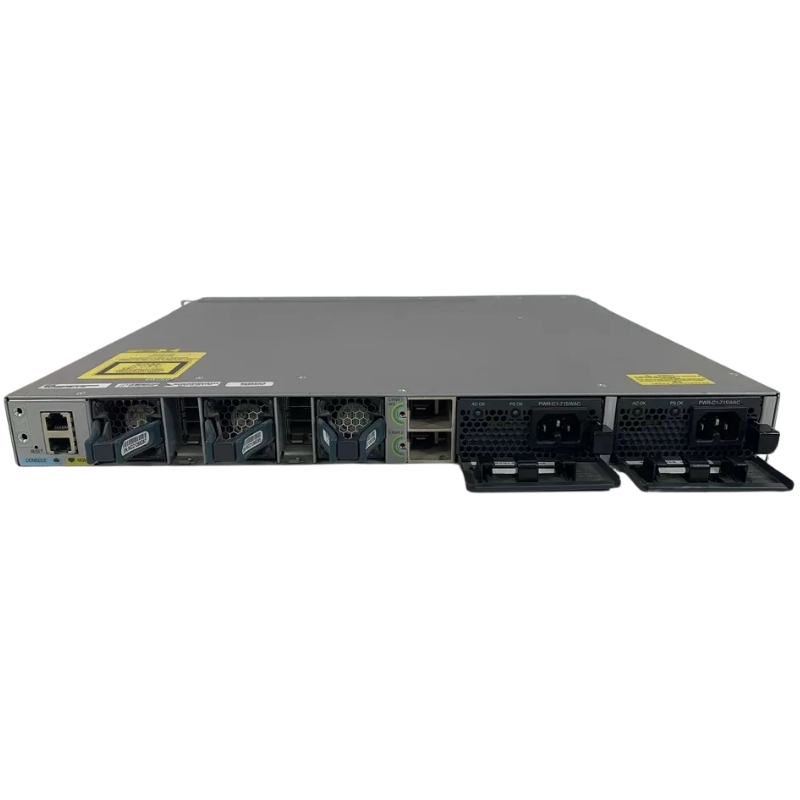

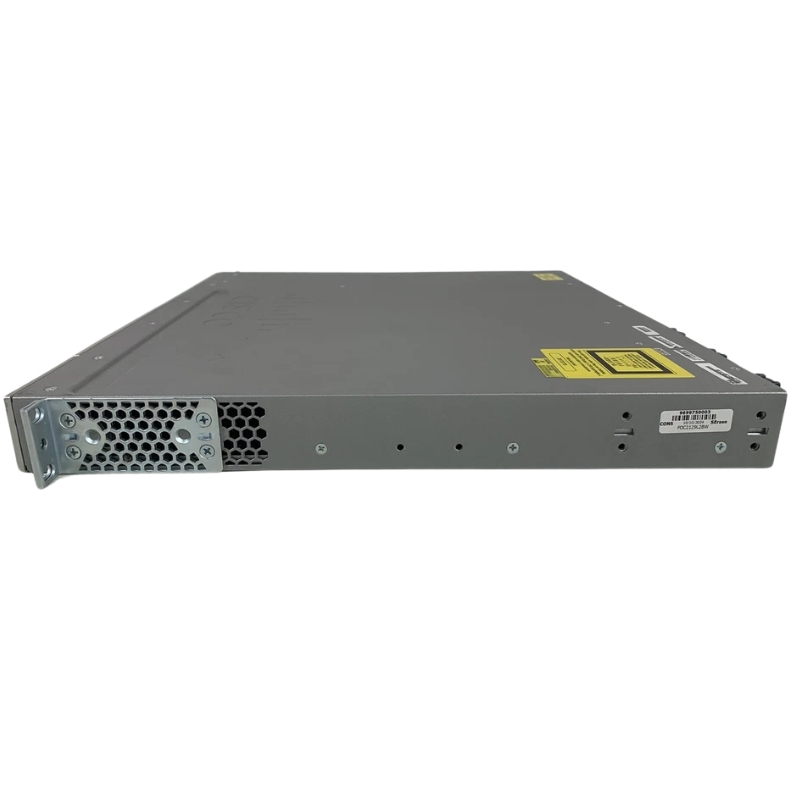

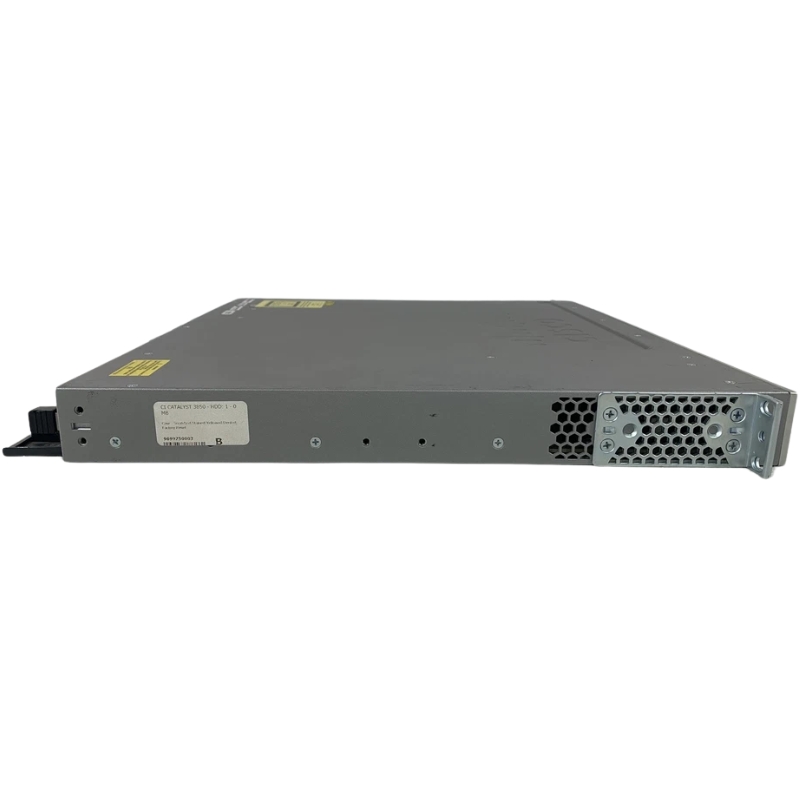

Cisco Catalyst 3850 WS-C3850-24PW-S L3 Switch (24 Ports)

Overview of WS-C3850-24PW-S

The WS-C3850-24PW-S is a highly versatile network switch designed to meet the demands of modern networking environments. It boasts a range of features and specifications that cater to both performance and flexibility. Below, we detail the key attributes of this switch to help you understand its capabilities better.

Device Specifications

Switch Type and Configuration

• Device Type: Network Switch with 24 Ports
• Layer: Layer 3 (L3)
• Management: Managed
• Form Factor: Rack-Mountable and Desktop
• Rack Units: 1U

Interface and Ports

• Interface Type: Gigabit Ethernet
• Ports: 24 x 10/100/1000 Mbps (PoE+)
• Power Over Ethernet: PoE+ Supported

Performance Metrics

Switching and Bandwidth Capacity

• Switching Capacity: 88 Gbps
• Stacking Bandwidth: 480 Gbps

Capacity Details

• IPv4 Routes: Up to 24,000
• NetFlow Entries: 24,000
• Switched Virtual Interfaces (SVIs): 1,000
• Manageable Access Points: 5
• MAC Address Table Size: 32,000 Entries
• Jumbo Frame Support: Up to 9,198 bytes

Routing and Management Features

Routing Protocols

• RIP-1
• RIP-2
• EIGRP
• RIPng

Remote Management Protocols

• SNMP v1, v2c, v3
• RMON v1, v2
• Telnet
• SSH
• CLI

Advanced Features

Network Protocols and Support

• Auto-Negotiation
• ARP Support
• Trunking and VLAN Support
• Auto-Uplink (Auto MDI/MDI-X)
• IGMP Snooping
• Syslog Support
• IPv6 Support
• Rapid Spanning Tree Protocol (RSTP) Support
• Multiple Spanning Tree Protocol (MSTP) Support
• DHCP Snooping
• Dynamic Trunking Protocol (DTP) Support
• Port Aggregation Protocol (PAgP) Support
• Trivial File Transfer Protocol (TFTP) Support
• Access Control List (ACL) Support
• Quality of Service (QoS)
• RADIUS Support
• Virtual Route Forwarding-Lite (VRF-Lite)
• MLD Snooping
• Dynamic ARP Inspection (DAI)
• PoE+ Support
• STP Root Guard
• Uni-Directional Link Detection (UDLD)
• Rapid Per-VLAN Spanning Tree Plus (PVRST+)
• IPv4 Support
• Shaped Round Robin (SRR)
• Link Aggregation Control Protocol (LACP)
• Remote Switch Port Analyzer (RSPAN)
• Layer 3 Load Balancing
• Energy Efficient Ethernet
• CISCO StackWise-480 Technology
• CISCO StackPower Technology
• Flexible NetFlow (FNF)

Compliance and Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.1d
• IEEE 802.1q
• IEEE 802.3ab
• IEEE 802.1p3640
• IEEE 802.3af
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.1s
• IEEE 802.3at

Power Specifications

• Power Supply: AC 120/230 V (50/60 Hz)

Ports

The Cisco WS-C3850-24PW-S L3 Switch is equipped with 24 ports, making it an ideal choice for businesses and organizations that require a high level of network connectivity. These ports offer a wide range of benefits and play a crucial role in ensuring smooth and efficient communication within the network infrastructure.

Increased Connectivity

With 24 ports, this Cisco switch provides ample connectivity options for various devices such as computers, servers, printers, and IP phones. Each port serves as a point of connection, allowing multiple devices to communicate and share resources seamlessly. This increased connectivity enables businesses to expand their network infrastructure without any limitations, accommodating the growing number of devices and users.

Flexibility and Scalability

The 24 ports on the Cisco WS-C3850-24PW-S L3 Switch offer immense flexibility and scalability. Users can easily connect devices in different locations across the network, enhancing productivity and collaboration. As the business expands, additional devices can be connected to these ports without the need for investing in additional switches. This flexibility allows organizations to adapt to changing network requirements without significant disruptions or expenses.

Power over Ethernet (PoE) Support

Another significant advantage of the Cisco WS-C3850-24PW-S L3 Switch's 24 ports is that they support Power over Ethernet (PoE) technology. PoE enables the switch to provide power to compatible devices through Ethernet cables, eliminating the need for separate power sources. This feature is particularly beneficial for devices such as IP cameras, wireless access points, and IP phones, as it simplifies installation and reduces cable clutter.

Cost Savings

By supporting PoE, the Cisco WS-C3850-24PW-S L3 Switch eliminates the need for individual power adapters for each connected device. This not only reduces the cost of purchasing and maintaining power adapters but also minimizes the energy consumption of the network infrastructure. Overall, it leads to significant cost savings in terms of equipment, power consumption, and maintenance.

Enhanced Network Reliability

The 24 PoE ports on this Cisco switch contribute to enhanced network reliability. In case of power outages or disruptions, the switch can prioritize power delivery to critical devices such as IP phones or security cameras. This ensures uninterrupted communication and surveillance, even during unforeseen circumstances. Additionally, the switch provides advanced features such as redundant power supplies and hot-swappable modules, further enhancing network reliability and minimizing downtime.

Improved Network Performance

The Cisco WS-C3850-24PW-S L3 Switch's 24 ports support high-speed data transmission, allowing for efficient and reliable network performance. Each port provides Gigabit Ethernet connectivity, enabling fast data transfers between devices. This is particularly beneficial for bandwidth-intensive applications such as video conferencing, file sharing, and multimedia streaming. With 24 high-performance ports, users can experience seamless network performance without bottlenecks or slowdowns.

VLAN Support

The switch's 24 ports also offer VLAN (Virtual Local Area Network) support. VLANs enable network administrators to segment a physical network into multiple virtual networks, enhancing security and improving network management. With VLAN support, users can effectively isolate traffic between different departments or user groups, ensuring data privacy and minimizing the risk of unauthorized access. This feature is especially crucial for organizations with sensitive data or regulatory compliance requirements.

Network Monitoring and Troubleshooting

In addition to the benefits mentioned above, the Cisco WS-C3850-24PW-S L3 Switch's 24 ports facilitate effective network monitoring and troubleshooting. Network administrators can use these ports to connect monitoring devices such as network analyzers or intrusion detection systems. By capturing and analyzing network traffic, administrators can identify and resolve issues promptly, ensuring optimal network performance and security.

Easy Deployment and Management

The 24 ports on this Cisco switch simplify the deployment and management of network infrastructure. With a sufficient number of ports, users can easily connect devices without the need for additional switches or complex cabling setups. Furthermore, the switch's intuitive management interface allows administrators to configure and monitor the network effortlessly. This streamlines the overall network management process, saving time and effort for IT personnel.

In conclusion, the 24 ports on the Cisco WS-C3850-24PW-S L3 Switch offer numerous benefits and play a crucial role in ensuring efficient network connectivity. With increased connectivity, flexibility, and scalability, businesses can expand their network infrastructure without limitations. The support for Power over Ethernet simplifies installation and reduces costs, while VLAN support enhances security and network management. Additionally, the high-performance ports contribute to improved network reliability, performance, and ease of deployment and management. Overall, the 24 ports of this Cisco switch make it an ideal solution for organizations seeking a robust and versatile networking solution.
