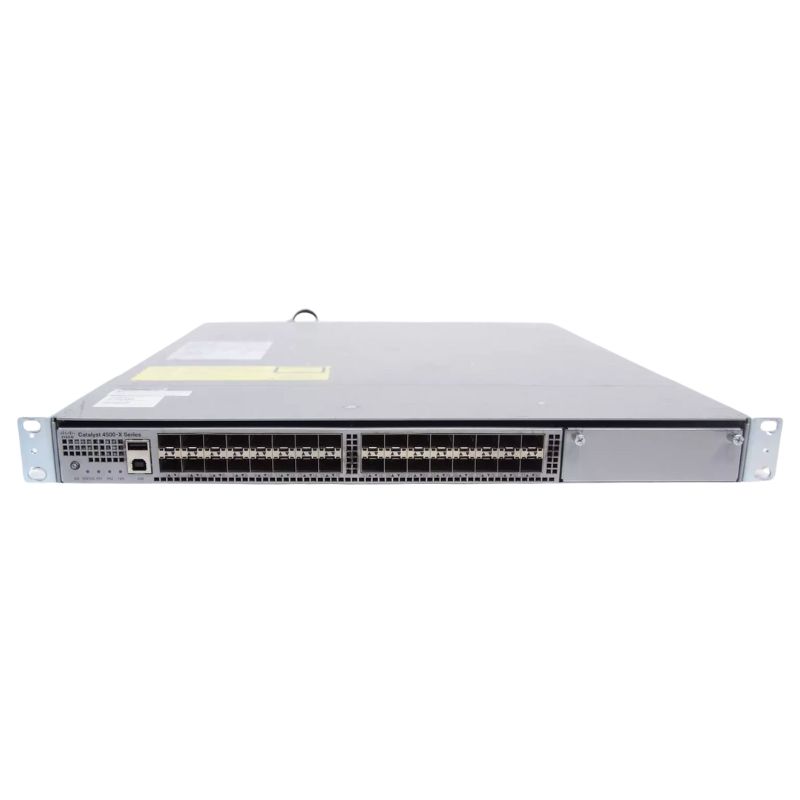

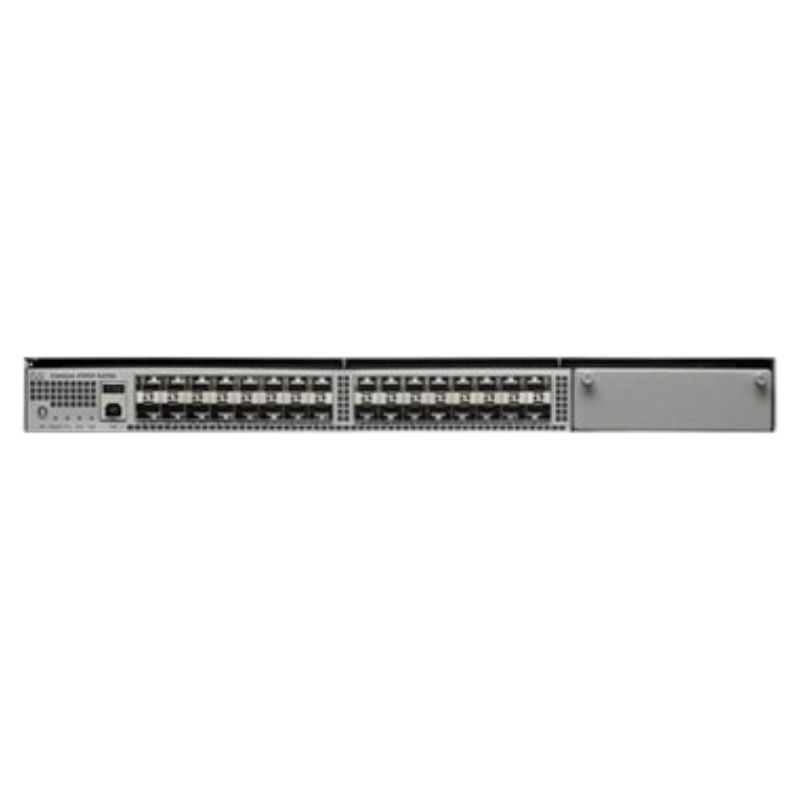

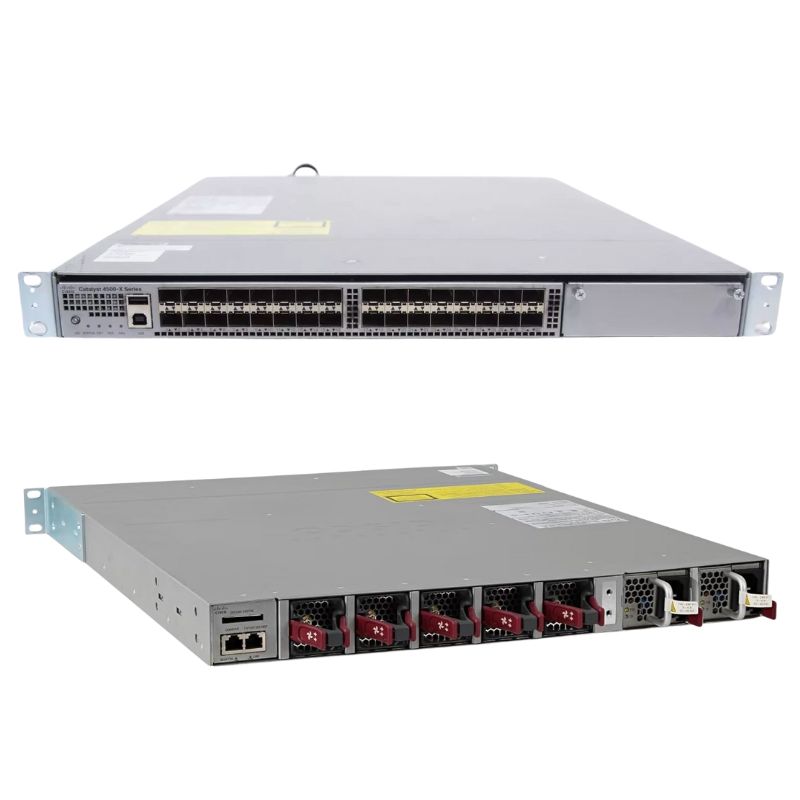

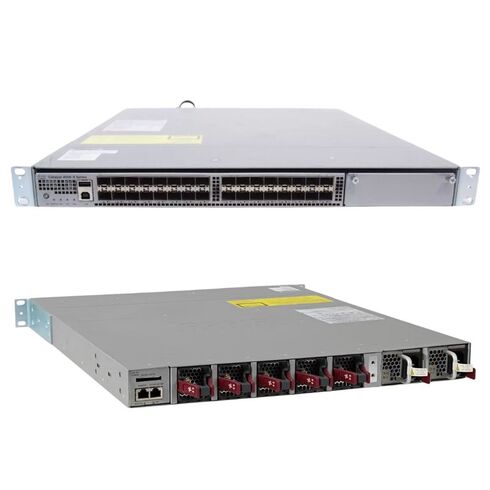

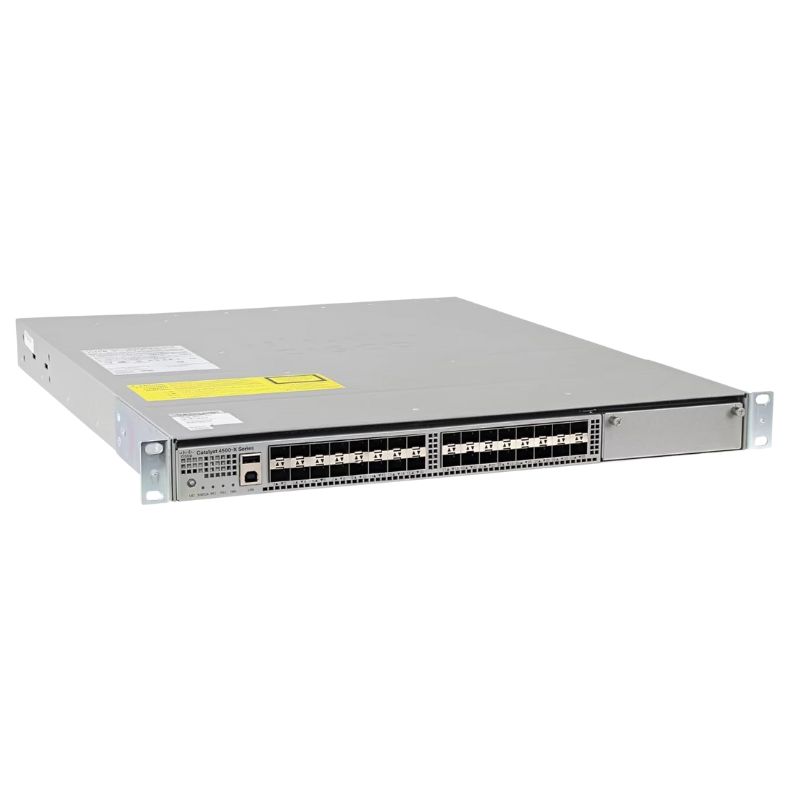

WS-C4500X-F-32SFP+ Cisco Catalyst 4500-X Chassis Switch

Comprehensive Overview of Cisco WS-C4500X-F-32SFP+ 32-Port Managed Switch

The Cisco WS-C4500X-F-32SFP+ is a high-performance, fully manageable 32-port 10 Gigabit Ethernet switch designed to deliver superior scalability, speed, and flexibility in enterprise networking. Engineered for efficiency, this switch ensures reliable operation, intelligent traffic management, and seamless integration into advanced data center and campus environments.

Main Product Information

• Manufacturer: Cisco Systems
• Model Number / SKU: WS-C4500X-F-32SFP+
• Product Type: Managed Switch
• Port Configuration: 32 x SFP+ 10-Gigabit Ethernet ports
• Airflow Design: Back-to-Front cooling for efficient rack deployment
• Installation Type: Rack-mountable chassis

High-Performance Network Switching Capabilities

The Cisco WS-C4500X-F-32SFP+ is engineered to deliver powerful Layer 2 and Layer 3 switching performance with excellent throughput. It provides intelligent traffic handling, exceptional data processing, and seamless communication across complex enterprise environments.

Key Technical Specifications

• Device Type: Managed Switch with 32 ports
• Port Type: 32 x 1G/10G SFP+ uplink-capable interfaces
• Switching Capacity: 800 Gbps total system bandwidth
• Forwarding Rate: IPv4 routing up to 250 Mpps; IPv6 routing up to 125 Mpps
• Switching Technology: 10-Gigabit Ethernet connectivity for high-speed performance
• Cooling Mechanism: Back-to-front airflow design for optimal thermal management

Advanced Network Features

Built for enterprise-level reliability and scalability, this model integrates a rich set of networking features that improve performance, enhance traffic flow, and maintain security across all connected devices.

Highlighted Functionalities

• Layer 2 and Layer 3 Switching for seamless data routing and packet forwarding
• VLAN support for improved segmentation and traffic management
• Access Control Lists (ACL) for enhanced network security and policy enforcement
• Quality of Service (QoS) mechanisms for prioritizing mission-critical applications
• Hot-swappable redundant fans for continuous uptime and operational efficiency

Connectivity and Expansion Options

The switch includes an extensive range of connectivity interfaces and modular options to support diverse enterprise deployment requirements.

Available Interfaces

• 32 x 10-Gigabit SFP+ Ethernet ports for high-speed uplinks
• 1 x Gigabit Ethernet RJ-45 management port
• 1 x USB Type-A interface for configuration and updates
• 1 x RJ-45 console port for administrative access

Expansion Slots and Upgrade Potential

• 1 x SD Memory Card slot (1 free)
• 1 x Expansion Slot (1 free) for future scalability

Compliance and Supported Standards

This Cisco switch adheres to multiple IEEE networking standards, ensuring compatibility and interoperability across a wide range of IT environments.

Standards and Protocols

• IEEE 802.3 (Ethernet)
• IEEE 802.1D (Spanning Tree Protocol)
• IEEE 802.1Q (VLAN tagging)
• IEEE 802.1P (Traffic prioritization)
• IEEE 802.3AD (LACP link aggregation)
• IEEE 802.1W (Rapid Spanning Tree)
• IEEE 802.1X (Port-based network access control)
• IEEE 802.3AE (10-Gigabit Ethernet)
• IEEE 802.1S (Multiple Spanning Tree Protocol)

Power and Energy Efficiency

The WS-C4500X-F-32SFP+ provides flexible power options with redundant support for uninterrupted operation. The system is optimized for energy efficiency and low heat generation, reducing overall data center power consumption.

Power Specifications

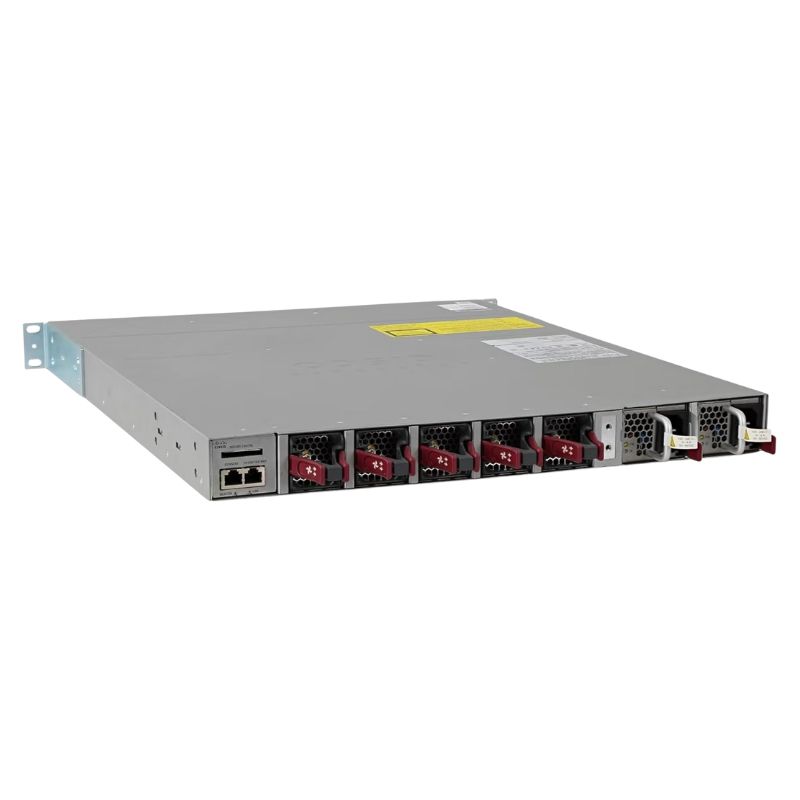

• Power Supply: Internal, hot-pluggable power modules (not installed by default)
• Supported Quantity: Up to 2 power supplies
• Redundancy: Optional 1+1 configuration for fault tolerance
• Power Consumption: Approximately 330 Watts during operation

Ports

The Cisco WS-C4500X-F-32SFP+ Switch Chassis is equipped with an impressive 32 ports, making it a highly versatile and powerful networking solution. These ports offer a multitude of benefits and play a crucial role in meeting the connectivity needs of users. In this section, we will explore the importance of the 32 ports feature and discuss its various advantages.

Enhanced Connectivity

With 32 ports, the Cisco WS-C4500X-F-32SFP+ Switch Chassis provides users with a significant boost in connectivity options. This extensive number of ports allows for seamless integration of multiple devices, such as servers, workstations, and network appliances. Whether you are operating a small business or a large enterprise, this switch chassis ensures that you have enough ports to connect all your essential network devices.

Scalability

The 32 ports feature also offers excellent scalability, making it an ideal choice for organizations with expanding network requirements. As your business grows and demands increase, this switch chassis can easily accommodate additional devices without any hassle. The abundance of ports future-proofs your network infrastructure, allowing for seamless expansion and ensuring that you won't face any connectivity limitations down the line.

Increased Bandwidth

One of the key advantages of the Cisco WS-C4500X-F-32SFP+ Switch Chassis' 32 ports is the increased bandwidth they provide. Each port supports high-speed data transfer rates, ensuring that your network operates at optimal efficiency. Whether you are handling large file transfers, multimedia streaming, or running bandwidth-intensive applications, these ports deliver exceptional performance and minimize latency issues.

Versatility

The versatility offered by the 32 ports cannot be overstated. The Cisco WS-C4500X-F-32SFP+ Switch Chassis supports a wide range of network protocols and technologies, making it compatible with various devices and configurations. From Ethernet to Fibre Channel, these ports can handle different types of connections, enabling you to integrate diverse hardware and software components into your network infrastructure.

Flexibility in Network Design

The 32 ports feature allows for greater flexibility in network design. With multiple ports at your disposal, you can create logical network segments, implement VLANs, and establish robust network architectures. This flexibility enables you to optimize traffic flow, separate different departments or user groups, and enhance security by isolating sensitive data. The ability to design a customized network layout tailored to your specific requirements is a significant advantage of having 32 ports.

Improved Network Performance

The ample number of ports offered by the Cisco WS-C4500X-F-32SFP+ Switch Chassis directly contributes to improved network performance. With more ports available, you can distribute network traffic evenly, preventing congestion and bottlenecks. The result is faster data transmission, reduced latency, and enhanced overall network efficiency. By ensuring a smooth flow of data across your network, you can optimize productivity and deliver a seamless user experience.

Redundancy and Resilience

The 32 ports feature also enables redundancy and resilience in your network infrastructure. By utilizing multiple ports, you can implement link aggregation and create redundant connections between devices. In case of a port or link failure, the switch chassis can automatically reroute traffic through the available paths, ensuring uninterrupted connectivity. Redundancy not only enhances network availability but also improves fault tolerance, making your network more resilient to failures.

In conclusion, the Cisco WS-C4500X-F-32SFP+ Switch Chassis with its 32 ports offers numerous benefits to users. The enhanced connectivity, scalability, increased bandwidth, versatility, flexibility in network design, improved network performance, and redundancy make it a compelling choice for organizations of all sizes. Whether you require a robust network infrastructure to support a growing business or seek optimal performance for your existing setup, the 32 ports feature of this switch chassis provides the necessary foundation for a reliable and high-performing network.
