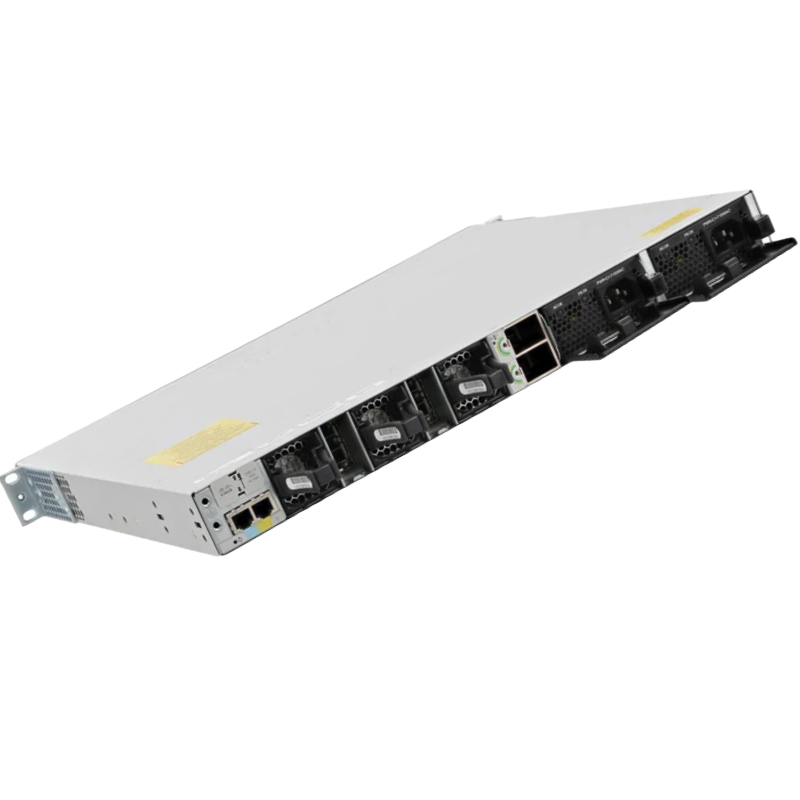

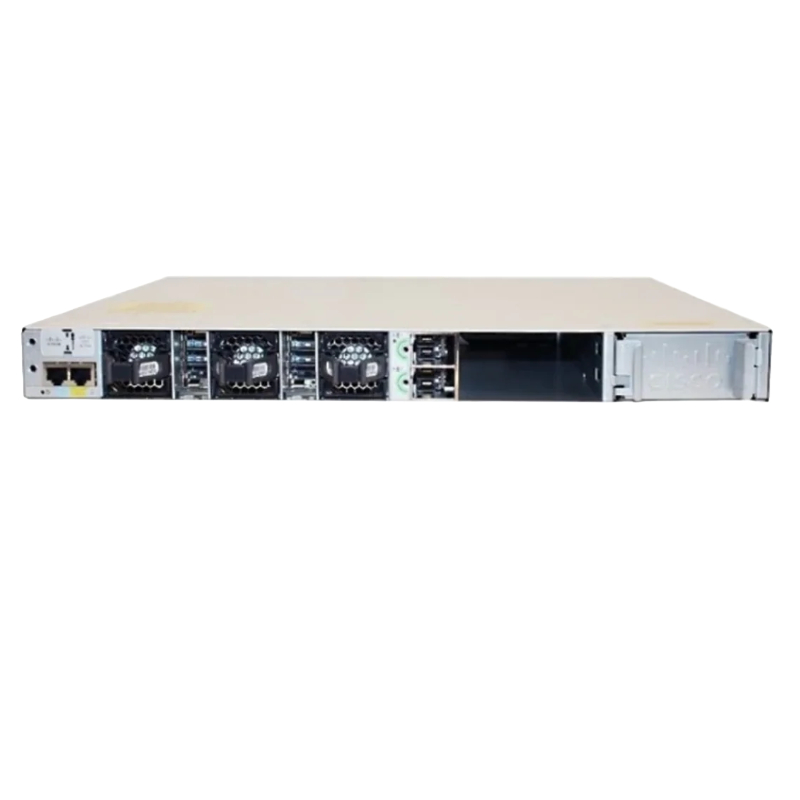

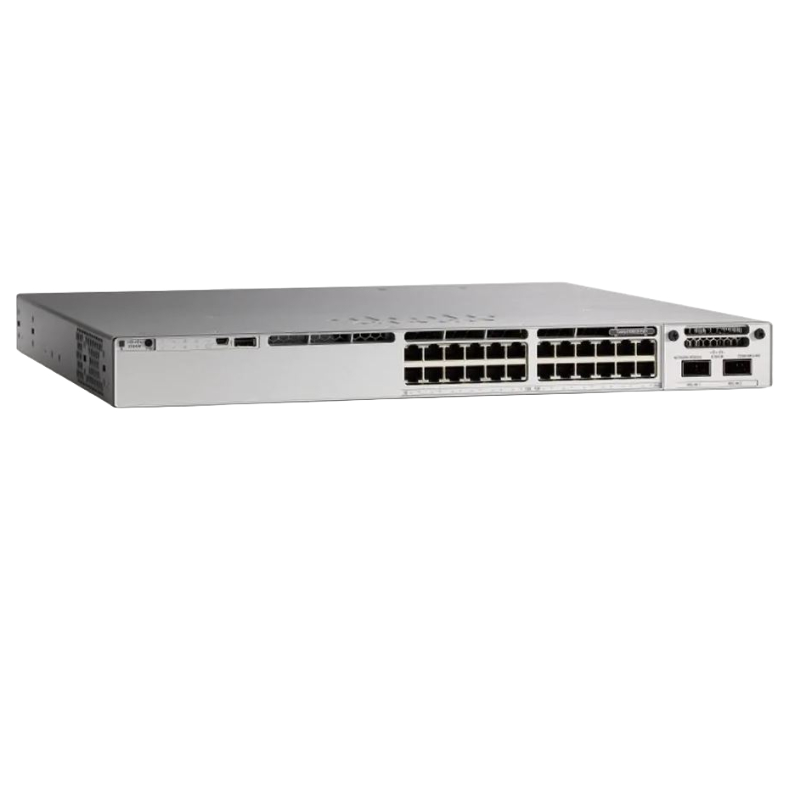

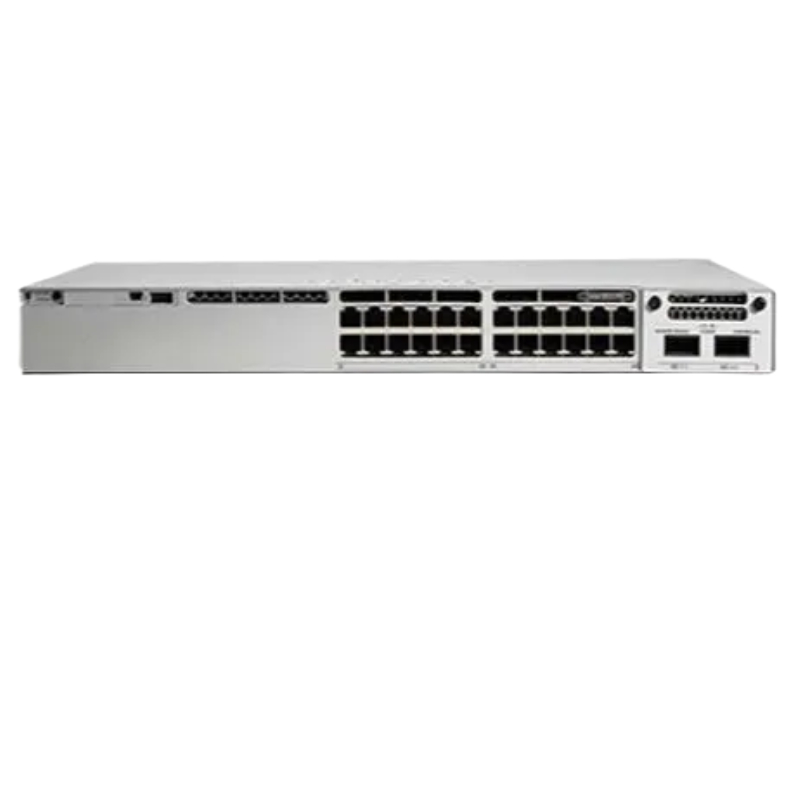

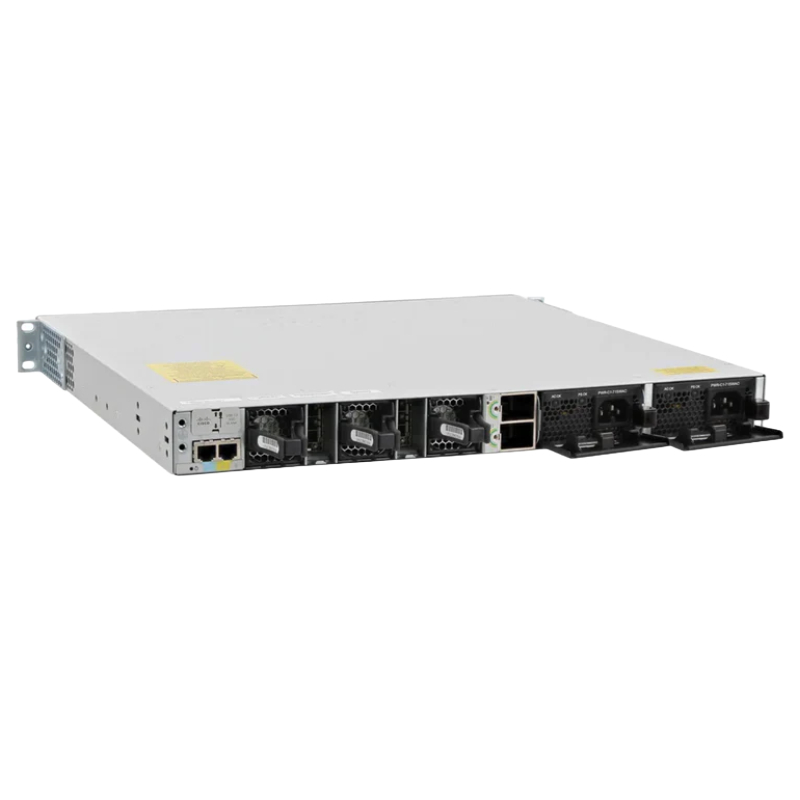

Cisco Catalyst 9300 C9300-24U-A-UL Network Advantage Expansion Slot UPoE Managed Switch

Manufacturer Details

• Brand: Cisco
• Model Number: C9300-24U-A-UL
• Product Category: Managed Network Switch
• Mounting Type: Rack-mountable, 1U Size

Technical Specifications

Port Details

• Port Count: 24 x 10/100/1000 Mbps (uPoE – Ultra Power over Ethernet)
• Power over Ethernet (PoE) Budget: 830 Watts

Routing Capabilities

• IPv4 Routing Table Entries: 32,000
• IPv6 Routing Table Entries: 16,000
• Flexible NetFlow Entries: 64,000

Virtual Networking

• VLAN IDs: 4,000
• Switched Virtual Interfaces (SVIs): 2,000

Supported Routing Protocols

• OSPF, IS-IS, RIP-1, RIP-2
• BGP, EIGRP, HSRP, IGMP
• VRRP, PIM-SM, OSPFv3, PIM-SSM
• MSDP, Policy-based Routing (PBR), RIPng

Management Protocols

• SNMP Versions: 1, 2c, 3
• RMON Versions: 1, 2
• CLI, NETCONF, RESTCONF

Performance Metrics

Switching and Stacking

• Switching Capacity: 128 Gbps
• Stacking Bandwidth: 480 Gbps
• Forwarding Rate: 154.76 Million Packets per Second (Mpps)

Key Features

• DHCP Support, Trunking, Syslog
• Full Duplex Operation, Stateful Switchover (SSO)
• Class-based Weighted Fair Queuing (CBWFQ)
• Weighted Random Early Detection (WRED)
• Spanning Tree Protocol (STP), Access Control Lists (ACL)
• Quality of Service (QoS), Non-stop Routing (NSR)
• Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB)
• Cisco Stackwise-480 and StackPower Technologies
• Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP)
• 802.1X Authentication, 16MB Packet Buffer
• FTP Client, MACsec Support
• Three Fans, Control Plane Protection (CoPP)
• Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC)
• Source-specific Multicast (SSM), Integrated Wireshark
• VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS)
• Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN
• Layer 3 VPN (L3VPN) Support, Encapsulated Remote Span (ERSPAN)
• Security Group Tag (SGT) Caching, Security Group Access Control List (SGACL)
• IT Service Management (ITSM) Integration, Third-party IP Address Management (IPAM) Integration

Standards Compliance

• IEEE 802.3, IEEE 802.3u, IEEE 802.1d
• IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p
• IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP)
• IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
• IEEE 802.3at

Connectivity and Expansion

• 48 x 1000Base-T RJ-45 uPoE Ports
• 1 x USB 2.0 Port
• Expansion Slot: 1 total, 1 available

Power Specifications

Ports

The Cisco C9300-24U-A-UL Managed Switch is equipped with 24 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and efficient network infrastructure. These ports provide the necessary connectivity for various devices, such as computers, printers, servers, and IP phones, ensuring seamless communication and data transfer within the network.

Increased Flexibility and Scalability

With 24 ports available, users have the flexibility to connect multiple devices simultaneously without the need for additional switches or routers. This feature eliminates the hassle of managing multiple devices and simplifies network administration. Additionally, the Cisco C9300-24U-A-UL Managed Switch supports advanced features like Quality of Service (QoS), which allows users to prioritize certain types of network traffic, ensuring that critical applications receive sufficient bandwidth.

Improved Productivity

The 24 ports on the Cisco C9300-24U-A-UL Managed Switch enable businesses to maximize their productivity by providing a high-speed and reliable network connection for all connected devices. This ensures that employees can access the resources they need quickly and efficiently, leading to increased productivity and smoother workflow.

Seamless Collaboration

Collaboration is crucial in today's business environment, and the Cisco C9300-24U-A-UL Managed Switch's 24 ports facilitate seamless collaboration among team members. With the ability to connect multiple devices, employees can easily share files, collaborate on projects, and communicate effectively using various collaboration tools.

Expansion Slot UPoE

The Cisco C9300-24U-A-UL Managed Switch is equipped with an Expansion Slot UPoE, which enhances its capabilities and provides additional benefits for users. This feature allows users to expand their network infrastructure easily and efficiently without the need for separate power sources for connected devices.

Power Over Ethernet (PoE) Capability

The Expansion Slot UPoE enables the Cisco C9300-24U-A-UL Managed Switch to provide power to connected devices, eliminating the need for separate power cables and adapters. This feature is particularly beneficial for devices such as IP phones, wireless access points, and surveillance cameras, as it simplifies their installation and reduces cable clutter.

Cost Savings

By utilizing the Expansion Slot UPoE, businesses can save on infrastructure costs by eliminating the need for additional power sources. This feature allows for a more cost-effective network implementation, especially in scenarios where power outlets are limited or difficult to access. Additionally, the Cisco C9300-24U-A-UL Managed Switch's energy-efficient design ensures optimal power usage, further reducing operational costs.

Enhanced Flexibility and Scalability

The Expansion Slot UPoE provides businesses with the flexibility to easily expand their network infrastructure as their needs grow. Users can add more devices without the constraints of power availability, allowing for seamless scalability. This feature is particularly valuable for businesses that anticipate future growth or require quick deployment of new devices.

License

The Cisco C9300-24U-A-UL Managed Switch comes with a Network Advantage license, offering users a range of benefits and features that enhance network performance and security.

Enhanced Network Management

The Network Advantage license provides advanced network management capabilities, allowing users to efficiently monitor and control their network infrastructure. With features like Cisco DNA Center integration, users can easily manage and automate network policies, configurations, and security settings from a centralized platform. This simplifies network administration tasks and improves overall network efficiency.

Advanced Security Features

Security is a top concern for businesses, and the Network Advantage license offers advanced security features to protect the network from threats and unauthorized access. These features include secure access control, encryption protocols, and threat detection and mitigation capabilities. By utilizing these features, businesses can ensure the integrity and confidentiality of their data, as well as safeguard against potential security breaches.

Optimized Performance

The Network Advantage license optimizes network performance by providing advanced routing and switching capabilities. These features enable efficient traffic management, load balancing, and Quality of Service (QoS) prioritization, ensuring that critical applications receive the necessary bandwidth and resources for smooth operation. This results in improved network performance, reduced latency, and enhanced user experience.

In conclusion, the Cisco C9300-24U-A-UL Managed Switch offers a comprehensive set of features and benefits that cater to the needs of small to medium-sized businesses. The 24 ports provide increased flexibility, scalability, and productivity, allowing for seamless collaboration among team members. The Expansion Slot UPoE enhances the switch's capabilities by providing power over Ethernet for connected devices, resulting in cost savings and improved flexibility. Lastly, the Network Advantage license offers advanced network management, security features, and optimized performance, ensuring a reliable and secure network infrastructure.
