C9500-48X-E Cisco Catalyst 48 Ports 10G Bundle, Network Essentials

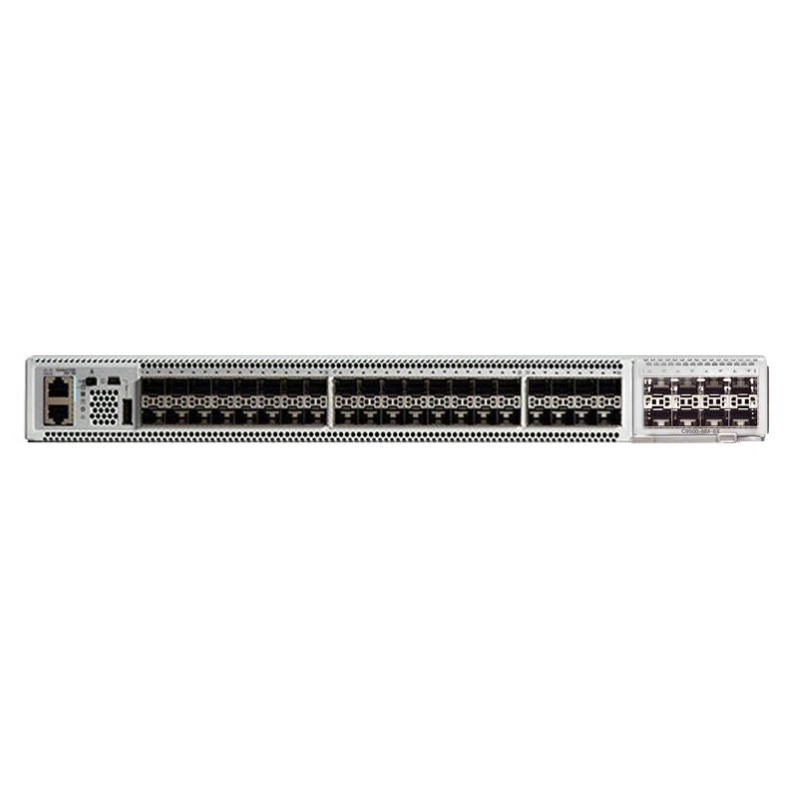

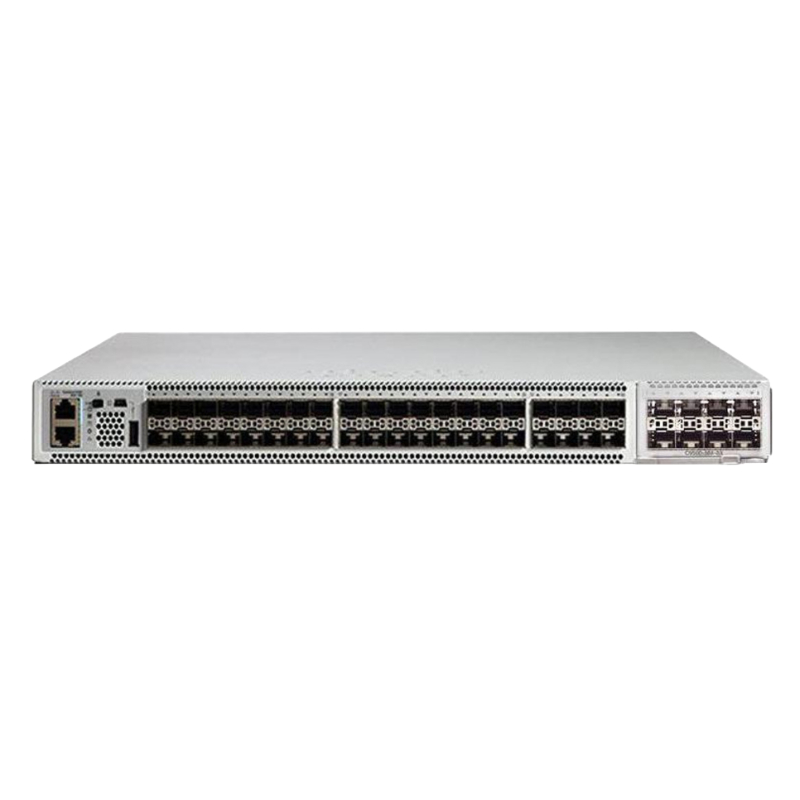

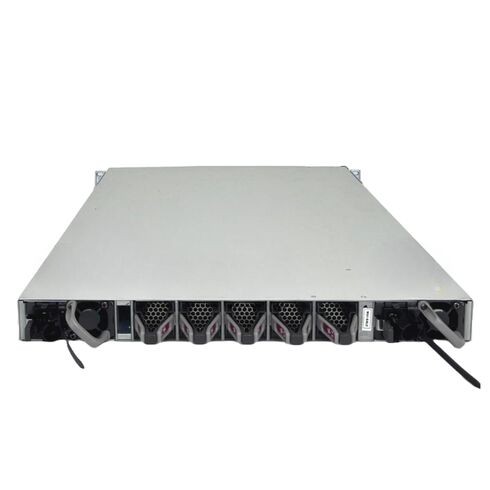

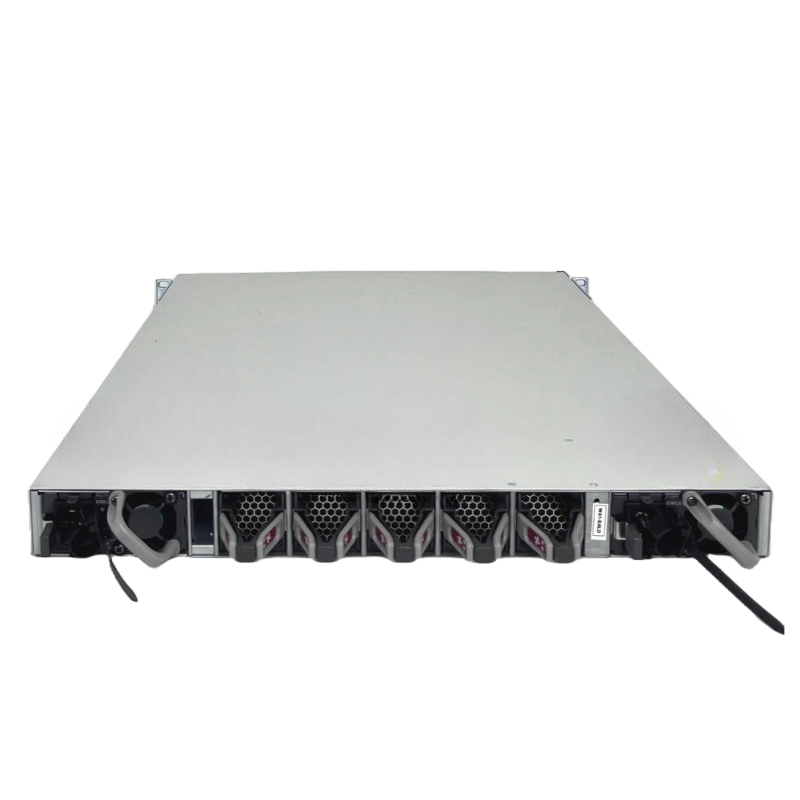

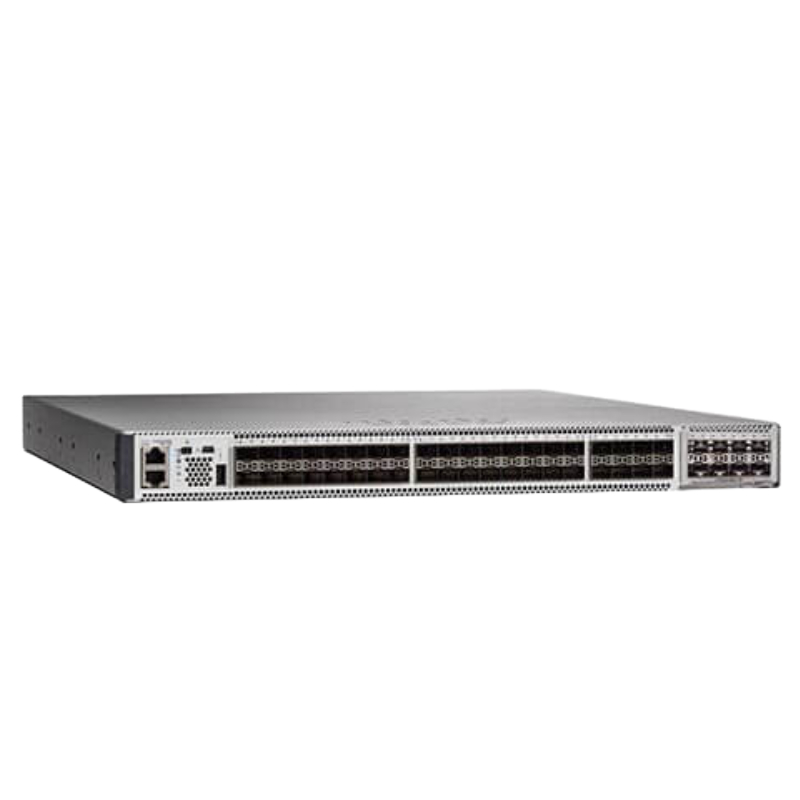

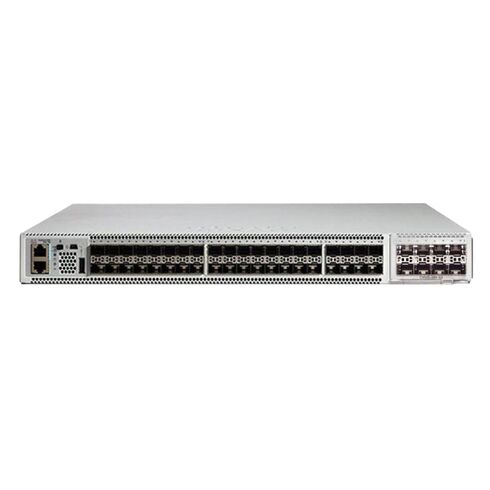

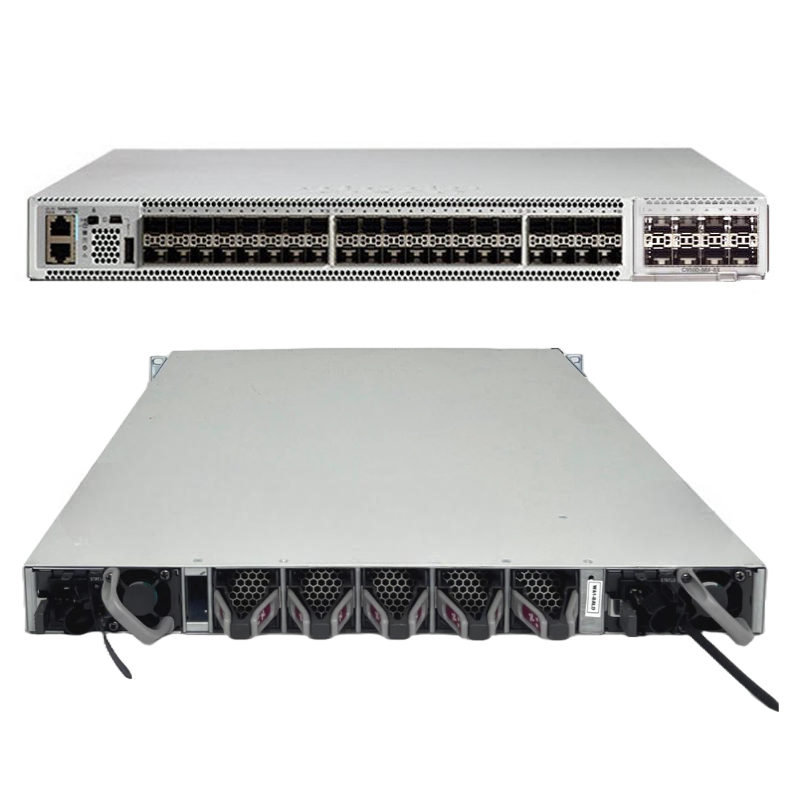

Cisco C9500-48X-E Catalyst 9500 48 Ports Network Switch

The Cisco C9500-48X-E Catalyst 9500 is a high-performance 48-port 10G network switch designed for enterprise networks, offering exceptional throughput, advanced routing, and scalable network features. As part of the Network Essentials bundle, this switch provides robust security, high-speed connectivity, and flexibility for demanding networking environments.

General Specifications

• Manufacturer: Cisco
• Part Number: C9500-48X-E
• Device Type: 48-port Network Switch
• Product Name: Network Switch

Switching and Forwarding Performance

• Full Duplex Switching Capacity: 480 Gbps
• Forwarding Rate: 720 Million Packets per Second (Mpps)

Advanced Routing and Network Capabilities

• Routing Table Entries: 64,000
• Indirect IPv4 Routes: 64,000
• Host IPv4 Routes: 32,000
• Indirect IPv6 Routes: 32,000
• Host IPv6 Routes: 16,000
• Multicast Scalability: 48,000 entries
• QoS ACL Scale: 18,000
• Security ACL Scale: 18,000
• Flow Export Entries (FNF): 512,000
• VLAN IDs Supported: 4,000
• Switched Virtual Interfaces (SVIs): 4,000

Additional Performance Features

• MAC Address Table: 64,000 entries
• Jumbo Frame Support: Up to 9,198 bytes

Supported Routing Protocols

• OSPF
• IS-IS
• RIP-1 / RIP-2
• BGP
• EIGRP
• IGMP
• VRRP
• PIM-SM / PIM-SSM
• MSDP
• RIPng
• MPLS

Remote Management and Security Features

• Management Protocols: SNMP v1, SNMP v2c, SNMP v3, RMON v1, RMON v2, TFTP, NETCONF, RESTCONF
• Encryption: 256-bit AES for secure communications

Processor and Memory Configuration

• Processor Speed: 2.4 GHz
• RAM: 16 GB DDR4 SDRAM (DIMM 288-pin)
• Flash Memory: 16 GB

Expansion and Connectivity Options

• 10GBase-X SFP+ Ports: 40 standard ports
• Additional 10GBase-X SFP+ Ports: 8 ports
• USB Ports: 2 x USB 3.0

Power Requirements and Redundancy

• Power Supply Type: Internal, Hot-Plug
• Installed Units: 2
• Maximum Units: 2
• Redundancy: Optional 1+1
• Power Output: 950 Watts
• Voltage: AC 120/230 V (50 – 60 Hz)

Key Advantages of Cisco C9500-48X-E

• High-speed 48-port 10G connectivity for enterprise environments
• Scalable routing and multicast support for large networks
• Advanced security features including 256-bit AES encryption
• Comprehensive remote management with SNMP, NETCONF, and RESTCONF
• Hot-swappable dual power supplies for high availability
• Support for multiple routing protocols including OSPF, BGP, EIGRP, and MPLS
• Robust QoS, ACL, and SVI support to optimize network performance

Cisco C9500-48X-E Catalyst 9500 48 Ports 10G Bundle

The Cisco C9500-48X-E Catalyst 9500 48 Ports 10G Bundle is a high-performance, enterprise-grade network switch designed for modern data centers and campus networks. As part of the Catalyst 9500 series, this switch delivers advanced Layer 3 features, high throughput, and robust security capabilities. It is ideal for organizations seeking reliable network infrastructure with scalable and flexible deployment options. The Network Essentials bundle provides essential functionalities that optimize network performance while maintaining cost efficiency.

Advanced Layer 3 Capabilities

The Cisco Catalyst 9500-48X-E supports advanced Layer 3 routing protocols, including OSPF, EIGRP, and BGP. This ensures that large-scale enterprise networks can efficiently manage traffic across multiple subnets and locations. With support for both IPv4 and IPv6 routing, the switch offers seamless integration into modern IP-based networks. High-performance routing ensures minimal latency, even in networks with heavy traffic loads.

Enhanced Routing Protocols

This switch is designed to handle dynamic routing updates effectively, providing high availability and network stability. Routing protocols such as BGP and OSPF allow for optimal path selection and redundancy, which reduces downtime and ensures consistent connectivity. Network administrators can rely on these capabilities to support mission-critical applications and services.

Scalability for Growing Networks

The Catalyst 9500-48X-E supports large routing tables and multiple virtual routing instances, allowing enterprises to expand their networks without compromising performance. This makes it an ideal solution for data centers and campus networks that require high scalability and future-proofing for evolving IT environments.

High-Performance 10G Connectivity

With 48 10G Ethernet ports, the C9500-48X-E delivers high-speed connectivity for servers, storage systems, and access switches. Each port supports full-duplex operation, ensuring maximum bandwidth utilization and minimal network congestion. This high-performance connectivity is critical for applications requiring low latency, such as virtualization, video conferencing, and cloud services.

Optimized for Data-Intensive Applications

The 10G ports provide sufficient bandwidth to support demanding workloads in data centers and enterprise networks. Applications such as high-performance computing, video streaming, and large-scale cloud deployments benefit from the consistent and reliable 10G connectivity. Network administrators can ensure smooth operation without compromising network performance.

Future-Proofing Network Infrastructure

As enterprise networks evolve, the demand for higher speeds and increased bandwidth continues to grow. The 48-port 10G configuration of this Catalyst switch ensures that organizations are well-prepared for future expansion and emerging network demands, including software-defined networking (SDN) and cloud-based applications.

Network Essentials Software Features

The Cisco C9500-48X-E is equipped with Network Essentials software, providing a comprehensive set of features to manage network traffic efficiently. It offers capabilities such as basic Layer 3 routing, security, quality of service, and essential monitoring tools. This makes it an ideal choice for organizations that require reliable network functionality without the complexity of advanced software licensing.

Security and Access Control

Network Essentials includes robust security mechanisms such as Access Control Lists (ACLs), port security, and authentication features to protect the network from unauthorized access. These features ensure that enterprise networks maintain data integrity and prevent potential security breaches.

Quality of Service Management

With integrated QoS functionalities, the switch can prioritize critical traffic, ensuring that applications requiring low latency and high reliability operate smoothly. This is particularly important for voice over IP, video conferencing, and other latency-sensitive services.

Redundancy and High Availability

The C9500-48X-E is designed for maximum uptime and reliability. Redundant power supplies and fans ensure continuous operation even in the event of hardware failure. Additionally, the switch supports StackWise Virtual technology, enabling multiple switches to operate as a single logical unit. This provides seamless failover and simplifies network management while maintaining high availability.

StackWise Virtual Technology

StackWise Virtual allows administrators to manage multiple Catalyst 9500 switches as a single entity, reducing operational complexity and providing a unified management experience. This also enhances redundancy by allowing active-active configurations for critical workloads.

Minimal Downtime for Maintenance

Redundant components and advanced failover mechanisms allow network maintenance and upgrades to be performed with minimal disruption. Enterprises can maintain continuous network service while performing essential operational tasks.

Energy Efficiency and Design

The Catalyst 9500-48X-E features a compact 1U form factor, making it suitable for dense rack deployments in data centers and enterprise wiring closets. The switch is designed with energy-efficient technologies, reducing power consumption without compromising performance. Its modular and scalable design ensures that additional switches can be integrated easily into existing network architectures.

Compact Form Factor

The 1U design maximizes rack space utilization, allowing organizations to deploy multiple high-performance switches in a single rack. This is critical for data centers with limited physical space and high-density requirements.

Environmentally Conscious Operation

Energy-efficient components and intelligent power management features reduce operational costs and support environmental sustainability. The switch's low power consumption helps organizations achieve green IT objectives while maintaining robust network performance.

Comprehensive Network Management

The C9500-48X-E supports Cisco DNA Center, providing centralized network management, automation, and assurance. This allows administrators to monitor network performance, detect anomalies, and automate routine tasks, improving operational efficiency and reducing manual intervention.

Automation and Orchestration

With integrated automation capabilities, repetitive tasks such as configuration changes, software updates, and policy enforcement can be performed automatically. This reduces human errors, saves time, and ensures consistent network performance across the enterprise.

Proactive Network Assurance

Cisco DNA Center provides real-time visibility into network health, enabling proactive issue detection and resolution. Network analytics help administrators identify performance bottlenecks, security vulnerabilities, and potential outages before they impact business operations.

Integration with Cisco Ecosystem

The Catalyst 9500-48X-E is fully compatible with Cisco’s broader networking portfolio, including wireless controllers, access points, and security appliances. This seamless integration allows enterprises to build cohesive and secure networks that span campus, data center, and branch environments.

Unified Network Architecture

Integration with Cisco’s ecosystem ensures consistent policy enforcement, streamlined management, and simplified troubleshooting across wired and wireless networks. This unified approach enhances operational efficiency and improves overall network reliability.

Future-Ready Networking Solutions

As networking technologies continue to evolve, the C9500-48X-E remains compatible with emerging solutions such as SD-Access, intent-based networking, and cloud-managed services. This ensures long-term investment protection and positions enterprises for growth in digital transformation initiatives.
