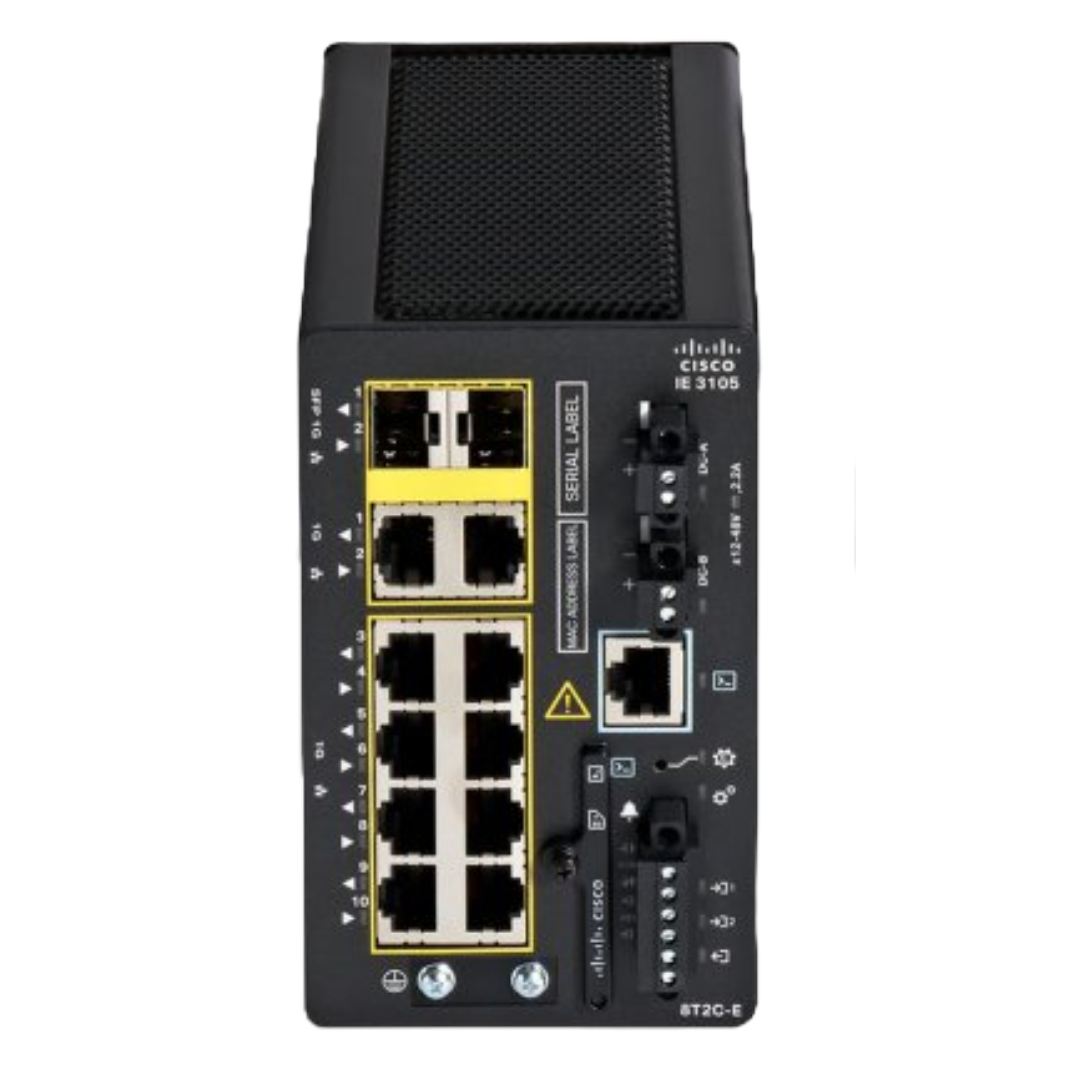

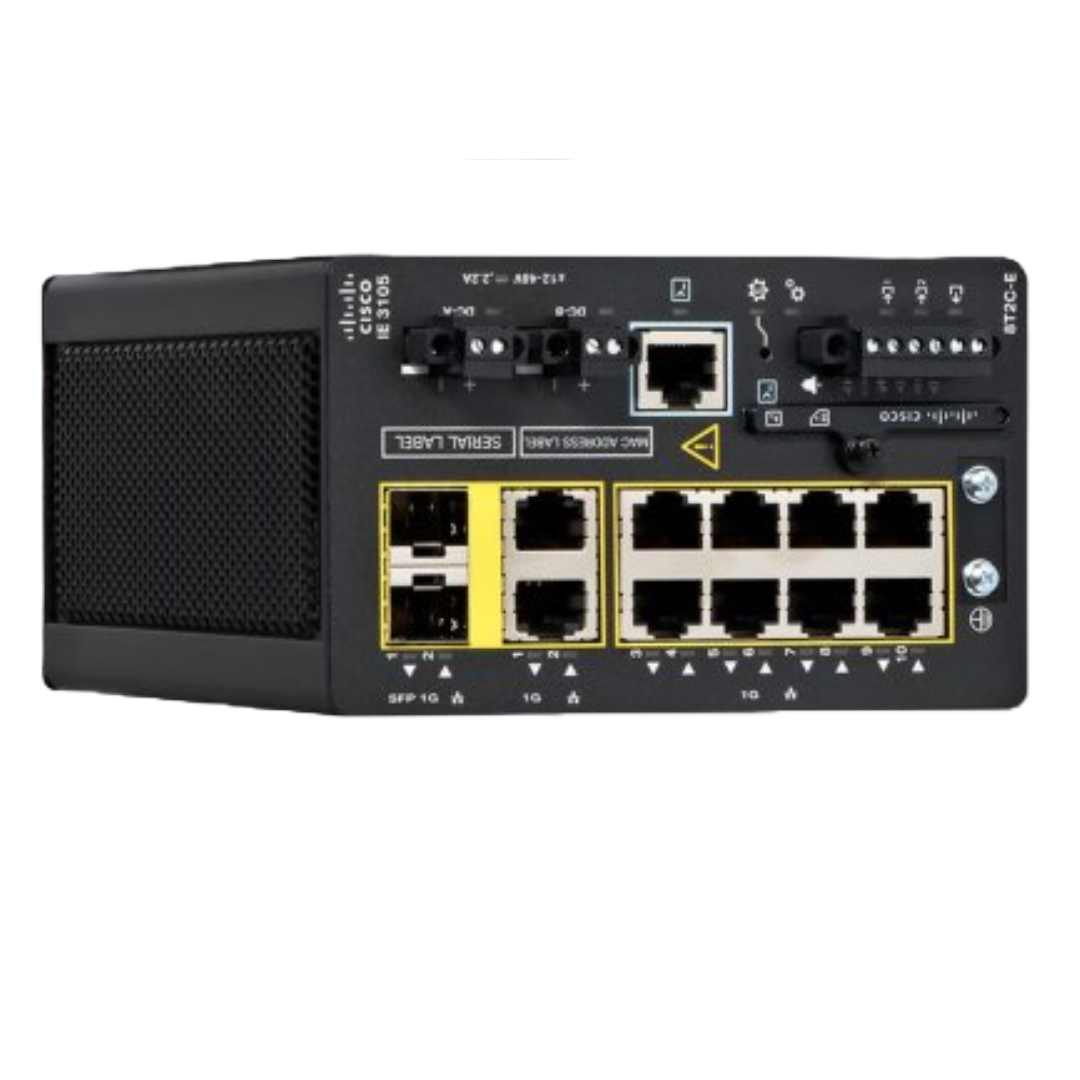

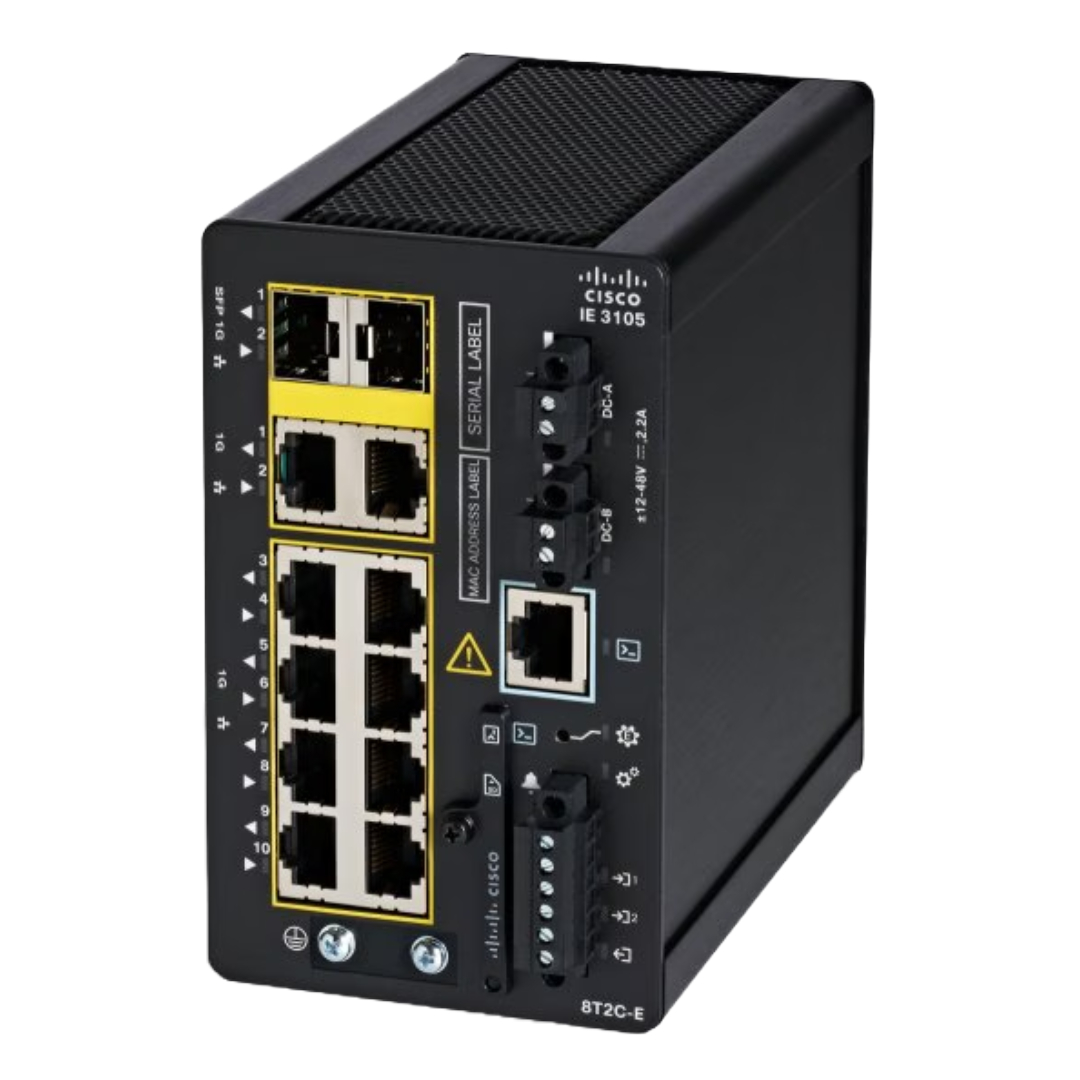

Cisco Catalyst IE-3105-8T2C-E Managed Switch 10 Ports
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Key Specifications
- Manufacturer: Cisco
- Part Number: IE-3105-8T2C-E
- Product Type: Managed Network Switch
- Model: Catalyst IE3105

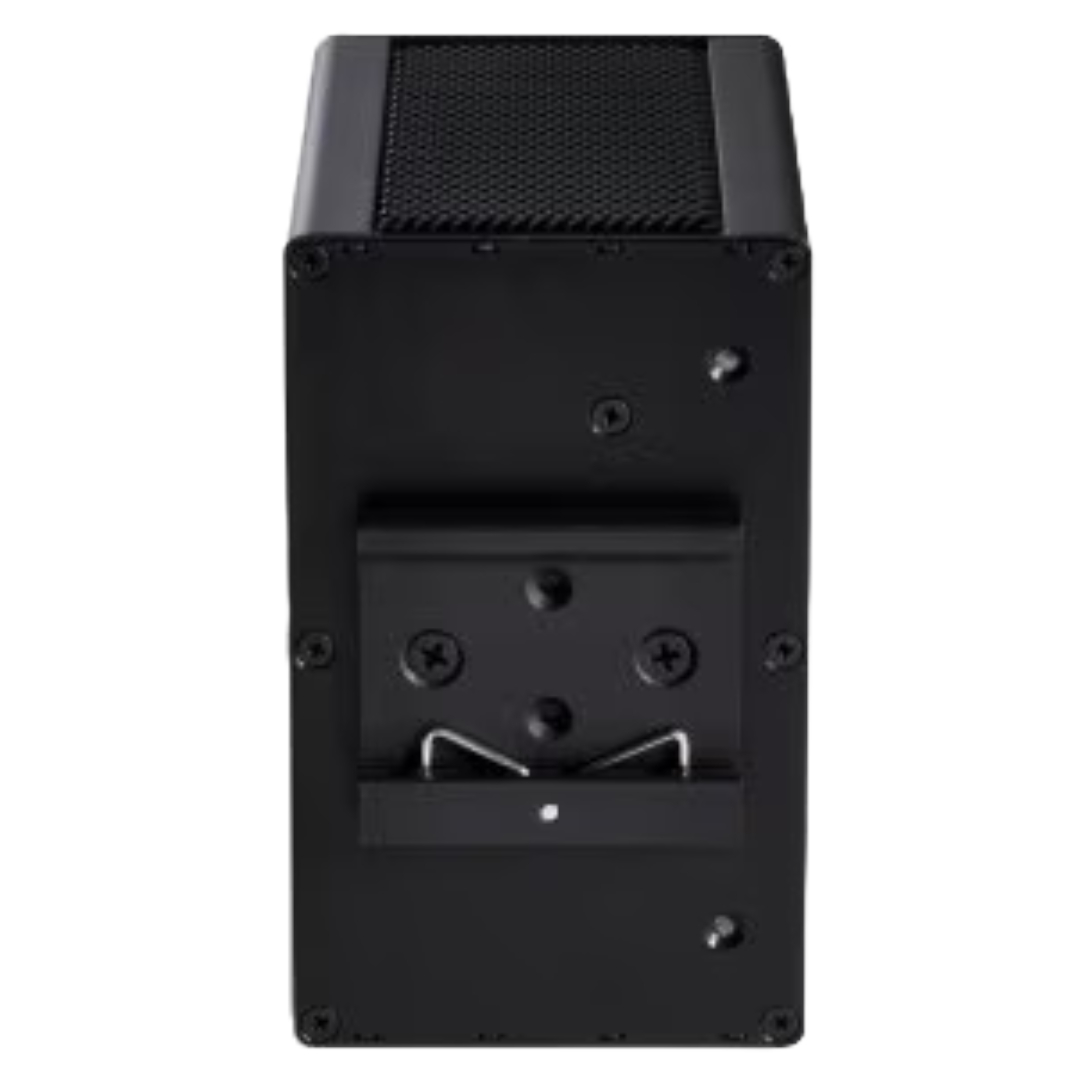

- Mounting Type: Din Rail
Performance Features
Port Configuration
- Ports: 8 x 10/100/1000 + 2 x Combo Gigabit
- Queue Capacity: 8
- Supported VLANs: 256
- IGMP Groups: 512
- Routing Table Entries: 2000 (Indirect IPv4 Routes)
- Spanning Tree Instances: 128
Switching and Routing Protocols
- IGMPv2, IGMP, Static IP Routing, IGMPv3, STP
Management and Security
Remote Management Protocols
- SNMP (v1, v2, v3)
- RMON, Telnet, HTTP, HTTPS
- TFTP, Netconf, Restconf, Modbus
- NTP, ICMP, DHCP, IPv4, IPv6, Yang, Syslog, MIB
Authentication Methods
- SSH (Secure Shell)
- RADIUS, TACACS+
Advanced Features
- Layer 2 Switching
- NAT Support
- BOOTP Support
- IGMP Snooping
- DiffServ Support
- Surge Protection
- DHCP Snooping
- Quality of Service (QoS)
- MLD Snooping
- Dynamic ARP Inspection (DAI)
- Per-VLAN Spanning Tree Plus (PVST+)
- Rapid PVST+
Compliance and Standards
- IEEE 802.3u, 802.3z, 802.1d, 802.1q
- 802.3ab, 802.1p, 802.3ad (LACP)
- 802.1w, 802.1x, 802.1s, 802.3ah
- 802.1ab (LLDP), IEEE 1588v2
Hardware Specifications
- RAM: 4 GB
- Built-in Devices: SD Card Reader
Connectivity Options
Interface Overview
- 8 x 10/100/1000 Base-T RJ-45 Downlink
- 2 x 1000Base-T RJ-45 Uplink
- 2 x 100/1000Base-X SFP Uplink
- 1 x Serial (RS-232) RJ-45
- 1 x Micro-USB Type B
- 2 x Alarm Input
Expansion Slots
- 1 x SD Memory Card (1 free slot)
Power Requirements
- Power Device: External Power Adapter
- Maximum Supported Quantity: 2
- Power Redundancy: Optional
- Power Input Range: 12 - 48 V
- Operational Power Consumption: 28 Watts
Ports
The Catalyst IE3105 Switch is equipped with a remarkable 10 ports, making it an exceptional choice for small to medium-sized businesses that require a reliable and scalable network solution. These ports provide users with the flexibility and capacity to connect multiple devices, ensuring seamless communication and data transfer within the network infrastructure.
Increased Connectivity Options
With 10 ports at your disposal, you can effortlessly connect a wide range of devices to the Catalyst IE3105 Switch. This includes computers, printers, servers, IP phones, surveillance cameras, and other network-enabled devices. The abundance of ports eliminates the need for additional switches or hubs, simplifying your network setup and reducing clutter.
Enhanced Performance and Throughput
Each port of the Catalyst IE3105 Switch supports Gigabit Ethernet connectivity, offering lightning-fast data transfer speeds of up to 1000 Mbps. This high-speed connection ensures quick and efficient file transfers, seamless video streaming, and smooth online collaboration. Whether you are transferring large files or conducting video conferences, the Catalyst IE3105 Switch promises exceptional performance and minimal latency.
Improved Network Segmentation
The 10 ports of the Catalyst IE3105 Switch allow for effective network segmentation. This means that you can create separate virtual LANs (VLANs) to isolate different departments or groups within your organization. By segregating network traffic, you can enhance security, improve network performance, and control access to sensitive data. The ability to create VLANs ensures that your network remains organized and optimized for your specific requirements.
Simplified Network Expansion
As your business grows, so do your networking needs. With the Catalyst IE3105 Switch's 10 ports, you have ample room for expansion without the hassle of investing in additional network equipment. You can easily connect new devices or expand your network infrastructure by utilizing the available ports, ensuring that your network can accommodate the evolving demands of your business.
Management
The management capabilities of the Catalyst IE3105 Switch are designed to provide users with complete control and monitoring over their network. With its managed features, this switch offers advanced functionalities that enable efficient network administration and optimization.
Centralized Network Control
The managed nature of the Catalyst IE3105 Switch allows for centralized network control. This means that you can configure and manage all aspects of your network from a single interface. With the ability to monitor and control individual ports, VLANs, and network protocols, you have full visibility and control over your network infrastructure. This centralized management simplifies network administration tasks, reduces downtime, and enhances overall network performance.
Quality of Service (QoS) Prioritization
The Catalyst IE3105 Switch provides advanced QoS features, allowing you to prioritize network traffic based on specific criteria. This ensures that critical applications and services receive sufficient bandwidth and are not affected by non-essential traffic. By prioritizing important data packets, such as voice or video data, you can guarantee optimal performance for real-time applications and prevent bottlenecks that may impact productivity.
Secure Network Access Control
With managed access control features, the Catalyst IE3105 Switch enables administrators to establish granular control over network access. This includes implementing authentication protocols, such as IEEE 802.1X, to ensure that only authorized devices can connect to the network. Additionally, administrators can create access policies based on MAC addresses or IP addresses, further enhancing network security. The ability to enforce secure access control measures safeguards your network against unauthorized access and potential security breaches.
Efficient Network Monitoring and Troubleshooting
The management capabilities of the Catalyst IE3105 Switch include comprehensive monitoring and troubleshooting tools. Network administrators can monitor network performance, track traffic patterns, and identify potential bottlenecks or issues in real time. This proactive approach enables efficient troubleshooting and ensures that network problems are quickly resolved, minimizing downtime and maximizing productivity.
Additional Info
The Catalyst IE3105 Switch is an exceptional networking solution that features the Cisco IE-3105-8T2C-E model. This additional information adds value to the switch, providing users with specific details about its capabilities and compatibility.
Cisco IE-3105-8T2C-E Model
The Cisco IE-3105-8T2C-E is a versatile model of the Catalyst IE3105 Switch, designed to meet the requirements of various network environments. This model offers a unique combination of 8 copper ports and 2 combo Gigabit Ethernet ports, providing users with increased flexibility in connecting different types of devices.
Expanded Connectivity Options
The 8 copper ports of the Cisco IE-3105-8T2C-E model allow for seamless integration with devices that utilize Ethernet connectivity. This includes computers, printers, servers, and other network-enabled devices that rely on traditional copper-based connections. Additionally, the 2 combo Gigabit Ethernet ports offer versatility by supporting both copper and fiber optic connections. These expanded connectivity options ensure compatibility with a wide range of devices and cabling infrastructure.
Future-Proof Network Design
The Cisco IE-3105-8T2C-E model is designed to support future network requirements, making it an excellent investment for businesses looking to future-proof their network infrastructure. The inclusion of combo Gigabit Ethernet ports allows for easy migration to fiber optic connectivity when the need arises. This ensures that your network can adapt to emerging technologies and evolving business needs without requiring significant hardware upgrades or replacements.
Cost-Effective Solution
The Cisco IE-3105-8T2C-E model offers a cost-effective solution for businesses that require a versatile and scalable network switch. By providing a combination of copper and combo Gigabit Ethernet ports, this model eliminates the need for multiple switches or additional network equipment. This not only reduces upfront costs but also simplifies network management and maintenance, resulting in long-term cost savings.
In conclusion, the Catalyst IE3105 Switch with its 10 ports delivers exceptional connectivity options, improved performance, enhanced network segmentation, and simplified network expansion. Its managed features offer centralized control, QoS prioritization, secure access control, and efficient monitoring and troubleshooting. The additional information about the Cisco IE-3105-8T2C-E model highlights its expanded connectivity options, future-proof design, and cost-effectiveness. With these features and capabilities, the Catalyst IE3105 Switch is an ideal choice for businesses seeking a reliable, scalable, and efficient networking solution.
