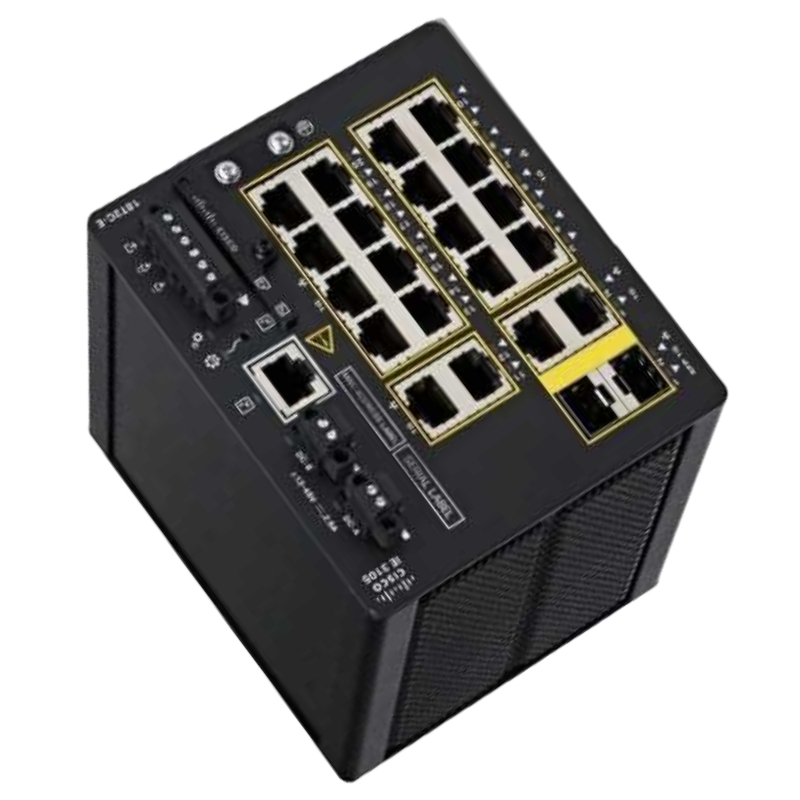

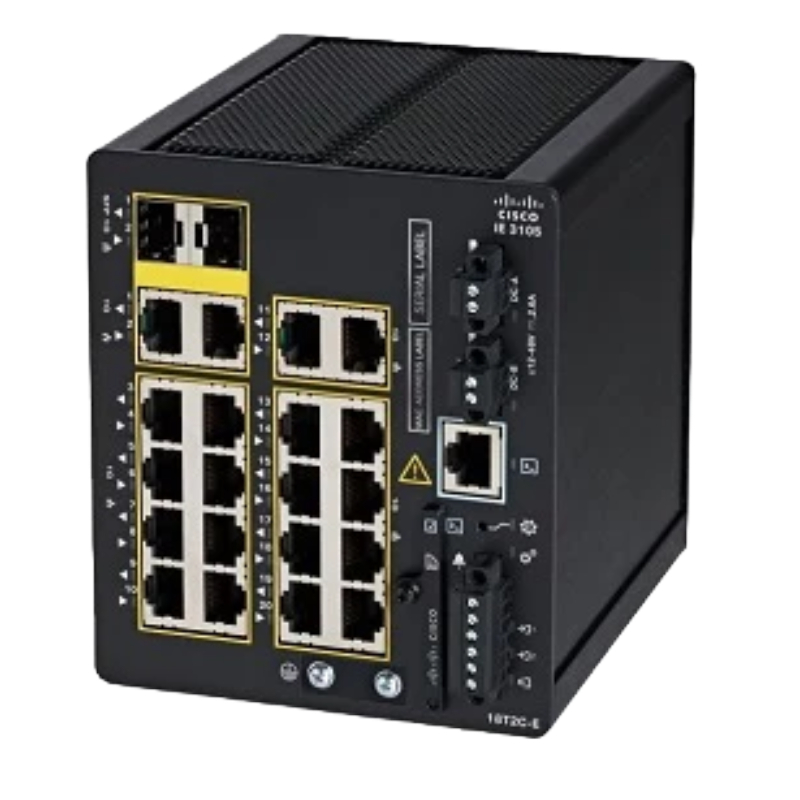

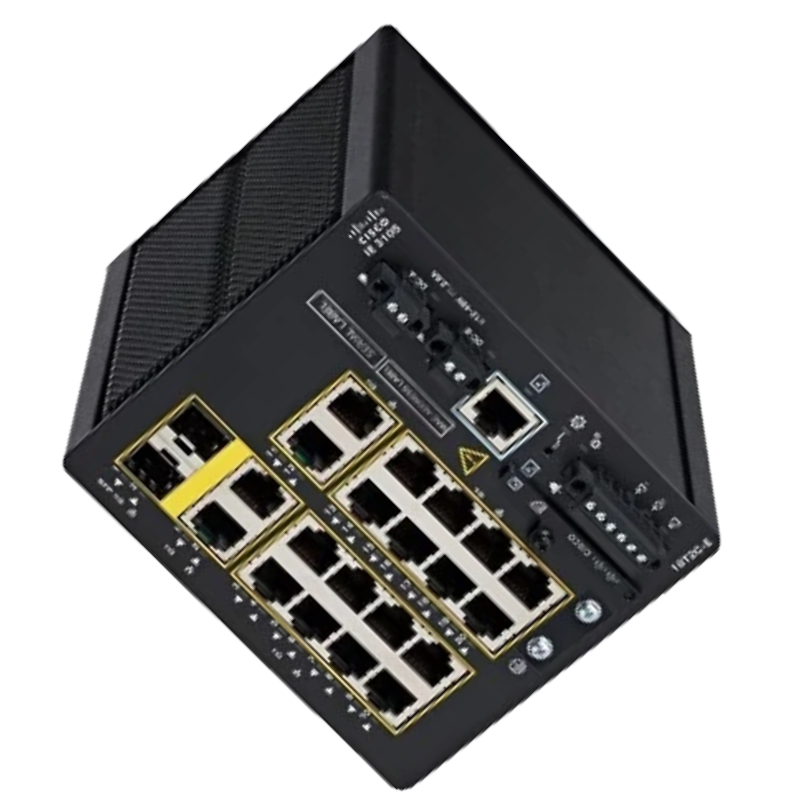

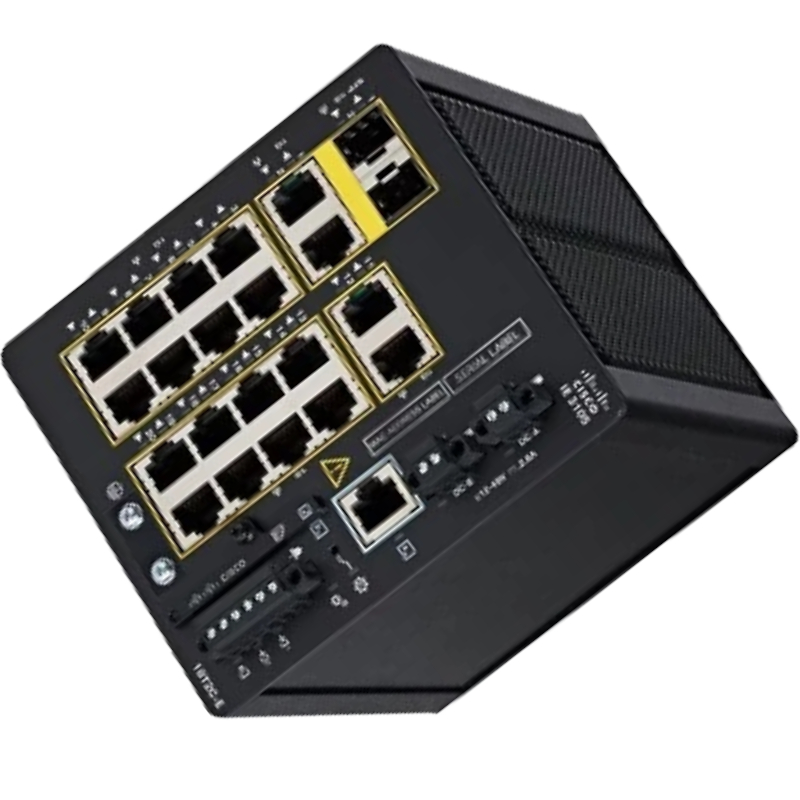

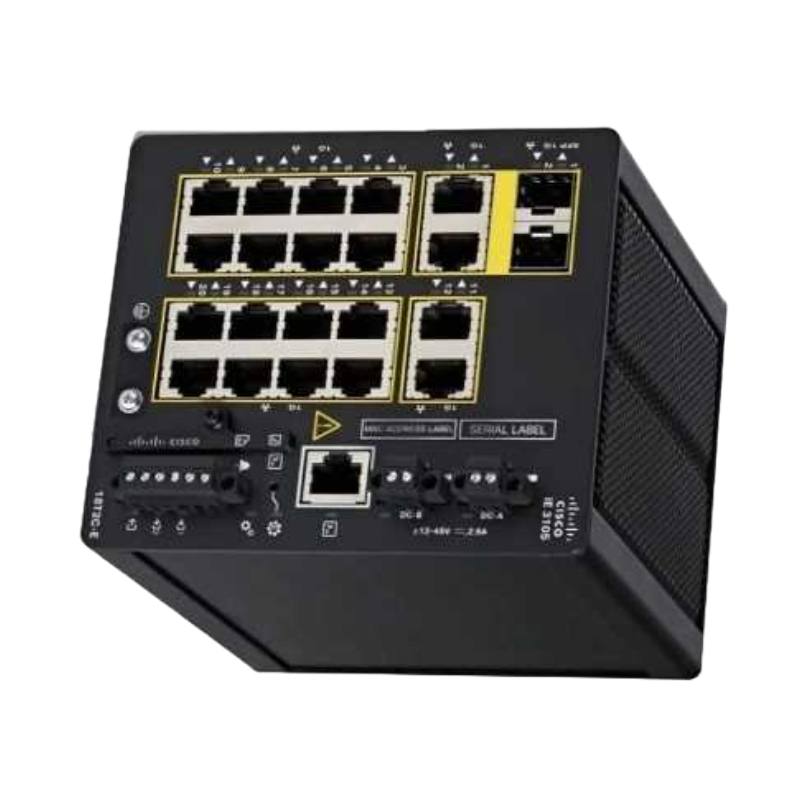

Cisco Catalyst IE3105 20 Ports Switch Managed IE-3105-18T2C-E
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Overview of Cisco IE-3105-18T2C-E 20 Ports Switch
Manufacturer Details
- Brand: Cisco
- Model Number: IE-3105-18T2C-E
- Product Type: Managed Switch
Technical Specifications
Device Characteristics
- Mounting Type: Din Rail
- Network Subtype: Gigabit Ethernet
Port Configuration
- 18 x 10/100/1000 Ethernet Ports
- 2 x Combo Gigabit Ports
Capacity & Performance
- Queue Support: 8 Queues
- IGMP Groups: 512
- VLAN Support: 256 VLANs
- Indirect IPv4 Routes: 2000
- Spanning Tree Protocol Instances: 128
- MAC Address Table Size: 8000 Entries
Routing Protocols
- IGMPv2, IGMP, Static IP Routing, IGMPv3, STP
Remote Management Capabilities
- Supported Protocols: SNMP (v1, v2, v3), RMON, Telnet, HTTP, HTTPS, TFTP, Netconf, RESTCONF, Modbus, NTP, ICMP, DHCP, IPv4, IPv6, YANG, Syslog, MIB
- Authentication: SSH, RADIUS, TACACS+
Key Features
- Layer 2 Switching
- NAT Support
- BOOTP Support
- IGMP Snooping
- DiffServ Support
- Surge Protection
- DHCP Snooping
- Quality of Service (QoS)
- MLD Snooping
- Dynamic ARP Inspection (DAI)
- Per-VLAN Spanning Tree Plus (PVST+)
- Rapid Per-VLAN Spanning Tree Plus
Compliance Standards
- IEEE 802.3u
- IEEE 802.3z
- IEEE 802.1D
- IEEE 802.1Q
- IEEE 802.3ab
- IEEE 802.1p
- IEEE 802.3ad (LACP)
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.1s
- IEEE 802.3ah
- IEEE 802.1AB (LLDP)
- IEEE 1588v2
Memory and Built-in Devices
- RAM: 4 GB
- Built-in Features: SD Card Reader
Expansion and Connectivity Options
Interface Details
- 18 x 10/100/1000 Base-T RJ-45 Downlink
- 2 x 1000Base-X RJ-45 Uplink
- 1 x Micro-USB Type B
- 1 x Serial (RS-232) RJ-45
- 2 x Alarm Input
Expansion Slots
- 1 Total SD Memory Card Slot (1 Free)
Power Specifications
- Power Supply: Internal
- Maximum Supported Quantity: 2
- Power Redundancy: Optional
- Power Input Range: 12 – 48 V
- Operational Power Consumption: 36.7 Watts
Ports
The Cisco IE3105 Switch is equipped with an impressive 20 ports, making it an ideal choice for businesses that require a high-density switching solution. This feature is particularly beneficial for companies that have a large number of devices and need to connect them all to a single network.
Increased Connectivity
With 20 ports, the Cisco IE3105 Switch offers increased connectivity options, allowing businesses to connect more devices directly to the switch. This eliminates the need for additional networking equipment, simplifying the network infrastructure and reducing costs.
Improved Network Performance
By providing ample ports, the Cisco IE3105 Switch ensures that each device connected to the network has a dedicated connection. This prevents network congestion and ensures optimal performance for all connected devices. Whether it's data transfer, video streaming, or VoIP calls, users can expect a seamless experience without any lag or interruptions.
Flexibility and Scalability
The 20 ports on the Cisco IE3105 Switch offer flexibility and scalability for growing businesses. With the ability to connect numerous devices, businesses can easily expand their network without having to invest in additional switches. This not only saves money but also simplifies network management.
High-Speed Connectivity
Each of the 20 ports on the Cisco IE3105 Switch supports high-speed Gigabit Ethernet connectivity. This enables fast data transfer rates of up to 1 Gbps, ensuring speedy communication between devices. Whether it's large file transfers or real-time collaboration, users can rely on the Cisco IE3105 Switch to deliver exceptional performance.
Power over Ethernet (PoE)
Some of the ports on the Cisco IE3105 Switch also support Power over Ethernet (PoE) technology. This means that power can be supplied to compatible devices directly through the Ethernet cable, eliminating the need for separate power cables and adapters. This feature is especially useful for devices like IP cameras, wireless access points, and VoIP phones.
Link Aggregation
With the Cisco IE3105 Switch, users can also take advantage of link aggregation technology. This allows multiple ports to be combined into a single logical link, increasing the overall bandwidth and providing redundancy. Link aggregation enhances network performance and ensures uninterrupted connectivity, even if one of the physical links fails.
Cost Savings
The 20 ports on the Cisco IE3105 Switch offer cost savings for businesses. By providing a high-density solution, fewer switches are required to connect all devices, reducing equipment costs. Additionally, the Power over Ethernet capability eliminates the need for separate power supplies, further lowering expenses.
Streamlined Network Management
Managing a network with numerous devices can be a complex and time-consuming task. However, the Cisco IE3105 Switch simplifies network management with its 20 ports. With all devices connected directly to the switch, it becomes easier to monitor and control network traffic. This centralized management approach saves time and effort for network administrators.
Management
The Cisco IE3105 Switch is a managed switch, offering advanced management capabilities that are crucial for businesses of all sizes. This feature provides users with enhanced control over their network infrastructure and allows them to optimize performance, security, and reliability.
Network Monitoring
With its managed capabilities, the Cisco IE3105 Switch enables comprehensive network monitoring. Network administrators can obtain real-time insights into traffic patterns, bandwidth utilization, and device statistics. This information is invaluable for identifying bottlenecks, troubleshooting issues, and optimizing network performance.
Quality of Service (QoS)
The Cisco IE3105 Switch supports Quality of Service (QoS) features that prioritize certain types of network traffic over others. This ensures that critical applications, such as VoIP or video conferencing, receive the necessary bandwidth and are not affected by less important traffic. QoS improves overall network performance and user experience.
Enhanced Security
As a managed switch, the Cisco IE3105 offers advanced security features to protect the network from unauthorized access and potential threats. It supports features like VLANs (Virtual Local Area Networks) and Access Control Lists (ACLs) that allow administrators to segment the network and control access at a granular level. This helps prevent unauthorized access to sensitive data and enhances network security.
Remote Management
One of the key advantages of a managed switch like the Cisco IE3105 is the ability to remotely manage the network. Network administrators can access the switch's management interface from anywhere, allowing them to troubleshoot issues, configure settings, and perform updates without being physically present at the switch's location. This remote management capability saves time and resources for businesses with distributed networks.
Improved Reliability
With its managed capabilities, the Cisco IE3105 Switch offers improved reliability for businesses. It supports features like Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) that provide redundancy and ensure network resiliency. These protocols help prevent network loops and automatically reroute traffic in case of link failures, minimizing downtime and maintaining network availability.
Scalability
Managed switches are designed to scale with growing network demands, and the Cisco IE3105 is no exception. It offers features like Virtual Chassis, which allows multiple switches to be interconnected and managed as a single logical unit. This simplifies network expansion and management, making it easier for businesses to accommodate future growth.
Centralized Control
The managed capabilities of the Cisco IE3105 Switch provide businesses with centralized control over their network infrastructure. Network administrators can configure settings, apply security policies, and monitor network performance from a single interface. This centralized control simplifies network management, reduces the risk of misconfigurations, and improves overall network efficiency.
Compliance and Reporting
For businesses operating in regulated industries, compliance with industry standards and regulations is essential. The Cisco IE3105 Switch offers reporting capabilities that enable businesses to generate detailed reports on network activity, security events, and compliance status. This helps businesses demonstrate adherence to regulatory requirements and simplify the auditing process.
