Cisco Catalyst IE3300 8 Ports Managed Switch IE-3300-8U2X-E
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Same product also available in:
SKU/MPN | Warranty | Price | Condition | You save |
---|---|---|---|---|
IE-3300-8U2X-E | Six-Month (180 Days) | $5,023.00 | New (System) Pull | You save: $3,029.75 (38%) |
IE-3300-8U2X-E | Six-Month (180 Days) | $5,433.00 | Factory-Sealed New Retail in Original Box (FSB) | You save: $2,619.75 (33%) |

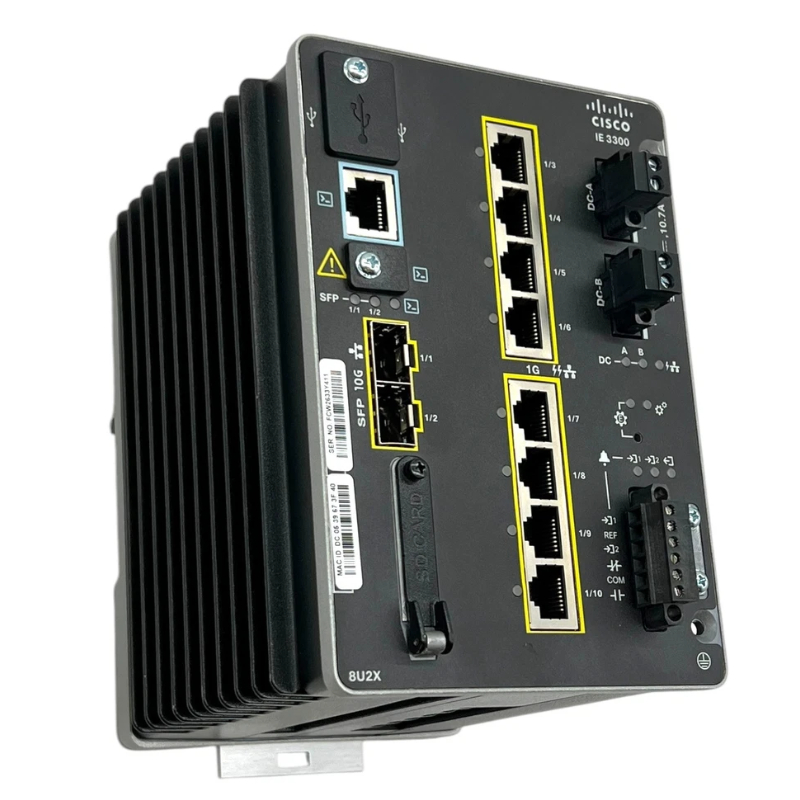

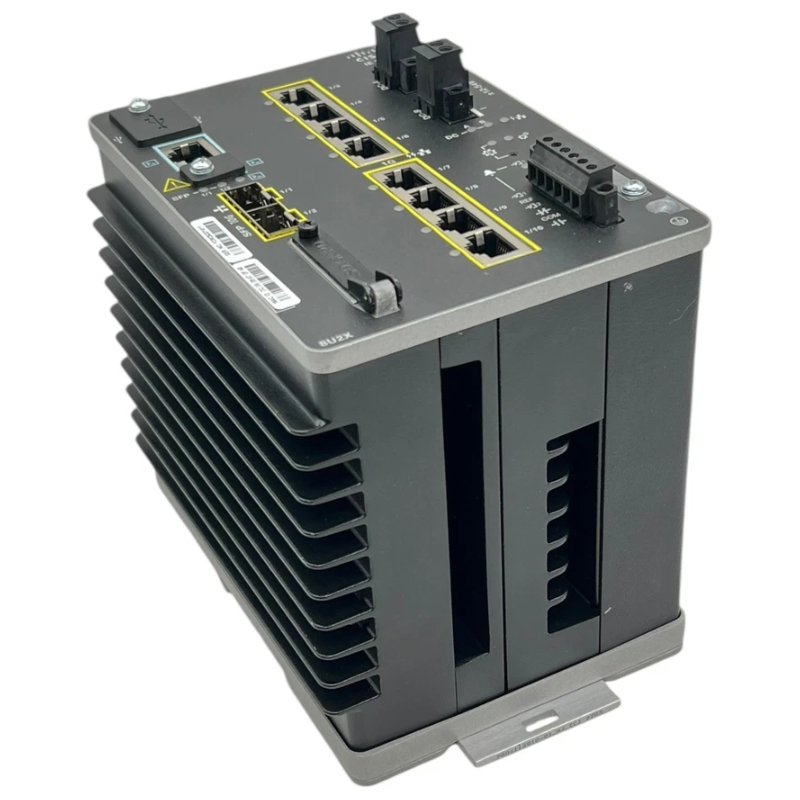

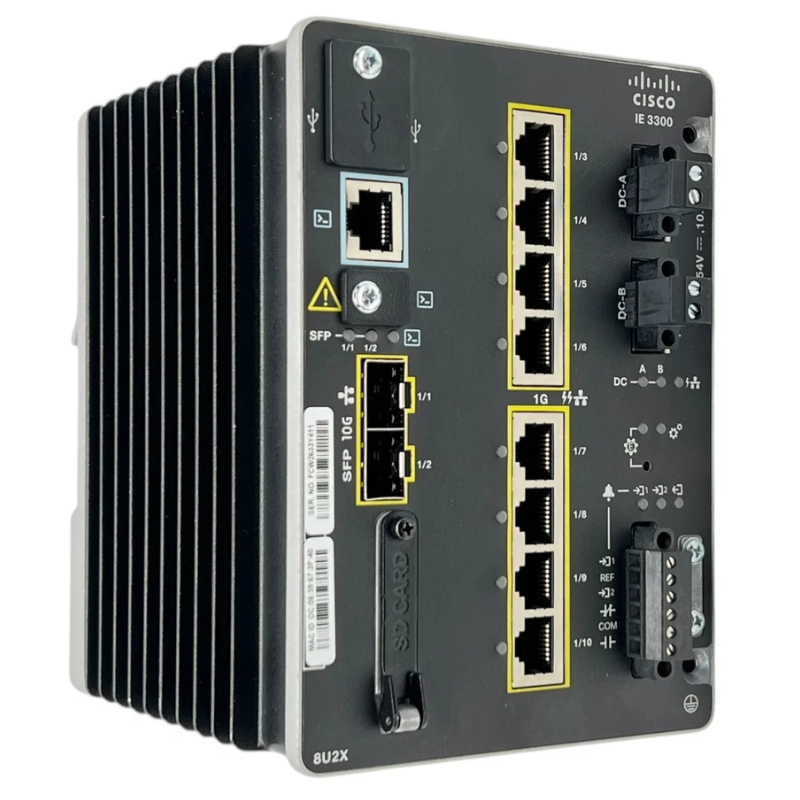

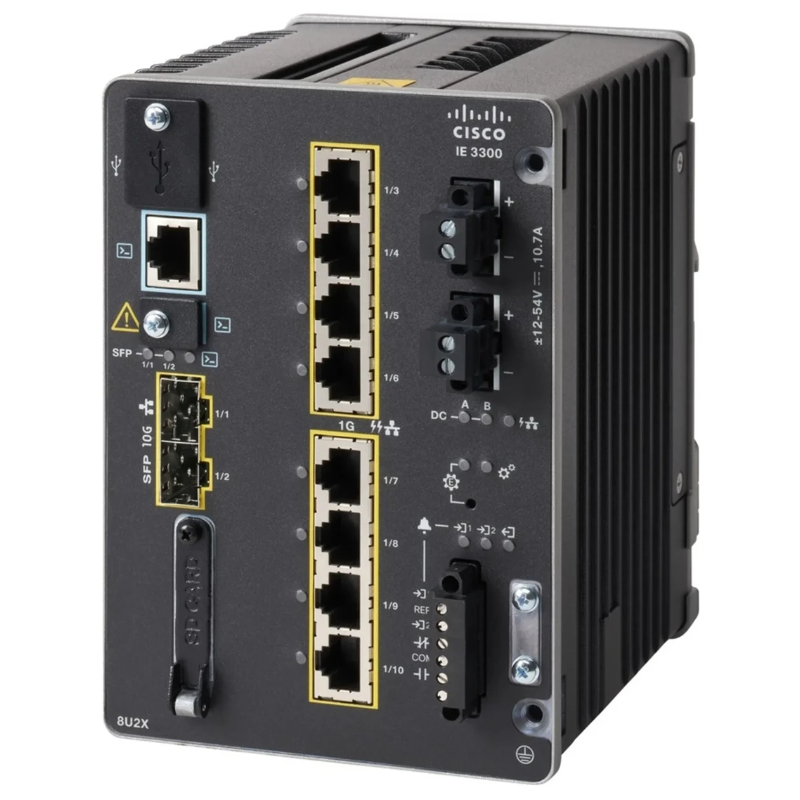

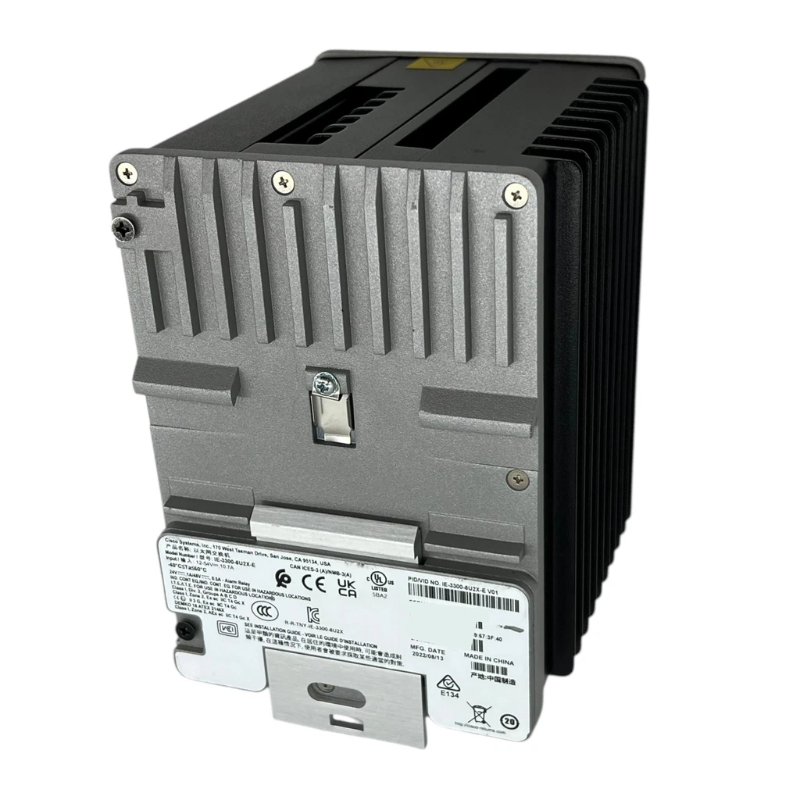

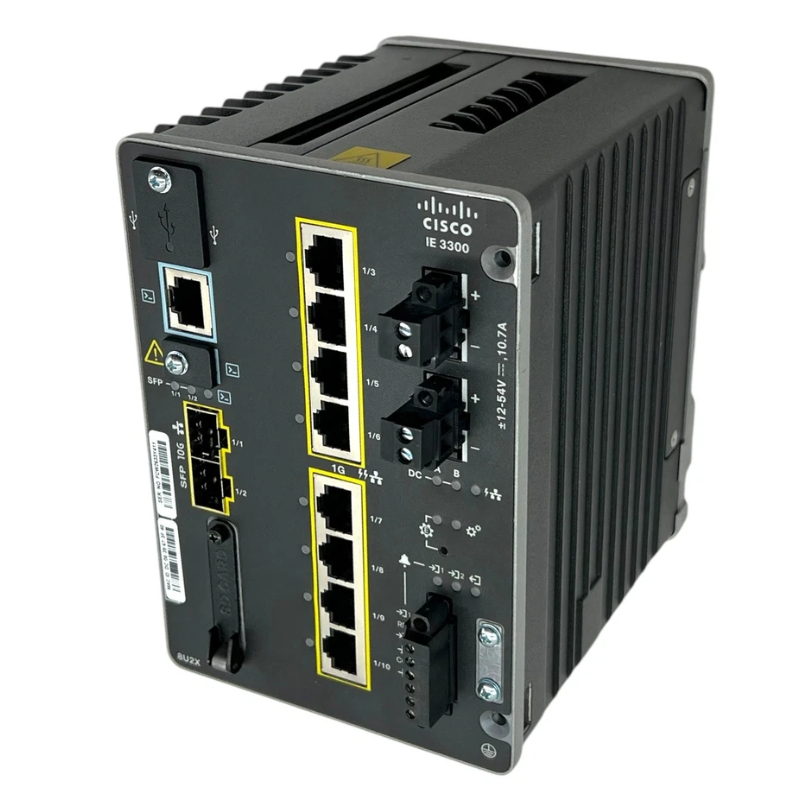

Overview of Cisco IE-3300-8U2X-E Managed Switch
The Cisco Catalyst IE-3300-8U2X Ethernet Switch is engineered for robust network performance and versatility, designed specifically for demanding environments.
Key Specifications
- Brand: Cisco
- Model Number: IE-3300-8U2X-E
- Product Line: Catalyst
- Series: IE3300
- Product Type: Managed Ethernet Switch
Interface and Port Configuration
- Total Network Ports: 8
- RJ-45 Ports: Yes
- Uplink Port: Available
- Modular Ports: Yes
- Port/Expansion Slots:
- 4 x Gigabit Ethernet Network Ports
- 4 x Gigabit Ethernet PoE Ports
- 2 x 10 Gigabit Ethernet Expansion Slots
Media and Performance
Supported Media Types
- Twisted Pair
- Optical Fiber
Ethernet Technology Standards
- Gigabit Ethernet
- 10 Gigabit Ethernet
- 10/100/1000Base-T
- 10GBase-X
I/O Expansion Features
Expansion Slot Details
- Total Expansion Slots: 2
- Slot Type: SFP+
- SFP+ Slots: 2
Network and Communication Protocols
Layer and Standards Supported
- Layer: Layer 3
- Networking Standards:
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.11ac
- IEEE 802.3
- IEEE 802.1x
- IEEE 802.1D
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1ab
- IEEE 802.3ad
- IEEE 802.3ah
- IEEE 802.3x
- IEEE 802.3u
- IEEE 802.3z
Management and Protocol Capabilities
- Manageable: Yes
Power Specifications
- PoE (RJ-45) Ports: Yes
- PoE Budget: 480 W
- Power Source: DC
- Redundant Power Supply: Supported
- Power Consumption: 42 W
Dimensions and Weight
- Form Factor: DIN Rail Mountable
- Height: 6 inches
- Width: 4.4 inches
- Depth: 5.3 inches
- Weight: Approximately 4.50 lbs
Environmental Considerations
- Eco-Friendly: Yes
- Environmental Certification: WEEE
Ports
Introduction
The Cisco IE-3300-8U2X-E Managed Switch is equipped with 8 ports, making it an ideal choice for small to medium-sized businesses. These ports offer a multitude of benefits and are crucial for the smooth functioning of the network infrastructure. In this section, we will delve into the importance of these ports and highlight the advantages they bring to users.
Increased Connectivity
Enhanced Flexibility
The 8 ports on the Cisco IE-3300-8U2X-E Managed Switch provide users with increased connectivity options. This enables businesses to connect a diverse range of devices, such as computers, printers, servers, and IP phones, to their network. The flexibility offered by these ports allows for seamless integration of various devices, ensuring efficient communication and collaboration within the organization.
Scalability
The availability of 8 ports makes the Cisco IE-3300-8U2X-E Managed Switch highly scalable. As businesses grow and expand their operations, they often need to accommodate additional devices and users. With these multiple ports, organizations can easily add new devices to their network without the need for additional switches or complicated configurations. This scalability ensures that the switch can adapt to evolving business requirements without any disruption.
Improved Network Performance
Reduced Network Congestion
By offering 8 ports, the Cisco IE-3300-8U2X-E Managed Switch helps distribute network traffic efficiently. Each port acts as an independent connection point, allowing devices to transmit data simultaneously without causing congestion or degradation in performance. This ensures that all connected devices can operate at their maximum potential, resulting in a smooth and uninterrupted network experience.
Higher Bandwidth Capability
The 8 ports on the Cisco IE-3300-8U2X-E Managed Switch provide users with higher bandwidth capability. With more ports available, the switch can handle larger volumes of data transfer simultaneously. This is essential for businesses that rely on bandwidth-intensive applications or deal with large file transfers regularly. The increased bandwidth capacity ensures that data can be transmitted quickly and efficiently, enhancing overall network performance.
Network Segmentation
Enhanced Security
The 8 ports on the Cisco IE-3300-8U2X-E Managed Switch enable network segmentation, which enhances security within the organization. By dividing the network into multiple segments, businesses can isolate sensitive data or critical systems from the rest of the network. This isolation helps prevent unauthorized access or potential attacks from spreading across the entire network. With individual ports, businesses can assign specific devices or departments to different segments, ensuring better control and security.
Improved Performance Isolation
Network segmentation facilitated by the 8 ports also allows for improved performance isolation. In a shared network environment, heavy bandwidth usage by one device or department can negatively impact the performance of others. By segmenting the network, businesses can allocate dedicated ports to critical devices or departments, ensuring that their performance remains unaffected by others' activities. This isolation guarantees consistent and reliable performance for all connected devices.
Simplified Network Management
Ease of Troubleshooting
Having 8 ports on the Cisco IE-3300-8U2X-E Managed Switch simplifies network management and troubleshooting processes. Each port represents a distinct connection point, making it easier to identify and isolate issues within the network. IT administrators can quickly pinpoint problematic devices or connections, minimizing downtime and streamlining the troubleshooting process. This simplification saves valuable time and resources for IT teams.
Efficient Cable Management
The availability of multiple ports also contributes to efficient cable management. With 8 ports, businesses can neatly organize their network cables without the need for additional external switches or complex cable arrangements. This simplifies cable routing and reduces clutter within the network infrastructure. The streamlined cable management not only enhances the aesthetic appeal but also improves airflow and reduces the risk of accidental cable disconnections.
Conclusion
In summary, the Cisco IE-3300-8U2X-E Managed Switch's 8 ports offer numerous benefits to users. From increased connectivity options and scalability to improved network performance and simplified management, these ports play a vital role in ensuring a reliable and efficient network infrastructure for small to medium-sized businesses. With their ability to handle traffic, provide higher bandwidth capacity, facilitate network segmentation, and simplify troubleshooting, these ports empower organizations to optimize their network operations and meet their evolving business needs effectively.
