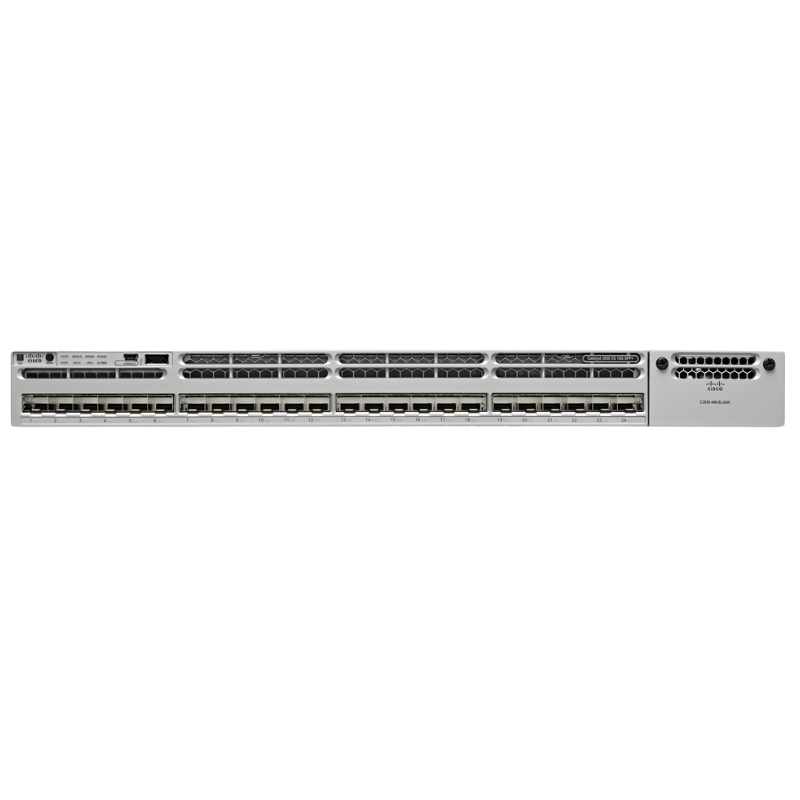

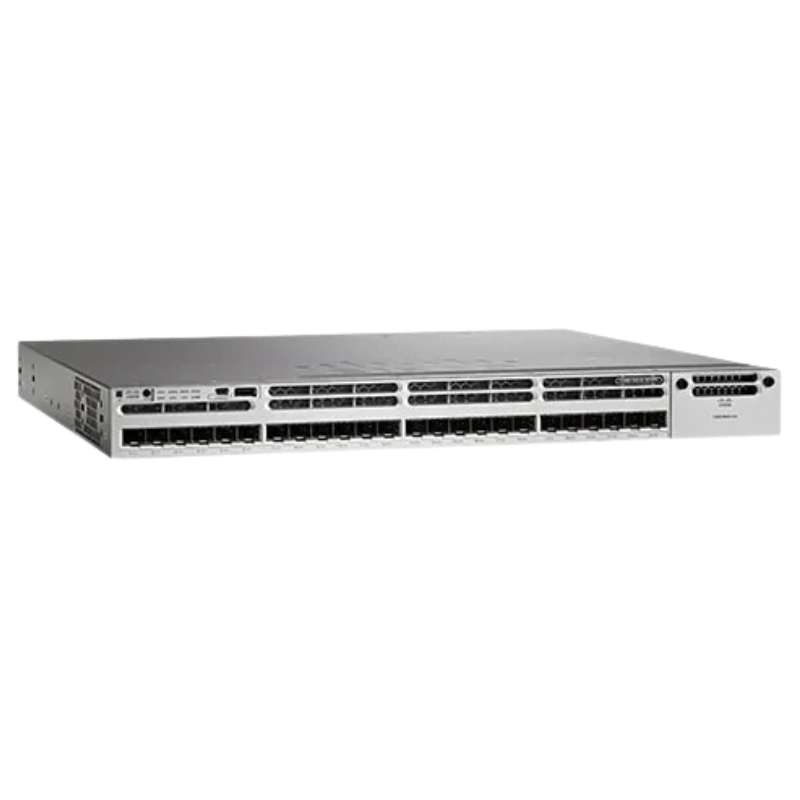

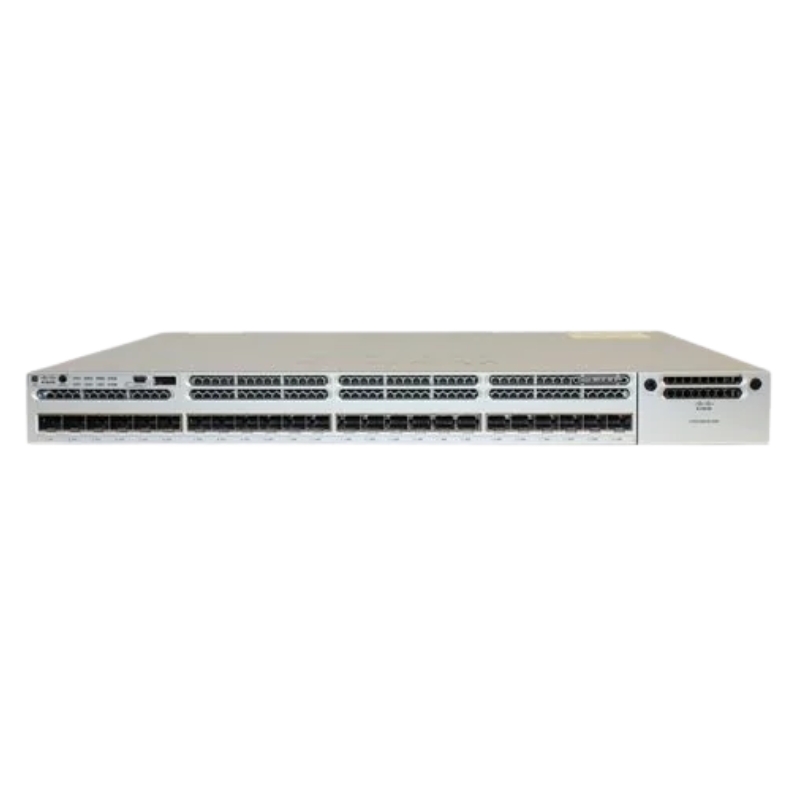

Cisco Catalyst Switch WS-C3850-24XS-E, 24 Ports, 10 Gigabit Ethernet

Ports

The Cisco WS-C3850-24XS-E Switch is equipped with 24 ports, making it an ideal choice for users who require a high number of connections. These ports offer numerous benefits and play a crucial role in ensuring seamless network connectivity. In this section, we will explore the importance and advantages of the 24-port Switch feature in detail.

Overview of 3850-24XS-E

The CISCO Catalyst 3850-24XS-E is a versatile network switch designed for high-performance environments. This model features 24 ports that support both 1 Gigabit and 10 Gigabit SFP+ connections, providing flexibility and scalability for modern network infrastructures. It can be installed either as a desktop unit or rack-mounted in a 1U space.

Device Specifications

• Type: Managed Switch - 24 Ports, Layer 3, Stackable
• Enclosure: Desktop or Rack-mountable, 1U
• Subtype: 10 Gigabit Ethernet

Port Configuration

• Ports: 24 x 1G / 10G SFP+
• Interfaces:
  • 24 x 10GBASE-X SFP+
  • 1 x USB Type A
  • 1 x Mini-USB Type B (Management)
  • 1 x RJ-45 Console
  • 1 x RJ-45 Management (Gigabit LAN)
  • 2 x Network Stack Devices

Expansion and Performance

• Expansion Slots: 1 total, 1 free
• Switching Capacity: 640 Gbps
• Stacking Bandwidth: 480 Gbps

Capacity and Routing

• IPv4 Routes: 24,000
• NetFlow Entries: 48,000
• Virtual Interfaces (VLANs): 4,000
• Switched Virtual Interfaces (SVIs): 1,000

Routing Protocols

• OSPF
• BGP-4
• IS-IS
• RIP-1, RIP-2
• EIGRP
• IGMPv2, IGMP, IGMPv3
• PIM-SM, PIM-DM, PIM-SSM
• EIGRP for IPv6
• OSPFv3
• Policy-based Routing (PBR)
• RIPng
• MLDv2

Remote Management

• SNMP v1, v2c, v3
• RMON v1, v2
• Telnet
• TFTP
• SSH
• CLI

Power Specifications

• Power Device: Internal Power Supply
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Power Redundancy: Optional (1+1 with optional power supply)
• Power Provided: 715 Watts
• Voltage Required: AC 120/230V (50 - 60 Hz)

Physical Dimensions

• Dimensions (W x D x H): 17.5 inches x 17.7 inches x 1.8 inches
• Weight: 13.45 lbs

Increased Connectivity

One of the primary benefits of the Cisco WS-C3850-24XS-E Switch's 24 ports is the increased connectivity it provides. With a higher number of ports, users can connect more devices to the network without the need for additional switches or routers. This is especially advantageous for businesses and organizations that rely on numerous devices for their operations, such as offices with multiple workstations or data centers with a large number of servers.

Scalability

The 24-port feature also offers excellent scalability options. As businesses grow and expand, their networking needs tend to increase as well. By having 24 ports available on the switch, users can easily accommodate additional devices without requiring significant changes to their network infrastructure. This scalability ensures that the switch can adapt to evolving requirements, providing a long-term solution that eliminates the need for frequent replacements or upgrades.

Flexibility

Flexibility is another advantage provided by the 24 ports feature. The numerous ports allow users to connect a variety of devices simultaneously, including computers, printers, IP phones, network storage devices, and more. This flexibility enables businesses to create diverse network setups tailored to their specific needs, enhancing productivity and efficiency.

Reduced Latency

Having more ports on a switch can also help reduce latency in the network. With fewer devices sharing each port, there is less congestion and a lower chance of data collisions. This results in faster and more reliable data transmission, ensuring smooth and uninterrupted communication between devices. Reduced latency is especially crucial in time-sensitive applications, such as video conferencing, online gaming, or real-time data analysis.

Improved Network Performance

The 24 ports feature directly contributes to improved network performance. With a higher number of ports, the switch can handle a larger volume of data traffic simultaneously. This prevents bottlenecks and congestion, allowing for faster data transfer rates and better overall network performance. Users can experience quicker file transfers, smoother multimedia streaming, and more responsive network applications.

Cost Savings

While 24 ports may seem like overkill for some users, it can help save costs in the long run. By investing in a switch with more ports than immediately required, businesses can future-proof their network infrastructure. This eliminates the need to purchase additional switches or upgrade existing ones when the demand for more connections arises. Additionally, consolidating devices onto a single switch reduces power consumption and maintenance costs associated with managing multiple switches.

Speed

The Cisco WS-C3850-24XS-E Switch boasts a speed of 10 Gigabit Ethernet (10 Gbps), providing users with blazing-fast data transfer capabilities. This section will delve into the benefits and importance of this impressive speed, highlighting how it enhances network performance and supports various applications.

High Bandwidth

The 10 Gigabit Ethernet speed offers significantly higher bandwidth compared to traditional Ethernet speeds. With 10 Gbps throughput, users can transmit larger amounts of data in less time. This is particularly advantageous for businesses that deal with large file transfers, such as media production companies or scientific research institutions. It enables them to transfer massive video files, datasets, or backups quickly and efficiently.

Smooth Multimedia Streaming

In today's digital age, multimedia streaming has become a vital aspect of many businesses and organizations. Whether it's video conferencing, online training sessions, or multimedia presentations, a smooth streaming experience is essential. The 10 Gigabit Ethernet speed ensures that multimedia data is transmitted without any lag or buffering issues, guaranteeing high-quality and uninterrupted streaming for users.

Support for Virtualization

Virtualization has revolutionized the IT industry by enabling the creation of virtual servers and networks. However, virtualization demands high-speed connectivity to ensure optimal performance. The 10 Gigabit Ethernet speed of the Cisco WS-C3850-24XS-E Switch provides the necessary bandwidth to support virtualization deployments effectively. It allows for rapid communication between virtual machines, ensuring smooth operation and preventing any potential bottlenecks.

Future-Proofing

Investing in a switch with 10 Gigabit Ethernet speed is a future-proofing strategy. As technology continues to advance and data demands increase, networks will require higher bandwidth to handle the growing traffic. By choosing a switch with 10 Gbps capabilities, users can ensure their network infrastructure remains relevant and capable of meeting future demands. This saves businesses from having to upgrade their switches prematurely, resulting in cost savings and improved efficiency.

Enhanced Productivity

The 10 Gigabit Ethernet speed directly contributes to enhanced productivity in various ways. Faster data transfer rates enable employees to access and share files quickly, reducing waiting times and improving workflow efficiency. The increased bandwidth also supports real-time collaboration tools, allowing teams to work seamlessly together, regardless of geographical location. Ultimately, the speed offered by the Cisco WS-C3850-24XS-E Switch enhances productivity by minimizing network-related delays and maximizing users' ability to perform tasks efficiently.

In conclusion, the Cisco WS-C3850-24XS-E Switch's 24 ports and 10 Gigabit Ethernet speed provide significant benefits and advantages for users. The 24 ports offer increased connectivity, scalability, flexibility, reduced latency, improved network performance, and potential cost savings. On the other hand, the 10 Gigabit Ethernet speed delivers high bandwidth, smooth multimedia streaming, support for virtualization, future-proofing capabilities, and enhanced productivity. These features make the Cisco WS-C3850-24XS-E Switch an exceptional choice for businesses and organizations that demand a robust and high-performing network infrastructure.
