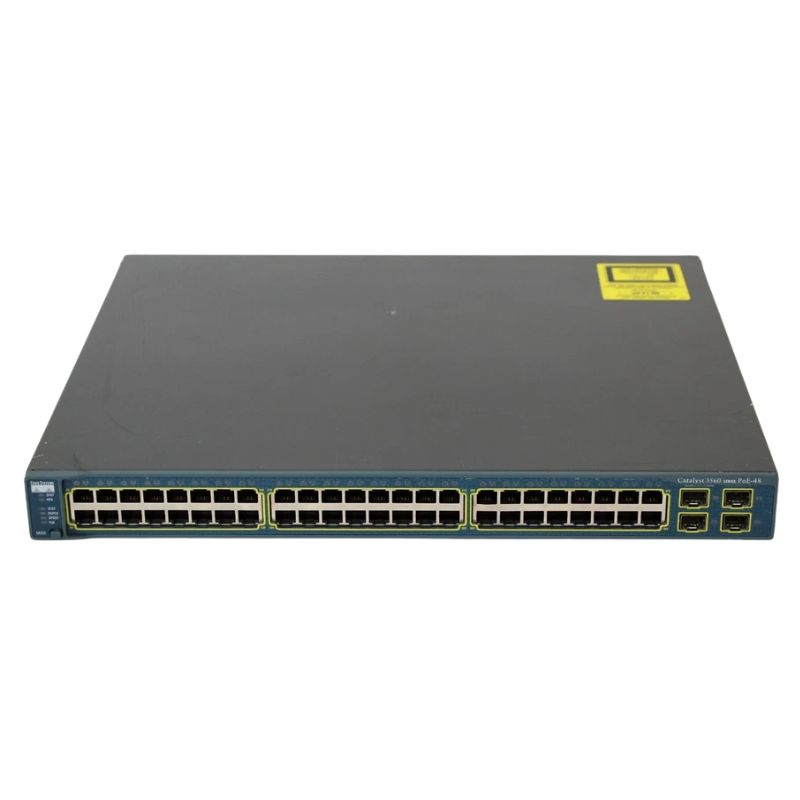

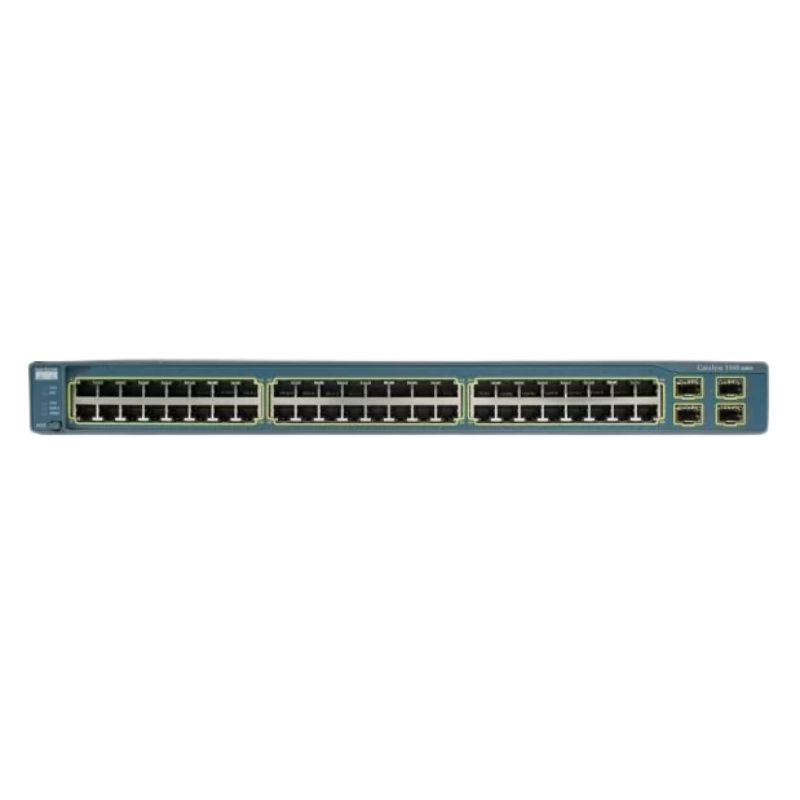

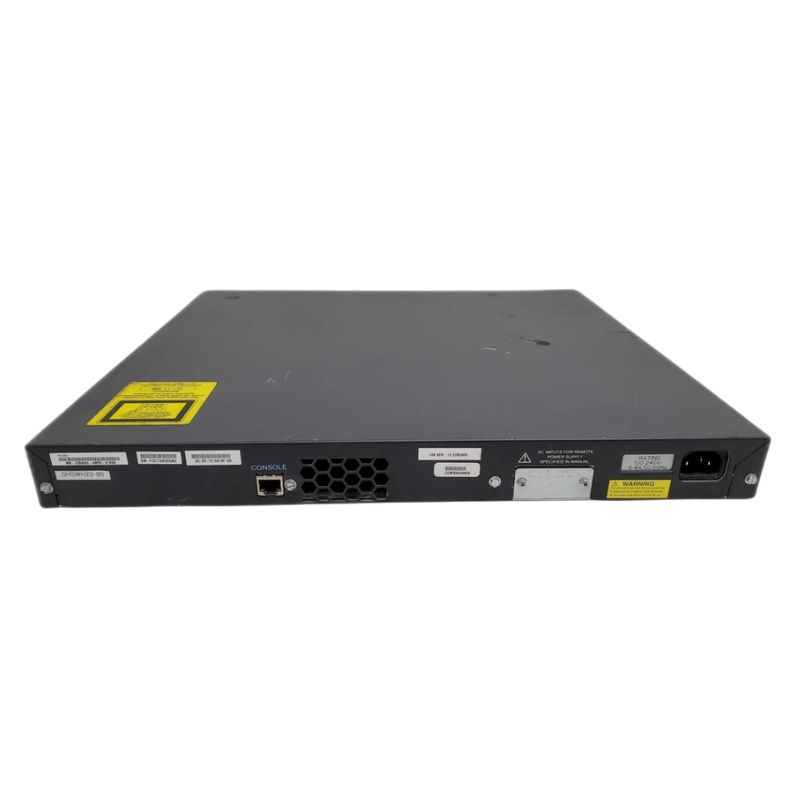

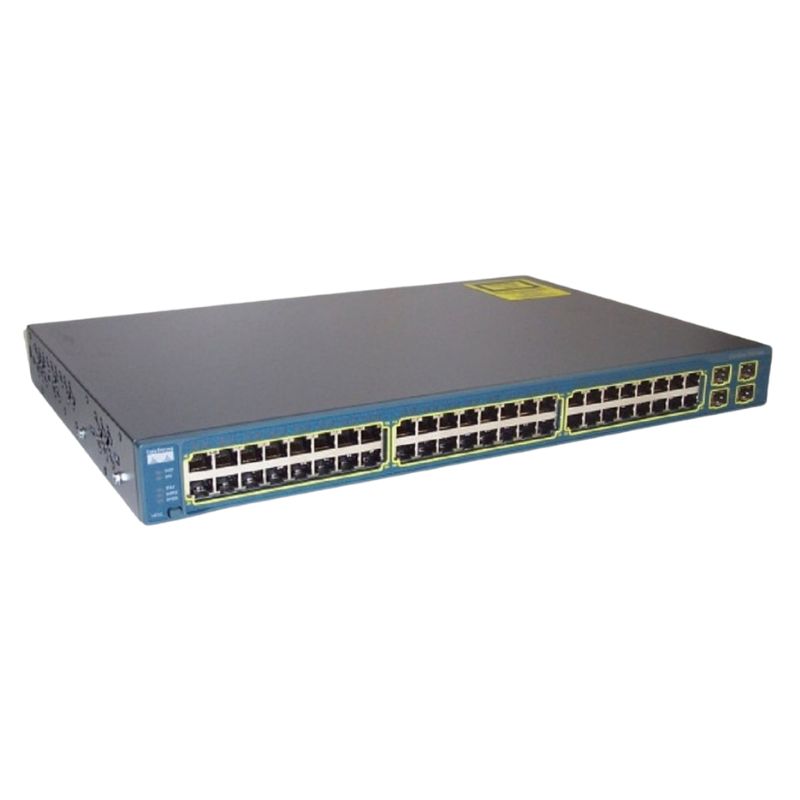

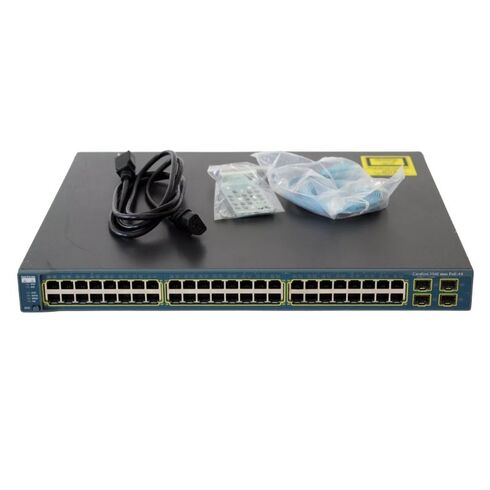

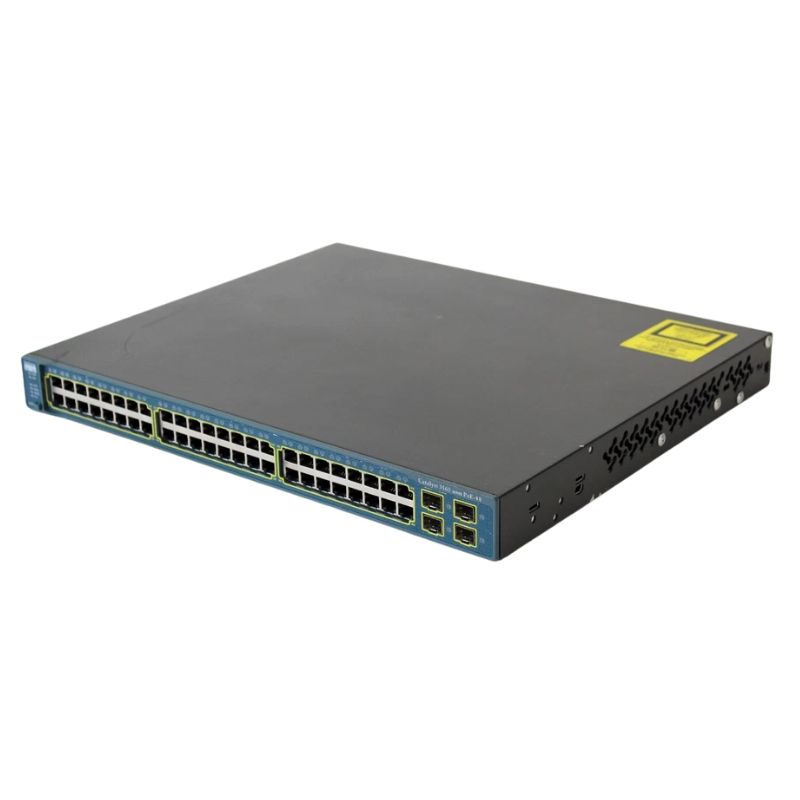

Cisco Catalyst WS-C3560-48PS-S Managed Switch 48 Ports

Ports

The Cisco Catalyst WS-C3560-48PS-S Managed Switch is equipped with an impressive 48 ports, making it a powerhouse in terms of connectivity options and versatility. With this many ports, users can connect a wide range of devices and expand their network infrastructure to accommodate growing business needs.

Overview of Cisco WS-C3560-48PS-S

Manufacturer and Model Details

• Brand: Cisco
• Model Number: WS-C3560-48PS-S
• Series: 3560
• Type: Managed Switch

Port Configuration

• Total Ports: 48
• Management Port: Yes
• PoE (RJ-45) Ports: 48
• Token Ring Port: No
• LRE Port: No
• Bypass: No

Performance Specifications

Media and Ethernet Standards

• Media Type: Twisted Pair
• Twisted Pair Standard: Category 5
• Ethernet Technology: Fast Ethernet
• Network Technology: 10/100Base-TX

Expansion and Capacity

• Expansion Slots: 4 SFP
• Shared SFP Slot: Yes
• MTBF: 173,500 Hours

Memory Specifications

• Standard Memory: 128 MB
• Flash Memory: 16 MB

Power and Redundancy

• PoE (RJ-45) Port: Yes
• Input Voltage: 110 V AC, 220 V AC
• Power Source: Power Supply
• Redundant Power Supply: Yes

Management and Protocols

• Routing Protocols: OSPF, IGRP, BGP-4, RIP-1, RIP-2, EIGRP, HSRP, DVMRP, PIM-SM, static IP routing, PIM-DM, IGMPv3
• Remote Management: SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c

Key Features

• Full Duplex Capability
• Layer 3 and Layer 2 Switching
• Auto-Sensing Per Device
• IP Routing
• DHCP Support
• Power over Ethernet (PoE)
• Auto-Negotiation and Trunking
• MPLS Support
• VLAN Support
• Auto-Uplink (Auto MDI/MDI-X)
• IGMP Snooping
• Traffic Shaping
• Manageable and Configurable
• Dynamic Trunking Protocol (DTP)
• Port Aggregation Protocol (PAgP)
• Trivial File Transfer Protocol (TFTP)
• Access Control List (ACL)
• Quality of Service (QoS)
• DHCP Server
• Virtual Route Forwarding-Lite (VRF-Lite)
• MLD Snooping
• Dynamic ARP Inspection (DAI)
• Time Domain Reflectometry (TDR)

Compliance Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.1D
• IEEE 802.1Q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3af
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.1s

Environmental Conditions

• Minimum Operating Temperature: 32 °F
• Maximum Operating Temperature: 113 °F
• Operating Humidity Range: 10% – 85%
• Maximum Altitude: 9840 ft

Enhanced Connectivity

The 48 ports on the Cisco Catalyst WS-C3560-48PS-S provide users with enhanced connectivity options. Whether it's connecting multiple computers, printers, servers, or other network devices, this switch has you covered. The abundance of ports ensures that there is ample room for all your network devices, eliminating the need for additional switches or hubs.

Scalability

Scalability is crucial for businesses that anticipate growth and expansion. The 48 ports on this Cisco switch allow for easy scalability, enabling you to add more devices to your network without any hassle. As your business grows, you can simply connect new devices to the available ports, ensuring that your network can keep up with the demands of your expanding operations.

Flexibility and Versatility

Having 48 ports on a managed switch offers users unparalleled flexibility and versatility. You have the freedom to connect devices in various combinations and configurations to meet your specific needs. Whether you require a mix of wired connections for desktops or wireless access points, printers, or IP cameras, this switch has the capacity to handle it all.

Increased Productivity

With 48 ports at your disposal, you can eliminate the need for additional switches or hubs, reducing cable clutter and simplifying your network infrastructure. This streamlined setup not only saves valuable space but also improves the overall efficiency and productivity of your network. With fewer devices to manage and maintain, IT professionals can focus their efforts on optimizing performance and addressing higher-priority tasks.

Power over Ethernet (PoE)

In addition to the impressive number of ports, the Cisco Catalyst WS-C3560-48PS-S also supports Power over Ethernet (PoE) technology. This feature allows the switch to deliver power to compatible devices, such as IP phones, wireless access points, and surveillance cameras, through the Ethernet cables. With PoE, you can eliminate the need for separate power supplies or adapters for these devices, simplifying installation and reducing cable clutter.

Flexibility in Device Placement

The PoE capabilities of this switch provide flexibility in device placement. You can deploy devices in locations where power outlets are not easily accessible, such as ceilings or outdoor areas. This convenience enables you to optimize your network layout without being constrained by the availability of power sources.

Cost Savings

By leveraging the PoE functionality of the Cisco Catalyst WS-C3560-48PS-S, businesses can save on the cost of additional electrical infrastructure. With fewer power outlets required and reduced reliance on separate power supplies, the overall cost of deploying and maintaining network devices is significantly reduced.

Efficient Power Management

This managed switch also offers advanced power management features, allowing you to prioritize power allocation to devices based on their importance and usage. By intelligently managing power consumption, you can optimize energy usage and reduce electricity costs without compromising network performance.

Future-Proofing

Investing in a switch with 48 ports ensures that your network is future-proofed. With an abundance of ports, you have room to expand and accommodate new technologies and devices as they become available. This scalability eliminates the need for frequent hardware upgrades or replacements, saving you both time and money in the long run.

In conclusion, the Cisco Catalyst WS-C3560-48PS-S Managed Switch with its 48 ports provides enhanced connectivity, scalability, flexibility, and increased productivity for businesses. The Power over Ethernet feature adds another layer of convenience, offering flexibility in device placement and potential cost savings. By investing in this switch, you are future-proofing your network and ensuring that it can adapt to the evolving needs of your organization.
