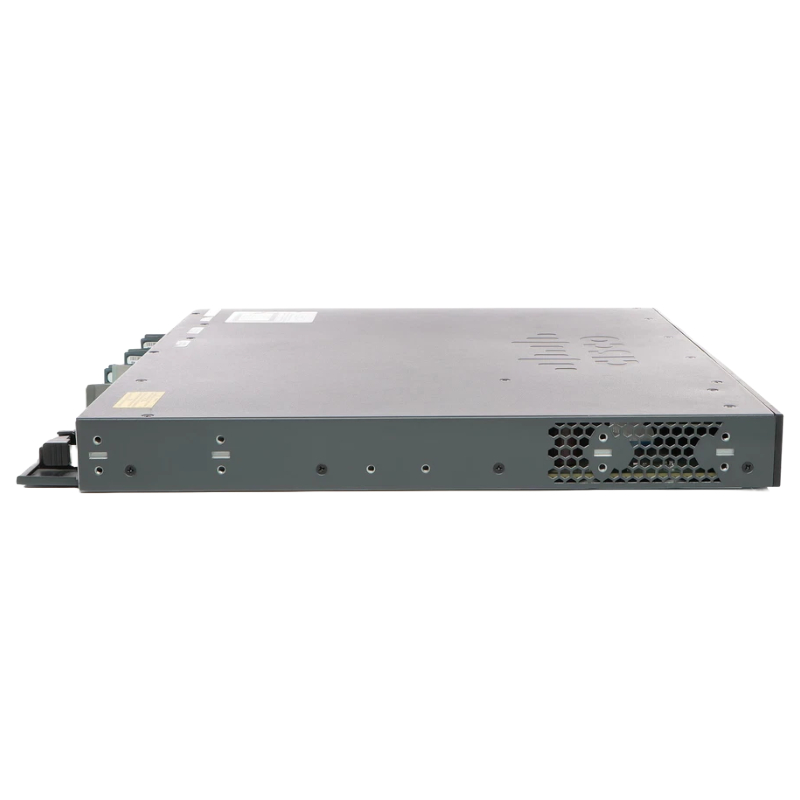

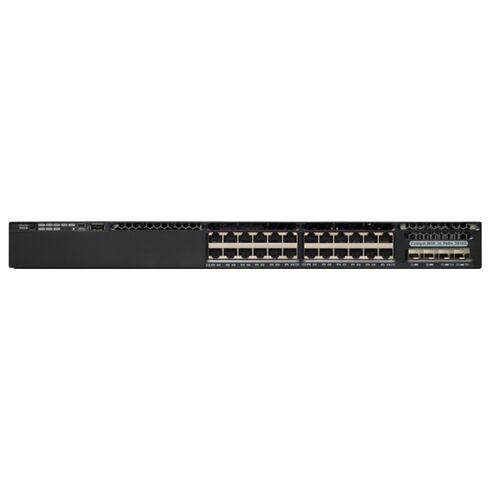

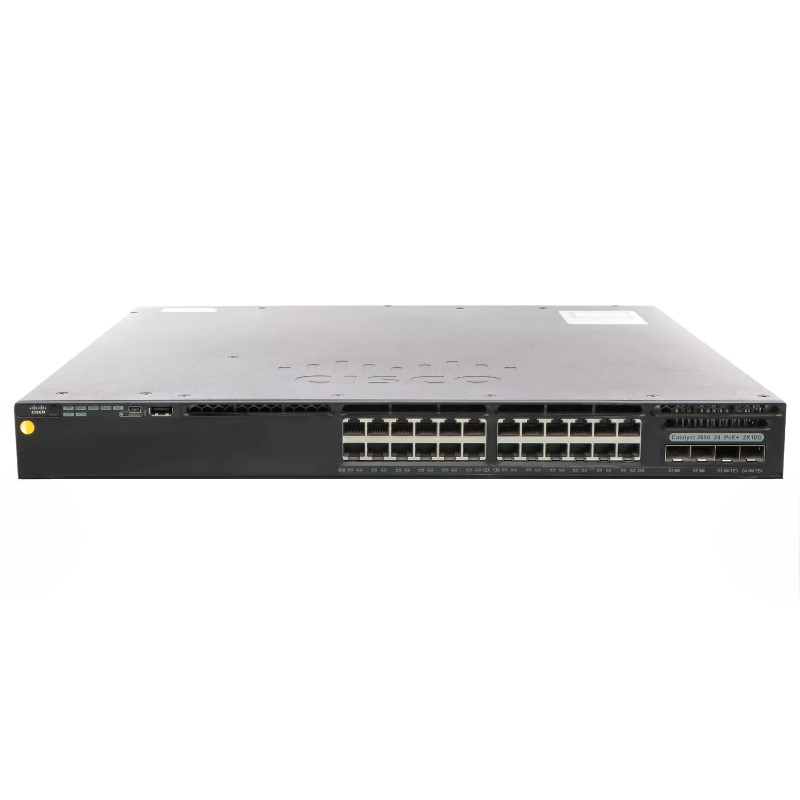

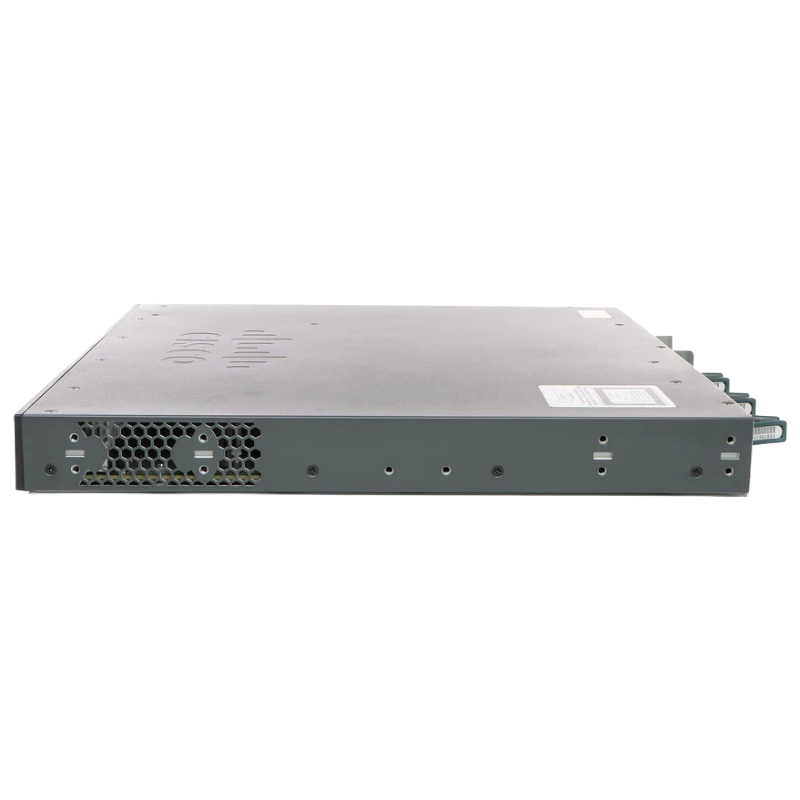

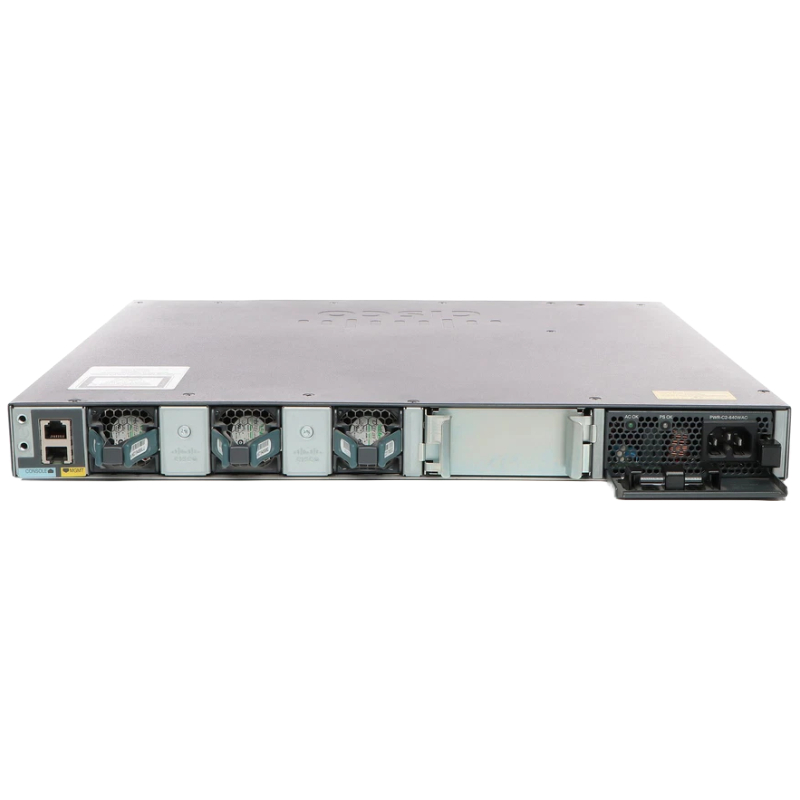

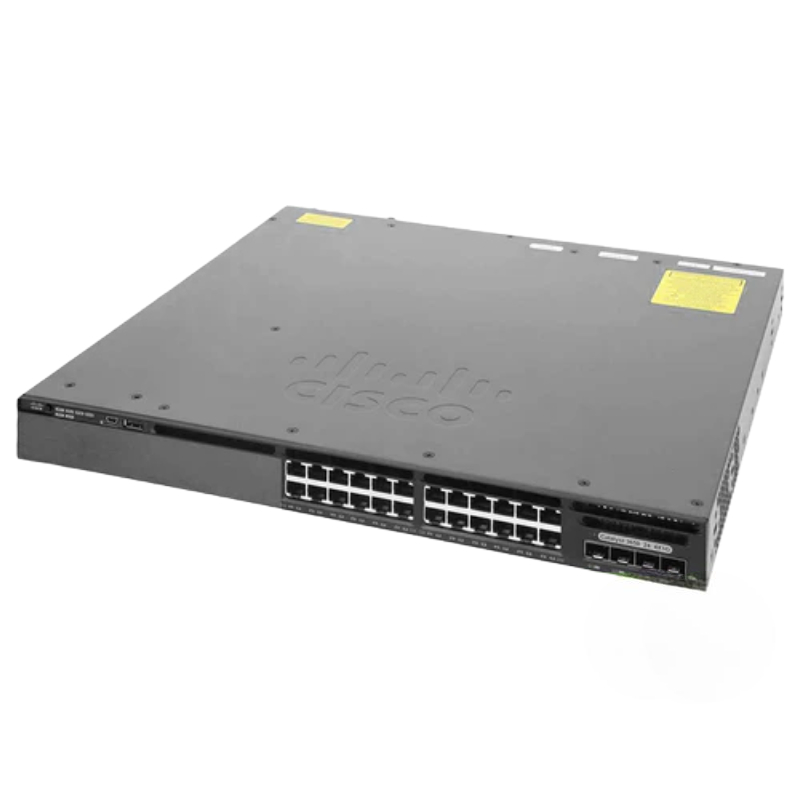

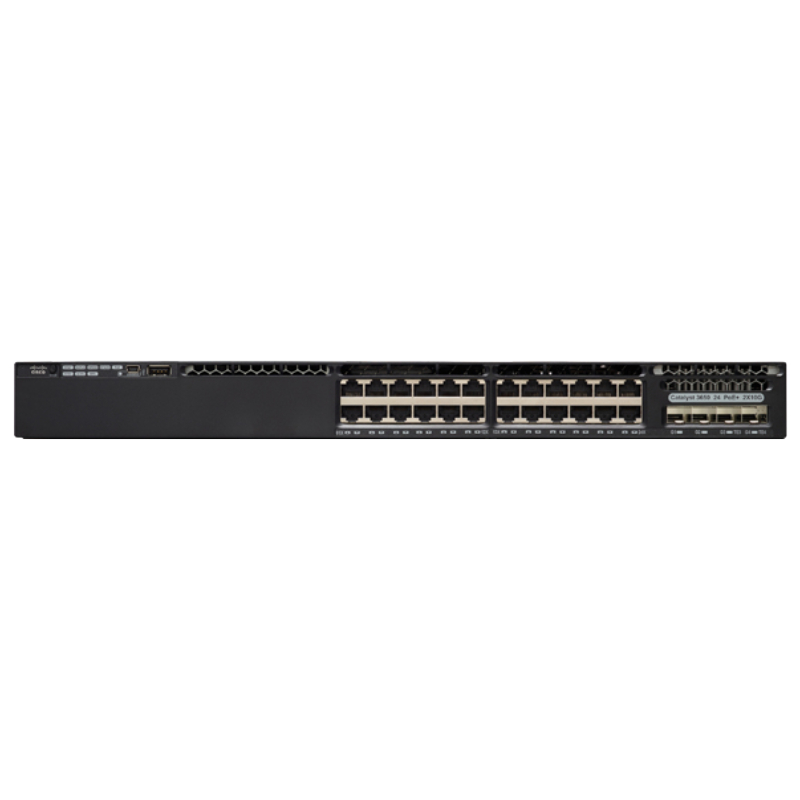

Cisco Catalyst WS-C3650-24PDM-L 24-Port RJ-45 PoE+ Switch

Cisco Catalyst WS-C3650-24PDM-L: Advanced Layer 3 Switch

General Overview

• Part Number: WS-C3650-24PDM-L
• Brand: Cisco
• Type: Layer 3 Switch

Port and Interface Configuration

Network Port Summary

• Total Network Ports: 24 Gigabit Ethernet ports
• Uplink Port Availability: Yes
• Modular Capabilities: Yes
• Stack Port Availability: Yes
• Expansion Slot Details: 2 x 10 Gigabit Ethernet uplink slots

Media and Performance Characteristics

Supported Media Types

• Media Types: Twisted Pair and Optical Fiber
• Ethernet Technologies: Gigabit Ethernet, 10 Gigabit Ethernet
• Network Technologies: 10/100/1000Base-TX, 10GBase-X

Performance Metrics

• Switching Capacity: 92 Gbps for 24-port models
• Total MAC Addresses: Supports up to 32,000
• IPv4 Routes: 24,000 (including ARP)
• Stacking Bandwidth: 160 Gbps

Expansion and Connectivity Options

Expansion Slot Information

• Total Expansion Slots: 2 SFP+ slots
• Shared SFP Slot: No

Management and Protocol Features

Management Capabilities

• Manageable: Yes, fully manageable
• Supported Layer: Layer 4

Power and Physical Specifications

Power Supply Details

• Power Source: Power Supply
• Redundant Power Supply Support: No

Physical Dimensions

• Form Factor: Rack-mountable, 1U design
• Dimensions (H x W x D): 1.7" x 17.5" x 11.6"
• Weight: Approximately 12.26 lbs

Environmental Impact

Eco-Friendly Attributes

• Environmentally Responsible: Yes
• Environmental Certification: RoHS-5 compliant

Wireless Capabilities

Wireless Connectivity Overview

• Maximum Access Points per Switch/Stack: 25
• Maximum Wireless Clients per Switch/Stack: 1,000
• Total WLANs Supported: 64
• Wireless Bandwidth Capacity: Up to 20 Gbps on 24-port models

Compatible Wireless Access Point Series

• Aironet Series: 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040

Ports

The Cisco WS-C3650-24PDM-L Switch is equipped with 24 ports, making it an ideal choice for businesses and organizations that require a high number of connections. These ports provide users with the ability to connect multiple devices to the switch, such as computers, printers, and servers. With 24 ports available, users can easily expand their network infrastructure and accommodate a large number of devices.

Increased Connectivity

One of the key benefits of having 24 ports on the Cisco WS-C3650-24PDM-L Switch is the increased connectivity it offers. With more ports available, users can connect a greater number of devices to their network. This is particularly advantageous for businesses that have numerous employees who require access to the network simultaneously. The increased connectivity provided by the 24 ports ensures that all devices can be connected without any performance or connectivity issues.

Flexibility in Network Design

The 24 ports on this switch also offer a high level of flexibility in network design. Users can easily configure their network to meet their specific requirements and ensure optimal performance. The availability of multiple ports allows for the creation of separate VLANs (Virtual Local Area Networks), which can help improve network security and manageability. Users can assign different ports to different VLANs based on their needs, allowing them to segment their network and control access to sensitive data.

Scalability

Another advantage of the 24 ports on the Cisco WS-C3650-24PDM-L Switch is the scalability it offers. As businesses grow and expand, they may need to add more devices to their network. The 24 ports provide ample room for future expansion, allowing businesses to easily integrate new devices into their network without requiring additional switches or equipment. This scalability ensures that the switch can accommodate the changing needs of the organization, saving both time and money in the long run.

Interface

The Cisco WS-C3650-24PDM-L Switch features RJ-45 interfaces, which are widely used in networking to connect devices using Ethernet cables. The use of RJ-45 interfaces offers several benefits and is of great importance for users who require reliable and high-speed network connectivity.

Compatibility

One of the major advantages of the RJ-45 interface is its compatibility with a wide range of devices. Ethernet cables with RJ-45 connectors are the standard for connecting devices to a network, making them universally compatible. Whether it is a computer, printer, or server, users can rest assured that their devices can be easily connected to the Cisco WS-C3650-24PDM-L Switch using standard Ethernet cables.

Reliability

The use of RJ-45 interfaces ensures a reliable connection between devices and the switch. These interfaces provide a secure physical connection that is less prone to interference or data loss. By using Ethernet cables with RJ-45 connectors, users can enjoy a stable and consistent connection, even in environments with high levels of electromagnetic interference.

High-Speed Connectivity

RJ-45 interfaces support Gigabit Ethernet, which offers high-speed connectivity for data transfer. This is particularly important for businesses that handle large amounts of data or require fast network access. With Gigabit Ethernet support, users can benefit from faster file transfers, improved video streaming quality, and reduced latency, ultimately enhancing productivity and efficiency.

Power Over Ethernet (PoE+)

The Cisco WS-C3650-24PDM-L Switch is equipped with Power over Ethernet (PoE+) capabilities, which allows it to provide power to connected devices through the Ethernet cable. This feature offers numerous benefits for users and is especially important in environments where power outlets may be limited or difficult to access.

Simplified Deployment

One of the key benefits of PoE+ is the simplified deployment of network devices. With PoE+, users can connect devices such as IP phones, wireless access points, and security cameras directly to the switch using a single Ethernet cable. This eliminates the need for separate power cables and power outlets for each device, streamlining the installation process and reducing cable clutter.

Flexibility in Device Placement

PoE+ also provides users with greater flexibility in device placement. Since devices can be powered through the Ethernet cable, they are not restricted by the availability of power outlets. This allows for more strategic positioning of devices, ensuring optimal coverage and performance. For example, wireless access points can be placed in optimal locations for better Wi-Fi coverage without being constrained by the proximity of power outlets.

Cost Savings

Implementing PoE+ can result in significant cost savings for businesses. By eliminating the need for separate power cables and outlets, users can reduce infrastructure costs. Additionally, the centralized power management provided by PoE+ allows for more efficient use of electrical resources, further reducing energy consumption and utility costs.

In conclusion, the Cisco WS-C3650-24PDM-L Switch offers a range of features that cater to the connectivity and power needs of businesses and organizations. With its 24 ports, RJ-45 interfaces, and Power over Ethernet (PoE+) capabilities, this switch provides users with increased connectivity, flexibility in network design, and simplified deployment. These features not only enhance productivity and efficiency but also offer cost savings and scalability for future expansion. Whether it is for small offices or large enterprises, the Cisco WS-C3650-24PDM-L Switch is a reliable and versatile networking solution.
