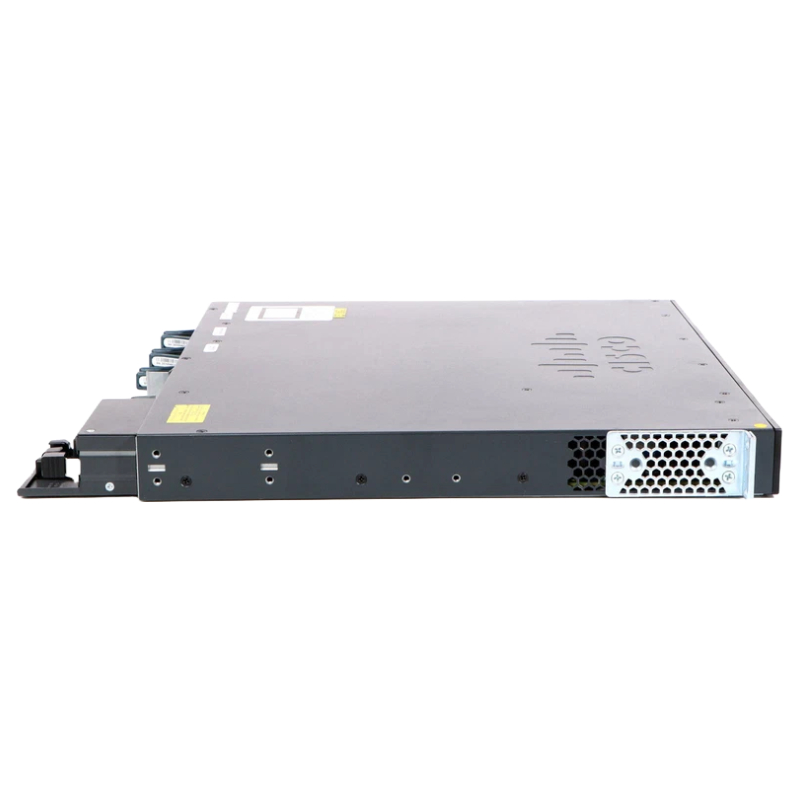

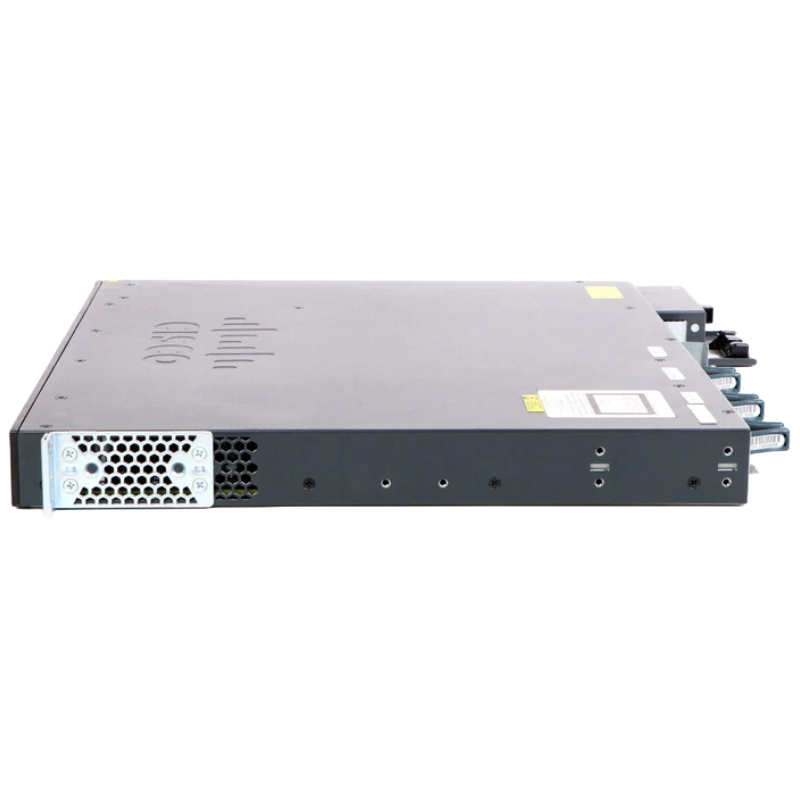

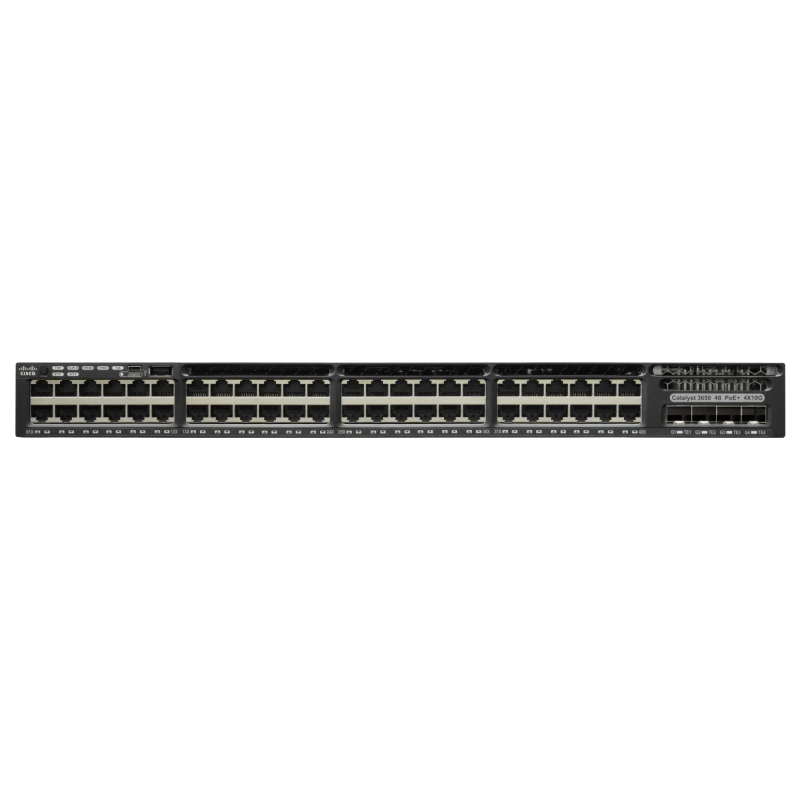

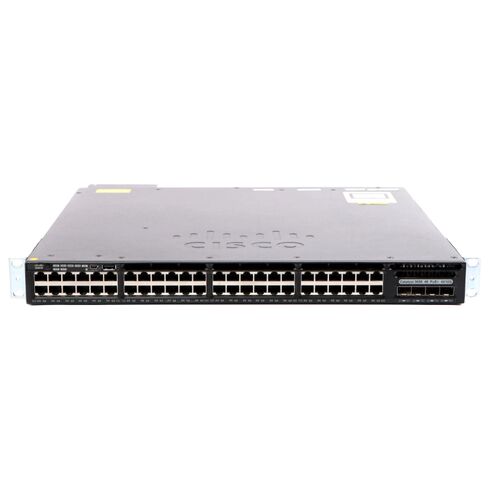

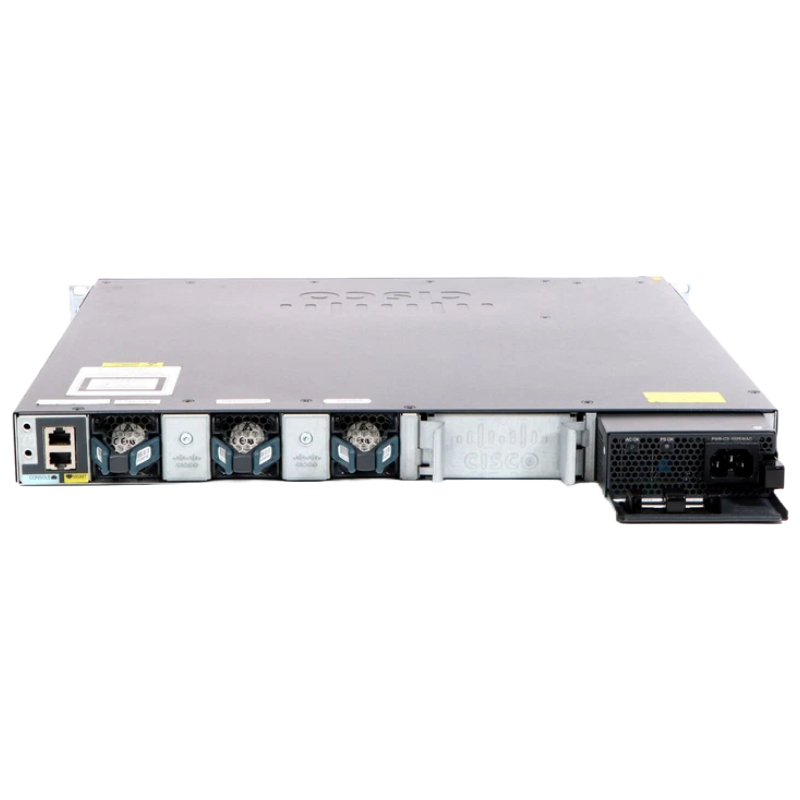

Cisco Catalyst WS-C3650-48FQM-L Ethernet Switch

Cisco Catalyst WS-C3650-48FQM-L Layer 3 Switch

General Information

• Manufacturer: Cisco Systems, Inc.
• Part Number: WS-C3650-48FQM-L
• Product Line: Catalyst
• Product Series: 3650
• Product Name: Catalyst 3650-48FQM-L Layer 3 Switch

Product Type

Layer 3 Switch

Interfaces/Ports

• Total Network Ports: 48
• Uplink Port: Yes
• Modular: Yes
• Stack Port: Yes
• Port/Expansion Slot Details:
  • 48 x Gigabit Ethernet Network
  • 4 x 10 Gigabit Ethernet Uplink

Media & Performance

• Media Types Supported:
  • Twisted Pair
  • Optical Fiber
• Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
• Network Technology:
  • 10/100/1000Base-TX
  • 10GBase-X

Physical Characteristics

• Compatible Rack Unit: 1U
• Form Factor: Rack-mountable / Standalone
• Dimensions:
  • Height: 1.7 in
  • Width: 17.5 in
  • Depth: 11.6 in
  • Weight: Approx. 12.65 lb

Environmental Parameters

• Min Operating Temperature: 23 °F
• Max Operating Temperature: 113 °F
• Operating Humidity Range: 5 - 96% (non-condensing)
• Min Storage Temperature: -40 °F
• Max Storage Temperature: 158 °F

Power Description

• Power Source: Internal Power Supply
• PoE Power: 30 W on all ports
• Power Budget: 775 W
• Power Redundancy: Optional (1+1 with optional power supply)

Catalyst 3650 Series Ethernet Switches

The Cisco Catalyst 3650 Series is a powerful line of Ethernet switches designed for enterprise environments that require high performance, reliability, and flexibility. This series provides a robust platform for wired and wireless convergence, enabling organizations to manage a unified network infrastructure effectively.

Overview of the Cisco WS-C3650-48FQM-L Switch

The Cisco WS-C3650-48FQM-L is a Layer 3 switch that combines advanced features, high performance, and flexibility. With its 48 Gigabit Ethernet ports, this switch is designed to meet the demands of growing enterprise networks. Its support for both wired and wireless technologies allows for seamless integration of various networking devices.

Key Features of the WS-C3650-48FQM-L Switch

• 48 Gigabit Ethernet Ports: Equipped with 48 ports for high-speed data transfer.
• 10 Gigabit Uplinks: Features 4 x 10 Gigabit SFP+ uplink ports for increased bandwidth.
• Power over Ethernet Plus (PoE+): Delivers up to 30W per port, enabling the connection of IP phones, cameras, and other PoE devices.
• StackWise-160 Technology: Supports stackable configurations with up to 160 Gbps of stack bandwidth, enhancing scalability and redundancy.
• Energy Efficiency: Implements Energy Efficient Ethernet (EEE) to reduce power consumption.

Technical Specifications

Performance Metrics

The WS-C3650-48FQM-L switch delivers exceptional performance, making it suitable for demanding applications:

• Switching Capacity: 176 Gbps, ensuring efficient data handling across all ports.
• Forwarding Rate: Up to 130.95 million packets per second (Mpps), facilitating rapid data processing.
• Total Number of MAC Addresses: Supports 32,000 MAC addresses, ideal for large networks.
• Total IPv4 Routes: Can handle up to 24,000 IPv4 routes for efficient routing and management.

Hardware Specifications

• Dimensions: 1.7 inches high, 17.5 inches wide, and 11.6 inches deep, allowing for easy installation in rack-mounted environments.
• Weight: Approximately 12.65 lbs, designed for easy handling.
• Power Supply: Includes internal power supply with optional redundancy support for enhanced reliability.

Layer 3 Switching Capabilities

The Catalyst 3650 Series switches support advanced Layer 3 features, providing organizations with routing capabilities that enhance network efficiency:

• Routing Protocols: Supports EIGRP, OSPF, and RIP, allowing for flexible routing strategies.
• Access Control Lists (ACLs): Enables granular control over network traffic for enhanced security.
• Dynamic Routing: Facilitates automatic updates to the routing table, improving responsiveness to network changes.

Scalability and Flexibility

Stacking Capabilities

The ability to stack multiple WS-C3650-48FQM-L switches provides increased scalability and redundancy:

• Stacking Technology: Utilize Cisco StackWise-160 technology to connect up to nine switches in a single stack.
• Unified Management: Manage all switches in a stack as a single unit, simplifying configuration and monitoring.
• High Availability: Stacked switches provide redundancy, minimizing downtime in the event of a hardware failure.

Modular Design

The modular design of the WS-C3650-48FQM-L allows for easy upgrades and maintenance:

• Field-Replaceable Components: Redundant power supplies and fans can be replaced without interrupting service.
• SFP+ Slots: Four SFP+ slots for additional connectivity options, enhancing flexibility.

Network Security Features

Security is a critical aspect of any network infrastructure, and the WS-C3650-48FQM-L includes several features to enhance network security:

• Enhanced Security Protocols: Supports Kerberos, RADIUS, TACACS+, and Secure Shell (SSH) for secure authentication and management.
• Dynamic ARP Inspection: Protects against ARP spoofing attacks by validating ARP packets.
• DHCP Snooping: Prevents unauthorized DHCP servers from distributing IP addresses, enhancing network integrity.

Integration with Wireless Networks

The Catalyst 3650 Series is designed to support integrated wireless access:

• Unified Wireless Management: Provides a seamless approach to managing both wired and wireless networks from a single platform.
• Support for Multiple Access Points: Can support up to 50 access points and 1000 wireless clients per switch or stack, ensuring broad coverage and capacity.
• Wireless Security Features: Incorporates advanced security measures for wireless clients, including WPA2 and RADIUS authentication.

Management and Monitoring

Efficient management and monitoring capabilities are essential for maintaining network performance:

• Cisco IOS Software: The switch operates on a single universal Cisco IOS software image, simplifying upgrades and management.
• Remote Management: Supports CLI, SNMP, and web-based management for versatile administration options.
• Performance Monitoring: Flexible NetFlow (FNF) provides detailed insights into network traffic patterns and performance.

Monitoring Tools

Utilize various tools for comprehensive network monitoring:

• Syslog Support: Collect and analyze log data for improved network visibility.
• Network Analysis Module (NAM): Provides in-depth traffic analysis and reporting.

Energy Efficiency and Environmental Impact

The Catalyst 3650 Series is designed with energy efficiency in mind:

• Energy Efficient Ethernet: Reduces power consumption during low traffic periods, contributing to cost savings and a smaller carbon footprint.
• Compliant with Environmental Standards: Meets various environmental regulations, ensuring responsible operation.

Subcategories of Catalyst 3650 Series Switches

Catalyst 3650 Series PoE Switches

The Catalyst 3650 PoE switches are particularly suited for environments requiring power delivery to devices such as IP cameras and VoIP phones:

• Power Delivery: Supports PoE+ to provide power to connected devices without needing additional outlets.
• Cost-Effective Solutions: Reduces the need for electrical infrastructure upgrades, leading to significant cost savings.

Catalyst 3650 Series Stackable Switches

Stackable switches offer enhanced scalability and management flexibility:

• Easy Scalability: Add switches to the stack to increase capacity and redundancy without complicated configurations.
• Unified Management: All switches in the stack can be managed as a single entity, simplifying administrative tasks.
