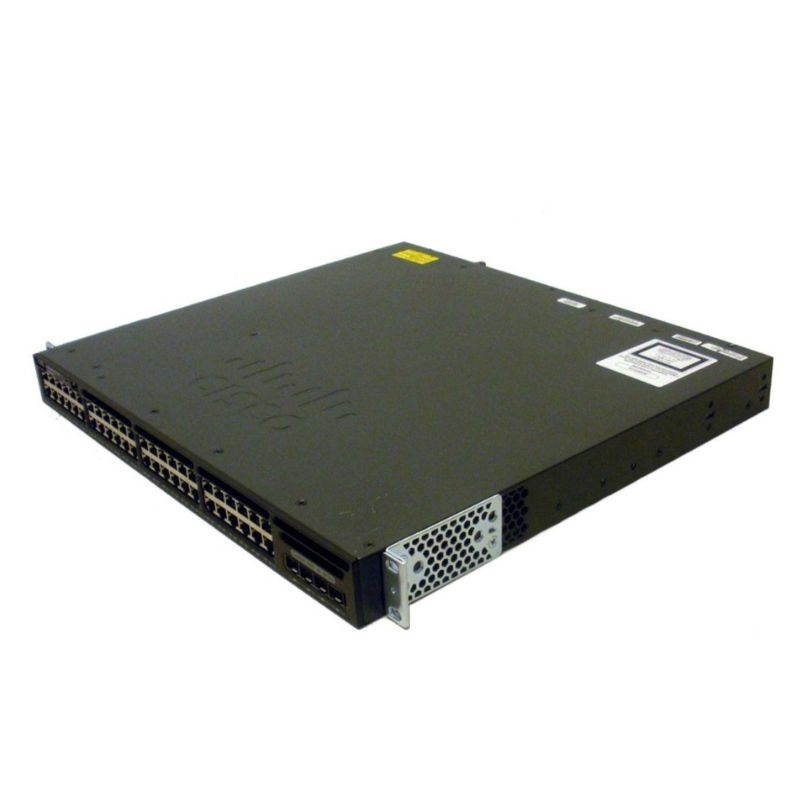

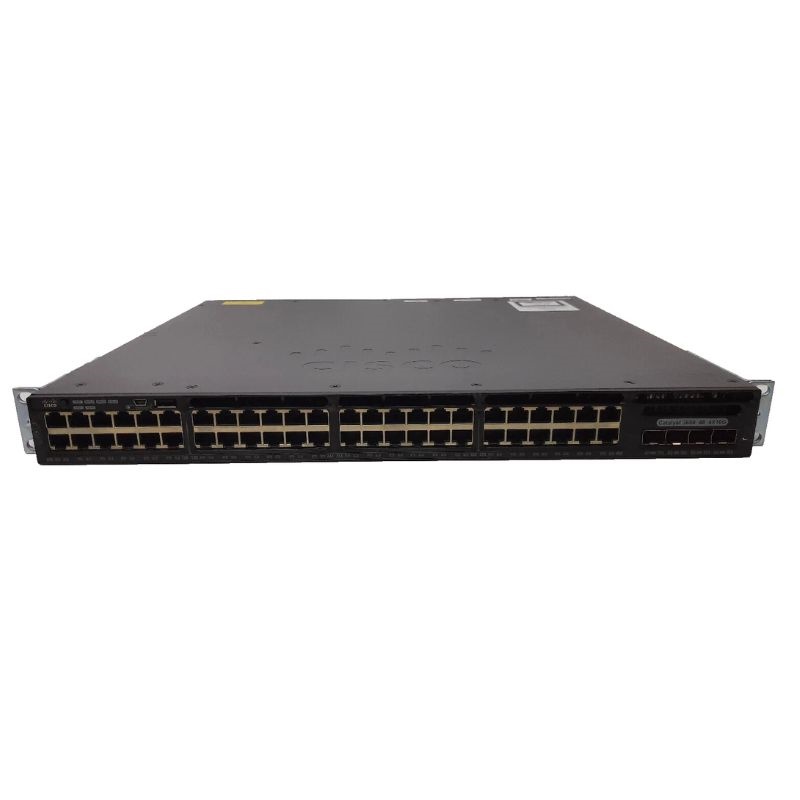

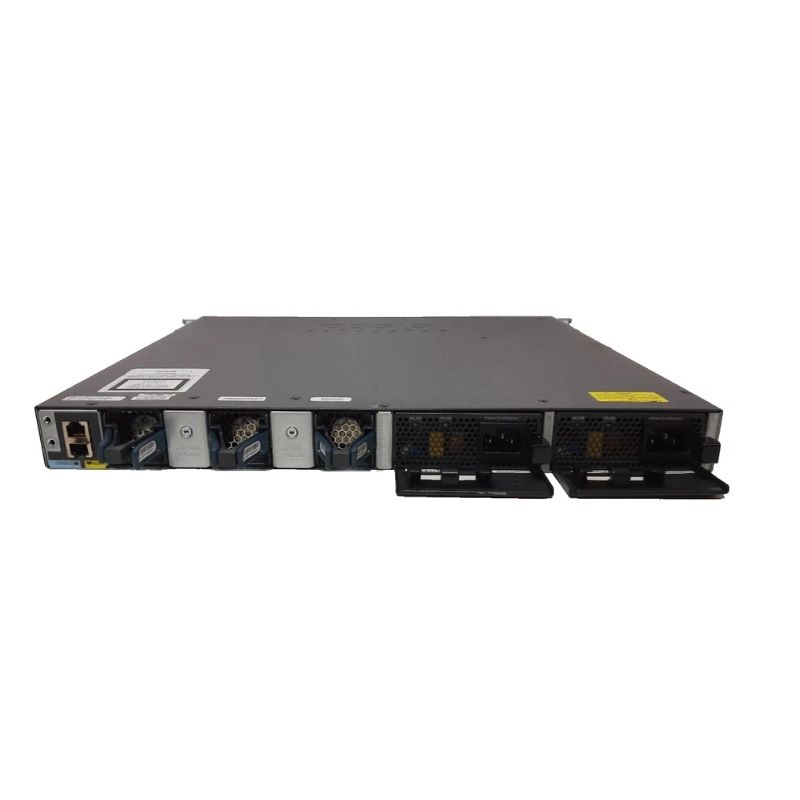

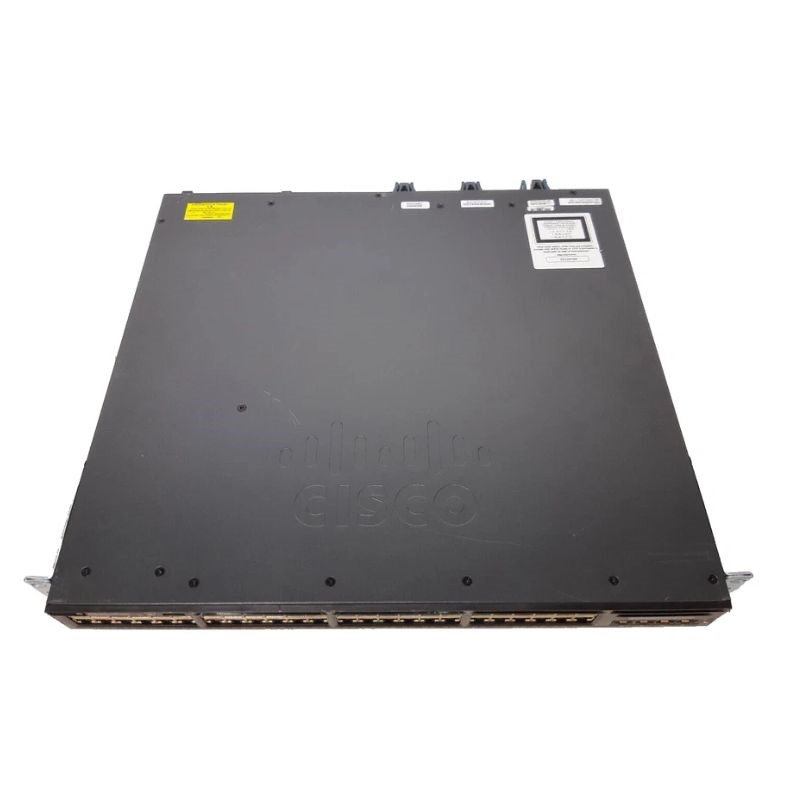

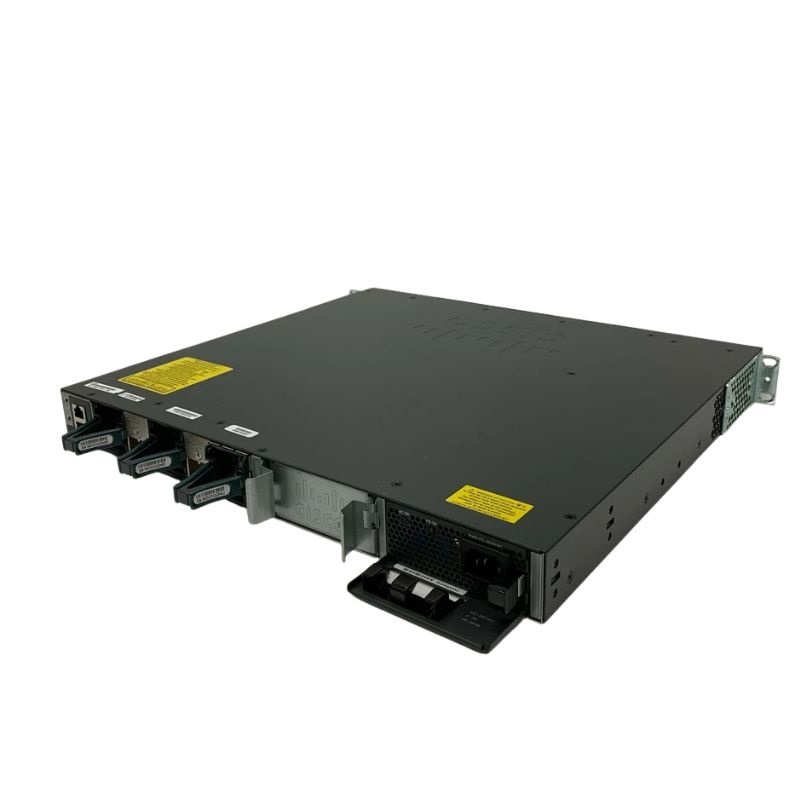

Cisco Catalyst WS-C3650-48TQ-L Ethernet Switch

Manufacturer Details of 48 Ports Ethernet Switch

• Manufacturer: Cisco
• Part Number: WS-C3650-48TQ-L
• Product Type: Ethernet Switch
• Product Name: Cisco Catalyst 48-Port Switch

Technical Specifications

• Type: Managed Stackable Switch
• Port Count: 48 Ports
• Form Factor: Desktop or Rack-mountable (1U)
• Ethernet Type: Gigabit Ethernet
• Ports: 48 x 10/100/1000 Mbps + 4 x 10 Gigabit SFP+

Performance Metrics

• Switching Capacity: 176 Gbps
• Forwarding Rate: 130.95 Million Packets Per Second (Mpps)

Capacity Specifications

• IPv4 Route Support: 24,000
• Virtual LANs (VLANs): 255
• Switched Virtual Interfaces (SVIs): 1,000
• MAC Address Table: 32,000 Entries
• Jumbo Frame Size: Up to 9,198 Bytes

Routing and Management Features

• Static IP Routing: Supported

Remote Management Options

• Protocols: SNMP (v1, v2c, v3), RMON (1, 2, 3, 9), Telnet, SSH, CLI

Key Features

• Layer 2 Switching
• ARP and DHCP Snooping
• Trunking and VLAN Support
• IGMP and MLD Snooping
• Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP)
• Port Aggregation Protocol (PAgP) and Link Aggregation Control Protocol (LACP)
• Quality of Service (QoS) and Access Control List (ACL) Support
• Dynamic ARP Inspection (DAI) and Uni-directional Link Detection (UDLD)
• Energy-Efficient Ethernet
• Remote Switch Port Analyzer (RSPA)

Compliance and Standards

• IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1d, IEEE 802.1q
• IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x
• IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
• IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at

Power Requirements

• AC Input: 120/230 V, 50/60 Hz
• Redundant Power Option: Available

Ports

The Cisco WS-C3650-48TQ-L Ethernet Switch is equipped with 48 ports, making it an ideal choice for businesses and organizations that require a high-density network switch. These ports provide connectivity for a wide range of devices, including computers, servers, printers, and other networking equipment. With 48 ports, users have the flexibility to connect numerous devices to the network without the need for additional switches or hubs.

Increased Connectivity

One of the primary benefits of having 48 ports on the Cisco WS-C3650-48TQ-L Ethernet Switch is the increased connectivity it offers. With a larger number of ports, users can connect more devices directly to the switch, eliminating the need for additional hardware. This not only simplifies network setup but also reduces costs associated with purchasing and maintaining additional switches.

Having more ports also means that businesses can easily expand their network infrastructure as their needs grow. Whether it's adding new workstations or accommodating a larger number of users, the abundance of ports ensures that there is sufficient connectivity available to meet the demands of a growing organization.

Flexibility and Scalability

The Cisco WS-C3650-48TQ-L Ethernet Switch provides users with the flexibility to customize their network configuration based on their specific requirements. With 48 ports, businesses can create VLANs (Virtual Local Area Networks) to segment their network into different groups. This allows for improved network performance and security by isolating traffic between different departments or user groups.

In addition to VLANs, the abundance of ports also enables businesses to implement various network topologies such as star, ring, or mesh. This flexibility allows organizations to design their network infrastructure in a way that best suits their needs, whether it's ensuring redundancy and fault tolerance or optimizing performance in specific areas of the network.

The scalability of the Cisco WS-C3650-48TQ-L Ethernet Switch is another significant advantage. As businesses grow and their networking requirements increase, having 48 ports ensures that there is ample room for expansion. This scalability eliminates the need for frequent hardware upgrades and allows businesses to future-proof their network infrastructure.

High Bandwidth

The 48 ports on the Cisco WS-C3650-48TQ-L Ethernet Switch provide users with high-speed connectivity for data transmission. Each port supports Gigabit Ethernet, offering a maximum data transfer rate of 1000 Mbps. This high bandwidth is essential for businesses that handle large volumes of data or require fast and reliable network connections.

Efficient Data Transfer

With 48 Gigabit Ethernet ports, businesses can ensure efficient data transfer within their network. Whether it's transferring large files between devices or streaming high-definition multimedia content, the high bandwidth offered by each port ensures minimal latency and maximizes network performance.

Enhanced Productivity

The high-speed connectivity provided by the Cisco WS-C3650-48TQ-L Ethernet Switch's 48 ports enhances productivity within organizations. Users can experience faster network response times, enabling them to access shared resources, collaborate seamlessly, and complete tasks more efficiently. This is particularly beneficial in environments where time-sensitive operations are critical, such as video conferencing or real-time data analysis.

Power over Ethernet (PoE) Support

In addition to its 48 ports, the Cisco WS-C3650-48TQ-L Ethernet Switch also supports Power over Ethernet (PoE) technology. PoE allows the switch to provide power to compatible devices, such as IP phones, wireless access points, and security cameras, through the Ethernet cable. This eliminates the need for separate power cables and power adapters, simplifying installation and reducing clutter.

Cost and Time Savings

By supporting PoE, the Cisco WS-C3650-48TQ-L Ethernet Switch helps businesses save on both costs and time. With PoE, there is no need to hire electricians or install additional power outlets, resulting in significant cost savings during deployment. Additionally, the centralized power management provided by PoE simplifies maintenance and troubleshooting, reducing downtime and saving valuable IT resources.

Flexibility and Convenience

With PoE support, businesses can deploy network devices in locations where power outlets are not readily available. This flexibility allows for more efficient placement of devices, such as wireless access points or security cameras, without being limited by proximity to power sources. PoE also makes it easier to move devices within a network without the need for rewiring or reconfiguring power connections.

Conclusion

The Cisco WS-C3650-48TQ-L Ethernet Switch's 48 ports provide users with increased connectivity, flexibility, scalability, and high-speed data transfer capabilities. With support for Power over Ethernet (PoE), businesses can further simplify installation and reduce costs. Whether it's expanding network infrastructure or optimizing performance, the abundance of ports on this switch ensures that organizations have the necessary connectivity to meet their networking needs effectively.
