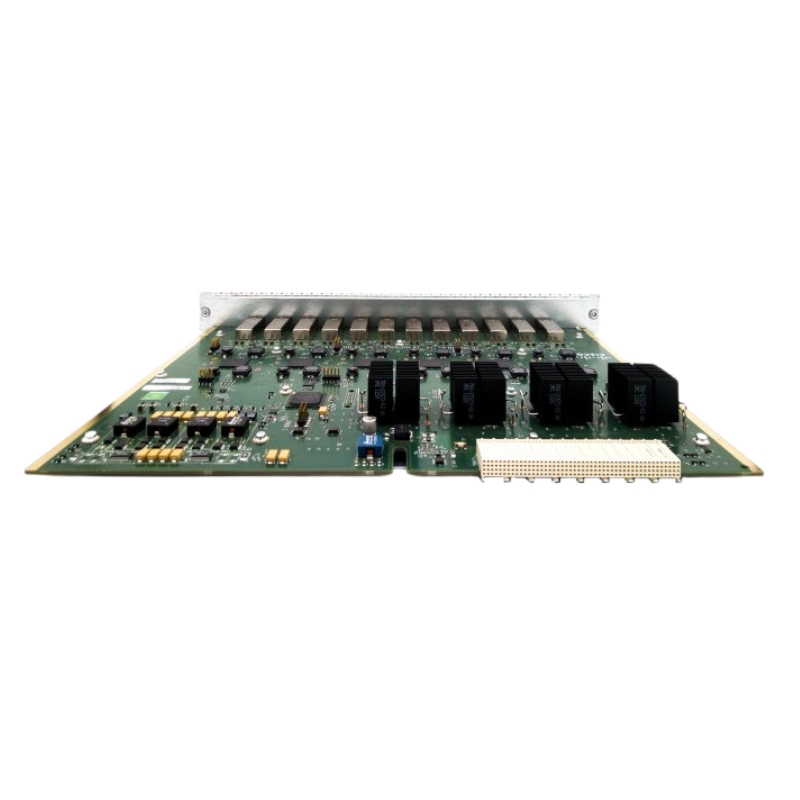

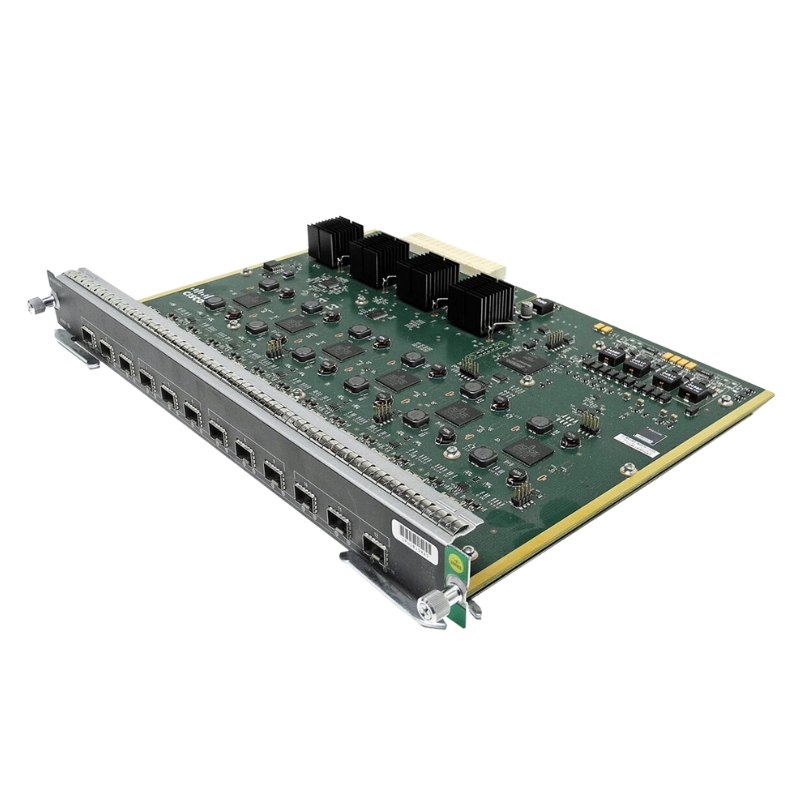

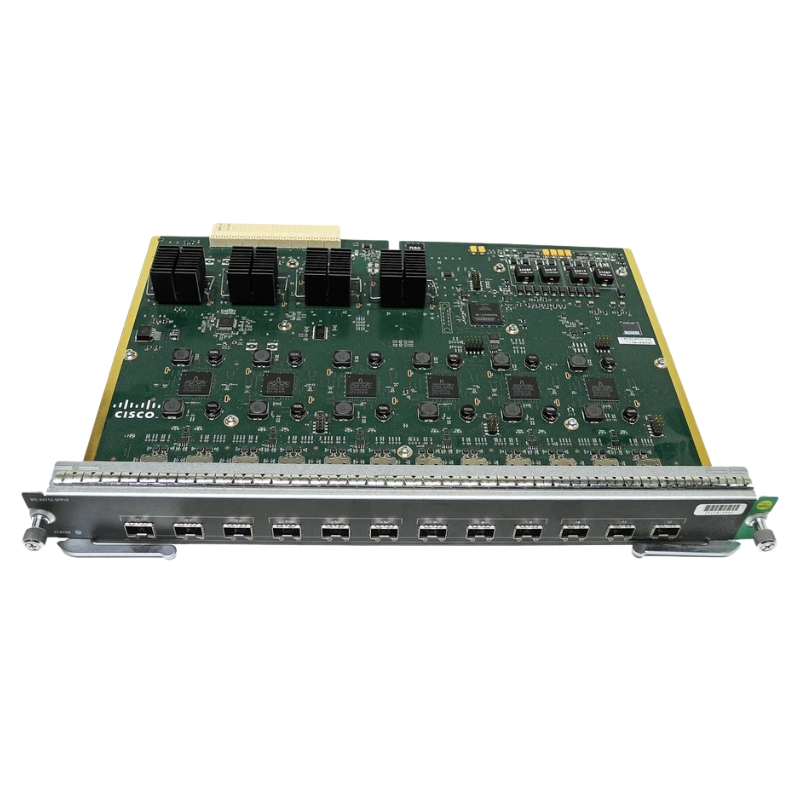

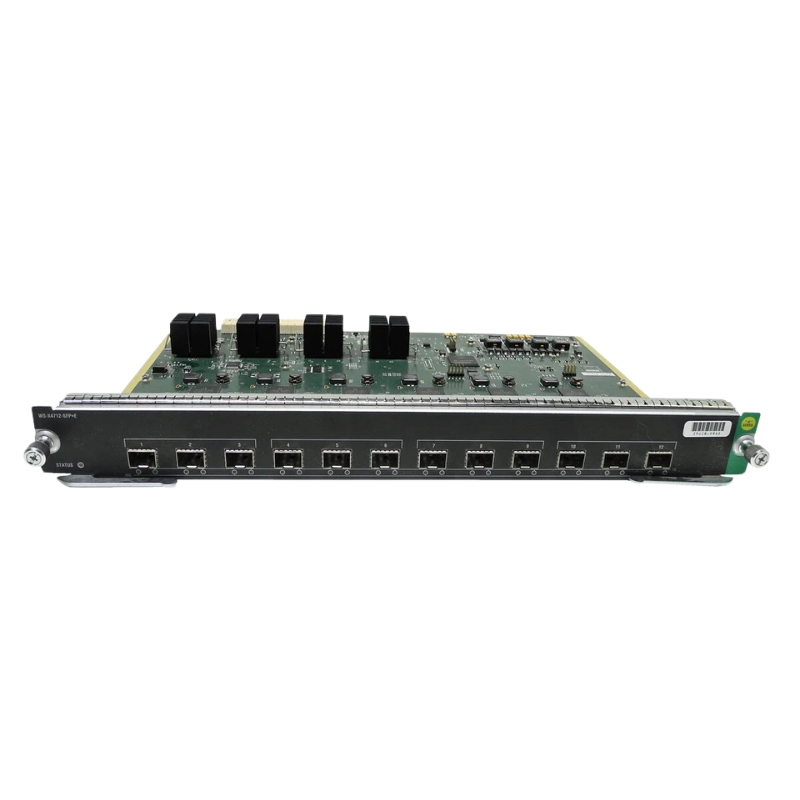

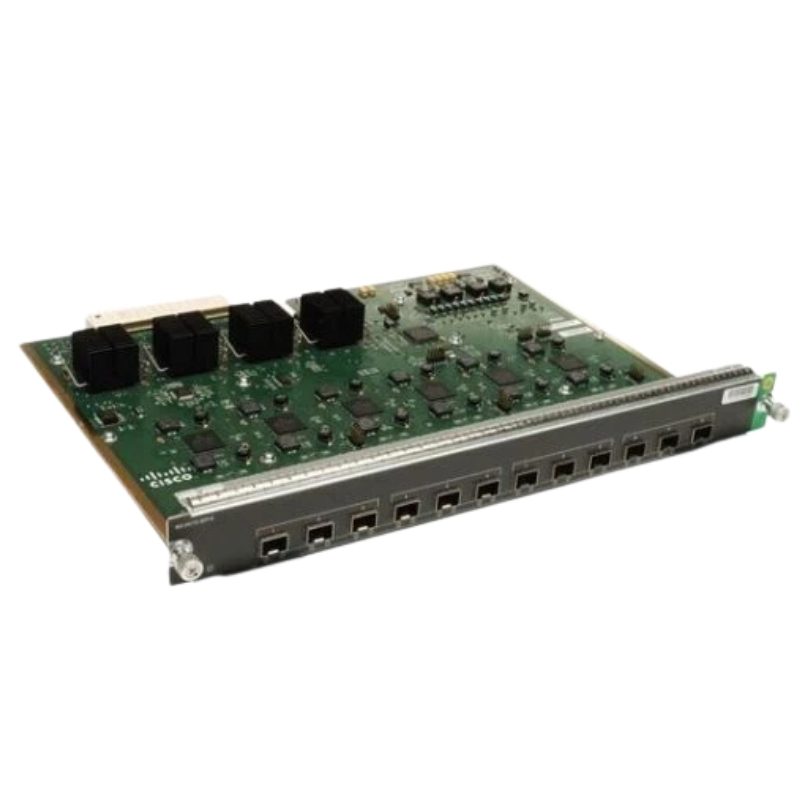

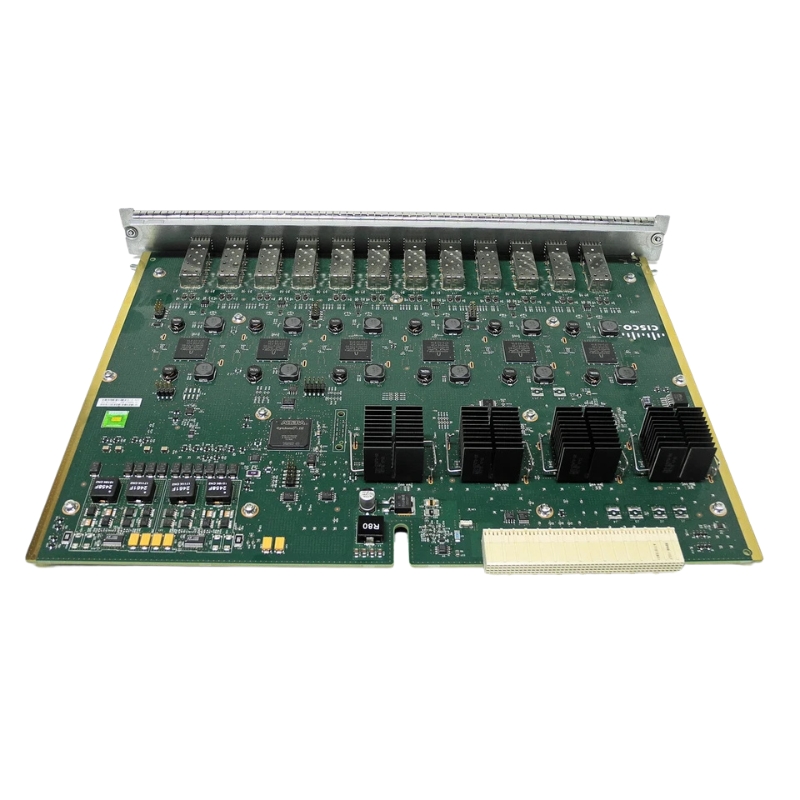

Cisco Catalyst WS-X4712-SFP-E= Gigabit Ethernet Expansion Module

Overview of Cisco WS-X4712-SFP-E= Catalyst Expansion Module

Product Details

• Manufacturer: Cisco
• Model Number: WS-X4712-SFP-E=
• Series: Catalyst 4500
• Type: Expansion Module

Technical Specifications

Port Configuration

• Number of Ports: 12
• Supported Media Type: Optical Fiber
• Ethernet Technologies: Fast Ethernet, Gigabit Ethernet
• Network Technologies: 100Base-FX, 1000Base-X

Expansion Capabilities

• Total Expansion Slots: 12
• Slot Types: SFP, SFP (mini-GBIC)

Applications and Use Cases

• Primary Use: Optical Network Connectivity
• Additional Use: Data Networking Enhancement

Compatibility

• Compatible With: Cisco Catalyst 4500 Series Switches

Interface

The Cisco Catalyst WS-X4712-SFP-E= Gigabit Ethernet Expansion Module boasts an impressive range of features that make it a standout choice for network administrators. One of the most notable features of this expansion module is its support for Small Form-factor Pluggable (SFP) interfaces.

This is SFP

SFP, or Small Form-factor Pluggable, is a compact and hot-pluggable transceiver used in network switches and routers to connect fiber optic or Ethernet cables. These modular interfaces provide flexibility and scalability to networks, allowing users to easily adapt to changing requirements without the need for costly infrastructure upgrades.

Flexibility and Compatibility

With the SFP interface, the Cisco Catalyst WS-X4712-SFP-E= offers unparalleled flexibility and compatibility. Administrators can choose from a wide range of SFP modules to meet their specific network needs. Whether it's for connecting to different types of Ethernet cables or extending the reach of the network over fiber optic links, SFP modules provide a versatile solution.

Easy Upgrades

The SFP interface also simplifies network upgrades. As technology advances and higher bandwidth requirements emerge, network administrators can easily swap out existing SFP modules for newer ones with higher data transfer rates. This eliminates the need for complex and time-consuming equipment replacements, resulting in cost savings and reduced downtime.

Scalability

Scalability is a crucial consideration for any network infrastructure. The SFP interface allows administrators to scale their networks effortlessly by adding or replacing modules as required. This modular approach ensures that networks can grow alongside business needs without disruption or significant investments.

Cost-Effectiveness

The use of SFP interfaces offers cost-effectiveness in multiple ways. Firstly, the modular nature of SFP allows for efficient use of network resources, as administrators can choose the specific modules needed for their network rather than investing in fixed-port switches. Additionally, the ability to upgrade or replace individual modules reduces overall equipment costs and prolongs the lifespan of the network infrastructure.

Examples of SFP Applications

The SFP interface opens up a wide range of applications and possibilities for network administrators. Here are a few examples:

1. Fiber Optic Connectivity

SFP modules support fiber optic cables, enabling long-distance connectivity between switches or routers. This is particularly useful in scenarios where copper cables are not feasible due to distance limitations or electromagnetic interference.

2. Ethernet Extension

SFP modules also allow for Ethernet extension over longer distances. By using SFP modules with optical transceivers, administrators can bridge the gap between different locations, delivering high-speed Ethernet connectivity without sacrificing performance.

3. Multi-mode and Single-mode Support

SFP modules come in various types, including multi-mode and single-mode variants. This flexibility allows administrators to choose the appropriate module based on their specific requirements, ensuring optimized performance and compatibility.

Ports

In addition to its SFP interface capabilities, the Cisco Catalyst WS-X4712-SFP-E= Expansion Module is equipped with 12 ports. This feature offers significant benefits for users who require a high-density solution for their networking needs.

Increased Connectivity

With 12 ports available, network administrators can connect numerous devices simultaneously. This high-density solution eliminates the need for additional switch units or costly infrastructure upgrades. The Cisco Catalyst WS-X4712-SFP-E= Expansion Module provides a streamlined approach to network expansion and connectivity requirements.

Reduced Cable Clutter

The 12 ports on this expansion module also contribute to reduced cable clutter. By consolidating multiple devices into a single module, administrators can minimize the number of cables required, leading to a cleaner and more organized networking environment. This not only improves aesthetics but also simplifies cable management and troubleshooting processes.

Improved Network Performance

The availability of 12 ports on the Cisco Catalyst WS-X4712-SFP-E= Expansion Module translates to improved network performance. With more ports, administrators can distribute network traffic evenly, reducing congestion and bottlenecks. This ensures that all connected devices receive optimal bandwidth, resulting in enhanced overall network performance and user experience.

Port Configuration Options

The Cisco Catalyst WS-X4712-SFP-E= Expansion Module offers various port configuration options to cater to different network requirements. Administrators can choose to configure the ports individually or group them together using link aggregation protocols such as EtherChannel. This flexibility allows for efficient load balancing and redundancy, ensuring a resilient and highly available network.

Seamless Integration

The 12 ports on this expansion module seamlessly integrate with the existing network infrastructure. Administrators can connect devices such as servers, workstations, printers, or other networking equipment without compatibility concerns. The Cisco Catalyst WS-X4712-SFP-E= Expansion Module ensures straightforward integration and smooth operation within the network.

Future-Proofing

Investing in a solution with 12 ports provides future-proofing benefits for network administrators. As businesses expand and their connectivity requirements grow, having additional ports readily available allows for easy scalability. Administrators can add new devices or expand their network without the need for significant upgrades or replacements.

Applications in Various Environments

The 12 ports on the Cisco Catalyst WS-X4712-SFP-E= Expansion Module find applications in numerous environments. Here are a few examples:

1. Data Centers

Data centers often require high-density solutions due to the large number of servers and networking equipment present. The 12 ports on this expansion module provide the required connectivity for data-intensive applications, ensuring seamless operations and data transfer.

2. Enterprise Networks

In enterprise environments, where a multitude of devices need to be connected, the 12 ports offer the necessary capacity. Whether it's connecting workstations, printers, or other peripherals, the expansion module simplifies network expansion and management.

3. Campus Networks

Campus networks encompass various buildings and areas that require extensive connectivity. The Cisco Catalyst WS-X4712-SFP-E= Expansion Module can serve as a central hub, enabling connectivity for multiple departments or locations within a campus setting.

In conclusion, the Cisco Catalyst WS-X4712-SFP-E= Gigabit Ethernet Expansion Module provides users with the advantage of an SFP interface, offering flexibility, compatibility, easy upgrades, scalability, and cost-effectiveness. Additionally, the 12 ports on this expansion module enable increased connectivity, reduced cable clutter, improved network performance, port configuration options, seamless integration, and future-proofing benefits. Whether it's for fiber optic connectivity, Ethernet extension, or multi-mode/single-mode support, this expansion module caters to a wide range of applications in data centers, enterprise networks, and campus networks.
