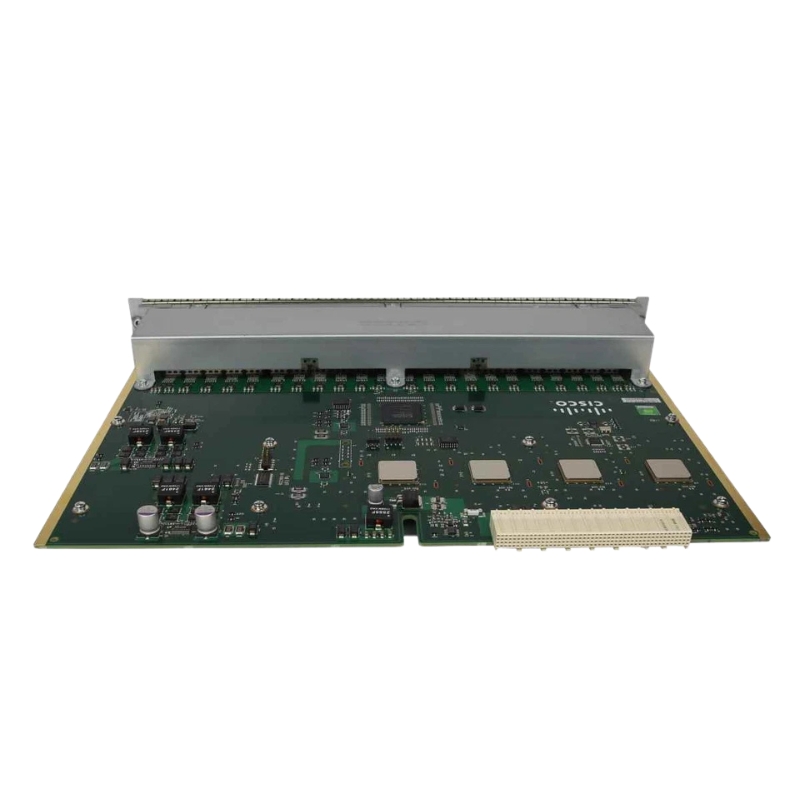

Cisco Catalyst WS-X4748-RJ45V+E Ethernet Module (48 Ports)

General Information on Cisco WS-X4748-RJ45V+E

Product Details

The Cisco WS-X4748-RJ45V+E is a sophisticated service module designed to enhance network functionality and efficiency.

Manufacturer and Model

• Manufacturer: Cisco
• Part Number (SKU#): WS-X4748-RJ45V+E
• Product Type: Service Module

Technical Specifications

Application and Usage

• Primary Use: Data Networking
• Network Switching: Yes

Port and Connector Information

• Total Ports: 48
• Connector Type: RJ-45
• Port Details: 48 x RJ-45 10/100/1000Base-T LAN

Media and Performance

Supported Media

• Media Type: Twisted Pair
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T

Networking Capabilities

• Connectivity Type: Wired
• Cabling Standards: Ethernet 1000Base-T, 100Base-TX, 10Base-T
• Switching Protocol: Ethernet
• Subcategory: Network Hubs and Switches
• Form Factor: Plug-in Module
• Jumbo Frame Support: 9216 bytes

Features and Capabilities

Key Features

• Flow Control
• Support for Jumbo Frames
• Power over Ethernet Plus (PoE+)
• Port Aggregation Protocol (PAgP) Support
• Power over Ethernet (PoE)

Memory Specifications

Memory Components

• RAM: 4 GB SDRAM
• Flash Memory: 2 GB

Power and Environmental Specifications

Power Consumption

• Power over Ethernet (PoE) Supported: PoE+
• Operational Power Consumption: 75 Watts

Environmental Conditions

• Minimum Operating Temperature: 32 °F
• Maximum Operating Temperature: 104 °F
• Humidity Range: 10 – 90% (non-condensing)

Compliance and Standards

Standards Compliance

• CISPR 24
• EN 61000-3-2
• EN 61000-3-3
• EN55024
• AS/NZS 60950-1
• ICES-003 Class A
• UL 60950-1
• IEC 60950-1
• EN 60950-1
• RoHS
• VCCI Class A
• AS/NZS CISPR 22
• EN 55022 Class A
• FCC CFR47 Part 15 A
• CAN/CSA C22.2 No. 60950-1 Second Edition
• EN 300 386

Reliability and Longevity

Mean Time Between Failures (MTBF)

MTBF: 309,906 Hours

Ports

The Cisco Catalyst WS-X4748-RJ45V+E Ethernet Module features a total of 48 ports, making it an ideal choice for businesses and organizations that require a large number of Ethernet connections. These ports are essential for connecting various devices such as computers, servers, printers, and other network-enabled devices to the network infrastructure.

Increased Connectivity

With 48 ports, this Ethernet module offers an extensive range of connectivity options. It allows users to connect a significant number of devices simultaneously, providing seamless communication and data transfer within the network. Whether you are expanding your network or need to accommodate a growing number of devices, the Cisco Catalyst WS-X4748-RJ45V+E Ethernet Module ensures that you have plenty of ports available to meet your requirements.

Flexibility and Scalability

Having 48 ports on a single module provides flexibility and scalability to your network infrastructure. It offers the ability to easily add or remove devices without worrying about limited port availability. This module allows you to scale your network as your business grows or adapt to changing requirements without the need for additional hardware investments. With its high port density, the Cisco Catalyst WS-X4748-RJ45V+E Ethernet Module ensures that you have ample room for future expansion.

Optimized Network Performance

The Cisco Catalyst WS-X4748-RJ45V+E Ethernet Module's 48 ports are designed to deliver optimal network performance. Each port supports Gigabit Ethernet speeds, providing fast and reliable data transmission throughout the network. This ensures that your users can access resources, share files, and collaborate without experiencing any bottlenecks or slowdowns.

Enhanced Productivity

By offering 48 ports, this Ethernet module enhances productivity within your organization. It allows multiple users to connect their devices to the network simultaneously, facilitating seamless communication and collaboration. With more ports available, employees can easily access shared resources, work on projects together, and transfer data without any constraints. This high level of connectivity promotes efficiency and productivity in the workplace.

Reduced Network Congestion

The abundance of ports on the Cisco Catalyst WS-X4748-RJ45V+E Ethernet Module helps reduce network congestion. With more ports available, network traffic is distributed evenly, preventing any single point of failure or bottleneck. This ensures that your network operates smoothly even during peak usage periods, eliminating any potential slowdowns or interruptions that could hinder productivity.

Cost-Effective Solution

By providing 48 ports in a single module, the Cisco Catalyst WS-X4748-RJ45V+E Ethernet Module offers a cost-effective solution for your networking needs. Instead of investing in multiple modules or switches to accommodate a large number of devices, this module consolidates all the ports into one convenient unit. This not only reduces the initial investment cost but also simplifies network management and maintenance, resulting in long-term cost savings.

Future-Proofing Your Network

Investing in a product with 48 ports ensures that your network is future-proofed. As technology advances and more devices require network connectivity, having ample ports available will prevent you from facing limitations or having to replace outdated hardware. The Cisco Catalyst WS-X4748-RJ45V+E Ethernet Module's 48 ports provide the scalability and flexibility needed to adapt to evolving business requirements, allowing your network to grow alongside your organization.

Overall, the Cisco Catalyst WS-X4748-RJ45V+E Ethernet Module's 48 ports offer increased connectivity, flexibility, and scalability for your network infrastructure. With optimized network performance, enhanced productivity, reduced network congestion, and a cost-effective solution, this module is an excellent choice for businesses and organizations that require a high number of Ethernet connections. By future-proofing your network, you can ensure that your infrastructure remains capable of supporting the evolving demands of your organization.
