CBS110-24T-NA Cisco Business 110 Series 24 Ports Ethernet Switch

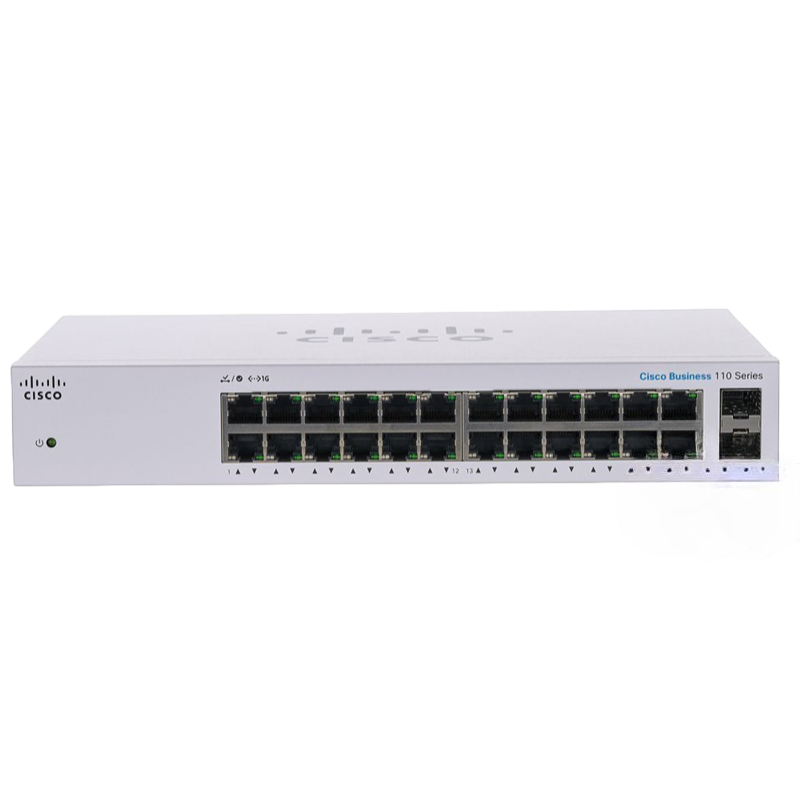

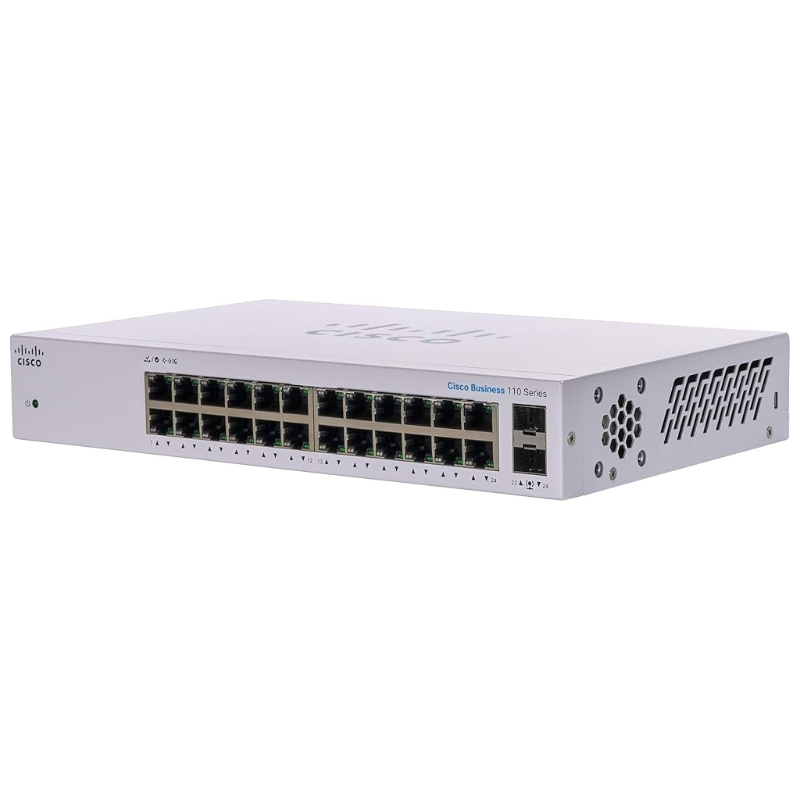

Cisco CBS110-24T-NA Wall-Mountable 24-Port Ethernet Switch

The Cisco CBS110-24T-NA is a high-performance, unmanaged Layer 2 Ethernet switch designed for small to medium-sized enterprises. With 24 Gigabit Ethernet ports and dual SFP uplinks, this device ensures seamless connectivity, high-speed data transfer, and robust network performance.

General Specifications

• Manufacturer: Cisco
• Model Number: CBS110-24T-NA
• Device Type: 24-Port Unmanaged Switch

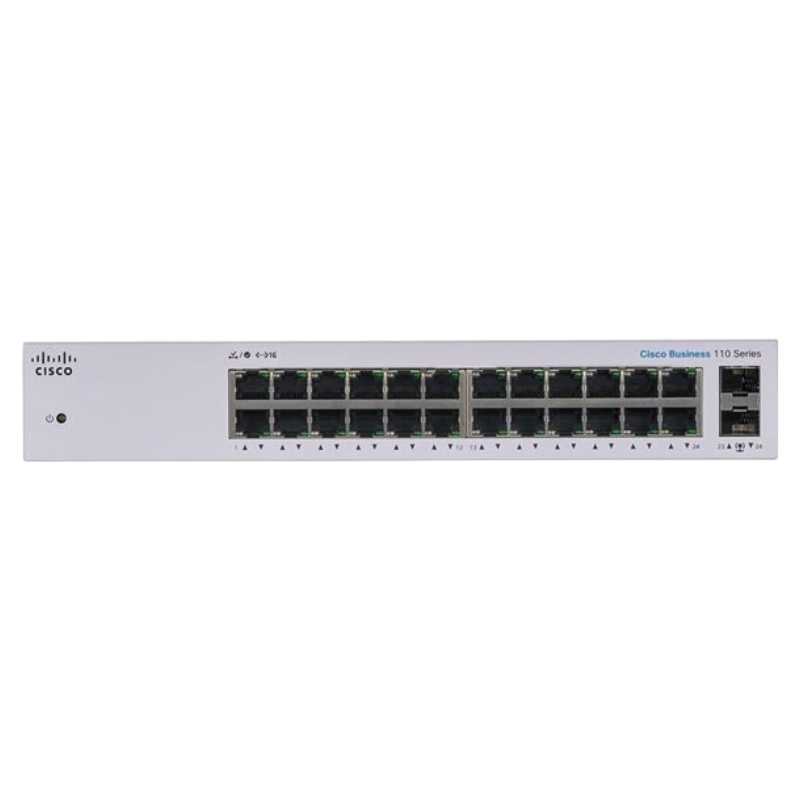

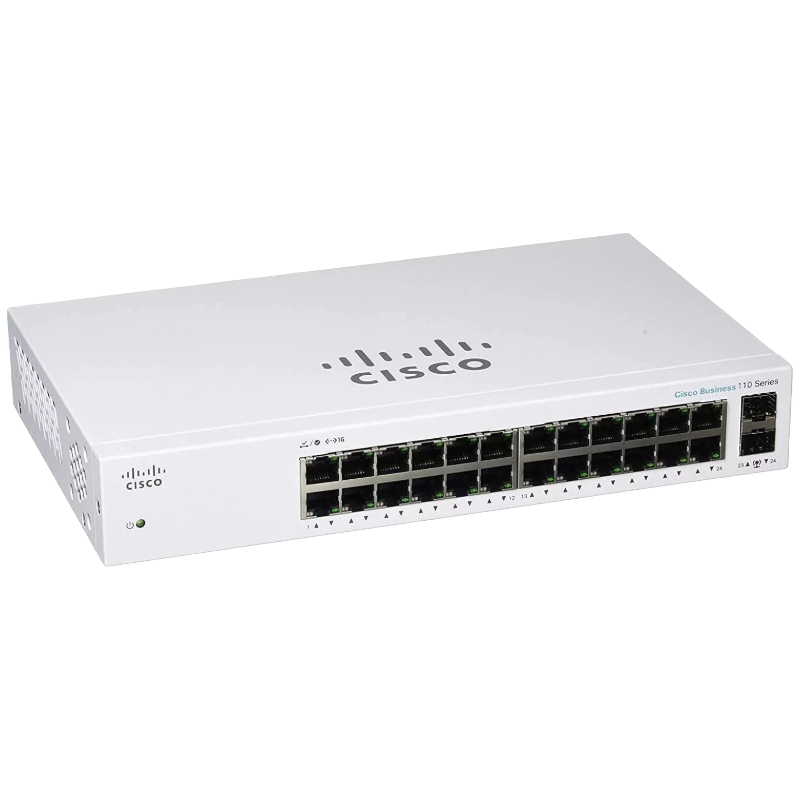

• Enclosure: Desktop, Rack-Mountable, Wall-Mountable
• Ethernet Subtype: Gigabit

Port and Connectivity Options

• 24 x 10/100/1000 Mbps RJ-45 ports for high-speed data transmission
• 2 x combo Gigabit SFP/RJ-45 ports for fiber or copper uplinks
• Auto-sensing MDI/MDIX ports for easy installation without crossover cables

High-Performance Switching Capabilities

• Forwarding performance of 35.7 Mpps for 64-byte packet size
• Switching capacity up to 48 Gbps to handle multiple data streams
• Buffer memory of 2 MB to optimize network traffic
• MAC address table supporting 8,000 entries for large-scale device management
• Jumbo frame support up to 9216 bytes for efficient data handling

Advanced Features for Efficient Network Management

• Flow Control to prevent packet loss during high traffic
• Quality of Service (QoS) to prioritize critical data traffic
• Energy Efficient Ethernet (EEE) for lower power consumption

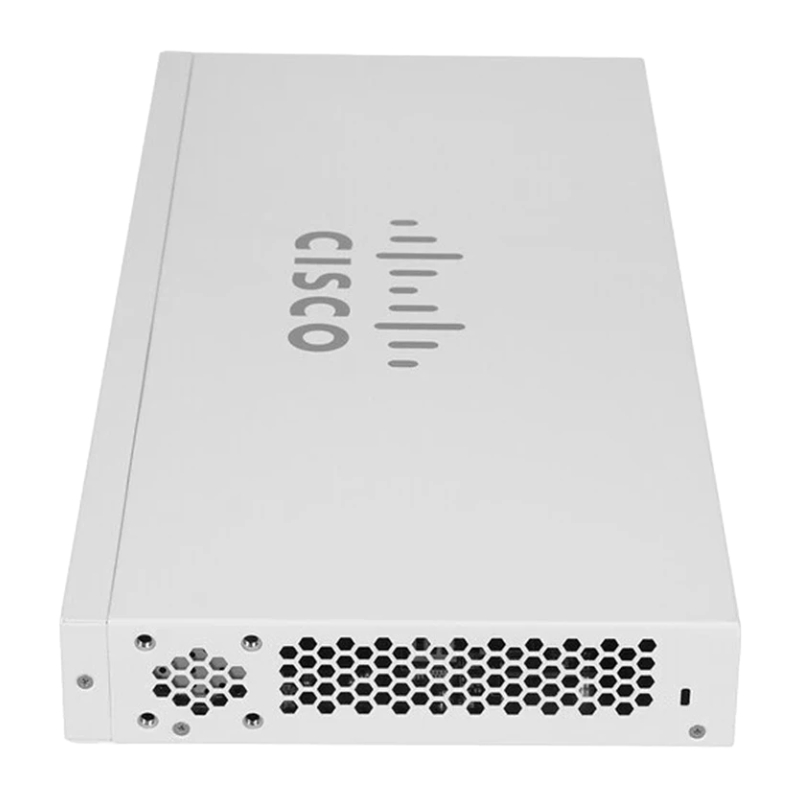

• Fanless design for silent operation and reduced maintenance
• Loopback detection and security slot compatible with Kensington locks
• Weighted Round Robin (WRR) for fair bandwidth allocation
• Cable diagnostics function for quick troubleshooting

Compliance and Standards

• IEEE 802.3, 802.3u, 802.3z, 802.3ab for Ethernet and Gigabit Ethernet
• IEEE 802.1p for prioritization and traffic management
• IEEE 802.3x flow control and 802.3az energy-efficient Ethernet

Hardware and Performance Specifications

• Processor: ARM-based 400 MHz CPU
• Memory: 64 MB RAM for smooth operation
• Flash Storage: 8 MB for firmware and configurations
• Status Indicators: Power, Link/Activity LEDs for quick monitoring

Expansion and Interface Options

• 24 x 10/100/1000 Base-T RJ-45 ports
• 2 x 1000Base-T / 1000Base-X RJ-45/SFP combo ports

Power and Energy Efficiency

• Internal power supply for easy installation
• Voltage: AC 120/230 V (50/60 Hz)
• Operational power consumption: 16.34 Watts
• Energy-efficient design reduces electricity costs

Key Advantages of Cisco CBS110-24T-NA

• Easy plug-and-play deployment without complex configurations
• Reliable, high-speed gigabit connectivity for multiple devices
• Low-power, fanless design ensures quiet operation
• Robust security and traffic management features
• Future-proofed with SFP uplinks for fiber connectivity

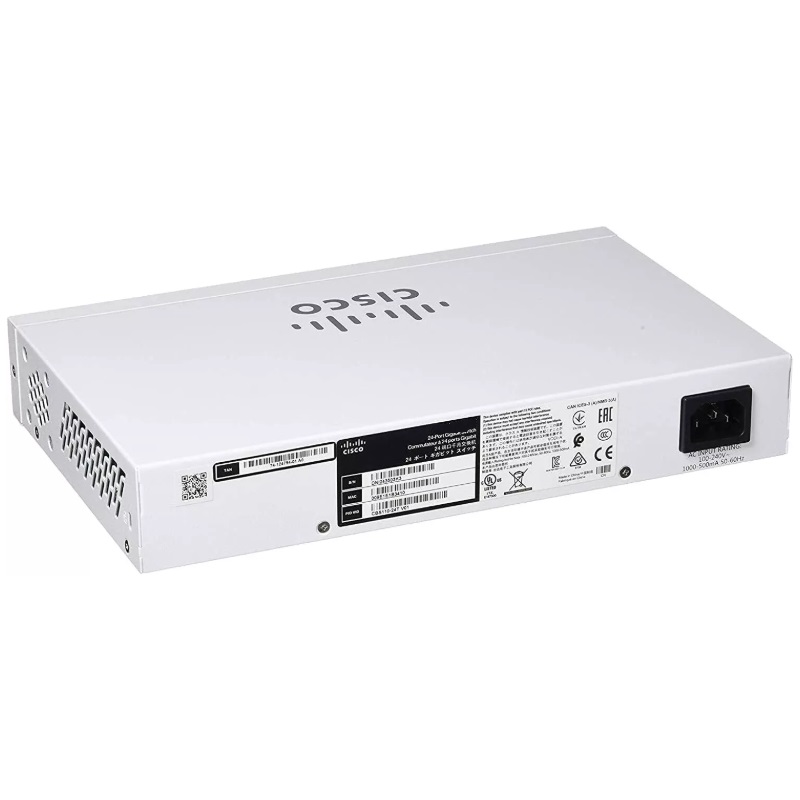

Cisco CBS110-24T-NA Wall Mountable Ethernet Switch

The Cisco CBS110-24T-NA is a highly efficient Layer 2 Ethernet switch designed for small to medium-sized businesses seeking reliable network performance and cost-effective scalability. This 24-port managed switch provides seamless connectivity and enhanced data transfer speeds, making it an ideal solution for office networks, retail environments, and enterprise branch offices. Its wall-mountable form factor allows for flexible deployment options, ensuring that network infrastructure can be optimized without consuming excessive space.

Key Features and Technical Advantages

The CBS110-24T-NA integrates advanced Layer 2 switching capabilities with a user-friendly interface. It features 24 Fast Ethernet ports capable of delivering robust throughput for diverse applications, while its 2 SFP uplink ports support fiber connectivity for extended network reach. This switch is engineered for business networks requiring stable connections and minimal latency. With support for VLANs, QoS, and IGMP snooping, the CBS110-24T-NA offers the necessary tools for traffic segmentation, prioritization, and efficient multicast distribution.

VLAN Segmentation and Network Management

VLAN support on the CBS110-24T-NA allows organizations to segregate network traffic efficiently. Administrators can assign multiple virtual networks within a single physical switch, improving security, minimizing broadcast traffic, and optimizing network performance. The switch also provides simple management through a web-based graphical user interface, making it accessible for IT teams without extensive networking expertise. SNMP monitoring and status indicators further enhance network visibility and management capabilities.

Quality of Service (QoS) and Traffic Optimization

Traffic prioritization is crucial for business-critical applications, and the CBS110-24T-NA addresses this with intelligent QoS functionality. The switch identifies and prioritizes voice, video, and data traffic, ensuring smooth performance for IP phones, video conferencing, and cloud-based services. This capability reduces packet loss, latency, and jitter, providing a more reliable network experience for all connected devices.

Energy Efficiency and Environmental Considerations

Cisco has engineered the CBS110-24T-NA with energy efficiency in mind. It incorporates IEEE 802.3az Energy Efficient Ethernet technology, which dynamically adjusts power consumption based on network activity. This feature reduces operational costs and minimizes environmental impact, making it an ideal choice for organizations seeking sustainable networking solutions. The fanless design also contributes to quiet operation, suitable for office environments where low noise levels are preferred.

Security Features and Network Protection

Ensuring network integrity is a priority for any business. The CBS110-24T-NA incorporates several security measures to safeguard sensitive information. It supports port security, which restricts access to known devices, as well as DHCP snooping to prevent unauthorized IP address allocation. Furthermore, the switch supports MAC address filtering and secure management access, protecting the network from potential threats and unauthorized interventions.

Scalability and Future-Proofing

The CBS110-24T-NA is designed to accommodate business growth. Its wall-mountable design and compact form factor allow multiple switches to be deployed in constrained spaces, while uplink ports enable interconnection with higher-capacity core switches. This modular approach ensures that as network demands increase, organizations can scale their infrastructure without major hardware overhauls. Additionally, Cisco’s reputation for firmware updates and ongoing support ensures long-term reliability and compatibility with evolving networking standards.

Performance Optimization and Reliability

Performance is a critical consideration in any network deployment, and the CBS110-24T-NA delivers consistent, high-speed data transmission with minimal packet loss. The switch is equipped with features such as broadcast storm control, loop prevention, and fast convergence protocols, which maintain network stability even under high traffic loads. Redundant links and rapid failover capabilities further enhance the reliability of business networks, ensuring continuous connectivity for mission-critical operations.

Integration with Cisco Ecosystem

For organizations already leveraging Cisco networking solutions, the CBS110-24T-NA integrates seamlessly with existing infrastructure. It supports common management tools and monitoring platforms, allowing for centralized network oversight. Its compatibility with Cisco Small Business switches simplifies administration, providing cohesive policy enforcement and consistent performance across all network segments. This integration reduces operational complexity and streamlines troubleshooting processes.

Deployment Scenarios and Use Cases

The CBS110-24T-NA excels in various deployment scenarios. In office settings, it provides reliable connectivity for workstations, VoIP phones, and printers. In retail environments, the switch supports point-of-sale systems, security cameras, and inventory management systems. Additionally, branch offices can leverage its SFP uplinks to connect to central office networks over fiber, achieving fast, secure, and scalable connectivity. Its wall-mountable design is particularly advantageous in locations with limited rack space.

Comparison with Other Small Business Switches

When compared with other small business Layer 2 switches, the CBS110-24T-NA stands out for its combination of affordability, performance, and ease of use. While some switches may require advanced knowledge for configuration, the CBS110-24T-NA’s web interface and predefined settings make deployment simple. Its dual SFP uplinks provide flexibility often absent in comparable models, and its energy-efficient design lowers total cost of ownership over time. These advantages make it a preferred choice for organizations seeking a balance between performance and simplicity.
