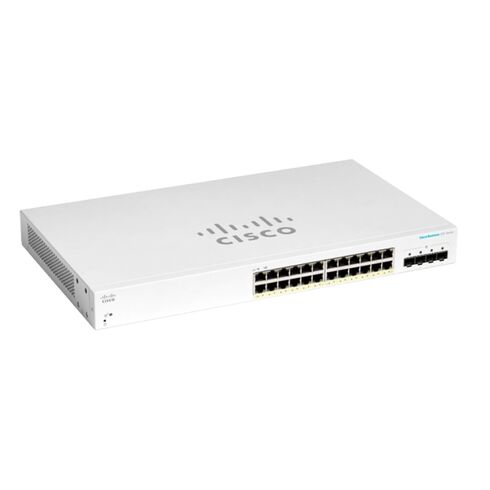

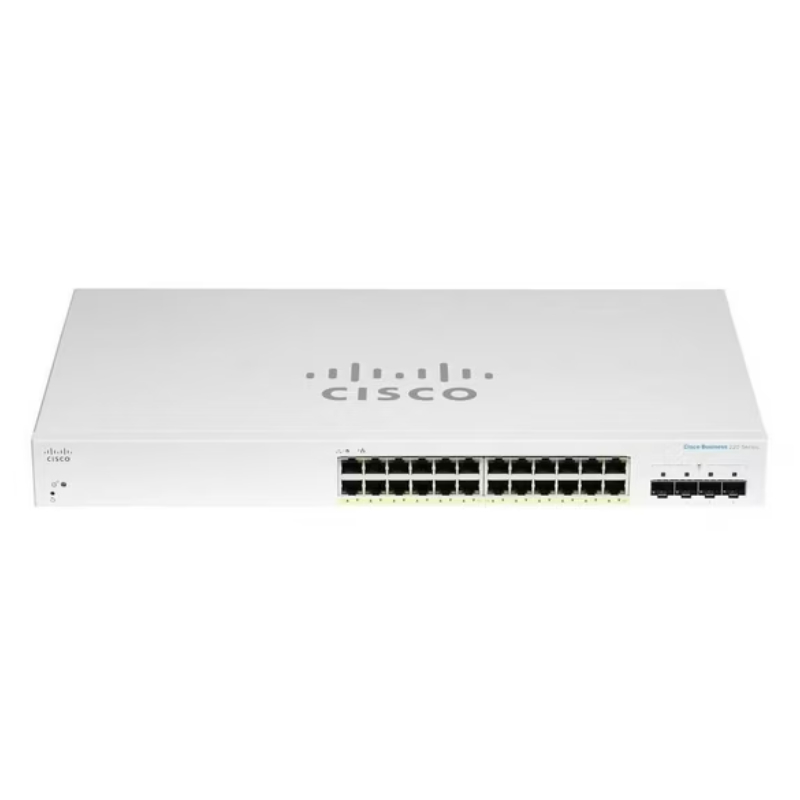

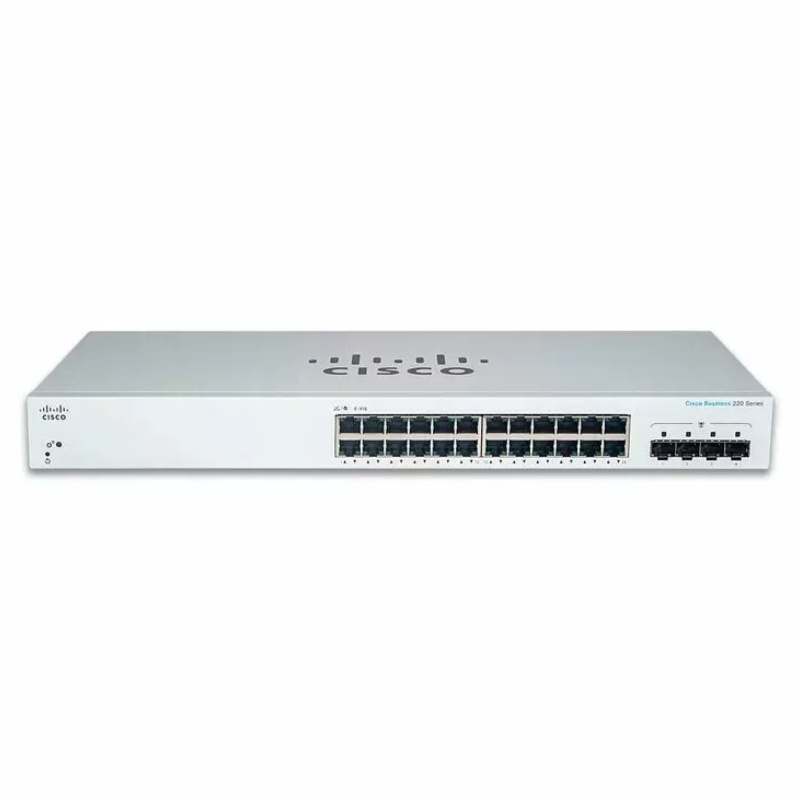

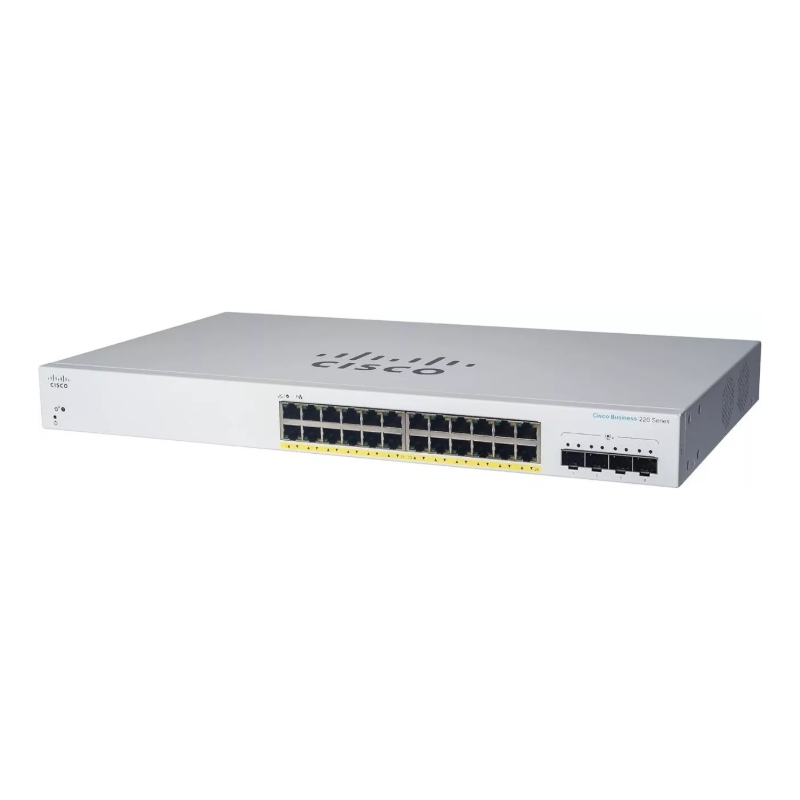

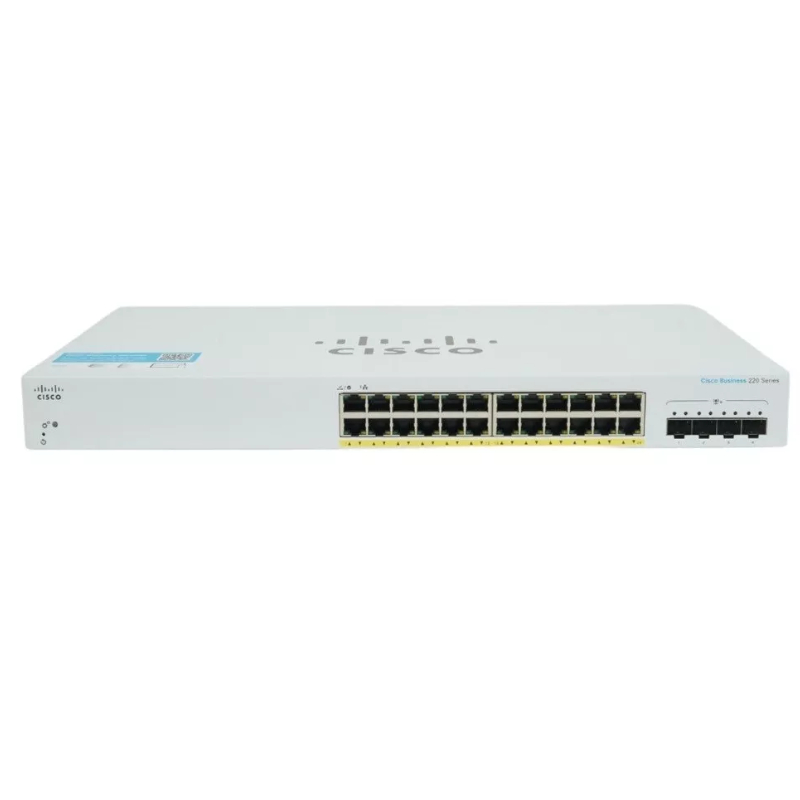

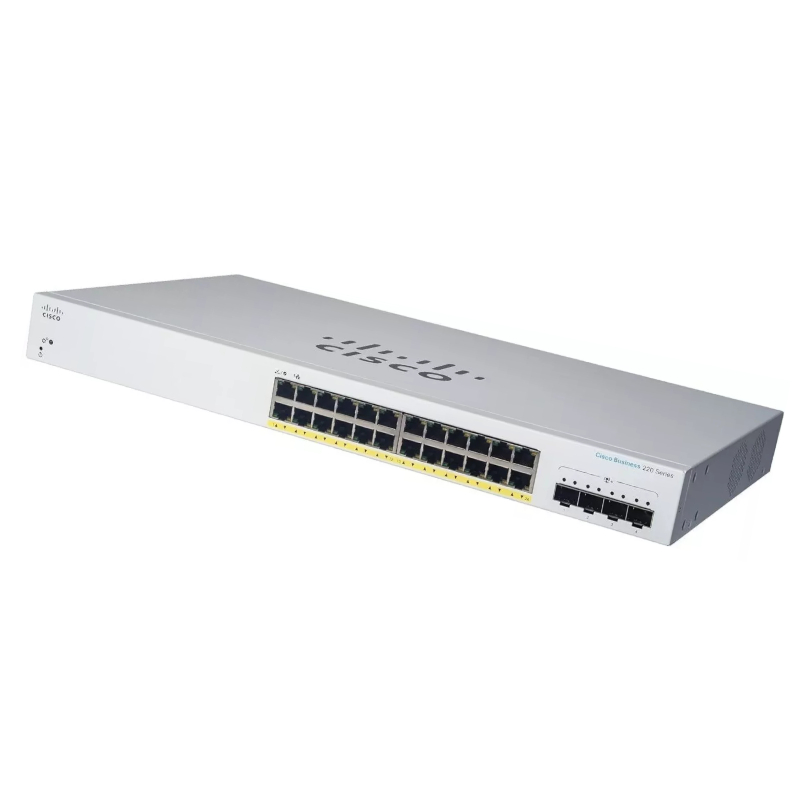

Cisco CBS220-24P-4X Business 220 Series Ethernet Switch

Cisco CBS220-24P-4X Overview

The Cisco CBS220-24P-4X is a sophisticated Ethernet switch designed to enhance your network infrastructure. Here are the key details:

Manufacturer Details

• Brand: Cisco
• Part Number: CBS220-24P-4X
• Product Type: Ethernet Switch

Port Configuration

• Total Network Ports: 24
• Uplink Ports: Available
• Modular Design: Yes
• Port Details:
• 24 x Gigabit Ethernet PoE+
• 4 x 10 Gigabit Ethernet Expansion Slots

Performance Characteristics

Media Types Supported

• Optical Fiber
• Twisted Pair

Ethernet and Network Technologies

• Gigabit Ethernet
• 10 Gigabit Ethernet
• 10/100/1000Base-T
• 10GBase-X

Expansion and Management

I/O Expansions

• Expansion Slots: 4
• Type: SFP+

Layer Support

• Layer 2

Power Specifications

Power Features

• PoE Ports: Yes
• PoE Budget: 195 W
• Power Source: Internal Power Supply
• Power Consumption: 37.60 W

Included Accessories

• Cisco CBS220-24P-4X Ethernet Switch
• Power Cord
• Mounting Kit
• Quick Start Guide

Management and Protocols

Management Capabilities

• Manageable: Yes
• Supported Protocols:
• IGMPv2, IGMP, IGMPv3
• MLDv2, MLD
• MSTP, RSTP, STP

Remote Management

• SNMP 1, SNMP 2c, SNMP 3
• RMON, Telnet
• HTTP, HTTPS, TFTP, SSH, SSH-2
• CLI, SCP, ICMP, DHCP, RSTP
• TACACS+, RADIUS

Features and Security

Advanced Capabilities

• BOOTP and VLAN Support
• IGMP Snooping
• Syslog Support
• DoS Attack Prevention
• Port Mirroring
• DiffServ Support
• MAC Address Filtering
• Broadcast and Multicast Storm Control
• Access Control List (ACL) Support
• Quality of Service (QoS)
• Cable Diagnostics Function
• LACP and LLDP Support
• Port Security and DHCP Client
• Energy Efficient Ethernet
• Management Information Base (MIB)
• Dual Firmware Images
• Neighbor Discovery Protocol (NDP)
• Generic VLAN Registration Protocol (GVRP)
• 802.1x Authentication
• Type of Service (ToS) and DSCP Support
• VLAN Management
• LLDP-MED and Guest VLAN
• User Datagram Protocol (UDP)
• STP Loop Guard and Weighted Round Robin (WRR)
• Head-of-line (HOL) Blocking Prevention
• Loopback Detection
• Telnet Server
• Unknown Storm Control and BPDU Guard
• Cisco Discovery Protocol (CDP)
• Duplicate Address Detection (DAD)
• TCP Support
• Auto Voice VLAN
• Automatic Media-Dependent Interface Crossover (MDIX)

Compliance and Standards

• IEEE 802.3, IEEE 802.3u, IEEE 802.3z
• IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab
• IEEE 802.1p, IEEE 802.3af, IEEE 802.3x
• IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
• IEEE 802.1s, IEEE 802.1ab (LLDP)
• IEEE 802.3at, IEEE 802.3az

Memory and Power Details

Memory Specifications

• RAM: 256 MB
• Flash Memory: 64 MB
• Status Indicators: System, Link/activity, Speed

Power Requirements

• Power Device: Internal Power Supply
• Voltage Required: AC 100-240 V (50/60 Hz)
• Operational Power Consumption: 248.7 Watt

Physical Dimensions

• Width: 17.3 inches
• Depth: 10.1 inches
• Height: 1.7 inches
• Weight: 8.88 lbs

Ports

The Cisco CBS220-24P-4X Ethernet Switch is equipped with a total of 24 ports, making it an ideal choice for businesses that require a high level of network connectivity. These ports provide the means to connect various devices, such as computers, servers, printers, and IP phones, to the network. The CBS220-24P-4X offers a versatile solution for both small and medium-sized enterprises, enabling them to achieve seamless communication and data transfer.

Increased Connectivity

With 24 ports at your disposal, this Ethernet switch significantly increases the connectivity options available to your organization. Each port can be utilized to connect a different device, allowing for simultaneous communication and data exchange. This feature is particularly beneficial in environments where multiple devices need to be connected to the network, such as office spaces, conference rooms, or data centers.

Efficient Network Management

The CBS220-24P-4X simplifies network management by providing ample ports for connecting various devices. This eliminates the need for additional networking equipment or complex configurations that would otherwise be necessary to accommodate a larger number of devices. By consolidating your network connections into a single switch with 24 ports, you can streamline your network infrastructure and reduce the complexity of managing multiple devices.

Flexibility and Scalability

The 24 ports offered by the CBS220-24P-4X provide businesses with the flexibility to expand their network without limitations. As your organization grows or your connectivity requirements evolve, having extra ports readily available ensures that you can easily integrate new devices into your network without disrupting existing connections. This scalability feature is particularly valuable for businesses experiencing rapid growth or those planning for future expansion.

Power over Ethernet (PoE)

The Cisco CBS220-24P-4X Ethernet Switch supports Power over Ethernet (PoE) technology, allowing it to deliver both data and electrical power to connected devices through the Ethernet cables. This eliminates the need for separate power sources or additional wiring, simplifying installation and reducing costs. With 24 PoE ports, the CBS220-24P-4X can power a wide range of PoE-enabled devices, such as IP phones, wireless access points, and security cameras, providing a convenient and efficient solution for powering network devices.

Cost Savings

By utilizing PoE technology, the CBS220-24P-4X helps businesses save on installation and maintenance costs. With traditional networking setups, additional power sources and wiring would be required to provide electricity to each device. However, with the CBS220-24P-4X's PoE capability, power is transmitted through the existing Ethernet cables, eliminating the need for additional infrastructure. This not only reduces upfront costs but also simplifies future expansions or device relocations by eliminating the need for rewiring.

Improved Flexibility

The PoE feature of the CBS220-24P-4X enhances flexibility by allowing devices to be installed in locations where power outlets may be limited or inaccessible. This is especially advantageous in environments where mobility and flexibility are essential, such as open office spaces or industrial settings. With the ability to power devices through Ethernet cables, businesses can easily deploy network devices in optimal locations without constraints imposed by power availability.

Enhanced Network Reliability

The CBS220-24P-4X's PoE capability contributes to network reliability by providing a continuous power supply to connected devices. In the event of a power outage or failure, critical network components can remain operational if connected to a UPS (Uninterruptible Power Supply) system. This ensures uninterrupted communication and data transfer, minimizing downtime and maintaining business continuity.

Centralized Power Management

The PoE functionality of the CBS220-24P-4X enables centralized power management, allowing administrators to monitor and control power distribution to individual devices. This feature provides greater control over power consumption, ensuring efficient use of resources and enabling organizations to implement power-saving practices. By centrally managing power allocation, businesses can optimize energy usage, reduce costs, and contribute to their sustainability goals.

In conclusion, the Cisco CBS220-24P-4X Ethernet Switch's 24 ports offer increased connectivity, efficient network management, flexibility, and scalability. The Power over Ethernet (PoE) capability further enhances the switch's benefits by providing cost savings, improved flexibility, enhanced network reliability, and centralized power management. With its comprehensive features, the CBS220-24P-4X is a reliable and versatile solution for businesses seeking a high-performance Ethernet switch.
