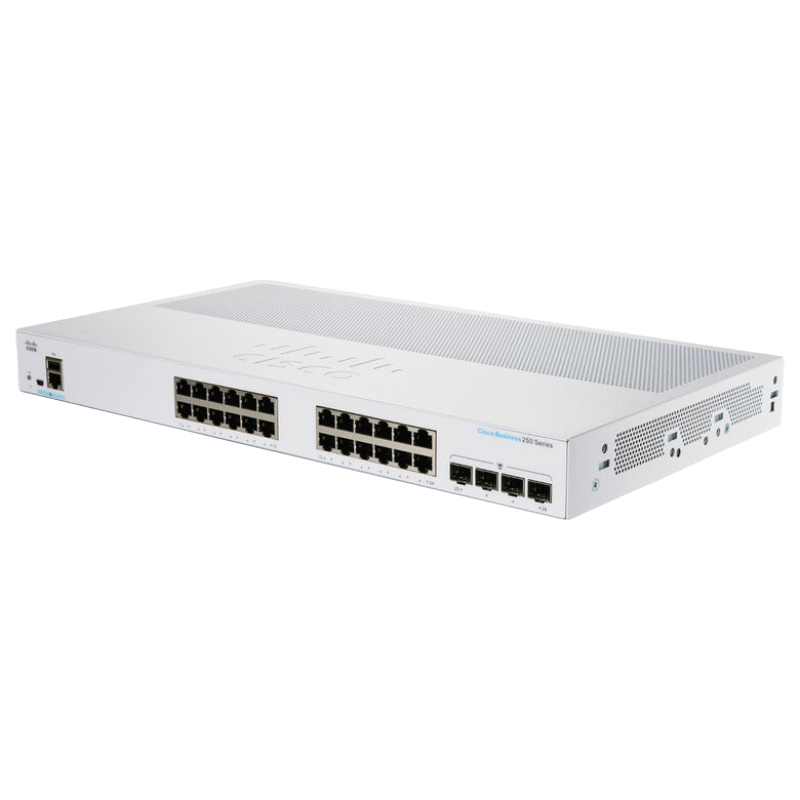

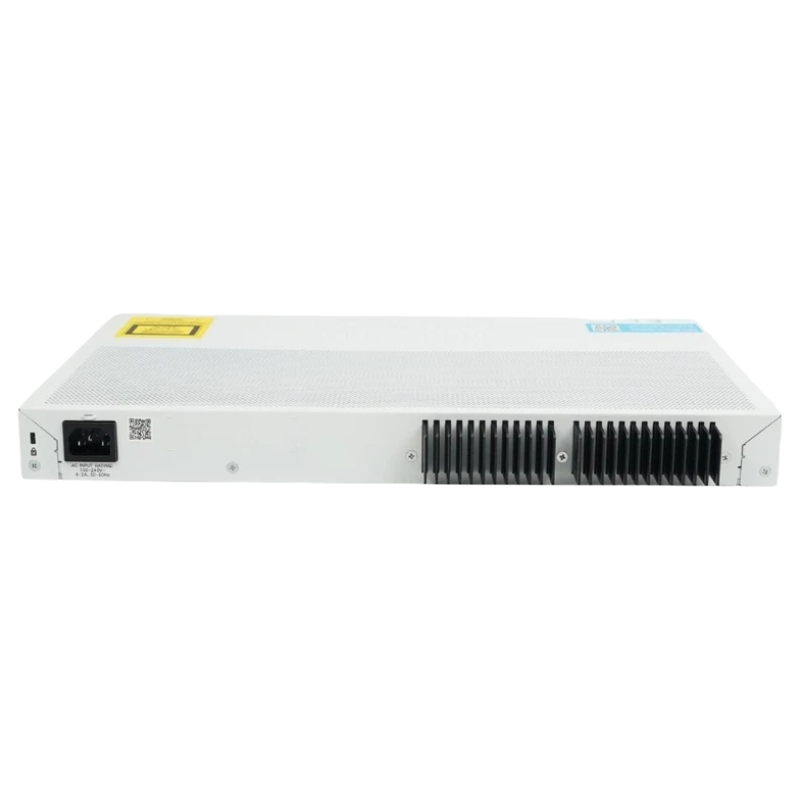

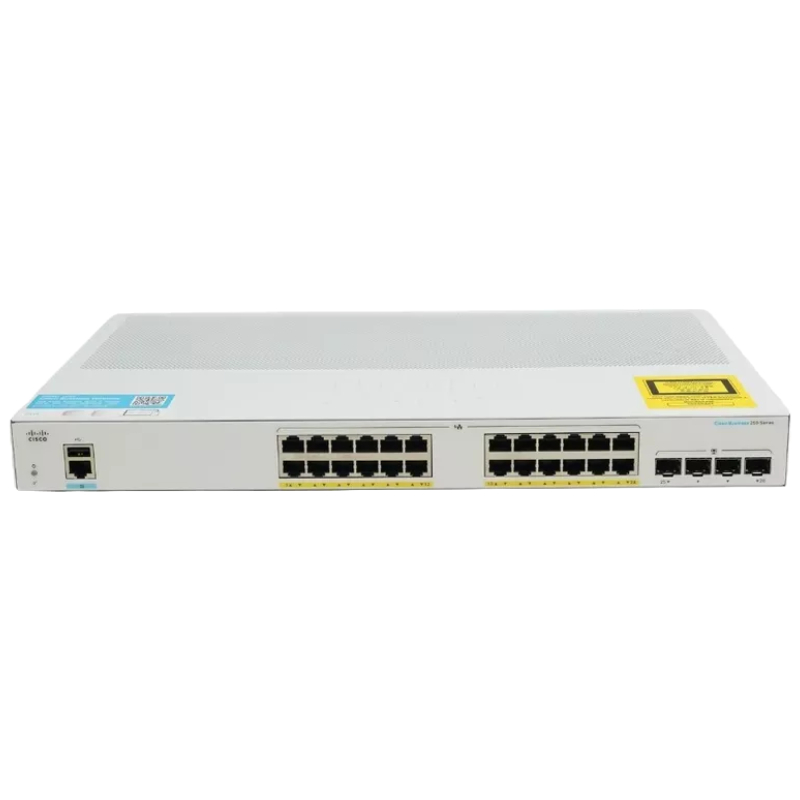

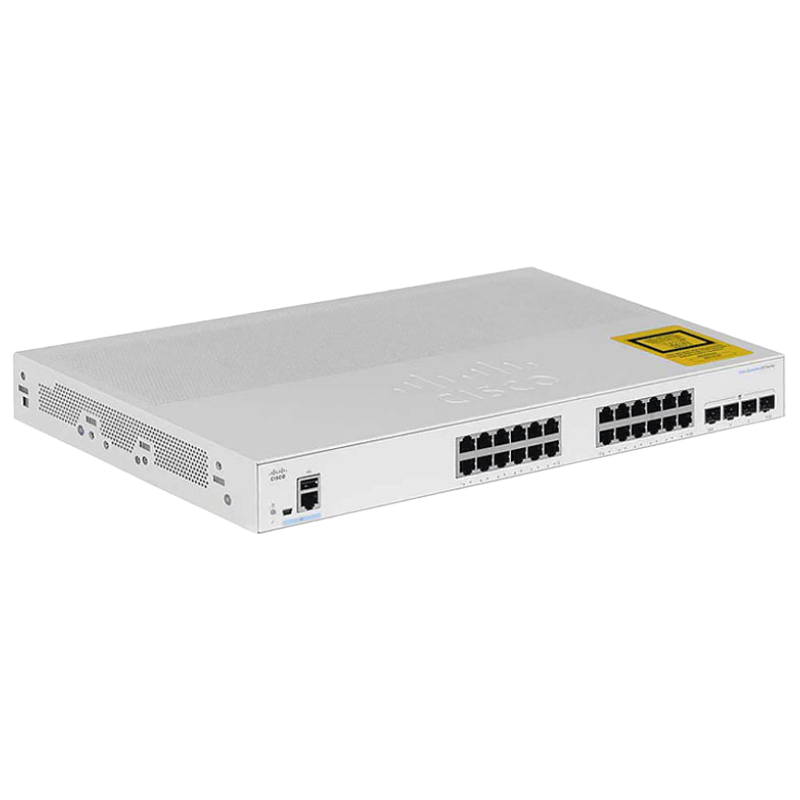

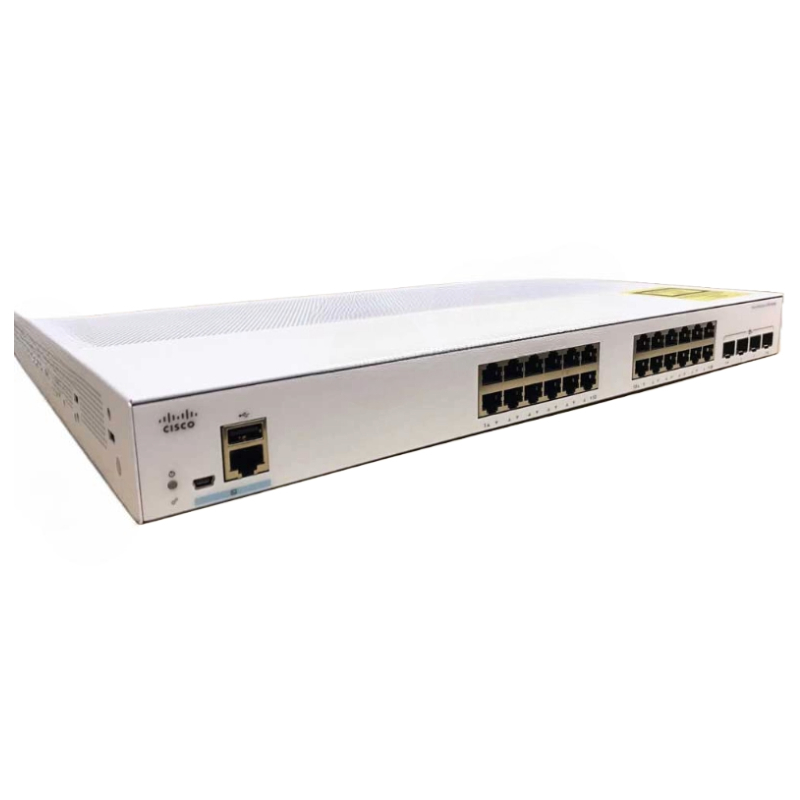

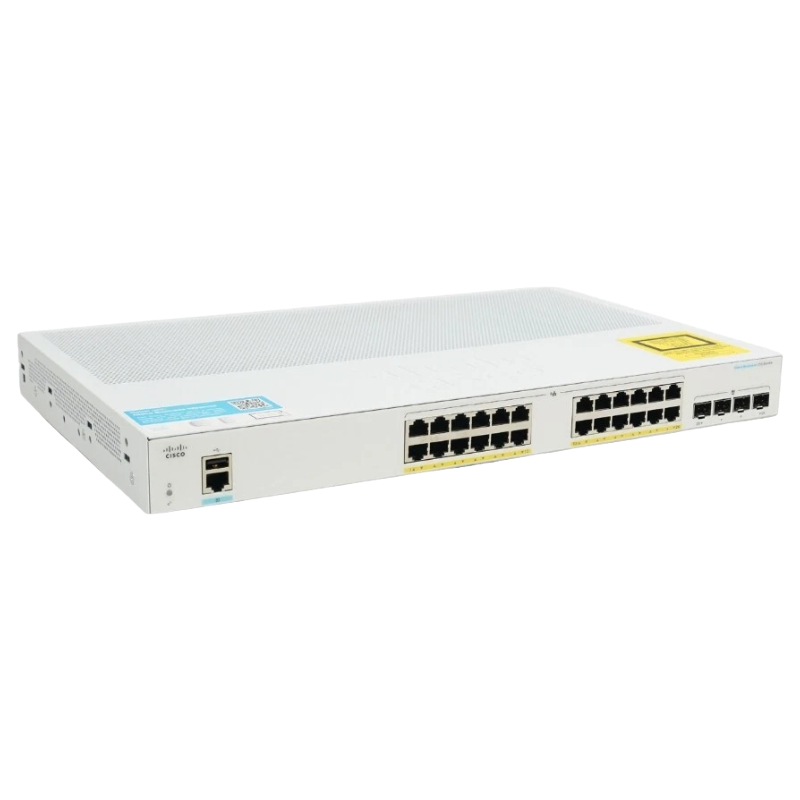

Cisco CBS250-24FP-4G 24 Ports Ethernet Switch Manageable Layer 2 Supported

Overview of Cisco CBS250-24FP-4G

The Cisco CBS250-24FP-4G is a robust Ethernet switch designed to meet the needs of modern networks. As a layer 2 switch, it offers a variety of features to support efficient network management and performance.

Manufacturer Details of Cisco CBS250-24FP-4G

• Brand: Cisco
• Model Number: CBS250-24FP-4G
• Type: Ethernet Switch

Key Characteristics

• Enclosure: Rack-mountable
• Power Over Ethernet (PoE): PoE+
• PoE Budget: 370 Watts

Performance Metrics

• Packet Forwarding Rate: 41.66 million packets per second (64-byte packets)
• Switching Capacity: 56 gigabits per second
• RPVST+ Instances: 126
• MSTP Instances: 8
• VLAN Support: 255 VLANs
• Access Control List (ACL) Rules: 512
• Buffer Capacity: 1.5 MB
• MAC Address Table: 8,000 entries
• Jumbo Frame Size: 2 KB

Routing Protocols

• IGMPv2
• IGMP
• IGMPv3
• MLDv2
• MLD
• CIDR
• MSTP
• RSTP
• STP

Remote Management

• SNMP v1, v2c, v3
• RMON
• Telnet
• HTTP
• HTTPS
• TFTP
• SSH, SSH-2
• CLI
• SCP
• ICMP
• DHCP
• RADIUS

Security Features

• Encryption: SSL
• Authentication Methods: Secure Shell (SSH), RADIUS, Secure Shell v2 (SSH2)

Hardware Specifications

• Processor: ARM, 800 MHz
• RAM: 512 MB
• Flash Memory: 256 MB
• Status Indicators: Status, PoE, Link/Activity/Speed
• Power Supply: Internal
• Voltage Requirements: AC 120/230 V (50/60 Hz)

Ports

The Cisco CBS250-24FP-4G Ethernet Switch is equipped with 24 ports, making it an ideal choice for small to medium-sized businesses. These ports provide the ability to connect multiple devices to the network, including computers, printers, IP phones, and other network-enabled devices.

Increased Connectivity

With 24 ports available, users can easily connect all their essential devices to the network without needing additional switches or hubs. This not only simplifies the network setup but also improves overall connectivity and eliminates the need for multiple cables and connections.

By having a sufficient number of ports, businesses can easily accommodate their growing network infrastructure and add new devices as needed. This scalability ensures that the network can expand alongside the business without experiencing any bottlenecks or performance issues.

Versatile Deployment

The Cisco CBS250-24FP-4G Ethernet Switch's 24 ports allow for versatile deployment options. It can be used as a central switch in a small office environment or as a distribution switch in a larger network. The flexibility provided by these ports ensures that businesses can adapt to their specific networking requirements.

Additionally, the switch supports Power over Ethernet (PoE) on all 24 ports, which enables the simultaneous data and power transmission to PoE-enabled devices. This eliminates the need for separate power sources, simplifies cable management, and reduces installation costs.

Improved Performance

The 24 ports on the Cisco CBS250-24FP-4G Ethernet Switch offer Gigabit Ethernet connectivity, providing high-speed data transfer rates of up to 1000 Mbps. This ensures that data-intensive tasks such as file transfers, video streaming, and online collaboration can be carried out seamlessly without any lag or latency.

Furthermore, the switch supports Quality of Service (QoS) features, allowing users to prioritize certain types of network traffic. This ensures that critical applications and services receive the necessary bandwidth and are not affected by less important traffic, resulting in improved network performance and user experience.

Network Segmentation

The abundance of ports on the Cisco CBS250-24FP-4G Ethernet Switch enables network segmentation, which is crucial for businesses with different departments or security requirements. By dividing the network into smaller segments, businesses can enhance security, control access to sensitive data, and optimize network performance.

Redundancy and Link Aggregation

In addition to the 24 ports, the switch also features four Gigabit Ethernet uplink ports. These uplink ports can be used to create redundant links or to aggregate multiple links for increased bandwidth and fault tolerance.

Redundancy ensures that if one link fails, the network traffic is automatically routed through an alternate path, minimizing downtime and maintaining business continuity. Link aggregation, on the other hand, combines multiple physical connections into a single logical link, increasing the overall bandwidth available for data transmission.

Cost Savings

By having 24 ports on a single switch, businesses can reduce their overall networking costs. They no longer need to invest in additional switches or equipment to accommodate their growing network infrastructure. This not only saves upfront costs but also reduces ongoing maintenance and management expenses.

The Cisco CBS250-24FP-4G Ethernet Switch's 24 ports provide businesses with increased connectivity, versatile deployment options, improved performance, and cost savings. Whether it's for a small office or a larger network environment, this switch ensures that businesses can meet their networking requirements efficiently and effectively.

Manageable Layer

The Cisco CBS250-24FP-4G Ethernet Switch offers Layer 2 support, making it a valuable choice for businesses looking for a manageable switch that provides advanced network control and security features.

Advanced Network Control

The Layer 2 support in the Cisco CBS250-24FP-4G Ethernet Switch allows businesses to have granular control over their network operations. The switch supports features such as VLANs (Virtual Local Area Networks), which enable the segmentation of the network for better security and management.

With VLANs, businesses can isolate specific groups of devices or departments, ensuring that only authorized users have access to sensitive resources. This enhances network security and prevents unauthorized access or data breaches.

Enhanced Traffic Management

The switch's Layer 2 support also includes advanced traffic management capabilities. It supports features like Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP), which ensure loop-free topology and provide redundancy in case of link failures.

These traffic management features help optimize network performance by preventing network loops, improving overall stability, and reducing the risk of data packet collisions or congestion.

Secure Network Access

Another benefit of Layer 2 support is the ability to implement secure network access controls. The Cisco CBS250-24FP-4G Ethernet Switch supports features like Access Control Lists (ACLs) and MAC (Media Access Control) address filtering.

ACLs allow businesses to define rules that control access to specific network resources based on criteria such as IP addresses, protocols, or port numbers. MAC address filtering, on the other hand, allows or denies access to the network based on the device's unique MAC address.

Enhanced Network Security

The advanced network control and security features provided by Layer 2 support in the Cisco CBS250-24FP-4G Ethernet Switch help businesses protect their network from unauthorized access, data breaches, and other security threats.

By having granular control over network operations and the ability to implement access controls, businesses can ensure that only authorized users and devices have access to their network resources. This minimizes the risk of data loss, network disruptions, and potential financial or reputational damage.

The manageable Layer 2 supported by the Cisco CBS250-24FP-4G Ethernet Switch empowers businesses with advanced network control, enhanced traffic management, and secure network access. With these features, businesses can optimize their network performance, improve security, and maintain a reliable and efficient network infrastructure.
