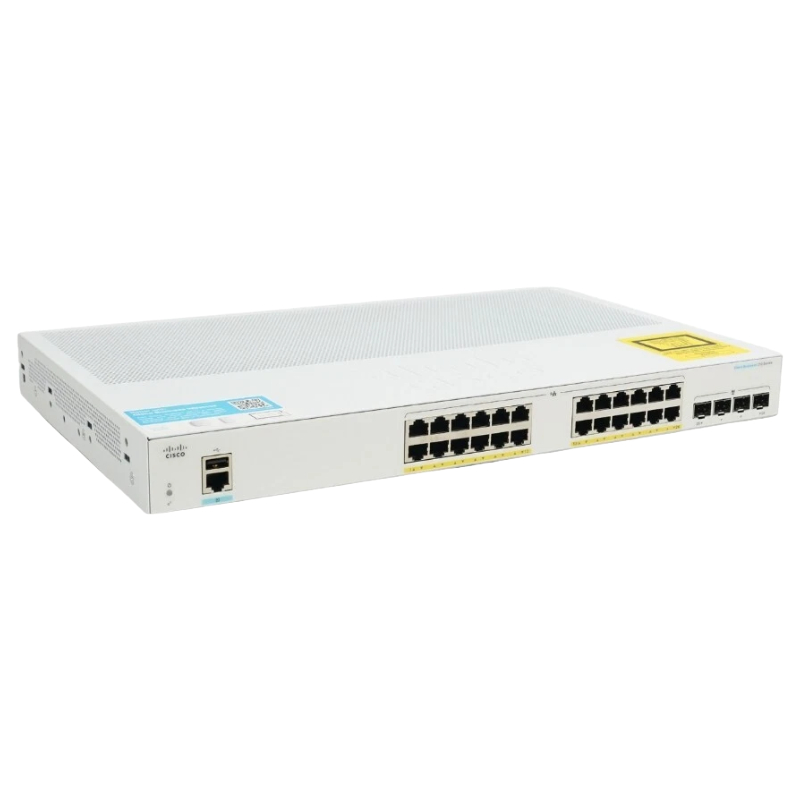

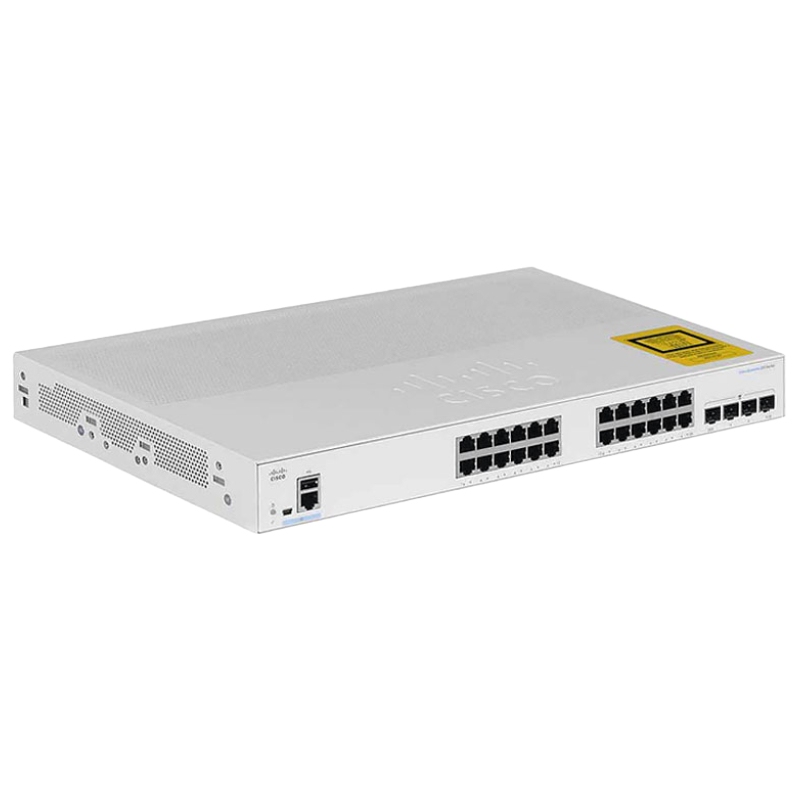

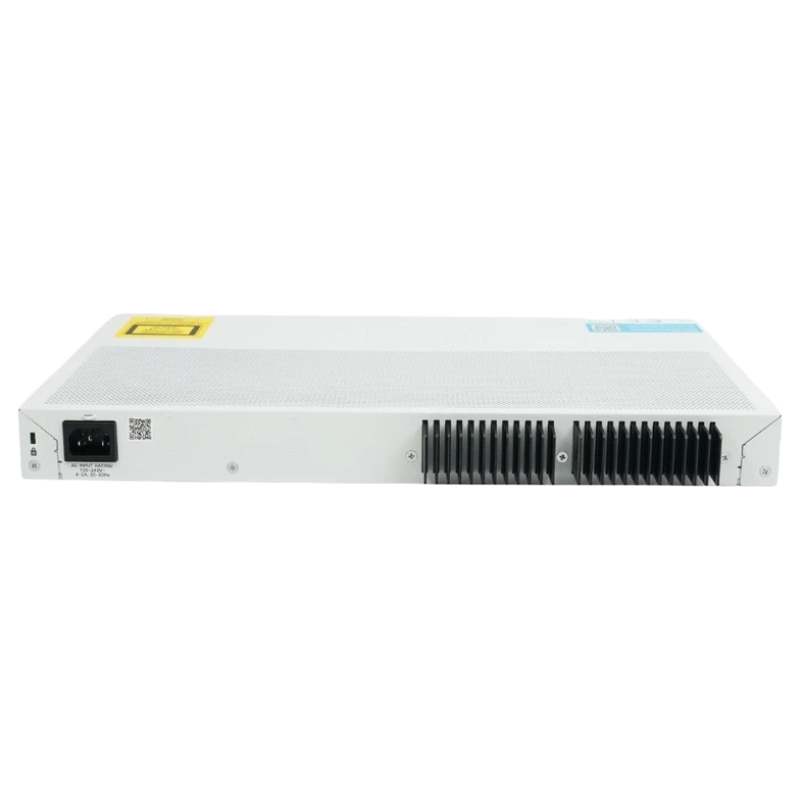

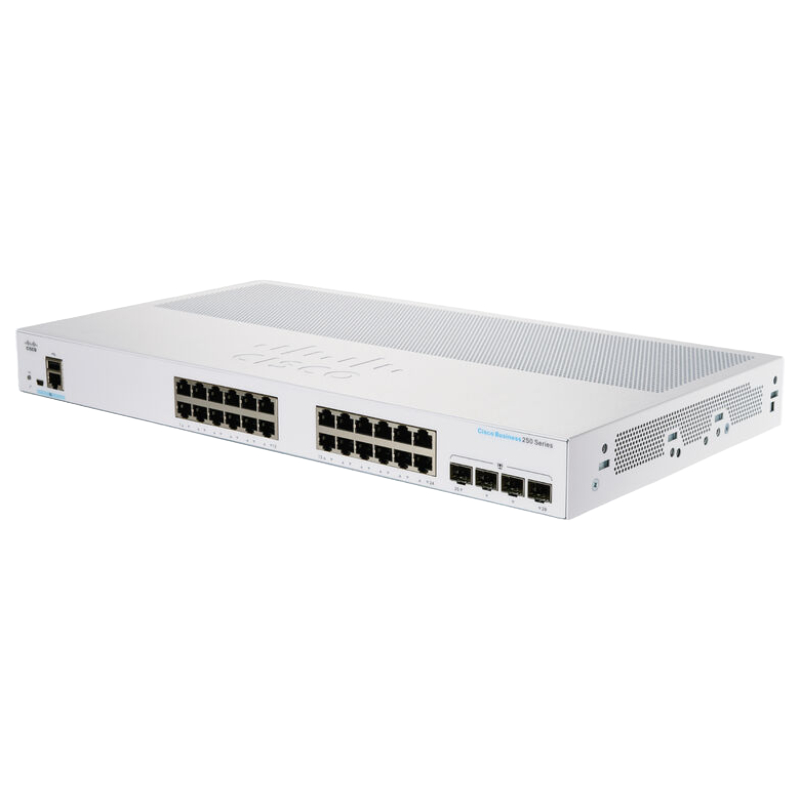

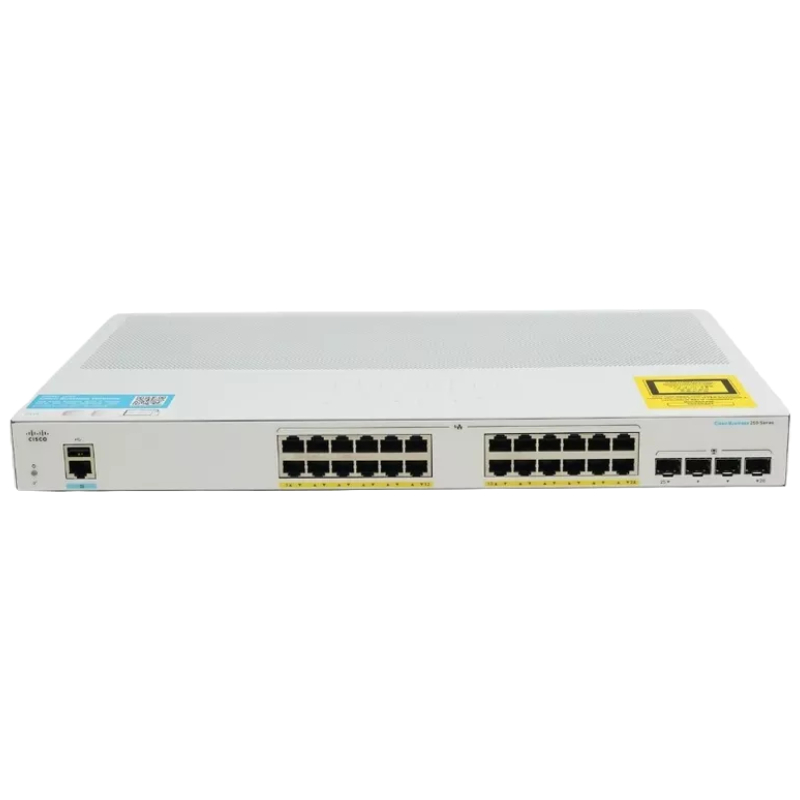

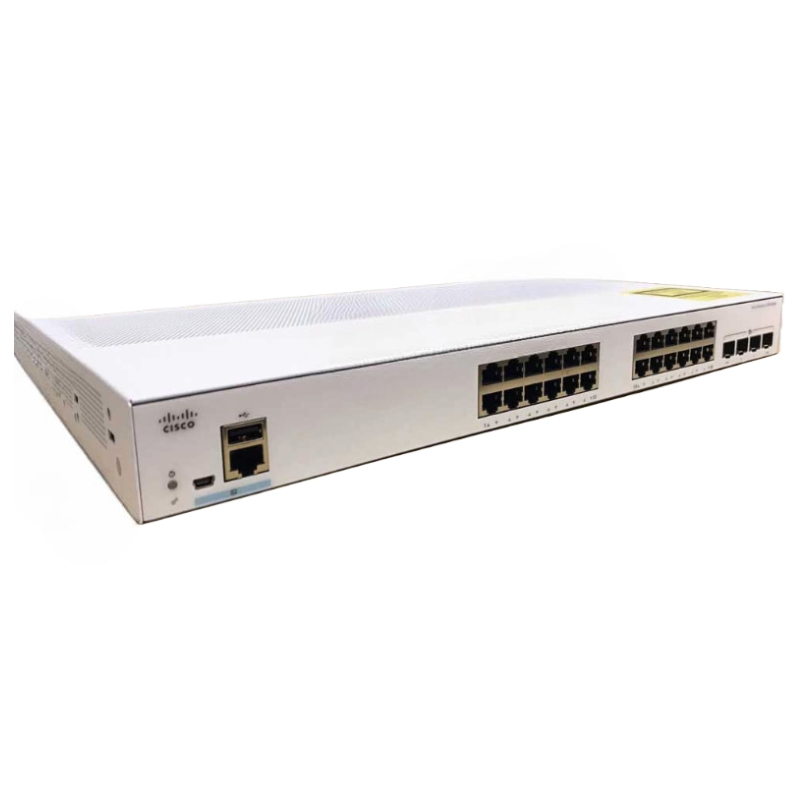

Cisco CBS250-24FP-4G-NA Switch - 24 Ports Manageable

Key Specifications of Cisco CBS250-24FP-4G-NA Ethernet Switch

• Brand: Cisco
• Model Number: CBS250-24FP-4G-NA
• Type: Managed Layer 2 Ethernet Switch
• Enclosure Design: Rack-mountable
• Power over Ethernet (PoE): PoE+ with a budget of 370W

High-Performance Capabilities

• Forwarding Rate: Capable of processing up to 41.66 million packets per second with 64-byte packet sizes
• Switching Bandwidth: Provides up to 56 Gbps of switching capacity
• Spanning Tree Protocol Support: Supports up to 126 RPVST+ and 8 MSTP instances

Advanced VLAN and ACL Management

• VLAN Support: Accommodates up to 255 VLANs for effective network segmentation
• ACLs (Access Control Lists): Configurable up to 512 rules to enhance security
• Buffer Memory: 1.5 MB for efficient data processing
• MAC Address Table: Handles up to 8,000 MAC address entries for larger network environments
• Jumbo Frame Handling: Supports jumbo frames up to 2 KB for higher data throughput

Routing and Protocol Support

• Supported Routing Protocols: IGMPv2, IGMPv3, MLDv2, CIDR, MSTP, RSTP, STP

Remote Management and Monitoring

• Management Protocols: SNMP (versions 1, 2c, 3), RMON, Telnet, SSH (versions 1, 2), HTTP/HTTPS, TFTP, CLI, ICMP
• Security Management: Integrates with RADIUS for authentication, supports Secure Shell (SSH) protocols for secure remote access

Security and Encryption Features

• Encryption: Implements SSL for secure data transmissions
• Authentication: Offers multiple methods including Secure Shell (SSH), SSH2, and RADIUS for robust security

Hardware and Power Specifications

• Processor: ARM-based, 800 MHz for reliable performance
• Memory: 512 MB of RAM and 256 MB of flash memory
• Status Indicators: Provides real-time status, PoE, and Link/Activity/Speed indicators
• Power Supply: Built-in internal power supply, operates at 120/230 V AC (50/60 Hz)

Ports

The Cisco CBS250-24FP-4G-NA Switch comes with 24 ports, making it an excellent choice for businesses and organizations of all sizes. These ports provide a seamless connection between devices, ensuring efficient data transfer and network reliability. Let's explore the benefits and importance of this feature in more detail.

Increased Connectivity

With 24 ports, this Cisco switch offers a high level of connectivity, allowing you to connect multiple devices to your network simultaneously. Whether you need to connect computers, printers, servers, or other network devices, the abundance of ports ensures that you won't run out of connections. This is particularly beneficial for businesses with a large number of employees or a growing network infrastructure.

Flexibility and Scalability

The 24 ports on this switch provide flexibility and scalability to meet the evolving needs of your organization. As your business grows and expands, you can easily add more devices to your network without worrying about running out of ports. The ability to connect a wide range of devices ensures that your network infrastructure remains adaptable and can support future expansion plans.

Improved Performance

Having more ports on your switch means that each device can have its dedicated connection, eliminating potential bottlenecks and enhancing overall network performance. With fewer devices sharing the same port, you can expect faster data transfer speeds and reduced latency. This is especially crucial in environments where large amounts of data are transferred regularly, such as multimedia production or data centers.

Network Segmentation

The 24 ports on the Cisco CBS250-24FP-4G-NA Switch enable effective network segmentation. Network segmentation involves dividing your network into smaller subnetworks to enhance security, improve performance, and simplify management. With more ports available, you can easily separate different departments or workgroups within your organization, ensuring that each segment operates independently and securely.

Enhanced Security

Segmenting your network using the 24 ports of this Cisco switch enhances security by limiting the potential impact of a security breach. If one segment is compromised, the other segments remain isolated, preventing unauthorized access to critical data and resources. Additionally, you can implement different security policies for each segment, further strengthening your overall network security posture.

Improved Performance Optimization

Network segmentation with the help of numerous ports allows you to prioritize network traffic and allocate bandwidth according to your specific requirements. Critical tasks and applications can be given higher priority, ensuring that they receive the necessary resources for optimal performance. By separating traffic into different segments, you can also reduce network congestion and improve overall network performance.

Easier Troubleshooting and Maintenance

When network issues arise, having 24 ports can simplify the troubleshooting process. You can isolate problematic devices or segments, making it easier to identify and resolve issues promptly. Furthermore, with more ports available, maintenance tasks such as firmware updates or hardware replacements can be performed without disrupting the entire network. This minimizes downtime and allows for efficient network management.

Cost-Effective Solution

Investing in a switch with 24 ports provides a cost-effective solution for businesses. Instead of purchasing multiple switches or adding expansion modules, you can consolidate your network infrastructure into a single device. This not only reduces upfront costs but also lowers ongoing maintenance and power consumption expenses. The long-term cost savings make the Cisco CBS250-24FP-4G-NA Switch an attractive choice for businesses looking to optimize their budget.

Manageable

The Cisco CBS250-24FP-4G-NA Switch is highly manageable, offering advanced features that simplify network administration and ensure seamless operation. Let's explore the benefits and importance of this feature in more detail.

Single Device Management

With its manageable capabilities, this Cisco switch allows you to control and configure your entire network from a single device. Instead of accessing each device separately, you can centrally manage and monitor all connected devices through a user-friendly interface. This streamlines network administration, saving time and effort for IT personnel.

Powerful Command-Line Interface (CLI)

The Cisco CBS250-24FP-4G-NA Switch provides a powerful command-line interface (CLI) that gives administrators granular control over network settings and configurations. The CLI allows for advanced troubleshooting, fine-tuning of network parameters, and automation of repetitive tasks. Experienced network administrators can leverage the CLI to optimize network performance and customize the switch to meet specific requirements.

Intuitive Web-Based Interface

For those who prefer a graphical user interface (GUI), this Cisco switch offers an intuitive web-based interface. The web GUI provides a visual representation of the network, making it easier to manage and configure various settings. With its user-friendly design, even users with limited technical expertise can navigate the interface and perform basic configuration tasks.

Efficient Network Provisioning

The manageable nature of this switch simplifies network provisioning, allowing administrators to quickly add new devices or make changes to existing configurations. With a few simple clicks, you can assign VLANs, set up Quality of Service (QoS) policies, or enable features such as Link Aggregation Control Protocol (LACP). This reduces deployment time and ensures that new devices can seamlessly integrate into the network.

Comprehensive Monitoring and Reporting

The Cisco CBS250-24FP-4G-NA Switch provides comprehensive monitoring and reporting capabilities, allowing administrators to keep a close eye on the network's performance and health. Real-time statistics, traffic analysis, and error logs enable proactive troubleshooting and help identify potential network bottlenecks or security issues. By staying informed about the network's status, administrators can take timely action to ensure uninterrupted network operation.

Enhanced Security Measures

Network management is crucial for maintaining a secure environment, and this Cisco switch offers advanced security features to protect your network against unauthorized access and threats. From user authentication and access control lists (ACLs) to secure management protocols like Secure Shell (SSH), the switch provides multiple layers of security to safeguard your valuable data and resources.

Remote Management Capability

The manageable nature of this switch extends to remote management, allowing administrators to monitor and configure the network from anywhere with an internet connection. This is particularly beneficial for businesses with multiple locations or remote branches. Administrators can remotely troubleshoot issues, make configuration changes, or perform firmware updates without physically being present at the switch's location.

In conclusion, the Cisco CBS250-24FP-4G-NA Switch's 24 ports offer increased connectivity, flexibility, improved performance, and enhanced security through network segmentation. The manageable features of this switch simplify network administration, provide powerful command-line and web-based interfaces, enable efficient network provisioning, offer comprehensive monitoring and reporting capabilities, and enhance overall network security. This switch is a cost-effective solution for businesses of all sizes looking for reliable and scalable networking equipment.
