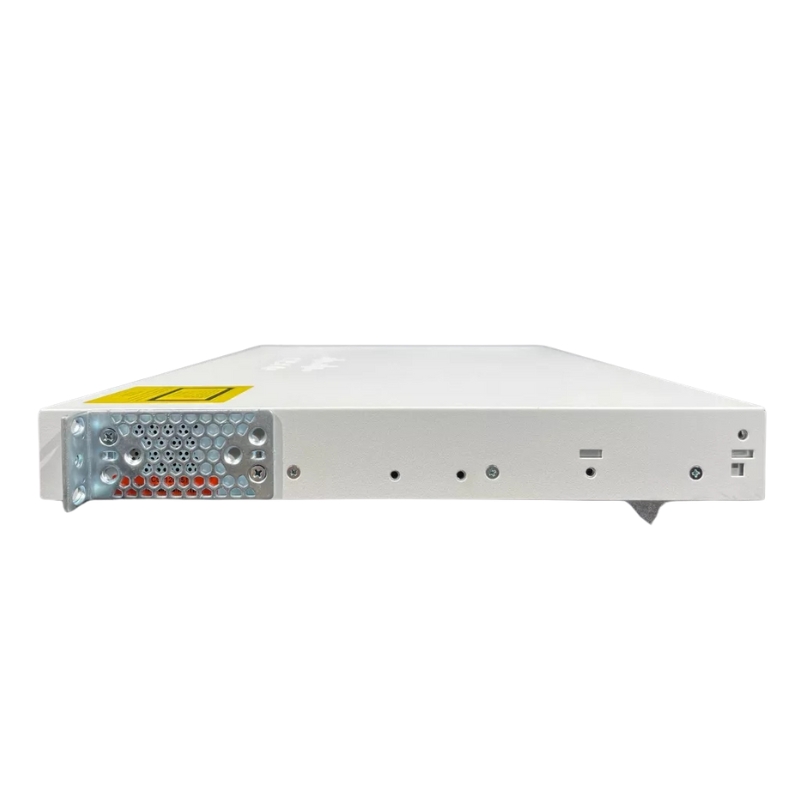

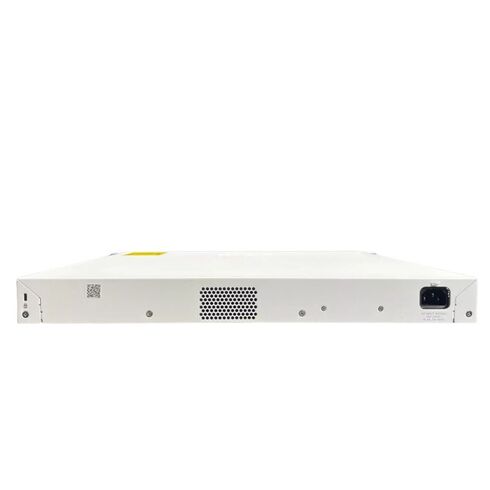

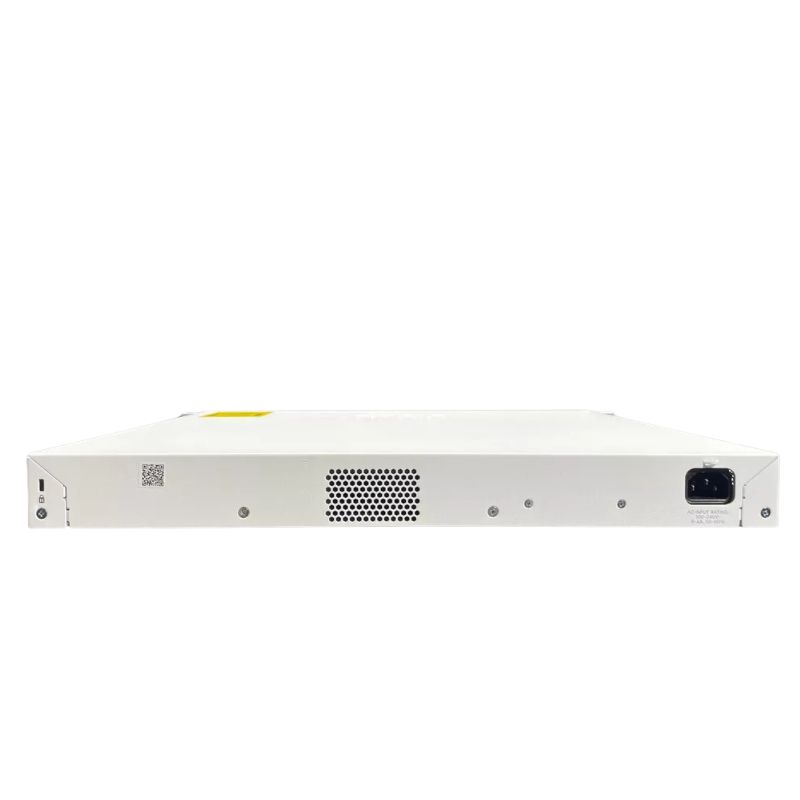

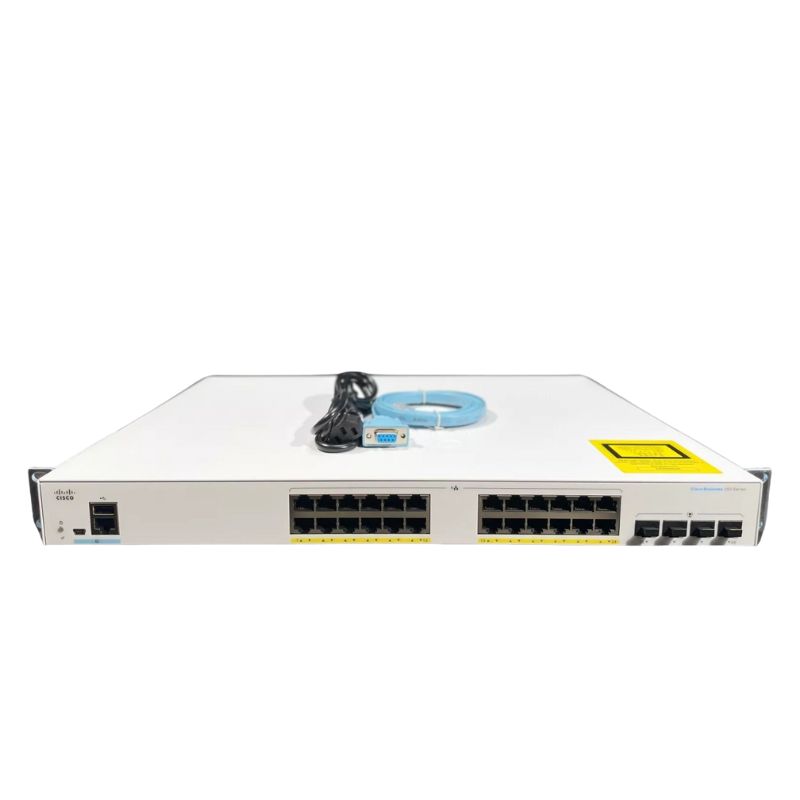

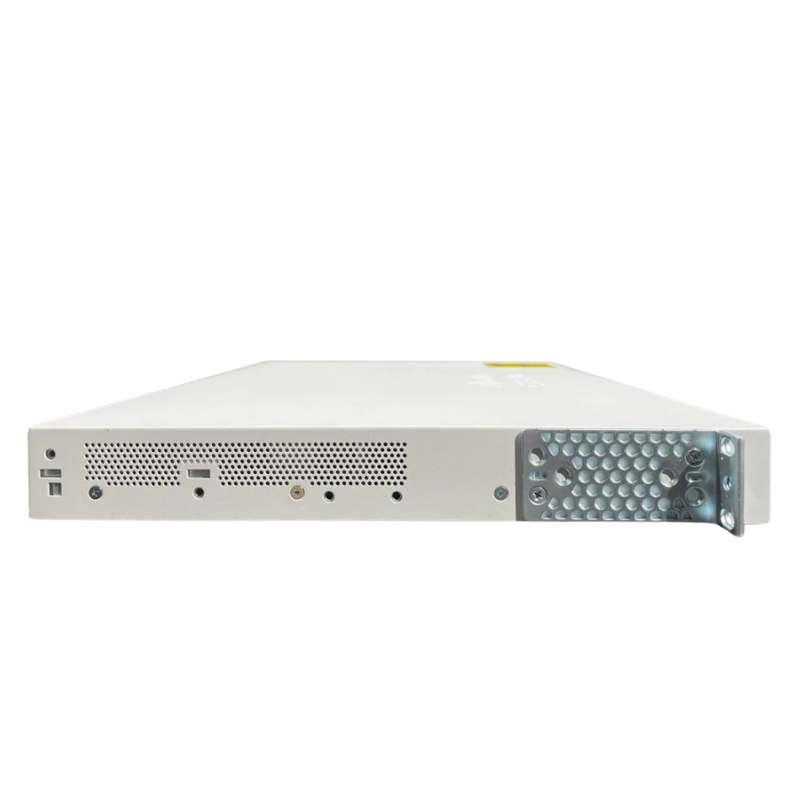

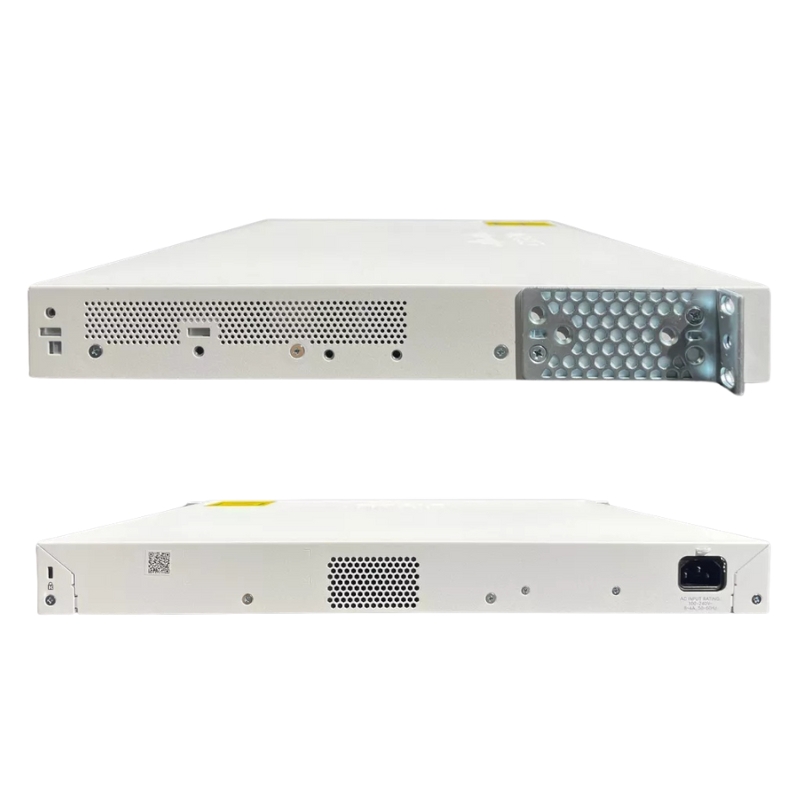

Cisco CBS350-24FP-4G Managed 24 Ports Ethernet Switch

Switch Specifications

Switch Type and Management

• Type: Managed via Graphical User Interface (GUI)
• Layer: Layer 3

Port Configuration

• Ports: 24 x 10/100/1000 Mbps
• SFP Ports: 4

Performance Metrics

• Capacity: 56 Gbps
• Throughput: 41.66 Million Packets Per Second (Mpps) for 64-byte packets

Power over Ethernet (PoE)

• PoE Support: Yes, 370W across 24 ports

Jumbo Frame and MTU

• Jumbo Frame Support: Up to 9k bytes
• Maximum Transmission Unit (MTU): 2k bytes

Addressing and Aggregation

• MAC Address Table: 16,000 addresses
• Port Aggregation: Supports up to 8 linked switches

VLAN and QoS

• VLANs: Supports up to 4,094
• Voice VLAN: Automatically assigned with appropriate Quality of Service (QoS) levels

Multicast and Routing

• IGMP: Support for multicast up to 2,000 groups (Versions 1, 2, and 3)
• IPv4 Routing: Up to 990 static routes and 128 IP interfaces

Access Control and Processor

• Access Control Lists (ACLs): Supports up to 1,024 rules
• Processor: 800 MHz ARM
• RAM: 512 MB
• Flash Memory: 256 MB

Quality of Service (QoS) and Physical Dimensions

• QoS Protocol Support: Yes, 802.1p
• Dimensions: 445 mm (Width) x 345 mm (Depth) x 44 mm (Height)

Ports

The Cisco CBS350-24FP-4G Managed 24 Ports Ethernet Switch is equipped with a remarkable 24 ports, making it an ideal choice for businesses and organizations that require a high level of network connectivity. With this many ports, users can connect multiple devices simultaneously, ensuring seamless communication and data transfer across the network.

Increased Connectivity

The 24 ports on the Cisco CBS350-24FP-4G allow users to connect a wide range of devices, including computers, printers, servers, IP phones, and more. This increased connectivity enables businesses to expand their network infrastructure and accommodate a growing number of devices without compromising performance or efficiency.

Flexibility and Scalability

The abundance of ports on the Cisco CBS350-24FP-4G offers flexibility and scalability for businesses of all sizes. Whether you are a small startup or a large enterprise, having 24 ports allows you to easily connect additional devices as your business expands. This scalability ensures that your network can adapt to the changing needs of your organization without requiring significant hardware upgrades or investments.

Efficient Workflows

The 24 ports also contribute to efficient workflows within an organization. With more ports available, employees can connect their devices directly to the switch, eliminating the need for additional networking equipment such as hubs or switches. This direct connection minimizes latency and enhances data transfer speeds, resulting in improved productivity and smoother operations.

Features

The Cisco CBS350-24FP-4G is packed with several essential features that make it a standout choice for managed Ethernet switches. With its managed capabilities, PoE+ support, and Gigabit Ethernet connectivity, this switch offers numerous benefits to users.

Managed Capabilities

Being a managed switch, the Cisco CBS350-24FP-4G provides advanced network management functionalities. Users can have granular control over their network, including configuration, monitoring, and troubleshooting capabilities. This level of control allows businesses to optimize their network performance, prioritize critical applications, and ensure efficient resource allocation.

PoE+ Support

The Power over Ethernet Plus (PoE+) support of the Cisco CBS350-24FP-4G is a valuable feature for organizations that rely on PoE-powered devices such as IP phones, wireless access points, and surveillance cameras. With PoE+, the switch can deliver both power and data over a single Ethernet cable, eliminating the need for separate power sources and simplifying installation and maintenance processes.

Gigabit Ethernet Connectivity

The Gigabit Ethernet connectivity of the Cisco CBS350-24FP-4G enables high-speed data transfer across the network. With Gigabit speeds, businesses can handle bandwidth-intensive tasks such as large file transfers, video conferencing, and multimedia streaming without experiencing bottlenecks or slowdowns. This ensures a smooth and seamless user experience, enhancing productivity and collaboration.

Power Source

The Cisco CBS350-24FP-4G Ethernet Switch is powered by an AC Power Supply, offering numerous benefits and importance to users.

Reliable Power Source

With an AC Power Supply, the Cisco CBS350-24FP-4G ensures a stable and reliable power source for the switch and connected devices. AC power is widely available in most business environments, providing a consistent source of energy without the need for additional backup power systems. This reliability ensures uninterrupted network operations and minimizes downtime due to power-related issues.

Easy Installation

The AC Power Supply simplifies the installation process of the Cisco CBS350-24FP-4G. Since AC power outlets are commonly found in office spaces and data centers, connecting the switch to a power source is hassle-free. This ease of installation allows businesses to quickly set up their network infrastructure and reduce deployment time.

Scalability and Compatibility

AC Power Supply offers scalability and compatibility advantages. It allows businesses to easily integrate the Cisco CBS350-24FP-4G into their existing power infrastructure without requiring additional modifications or investments. This compatibility ensures a seamless integration process and enables organizations to leverage their current power resources efficiently.

Management Interface

The Cisco CBS350-24FP-4G Ethernet Switch boasts a versatile management interface, including web-based management, CLI, and SNMP, which provides users with convenient and efficient tools to manage their network effectively.

Web-Based Management

The web-based management interface of the Cisco CBS350-24FP-4G offers a user-friendly and intuitive platform for network administrators to configure and monitor their network. Through a web browser, users can access the switch's interface from any location, simplifying remote management tasks and eliminating the need for specialized software or hardware.

CLI (Command-Line Interface)

The command-line interface (CLI) is a powerful tool that provides advanced configuration options for experienced network administrators. With CLI access, users can execute precise commands to fine-tune network settings, troubleshoot issues, and perform in-depth diagnostics. This level of control empowers administrators to optimize network performance according to their specific requirements.

SNMP (Simple Network Management Protocol)

SNMP is a widely used protocol for managing and monitoring network devices. The inclusion of SNMP support in the Cisco CBS350-24FP-4G allows seamless integration with network management systems, enabling administrators to centrally monitor and control multiple switches from a single interface. SNMP provides real-time visibility into network performance, facilitating proactive troubleshooting and ensuring optimal network uptime.

Security Features

The Cisco CBS350-24FP-4G Ethernet Switch incorporates robust security features, including port security, ACL (Access Control List), and 802.1X authentication, to protect the network against unauthorized access and potential threats.

Port Security

Port security is a crucial feature that prevents unauthorized devices from connecting to the network. The Cisco CBS350-24FP-4G allows administrators to define authorized MAC addresses for each port, effectively limiting network access only to trusted devices. This prevents unauthorized devices from gaining network access and helps mitigate the risk of security breaches.

ACL (Access Control List)

The Access Control List feature enables administrators to define rules for traffic filtering and access control based on various criteria such as source/destination IP addresses, protocols, and ports. By implementing ACLs on the Cisco CBS350-24FP-4G, administrators can enforce granular security policies, restrict unauthorized traffic, and protect sensitive data from potential threats.

802.1X Authentication

802.1X authentication is an industry-standard security protocol that provides secure access control to the network. By supporting 802.1X authentication, the Cisco CBS350-24FP-4G ensures that only authorized users or devices can connect to the network. This authentication mechanism adds an extra layer of security by requiring users to provide valid credentials before accessing network resources.

Quality Of Service

The Cisco CBS350-24FP-4G Ethernet Switch offers excellent Quality of Service (QoS) capabilities, delivering consistent and reliable performance for critical applications and services.

Prioritization of Traffic

QoS allows administrators to prioritize certain types of traffic over others, ensuring that critical applications receive sufficient bandwidth and network resources. With QoS enabled on the Cisco CBS350-24FP-4G, businesses can prioritize real-time applications such as VoIP calls or video conferencing, guaranteeing high-quality communication and minimizing latency.

Bandwidth Management

The Cisco CBS350-24FP-4G enables administrators to allocate bandwidth dynamically, ensuring that network resources are distributed efficiently. By setting bandwidth limits or implementing traffic shaping policies, administrators can prevent bandwidth-intensive applications from monopolizing network resources, maintaining a fair and balanced network performance for all users.

Improved User Experience

By providing effective QoS capabilities, the Cisco CBS350-24FP-4G enhances the user experience across the network. Users can enjoy smooth and uninterrupted access to critical applications, resulting in increased productivity and improved customer satisfaction. Additionally, QoS helps eliminate network congestion and bottlenecks, ensuring a reliable and consistent network performance for all users.

In summary, the Cisco CBS350-24FP-4G Managed 24 Ports Ethernet Switch offers a wealth of features and capabilities that cater to the needs of modern businesses. Its 24 ports provide increased connectivity, flexibility, and efficient workflows. The managed, PoE+ and Gigabit Ethernet features ensure advanced network management, simplified installation, and high-speed data transfer. The AC Power Supply offers reliability, easy installation, scalability, and compatibility. The Web-based management, CLI, and SNMP interface provide convenient and efficient network management options. The security features such as port security, ACLs, and 802.1X authentication protect against unauthorized access and potential threats. Lastly, the Quality of Service capabilities prioritize critical traffic and improve the overall user experience. With its comprehensive range of features, the Cisco CBS350-24FP-4G is an excellent choice for organizations seeking a reliable and powerful Ethernet switch solution.
