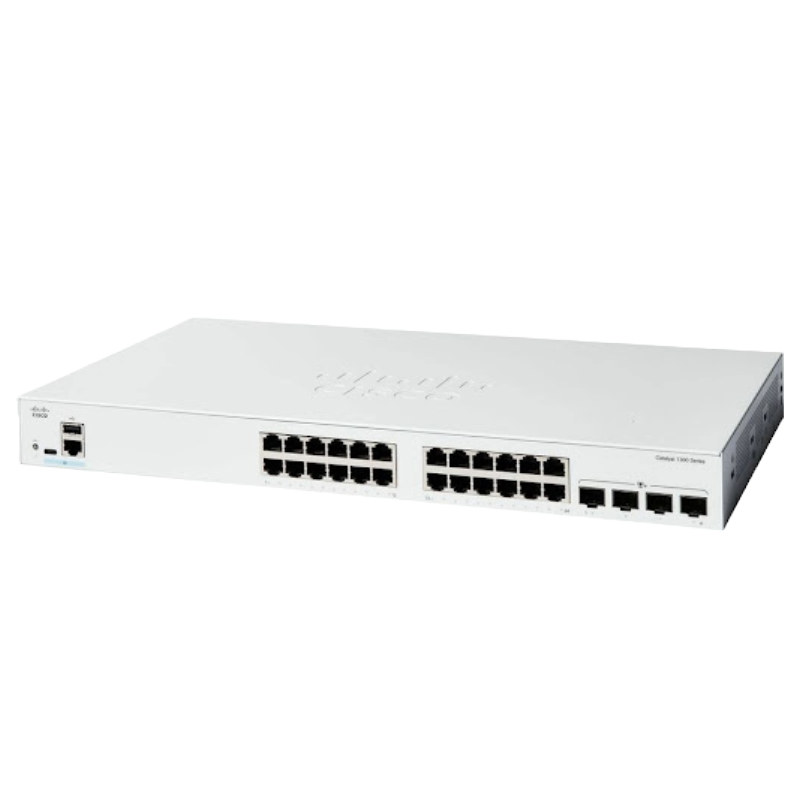

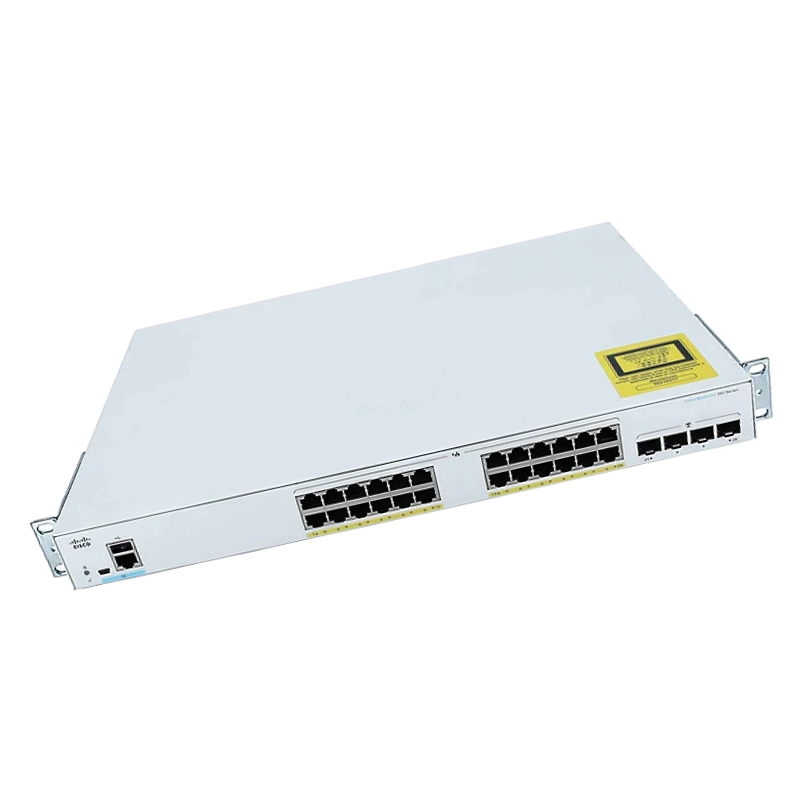

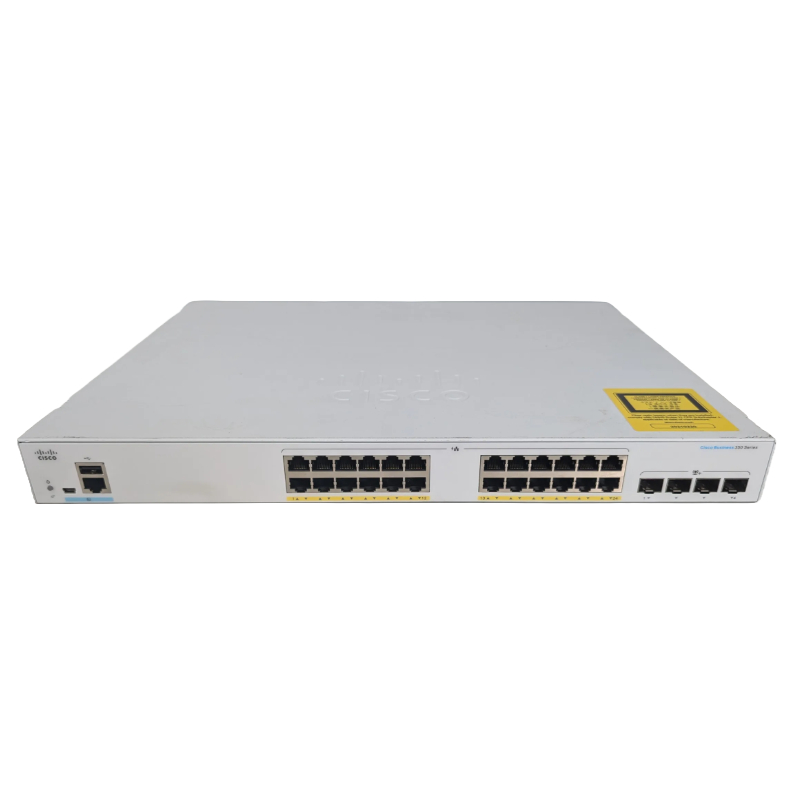

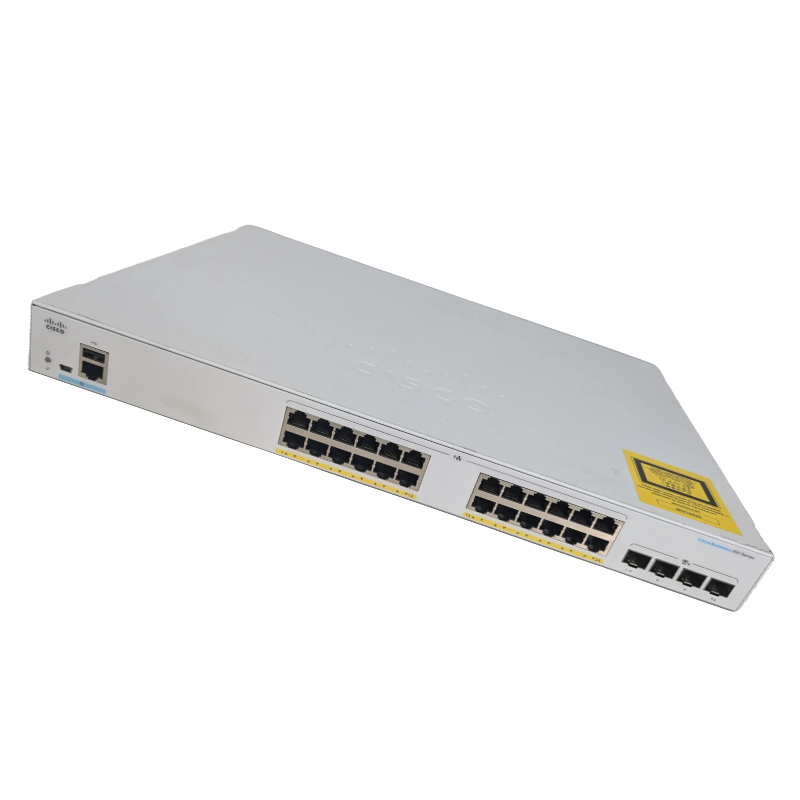

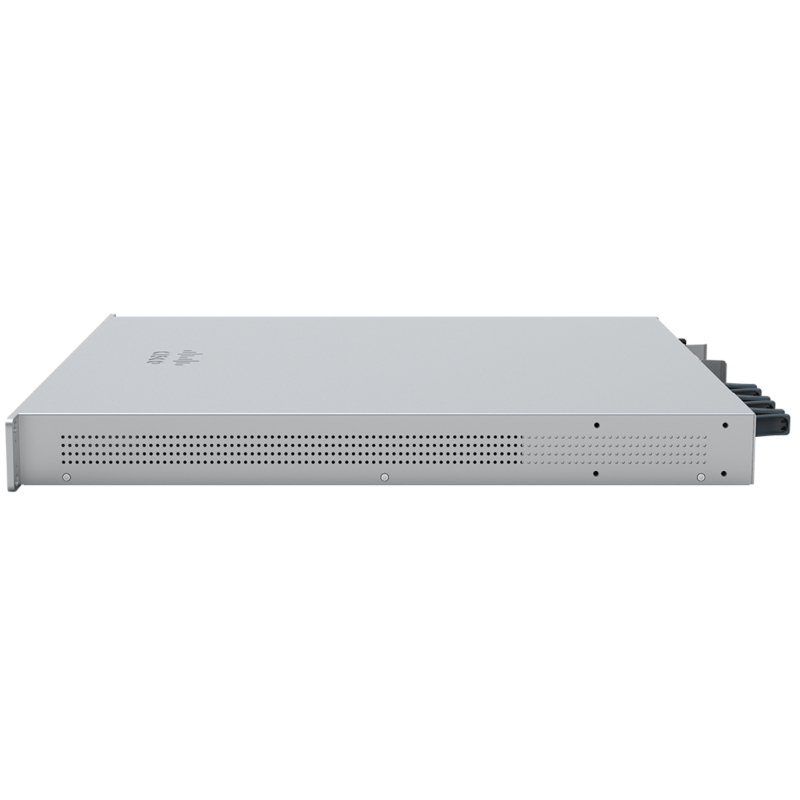

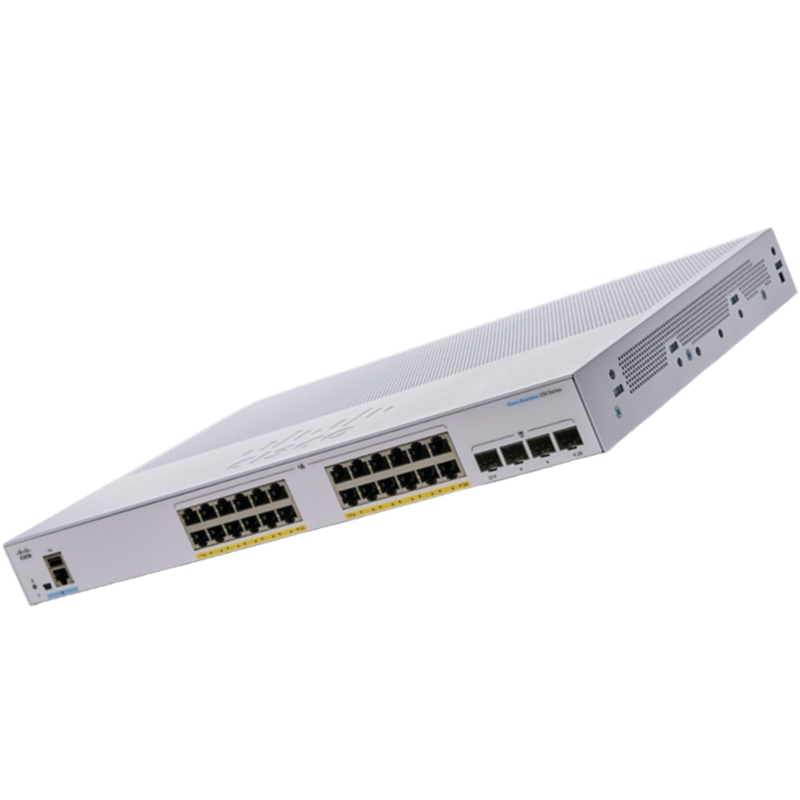

Cisco CBS350-24P-4G Business 350 Series Switch 24 Ports PoE+ SFP

Key Features of the Cisco CBS350-24P-4G Ethernet Switch

• Manufacturer: Cisco
• Model: CBS350-24P-4G
• Product Type: Gigabit Ethernet Switch
• Series: Cisco 350

Comprehensive Technical Specifications

• Total Ports: 24 x 10/100/1000 Base-T RJ-45 PoE+
• Gigabit Expansion: 4 slots for 1000Base-X SFP modules
• Supported Media Types: Optical Fiber, Twisted Pair
• Network Standards: 1000Base-X

Detailed I/O Expansion Options

• Expansion Slots Available: 4
• Slot Type: SFP (mini-GBIC)
• SFP Slots: 4 dedicated SFP slots for seamless expansion

Advanced Network Communication and Management

• Layer: Operates at Layer 2
• Manageable: Fully manageable switch

Power over Ethernet (PoE) Capabilities

• PoE Ports: Yes, PoE+ enabled RJ-45 ports
• PoE Budget: Total of 195W for power delivery
• Power Source: Internal Power Supply, PoE+
• Power Consumption: 33.09W

High-Performance Metrics

• Switching Capacity: 56 Gbps for fast, efficient data flow
• Forwarding Rate: 41.66 Mpps (64-byte packets)

Advanced Network Capabilities

• Link Aggregation Groups: Supports 8 groups
• VLAN Support: Up to 4094 VLANs
• Buffer Size: 1.5 MB buffer capacity for optimized performance

Additional Technical Specifications

• MAC Address Table: 16,000 entries
• Jumbo Frame Support: Handles jumbo frames up to 2KB
• Routing Protocols: Supports IGMP, PBR, CIDR

Management & Security Features

• Remote Management Protocols: SNMP 1, 2c, 3; RMON; SSH; ICMP
• Encryption: Secure communication via SSL
• Authentication Methods: SSH, RADIUS, TACACS+ support

Network Protection and Optimization

• DHCP & ARP Support: Built-in for streamlined network management
• Spanning Tree Protocol (STP): Includes MSTP for preventing loops
• Denial-of-Service Protection: Enhanced DoS attack prevention

Standards Compliance

• Compliant Standards: IEEE 802.3, 802.3u, 802.3z, 802.1d, 802.1q, 802.3ab

Hardware Details

• Processor: ARM, 800 MHz for swift data processing
• RAM: 512 MB
• Flash Memory: 256 MB for storing configurations

Connectivity & Interface Options

• Interfaces:
• 24 x RJ-45 PoE+ ports
• 4 x 1000Base-X SFP slots
• 1 x Console (USB Type B)
• 1 x USB Type A
• 1 x Console RJ-45

Energy Efficiency & Power Supply

• Power Supply: Built-in internal power supply
• Voltage Requirements: AC 120/230 V (50/60 Hz)

Ports

The Cisco CBS350-24P-4G Switch is equipped with 24 ports, making it an excellent choice for small to medium-sized businesses that require a reliable and efficient network infrastructure. These ports provide a seamless connection between your devices, allowing for smooth data transfer and communication within your network.

Increased Connectivity

With 24 ports, the Cisco CBS350-24P-4G Switch offers increased connectivity options for your network. This means that you can connect more devices, such as computers, printers, servers, and IP phones, without the need for additional switches or hubs. The abundance of ports allows you to expand your network easily as your business grows, ensuring that you can accommodate all your devices without any hassle.

Streamlined Network Management

Having 24 ports on a single switch simplifies network management by reducing the number of devices you need to monitor and maintain. With fewer switches in your network infrastructure, you can save time and effort in configuration, troubleshooting, and maintenance tasks. This streamlining of network management can result in increased productivity and efficiency for your IT team.

Cost Savings

By having 24 ports on a single switch, you can save on the cost of purchasing additional switches or hubs. This is especially beneficial for small businesses with budget constraints. The Cisco CBS350-24P-4G Switch allows you to connect multiple devices using a single device, reducing the need for additional hardware investments. This cost-saving feature makes it an attractive option for businesses looking to optimize their IT budget.

PoE+

The Cisco CBS350-24P-4G Switch supports Power over Ethernet Plus (PoE+), which is a significant advantage for businesses that require power and data transmission over a single Ethernet cable. PoE+ technology eliminates the need for separate power cables, simplifying installation and reducing clutter in your network environment.

Flexibility in Device Placement

With PoE+ support, you have the flexibility to place your devices anywhere within the reach of an Ethernet cable. This feature is particularly useful for devices that are located in areas where power outlets are limited or not easily accessible. By providing power through the Ethernet cable, the Cisco CBS350-24P-4G Switch eliminates the need for additional electrical infrastructure, allowing you to deploy devices in locations that were previously challenging or costly to reach.

Reduced Cable Clutter

The combination of power and data transmission over a single Ethernet cable significantly reduces cable clutter in your network environment. With PoE+, you no longer need to run separate power cables for each device, simplifying cable management and enhancing the overall aesthetics of your workspace. This reduction in cable clutter not only improves the visual appeal but also enhances airflow and reduces the risk of accidental cable disconnections.

Cost and Time Savings

By leveraging PoE+ technology, you can save on the cost and time associated with installing separate power infrastructure for each device. The Cisco CBS350-24P-4G Switch eliminates the need for hiring electricians or purchasing additional power supplies, resulting in significant cost savings. Additionally, the simplified installation process saves time, allowing you to deploy devices quickly and efficiently.

SFP

The Cisco CBS350-24P-4G Switch features one Small Form-Factor Pluggable (SFP) port, adding versatility and scalability to your network infrastructure. The SFP port allows you to connect fiber-optic or copper cables, extending your network connectivity beyond the limitations of traditional Ethernet cables.

Extended Network Reach

By incorporating an SFP port, the Cisco CBS350-24P-4G Switch enables you to extend your network reach to distant locations. Fiber-optic cables, known for their high bandwidth and long-distance capabilities, can be connected to the SFP port, allowing you to establish connections over significant distances without compromising performance. This extended network reach is particularly beneficial for businesses with multiple buildings or offices spread across a large area.

Increased Bandwidth and Speed

The SFP port provides support for high-speed data transmission, ensuring that your network operates at optimal performance levels. By utilizing fiber-optic cables, you can take advantage of their superior bandwidth capabilities, allowing for faster and more reliable data transfer. Whether you are transmitting large files or streaming high-definition media, the SFP port ensures that your network can handle the increased bandwidth requirements with ease.

Scalability and Future-Proofing

The inclusion of an SFP port in the Cisco CBS350-24P-4G Switch allows for easy scalability and future-proofing of your network infrastructure. This port provides the flexibility to upgrade your network to fiber-optic technology when required, without the need to replace the entire switch. The ability to adapt and grow your network with changing business needs ensures that your investment in the Cisco CBS350-24P-4G Switch remains relevant and valuable in the long run.

In conclusion, the Cisco CBS350-24P-4G Switch offers exceptional features that enhance connectivity, power distribution, and network scalability. With its 24 ports, PoE+ support, and SFP port, this switch provides businesses with a reliable and efficient network infrastructure. Whether you are a small business looking to expand or a medium-sized enterprise requiring advanced network capabilities, the Cisco CBS350-24P-4G Switch is a versatile solution that caters to your needs.
