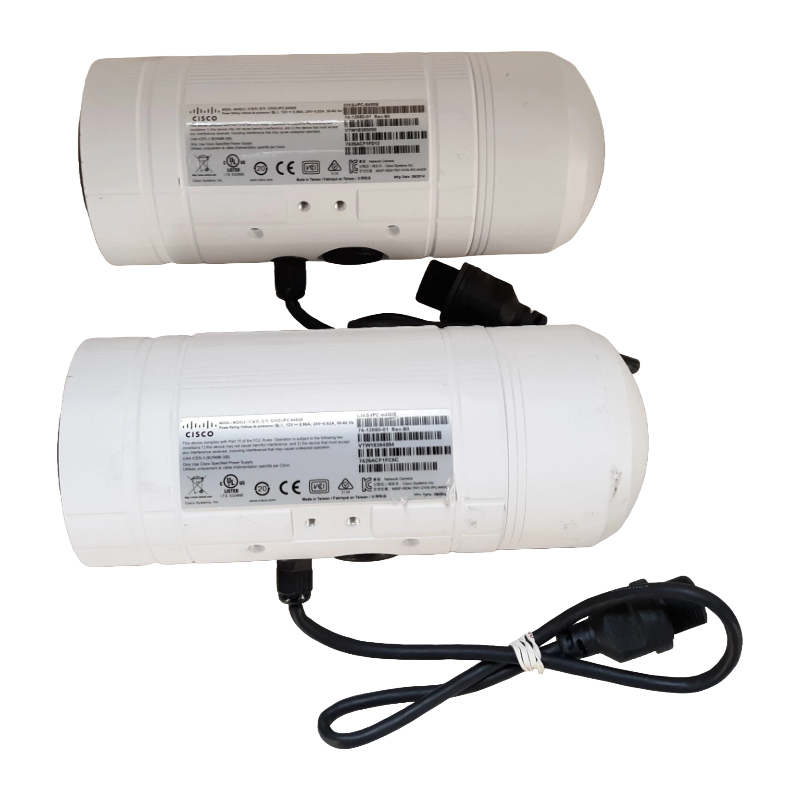

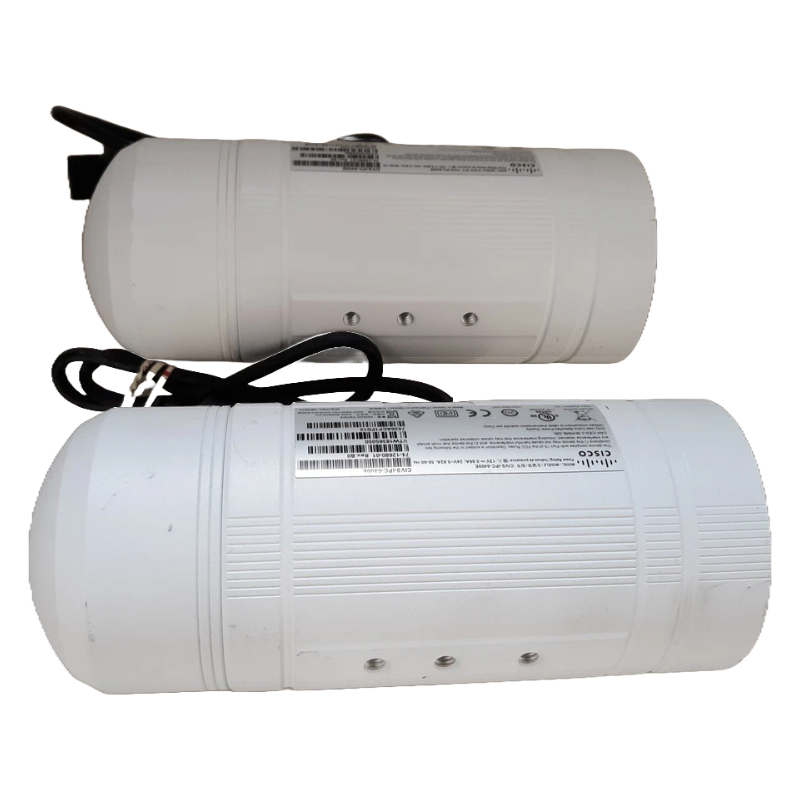

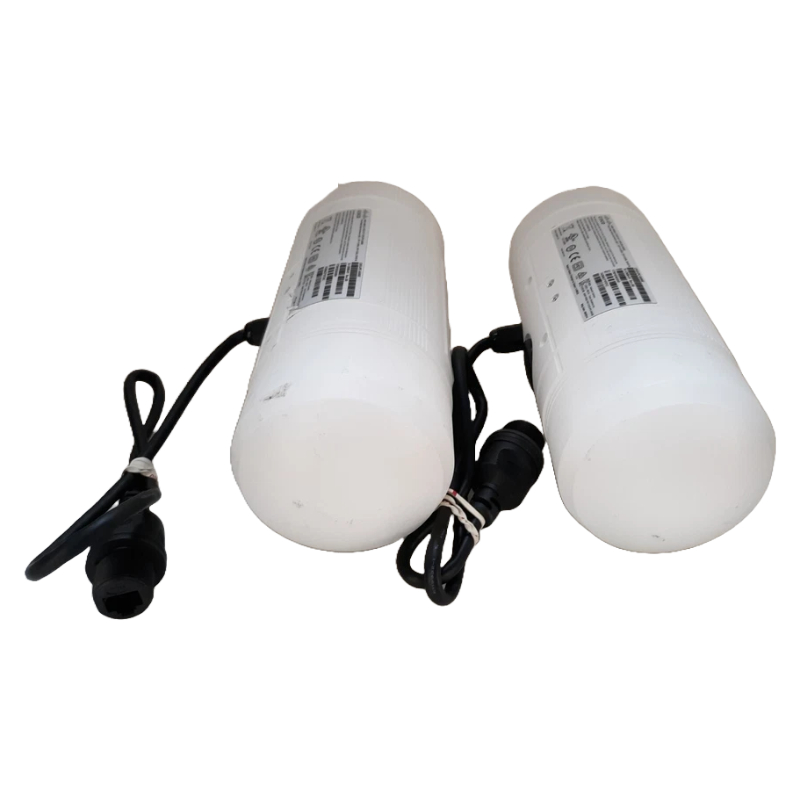

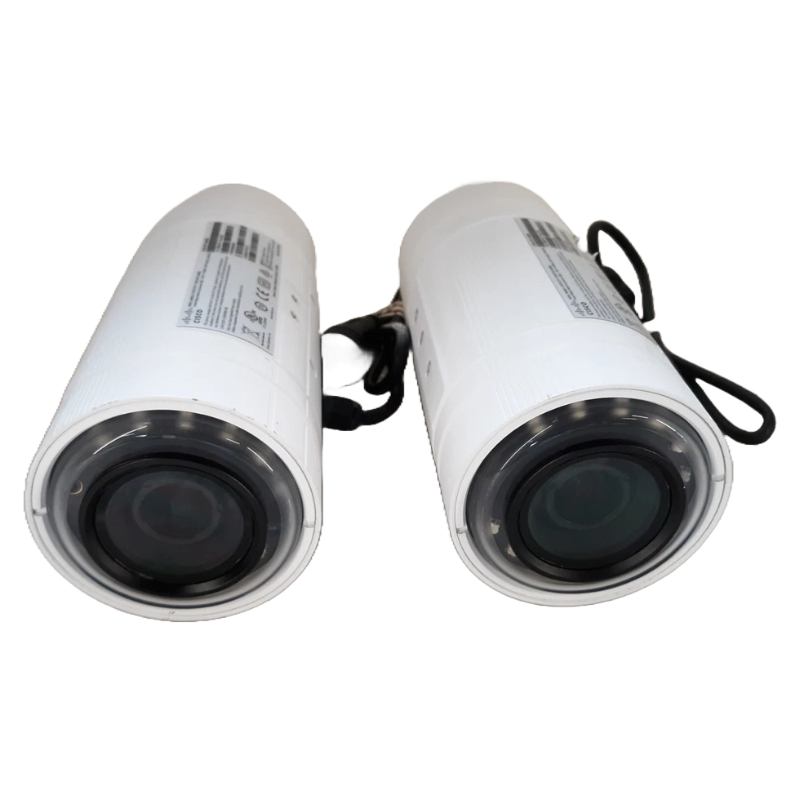

CIVS-IPC-6400E Cisco 2 MP Outdoor IP Network Camera

Highlights of Cisco 2MP Outdoor IP Camera

The CIVS-IPC-6400E Cisco Outdoor IP Network Camera is a professional-grade surveillance solution engineered for outdoor environments. With advanced imaging, secure networking, and rugged construction, this Cisco camera ensures reliable monitoring for enterprise, commercial, and public safety applications.

Main Information

• Brand: Cisco
• Model Number: CIVS-IPC-6400E
• Product Type: Video Surveillance 6400E IP Camera

Technical Highlights

Display & Graphics

• Image Sensor Type: CMOS
• Image Sensor Size: 1/2.7"
• White Balance Modes: AWB
• Color Supported: Color and Monochrome
• Field of View: 21.6° to 109.46°
• Effective Camera Resolution: 2.1 Megapixel

Video Performance

• Video Formats: H.264, MJPEG
• Maximum Video Resolution: 1920 × 1080
• Maximum Frame Rate: 30 fps
• Video Signal Format: NTSC

Lens Specifications

• Lens Type: Zoom
• Minimum Focal Length: 3.60 mm
• Maximum Focal Length: 9 mm
• Lens Included: Yes
• Optical Zoom: 2.5x

Exposure Control

• Shortest Shutter Speed: 1/32000 Second
• Longest Shutter Speed: 1/5 Second
• Exposure Control: Auto

Network & Communication

• Technology: Wired
• Ethernet: Supported
• Ethernet Technology: Fast Ethernet

Protocols

• DHCP, HTTP, HTTPS, NTP, RTP, RTSP
• SMTP, SSL/TLS, TCP/IP
• SNMP, SSH, DSCP, COS

Interfaces & Ports

• Network (RJ-45): Available
• Audio Line In: Yes
• Audio Line Out: Yes

Power Description

• Maximum Power Consumption: 12.50 W

Physical Characteristics

• Form Factor: Bullet
• Depth: 3.2"
• Length: 7.8"
• Weight: 2.86 lb

Miscellaneous Features

• Day/Night functionality for 24/7 monitoring.
• Privacy Masking for sensitive areas.
• SD Card Local Storage for backup recording.
• Tamper Detection for proactive alerts.
• Outdoor installation with rugged housing.

Package Contents

• Video Surveillance 6400E IP Camera

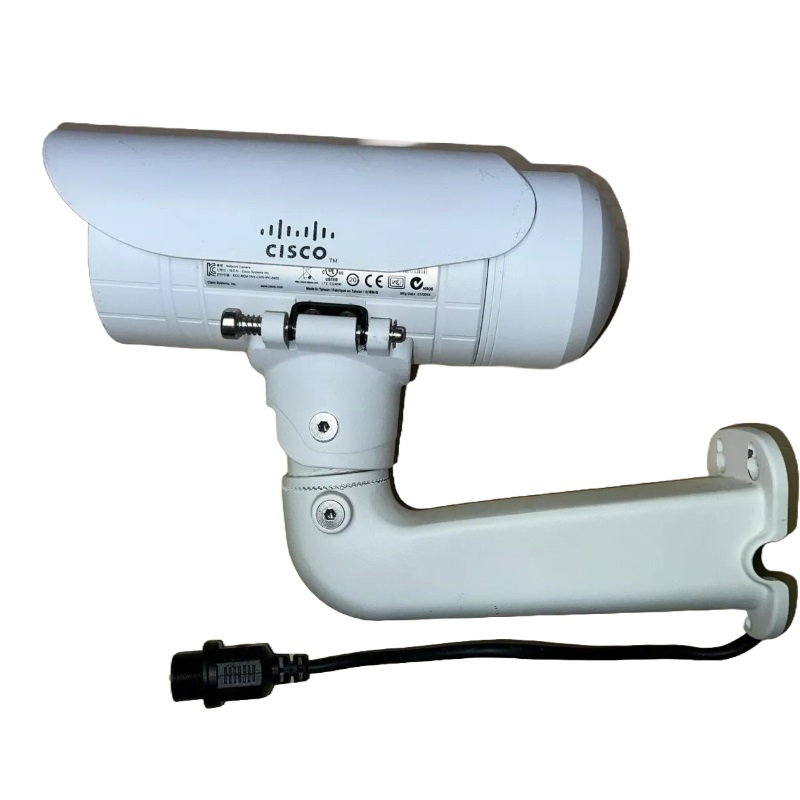

• Mounting Arm and Bracket
• Installation Template
• Documentation Reference Card
• Regulatory Documentation

System Requirements

• Browser: Internet Explorer 8.0 or later

Certifications & Standards

• CISPR22 Class B
• ICES-003
• EN55022
• EN55024
• EN61000-3-2/-3-3 Class A
• VCCI Class B
• KN22 Class B
• KN24
• UL60950-1 2nd edition
• CSA22.2-No.60950-1
• IEC/EN60950-1 2nd edition
• IEC/EN60825
• Ingress Protection Rating: IP67
• Impact Protection Rating: IK10

Security Features

• Support for IEEE 802.1X authentication ensuring secure access.

Overview ofCisco CIVS-IPC-6400E 2MP IP Outdoor Camera

The Cisco CIVS-IPC-6400E 2 MP IP Network Outdoor Camera belongs to a specialized category of professional-grade surveillance solutions designed for enterprise-level security deployments. This category focuses on robust IP-based outdoor cameras that deliver reliable video monitoring in demanding environmental conditions while maintaining high image clarity and stable network integration. These cameras are widely deployed in corporate campuses, industrial zones, transportation hubs, public infrastructure, and critical facilities where uninterrupted surveillance is essential.

Outdoor IP cameras in this category are engineered to operate under extreme weather conditions, including rain, dust, heat, and low-light environments. The CIVS-IPC-6400E model represents a refined balance of optical precision, network efficiency, and rugged construction, making it a preferred choice for organizations that require continuous monitoring without performance degradation.

Core Design Philosophy of Cisco CIVS-IPC-6400E

The design philosophy behind this category emphasizes resilience, precision, and intelligent connectivity. Cisco’s surveillance camera ecosystem is developed to ensure seamless communication with network video management systems, enabling centralized monitoring and real-time response capabilities.

The CIVS-IPC-6400E 2 MP IP Network Outdoor Camera is structured around a hardened casing and advanced imaging sensor, ensuring stable performance across varying lighting conditions. Its architecture supports continuous streaming while minimizing latency and packet loss, which is critical in security-sensitive environments. The camera is also optimized for integration into large-scale IP surveillance networks where multiple devices operate simultaneously under centralized control.

Imaging Technology and Video Quality Capabilities

At the core of the Cisco CIVS-IPC-6400E category lies a 2 megapixel imaging system that delivers high-definition video output suitable for detailed monitoring. The camera captures crisp and clear footage, enabling security teams to identify individuals, vehicles, and activities with improved accuracy.

The imaging system is designed to balance resolution and bandwidth efficiency, ensuring smooth video transmission over IP networks. This is particularly important in enterprise environments where multiple cameras stream simultaneously. The 2 MP resolution provides sufficient detail for most outdoor surveillance applications while maintaining manageable storage requirements.

Advanced Low-Light Performance

The CIVS-IPC-6400E category incorporates enhanced low-light imaging technology that supports surveillance during nighttime or poorly lit conditions. The camera utilizes infrared illumination support and improved sensor sensitivity to maintain visibility in darkness.

This ensures continuous monitoring without interruption, even in environments where artificial lighting is limited or unavailable. The low-light optimization reduces noise distortion and preserves image clarity, making it suitable for perimeter security, parking areas, and outdoor industrial facilities.

Outdoor Durability and Environmental Protection

A defining characteristic of the Cisco CIVS-IPC-6400E category is its durable outdoor housing, designed to withstand challenging environmental conditions. The camera is built with protective sealing that guards internal components against dust and water intrusion.

Its rugged construction ensures reliable operation across varying climates, including high humidity, heavy rainfall, and extreme heat. This durability makes it suitable for deployment in outdoor industrial zones, transportation corridors, and open public environments where exposure risks are high.

The robust physical design minimizes maintenance requirements and extends operational lifespan, reducing long-term ownership costs for enterprise users.

Network Connectivity and IP-Based Architecture

The CIVS-IPC-6400E 2 MP IP Network Outdoor Camera operates on a fully IP-based architecture, enabling direct integration into modern network infrastructures. This allows video data to be transmitted efficiently over Ethernet connections, ensuring real-time monitoring and recording.

The IP-based system supports centralized management, where multiple cameras can be controlled through a unified interface. This is particularly beneficial for large organizations that require synchronized surveillance across multiple locations.

The camera is designed to optimize bandwidth consumption while maintaining high-quality video output, ensuring network stability even in data-intensive environments.

Power over Ethernet Functionality

Power over Ethernet (PoE) support is a critical feature in this category, allowing the camera to receive both power and data through a single Ethernet cable. This simplifies installation and reduces infrastructure costs.

PoE functionality also enhances deployment flexibility, enabling the camera to be installed in locations where traditional power sources may be limited or unavailable. This makes it ideal for outdoor surveillance setups, including poles, building exteriors, and remote perimeter zones.

Security Features and Data Protection

Security is a core priority in the Cisco CIVS-IPC-6400E category. The camera supports encrypted communication protocols to ensure that video data remains protected during transmission across networks.

This reduces the risk of interception or tampering, which is essential in enterprise and government surveillance systems. Secure authentication mechanisms further ensure that only authorized users can access camera feeds and configuration settings.

The integration of cybersecurity features aligns with modern enterprise requirements, where physical security and digital security must work together seamlessly.

Surveillance Use Cases and Deployment Scenarios

The Cisco CIVS-IPC-6400E 2 MP IP Network Outdoor Camera category supports a wide range of deployment scenarios. In enterprise environments, it is commonly used for building perimeter monitoring, entry and exit point surveillance, and parking area supervision.

In industrial settings, the camera provides oversight of manufacturing facilities, warehouses, and logistics operations. Its rugged design ensures reliable performance in environments with heavy machinery, dust exposure, and continuous activity.

Public sector applications include city surveillance systems, transportation monitoring, and infrastructure protection. The camera’s ability to deliver stable video feeds makes it suitable for traffic intersections, highways, and public spaces where safety and security are critical.

Smart City and Urban Surveillance Integration

Within smart city frameworks, this category plays a vital role in enabling real-time monitoring and data-driven decision-making. The camera supports integration with centralized surveillance platforms that manage multiple video streams across urban environments.

This allows authorities to monitor traffic flow, detect incidents, and enhance public safety through coordinated surveillance efforts. The scalability of the IP-based system ensures that additional cameras can be added as urban infrastructure expands.

Video Management System Compatibility

The CIVS-IPC-6400E category is designed for compatibility with Video Management Systems (VMS), enabling centralized control of multiple surveillance devices. This integration allows operators to view live feeds, review recorded footage, and manage camera settings from a single interface.

The compatibility with Cisco surveillance ecosystems ensures optimized performance and seamless communication between devices. Additionally, support for third-party VMS platforms enhances flexibility in deployment, allowing organizations to integrate the camera into existing infrastructure.

Image Processing and Video Optimization Features

The camera category includes advanced image processing features such as Wide Dynamic Range (WDR), which improves visibility in scenes with strong contrast between light and dark areas. This ensures that important details are not lost in shadows or overexposed regions.

Exposure control and noise reduction technologies further enhance video quality, ensuring clear and stable footage in varying environmental conditions. These features are particularly useful in outdoor environments where lighting changes frequently throughout the day.

Installation Flexibility and Deployment Efficiency

The Cisco CIVS-IPC-6400E category is designed for flexible installation across different mounting configurations. It can be deployed on walls, ceilings, poles, or custom outdoor structures depending on surveillance requirements.

The simplified installation process, combined with PoE support, reduces the complexity of deployment and minimizes setup time. This makes it easier for organizations to scale their surveillance infrastructure without extensive technical overhead.

Storage and Video Retention Capabilities

This camera category supports efficient video storage strategies through network-based recording systems. Video data can be stored on centralized servers or network video recorders (NVRs), allowing for long-term archival and easy retrieval.

Compression technologies help reduce storage consumption while maintaining video quality, making it practical for continuous 24/7 recording environments. This ensures that critical footage is preserved without excessive infrastructure costs.

Operational Efficiency and Long-Term Reliability

The CIVS-IPC-6400E category is engineered for long-term operational efficiency, minimizing maintenance requirements while ensuring consistent performance. Its durable hardware design reduces the need for frequent servicing, making it suitable for continuous surveillance operations.

The camera’s stable network performance and robust imaging system contribute to high availability, ensuring uninterrupted monitoring in mission-critical environments. This reliability is essential for organizations that depend on constant surveillance coverage for safety and security.

Advanced Network Surveillance Integration Capabilities

The Cisco CIVS-IPC-6400E 2 MP IP Network Outdoor Camera category is built to support evolving security infrastructure requirements. Its scalable architecture allows organizations to expand surveillance coverage without replacing existing systems.

Interoperability with network security tools and surveillance platforms ensures that the camera remains relevant in modern security ecosystems. This future-ready design approach makes it suitable for long-term enterprise investment in video surveillance technology.
