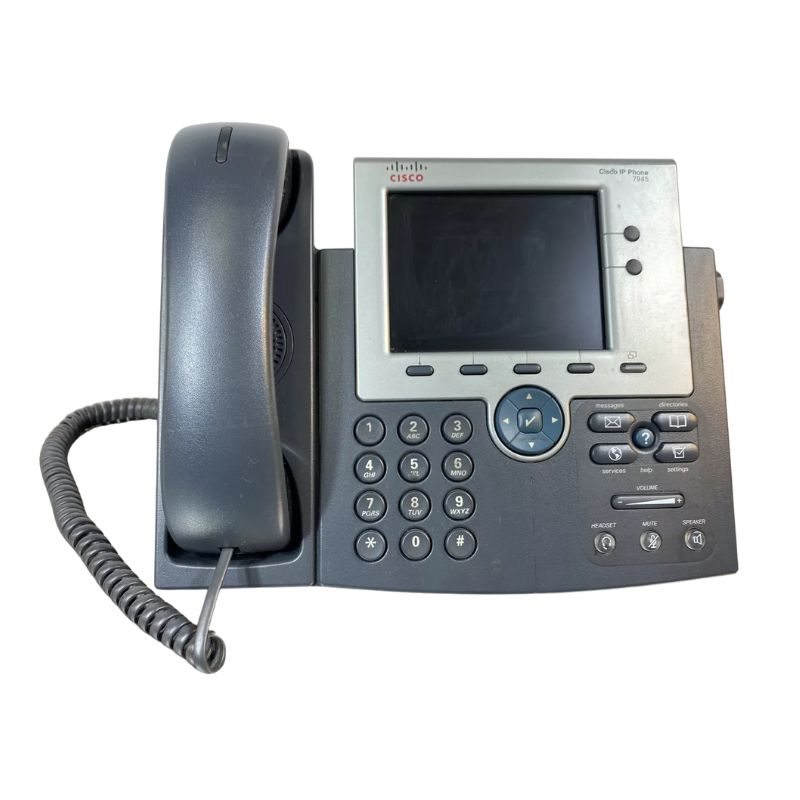

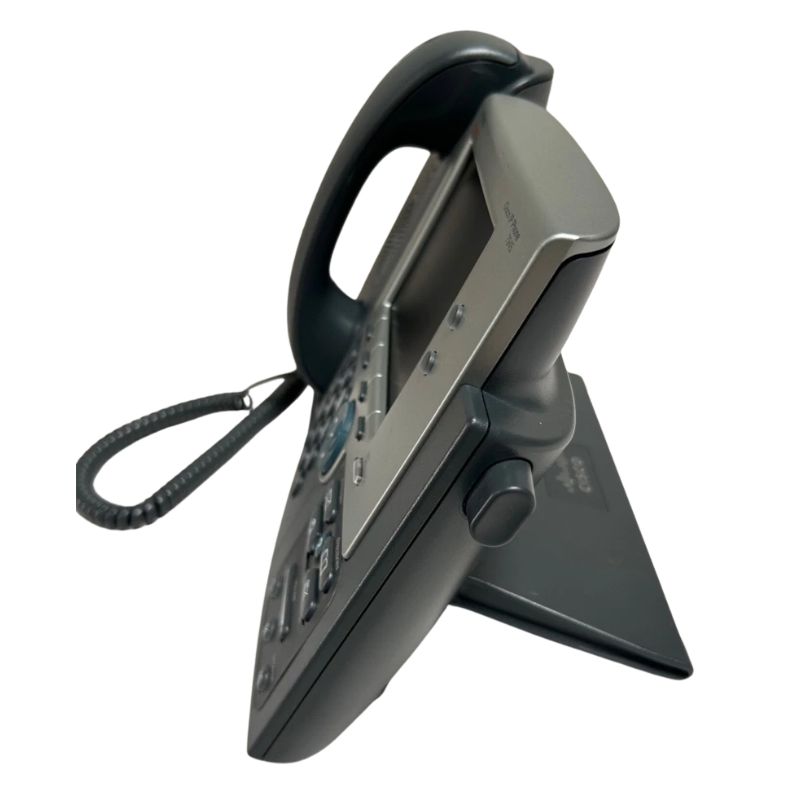

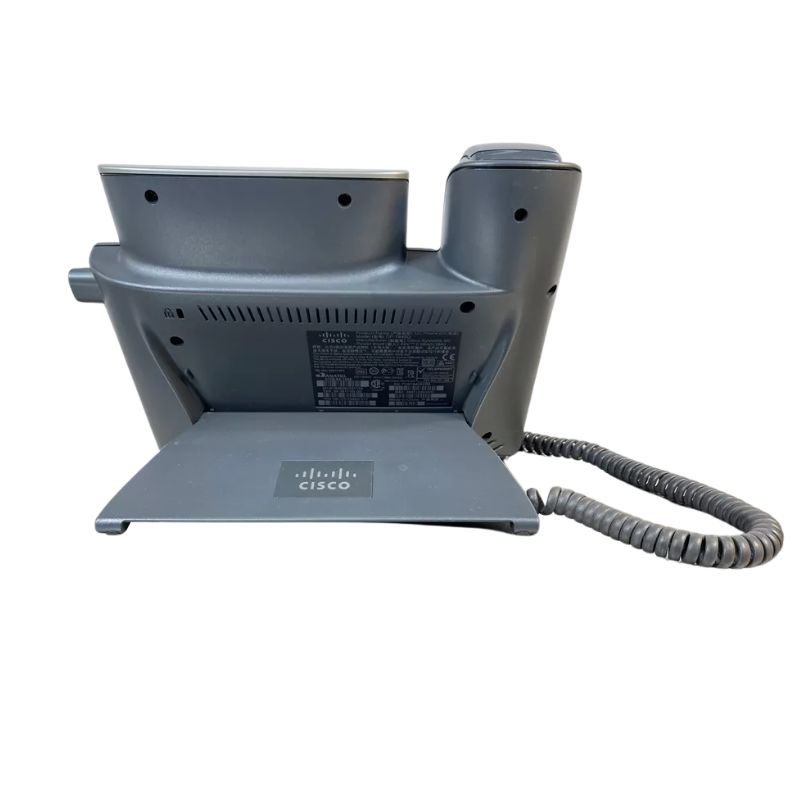

Cisco CP-7945G Unified 7945G IP Phone

Series: Cisco Unified 7945G Standard IP Phone

The Cisco Unified 7945G is an outstanding IP phone that belongs to the highly acclaimed Cisco Unified 7900 series. This series is renowned for its exceptional quality, advanced features, and superior performance. The 7945G stands out as a powerful and reliable communication device that offers numerous benefits to users.

Cisco CP-7945G Unified IP Phone Overview

• Manufacturer: Cisco
• Part Number: CP-7945G
• Series: 7900 Unified Series
• Model: 7945G
• Type: Unified IP Phone

Advanced Telephony Features

• Phone Technology: VoIP
• Connectivity: Cable
• Dialer Type: Dial Pad
• Material: ABS Plastic body
• Phone Lines: Supports 2 lines
• Ring Tones: 24 different tones
• Conferencing: 3-way conferencing available
• Speakerphone: Full duplex with digital clarity
• Color Options: Dark Gray and Silver

Audio and Voice Quality

• Codecs: G.722, G.729ab, iLBC, G.711a, G.711u, G.729a
• Speakerphone Type: Digital duplex for clear voice quality
• Multiple Conferencing: Supports up to 3 simultaneous connections

Connectivity and Ports

• Network Ports: Dual RJ-45 for LAN connectivity
• Headset Port: Yes, compatible with most headsets
• PoE Support: IEEE 802.3af PoE (Class 3)

Display & Graphics

• Screen Type: 5-inch LCD with color display
• Resolution: 320 x 240 pixels
• Backlight: Yes, for better visibility in low-light environments

User-Friendly Functionality

• Multiline Operation: 2 lines for enhanced productivity
• Voice Mail: Integrated voice mail support
• Function Buttons: Headset, mute, speakerphone, menu navigation
• Volume Control: Adjustable for both calls and ringer
• Additional Features: Web browser access

Protocol & Management Support

• Protocols: SCCP, SIP, LDAP v3, DHCP
• Quality of Service: Supports 802.1Q VLAN, DSCP, and 802.1p/q for efficient traffic management

Buttons & Controls

• Buttons: Message, Directory, Settings, Service, Help, Mute, Speaker, Volume, Navigation
• Voice Mail Access: Dedicated button for quick access

Power & Environmental Specifications

• Power Options: PoE or local AC-to-DC power supply (CP-PWR-CUBE-3=)
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity: 10% to 95% (non-condensing)
• Storage Temperature: 14°F to 140°F (-10°C to 60°C)

Miscellaneous Features

• Hearing Aid Compatibility: Yes, ensuring accessibility for all users
• Placement: Suitable for tabletop use
• Headset Connectivity: Standard headset jack for easy integration

High-Quality Communication

One of the key benefits of the Cisco Unified 7945G is its ability to deliver high-quality communication. With its wideband audio support, this IP phone ensures crystal-clear voice calls with superior sound clarity. Users can enjoy conversations that are free from distortion or background noise, enabling effective communication even in noisy environments. This feature is particularly important for businesses that rely heavily on phone conversations for their day-to-day operations.

Enhanced Productivity

The Cisco Unified 7945G is designed to enhance productivity in the workplace. It offers an intuitive user interface with a large, backlit grayscale display, making it easy for users to navigate through various features and settings. The phone also includes programmable line and feature keys, allowing users to customize their phone according to their specific needs. These programmable keys can be configured for functions such as speed dialing, call forwarding, or accessing commonly used features, saving valuable time and increasing efficiency.

Directory Integration

Another notable feature of the Cisco Unified 7945G is its directory integration capability. Users can easily access their corporate directory directly from the phone, eliminating the need to manually search for contact information. This feature streamlines the process of making calls, particularly when contacting colleagues or clients within the organization. With just a few clicks, users can quickly find and dial the desired contact, saving time and ensuring accurate dialing.

Call Management Features

The 7945G offers a range of call management features that further enhance productivity. Users can easily handle multiple calls simultaneously using the phone's call waiting, call transfer, and conference calling capabilities. The phone also supports busy lamp field (BLF) and presence, allowing users to see the status of their colleagues or departments at a glance. This feature is particularly useful in a busy office environment where quick and efficient call management is essential.

Advanced Security

Security is a top priority for any organization, and the Cisco Unified 7945G delivers advanced security features to safeguard sensitive information. The phone supports secure voice communication through its built-in encryption capabilities, ensuring that conversations remain confidential. Additionally, the phone supports authentication protocols such as Secure Real-Time Transport Protocol (SRTP) and Secure Shell (SSH), providing secure access to the phone's configuration settings and preventing unauthorized tampering.

Network Connectivity

The Cisco Unified 7945G offers flexible network connectivity options, including support for Power over Ethernet (PoE). This allows the phone to receive power and data over a single Ethernet cable, eliminating the need for additional power adapters or cables. PoE simplifies installation and reduces clutter, making it an ideal choice for organizations looking for a streamlined and cost-effective solution.

Integration with Cisco Unified Communications Manager

The 7945G seamlessly integrates with Cisco Unified Communications Manager (CUCM), a powerful call processing and management system. This integration enables advanced features such as extension mobility, which allows users to log in to any Cisco IP phone within the network and access their personal settings and preferences. The phone also supports unified messaging, voicemail, and presence integration with CUCM, creating a unified communication experience that enhances collaboration and productivity.

Product Code: CP-7945G

The product code CP-7945G refers to the Cisco Unified 7945G Standard IP Phone. This product code is an essential identifier for users and organizations looking to purchase or deploy this specific model of IP phone. Understanding the significance and benefits of the product code is crucial for making informed decisions and ensuring compatibility within existing communication systems.

Compatibility and Interoperability

One of the key benefits of the CP-7945G product code is its compatibility and interoperability with other Cisco Unified Communication products. The 7945G seamlessly integrates with Cisco Unified Communications Manager (CUCM), allowing organizations to leverage their existing communication infrastructure. This compatibility ensures a smooth transition and hassle-free deployment, minimizing downtime and maximizing productivity.

Product Support and Warranty

Cisco, a globally recognized leader in networking and communication solutions, backs the CP-7945G with comprehensive product support and warranty. By purchasing a product with a valid product code, users can take advantage of Cisco's technical support services, ensuring prompt resolution of any issues or concerns. Additionally, the product code enables users to access warranty information, providing peace of mind and protection against manufacturing defects or malfunctions.

Extended Warranty Options

Cisco offers extended warranty options for products like the CP-7945G, allowing users to extend the coverage beyond the standard warranty period. These extended warranties provide additional protection and support, giving users the confidence that their investment is safeguarded for an extended period. With various warranty options available, organizations can choose the level of coverage that best suits their needs and budget.

Software Updates and Security Patches

Having a valid product code ensures access to software updates and security patches released by Cisco. These updates address any vulnerabilities or bugs, improving the overall performance and security of the CP-7945G IP phone. By regularly updating the phone's firmware and software, users can take advantage of new features, enhancements, and security measures, keeping their communication system up to date and protected.

Product Specifications

Here is a table showcasing the key features and specifications of the Cisco Unified 7945G Standard IP Phone:
