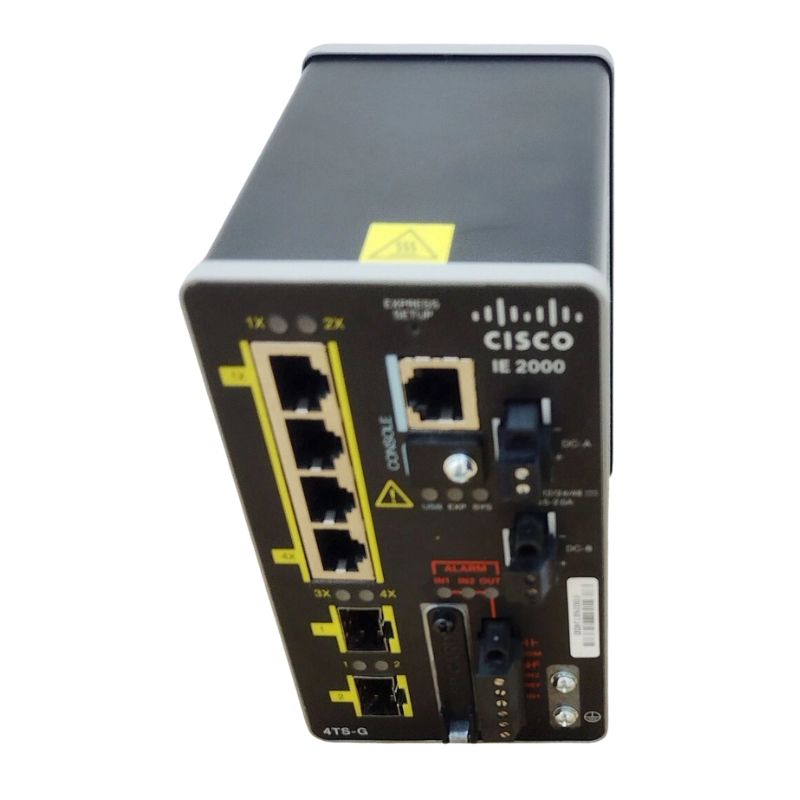

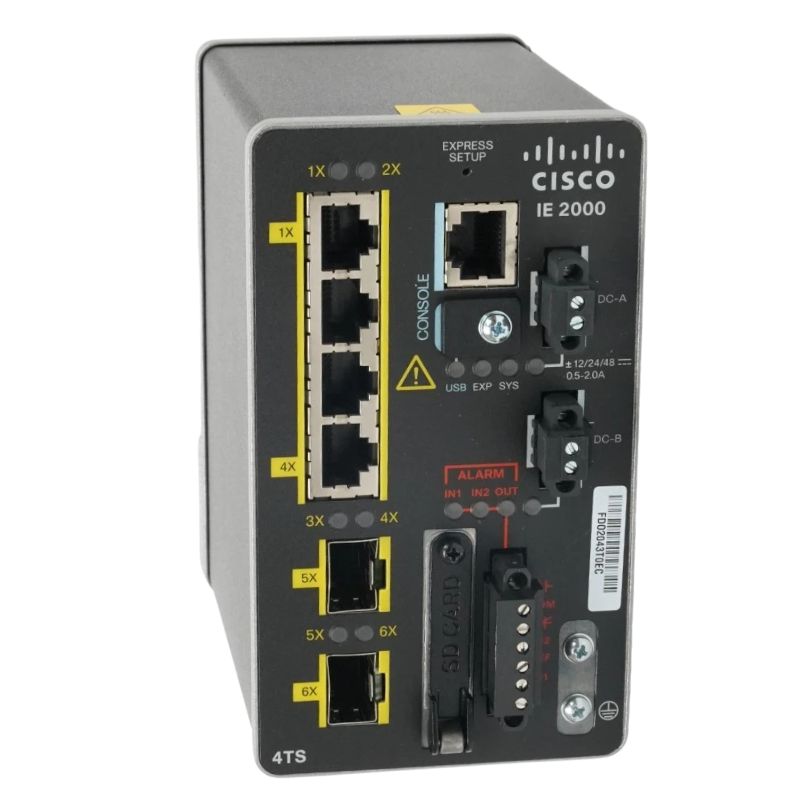

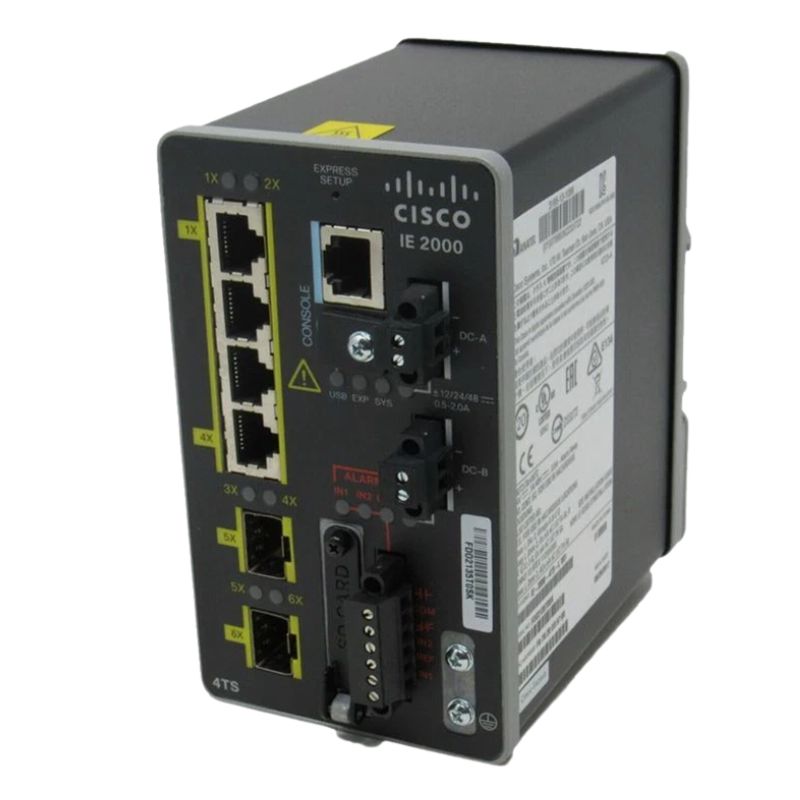

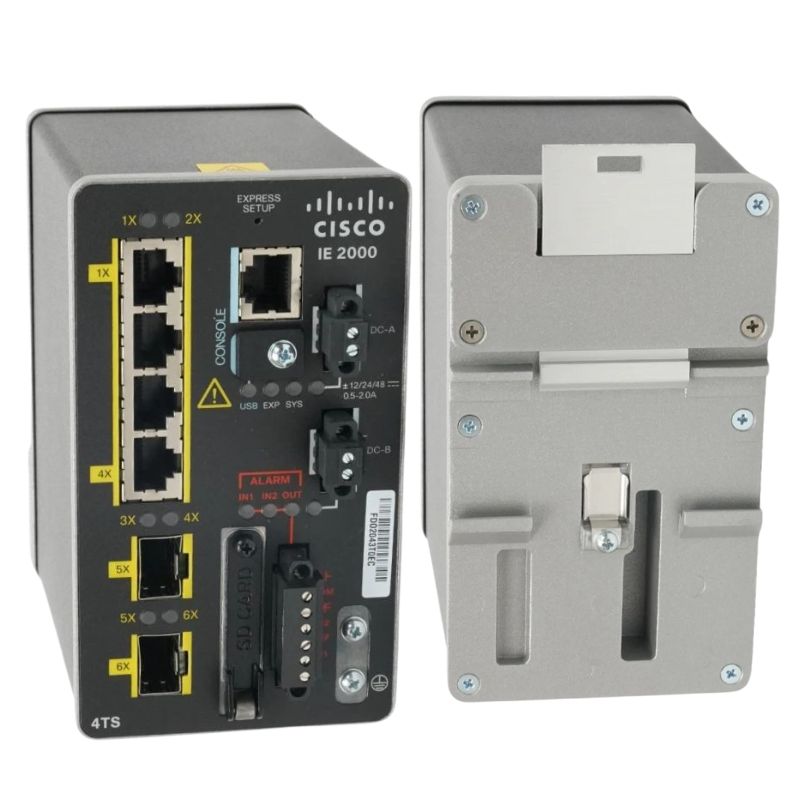

IE-2000U-4S-G Cisco Layer 2 Ethernet Switch Chassis

Cisco IE-2000U-4S-G Ethernet Switch Overview

The Cisco IE-2000U-4S-G is a robust industrial-grade Ethernet switch designed for high-performance networking in demanding environments. With its compact chassis and versatile connectivity options, this switch ensures seamless communication across your network infrastructure.

Key Product Details

• Manufacturer: Cisco
• Model Number: IE-2000U-4S-G
• Device Type: Industrial Ethernet Switch
• Port Configuration: 6 Ports (4 Fast Ethernet, 2 10 Gigabit SFP)

Interface and Port Configuration

Fixed Ports

• 4 x Fast Ethernet network ports
• 2 x 10 Gigabit Ethernet SFP slots for high-speed uplink

Expansion Capabilities

• 2 expansion slots for network flexibility
• Supports additional SFP modules for optical connectivity
• Uplink port available for seamless network integration

Performance and Connectivity Standards

• Supports Fast Ethernet and 10 Gigabit Ethernet standards
• Compatible with twisted pair cables and optical fiber
• Technology standards: 10/100Base-TX and 10GBase-X
• Layer 2 manageable switch for advanced network control

Management Features

• Fully manageable for configuration and monitoring
• Enables secure and reliable industrial network operations

Physical Specifications

• Compact width: 3 inches for easy installation

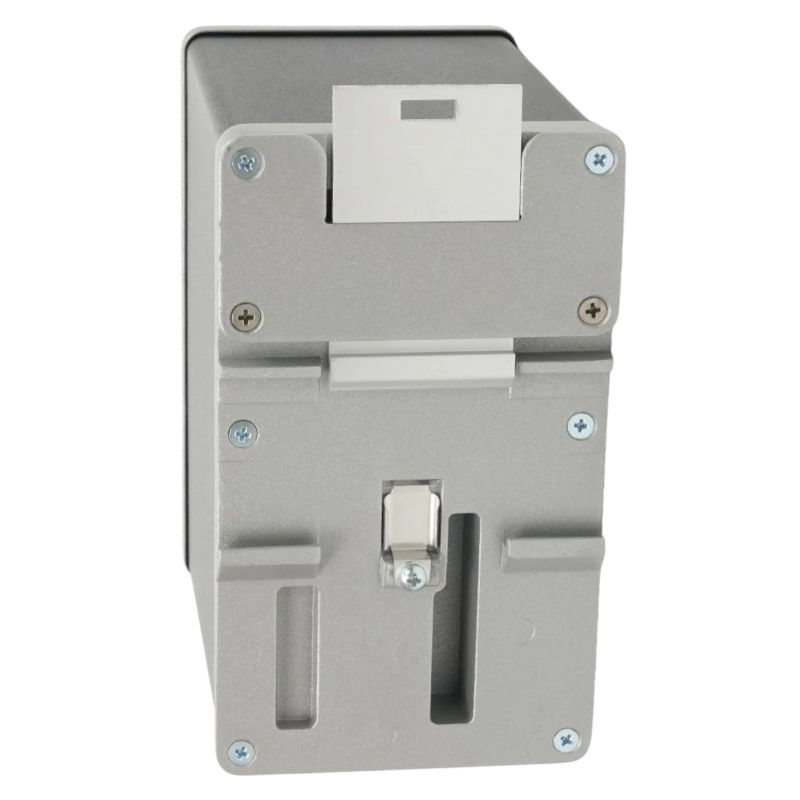

• Rail-mountable form factor suitable for industrial setups

Compliance and Eco-Friendly Features

• Meets WEEE and RoHS environmental standards
• Eco-friendly design supports sustainability
• Assembly required for initial setup

Cisco IE-2000U-4S-G 6 Ports Ethernet Switch

The Cisco IE-2000U-4S-G Ethernet switch is part of Cisco’s Industrial Ethernet 2000 series, designed to provide robust and reliable network connectivity for industrial environments. With its compact 6-port chassis, this switch supports high-performance data transmission and is ideal for applications in manufacturing, energy, transportation, and other mission-critical sectors. The Cisco IE-2000U-4S-G combines durability, advanced management capabilities, and ease of deployment, making it a versatile choice for industrial networking.

Industrial-Grade Design and Durability

The Cisco IE-2000U-4S-G switch is built to withstand harsh environmental conditions often found in industrial settings. Its rugged design ensures continuous operation under extreme temperatures, vibration, and humidity. This switch is rated for extended temperature ranges, providing operational reliability from -40°C to 75°C, making it suitable for both indoor and outdoor industrial deployments. The device’s robust chassis protects sensitive electronic components from dust and water ingress, conforming to IP30 standards, which is essential for maintaining network stability in demanding conditions.

Port Configuration and Connectivity Options

The switch features a total of six Ethernet ports, with four Gigabit SFP uplink ports and two copper RJ-45 ports. This hybrid configuration allows for flexible connectivity options, supporting both fiber and copper connections. The SFP ports enable long-distance fiber connections, while the copper ports facilitate standard Ethernet connections for local devices. This combination of ports enhances network versatility and ensures seamless integration with existing network infrastructures. Additionally, the switch supports auto-negotiation and auto-MDI/MDIX, which simplifies installation and reduces the need for manual configuration.

High-Performance Networking Features

The Cisco IE-2000U-4S-G switch offers advanced performance capabilities to meet the demands of industrial networks. It supports full-duplex communication across all ports, enabling maximum data throughput. The switch also incorporates IEEE 802.3x flow control and Quality of Service (QoS) mechanisms, ensuring prioritization of critical industrial applications such as SCADA, voice, and video traffic. This ensures low latency and high reliability for time-sensitive data transmissions, which is crucial for real-time monitoring and control in industrial environments.

Enhanced Security Features

Security is a critical aspect of industrial networks, and the Cisco IE-2000U-4S-G switch incorporates multiple security mechanisms to protect network resources. It supports IEEE 802.1X port-based authentication, ensuring that only authorized devices can access the network. The switch also provides access control lists (ACLs) to filter traffic and prevent unauthorized communication. Furthermore, the device includes features such as DHCP snooping, IP Source Guard, and Dynamic ARP Inspection, which protect against common network attacks and mitigate security risks. These security measures are essential for maintaining operational integrity in industrial networks that require high levels of data protection.

Redundancy and Reliability

The Cisco IE-2000U-4S-G switch is designed for high availability and network resilience. It supports redundant power supplies and ring-based network topologies using the Media Redundancy Protocol (MRP), ensuring continuous network operation even in the event of a failure. The switch’s ability to quickly recover from link failures minimizes downtime and ensures uninterrupted communication between industrial devices. This makes the IE-2000U-4S-G a reliable choice for critical applications where network continuity is essential, such as automation, transportation, and energy management systems.

Energy Efficiency and Operational Cost Savings

The Cisco IE-2000U-4S-G switch incorporates energy-efficient technologies to reduce operational costs. Its low-power design and support for Energy-Efficient Ethernet (EEE) allow the switch to minimize power consumption during periods of low network activity. This not only reduces electricity costs but also contributes to environmentally friendly operations. Additionally, the switch’s fanless design eliminates moving parts, reducing maintenance requirements and further lowering total cost of ownership. Industrial organizations benefit from both reduced energy expenses and enhanced operational reliability.

Integration with Industrial IoT and Automation Systems

The Cisco IE-2000U-4S-G switch is fully compatible with Industrial IoT (IIoT) and automation platforms. Its high-speed connectivity and reliable performance enable real-time data collection from sensors, controllers, and other industrial devices. The switch facilitates seamless communication between edge devices and centralized systems, supporting protocols such as Modbus TCP, EtherNet/IP, and PROFINET. By integrating with industrial control systems, the IE-2000U-4S-G enhances operational efficiency, reduces downtime, and enables predictive maintenance strategies that optimize production processes.

Deployment Flexibility and Compact Form Factor

The compact and modular design of the Cisco IE-2000U-4S-G switch allows for flexible deployment in various industrial environments. It can be easily mounted on DIN rails or panels, fitting into tight spaces without compromising performance. The lightweight chassis and simplified installation process make it suitable for remote or hard-to-reach locations. Additionally, the switch supports stacking and cascading with other Cisco industrial switches, enabling scalable network architectures that grow with operational needs.

Comprehensive Support and Warranty

Cisco provides comprehensive support for the IE-2000U-4S-G switch, including software updates, technical assistance, and warranty coverage. Customers can rely on Cisco’s extensive global support network for troubleshooting, configuration guidance, and maintenance services. This level of support ensures that industrial networks remain operational and that any potential issues are promptly addressed. Additionally, the switch’s compatibility with Cisco’s wider Industrial Ethernet portfolio allows for seamless integration and consistent performance across multiple devices, making it a dependable investment for long-term industrial networking.

Key Applications of Cisco IE-2000U-4S-G Switches

The Cisco IE-2000U-4S-G switch is widely used across several industrial sectors due to its reliability, performance, and security features. In manufacturing environments, it connects programmable logic controllers (PLCs), human-machine interfaces (HMIs), and sensors, facilitating real-time monitoring and automation. In transportation and energy applications, the switch ensures uninterrupted communication for traffic management systems, substation automation, and smart grid networks. Additionally, its support for remote monitoring and IIoT integration makes it ideal for industrial facilities seeking predictive maintenance and operational optimization. The switch’s versatility ensures that it can adapt to evolving network requirements and future technological advancements.

Scalability and Future-Ready Networking

The Cisco IE-2000U-4S-G switch provides scalability for growing industrial networks. With its modular port options and compatibility with other Cisco Industrial Ethernet switches, it enables network expansion without significant infrastructure changes. Organizations can add additional devices or extend network segments while maintaining high performance and reliability. This future-ready approach allows businesses to adapt to increasing data demands, new industrial protocols, and emerging automation technologies. By supporting scalable network architectures, the IE-2000U-4S-G ensures long-term value and operational efficiency for industrial organizations.
