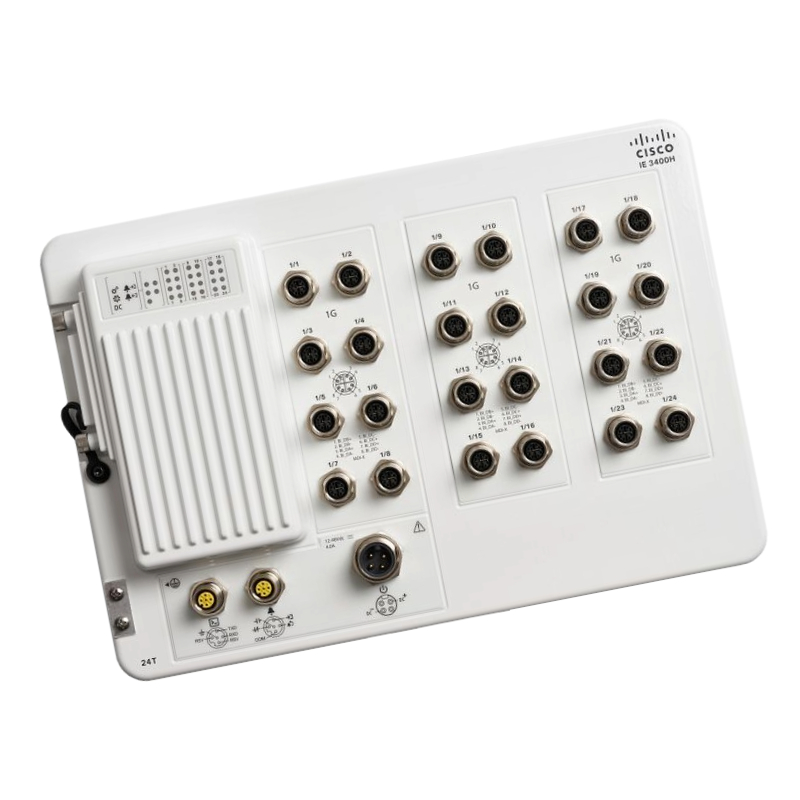

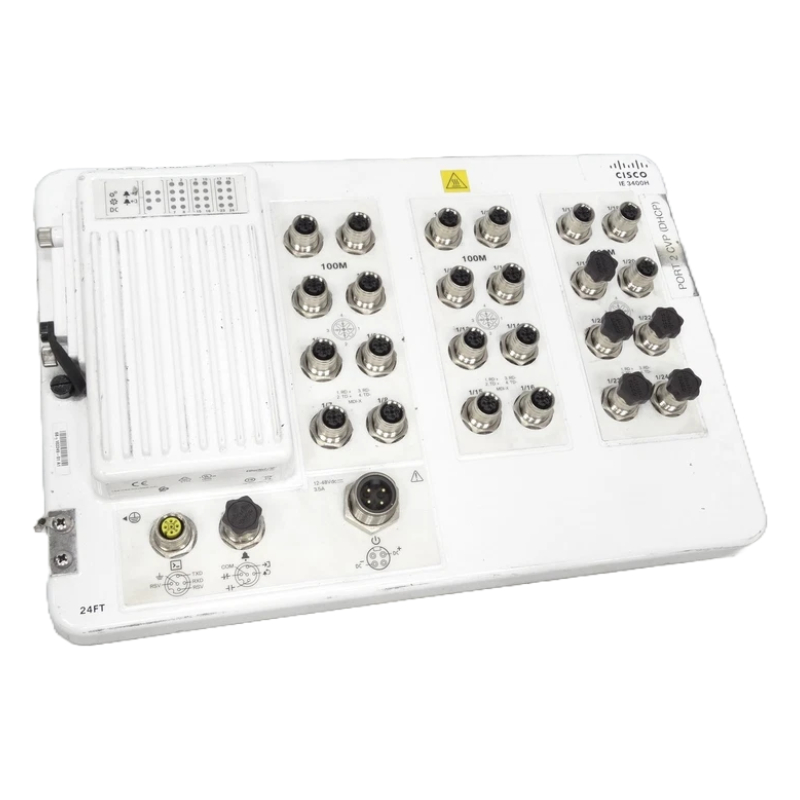

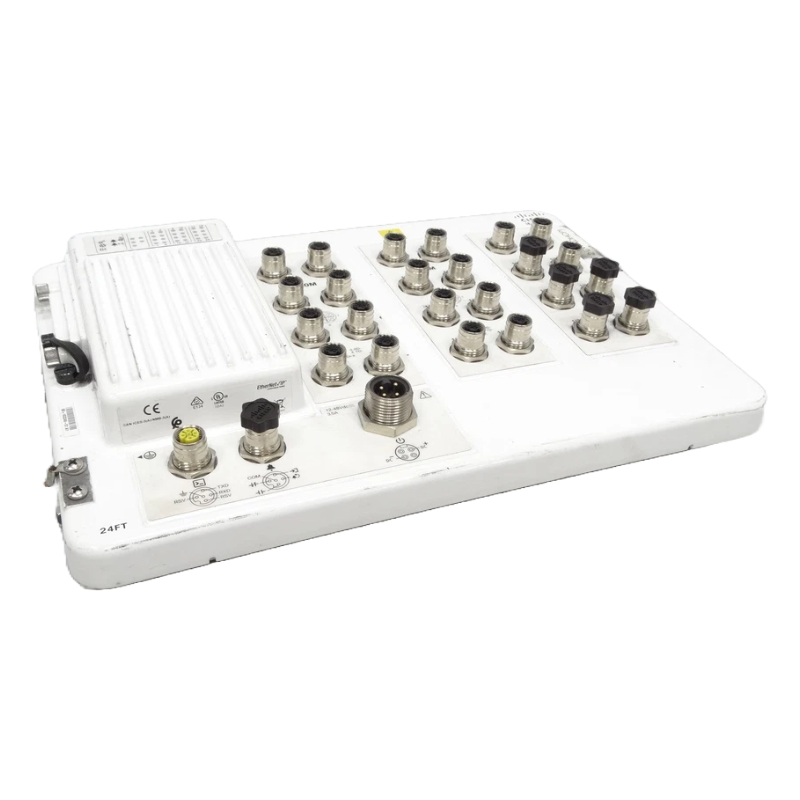

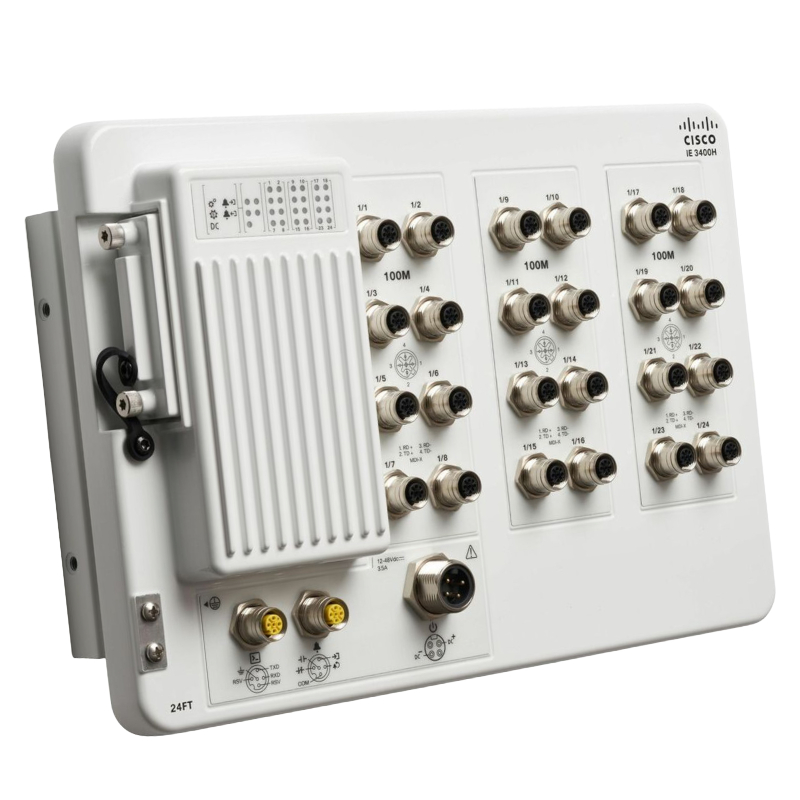

Cisco IE-3400H-24T-E Catalyst IE3400 Series 24 Ports Managed Switch

Overview of the Cisco IE-3400H-24T-E Catalyst Switch

Manufacturer and Model

• Brand: Cisco
• Model Number: IE-3400H-24T-E
• Product Type: Catalyst Switch

Key Features of the 24-Port Switch

Physical Specifications

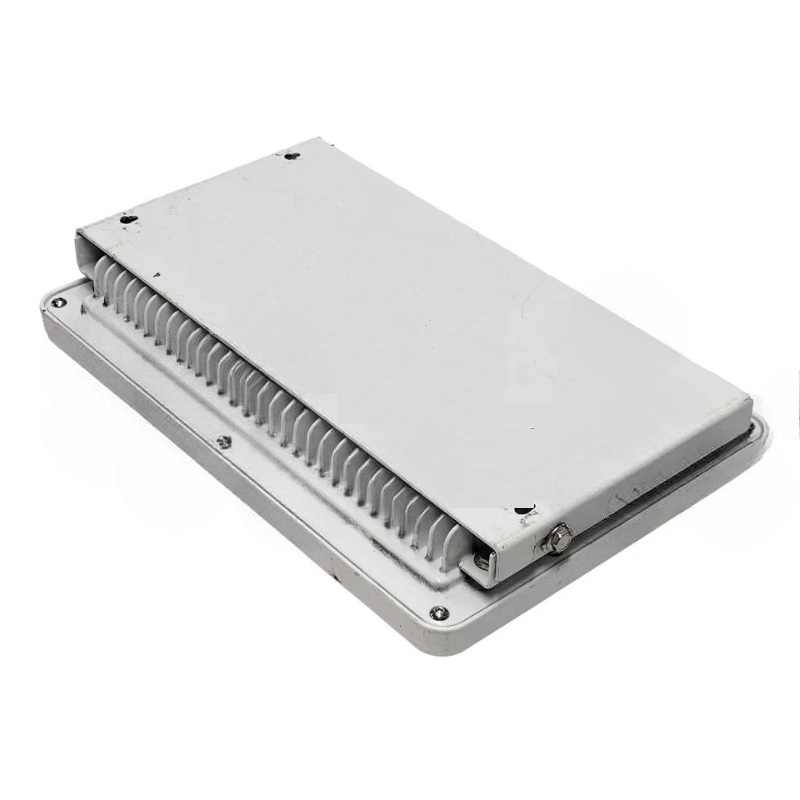

• Enclosure Type: Wall-mountable
• Number of Ports: 24 x 10/100/1000 Mbps

Performance Metrics

• Queues: 8
• IGMP Groups: 1000
• VLAN IDs: 256
• STP Instances: 128
• Access Control Lists (ACL): 1500
• MAC Address Table Size: 8k Entries

Memory and Storage

RAM and Flash Memory

• RAM: 4 GB
• Flash Memory: 1.5 GB
• Built-in Devices: SD Card Reader

Expansion and Connectivity Options

Interfaces

• Gigabit LAN Ports: 24 x M12
• Console Port: 1
• Alarm Ports: 2

Expansion Slots

• SD Memory Card Slot: 1 total / 1 free

Power Requirements

Power Device

• Type: External Power Adapter (not included)
• Max Supported Quantity: 1

Routing Protocols Supported

• IGMPv2
• IGMP
• IGMPv3
• MSTP
• RSTP
• STEP

Remote Management Protocols

• SNMP 1
• SNMP 2
• RMON
• Telnet
• SNMP 3
• HTTP
• TFTP
• SSH
• SCP
• NTP

Security and Management Features

• Encryption: 256-bit AES
• Authentication Methods: Secure Shell (SSH), RADIUS, TACACS+
• Support for: DHCP, BOOTP, ARP
• IGMP Snooping
• Syslog Support
• DiffServ Support
• Broadcast Storm Control
• Multicast Storm Control
• Unicast Storm Control
• Spanning Tree Protocol (STP) Support
• DHCP Snooping
• Access Control List (ACL) Support
• Quality of Service (QoS)
• RADIUS Support
• DHCP Server
• Dynamic ARP Inspection (DAI)
• Per-VLAN Spanning Tree Plus (PVST+)
• Uni-directional Link Detection (UDLD)
• Port Security
• Remote Switch Port Analyzer (RSPAN)
• Management Information Base (MIB)
• 802.1x Authentication
• Precision Time Protocol (PTP)
• IGMP Filtering
• IP Source Guard
• Resilient Ethernet Protocol (REP)
• Smartport Technology
• Internet Control Message Protocol (ICMP)
• CIP Sync (IEEE 1588)
• IGMP Querier
• Voice VLAN
• Guest VLAN
• User Datagram Protocol (UDP)
• VLAN Trunking Protocol (VTP) v.3
• BPDU Guard
• Dying Gasp
• VLAN Trunking Protocol (VTP) v.2

Standards and Compliance

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.1D
• IEEE 802.1Q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.1s
• IEEE 802.3ah
• IEEE 802.1AB (LLDP)
• IEEE 1588v2

Ports

High Density with 24 Ports

The Cisco IE-3400H-24T-E Managed Switch is equipped with an impressive 24 ports, making it an excellent choice for businesses and organizations that require high-density network connectivity. With such a large number of ports, this switch offers immense flexibility and scalability, allowing you to connect numerous devices simultaneously. Whether you need to connect computers, servers, printers, IP phones, or other network devices, the Cisco IE-3400H-24T-E switch has got you covered.

Enhanced Network Performance

Having 24 ports means that you can eliminate the need for additional switches or hubs to accommodate all your devices. This not only simplifies your network infrastructure but also improves overall network performance. With fewer devices in the network path, data can be transmitted more efficiently, reducing latency and improving response times. By maximizing network performance, the Cisco IE-3400H-24T-E switch ensures smooth and uninterrupted communication between devices, resulting in enhanced productivity and user satisfaction.

Seamless Network Expansion

The 24 ports on the Cisco IE-3400H-24T-E Managed Switch offer ample room for future growth and expansion. As your business expands or your network requirements change, having additional ports readily available allows you to easily connect new devices without the hassle of investing in additional switches or reconfiguring your entire network infrastructure. This scalability ensures that your network remains flexible and adaptable to meet evolving business needs.

Streamlined Cable Management

Managing cables can be a daunting task in a complex network environment. However, with 24 ports available on the Cisco IE-3400H-24T-E switch, you can significantly reduce cable clutter and simplify cable management. The abundance of ports enables you to neatly organize and route cables, eliminating confusion and minimizing the risk of accidental disconnections. This not only improves the overall aesthetics of your network setup but also makes troubleshooting and maintenance tasks much more efficient.

Increased Device Connectivity

The 24 ports of the Cisco IE-3400H-24T-E switch provide you with the ability to connect a wide range of devices simultaneously. This is particularly beneficial in environments where multiple devices need to be connected, such as offices, data centers, or industrial settings. Whether it's connecting computers, printers, surveillance cameras, access points, or VoIP phones, this switch offers the necessary connectivity to ensure seamless communication and collaboration across your network.

Lower Cost per Port

Investing in a switch with 24 ports can often prove to be more cost-effective compared to purchasing multiple switches with fewer ports. By consolidating your devices onto a single switch, you can reduce the overall cost per port while still enjoying robust network performance and scalability. The Cisco IE-3400H-24T-E switch offers a cost-efficient solution for businesses that require a large number of ports without compromising on quality or functionality.

Improved Network Security

In today's digital landscape, network security is of paramount importance. The Cisco IE-3400H-24T-E Managed Switch is equipped with advanced security features to safeguard your network and connected devices. With 24 ports, you can segment your network into different VLANs (Virtual Local Area Networks), allowing you to isolate sensitive data or devices from the rest of the network. This helps prevent unauthorized access and enhances overall network security.

Redundancy and High Availability

The 24 ports on the Cisco IE-3400H-24T-E switch enable you to implement redundant links and create a highly available network infrastructure. By connecting multiple devices through redundant links, you can ensure uninterrupted network connectivity even in the event of a link failure. This redundancy enhances network reliability, minimizes downtime, and maximizes business continuity.

In conclusion, the Cisco IE-3400H-24T-E Managed Switch with 24 ports offers numerous benefits and plays a crucial role in providing high-density network connectivity. Its ability to handle multiple devices simultaneously, enhance network performance, streamline cable management, and facilitate network expansion makes it an ideal choice for businesses seeking a scalable, cost-effective, and secure networking solution.
