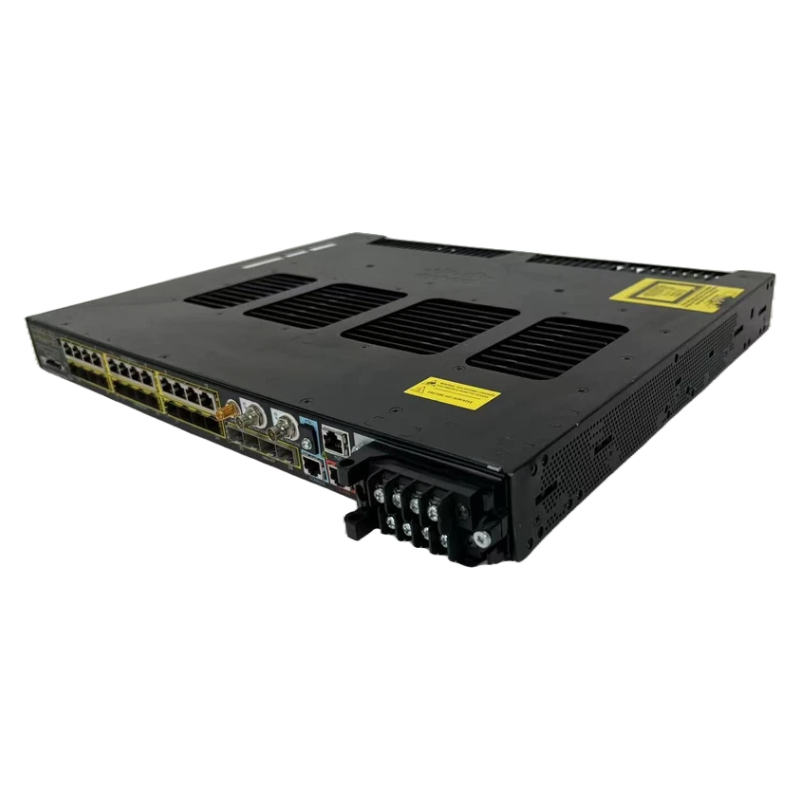

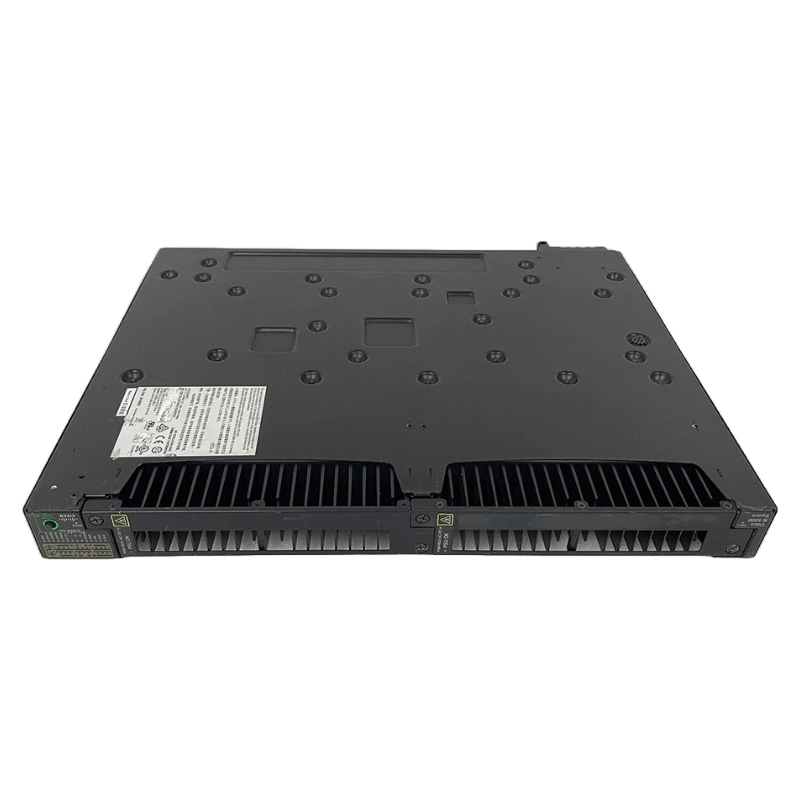

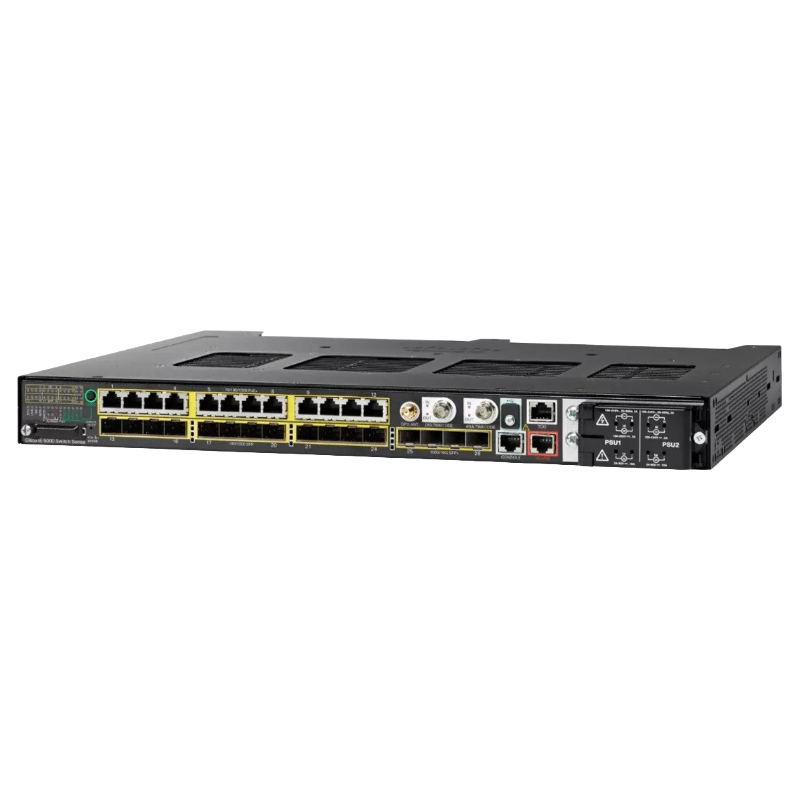

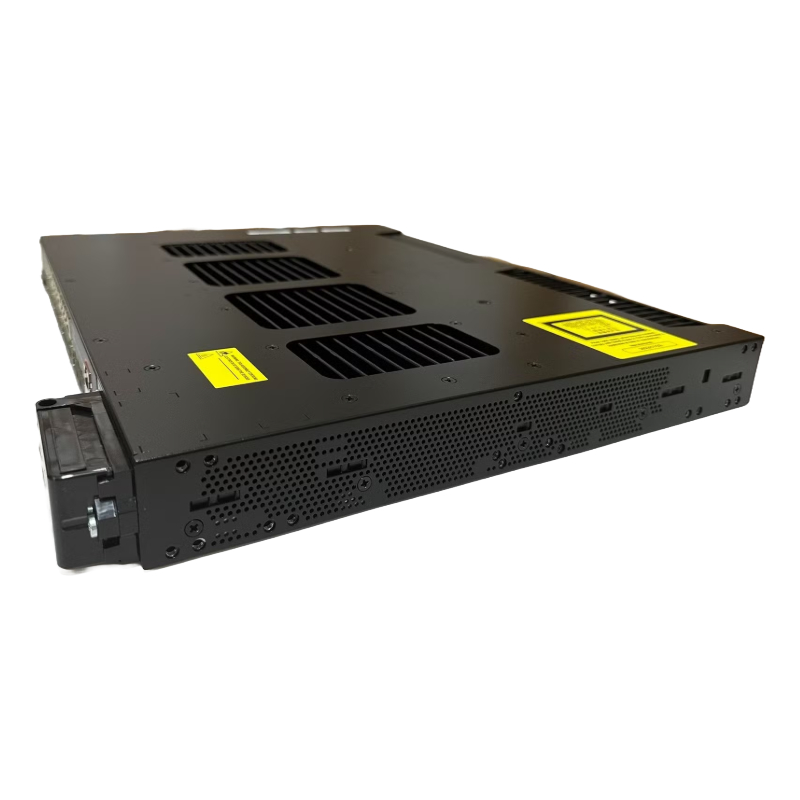

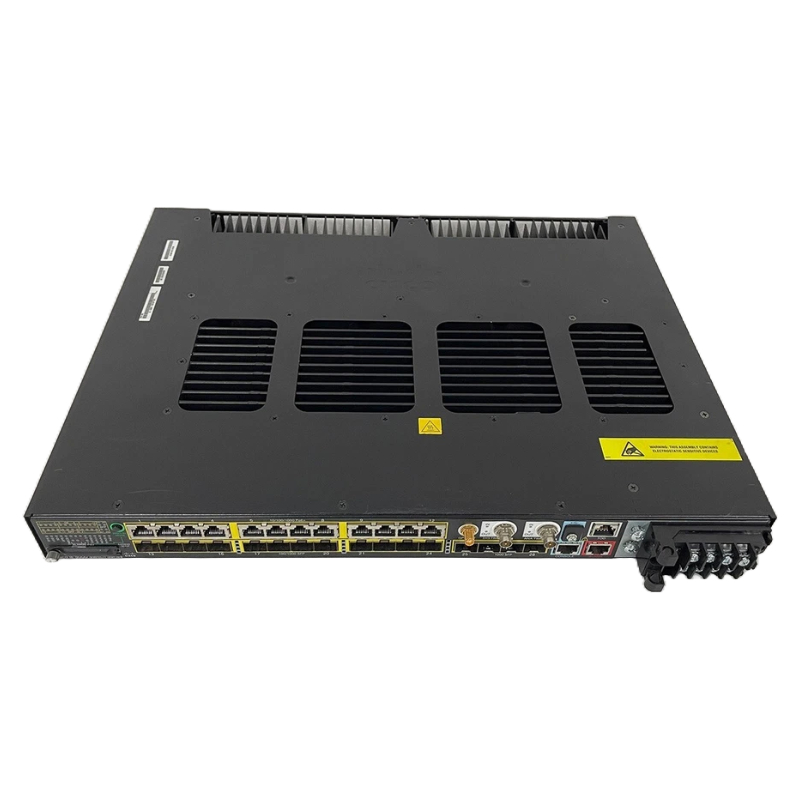

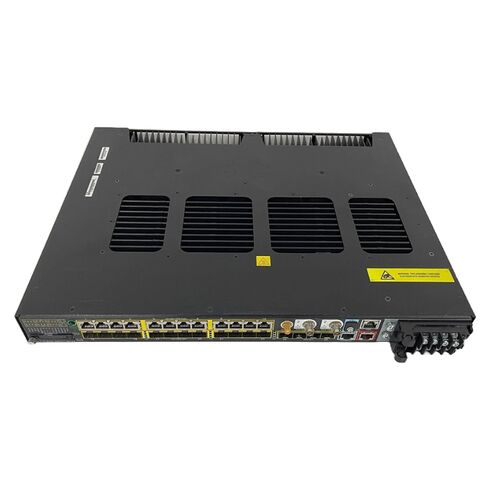

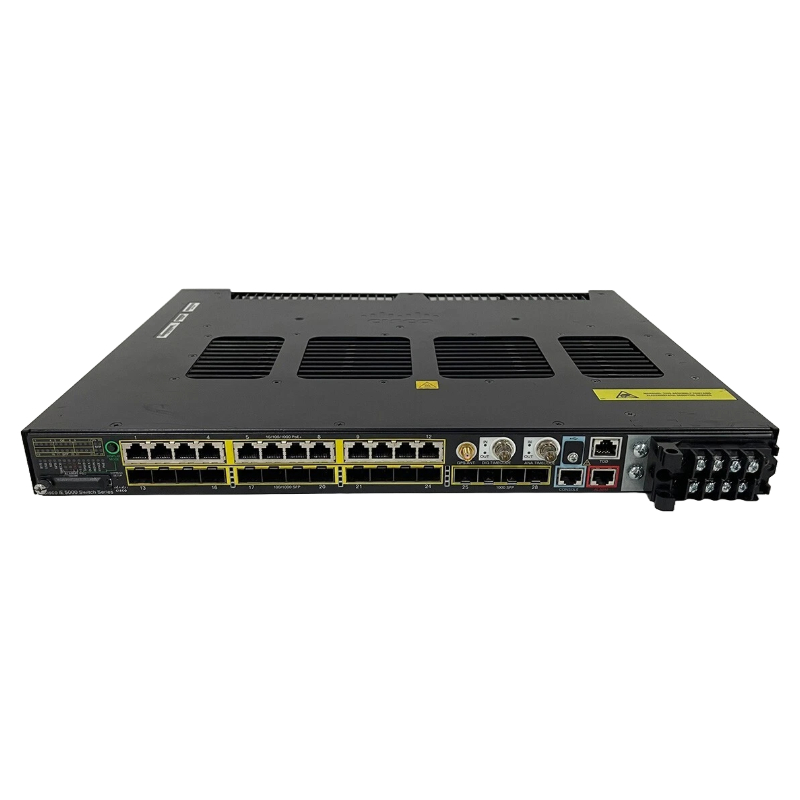

IE-5000-16S12P Cisco Industrial Ethernet Layer 3 Switch

Cisco IE-5000-16S12P Industrial Ethernet Switch Overview

The Cisco IE-5000-16S12P is a high-performance industrial-grade managed switch from Cisco's 5000 Series. Designed for demanding networking environments, this switch ensures reliable connectivity and advanced management capabilities for enterprise and industrial applications.

Key Features of the Cisco IE-5000-16S12P

• Manufacturer: Cisco
• Part Number: IE-5000-16S12P
• Device Type: Managed Ethernet Switch
• Ports: 28 Ports – including Gigabit SFP and PoE+ capable RJ-45
• Form Factor: 1U Rack-mountable enclosure

Technical Specifications

Port Configuration & Connectivity

• 16 × Gigabit SFP slots for high-speed fiber connectivity
• 12 × 10/100/1000 Mbps PoE+ RJ-45 ports
• 4 × SFP uplinks for extended network expansion
• Additional interfaces: 1 × Mini-USB Type B, 1 × Console RJ-45, 1 × Antenna input
• Expansion: 1 SD memory card slot (total), no free slots available

Power and Efficiency

• Supports PoE+ (Power over Ethernet) for connected devices
• Internal power supply (not installed) with 1+1 redundancy scheme
• Operational power consumption: 90 Watts

Advanced Routing & Networking Protocols

• Routing support: OSPF, BGP-4, IS-IS, RIP-2, EIGRP, and more
• IPv6-enabled protocols: EIGRP for IPv6, OSPF for IPv6, RIPng
• Policy-based routing (PBR) and static IPv4 routing
• Multicast and redundancy support: IGMPv2, IGMPv3, PIM-SM, PIM-DM, HSRP, BFD

Management & Remote Access

• SNMP v1, v2, v3 for network monitoring
• Remote access via Telnet, HTTP, SSH, TFTP, SCP
• CLI-based management and RMON support for proactive monitoring

Performance & Capacity

• MAC address table capacity: 16,000 entries
• High-speed switching ideal for industrial networks
• Reliable and scalable performance for enterprise deployments

Physical Dimensions & Weight

• Dimensions (W×D×H): 17.5 × 14 × 1.8 inches
• Weight: 13.69 lbs

Cisco IE-5000-16S12P Industrial Ethernet Switch

The Cisco IE-5000-16S12P Industrial Ethernet Switch is an advanced managed network solution designed to meet the rigorous demands of industrial environments. Part of Cisco's 5000 Series, this switch provides 28 ports with a combination of high-speed SFP and PoE+ capabilities, delivering exceptional reliability and network performance. Engineered for durability, the IE-5000-16S12P operates seamlessly in harsh industrial settings, making it ideal for manufacturing, energy, transportation, and critical infrastructure deployments. Its design ensures uninterrupted network connectivity, even in challenging conditions characterized by extreme temperatures, vibrations, and electromagnetic interference.

Industrial-Grade Reliability and Design

The industrial-grade construction of the Cisco IE-5000-16S12P emphasizes resilience and longevity. With a ruggedized metal chassis, this switch withstands shock, vibration, and high-impact conditions typical of factory floors, outdoor installations, and transportation systems. The unit features enhanced environmental tolerance, supporting operating temperatures ranging from -40°C to 75°C, ensuring network stability under extreme climatic conditions. Redundant power supply support and robust fan systems prevent downtime, providing continuous operation in mission-critical networks.

Port Configuration and Connectivity

This switch offers a total of 28 ports, including 16 SFP ports and 12 PoE+ ports, allowing flexible deployment across a variety of industrial applications. The SFP uplinks enable high-speed fiber connectivity for long-distance network extension, supporting multimode and single-mode fibers. The PoE+ ports provide power and data to devices such as IP cameras, wireless access points, sensors, and industrial controllers, reducing the need for separate power sources and simplifying network topology. Each port supports advanced features such as link aggregation, VLAN segmentation, and Quality of Service (QoS), optimizing traffic flow and ensuring reliable communication across all connected devices.

Managed Network Features

The Cisco IE-5000-16S12P is a fully managed switch, delivering advanced network control and monitoring capabilities. It supports Cisco’s industrial-grade software suite, including features for network automation, traffic prioritization, and security policy enforcement. Network administrators can leverage centralized management through Cisco DNA Center or traditional SNMP-based systems to monitor performance metrics, configure devices, and apply software updates remotely. Intelligent diagnostics and proactive alerts help identify potential network issues before they affect operations, reducing maintenance costs and increasing uptime.

Security and Compliance

Security is a key consideration in industrial networks, and the IE-5000-16S12P offers comprehensive protection against unauthorized access and cyber threats. It supports role-based access control, 802.1X authentication, and dynamic ARP inspection to safeguard critical infrastructure. The switch is compliant with multiple industrial standards, including IEC 62443, ensuring adherence to best practices for operational technology security. Regular firmware updates from Cisco maintain the highest level of security, preventing vulnerabilities and reinforcing trust in connected industrial networks.

Performance and Scalability

Designed for high-performance operations, the IE-5000-16S12P supports line-rate forwarding across all ports with low latency, which is essential for real-time control applications. The switch includes advanced traffic management features such as rate limiting, storm control, and multicast optimization, ensuring efficient data handling even in densely connected industrial environments. Its modular architecture allows scalability, enabling enterprises to expand networks without replacing core infrastructure. The combination of high-speed uplinks, PoE+ support, and intelligent software features positions the IE-5000-16S12P as a cornerstone of modern industrial Ethernet networks.

Energy Efficiency and PoE+ Capabilities

The switch’s PoE+ capabilities provide energy-efficient power delivery to connected devices, optimizing operational costs and simplifying network design. With intelligent power allocation and load balancing, the IE-5000-16S12P ensures that each device receives the required power while avoiding overconsumption. The switch supports the latest energy-efficient Ethernet standards, reducing power usage during periods of low network activity without compromising performance. These features make it an ideal choice for industrial automation systems where multiple devices require reliable power and connectivity simultaneously.

Integration with Industrial IoT

As the Industrial Internet of Things (IIoT) continues to expand, the Cisco IE-5000-16S12P offers seamless integration with smart sensors, programmable logic controllers (PLCs), and industrial gateways. It provides precise network segmentation and real-time monitoring capabilities, enabling predictive maintenance, data analytics, and remote control of industrial operations. The switch supports protocols commonly used in industrial networks, including EtherNet/IP, PROFINET, and Modbus TCP, facilitating interoperability with existing infrastructure and enhancing operational efficiency.

Deployment Flexibility and Mounting Options

The Cisco IE-5000-16S12P is designed for flexible deployment, supporting DIN rail, wall, and rack mounting. This flexibility ensures the switch can be installed in control cabinets, server rooms, or field locations while maintaining ease of access for maintenance and monitoring. The compact form factor allows efficient use of space in dense industrial environments, and the front-access ports simplify cabling management. Cisco’s attention to deployment versatility ensures that network architects can design robust and scalable industrial networks without compromising physical or operational requirements.

Advanced Troubleshooting and Network Analytics

The switch includes a suite of diagnostic tools to assist network engineers in troubleshooting and optimizing network performance. Features such as port mirroring, packet capture, and real-time monitoring allow administrators to quickly identify and resolve connectivity issues. Integrated analytics provide insights into traffic patterns, bandwidth utilization, and device performance, enabling proactive network management. Cisco’s industrial software platforms complement these features, providing predictive analytics, configuration templates, and automated alerts to maintain network reliability and minimize downtime in complex industrial environments.

High Availability and Redundancy

Industrial networks require uninterrupted operation, and the IE-5000-16S12P is built with redundancy features to ensure high availability. The switch supports multiple link redundancy protocols, including Rapid Spanning Tree Protocol (RSTP) and Media Redundancy Protocol (MRP), to provide failover in the event of a network fault. Dual redundant power inputs and hot-swappable components further enhance reliability, allowing continuous operation without service interruptions. These features make the IE-5000-16S12P an ideal solution for critical infrastructure where network downtime can result in significant operational or financial impact.

Environmental and Compliance Certifications

The Cisco IE-5000-16S12P meets rigorous industrial standards, including IP30 ingress protection and IEC 61850-3 compliance for power utility automation. It also adheres to environmental regulations such as RoHS, ensuring that the switch meets global sustainability requirements. These certifications demonstrate Cisco’s commitment to building environmentally responsible, reliable, and compliant industrial networking equipment suitable for a wide range of applications from transportation systems to energy management.
