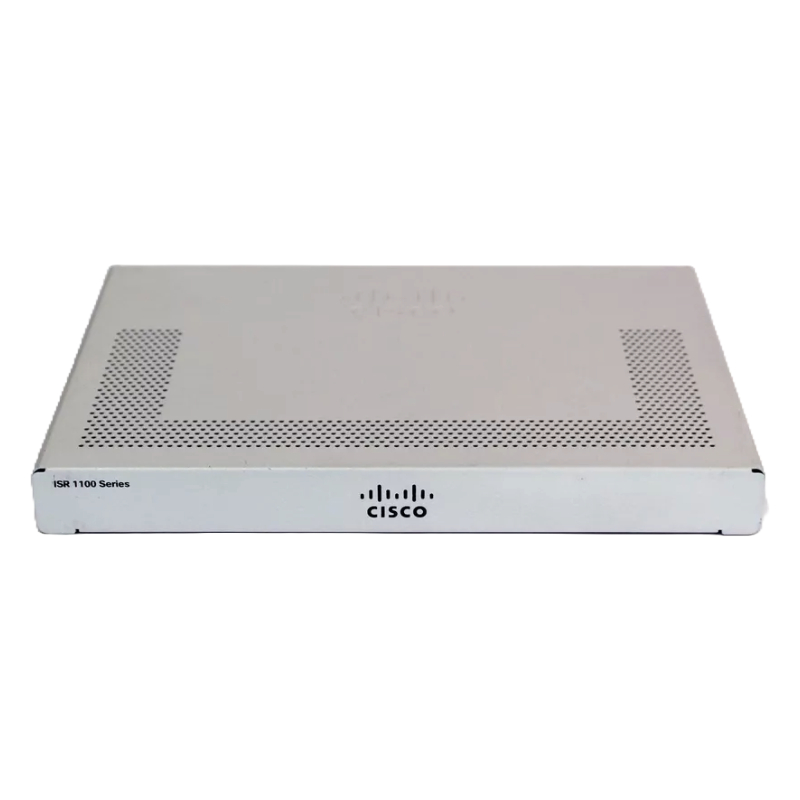

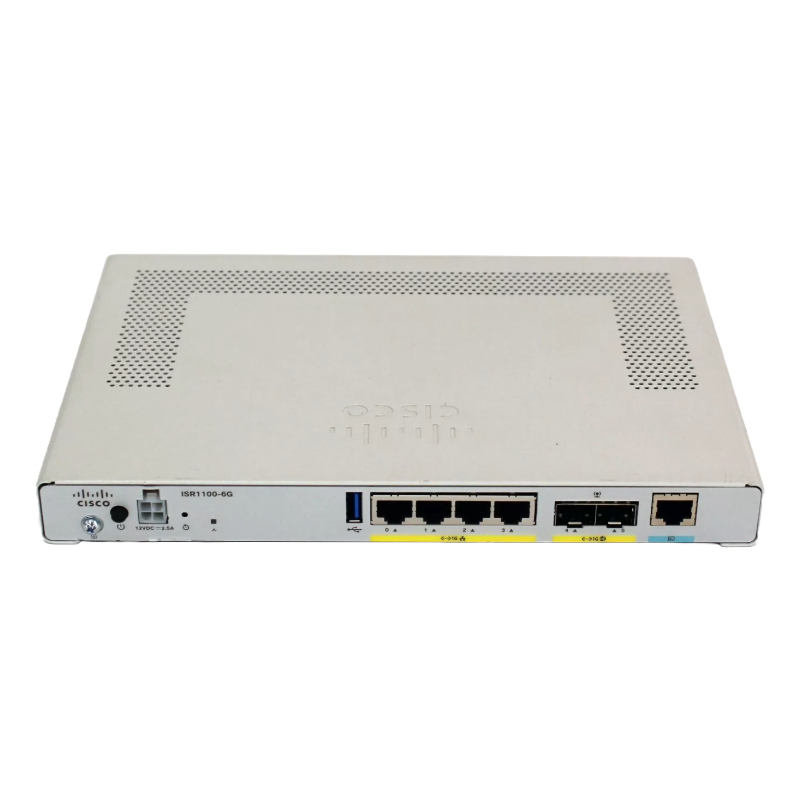

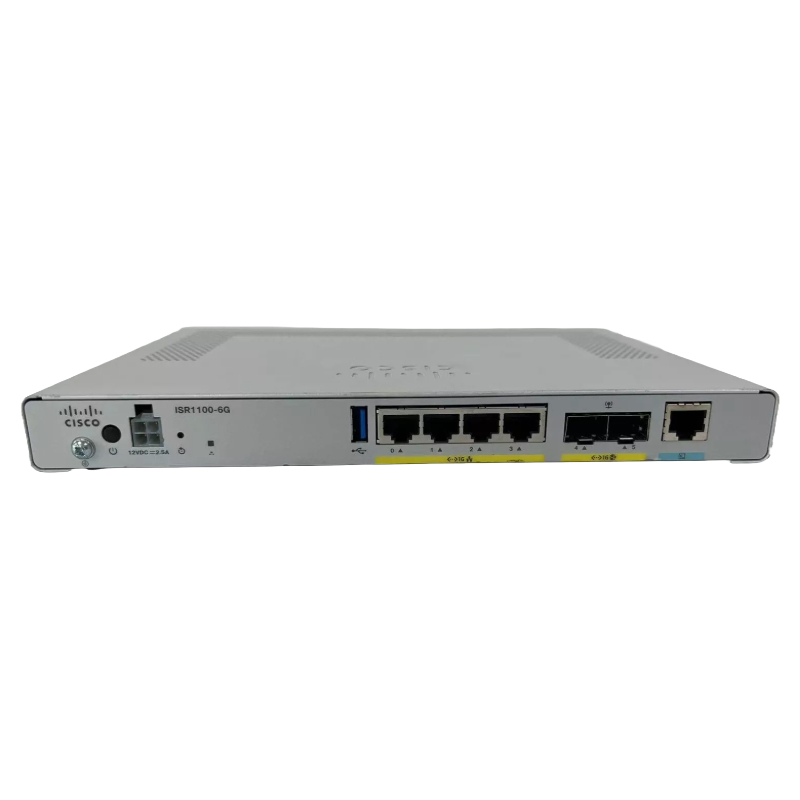

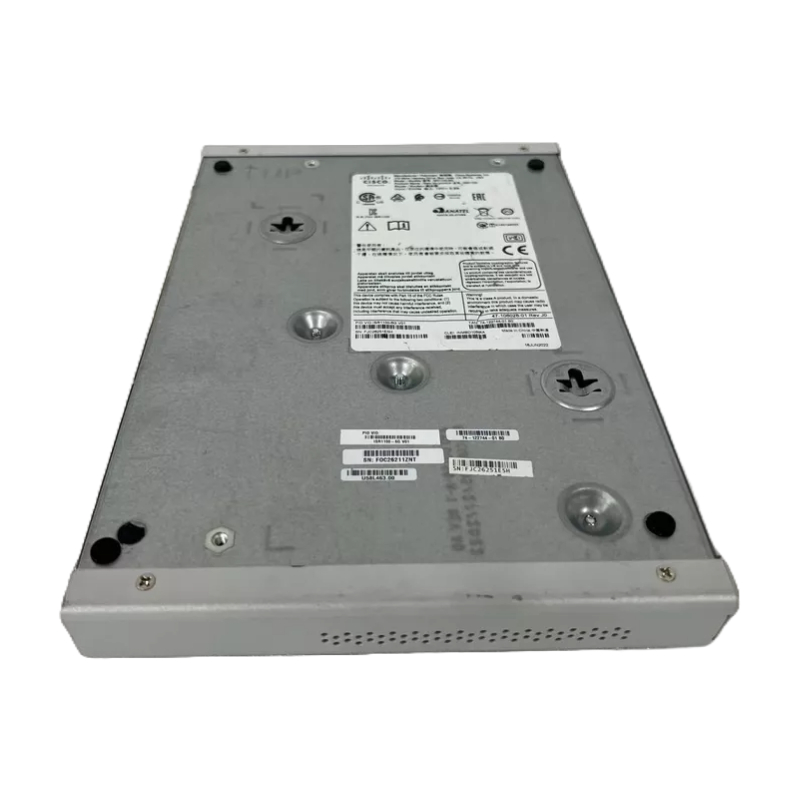

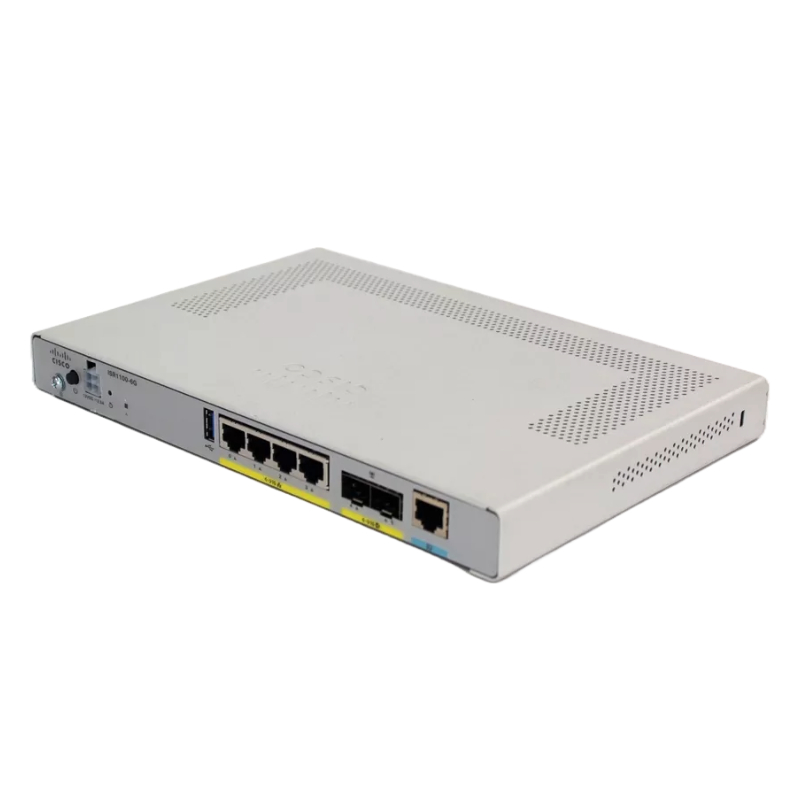

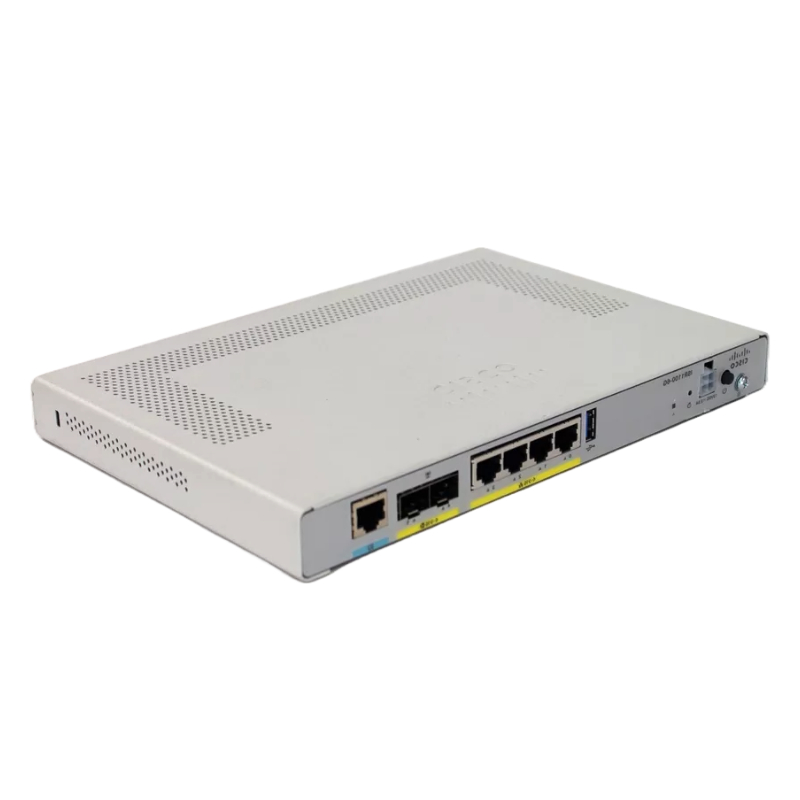

Cisco ISR1100-6G 6 Ports Ethernet Router 4 Gigabit 30 Watt SFP

Overview of Cisco ISR1100-6G Router

Product Information

• Manufacturer: Cisco
• Model: ISR1100-6G
• Device Type: Wired Router
• Product Category: Networking Equipment

Router Specifications

• Port Count: 6 Ports
• Connectivity Type: Wired
• Data Link Protocols:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
• Network Protocols:
  • IPSec
  • PPPoe
  • DHCP
  • DNS
  • L2TPv3
• Routing Protocols:
  • OSPF
  • IS-IS
  • RIP-1
  • RIP-2
  • BGP
  • EIGRP
  • HSRP
  • DVMRP
  • VRRP
  • PIM-SM
  • Static IP Routing
  • IGMPv3
  • GRE
  • PIM-SSM
  • Policy-Based Routing (PBR)
  • MPLS
  • Bidirectional Forwarding Detection (BFD)
  • RSVP
• Remote Management Protocols:
  • SNMP
  • Ramon
  • CLI
• Authentication Method: Radius

Compliance and Standards

• IEEE 802.1Q
• EN 61000-3-2
• EN 55022
• ICES-003
• EN 61000-3-3
• CISPR 22
• CB
• EN 61000-6-1
• EN 61000-4-4
• EN 61000-4-2
• EN 61000-4-3
• EN 61000-4-6
• EN 61000-4-5
• EN 61000-4-11
• FCC CFR47 Part 15
• UL 60950-1
• EN 60950-1
• VCCI V-3
• IEC 60950-1 Second Edition
• AS/NZS CISPR 22
• CNS 13438
• EN 301 489-7
• EN 301 489-1
• FCC CFR47 Part 22
• FCC CFR47 Part 24
• EN 300 386
• IEC 60950-1 First Edition
• CAN/CSA-C22.2 No. 60950-1
• EN 301 489-24
• EN 301 908-1
• EN 301 908-2
• EN 301 511
• EN 301 908-13

Hardware Specifications

• Processor: Intel 2.2 GHz
• RAM: 4 GB DDR4 SDRAM
• Status Indicators: Status

Power Requirements

• Power Device: External Power Adapter – 30 Watt
• Voltage Required: AC 120/230 V / DC 12 V (50/60 Hz)
• Power Consumption: 30 Watt

Expansion and Connectivity

• LAN Ports: 5 x 10Base-T/100Base-TX/1000Base-T – RJ-45
• USB 3.0 Ports: 1 x
• Expansion Slots: 2 (total) / 2 (available)

Ports

The Cisco ISR1100-6G Router is equipped with 6 ports, making it an ideal choice for businesses and organizations that require a high level of connectivity. These ports offer numerous benefits and play a crucial role in ensuring seamless communication and data transfer within the network.

Increased Flexibility

One of the key advantages of having 6 ports on the Cisco ISR1100-6G Router is the increased flexibility it provides. With multiple ports available, users have the freedom to connect various devices simultaneously. This allows for efficient multitasking and enables different departments or individuals to access the network without any disruptions.

Enhanced Performance

The 6 ports on this router also contribute to enhanced performance. By distributing the network load across multiple ports, the router can handle a higher volume of data traffic without experiencing any bottlenecks. This is particularly beneficial for businesses that rely heavily on data-intensive applications or require uninterrupted access to cloud-based services.

Load Balancing

Load balancing is a technique that ensures all ports on the router are utilized evenly, preventing congestion or overloading on a specific port. With 6 ports, the Cisco ISR1100-6G Router can effectively distribute incoming and outgoing network traffic, optimizing performance and minimizing latency. This results in a smoother user experience and improved overall network efficiency.

Redundancy and Failover

Having multiple ports also enables redundancy and failover capabilities, which are crucial for maintaining uninterrupted network connectivity. In the event of a port failure or disruption, the router can automatically switch to an alternative port, ensuring minimal downtime and seamless operation. This feature is particularly important for businesses that rely on continuous access to critical applications or services.

Link Aggregation

Link aggregation, also known as port trunking, allows multiple physical ports to be combined into a single logical link. This feature provides increased bandwidth and improved reliability by aggregating the capacity of multiple ports. With 6 ports available, the Cisco ISR1100-6G Router can support link aggregation, allowing for higher data transfer speeds and more efficient network utilization.

Network Expansion

The 6 ports on the Cisco ISR1100-6G Router also offer room for network expansion. As businesses grow and their connectivity requirements increase, additional devices can be easily connected to the available ports. This scalability ensures that the router can accommodate future growth without the need for significant infrastructure upgrades or replacements.

Ethernet Ports

The Cisco ISR1100-6G Router features 4 Ethernet ports, providing users with a reliable and high-speed wired connection option. These Ethernet ports offer numerous benefits and are essential for businesses that require secure and stable network connectivity.

High-Speed Data Transfer

One of the key advantages of the 4 Ethernet ports on the Cisco ISR1100-6G Router is the ability to achieve high-speed data transfer. Ethernet technology has evolved over the years, and modern Ethernet ports can support gigabit speeds, allowing for fast and efficient data transmission. This is particularly beneficial for businesses that deal with large file transfers, multimedia streaming, or real-time collaboration.

Secure Connection

Ethernet ports provide a secure connection option for businesses that prioritize data security. Unlike wireless connections, which can be susceptible to interference or unauthorized access, Ethernet connections offer a higher level of security. The physical nature of Ethernet cables ensures that data remains within the confines of the wired network, reducing the risk of data breaches or unauthorized access.

Network Segmentation

With 4 Ethernet ports, businesses can easily implement network segmentation strategies. Network segmentation involves dividing a larger network into smaller subnetworks, allowing for better control and security. Each Ethernet port can be dedicated to a specific department or group, ensuring that sensitive data or critical resources are isolated and protected from unauthorized access.

Quality of Service (QoS)

Ethernet ports also support Quality of Service (QoS) features, which prioritize certain types of network traffic over others. By assigning different levels of priority to specific ports, businesses can ensure that critical applications or services receive the necessary bandwidth and resources, even in times of high network congestion. This helps maintain a consistent level of performance and reliability for essential business operations.

Reliable Connectivity

Ethernet connections are known for their reliability, making them a preferred choice for businesses that require stable and uninterrupted connectivity. Unlike wireless connections, which can be affected by interference or signal strength issues, Ethernet connections provide a direct and dedicated link between devices and the network. This reduces the likelihood of connectivity disruptions and ensures consistent network performance.

Compatibility and Interoperability

Ethernet has become a widely adopted standard for wired networking, ensuring compatibility and interoperability with a wide range of devices. The 4 Ethernet ports on the Cisco ISR1100-6G Router can be used to connect various devices such as computers, printers, IP phones, and network switches. This flexibility allows businesses to easily integrate new devices into their network infrastructure without compatibility concerns.

Power

The Cisco ISR1100-6G Router is designed to provide sufficient power for all connected devices, thanks to its 30 Watt power feature. This power capability offers several benefits and is crucial for ensuring reliable operation and performance.

Powering Multiple Devices

With a 30 Watt power capacity, the Cisco ISR1100-6G Router can efficiently power multiple devices simultaneously. This is particularly important for businesses that have a large number of connected devices such as IP phones, access points, or surveillance cameras. The router's power feature eliminates the need for separate power sources for each device, simplifying installation and reducing clutter.

Power over Ethernet (PoE)

The 30 Watt power feature also supports Power over Ethernet (PoE) functionality. PoE allows devices to receive power through the Ethernet cable, eliminating the need for additional power cables or outlets. This simplifies the deployment of devices in areas where power sources may be limited or difficult to access. PoE is commonly used for VoIP phones, wireless access points, and IP cameras, providing a convenient and cost-effective solution.

Flexibility in Device Placement

By leveraging the PoE capability of the Cisco ISR1100-6G Router, businesses gain flexibility in device placement. Devices can be installed in locations that are optimal for network coverage or surveillance purposes, without being restricted by the availability of power outlets. This flexibility allows businesses to design their network infrastructure more effectively and ensures that devices are positioned for maximum performance and coverage.

Reduced Power Consumption

The 30 Watt power feature also contributes to energy efficiency and reduced power consumption. By utilizing PoE, businesses can consolidate power sources and eliminate the need for individual power adapters for each device. This not only reduces electricity consumption but also lowers maintenance costs associated with managing multiple power sources.

Centralized Power Management

The Cisco ISR1100-6G Router's power feature enables centralized power management for connected devices. Administrators can monitor and control the power usage of each device through the router's management interface. This centralized approach simplifies power management tasks and allows businesses to optimize energy consumption based on specific requirements or schedules.

Future-Proofing

The 30 Watt power feature ensures that the Cisco ISR1100-6G Router is future-proofed for emerging technologies and devices that may have increased power requirements. As technology continues to advance, new devices with higher power demands may become available. The router's power capability allows businesses to accommodate these devices without the need for immediate infrastructure upgrades or replacements.

SFP Ports

The Cisco ISR1100-6G Router is equipped with 1 SFP (Small Form-Factor Pluggable) port, providing users with additional connectivity options and flexibility. The SFP port offers numerous benefits and is essential for businesses that require high-performance networking solutions.

Flexible Connectivity

The SFP port on the Cisco ISR1100-6G Router offers flexible connectivity options, allowing businesses to adapt their network infrastructure to specific requirements. SFP modules can support various types of connectivity, including fiber optic or copper connections, providing businesses with the flexibility to choose the most suitable medium for their networking needs. This flexibility is particularly beneficial in environments where long-distance connections or high-speed data transfer is required.

Extended Reach

The use of fiber optic SFP modules in the SFP port enables extended reach capabilities. Fiber optic cables can transmit data over longer distances compared to traditional copper cables, making them ideal for connecting remote locations or interconnecting buildings within a campus. The extended reach provided by the SFP port allows businesses to expand their network infrastructure without compromising on performance or reliability.

Network Expansion

The SFP port also facilitates network expansion by providing a scalable connectivity solution. As businesses grow, they may need to add new devices or connect remote locations to their network. The SFP port allows for seamless integration of additional networking equipment, such as switches or routers, ensuring that businesses can easily expand their network infrastructure without significant disruptions.

High-Speed Data Transfer

SFP modules support high-speed data transfer rates, making them suitable for bandwidth-intensive applications and data-intensive tasks. Whether it's transmitting large files, streaming high-definition media, or running real-time applications, the SFP port on the Cisco ISR1100-6G Router can handle the demands of modern networking requirements. This ensures that businesses can maintain a high level of performance and productivity without compromising on data transfer speeds.

Interoperability

SFP modules are designed to comply with industry standards, ensuring interoperability with a wide range of networking devices. This allows businesses to easily integrate the Cisco ISR1100-6G Router into their existing network infrastructure without compatibility concerns. The SFP port provides businesses with the flexibility to choose the most suitable SFP module for their specific networking needs, whether it's single-mode or multi-mode fiber optics or different data transmission rates.

Future-Proofing

The SFP port future-proofs the Cisco ISR1100-6G Router by offering compatibility with emerging technologies and networking standards. As technology evolves, new SFP modules may become available with higher data transfer rates or advanced features. The router's SFP port ensures that businesses can take advantage of these advancements without the need for immediate hardware upgrades, providing a cost-effective and scalable solution for their networking requirements.

In conclusion, the Cisco ISR1100-6G Router's ports play a crucial role in delivering enhanced connectivity options, performance, and flexibility for businesses. The 6 ports provide increased flexibility, enhanced performance, and the ability to handle high volumes of network traffic. The 4 Ethernet ports offer high-speed data transfer, secure connections, and compatibility with various devices. The 30 Watt power feature powers multiple devices, supports PoE functionality, and enables centralized power management. The 1 SFP port provides flexible connectivity options, extended reach capabilities, and scalability for network expansion. Overall, the Cisco ISR1100-6G Router's port features ensure reliable and efficient networking solutions for businesses of all sizes.
