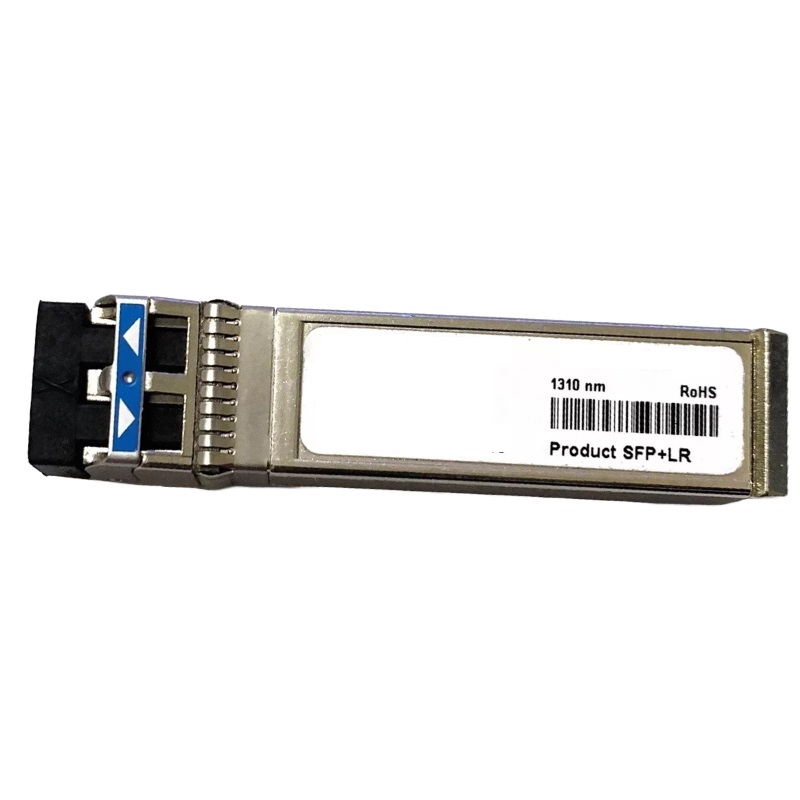

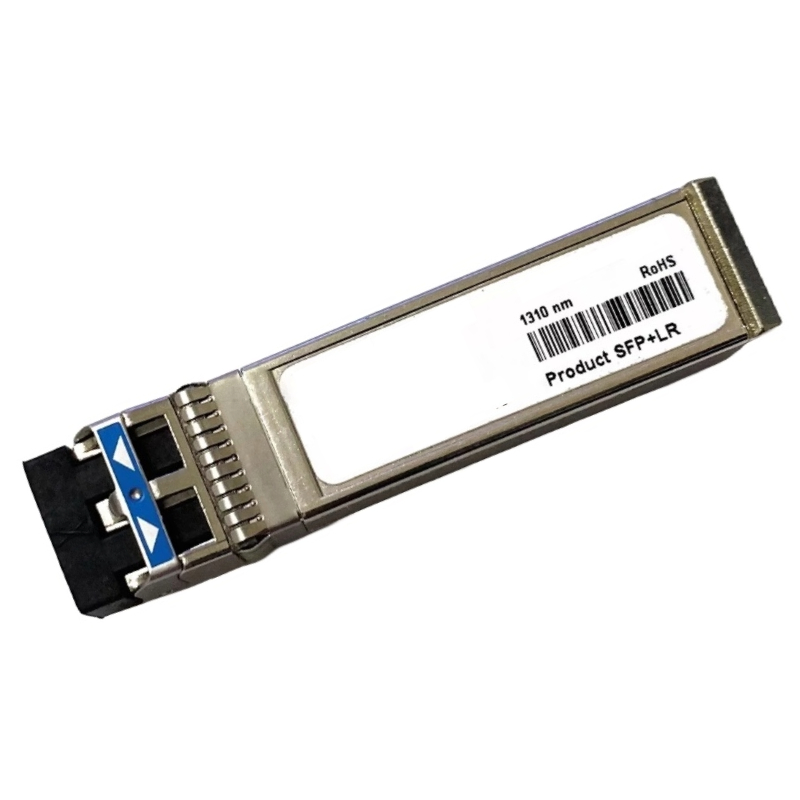

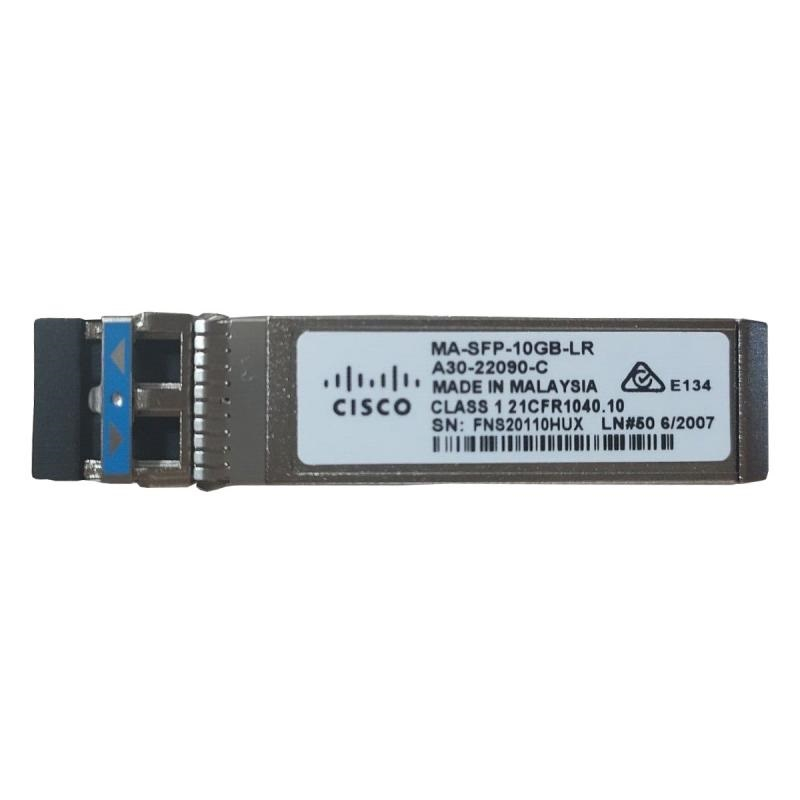

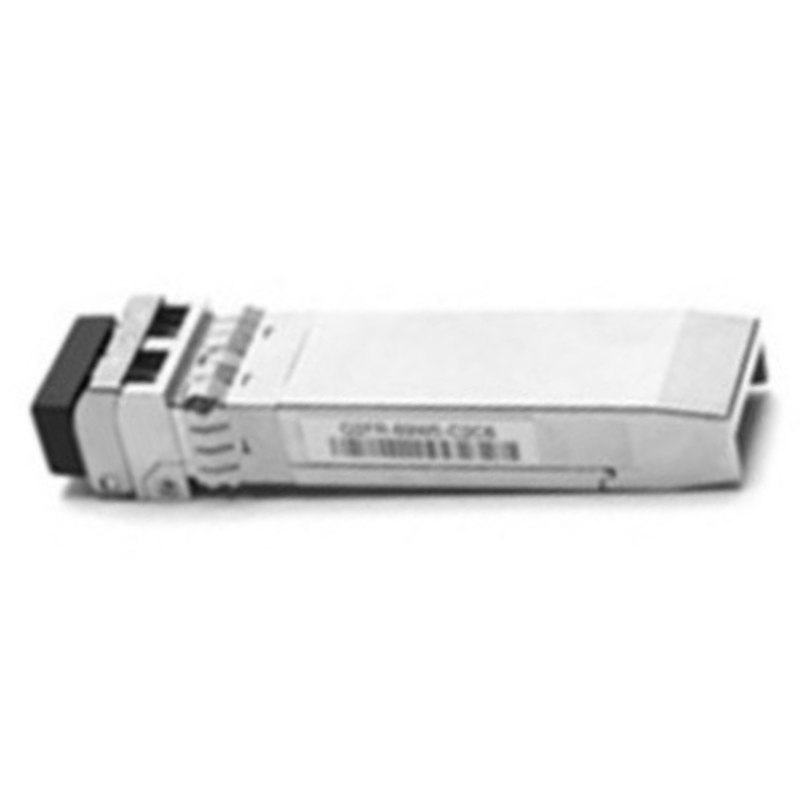

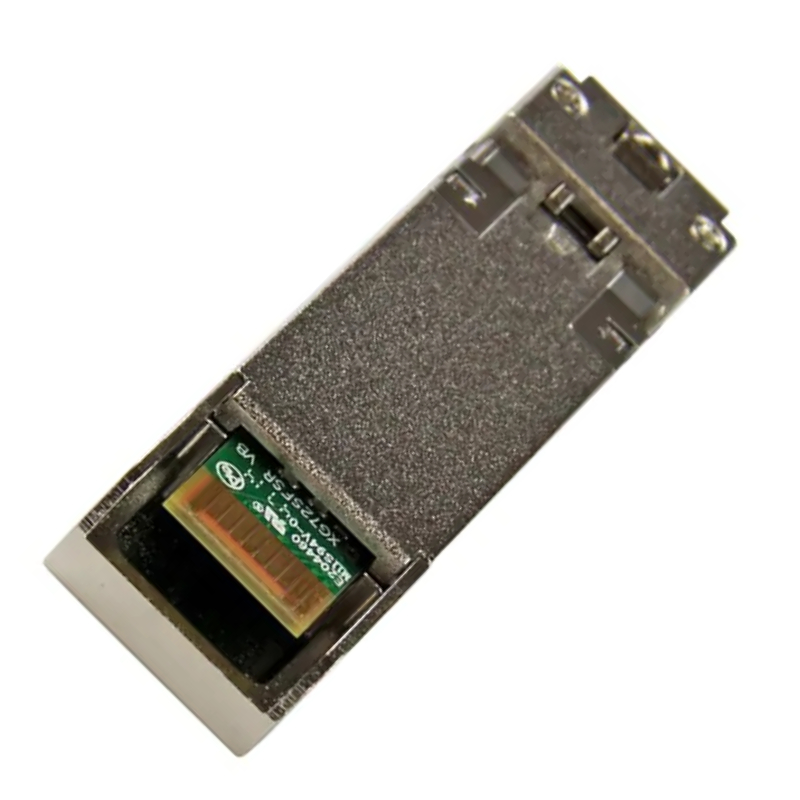

MA-SFP-10GB-LR Cisco Meraki 10 Gigabit Transceiver Module

Cisco MA-SFP-10GB-LR Meraki 10G Transceiver Module Overview

High-Performance Networking Solution for Enterprise Environments

The Cisco MA-SFP-10GB-LR Meraki transceiver module is engineered to deliver reliable, high-speed optical connectivity for modern enterprise networks. Designed to support long-range 10 Gigabit Ethernet communication, it ensures stable performance across demanding infrastructure setups.

Key Manufacturer Details and Product Identification

• Brand: Cisco
• Model / Part Number: MA-SFP-10GB-LR
• Category: Optical Transceiver Module
• Speed Class: 10 Gigabit Ethernet

Core Technical Features of Cisco MA-SFP-10GB-LR

Advanced Transmission Capabilities

This SFP+ module supports high-speed data transmission with optimized optical performance, making it suitable for backbone networking, data centers, and enterprise switching environments.

Performance Specifications

• Device Type: SFP+ pluggable transceiver unit
• Connectivity Method: Wired optical fiber connection
• Data Rate: Up to 10 Gbps throughput
• Supported Protocol: 10 Gigabit Ethernet standard

Form Factor and Installation Design

The compact plug-in module design allows seamless installation into compatible Cisco networking hardware, enabling quick upgrades and minimal downtime during deployment.

Connectivity and Interface Configuration

Network Interface Specifications

Built to ensure smooth integration within high-speed networks, the module supports a dedicated Ethernet interface optimized for long-distance data communication.

Interface Breakdown

• 1 × 10GBASE-LRM Ethernet port

Transmission Technology

Utilizing 10GBASE-LRM cabling standards, the module enhances signal stability and maintains consistent data flow across extended network distances.

Usage Scenarios and Application Areas

Ideal Deployment Environments

• Enterprise core networking infrastructure
• Data center switching systems
• High-speed server connectivity setups
• Cloud computing network expansion

Operational Advantages

This transceiver module is optimized for environments requiring high bandwidth, low latency, and dependable optical signal transmission across complex network architectures.

Efficiency and Reliability Benefits

• Enhanced network scalability
• Stable long-distance data transmission
• Reduced signal degradation
• Plug-and-play compatibility with supported Cisco hardware

Design and Integration Highlights

Compact and Efficient Build

The lightweight and space-saving construction ensures efficient utilization of network equipment slots without compromising performance or reliability.

Compatibility Considerations

• Designed for Cisco Meraki-compatible networking devices
• Supports standard SFP+ slots in enterprise switches
• Backward integration with optical network infrastructures

Cisco MA-SFP-10GB-LR Meraki 10 Gigabit SFP+ Transceiver

The Cisco MA-SFP-10GB-LR Meraki 10 Gigabit Transceiver Module is engineered to deliver high-speed optical connectivity for enterprise-grade switching and routing environments. Designed to operate seamlessly within Cisco Meraki ecosystems, this long-range optical transceiver supports 10 Gigabit Ethernet links across single-mode fiber infrastructure, enabling reliable data transmission over extended distances while maintaining low latency and high signal integrity. It is widely adopted in data centers, enterprise campus networks, cloud infrastructure deployments, and service provider backbones where scalability and performance are critical requirements.

This module belongs to the SFP+ (Small Form-Factor Pluggable Plus) family, optimized for 10GbE networking standards. The MA-SFP-10GB-LR variant is specifically built for long-range transmission, typically reaching up to 10 kilometers over single-mode fiber. Its integration into Cisco Meraki environments ensures plug-and-play compatibility, centralized cloud management visibility, and simplified network provisioning.

Core Architecture and Optical Design

Long Range Optical Transmission Technology

The Cisco MA-SFP-10GB-LR utilizes advanced laser-based optical transmission technology operating at a wavelength of 1310 nanometers. This wavelength is ideal for long-distance communication over single-mode fiber, minimizing attenuation and dispersion over extended spans. The module is designed to maintain consistent signal quality even in dense enterprise network environments where multiple optical links operate simultaneously.

High-Speed Signal Processing Capability

Supporting a data rate of 10 Gigabits per second, the transceiver ensures high-throughput communication suitable for bandwidth-intensive applications such as virtualization, cloud computing, storage area networks, and real-time analytics. The internal signal conditioning circuitry helps reduce jitter and maintains low bit error rates, ensuring stable data flow even under high network loads.

Digital Diagnostic Monitoring Integration

The module incorporates Digital Diagnostic Monitoring (DDM) functionality, enabling real-time tracking of optical parameters such as temperature, laser bias current, transmitted optical power, and received optical power. This allows network administrators to proactively monitor link health and identify potential issues before they impact network performance.

Compatibility with Cisco Meraki Ecosystem

Seamless Integration with Meraki Switches

The MA-SFP-10GB-LR is designed for full compatibility with Cisco Meraki switches that support SFP+ interfaces. This ensures seamless plug-in functionality without requiring manual configuration. Once inserted into a compatible Meraki switch, the module is automatically recognized and becomes available for network configuration through the Meraki cloud dashboard.

Cloud-Managed Networking Advantages

Within the Meraki ecosystem, this transceiver benefits from centralized cloud-based management, allowing administrators to monitor link performance, view real-time statistics, and troubleshoot connectivity issues remotely. This eliminates the need for complex on-site diagnostics and enhances operational efficiency in distributed network environments.

Automatic Firmware and Configuration Synchronization

Cisco Meraki devices ensure that connected modules operate within the correct firmware ecosystem. The transceiver benefits from automatic compatibility validation, reducing deployment errors and ensuring consistent performance across large-scale deployments.

Performance Characteristics and Operational Efficiency

Low Latency Data Transmission

One of the key advantages of the MA-SFP-10GB-LR is its ability to deliver ultra-low latency communication. This is particularly important in financial trading systems, real-time analytics platforms, and enterprise communication networks where even microsecond delays can impact performance outcomes.

Stable Signal Integrity Over Distance

The module is optimized for long-distance fiber runs, maintaining strong signal integrity over distances up to 10 kilometers. This makes it suitable for inter-building connectivity, campus-wide networks, and metro-area network extensions where copper-based solutions are insufficient.

Power Efficiency Optimization

Designed with energy-efficient components, the transceiver minimizes power consumption while maintaining high-performance output. This contributes to reduced operational costs in large-scale deployments where hundreds or thousands of modules may be active simultaneously.

Network Infrastructure Applications

Enterprise Data Center Connectivity

In data center environments, the Cisco MA-SFP-10GB-LR is commonly used to interconnect top-of-rack switches, aggregation layers, and core switching infrastructure. Its high-speed capabilities ensure that large volumes of data can move efficiently between servers, storage systems, and application clusters.

Campus and Metropolitan Network Links

Organizations with multi-building campuses benefit from the module’s long-range capabilities, enabling fiber links between geographically separated locations without signal degradation. This is particularly valuable for universities, hospitals, government institutions, and corporate campuses.

Cloud Infrastructure and Hybrid Deployments

The transceiver plays a critical role in hybrid cloud architectures where on-premises infrastructure must connect to remote data centers or cloud gateways. Its reliability ensures uninterrupted data flow between private and public cloud environments.

Fiber Optic Standards and Technical Specifications

Single-Mode Fiber Optimization

The MA-SFP-10GB-LR is optimized for single-mode fiber (SMF) infrastructure, which is designed for long-distance optical communication. Single-mode fiber reduces modal dispersion, allowing light signals to travel greater distances with minimal loss.

IEEE Compliance and Industry Standards

This module complies with IEEE 802.3ae 10GBASE-LR standards, ensuring interoperability with a wide range of networking equipment that adheres to the same Ethernet specifications. This makes it suitable for heterogeneous network environments where multi-vendor compatibility is required.

Hot-Swappable Design

The transceiver supports hot-swappable functionality, allowing it to be installed or replaced without shutting down the host device. This feature is essential for maintaining uptime in mission-critical network environments where service continuity is required at all times.
