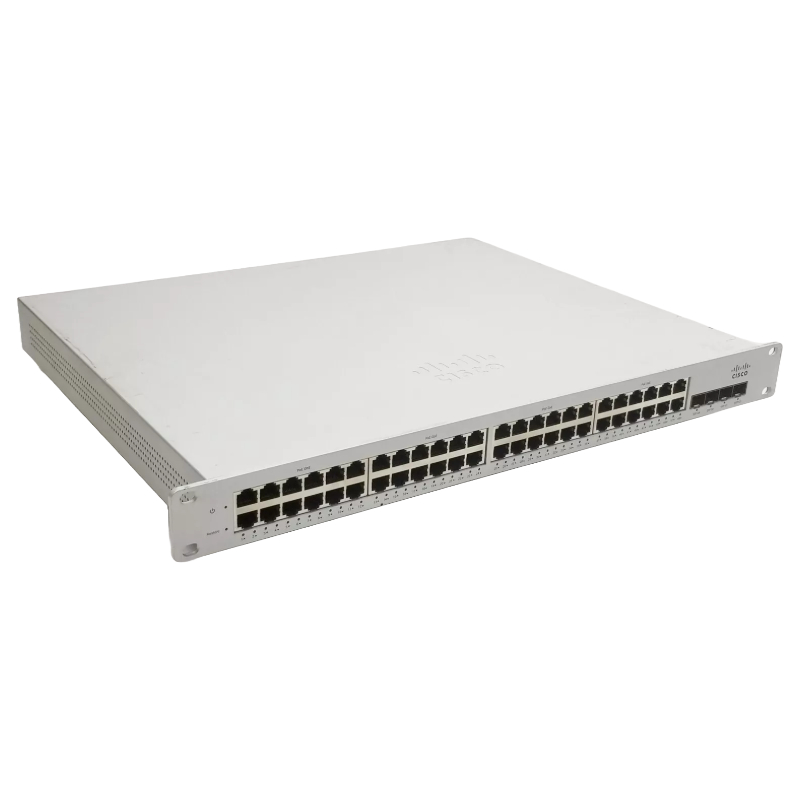

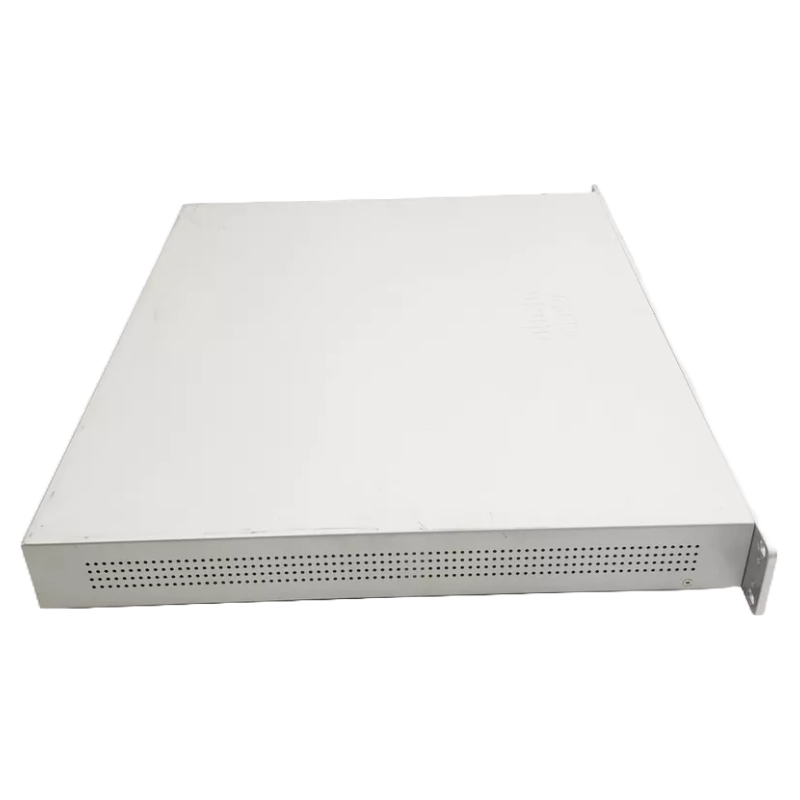

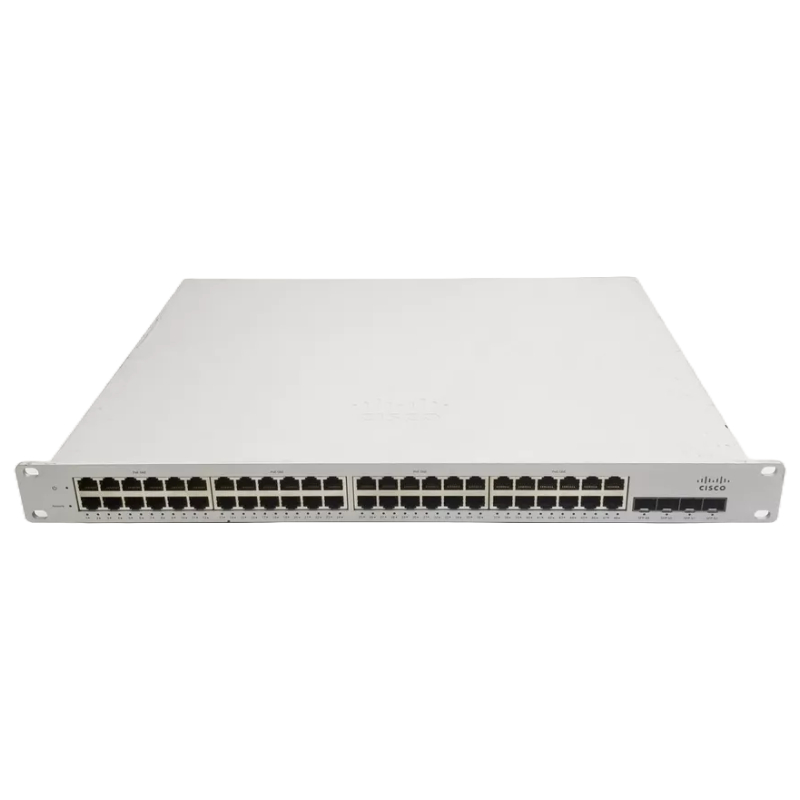

Computer & Network CablesCisco Meraki MS350-48LP-HW 48 Ports Managed Switch
MS350-48LP-HW
Hover on image to enlarge
Brief Overview of MS350-48LP-HW
Meraki MS350-48LP-HW Cisco 48 Ports Managed Switch. Factory-Sealed New in Original Box (FSB) with 6-Month Replacement Warranty
Our Advantages
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
Payment Options
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
Delivery
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Please sign in so that we can notify you about a reply
Same product also available in:
| SKU/MPN | Warranty | Price | Condition | You save |
|---|---|---|---|---|
| MS350-48LP-HW | Six-Month (180 Days) | $622.36 | Excellent Refurbished | You save: $430.75 (41%) |
| MS350-48LP-HW | Six-Month (180 Days) | $5,341.55 | Factory-Sealed New Retail in Original Box (FSB) | You save: $6,005.97 (53%) |
Description
Meraki MS350-48LP-HW Switch Specifications
The Meraki MS350-48LP-HW is a high-performance network switch designed to meet the demands of modern IT environments. This versatile switch combines advanced features with exceptional management capabilities, making it ideal for enterprise networks and data centers.
Detailed Technical Specifications
General Information
- Part Number: MS350-48LP-HW
- Brand: Meraki
- Product Type: Ethernet Switch
Port and Connectivity Details
- Network Ports: 48 Gigabit Ethernet RJ-45 ports with auto-negotiation and auto-MDI/MDIX.
- Uplink Ports: 4 SFP+ 10G uplink ports for high-speed data transmission.
- Stacking Ports: 2 ports for stacking multiple switches together.
Performance and Switching Capacity
- Switching Capacity: 176 Gbps, ensuring high-speed data handling.
- Stacking Bandwidth: 160 Gbps across dual interfaces for efficient stacking performance.
- Forwarding Rate: 127.98 million packets per second (mpps).
- Available PoE+ Power: 370 watts to power connected devices.
- Power Consumption: Ranges from 63 watts at idle to 478 watts under full load.
- Power Supply: Hot-swappable, with an optional redundant power supply featuring 2 x 640W PSUs.
Included Components
- 1 x Power Supply (MA-PWR-640WAC)
- Mounting screw kit
- 1 x Stacking Cable (0.5m)
- 2 x Pre-installed Fans
Physical Dimensions
- Dimensions: 1.74 inches x 19.08 inches x 20.4 inches (4.44 cm x 48.46 cm x 51.81 cm)
- Weight: 13.82 lbs (6.27 kg)
Management and Configuration
Management Features
- Cloud Management: Managed via Meraki’s cloud-based platform for ease of use and remote access.
- Integration: Seamlessly integrates with Meraki's wireless products and comprehensive IT solutions.
- Zero-Touch Provisioning: Facilitates straightforward deployment without manual configuration.
- Usage Statistics: Provides detailed historical statistics per-port and per-client.
- Protocol Support: Includes DHCP, client, and hostname fingerprinting, as well as SNMPd and SYSLOG for network management integration.
- Firmware Upgrades: Automatic updates with scheduling options for maintaining current software.
Layer 3 Routing and Switching
- Routing Protocols: Supports static routing and OSFPv2.
- Multicast Routing: Efficient handling of multicast traffic.
- High Availability: Features Warm Spare (VRRP) for network redundancy.
- DHCP: Relay and server functionalities for network management.
Remote Diagnostics and Alerts
- Notifications: Email, SMS, and mobile push alerts for critical updates.
- Cable Testing: Detects link failures and performs cable diagnostics.
- Packet Capture: Live remote packet capture capabilities for troubleshooting.
- Network Discovery: Dynamic network discovery and topology mapping.
- Event Logs: Comprehensive event and configuration change logs with search functionality.
Additional Features
Power and Stacking
- Power Input: 100 - 240 VAC, 47-63 Hz for flexible power options.
- Stacking Capabilities: Supports physical stacking of up to 8 switches with 160 Gbps bandwidth. Virtual stacking allows management of thousands of ports as a single logical unit.
Mounting and Form Factor
- Mounting: 1U rack-mountable with included hardware. Front mounting options available for 2-post racks.
Switching Capabilities
- Quality of Service (QoS): 802.1p with 8 queues, 6 configurable for DSCP-to-CoS mapping.
- VLAN Support: 802.1Q VLAN and trunking for up to 4,094 VLANs.
- Spanning Tree Protocols: Supports 802.1w and 802.1D for Rapid and Traditional Spanning Tree.
- Storm Control: Broadcast storm control for network stability.
- Discovery Protocols: 802.1ab LLDP and Cisco Discovery Protocol (CDP) for network topology discovery.
- Link Aggregation: 802.3ad link aggregation with up to 8 ports per aggregate. Supports multichassis aggregates on stacked switches.
- Port Mirroring: For monitoring and diagnostics.
- IGMP Snooping: Multicast filtering to optimize network performance.
- MAC Address Table: Supports up to 32,000 entries for efficient network management.
Environmental and Regulatory Compliance
- Operating Temperature: -5°C to 50°C for diverse environmental conditions.
- Humidity: 5% to 95% non-condensing for reliable operation.
- Fan Speed: Variable speed fans to manage cooling requirements.
- Certifications: CSA-US, FCC, IC, CE, RCM, and RoHS compliance for global usage and environmental standards.
Security Features
- Authentication: Integrated two-factor authentication and role-based access control (RBAC).
- Access Control: Enforces corporate-wide password policies and supports IEEE 802.1X RADIUS, MAB, and hybrid authentication.
- Port Security: Features sticky MAC, MAC whitelisting, and dynamic ARP inspection for enhanced security.
- STP Enhancements: BPDU guard, root guard, and loop guard for improved spanning tree protocol security.
- ACLs: IPv4 and IPv6 access control lists for traffic management and security.
Mean Time Between Failures (MTBF)
- MTBF Rating: 536,000 hours for long-term reliability and durability.
Ports
The Cisco MS350-48LP-HW Managed Switch is equipped with an impressive 48 ports, making it an ideal choice for businesses that require a high-density switch to handle their network traffic. With this switch, you can connect a large number of devices, such as computers, servers, printers, and IP phones, without the need for additional switches or hubs.
Increased Connectivity
One of the main benefits of having 48 ports on the Cisco MS350-48LP-HW Managed Switch is the increased connectivity it provides. With so many ports available, you can easily connect all your devices to the network, ensuring smooth and uninterrupted communication within your organization. This is particularly important for businesses with a large number of employees or multiple departments that heavily rely on network connectivity.
Scalability
The 48-port configuration of this managed switch also offers scalability for future growth. As your business expands and more devices need to be connected to the network, you won't have to worry about running out of ports. The Cisco MS350-48LP-HW Managed Switch allows you to easily add new devices without having to invest in additional networking equipment.
Flexibility
Having 48 ports gives you the flexibility to design your network infrastructure according to your specific requirements. You can connect devices in different departments or areas of your organization without any limitations. This flexibility allows for efficient network management and ensures that each device can communicate effectively with others.
Power over Ethernet (PoE)
In addition to the 48 ports, the Cisco MS350-48LP-HW Managed Switch also supports Power over Ethernet (PoE) technology. This feature enables the switch to deliver both data and electrical power through the Ethernet cables. It eliminates the need for separate power cables and adapters for devices such as IP phones, wireless access points, and IP cameras.
Cost-Effective Solution
PoE technology provided by the Cisco MS350-48LP-HW Managed Switch offers a cost-effective solution for businesses. By using PoE, you can save on installation costs as you won't need to hire an electrician to install power outlets near each device. Additionally, it reduces the clutter of cables and power adapters, resulting in a cleaner and more organized workspace.
Reliability
With PoE, the Cisco MS350-48LP-HW Managed Switch ensures reliable power delivery to connected devices. It eliminates the risk of power outages or disruptions affecting critical devices. This is particularly important for devices that require continuous power supply, such as IP phones or security cameras. With PoE, you can be confident that your devices will stay powered on without any interruptions.
Intelligent Power Management
The Cisco MS350-48LP-HW Managed Switch comes with intelligent power management features that allow you to prioritize power allocation to different devices. This ensures that critical devices receive sufficient power while less important devices are given lower priority. You can configure power settings based on your specific needs, optimizing the efficiency and performance of your network.
Remote Power Cycle
Another advantage of the Cisco MS350-48LP-HW Managed Switch's PoE capability is the ability to remotely power cycle devices. This feature allows you to reset or troubleshoot devices without physically accessing them. By remotely power cycling devices, you can save time and effort, especially in large network deployments.
In conclusion, the Cisco MS350-48LP-HW Managed Switch's 48 ports offer increased connectivity, scalability, and flexibility for businesses. The Power over Ethernet (PoE) capability further enhances its value by providing a cost-effective and reliable solution for powering devices. With intelligent power management and remote power cycle features, this switch ensures efficient network management and easy troubleshooting. Whether you have a growing business or need to optimize your existing network infrastructure, the Cisco MS350-48LP-HW Managed Switch with its impressive 48 ports is an excellent choice to meet your networking needs.
Features
Product/Item Condition:
Factory-Sealed New Retail in Original Box (FSB)
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
