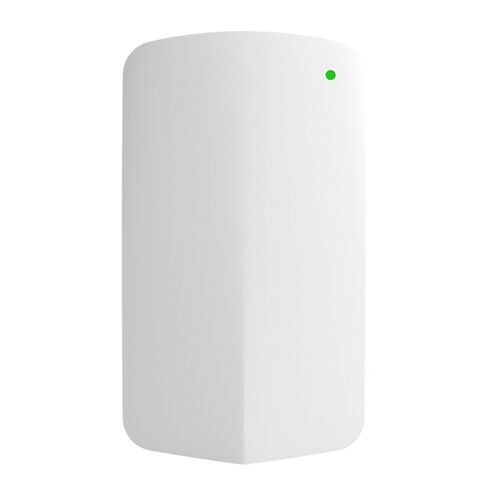

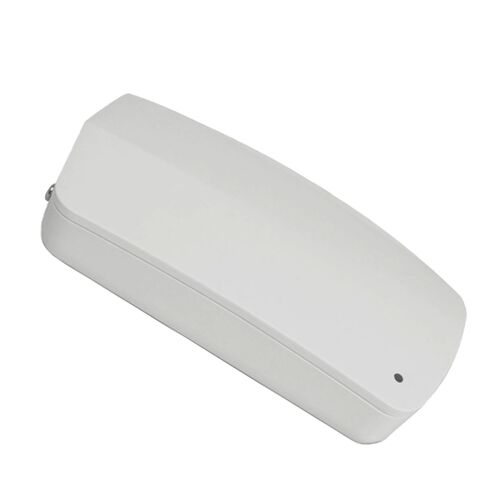

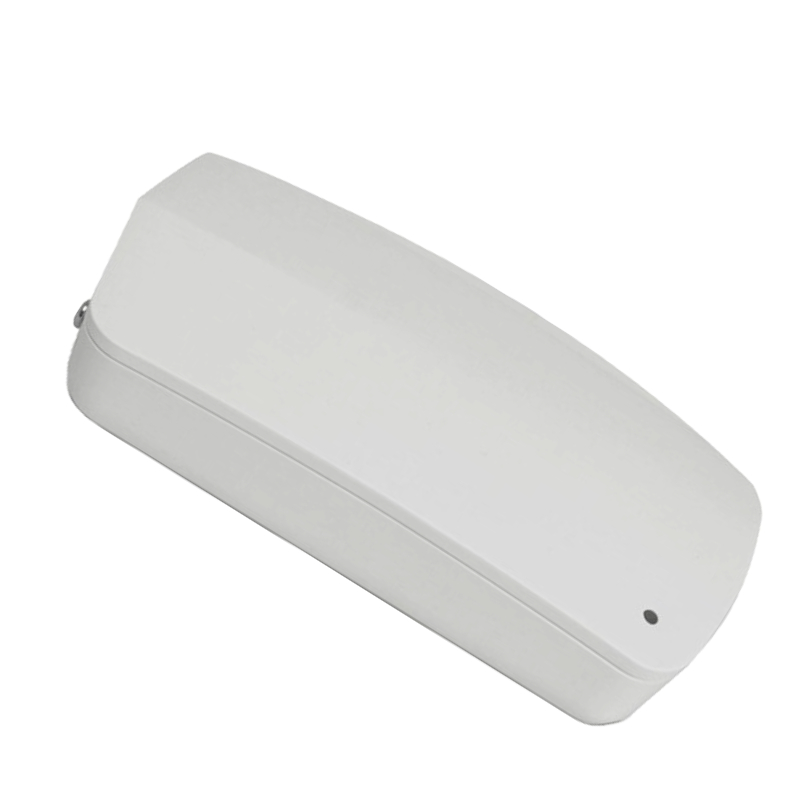

Cisco MT10-HW Meraki Mt10 Temp/Humidity Sensor

Meraki MT10-HW Indoor Temperature and Humidity Sensor

Product Overview

• Model: MT10-HW
• Brand: Meraki
• Type: Indoor Temperature and Humidity Sensor

Key Features

Deployment and Management

• Easy Setup: Simple to install and configure, with seamless scalability.
• Cloud Integration: Connects automatically with MR/MV devices through the Meraki cloud platform.
• Cloud-Based Management: Eliminates the need for on-premises servers via the Meraki cloud dashboard.
• Mobile App: Utilize the modern Meraki mobile app for real-time monitoring and troubleshooting.
• Flexible Alerts: Receive notifications via email, SMS, and push alerts.
• Bluetooth Connectivity: Utilizes Bluetooth Low Energy (BLE) for wireless communication.

Security and Power

• Trust Anchor Module (TAm): Provides secure device authentication and encrypted communication.
• Battery Life: Operates on two user-replaceable AA batteries with a lifespan of up to five years.
• Power Adapter Option: Optional AC-to-USB-C power adapter available for flexible power solutions.

Advanced Features

• Telemetry Data: Offers detailed data for informed decision-making.
• APIs and Webhooks: Supports third-party integration for alerting and data analysis.
• Ecosystem Community: Benefit from a broad range of apps developed by the Meraki ecosystem partners.

Sensor Specifications

Temperature and Humidity

• Temperature Range: 0°C to 55°C (32°F to 131°F)
• Temperature Accuracy: ±0.3°C
• Humidity Range: 0% to 95% relative humidity
• Humidity Accuracy: ±2.5% relative humidity

Data Logging and Reporting

• Data Sampling: Polls every two minutes.
• Reporting: Sends data to the gateway every 20 minutes or immediately if thresholds are exceeded.
• Onboard Storage: Holds up to 4,000 data points, equivalent to five days of data at the default sampling rate.
• Encryption: BLE messages are encrypted and authenticated using Cisco Trust Anchor technology.

Wireless and Power Specifications

Wireless Capabilities

• Bluetooth Version: IEEE 802.15.1 (Bluetooth 4.2 Low Energy BLE)
• Operating Frequency: 2.400–2.4835 GHz
• Compatibility: Works with second-generation MV smart cameras and Wi-Fi 6 MR access points.

Power Requirements

• Power Source: Two AA batteries or an optional external power adapter.
• Battery Life: Up to five years with AA batteries.
• Power Rating: 5V; 0.1A

Physical Characteristics

• Dimensions: 117.1 mm x 65.9 mm x 26.0 mm (Length x Width x Height)

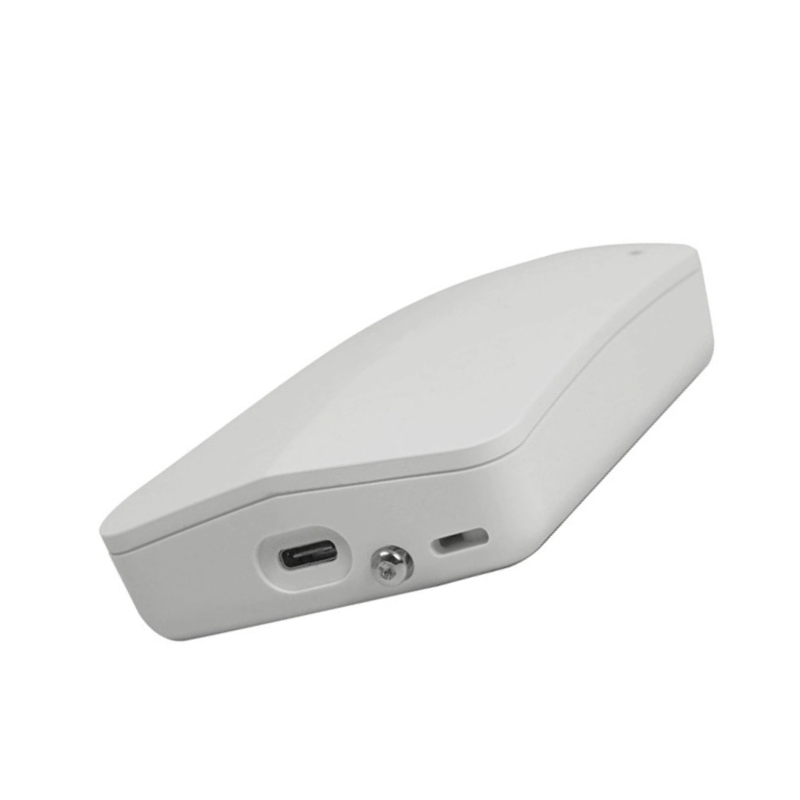

• Features: Includes a multicolor multifunction status LED, general purpose button, reset button, and USB-C port.

Name: Meraki MT10 - Temperature And Humidity Sensor

The Meraki MT10 is a state-of-the-art temperature and humidity sensor designed to provide accurate and reliable data for monitoring environmental conditions. With its advanced features and seamless integration with the Cisco Meraki platform, this sensor is the perfect solution for businesses and organizations that prioritize environmental monitoring.

Accurate Temperature and Humidity Measurements

One of the key benefits of the Meraki MT10 is its ability to provide highly accurate temperature and humidity measurements. Whether you need to monitor the climate in a server room, laboratory, warehouse, or any other environment, this sensor ensures that you have access to precise data at all times. By maintaining optimal temperature and humidity levels, you can protect your valuable equipment, ensure product quality, and create a comfortable working environment for your employees.

Temperature Monitoring

The MT10 sensor accurately measures temperature within a range of -40°C to +125°C (-40°F to +257°F). This wide temperature range allows it to be used in various settings, from extreme cold storage facilities to high-temperature manufacturing environments. With real-time temperature data at your fingertips, you can proactively address any potential issues before they escalate into major problems.

Humidity Monitoring

In addition to temperature monitoring, the MT10 sensor also measures humidity levels with accuracy. It provides readings within a range of 0% to 100% relative humidity, allowing you to identify and mitigate issues such as excessive moisture or dryness. By maintaining optimal humidity levels, you can prevent mold growth, protect sensitive equipment, and ensure the comfort and well-being of individuals in the monitored area.

Seamless Integration with Cisco Meraki Platform

The Meraki MT10 is designed to seamlessly integrate with the Cisco Meraki platform, providing a centralized and user-friendly interface for monitoring and managing multiple sensors across various locations. This integration allows you to have a comprehensive view of your entire sensor network, making it easier to identify patterns, set thresholds, and receive alerts for any anomalies.

Centralized Monitoring

With the Meraki MT10, you can monitor temperature and humidity data from multiple sensors in real-time, all from a single dashboard. This centralized monitoring capability saves time and effort by eliminating the need to log into individual devices or access separate systems. You can easily navigate through the platform, view historical data, and generate reports to gain valuable insights into your environmental conditions.

Threshold Alerts

To ensure timely response to critical situations, the Meraki MT10 allows you to set custom thresholds for temperature and humidity levels. If any of these thresholds are breached, you will receive instant notifications via email or SMS, enabling you to take immediate action. By proactively addressing issues such as equipment failure or potential mold growth, you can minimize downtime, reduce repair costs, and maintain a safe and healthy environment.

Dimensions: 3.5 inches x 2.1 inches x 1.1 inches

The compact dimensions of the Meraki MT10 make it a versatile solution that can be easily installed in various environments. With its small footprint of 3.5 inches in length, 2.1 inches in width, and 1.1 inches in height, this sensor can be discreetly placed in tight spaces or mounted on walls or ceilings without obstructing the surrounding area.

Flexible Installation

Whether you need to monitor temperature and humidity levels in a small office or a large warehouse, the compact size of the MT10 allows for flexible installation options. Its lightweight design ensures that it can be securely mounted on different surfaces using adhesive strips or screws. This versatility makes it easy to position the sensor in the most optimal location for accurate readings.

Discreet Placement

The discreet design of the MT10 sensor ensures that it seamlessly blends into any environment. Its sleek and unobtrusive appearance allows it to go unnoticed, preventing any interference with the aesthetics of your space. Whether you choose to mount it on a wall, place it on a shelf, or attach it to a ceiling, the MT10 will not detract from the overall visual appeal of your surroundings.

Weight: 0.2 lbs

With a weight of just 0.2 lbs, the Meraki MT10 is lightweight and portable, making it easy to handle and transport. This feature is particularly beneficial if you need to move the sensor between different areas or if you require a temporary monitoring solution for events or projects.

Portability

The lightweight nature of the MT10 sensor allows for effortless portability. Whether you need to relocate the sensor within your facility or take it on-the-go for temporary monitoring purposes, its compact size and light weight make it convenient to carry and transport. This flexibility ensures that you can easily adapt your monitoring setup to changing requirements without any hassle.

Easy Installation

The lightweight design of the MT10 also simplifies the installation process. You can quickly and easily mount the sensor using adhesive strips or screws, without the need for specialized tools or equipment. This user-friendly installation process ensures that you can set up your monitoring system in no time and start collecting data immediately.

Power Source: Battery

The Meraki MT10 is powered by batteries, eliminating the need for complicated wiring or access to electrical outlets. This feature provides flexibility in terms of sensor placement and allows for easy deployment in various environments.

Wire-Free Installation

By utilizing battery power, the MT10 sensor offers a wire-free installation experience. This eliminates the constraints posed by electrical wiring, allowing you to place the sensor in any location that requires temperature and humidity monitoring. Whether you need to monitor a remote area or a space without direct access to power, the MT10 can be deployed effortlessly.

Long Battery Life

The MT10 sensor is designed to have a long battery life, ensuring continuous monitoring without frequent battery replacements. The extended battery life reduces maintenance efforts and costs associated with replacing batteries regularly. This feature is particularly advantageous in environments where access to the sensors is limited or when deploying a large number of devices across multiple locations.

Connectivity: Wireless

The Meraki MT10 features wireless connectivity, allowing for easy and seamless integration into your existing network infrastructure. Wireless connectivity eliminates the need for physical connections and simplifies the deployment process, making it more efficient and cost-effective.

Ease of Deployment

Wireless connectivity enables quick and hassle-free deployment of the MT10 sensor. Without the need for complex wiring or Ethernet connections, you can easily add the sensor to your network and start collecting data. This simplicity of deployment saves time and effort, allowing you to scale your monitoring system efficiently.

Scalability

With wireless connectivity, you can effortlessly scale your monitoring system by adding additional MT10 sensors as needed. The flexibility provided by wireless technology allows for easy expansion without disrupting existing infrastructure or requiring extensive reconfiguration. This scalability ensures that your monitoring solution can grow alongside your business needs.

Cloud-Based Monitoring

The Meraki MT10 leverages cloud-based technology to provide a secure and accessible platform for monitoring temperature and humidity data. Cloud-based monitoring offers numerous benefits, including real-time data access, centralized management, and remote monitoring capabilities.

Real-Time Data Access

Cloud-based monitoring grants you instant access to real-time temperature and humidity data from any location with an internet connection. This accessibility enables you to monitor your environment remotely, allowing for quick response times and informed decision-making. Whether you are on-site or off-site, you can easily view the data and take necessary actions to ensure optimal conditions.

Centralized Management

The cloud-based platform for the MT10 sensor provides centralized management of all your devices, allowing you to easily oversee and control your entire monitoring system. From a single interface, you can configure settings, set thresholds, and receive alerts for multiple sensors across different locations. This centralized management simplifies administrative tasks and streamlines the monitoring process.

Remote Monitoring

Cloud-based monitoring enables remote monitoring of temperature and humidity levels, providing peace of mind even when you are away from your facility. With the ability to access data from anywhere, you can keep a close eye on your environment and receive instant notifications in case of any abnormalities or breaches in predefined thresholds. This remote monitoring capability ensures that you stay informed and can take immediate action, regardless of your physical location.

Features: Wireless Connectivity, Battery Powered, Cloud-Based Monitoring

The Meraki MT10 boasts several essential features that make it a reliable and efficient temperature and humidity sensor. With its wireless connectivity, battery power source, and cloud-based monitoring capabilities, this sensor offers a comprehensive solution for environmental monitoring needs.

Wireless Connectivity

The wireless connectivity feature of the Meraki MT10 allows for easy integration into your existing network infrastructure. By leveraging Wi-Fi technology, the sensor can seamlessly connect to your network without the need for physical connections or Ethernet cables. This wireless connectivity simplifies deployment, reduces installation costs, and enables flexible sensor placement.

Simplified Deployment

With wireless connectivity, deploying the MT10 sensor is a breeze. You can easily add the sensor to your network by connecting it to your Wi-Fi network without the need for complex wiring or Ethernet connections. This simplified deployment process saves time and effort, allowing you to set up your monitoring system quickly and efficiently.

Reduced Installation Costs

The absence of physical connections and Ethernet cables significantly reduces installation costs associated with traditional wired sensors. Without the need for specialized equipment or extensive cabling, you can deploy the MT10 sensor at a fraction of the cost. This cost efficiency makes it an ideal solution for businesses and organizations looking to implement a cost-effective environmental monitoring system.

Battery Powered

The battery power source of the Meraki MT10 provides flexibility and convenience in terms of sensor placement and deployment. With battery power, you are not limited by access to electrical outlets or the availability of power sources, allowing for easy installation in various environments.

Flexible Sensor Placement

Battery power eliminates the constraints posed by electrical wiring, providing flexibility in terms of sensor placement. You can position the MT10 sensor in any location that requires temperature and humidity monitoring without being restricted by the proximity of power sources. This flexibility ensures that you can deploy the sensor exactly where it is needed to gather accurate data.

Easy Deployment

Battery power simplifies the deployment process by eliminating the need for complex wiring or access to electrical outlets. You can quickly and easily mount the MT10 sensor using adhesive strips or screws without requiring specialized tools or equipment. This ease of deployment ensures that you can set up your monitoring system effortlessly, saving time and resources.

Cloud-Based Monitoring

The cloud-based monitoring feature of the Meraki MT10 provides a secure and accessible platform for managing temperature and humidity data. With cloud-based monitoring, you can access real-time data from any location with an internet connection, centralize management of multiple sensors, and benefit from remote monitoring capabilities.

Real-Time Data Access

Cloud-based monitoring grants you instant access to real-time temperature and humidity data from any location. Whether you are on-site or off-site, you can monitor your environment remotely and make informed decisions based on the data. This real-time data access ensures that you can respond promptly to any changes or issues, minimizing potential risks and maximizing efficiency.

Centralized Management

The cloud-based platform for the MT10 sensor provides centralized management of your entire monitoring system. From a single interface, you can configure settings, set thresholds, and receive alerts for multiple sensors across different locations. This centralized management simplifies administrative tasks and streamlines the monitoring process, saving time and effort.

Remote Monitoring

Cloud-based monitoring allows for remote monitoring of temperature and humidity levels, providing peace of mind even when you are away from your facility. With the ability to access data from anywhere, you can keep a close eye on your environment and receive instant notifications in case of any abnormalities or breaches in predefined thresholds. This remote monitoring capability ensures that you stay informed and can take immediate action, regardless of your physical location.

Sensors: Temperature, Humidity

The Meraki MT10 is equipped with temperature and humidity sensors, enabling accurate monitoring of environmental conditions. These sensors provide valuable insights into the climate of your surroundings, allowing you to maintain optimal conditions for equipment, products, and individuals.

Temperature Sensor

The temperature sensor in the MT10 accurately measures ambient temperature within a wide range. This feature is essential for environments where temperature control is critical, such as server rooms, laboratories, or manufacturing facilities.

Precise Temperature Measurements

The temperature sensor in the MT10 provides precise temperature measurements within a range of -40°C to +125°C (-40°F to +257°F). This wide temperature range ensures that you can monitor extreme cold or hot environments accurately. By having access to precise temperature data, you can proactively address any issues that may arise due to temperature variations, preventing equipment failures and maintaining product quality.

Temperature Threshold Alerts

The MT10 allows you to set custom temperature thresholds to receive alerts when the temperature exceeds or falls below the predefined limits. These threshold alerts enable timely responses to critical situations, helping you prevent potentially costly damages or interruptions. By receiving instant notifications, you can take immediate action and ensure that your environment remains within the desired temperature range.

Humidity Sensor

The humidity sensor in the MT10 accurately measures relative humidity levels, providing valuable information about moisture content in the air. This feature is crucial in environments where humidity control is essential, such as museums, data centers, or food storage facilities.

Precise Humidity Measurements

The humidity sensor in the MT10 provides precise measurements of relative humidity within a range of 0% to 100%. This wide humidity range ensures that you can monitor environments with varying moisture levels accurately. By having access to accurate humidity data, you can prevent issues such as mold growth, equipment corrosion, or product degradation caused by excessive or insufficient moisture.

Humidity Threshold Alerts

Similar to the temperature sensor, the MT10 allows you to set custom humidity thresholds to receive alerts when the humidity exceeds or falls below the predefined limits. These threshold alerts enable proactive actions to maintain optimal humidity levels, preventing potential damages or quality issues. By receiving instant notifications, you can adapt your environment accordingly and ensure that your surroundings remain within the desired humidity range.

In conclusion, the Cisco Meraki MT10-HW Temperature and Humidity Sensor offers a wide array of features that cater to the diverse needs of businesses and organizations. With its accurate temperature and humidity measurements, wireless connectivity, battery power source, cloud-based monitoring capabilities, and temperature and humidity sensors, this sensor ensures that you have access to reliable data for efficient environmental monitoring. By leveraging the benefits of the Meraki MT10, you can protect your valuable assets, improve productivity, and create a safe and comfortable environment for your employees and customers.
