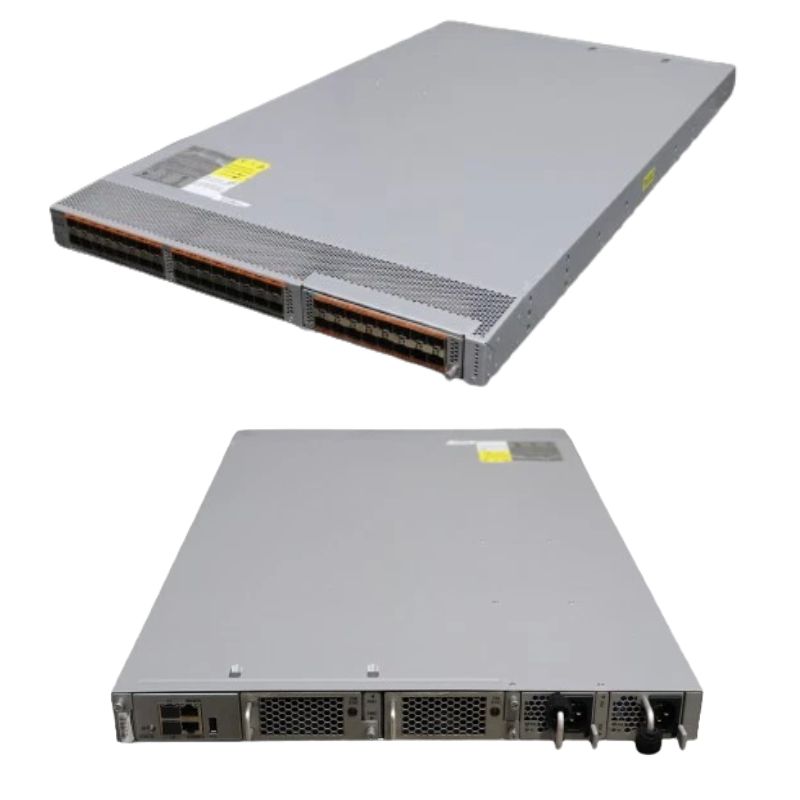

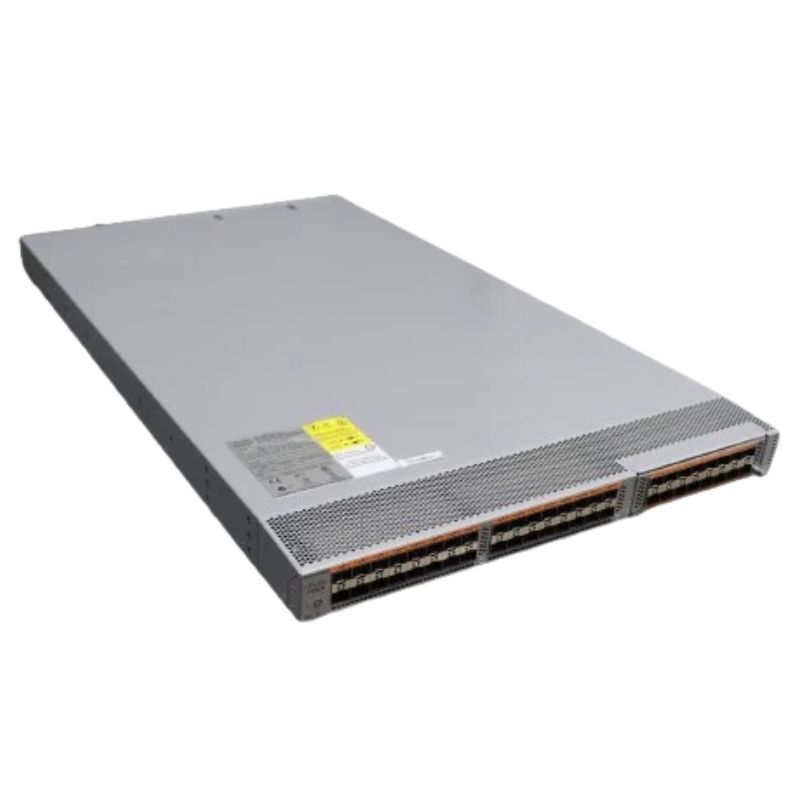

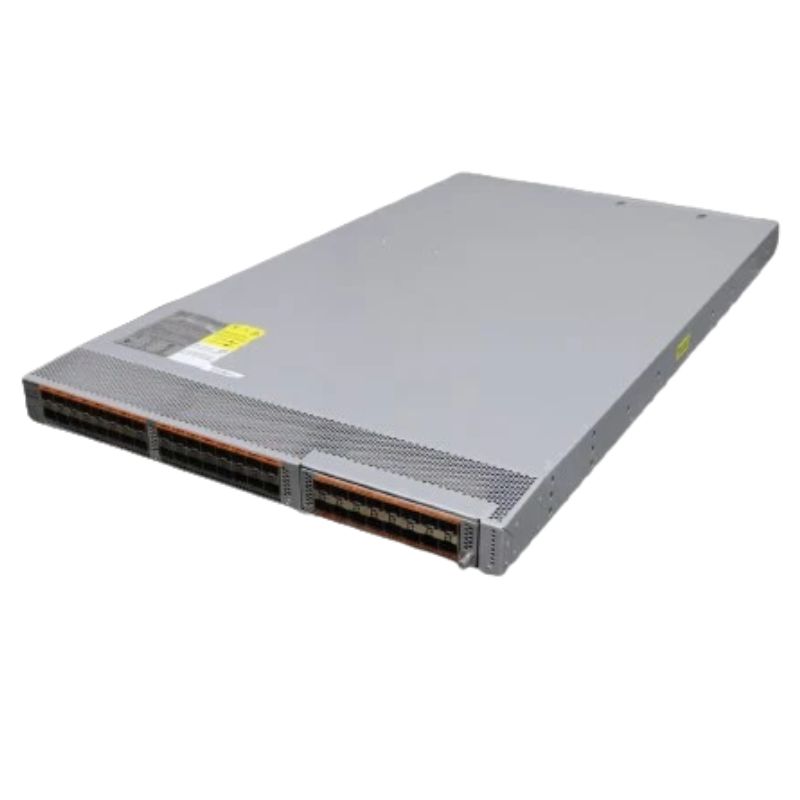

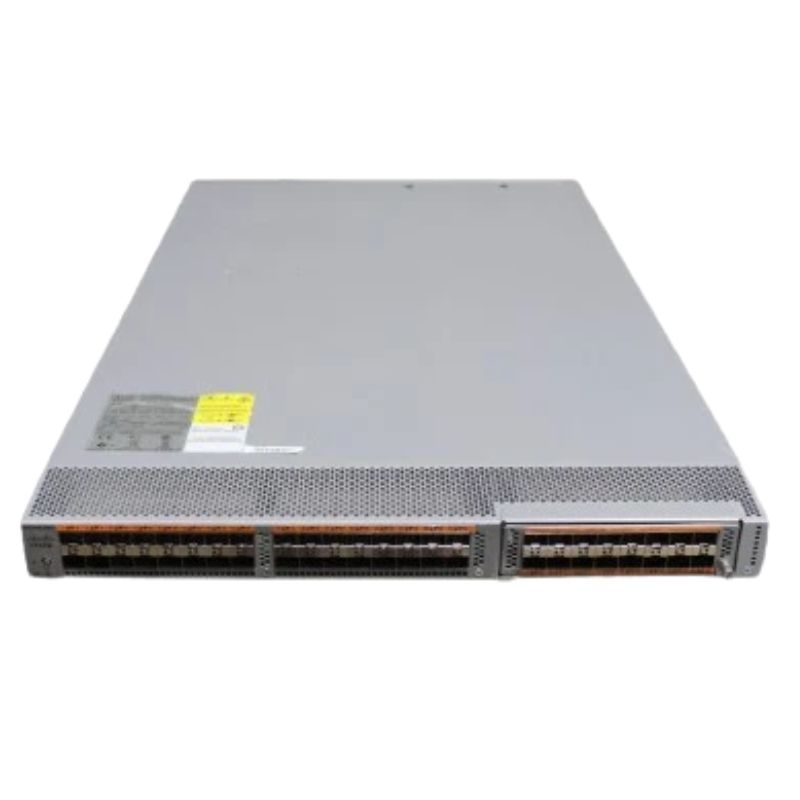

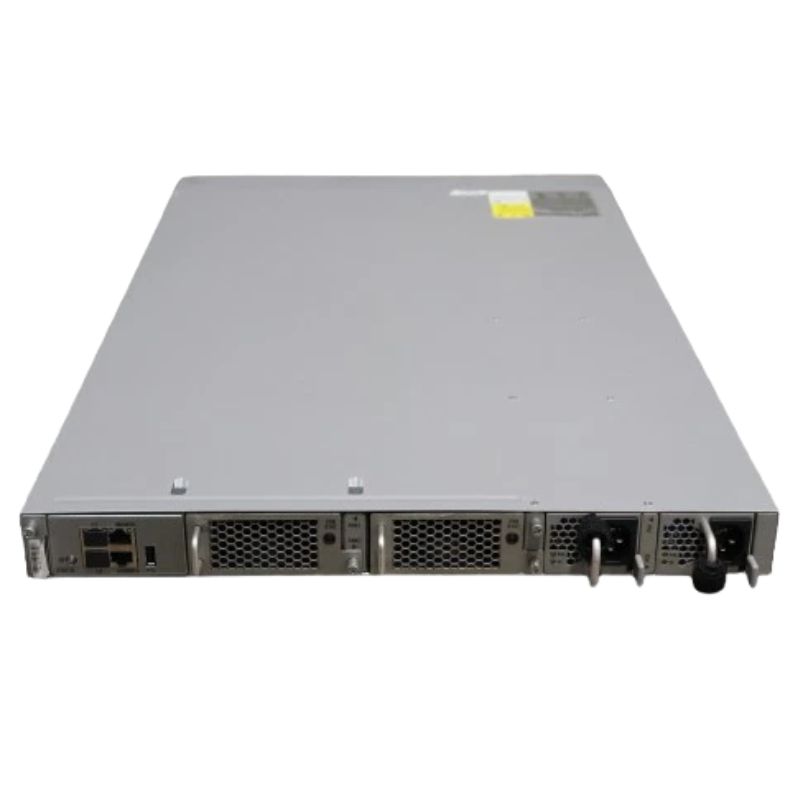

Cisco N5K-C5548UP-FA 32 Ports Managed Switch

Overview of Cisco N5K-C5548UP-FA

Product Details

• Manufacturer: Cisco
• Model Number: N5K-C5548UP-FA
• Type: 32-Port Networking Switch

Performance Metrics

Port Specifications

• Total Ports: 32
• Ethernet Technology: 10 Gigabit Ethernet
• Expansion Slots: 33
• Slot Type: SFP+
• Number of SFP+ Slots: 32

Layer 3 Performance

• Cisco Nexus 5548P & 5548UP: Layer 2 forwarding at 960 Gbps or 714.24 mpps; Layer 3 up to 160 Gbps or 240 mpps
• Cisco Nexus 5596UP & 5596T: Layer 2 forwarding at 1920 Gbps or 1428 mpps; Layer 3 up to 160 Gbps or 240 mpps

MAC Address Table

• Entries: 32,000

Switching and Interfaces

Interface and Port Details

• Modular Design: Yes
• Management Port: Yes
• USB Ports: Yes
• Ethernet Ports: 32 x 10 Gigabit Ethernet Expansion Slots

Additional Interface Options

• Cisco Nexus 5548P: 32 fixed ports for 1 and 10 Gigabit Ethernet and FCoE
• Cisco Nexus 5548UP: 32 fixed ports configurable for 1 and 10 Gigabit Ethernet, FCoE, or native Fibre Channel
• Cisco Nexus 5596UP: 48 fixed ports, configurable for Ethernet, FCoE, or Fibre Channel
• Cisco Nexus 5596T: 32 fixed ports for Ethernet and 16 SFP+ fixed ports

Expansion Modules

• 16-port 1 and 10 Gigabit Ethernet and FCoE module
• 8-port Fibre Channel and 8-port Ethernet and FCoE module
• Unified port module with 16 configurable ports
• 4-port QSFP expansion module
• 12-port 10G BASE-T module (Cisco Nexus 5596T only)
• Layer 3 module (specific models)
• Layer 3 daughter card (specific models)
• Cisco Nexus 2000 Series extensions

Layer 2 Capabilities

• VLAN Support: Up to 4096 VLANs with IEEE 802.1Q encapsulation
• Spanning Tree Protocols: Rapid Per-VLAN Spanning Tree Plus (PVRST+), Multiple Spanning Tree Protocol (MSTP)
• EtherChannel: Up to 16 ports
• vPC Technology: Enhanced vPC for Nexus 5000 and 2000 Series
• Link Aggregation Control Protocol (LACP): IEEE 802.3ad
• Jumbo Frames: Supported up to 9216 bytes
• Storm Control: Unicast, multicast, and broadcast
• Private VLANs: Over trunks, vPC, and EtherChannels
• FabricPath Support: Including vPC+ with FabricPath

Power Specifications

• Power over Ethernet (PoE): No
• Input Voltage: 110V AC / 220V AC
• Power Source: Power Supply
• Redundant Power Supply: Yes

Compliance and Standards

• IEEE 802.3, IEEE 802.1D, IEEE 802.1Q
• IEEE 802.3x, IEEE 802.3ad (LACP)
• IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p

Environmental Conditions

• Operating Temperature Range: 32 °F to 104 °F
• Humidity Range: 5 – 95% (non-condensing)

Ports

The Cisco N5K-C5548UP-FA Managed Switch is equipped with an impressive 32 ports, making it an ideal choice for businesses and organizations that require a high-performance networking solution. These ports offer numerous benefits and play a crucial role in ensuring seamless and efficient connectivity within a network infrastructure.

Increased Connectivity

With 32 ports, this managed switch provides extensive connectivity options. Each port serves as a point of connection for devices such as computers, servers, printers, and other network-enabled devices. Having a sufficient number of ports allows businesses to easily expand their network and accommodate the growing number of devices connected to it. Whether it's in a small office or a large enterprise, the Cisco N5K-C5548UP-FA ensures that there are ample ports to connect all necessary devices.

Flexibility and Scalability

The Cisco N5K-C5548UP-FA's 32 ports offer remarkable flexibility and scalability. It enables businesses to connect a wide range of devices with varying bandwidth requirements. Additionally, these ports support various networking technologies such as Ethernet, Fiber Channel, and Fibre Channel over Ethernet (FCoE), allowing organizations to integrate different types of devices seamlessly.

Moreover, the switch's expandability allows businesses to scale their network infrastructure as needed. Whether it's adding more devices or connecting remote locations, the 32 ports provide the necessary flexibility for future growth without requiring additional switches or complicated configurations.

High-Speed Data Transfer

The 32 ports of the Cisco N5K-C5548UP-FA support high-speed data transfer rates. With Gigabit Ethernet capabilities, these ports can handle large amounts of data traffic efficiently. This feature is particularly beneficial for businesses that rely on data-intensive applications or require fast access to shared resources. The switch's high-speed ports ensure smooth data transmission, reducing latency and improving overall network performance.

Improved Network Performance

Having 32 ports on the Cisco N5K-C5548UP-FA Managed Switch significantly enhances network performance. The switch utilizes advanced switching technologies, including virtual PortChannels (vPCs) and Fabric Extenders (FEX), allowing for efficient traffic management and load balancing across multiple ports. These features eliminate bottlenecks and congestion, ensuring a seamless flow of data within the network.

Furthermore, the switch's advanced Quality of Service (QoS) capabilities prioritize critical traffic, such as voice or video data, over less time-sensitive data. This feature guarantees that important applications receive the necessary bandwidth and resources, preventing performance degradation and ensuring a smooth user experience.

Redundancy and High Availability

The Cisco N5K-C5548UP-FA Managed Switch's 32 ports also contribute to network redundancy and high availability. The switch supports redundancy protocols such as Virtual Router Redundancy Protocol (VRRP) and Hot Standby Router Protocol (HSRP), which ensure uninterrupted network connectivity even if one switch or port fails. With multiple ports available, businesses can establish redundant connections, creating a resilient network infrastructure that minimizes downtime and ensures business continuity.

Simplified Network Management

Managing a network with 32 ports may seem like a daunting task, but the Cisco N5K-C5548UP-FA simplifies network management through its intuitive management interfaces. The switch provides a web-based graphical user interface (GUI) and a command-line interface (CLI) that allow network administrators to configure and monitor the switch efficiently.

Additionally, the switch supports various management protocols such as Simple Network Management Protocol (SNMP), which enables centralized monitoring and control of network devices. These management features streamline network administration tasks, making it easier for IT teams to maintain and troubleshoot the network.

In conclusion, the Cisco N5K-C5548UP-FA Managed Switch's 32 ports offer numerous benefits to businesses and organizations. From increased connectivity and flexibility to improved network performance and high availability, these ports empower users to build a reliable and efficient network infrastructure. With its advanced features and simplified management capabilities, this switch is an excellent choice for organizations seeking a scalable and high-performance networking solution.
