Cisco N9K-C93180YC-EX 6x 40 Gigabit Ethernet Layer3 Rack Mountable Switch

Number Of Ports

The Cisco N9K-C93180YC-EX Rack Mountable Switch is equipped with 6 ports, making it an ideal choice for small to medium-sized businesses or organizations requiring a compact and efficient networking solution. With 6 ports, users can connect multiple devices and expand their network without the need for additional switches or equipment. This feature offers several benefits and is of great importance to users.

Device Overview

Type and Design

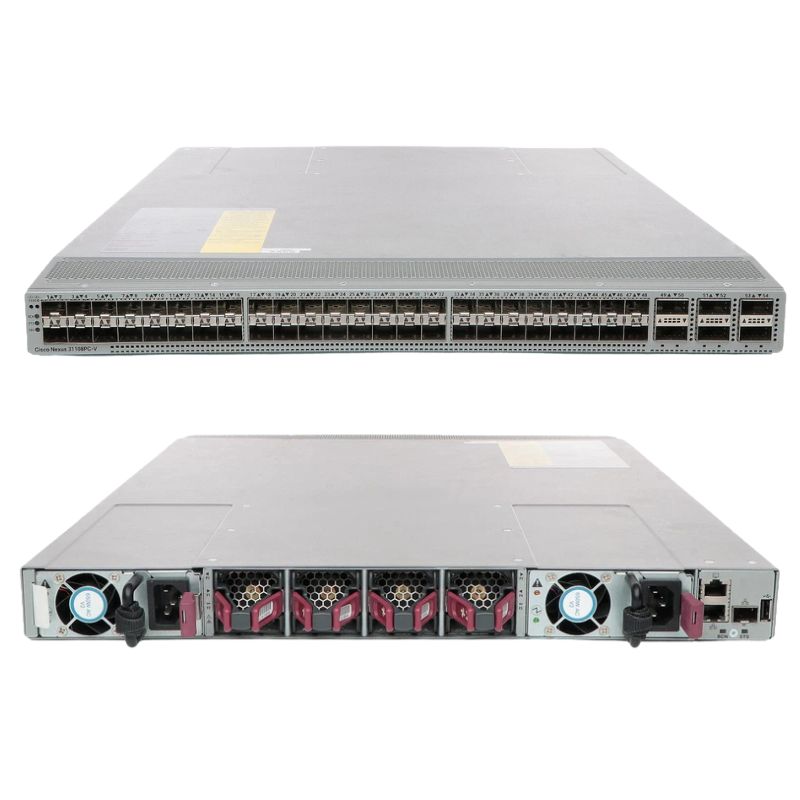

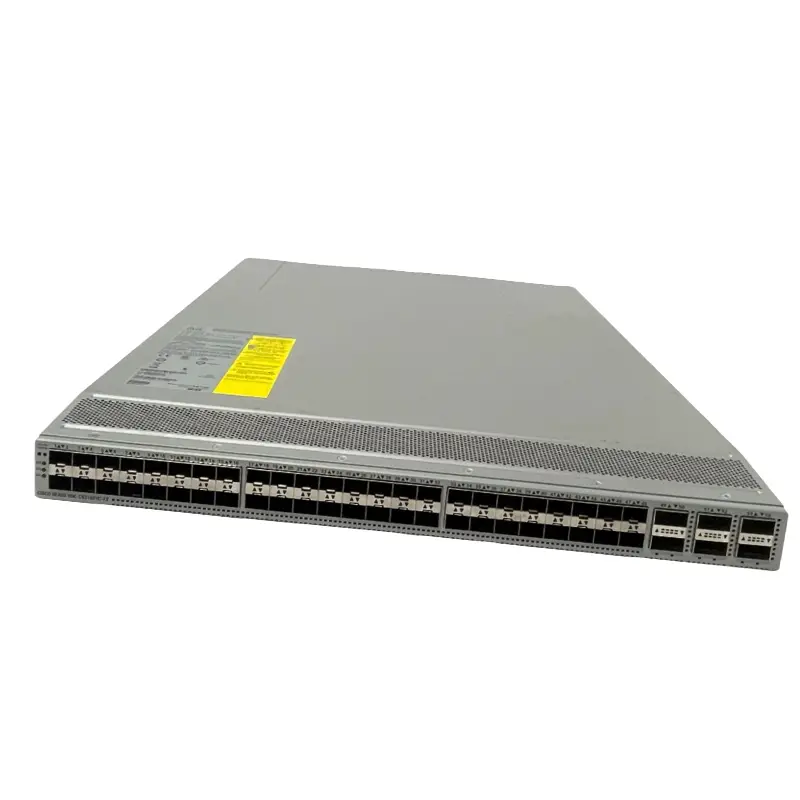

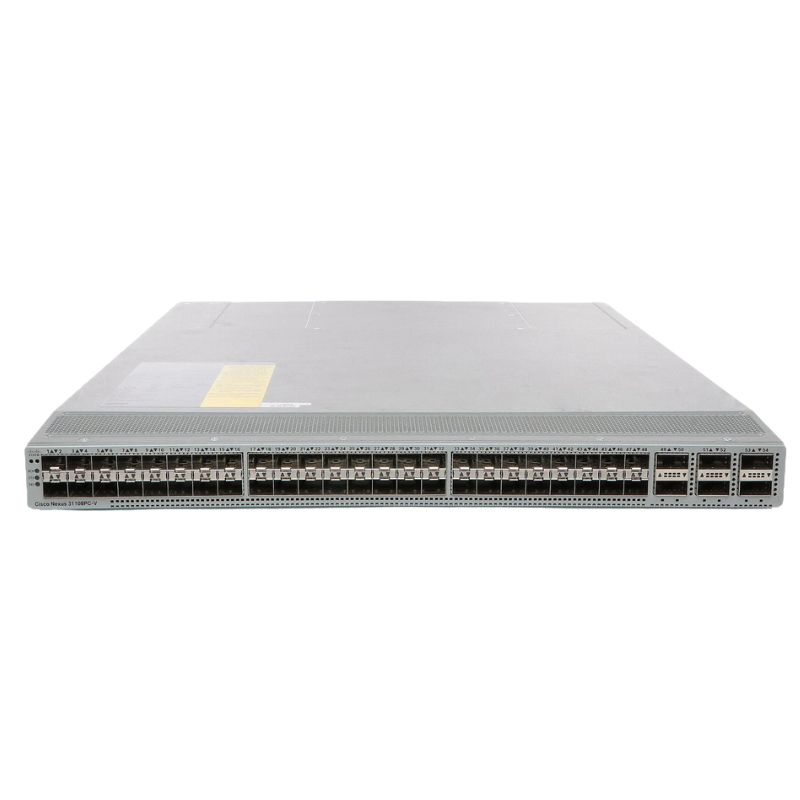

This high-performance switch is a 48-port L3 model designed for rack-mountable 1U installations. It supports 25 Gigabit Ethernet connectivity.

Connectivity Options

• 48 x 1/10/25 Gigabit SFP+
• 6 x 40/100 Gigabit QSFP+
• 1 x RJ-45 Management Port
• 1 x SFP+ Management Port
• 1 x USB Port
• 1 x Serial (RS-232) Port

Performance Specifications

Bandwidth and Throughput

Delivers an impressive bandwidth of 3.6 Tbps with support for up to 4 active spanning tree sessions.

Capacity and Scalability

• Maximum Spanning Tree Protocol Instances: 64
• HSRP Groups Supported: 490
• Rapid Spanning Tree Instances per VLAN: 4000
• Port Channel Links (Max): 32
• Port Channels Supported: 512
• ECMP Paths: 64
• VRF Instances: 1000
• Supported VLANs: 4096
• ACL Entries (Egress): 2000
• ACL Entries (Ingress): 4000
• IGMP Snooping Groups: 8000
• Multicast Routes: 8000

MAC Address Table

Supports a MAC address table with a capacity of 512,000 entries.

Routing and Protocols

Supported Routing Protocols

• OSPF
• RIP
• RIP-2
• BGP
• EIGRP
• HSRP
• PIM-SM
• MSDP
• ECMP
• MPLS

Advanced Features

• Layer 3 Switching
• High Availability
• Hot-swappable 4 Fans
• Virtual PortChannel (vPC) Technology
• In-Service Software Upgrade (ISSU)
• NPV Gateway Mode
• Virtual Extensible LAN (VXLAN)
• Source-Specific Multicast (SSM)
• Ethernet Virtual Private Network (EVPN)
• 40MB System Buffer

RAM and Built-in Devices

• RAM: 16 GB
• Built-in SSD: 64 GB

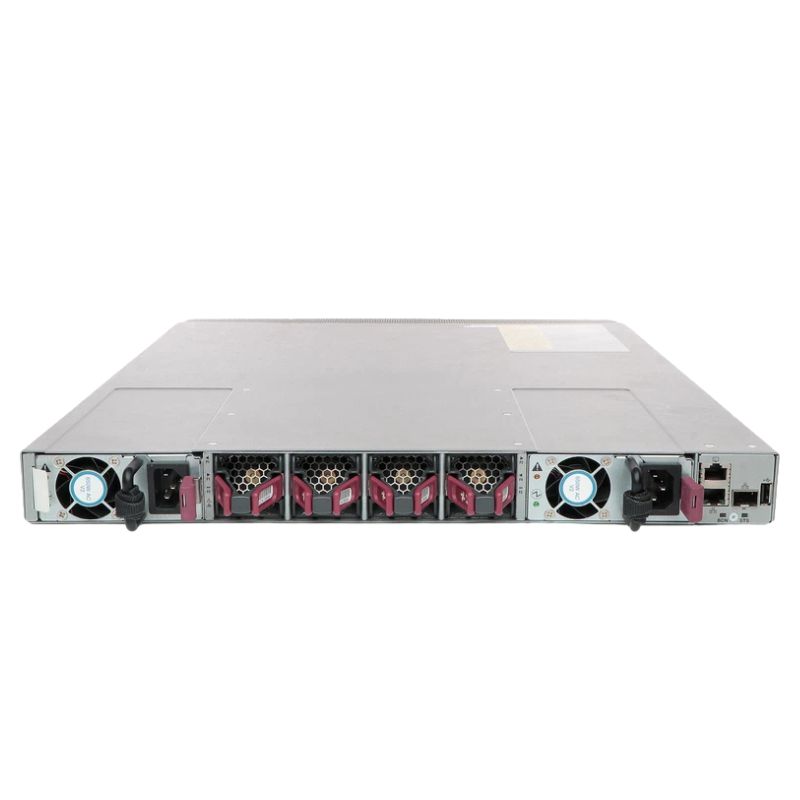

Power Supply

• Internal Power Supply (Hot-Plug, Not Installed)
• Maximum Supported Quantity: 2
• Optional Power Redundancy
• Redundancy Scheme: N+1

Enhanced Connectivity

Having 6 ports on the Cisco N9K-C93180YC-EX allows for enhanced connectivity options. Users can connect various devices such as servers, workstations, printers, and storage devices directly to the switch, eliminating the need for multiple switches or cascading connections. This simplifies network management and reduces complexity.

Flexibility and Scalability

The availability of 6 ports provides flexibility and scalability for growing networks. Users can easily add new devices or expand their infrastructure without worrying about running out of ports. This scalability ensures that the switch can accommodate future network expansion, saving both time and money.

Improved Network Performance

By offering 6 ports, the Cisco N9K-C93180YC-EX enables efficient distribution of network traffic. Each connected device can communicate directly with the switch, minimizing latency and ensuring a smooth and reliable data transfer experience. This improved network performance is crucial for businesses that rely heavily on data-intensive applications or require real-time communication.

Aggregation and Link Aggregation Control Protocol (LACP)

The Cisco N9K-C93180YC-EX supports aggregation capabilities, allowing users to combine multiple ports into a single logical connection. This feature, known as Link Aggregation Control Protocol (LACP), increases bandwidth and provides redundancy by distributing traffic across multiple links. With 6 ports available, users can create aggregated connections to handle high-traffic loads or create resilient connections for critical applications.

Device Redundancy

Having 6 ports offers users the opportunity to implement device redundancy. By connecting multiple devices to the switch, users can create backup or redundant connections. In the event of a port or device failure, traffic can be automatically rerouted to the backup connection, minimizing downtime and ensuring continuous network operation.

Separation of Network Segments

The Cisco N9K-C93180YC-EX's 6 ports also allow for the separation of network segments. Users can assign specific ports to different segments or VLANs, keeping different types of traffic isolated from each other. This segmentation improves security and enhances network performance by reducing broadcast domains and controlling access to specific resources.

Power over Ethernet (PoE) Support

Although the Cisco N9K-C93180YC-EX does not support Power over Ethernet (PoE), the availability of 6 ports allows users to connect PoE-enabled devices through external PoE injectors or switches. This offers flexibility for businesses that require power delivery to devices such as IP cameras, wireless access points, or VoIP phones.

Port Speed

The Cisco N9K-C93180YC-EX Rack Mountable Switch features a remarkable port speed of 40 Gigabit Ethernet (GbE). This high-speed connectivity option brings numerous benefits and holds significant importance for users seeking exceptional network performance and efficiency.

High Bandwidth Capacity

The 40 GbE port speed of the Cisco N9K-C93180YC-EX provides a significant boost to network bandwidth capacity. With four times the speed of traditional Gigabit Ethernet, this switch enables faster data transfer rates, making it ideal for bandwidth-intensive applications such as video streaming, large file transfers, and data backups. Users can enjoy seamless connectivity and improved overall network performance.

Support for Virtualized Environments

Virtualized environments, such as server virtualization or software-defined networking (SDN), require high-speed connections to handle the increased traffic and data demands. The 40 GbE port speed of the Cisco N9K-C93180YC-EX is well-suited for these environments, allowing for efficient communication between virtual machines and ensuring smooth operation of virtualized applications. This feature is particularly important for organizations that heavily rely on virtualization technologies to optimize their IT infrastructure.

Future-Proofing Network Infrastructure

Investing in a switch with 40 GbE port speed ensures future-proofing of the network infrastructure. As technology continues to advance, the demand for higher bandwidth will inevitably increase. By choosing a switch with 40 GbE capabilities, users can be confident that their network will be able to handle future growth and emerging technologies without the need for costly upgrades or replacements.

Backward Compatibility

Despite its high-speed capabilities, the Cisco N9K-C93180YC-EX also supports backward compatibility with lower-speed Ethernet standards. This means that users can connect devices operating at slower speeds, such as 10 Gbps or 1 Gbps, to the switch without any issues. This flexibility allows for a seamless integration of existing devices into the network while still benefiting from the switch's superior performance.

Efficient Data Center Connectivity

Data centers require fast and reliable connections to handle the massive amounts of data generated by modern applications and services. The 40 GbE port speed of the Cisco N9K-C93180YC-EX is designed to meet these demands, providing efficient connectivity between servers, storage systems, and other data center components. This ensures smooth operation and eliminates potential bottlenecks that could hinder the performance of critical applications.

Cost-Effective Solution

While higher port speeds often come with a higher price tag, the Cisco N9K-C93180YC-EX offers a cost-effective solution for organizations seeking 40 GbE connectivity. By consolidating multiple lower-speed connections into a single 40 GbE link, users can reduce the number of required ports and associated cabling, resulting in cost savings and simplified network management.

Layer

The Cisco N9K-C93180YC-EX Rack Mountable Switch operates at Layer 3 of the OSI model, providing advanced networking capabilities and features. This layer emphasizes the importance of routing and enables efficient communication between different networks. The Layer 3 functionality offers several benefits and holds great significance for users.

Enhanced Network Scalability

Operating at Layer 3 allows the Cisco N9K-C93180YC-EX to support large networks with multiple subnets or VLANs. The switch can route traffic between different networks, enabling efficient communication and allowing for network expansion without sacrificing performance. This scalability is essential for organizations that require a flexible and adaptable network infrastructure.

Improved Network Performance

Layer 3 switches, such as the Cisco N9K-C93180YC-EX, can perform routing functions at wire speed. This means that traffic can be efficiently directed to its destination without any noticeable delay. By offloading routing tasks to the switch, network performance is improved, and overall latency is reduced, resulting in a better user experience and increased productivity.

Increased Security

Layer 3 switches offer enhanced security features compared to Layer 2 switches. With Layer 3 functionality, the Cisco N9K-C93180YC-EX can implement access control lists (ACLs) and apply security policies at the network layer. This allows for fine-grained control over network traffic and helps prevent unauthorized access or malicious activities. By enforcing security measures at the network layer, organizations can better protect their valuable data and resources.

Inter-VLAN Routing

One of the key benefits of Layer 3 switches is the ability to perform inter-VLAN routing. By routing traffic between different VLANs, users can segregate their network into logical segments while still allowing communication between them. This segregation improves security and network performance by reducing broadcast traffic and controlling access to specific resources. The Cisco N9K-C93180YC-EX's Layer 3 capabilities enable efficient inter-VLAN routing, making it a valuable asset for organizations with complex network requirements.

Dynamic Routing Protocols

The Cisco N9K-C93180YC-EX supports dynamic routing protocols such as OSPF (Open Shortest Path First) and BGP (Border Gateway Protocol). These protocols allow the switch to exchange routing information with other routers in the network, enabling automatic and efficient route selection. Dynamic routing protocols provide flexibility and adaptability to changing network conditions, ensuring optimal routing decisions are made based on real-time information.

Multicast Support

Layer 3 switches also offer multicast support, allowing for efficient distribution of data to multiple recipients simultaneously. The Cisco N9K-C93180YC-EX's Layer 3 capabilities enable users to implement multicast applications such as IPTV (Internet Protocol Television) or video conferencing without compromising network performance. This feature is particularly valuable for organizations that heavily rely on multicast-based services.

IPv6 Support

In addition to supporting IPv4, the Cisco N9K-C93180YC-EX's Layer 3 functionality includes robust IPv6 support. IPv6 is the latest version of the Internet Protocol, offering increased address space and improved security features compared to IPv4. By embracing IPv6, organizations can future-proof their network infrastructure and ensure compatibility with emerging technologies and devices.

In conclusion, the Cisco N9K-C93180YC-EX Rack Mountable Switch's features, such as the 6 ports, 40 Gigabit Ethernet port speed, and Layer 3 functionality, provide users with enhanced connectivity, improved network performance, scalability, security, and future-proofing capabilities. Whether it's for small to medium-sized businesses or larger organizations with complex networking requirements, this switch is a reliable and versatile solution that meets the demands of modern networks.
