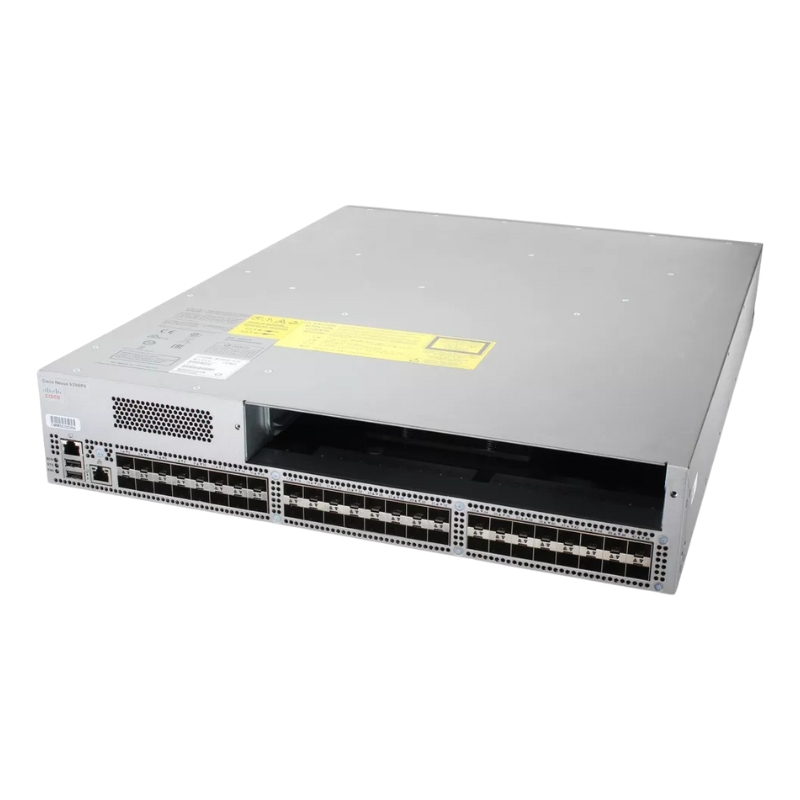

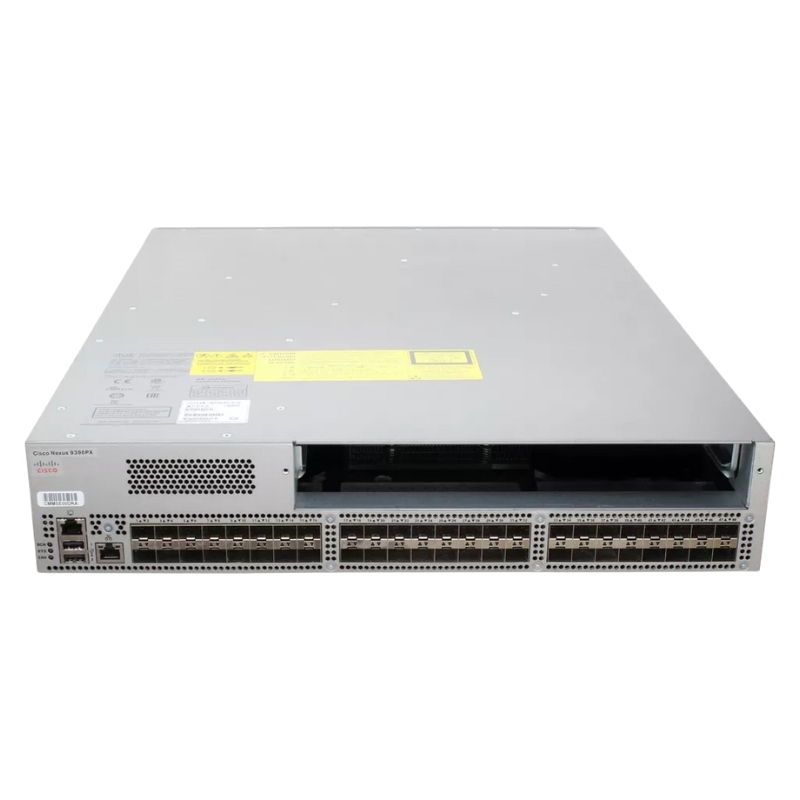

Cisco N9K-C9396PX 48-Port Ethernet Switch

Overview of Cisco Nexus 9396PX

The Cisco Nexus 9396PX is an advanced Layer 3 switch designed for high-performance networking. As part of Cisco's Nexus 9000 series, this switch offers a robust solution for complex network infrastructures. Below is a detailed breakdown of its features and specifications:

Manufacturer Details

• Brand: Cisco
• Model Number: N9K-C9396PX

Product Line and Series

• Series: Nexus 9000
• Model: 9396PX

Product Type and Functionality

• Type: Layer 3 Switch
• Name: Nexus 9396PX Layer 3 Switch

Port and Interface Specifications

• Token Ring Port: Not Available
• LRE Port: Not Included
• Uplink Port: Yes
• Management Port: Present
• USB Port: Included
• Expansion Slots: 48 x 10 Gigabit Ethernet

Media and Performance

• Ethernet Technology: 10 Gigabit Ethernet
• Network Technology: 10GBase-X

I/O Expansion Details

• Total Expansion Slots: 49
• Slot Type: SFP+
• Number of SFP+ Slots: 48

Networking and Communication

• Layer Supported: Layer 3

Management and Protocols

• Manageable: Yes
• Management Features:
• VLAN
• DHCP
• QoS
• Syslog
• SNMP v1, v2, v3
• MIB

Power Specifications

• PoE (RJ-45) Port: Not Supported
• Input Voltage: 110 V AC, 220 V AC
• Power Source: Power Supply
• Redundant Power Supply: Available

Ports

The Cisco N9K-C9396PX Ethernet Switch is equipped with 48 ports, making it an ideal solution for businesses and organizations that require a high level of connectivity. These ports provide users with the ability to connect multiple devices, such as servers, storage devices, and network appliances, to the switch.

Increased Flexibility and Connectivity

With 48 ports, users can easily connect a wide range of devices to the Cisco N9K-C9396PX Ethernet Switch. This allows for increased flexibility in network design and provides users with the ability to connect all their essential devices without the need for additional switches or equipment.

Whether it's connecting servers in a data center, linking multiple offices together, or providing network access for employees in a large organization, the 48 ports on this switch ensure that there is plenty of room for expansion and growth.

Improved Network Performance

The 48 ports on the Cisco N9K-C9396PX Ethernet Switch offer high-performance connectivity, ensuring that data can flow quickly and efficiently between devices. This is particularly important in environments where there is a high demand for bandwidth, such as data centers or organizations with a large number of users.

By providing ample connectivity options, this switch helps prevent bottlenecks and congestion in the network. Users can take advantage of the full capabilities of their devices without experiencing slow data transfer speeds or lag in network performance.

Easy Management and Troubleshooting

In addition to providing increased flexibility and improved performance, the 48 ports on the Cisco N9K-C9396PX Ethernet Switch also make management and troubleshooting easier for network administrators.

Each port can be individually configured and monitored, allowing administrators to easily identify and resolve any issues that may arise. This level of granular control enables efficient troubleshooting and reduces the time and effort required to maintain the network.

Scalability and Future-Proofing

The 48 ports on this switch provide users with scalability and future-proofing capabilities. As businesses grow and their connectivity needs increase, the Cisco N9K-C9396PX Ethernet Switch can accommodate these changes without requiring a complete overhaul of the network infrastructure.

With its 48 ports, this switch can support a large number of devices and can easily be expanded to accommodate additional devices as needed. This scalability ensures that users can continue to rely on the switch for their connectivity needs as their business evolves.

Cost-Effective Solution

The Cisco N9K-C9396PX Ethernet Switch with its 48 ports offers a cost-effective solution for businesses and organizations. By providing ample connectivity options, this switch eliminates the need for additional switches or equipment, reducing both upfront costs and ongoing maintenance expenses.

Furthermore, the high-performance capabilities of this switch help optimize network efficiency, reducing the need for costly bandwidth upgrades or infrastructure investments. The 48 ports ensure that businesses can meet their connectivity demands without breaking the bank.

Features

The Cisco N9K-C9396PX Ethernet Switch offers a range of features that make it a powerful and reliable solution for network connectivity. Some of its key features include Layer 2 switching, Layer 3 routing, high performance, scalability, and reliability.

Layer 2 Switching

The Layer 2 switching feature of the Cisco N9K-C9396PX Ethernet Switch enables efficient data transfer within a local area network (LAN). By using MAC addresses, the switch can direct data packets to their intended destination without unnecessary broadcasting, reducing network congestion and improving overall performance.

This feature is particularly useful in environments where there is a high volume of intra-LAN communication, such as data centers or organizations with multiple departments that require fast and reliable connectivity.

Layer 3 Routing

In addition to Layer 2 switching, the Cisco N9K-C9396PX Ethernet Switch also supports Layer 3 routing. This feature allows for the routing of data packets between different subnets or networks, enabling communication between devices that are located in different parts of the network.

Layer 3 routing enhances network efficiency by enabling devices to communicate directly with each other, reducing the need for traffic to pass through multiple switches or routers. This not only improves performance but also simplifies network design and management.

High Performance

The Cisco N9K-C9396PX Ethernet Switch is designed to deliver high-performance networking capabilities. With its powerful hardware and advanced software features, this switch can handle the demands of modern networks and support bandwidth-intensive applications.

Whether it's streaming high-definition video, transferring large files, or running resource-intensive applications, users can rely on the high-performance capabilities of this switch to ensure smooth and uninterrupted network connectivity.

Scalability

Scalability is a key consideration for businesses and organizations that anticipate growth and expansion. The Cisco N9K-C9396PX Ethernet Switch offers scalability options that allow users to easily expand their network as their needs evolve.

With its support for Virtual Port Channels (vPC) and Virtual Device Contexts (VDC), this switch enables users to create virtualized environments that can be easily scaled up or down without disrupting network operations. This flexibility ensures that the switch can adapt to changing business requirements without compromising performance or reliability.

Reliability

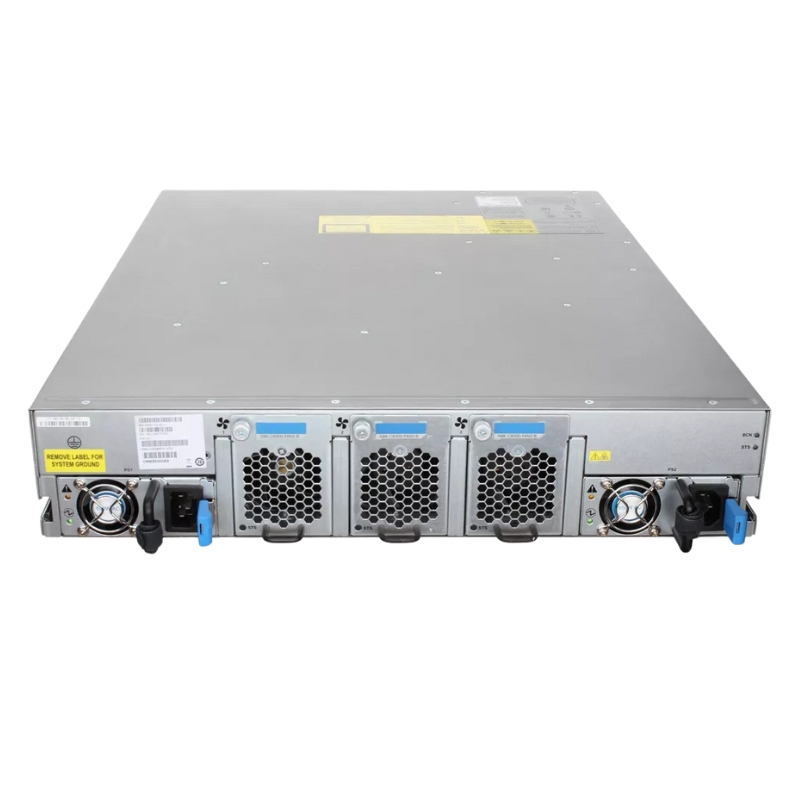

The Cisco N9K-C9396PX Ethernet Switch is known for its reliability and uptime. With redundant power supplies and hot-swappable fan modules, this switch is designed to minimize downtime and ensure continuous network connectivity.

In addition, the switch offers advanced features such as Virtual Router Redundancy Protocol (VRRP) and Hot Standby Router Protocol (HSRP), which provide failover capabilities and ensure that network traffic is seamlessly redirected in the event of a device failure. This redundancy helps to maintain network availability and minimize the impact of hardware failures.

Overall, the Cisco N9K-C9396PX Ethernet Switch with its Layer 2 switching, Layer 3 routing, high performance, scalability, and reliability features offers users a powerful and dependable solution for their network connectivity needs. Whether it's for small businesses or large enterprise environments, this switch provides the flexibility, performance, and peace of mind that users require.
