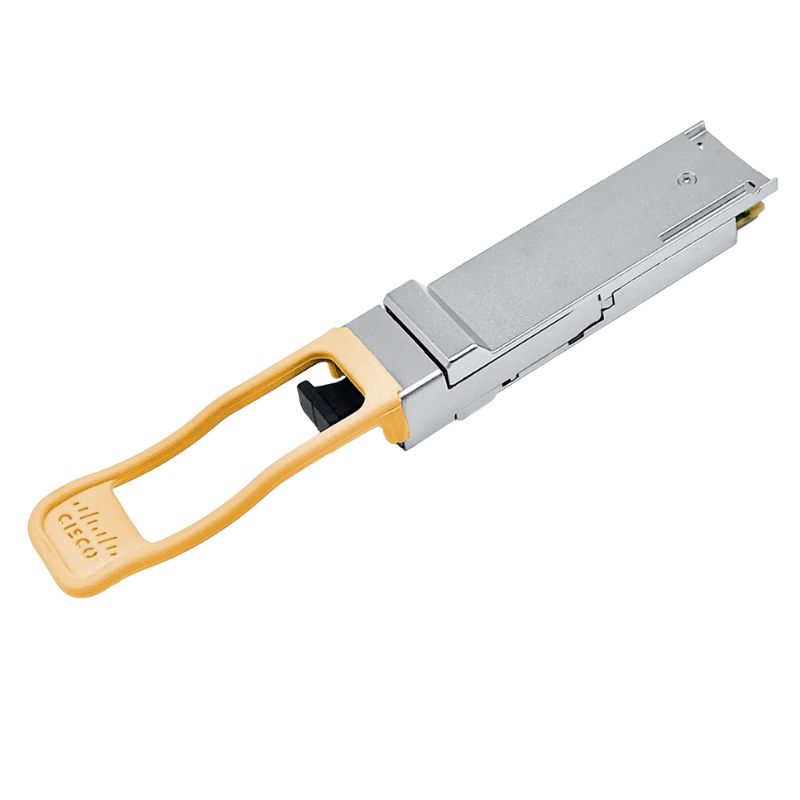

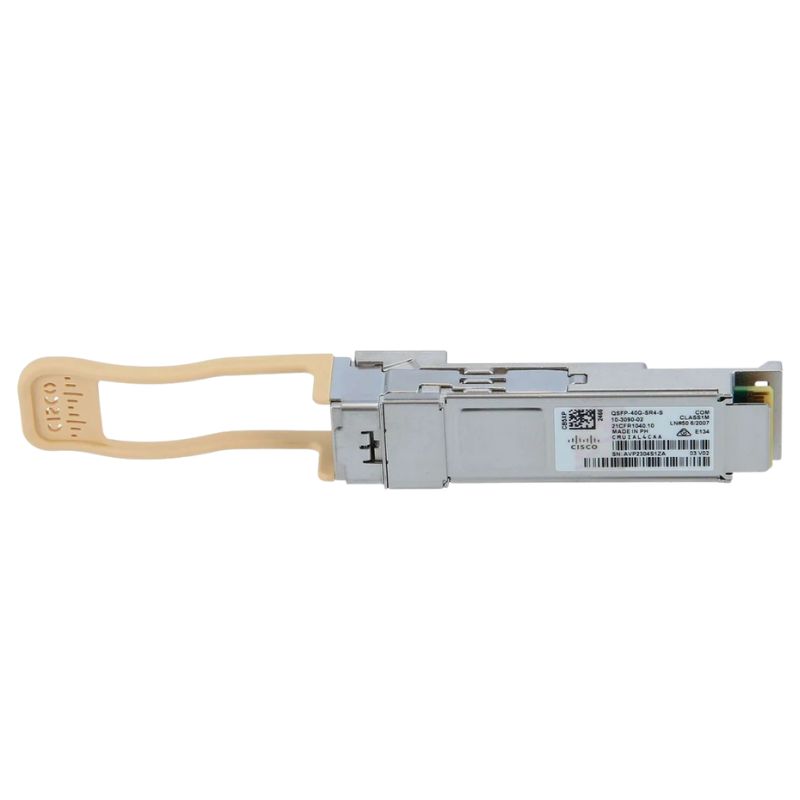

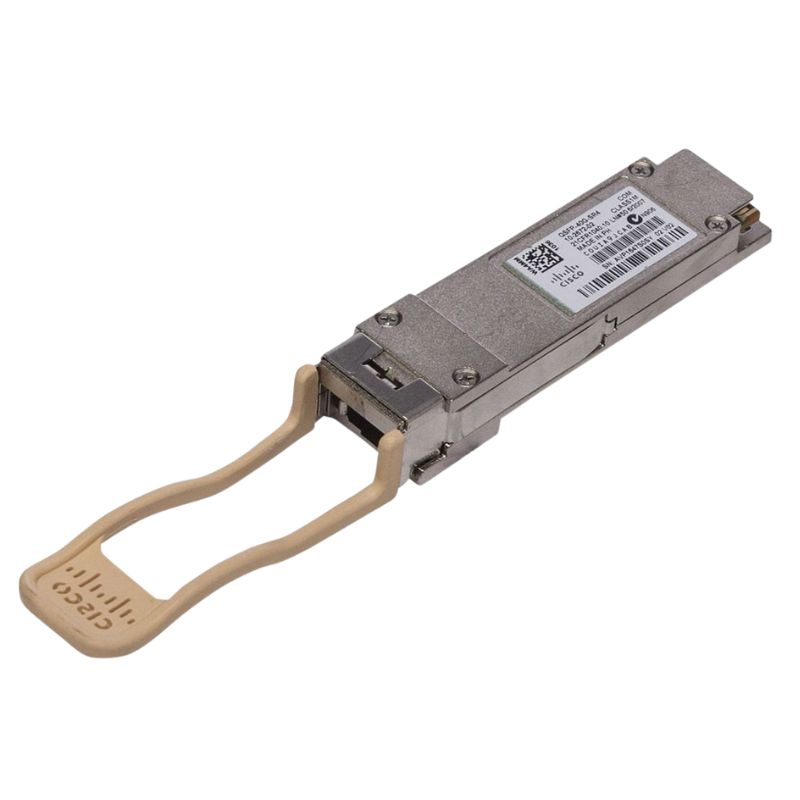

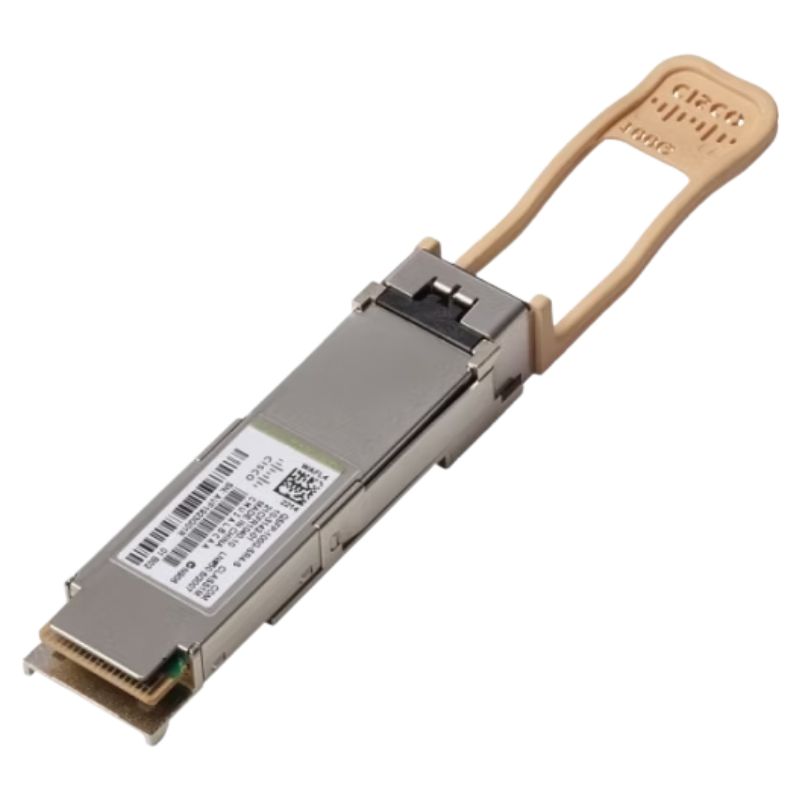

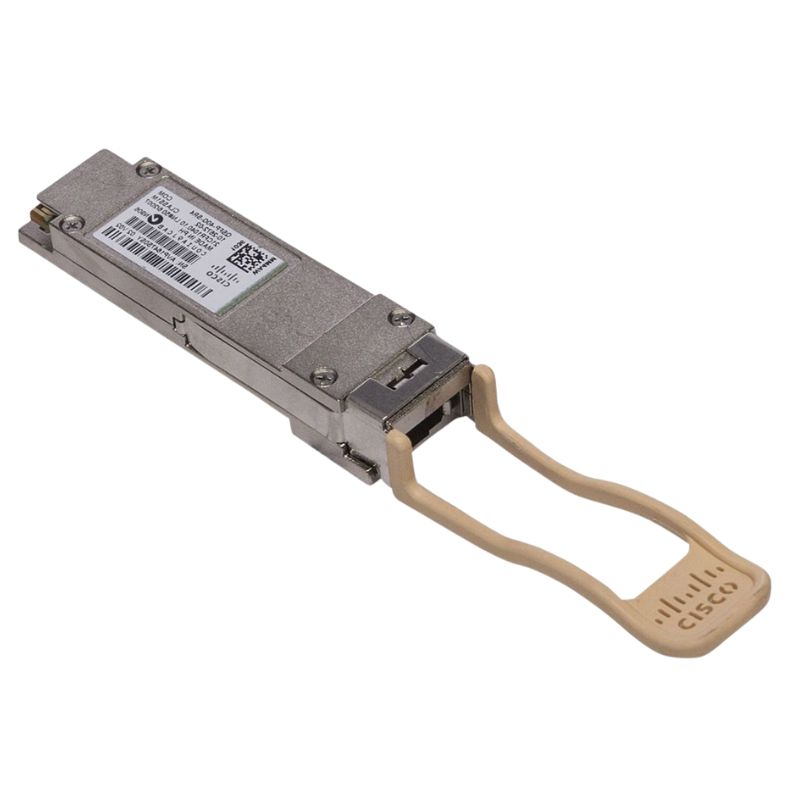

Cisco QSFP-40G-SR4-S= 40GBPS Transceiver Module QSFP+ MTP/MPO Connector

Data Transfer Rate

The Cisco QSFP-40G-SR4-S= Transceiver Module is a high-performance transceiver that offers an impressive data transfer rate of 40 Gbps. This feature is crucial for users who require fast and reliable data transmission in their network infrastructure.

Overview of the Cisco QSFP-40G-SR4-S=

General Product Information

• Manufacturer: Cisco
• Part Number: QSFP-40G-SR4-S=
• Type: QSFP+ Transceiver

Technical Specifications

Usage and Application

• Primary Use: Data Networking, Optical Networks
• Maximum Data Rate: 40 Gbps
• Form Factor: Plug-in Module

Ports and Connectors

• Total Ports: 1
• Connector Type: MPO/MTP
• Port Details: 1 x MPO/MTP 40GBase-SR4 Network

Media and Performance

Media Type and Fiber Support

• Media Type: Optical Fiber
• Fiber Mode: Multi-mode
• Ethernet Technology: 40 Gigabit Ethernet
• Network Technology: 40GBase-SR4

Connectivity Specifications

• Connectivity Type: Wired
• Data Link Protocol: 40 Gigabit Ethernet
• Cabling Standard: Ethernet 40GBASE-SR4
• Maximum Transfer Distance: 492 feet
• Optical Wavelength Range: 840-860 nm

Key Features

• Supports hot-swapping for 40 Gigabit Ethernet Cisco QSFP ports
• Compatible with other IEEE-compliant 40GBASE interfaces
• Tested for top performance, quality, and reliability with Cisco QSFP 40G ports
• Adheres to IEEE 802.3ba standards for high-speed electrical interfaces
• QSFP Form factor with 2-wire I2C communication and compliant with SFF 8436 and QSFP MSA

S-Class Features

• Supports 100 and 150-meter link lengths on OM3, OM4, and OM5 multimode fibers
• Complies with IEEE 40GBASE-SR4 optical specifications
• Facilitates high-bandwidth 40G optical links over 12-fiber MPO/MTP connectors
• Not compatible with 4x10G breakout; for such needs, refer to QSFP-40G-SR4 or QSFP-40G-CSR4
• Does not support FCoE (Fibre Channel over Ethernet)

Regulatory Compliance

• ESD to Electrical Pins: MIL-STD-883E Method 3015.4
• ESD to LC Receptacle: IEC 61000-4-3
• EMI/EMC Compliance: FCC Part 15 Subpart B, EN55022:2010
• Laser Safety: FDA 21CFR, EN60950-1 & EN (IEC) 60825-1, 2
• RoHS Compliance: EU RoHS 2.0 directive 2015/863/EU

Power and Environmental Specifications

Power Consumption

• Operational Power Usage: 1.5 Watts

Environmental Conditions

• Minimum Operating Temperature: 32 °F
• Maximum Operating Temperature: 158 °F

Miscellaneous Information

• Mean Time Between Failures (MTBF): 244,610,583 hours
• Standards Compliance: FCC CFR21 Part 1040, GR-1435-CORE, GR-20-CORE, GR-326-CORE, IEC 60825-1 Class 1, MSA SFF-8431, MSA SFF-8436

Benefits of 40 Gbps Data Transfer Rate

1. Increased Bandwidth

With a data transfer rate of 40 Gbps, this transceiver module provides users with a significant increase in bandwidth capacity. This allows for the seamless transmission of large volumes of data, making it ideal for high-demand applications such as data centers or cloud computing environments.

2. Enhanced Network Performance

By offering a high-speed data transfer rate, the Cisco QSFP-40G-SR4-S= Transceiver Module ensures improved network performance. It enables faster communication between devices, reducing latency and enhancing overall network efficiency. Users can experience smoother and more responsive network operations, resulting in increased productivity and user satisfaction.

3. Support for High-Speed Applications

The 40 Gbps data transfer rate provided by this transceiver module makes it well-suited for high-speed applications that require quick and reliable data transmission. It can handle bandwidth-intensive tasks such as video streaming, large file transfers, and real-time data processing without compromising performance or quality.

4. Future-Proof Solution

Investing in a transceiver module with a 40 Gbps data transfer rate ensures that your network infrastructure is ready to meet future demands. As technology advances and network requirements evolve, having a high-speed transceiver module in place allows for easy scalability and adaptation to higher bandwidth needs.

Importance of 40 Gbps Data Transfer Rate

1. Meeting Growing Bandwidth Requirements

As businesses increasingly rely on data-intensive applications and processes, the need for higher bandwidth becomes critical. The 40 Gbps data transfer rate offered by the Cisco QSFP-40G-SR4-S= Transceiver Module ensures that your network can keep up with the growing demands of modern technology.

2. Facilitating Data Center Consolidation

Data centers often require consolidation to optimize space, reduce costs, and improve efficiency. By utilizing transceiver modules with a 40 Gbps data transfer rate, data center operators can consolidate their infrastructure without sacrificing speed or performance. This allows for better resource utilization and easier management of network resources.

3. Enabling High-Speed Interconnects

In today's interconnected world, organizations need to establish fast and reliable connections between various devices and systems. The 40 Gbps data transfer rate provided by this transceiver module enables high-speed interconnects, allowing for seamless communication between switches, routers, servers, and storage devices. This is particularly crucial in scenarios where real-time data exchange is essential, such as financial trading or video conferencing.

4. Supporting Virtualization and Cloud Computing

Virtualization and cloud computing have revolutionized the way businesses operate by providing flexibility, scalability, and cost-efficiency. However, these technologies heavily rely on fast and reliable network connections. The 40 Gbps data transfer rate of the Cisco QSFP-40G-SR4-S= Transceiver Module ensures that virtualized environments and cloud infrastructures can deliver optimal performance, enabling organizations to leverage the full potential of these technologies.

Connector Type: MTP/MPO

The Cisco QSFP-40G-SR4-S= Transceiver Module features an MTP/MPO connector type, which offers several benefits and plays a crucial role in ensuring seamless connectivity within a network infrastructure.

Benefits of MTP/MPO Connector Type

1. High-Density Connectivity

The MTP/MPO connector type allows for high-density connectivity, making it an ideal choice for environments with limited space. It enables the consolidation of multiple fibers into a single connector, reducing cable clutter and simplifying cable management. This is particularly advantageous in data centers or server rooms where space optimization is essential.

2. Quick and Easy Installation

MTP/MPO connectors feature a push-pull latching mechanism, which ensures quick and secure connections. The connector's design allows for easy insertion and removal, eliminating the need for specialized tools or extensive training. This facilitates faster installation and reduces downtime during network maintenance or upgrades.

3. Reliable Performance

The MTP/MPO connector type ensures reliable performance by minimizing insertion loss and maximizing return loss. Its precise alignment mechanism guarantees accurate fiber mating, reducing signal degradation and ensuring consistent network connectivity. This is crucial for applications that require high data integrity, such as data backup, server clustering, or storage area networks.

4. Scalability and Flexibility

MTP/MPO connectors offer scalability and flexibility, allowing for easy expansion or modification of network infrastructure. Their modular design enables the addition or removal of fibers as needed, without requiring significant changes to the existing cabling infrastructure. This makes it a cost-effective solution that can adapt to evolving network requirements.

Importance of MTP/MPO Connector Type

1. Simplifying Fiber Optic Deployments

Deploying fiber optic connections can be complex and time-consuming, especially in environments with numerous connections. The MTP/MPO connector type simplifies this process by consolidating multiple fibers into a single connector, reducing the number of cables required and streamlining installation efforts. This saves time, reduces costs, and minimizes the risk of errors during deployment.

2. Facilitating High-Speed Data Transmission

The MTP/MPO connector type is designed to support high-speed data transmission, making it suitable for applications that require fast and reliable connectivity. Its precise alignment mechanism ensures minimal signal loss, allowing for the efficient transmission of data at high speeds. This is particularly important in scenarios where real-time data transfer or high-bandwidth applications are involved.

3. Enabling Efficient Network Management

The MTP/MPO connector type simplifies network management by providing a standardized interface for fiber optic connections. Its modular design allows for easy identification and tracking of individual fibers, facilitating cable management and troubleshooting efforts. This improves overall network reliability and reduces the time and resources required for network administration.

4. Supporting Future-Proof Infrastructure

Investing in a transceiver module with an MTP/MPO connector type ensures that your network infrastructure is future-proofed. As technology advances, the MTP/MPO connector remains compatible with newer fiber optic standards, allowing for seamless integration with future equipment and technologies. This eliminates the need for costly infrastructure upgrades and ensures long-term compatibility and investment protection.
