SF300-48PP-K9-NA Cisco 48 Ports Managed Switch

Cisco SF300-48PP-K9-NA Ethernet Switch

The Cisco SF300-48PP-K9-NA is a fully managed Layer 3 Fast Ethernet switch engineered to support growing business networks that require reliable connectivity, advanced control, and scalable Power over Ethernet Plus capabilities. Designed for enterprise-grade performance, this switch combines intelligent traffic handling, enhanced security mechanisms, and flexible deployment options within a compact 1U form factor suitable for both desktop and rack installations.

Manufacturer and Identification Details

• Manufacturer: Cisco
• Model Number: SF300-48PP-K9-NA
• Product Category: Managed Ethernet Switch

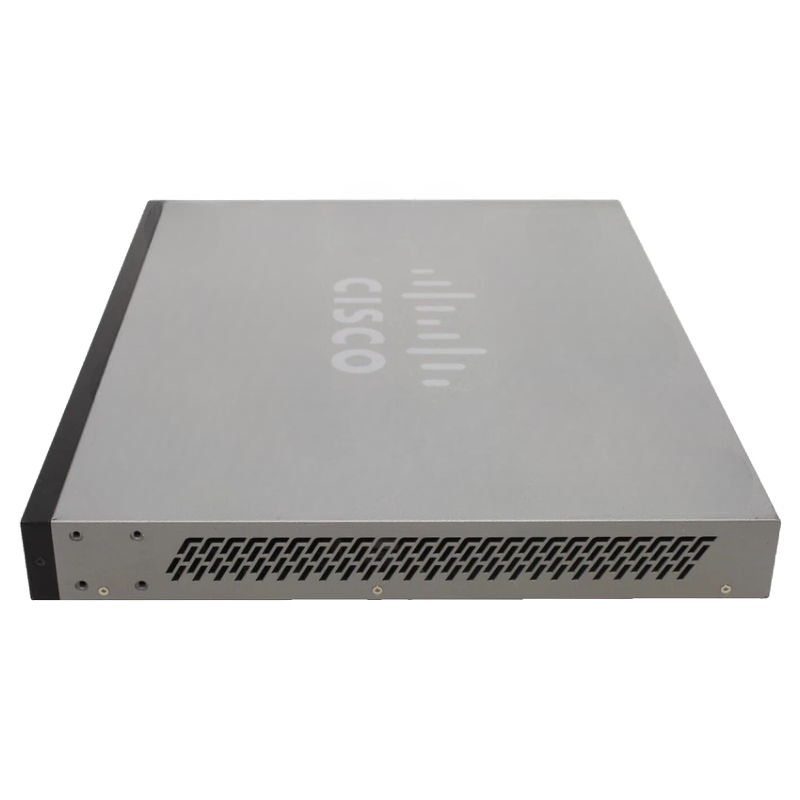

Form Factor and Physical Design

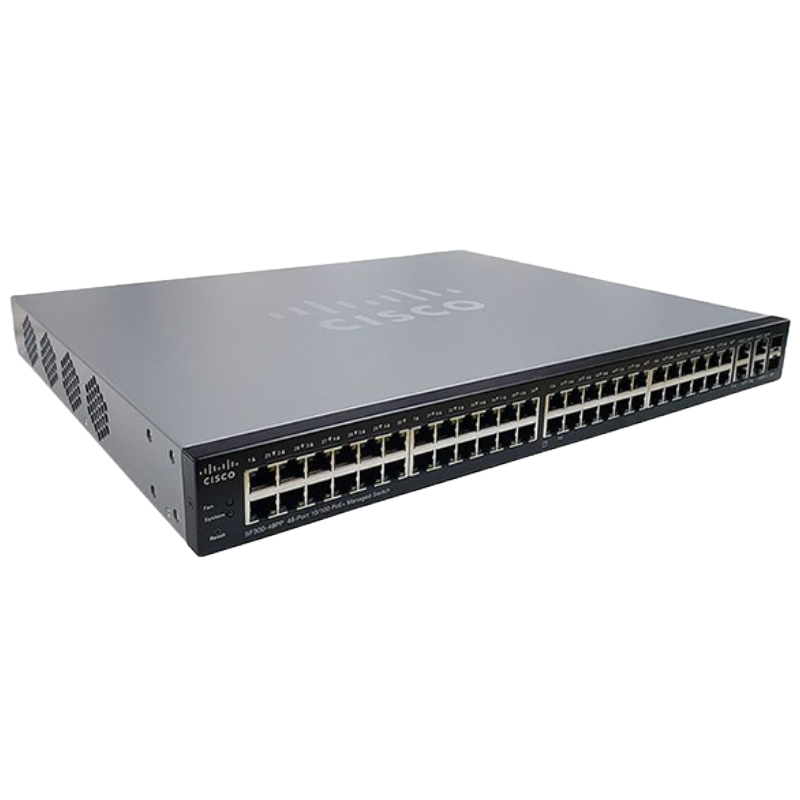

• Enclosure Style: Desktop and rack-mountable chassis

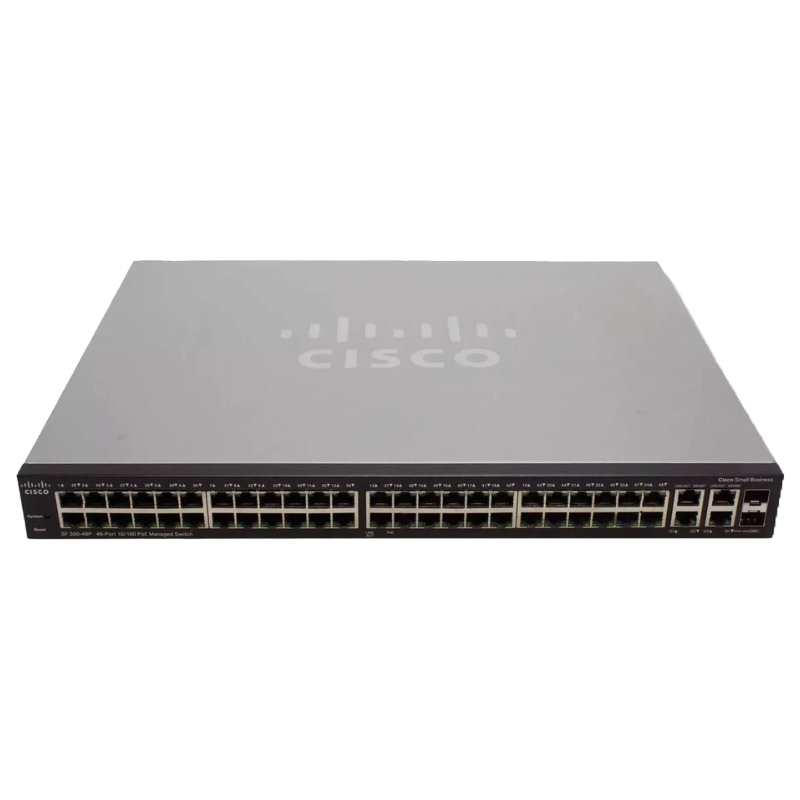

• Rack Height: 1U standard size
• Design Focus: Space-efficient and enterprise-ready

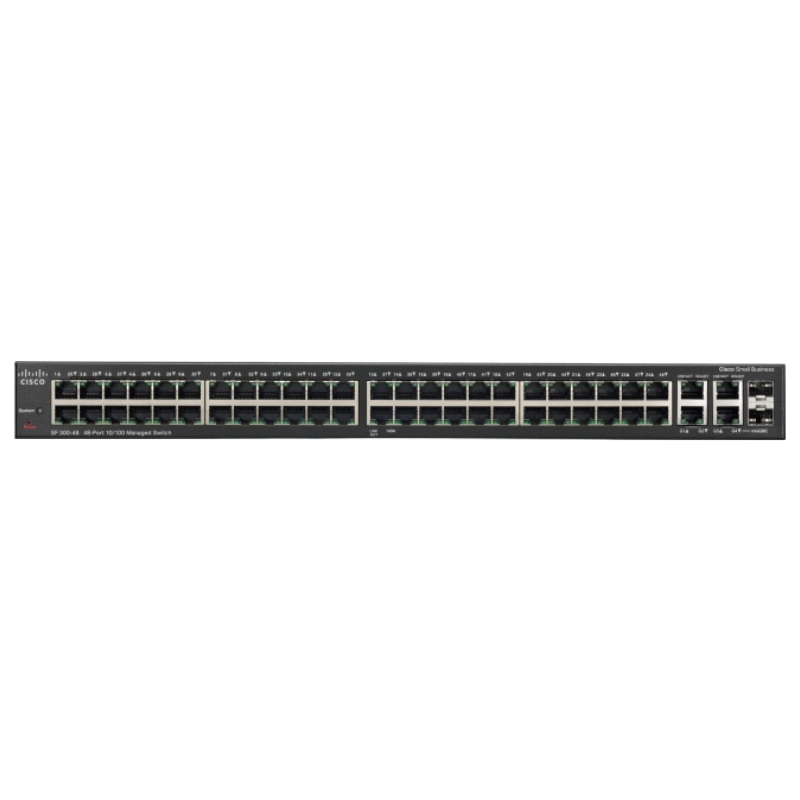

Fast Ethernet and Interfaces

• 48 x 10/100 Fast Ethernet RJ-45 ports with PoE+
• 2 x Combo Gigabit SFP ports for fiber or copper uplinks
• 2 x 10/100/1000 Ethernet ports for high-speed connections

Expansion and Management Interfaces

• 1 x DB-9 console port for local administration
• 4 x 1000Base-T RJ-45 uplink interfaces
• 2 x 1000Base-X SFP slots for optical networking

Integrated PoE+ Support

• PoE Standard: IEEE 802.3at compliant
• Total Power Budget: Up to 375 watts
• Energy Optimization: Intelligent power allocation per port

High-Speed Data Handling

• Switching Capacity: 17.6 Gbps
• Forwarding Rate: 13.1 million packets per second with 64-byte frames
• Packet Buffer Memory: 16 MB for traffic burst handling

Advanced Frame Processing

• Jumbo Frame Support: Up to 9216 bytes
• MAC Address Table: Supports up to 16,000 entries
• Access Control Lists: Up to 512 configurable rules

Traffic Optimization and Multicast Handling

• VLAN tagging and segmentation support
• IGMP snooping for multicast traffic control
• MLD snooping for IPv6 multicast environments

Storm Control and Network Stability

• Broadcast storm suppression
• Multicast storm regulation
• Unicast storm protection

Enhanced QoS Mechanisms

• DiffServ traffic classification
• Weighted Round Robin queuing
• IEEE 802.1p traffic prioritization

Enterprise-Level Network Protection

• Access Control List enforcement
• DoS attack prevention mechanisms
• Port mirroring for monitoring and analysis

Authentication and Encryption Methods

• Secure Shell (SSH and SSH-2)
• RADIUS and TACACS+ authentication
• SSL-based encryption support

Comprehensive Administration Protocols

• SNMP versions 1, 2c, and 3
• RMON groups 1, 2, 3, and 9
• Web-based management via HTTP and HTTPS
• Command-line interface access
• Telnet and secure remote sessions

Logging and Firmware Management

• Syslog event reporting
• Firmware upgrade capability
• TFTP support for configuration backup

Prevention Protocols

• Spanning Tree Protocol
• Rapid Spanning Tree Protocol
• Multiple Spanning Tree Protocol

IEEE Standards Compatibility

• IEEE 802.3, 802.3u, 802.3ab, and 802.3z
• IEEE 802.1D, 802.1Q, 802.1X, and 802.1W
• IEEE 802.3af and 802.3at for PoE
• IEEE 802.3az for Energy Efficient Ethernet
• IEEE 802.1AB for LLDP support

Energy-Saving Technologies

• Energy Efficient Ethernet operation
• Optimized power usage during low traffic

Internal Hardware Specifications

• System RAM: 128 MB
• Flash Storage: 16 MB

Status and Activity Indicators

• Link and activity LEDs
• Port speed indicators
• System health status lights

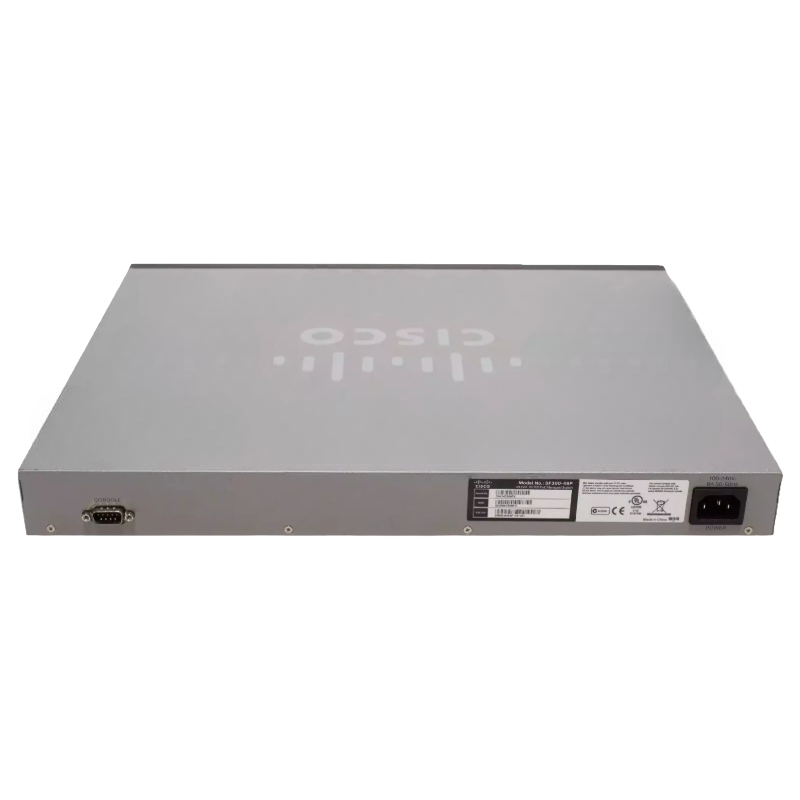

Internal Power Design

• Power Supply Type: Internal
• Input Voltage: AC 120/230 volts
• Frequency Range: 50/60 Hz

Cisco Managed Ethernet Switching for Business Networks

The Cisco SF300-48PP-K9-NA 48 Ports Ethernet Switch belongs to the Cisco Small Business 300 Series, a category designed to deliver enterprise-grade switching intelligence for growing business environments that require dependable connectivity, simplified administration, and scalable performance. This category of managed Fast Ethernet switches is engineered to support structured network expansion while maintaining consistent throughput, advanced traffic control, and integrated power delivery capabilities for connected devices. The architecture emphasizes stability, predictable forwarding behavior, and compatibility with diverse network topologies commonly found in small to mid-sized organizations.

Within this category, managed switching functions extend beyond basic Layer 2 connectivity, offering configurable VLANs, advanced Quality of Service mechanisms, and enhanced security frameworks. These switches are optimized for environments where centralized management, network segmentation, and traffic prioritization are essential to maintaining performance across voice, video, and data applications. The SF300-48PP-K9-NA model specifically represents a high-density configuration that supports large endpoint counts without requiring additional access-layer hardware.

48-Port Fast Ethernet Density and Network Expansion

The 48-port Ethernet design defines a core attribute of this switch category, addressing the need for extensive device connectivity in office floors, branch locations, educational facilities, and retail deployments. Each Ethernet port is engineered to deliver consistent Fast Ethernet performance while maintaining compatibility with legacy network devices and cabling infrastructures. This density allows organizations to consolidate multiple access switches into a single managed platform, simplifying network topology and reducing administrative overhead.

Switches in this category are particularly suitable for structured cabling environments where reliable port availability is critical. By supporting a large number of endpoints such as desktop computers, printers, IP phones, access points, and security devices, the SF300-48PP-K9-NA category enables centralized traffic management while maintaining flexibility for future expansion. The port layout and internal switching fabric are designed to minimize congestion and ensure predictable packet forwarding under sustained workloads.

Integrated Power over Ethernet Plus Capabilities

A defining characteristic of the SF300-48PP-K9-NA category is its integrated Power over Ethernet Plus functionality. This capability enables the switch to supply electrical power and data connectivity through standard Ethernet cabling, eliminating the need for separate power adapters for compatible devices. The PoE+ support aligns with IEEE standards, making it suitable for powering IP telephony systems, wireless access points, surveillance cameras, and other network-powered peripherals.

PoE-enabled switching within this category simplifies deployment and reduces infrastructure costs by centralizing power management. Administrators can monitor power consumption, allocate power budgets, and ensure that critical devices receive consistent power delivery. This integrated approach enhances reliability and enables faster installation, particularly in environments where electrical outlets are limited or difficult to access.

Advanced Layer 2 and Layer 3 Management Features

The Cisco SF300-48PP-K9-NA category incorporates an extensive set of managed switching features designed to provide granular control over network traffic. Layer 2 capabilities include VLAN segmentation, Spanning Tree Protocol variants, and link aggregation technologies that enhance redundancy and throughput. These features allow administrators to design resilient network architectures that minimize downtime and maintain service continuity.

In addition to Layer 2 functions, this category supports static routing and inter-VLAN routing features typically associated with entry-level Layer 3 switching. These capabilities enable efficient traffic flow between network segments without relying on external routing devices, improving performance and reducing latency. The managed architecture supports consistent policy enforcement across the switching environment.

Virtual LAN Segmentation and Traffic Isolation

Virtual LAN support is a fundamental element of this switch category, allowing organizations to logically separate network traffic for security, performance, and administrative efficiency. By assigning devices to distinct VLANs, administrators can isolate sensitive data flows, reduce broadcast traffic, and implement structured access control policies. This segmentation is particularly valuable in environments with multiple departments, guest access requirements, or compliance considerations.

The SF300-48PP-K9-NA category supports flexible VLAN configurations that integrate seamlessly with existing network designs. VLAN tagging and trunking capabilities ensure compatibility with upstream switches and routers, enabling cohesive network expansion without redesigning the underlying infrastructure.

Quality of Service for Voice and Video Optimization

Quality of Service mechanisms are central to the managed switching category represented by the SF300-48PP-K9-NA. These features enable prioritization of latency-sensitive traffic such as Voice over IP and real-time video streams. By classifying and scheduling packets based on predefined policies, the switch ensures consistent application performance even during periods of high network utilization.

This category is particularly suited for converged networks where data, voice, and video traffic coexist. QoS policies can be applied at the port, VLAN, or traffic-class level, allowing precise control over bandwidth allocation and packet handling. The result is improved user experience and reduced jitter or packet loss for critical applications.

Security Frameworks and Network Protection

Security is a core design principle within the Cisco SF300-48PP-K9-NA switch category. Managed access controls, authentication mechanisms, and monitoring capabilities work together to protect network resources from unauthorized access and internal threats. These features are essential for organizations that require controlled network entry points and visibility into connected devices.

Port-level security functions allow administrators to restrict device access based on predefined criteria, helping to prevent unauthorized hardware from connecting to the network. Additional safeguards such as access control lists and secure management interfaces contribute to a layered security approach that aligns with best practices for modern network environments.

Authentication and Access Control Integration

This category supports authentication protocols that enable centralized user and device validation. By integrating with external authentication servers, the switch can enforce consistent access policies across the network. This approach enhances accountability and simplifies compliance with organizational security standards.

Access control features also support traffic filtering and policy enforcement at the switching level. These capabilities allow administrators to define permitted communication paths and restrict unnecessary or potentially harmful traffic, contributing to a more secure and efficient network operation.

Scalability and Deployment Flexibility

The SF300-48PP-K9-NA category is designed with scalability in mind, supporting deployment scenarios ranging from standalone installations to integrated switching environments. The managed architecture enables seamless integration with existing Cisco networking equipment, allowing organizations to expand their infrastructure without compatibility concerns.

Stacking and aggregation features within this category facilitate simplified management of multiple switches, presenting them as a unified system for configuration and monitoring. This approach reduces complexity and enhances operational efficiency as networks grow.

Reliability, Performance, and Business Continuity

Reliability is a critical requirement addressed by the Cisco SF300-48PP-K9-NA switch category. The internal hardware design, switching fabric, and firmware stability contribute to consistent uptime and predictable performance. These attributes are essential for business-critical networks where downtime can disrupt operations and impact productivity.

Performance optimization features ensure efficient packet forwarding and minimize latency across all ports. The switch category supports sustained traffic loads without degradation, making it suitable for environments with continuous data exchange and real-time communication demands.

Energy Efficiency and Operational Sustainability

Energy-efficient design principles are integrated into this category, supporting reduced power consumption without compromising performance. Intelligent power management features adjust energy usage based on network activity, contributing to lower operational costs and improved sustainability.

These efficiencies are particularly valuable in deployments with multiple switches, where cumulative power savings can be significant. The SF300-48PP-K9-NA category aligns with modern efficiency standards while maintaining robust functionality.

Application Scenarios and Industry Use Cases

The Cisco SF300-48PP-K9-NA 48 Ports Ethernet Switch category is suitable for a wide range of industry applications, including corporate offices, educational institutions, healthcare facilities, and hospitality environments. Its combination of port density, PoE support, and managed features makes it adaptable to diverse operational requirements.

In office environments, the switch supports unified communications, collaborative tools, and secure data access. In educational settings, it enables reliable connectivity for classrooms, administrative systems, and campus-wide wireless deployments. Retail and hospitality use cases benefit from centralized device power and simplified network management.

Integration with Existing Network Infrastructure

This category is engineered for compatibility with existing Ethernet standards and network devices. Organizations can deploy the SF300-48PP-K9-NA alongside legacy equipment while gradually upgrading their infrastructure. This interoperability reduces migration complexity and protects prior investments.

The managed features and flexible configuration options ensure that the switch can adapt to evolving network requirements, making it a long-term component of scalable IT strategies.
