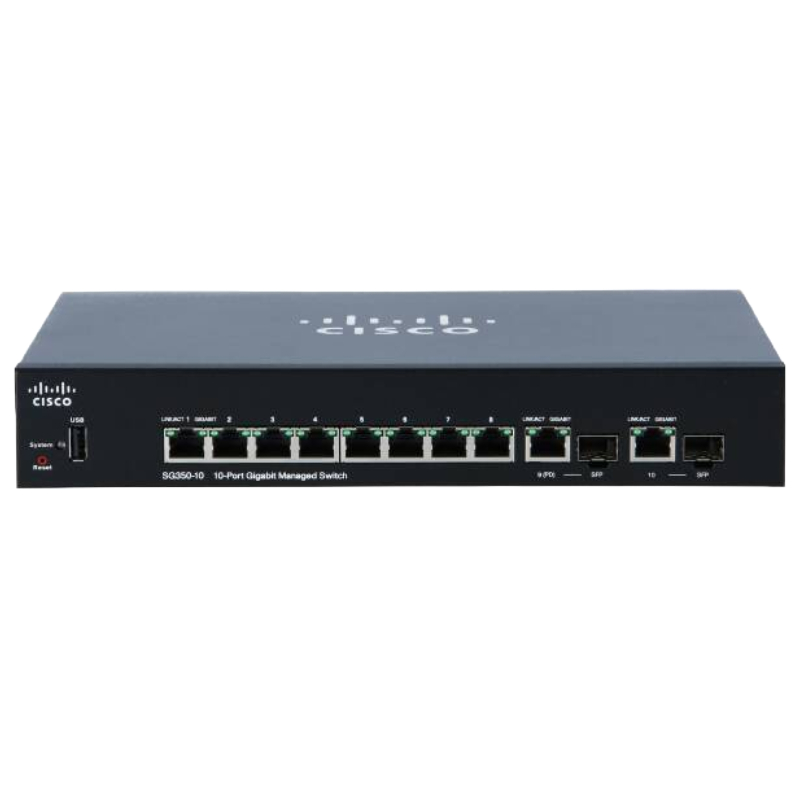

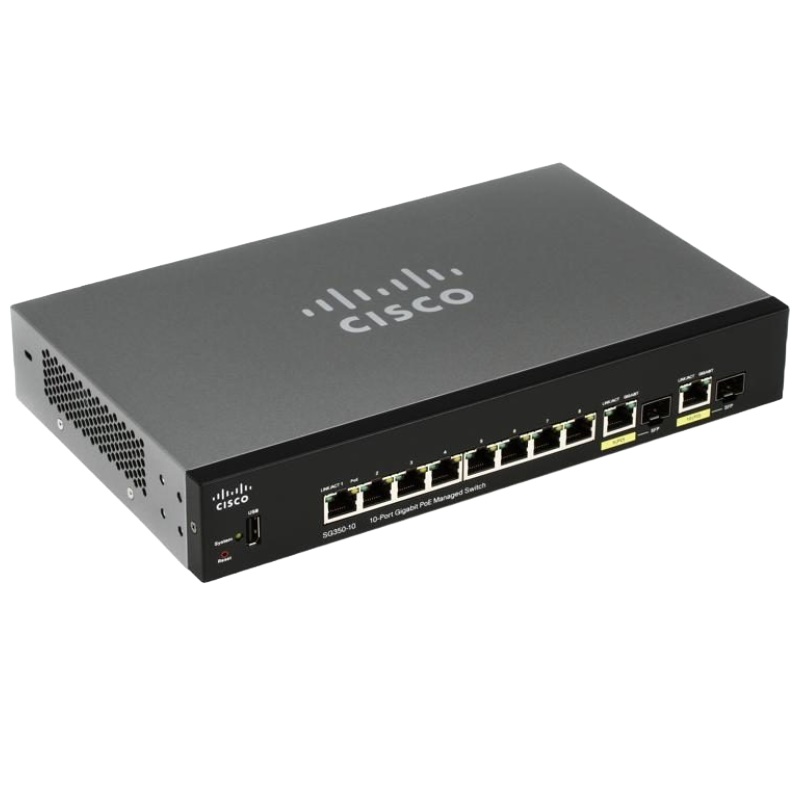

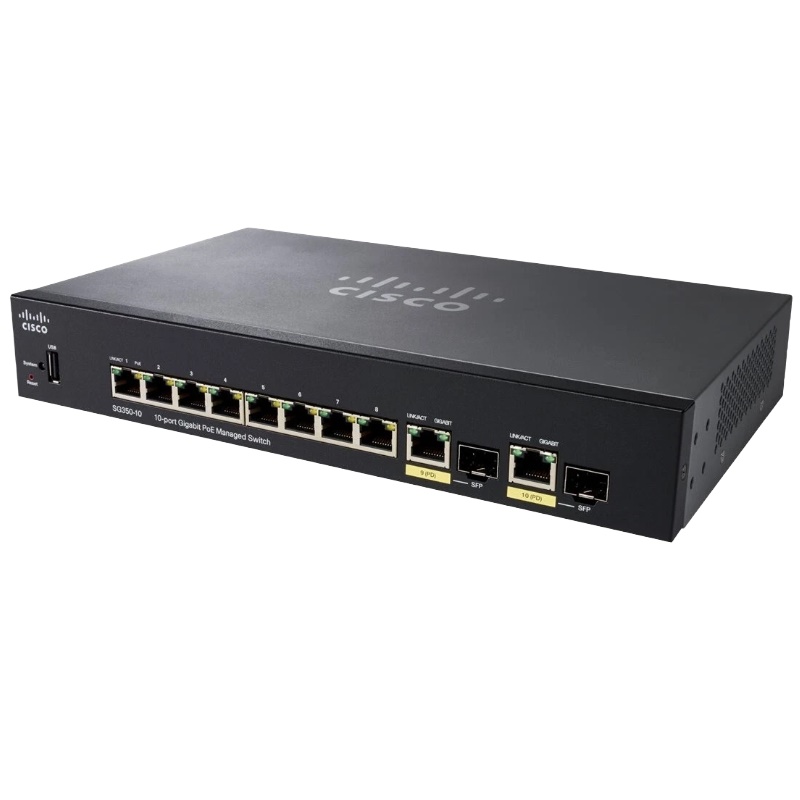

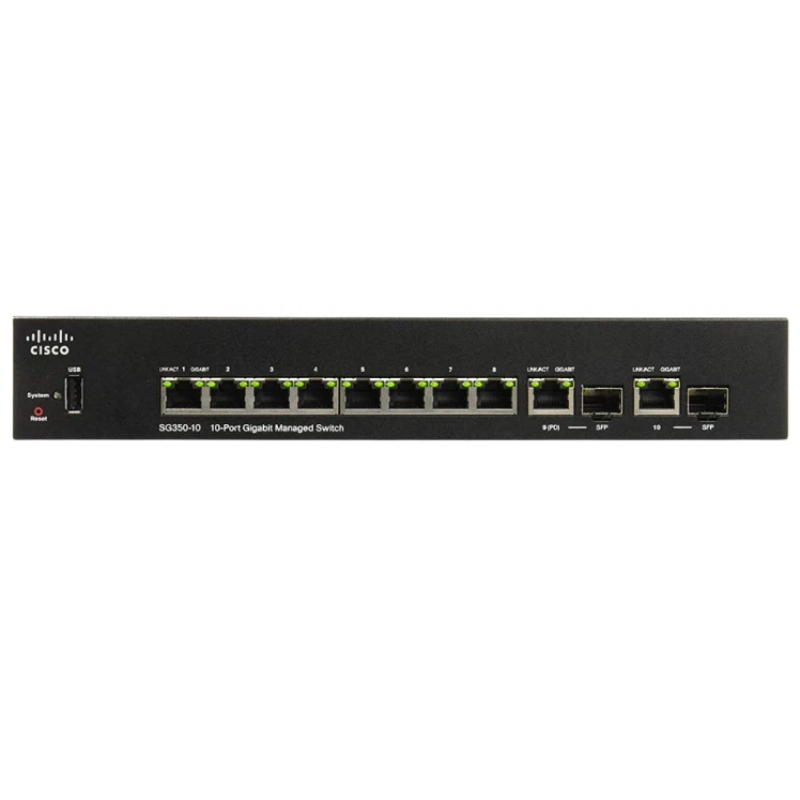

Cisco SG350-10-K9-NA Ethernet Switch 10-Ports

Overview of the Cisco SG350-10-K9-NA

Product Details

• Manufacturer: Cisco
• Model Number: SG350-10-K9-NA
• Series: 350
• Type: Ethernet Switch
• Total Ports: 10
• Uplink Port: Yes
• Modular: Yes
• Stack Port: No
• Expansion Slot Details: 2 x Gigabit Ethernet Expansion Slots, 10 x Gigabit Ethernet Network Ports

Performance Specifications

• Optical Fiber
• Twisted Pair

Network Technologies

• Gigabit Ethernet
• 1000Base-X
• 10/100/1000Base-T

Switching and Forwarding

• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.88 MPPS (64-byte packet size)

Expansion and Slots

• Total Expansion Slots: 2
• Slot Type: SFP
• Shared SFP Slot: Yes
• Number of SFP Slots: 2

Additional Features

• Layer Supported: Layer 3
• Enclosure Type: Desktop 1U
• Connectivity: Wired

MAC Address Table and Jumbo Frame Support

• MAC Address Table Size: 16K entries
• Jumbo Frame Support: 9216 bytes

Management and Protocols

• Manageable: Yes
• Routing Protocols: CIDR, Static IPv4 Routing
• Remote Management: CLI, HTTP, HTTPS, RMON (1, 2, 3, 9), SNMP (1, 2c, 3), SSH, Telnet, TFTP

Power Specifications

• Power Source: External Power Supply
• Voltage: AC 120/230 V
• Frequency: 50/60 Hz
• Electric Current Required: 700 mA
• Power Consumption: 9.01 Watts
• Redundant Power Supply: Not Supported

Environmental Conditions

• Min Operating Temperature: 32 °F
• Max Operating Temperature: 104 °F
• Min Storage Temperature: -4 °F
• Max Storage Temperature: 158 °F

Humidity Levels

• Operating Humidity Range: 10 – 90% (non-condensing)
• Storage Humidity Range: 10 – 90% (non-condensing)

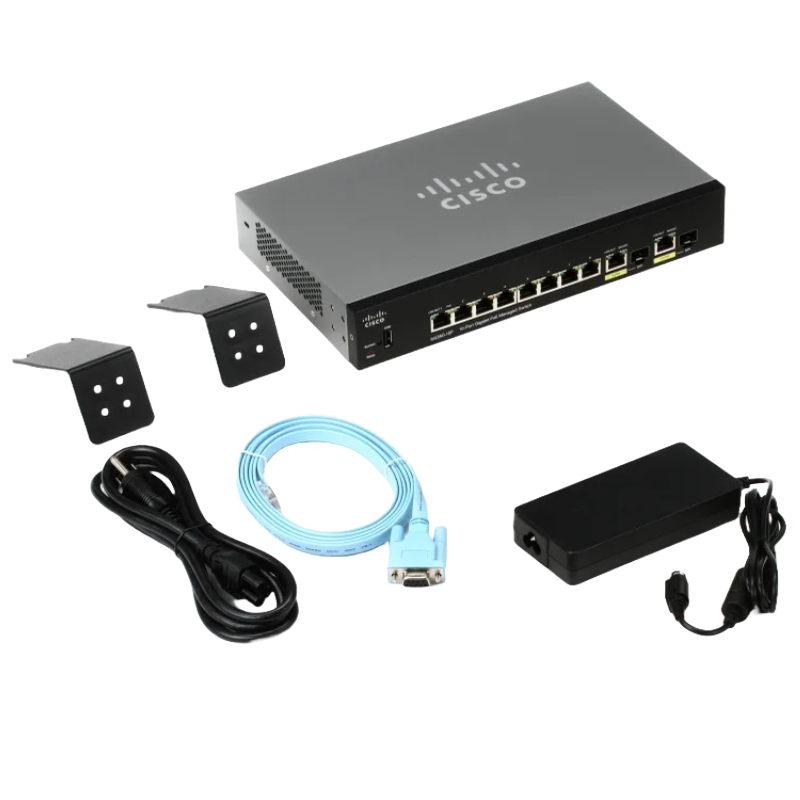

Package Contents

• SG350-10 10-Port Gigabit Managed Switch
• Power Cord
• Mounting Kit
• Console Cable
• Quick Start Guide

Compliance Standards

• IEEE 802.1D
• IEEE 802.1p
• IEEE 802.1Q
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.3
• IEEE 802.3ab
• IEEE 802.3ad (LACP)
• IEEE 802.3az
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3

  Increased Connectivity Options

  With 10 ports, this Cisco Ethernet switch offers an abundance of connectivity options for various network devices. Whether you need to connect computers, servers, printers, or other network-enabled devices, the SG350-10-K9-NA has you covered. Each port can be used to establish a stable and high-speed connection, ensuring seamless communication between different devices on your network.

  In addition to providing multiple ports, this switch also supports a range of networking technologies such as Ethernet, Fast Ethernet, and Gigabit Ethernet. This versatility enables you to connect devices with different networking capabilities without any compatibility issues. Whether you have legacy devices or modern equipment, the SG350-10-K9-NA switch ensures smooth integration into your network infrastructure.

  Improved Network Performance

  The 10 ports on the Cisco SG350-10-K9-NA Ethernet Switch contribute significantly to enhancing network performance. By offering multiple ports, this switch allows for simultaneous data transmission and reception across various devices connected to the network. This eliminates bottlenecks and congestion that may occur when multiple devices share a limited number of ports.

  The increased number of ports also facilitates load balancing across the network. This means that traffic can be evenly distributed among the available ports, preventing any single port from becoming overloaded. As a result, you can achieve optimal network performance and prevent any potential slowdowns or interruptions in data transfer.

  Flexibility in Network Expansion

  The 10 ports of the SG350-10-K9-NA switch provide ample room for network expansion. As your business grows and your network requirements evolve, this switch offers the flexibility to accommodate additional devices without the need to invest in a new switch. You can easily connect new computers, printers, or any other network-enabled devices to the available ports, ensuring that your network remains scalable and adaptable to future needs.

  Furthermore, the Cisco SG350-10-K9-NA switch supports features such as VLAN (Virtual Local Area Network) and QoS (Quality of Service), which allow you to segment your network and prioritize traffic based on specific requirements. This enables efficient management of network resources and ensures that critical applications receive the necessary bandwidth for optimal performance.

  Cost-Efficiency

  By having 10 ports, the Cisco SG350-10-K9-NA Ethernet Switch offers cost-efficiency for small to medium-sized businesses. Instead of investing in multiple switches to meet your connectivity needs, this single switch provides an all-in-one solution. This not only reduces upfront costs but also simplifies network management and maintenance.

  Consolidating your network infrastructure into a single switch also reduces power consumption and lowers ongoing operational costs. With fewer devices requiring power and cooling, you can enjoy energy savings while still maintaining a robust and reliable network.

  Conclusion

  The Cisco SG350-10-K9-NA Ethernet Switch's 10 ports deliver numerous benefits for users. From increased connectivity options to improved network performance, flexibility in network expansion, and cost-efficiency, this feature plays a vital role in creating a reliable and scalable network infrastructure. Whether you are a small business looking to establish a solid network foundation or a growing enterprise in need of expanding connectivity, the SG350-10-K9-NA switch is an excellent choice.
