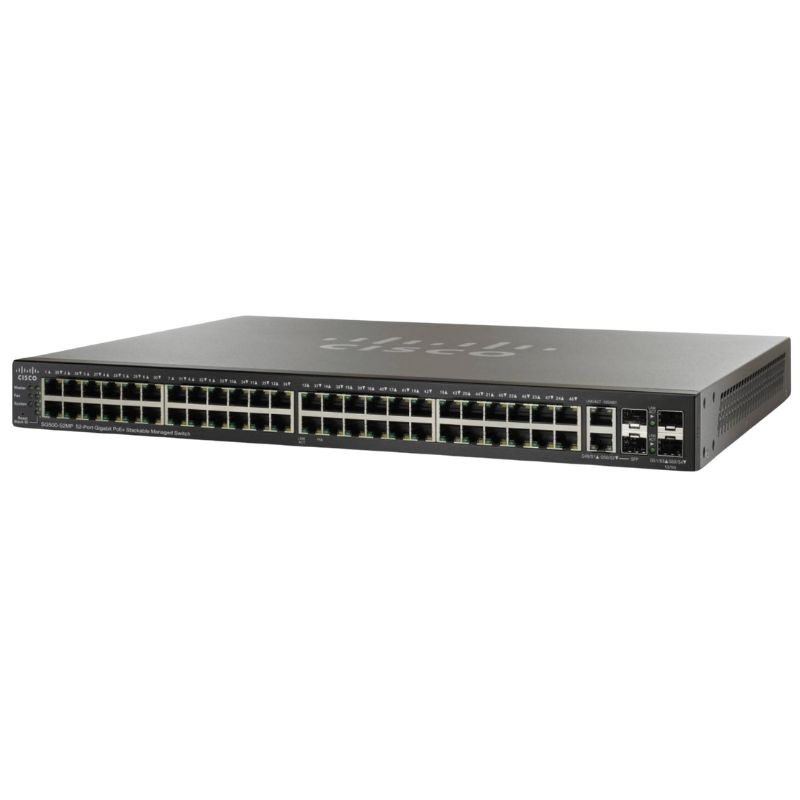

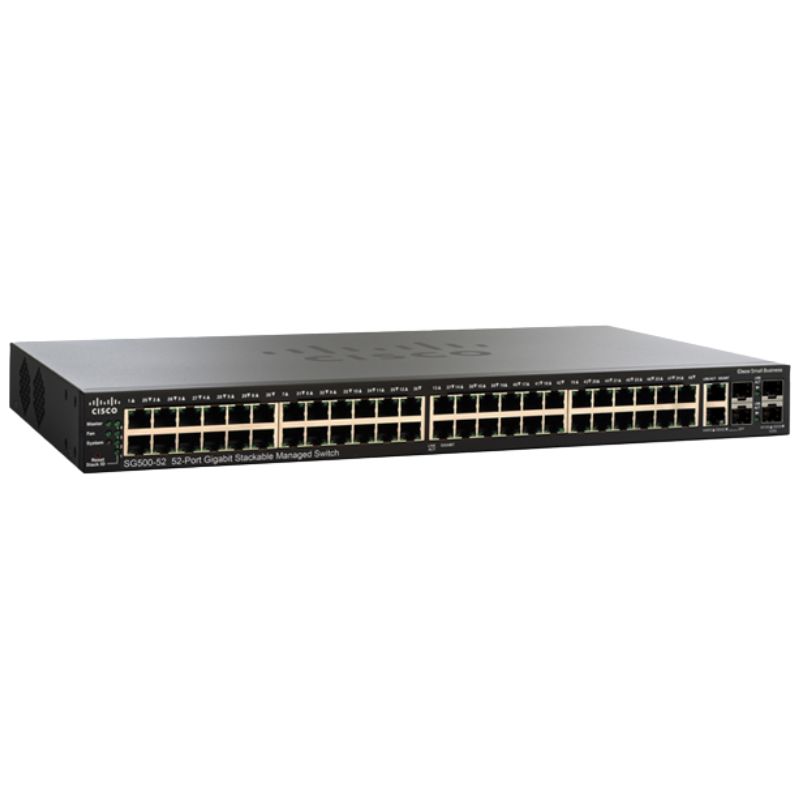

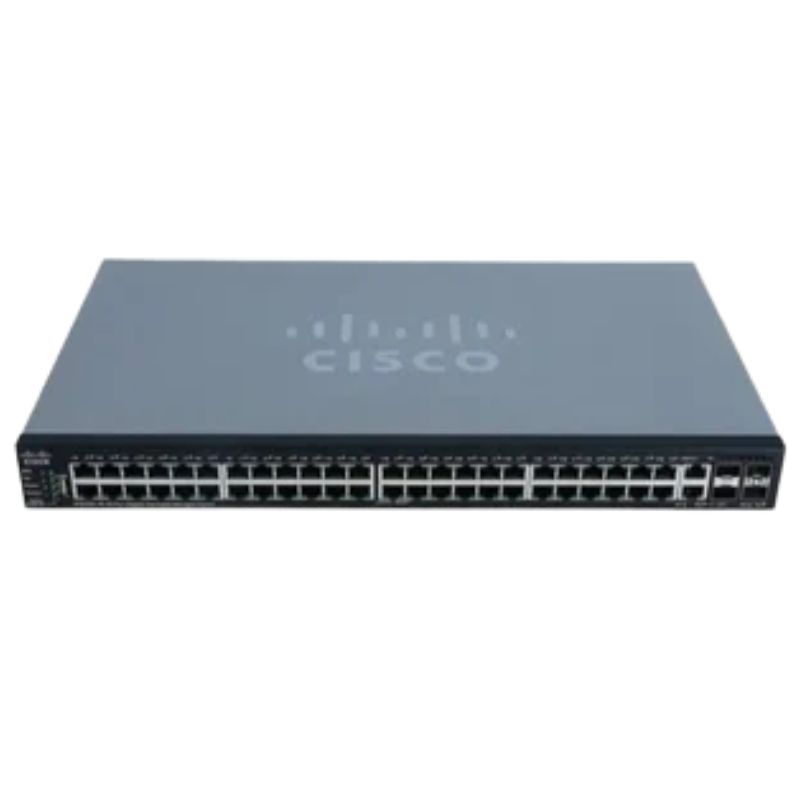

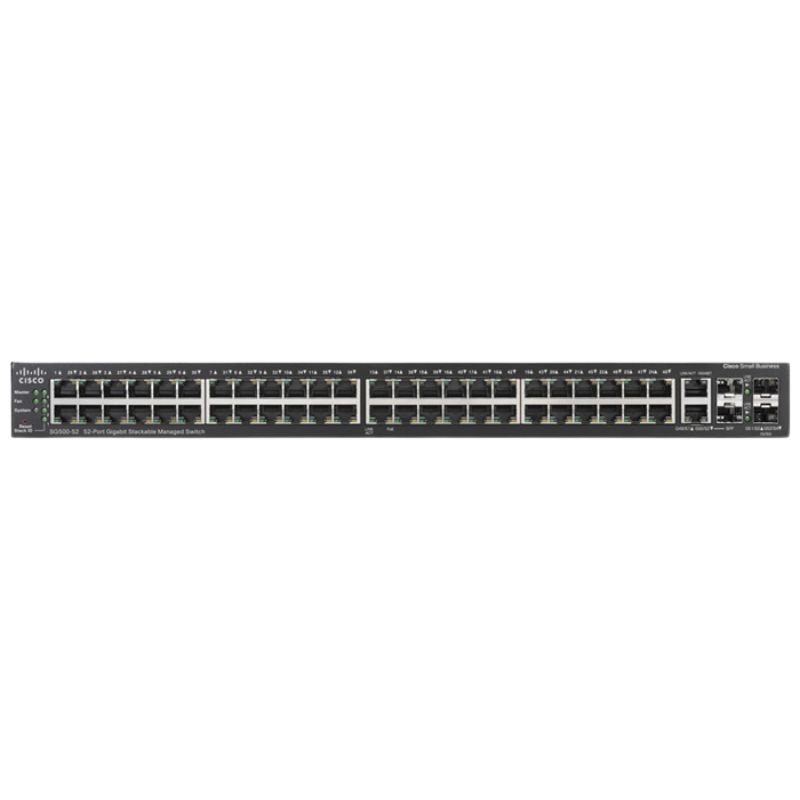

Cisco SG500-52MP-K9 52-Ports Ethernet Switch 2 Combo Gigabit

Cisco SG500-52MP-K9 52-Port Managed Switch Overview

General Information

• Manufacturer: Cisco
• Model Number: SG500-52MP-K9
• Product Line: Smart Plus
• Series: 500
• Model Type: SG500-52P
• Switch Type: Layer 3

Port Specifications

• Total Ports: 52
• Uplink Port: Yes
• Modular: No
• Port Details:
  • 50 x Gigabit Ethernet Ports
  • 2 x Gigabit Ethernet Expansion Slots

Expansion Capabilities

• Expansion Slots: 2
• Slot Type: SFP
• Shared SFP Slot: Yes
• SFP Slots Count: 2

Media and Performance Specifications

• Supported Media Type: Twisted Pair
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T

Network and Communication

• Layer Supported: 3

Management and Protocols

• Manageable: Yes
• IPv4 Routes: 2048
• IPv6 Routes: 2048
• ACL Rules: 2048
• MAC Address Table Size: 16K entries
• Jumbo Frame Support: 9216 bytes
• Maximum Stack Units: 8
• Routing Protocol: Static IP Routing
• Remote Management Protocols:
  • SNMP 1, 2c, 3
  • RMON 1, 2, 3, 9
  • HTTP, HTTPS
  • SSH, SSH-2
  • CLI
• Authentication Methods:
  • RADIUS
  • TACACS+
• Standards Compliance:
  • IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q
  • 802.3ab, 802.1p, 802.3af, 802.3x, 802.3ad (LACP)
  • 802.1w, 802.1x, 802.1s, 802.1ab (LLDP)
  • 802.3at, 802.3az

Features

• Flow Control
• Layer 2 Switching
• Power over Ethernet (PoE) & PoE+
• VLAN Support
• IGMP Snooping
• DoS Attack Prevention
• Port Mirroring
• Weighted Round Robin (WRR) Queuing
• Broadcast Storm Control
• IPv6 Support
• Multicast Storm Control
• Unicast Storm Control
• Spanning Tree Protocol (STP)
• Rapid Spanning Tree Protocol (RSTP)
• Multiple Spanning Tree Protocol (MSTP)
• DHCP Snooping
• Access Control List (ACL) Support
• Quality of Service (QoS)
• RADIUS Support
• DHCP Server
• MLD Snooping
• Dynamic ARP Inspection (DAI)
• Reset Button
• STP Root Guard
• Uni-Directional Link Detection (UDLD)
• LACP Support
• LLDP Support
• DHCP Relay
• Energy Efficient Ethernet
• Dynamic VLAN Support (GVRP)
• Class of Service (CoS)
• Strict Priority (SP)
• Generic Attribute Registration Protocol (GARP)
• 16MB Packet Buffer

Reliability and Power

• Mean Time Between Failures (MTBF): 186,968 Hours
• Power Source: Power Supply
• Voltage Required: AC 120/230 V (50/60 Hz)

Environmental Specifications

• Operating Temperature Range: 32 °F to 122 °F
• Operating Humidity: 10 – 90% (non-condensing)
• Storage Temperature Range: -4 °F to 158 °F
• Storage Humidity: 10 – 90% (non-condensing)

Included Accessories

• SG500-52MP 52-Port Gigabit Max PoE+ Stackable Managed Switch
• Power Cord
• Mounting Kit
• Serial Cable
• CD-ROM with User Documentation (PDF)
• Quick Start Guide

Ports

The Cisco SG500-52MP-K9 Ethernet Switch is equipped with an impressive 52 ports, making it an ideal choice for businesses of all sizes. These ports play a crucial role in establishing connectivity between various devices in a network, ensuring smooth communication and efficient data transfer. Let's explore the benefits and importance of this extensive port capacity.

Improved Scalability

With 52 ports at your disposal, the Cisco SG500-52MP-K9 Ethernet Switch offers exceptional scalability. This means that as your business grows and requires additional devices to be connected to the network, you have the flexibility to accommodate them without any hassle. Whether it's expanding your workforce or adding new equipment, the switch's numerous ports ensure that you won't face any limitations when it comes to connectivity.

Seamless Collaboration

In today's collaborative work environments, seamless communication between team members is crucial for productivity. The 52 ports on the Cisco SG500-52MP-K9 Ethernet Switch allow for effortless collaboration by providing sufficient connectivity options for all devices. From computers and printers to IP phones and wireless access points, every essential component can be easily connected to the network, facilitating smooth information exchange and effective teamwork.

Reduced Network Congestion

When multiple devices compete for limited network resources, congestion can occur, leading to slower data transfer speeds and decreased overall performance. The extensive port capacity of the Cisco SG500-52MP-K9 Ethernet Switch helps alleviate network congestion by distributing the load across multiple ports. This ensures that data flows smoothly, minimizing bottlenecks and enhancing network efficiency.

Enhanced Network Security

In addition to enabling seamless connectivity, the numerous ports on the Cisco SG500-52MP-K9 Ethernet Switch also contribute to enhanced network security. With more ports available, you can create separate virtual local area networks (VLANs) for different departments or user groups within your organization. This segmentation helps to isolate network traffic and restrict access to sensitive information, reducing the risk of unauthorized access and potential security breaches.

Power over Ethernet (PoE) Support

The Cisco SG500-52MP-K9 Ethernet Switch also offers Power over Ethernet (PoE) support on 48 of its ports. This feature allows you to power compatible devices, such as IP phones, wireless access points, and surveillance cameras, directly from the switch, eliminating the need for separate power sources. PoE simplifies installation and reduces cable clutter, making it an efficient and cost-effective solution for businesses.

Combo Ports

In addition to the 52 regular ports, the Cisco SG500-52MP-K9 Ethernet Switch is equipped with 2 combo ports. These combo ports offer versatility and flexibility in connecting different types of devices to the network.

Multiple Connectivity Options

The 2 combo ports on the Cisco SG500-52MP-K9 Ethernet Switch support both copper and fiber optic connections. This allows you to choose the most suitable connectivity option based on your specific requirements. Copper connections are ideal for shorter distances within a building, while fiber optic connections are preferred for longer distances or environments with electromagnetic interference. The ability to choose between these options ensures seamless integration with existing infrastructure and enables efficient data transmission.

Cost-Effective Solution

The availability of combo ports on the Cisco SG500-52MP-K9 Ethernet Switch eliminates the need for additional converters or adapters. By providing both copper and fiber optic connectivity options in a single device, the switch offers a cost-effective solution for businesses that need flexibility in their network architecture. This not only reduces expenses but also simplifies network management, as there are fewer components to maintain and troubleshoot.

Future-Proofing

The inclusion of combo ports in the Cisco SG500-52MP-K9 Ethernet Switch ensures future-proofing for your network infrastructure. As technology evolves, there may be a need to upgrade or switch to different connectivity standards. With the flexibility of combo ports, you can easily adapt to changing requirements without replacing the entire switch. This scalability and future-proofing capability contribute to long-term cost savings and provide peace of mind knowing that your network can accommodate emerging technologies.

High-Speed Connectivity

The combo ports on the Cisco SG500-52MP-K9 Ethernet Switch support Gigabit Ethernet speeds, ensuring fast and reliable data transfer. Gigabit Ethernet offers significantly higher bandwidth compared to traditional Fast Ethernet, allowing for the seamless transmission of large files, multimedia content, and real-time applications. Whether you're dealing with large data transfers or demanding multimedia streams, Gigabit connectivity provided by the combo ports ensures optimal performance and a smooth user experience.

Gigabit

The Cisco SG500-52MP-K9 Ethernet Switch features Gigabit Ethernet technology, which offers numerous benefits and plays a vital role in modern networks.

Lightning-Fast Data Transfer

Gigabit Ethernet provides data transfer speeds of up to 1000 Mbps, ten times faster than traditional Fast Ethernet. This significant speed increase allows for lightning-fast file transfers, quick access to network resources, and efficient data backup processes. Whether you're transferring large files between devices or accessing data stored on network-attached storage (NAS) devices, Gigabit connectivity ensures minimal waiting times and maximizes productivity.

Improved Network Performance

With its high-speed capabilities, Gigabit Ethernet significantly improves overall network performance. The increased bandwidth allows for more simultaneous connections and data streams without sacrificing speed. This means that multiple users can access network resources simultaneously, such as cloud services, without experiencing any noticeable slowdowns. Gigabit Ethernet also reduces latency, ensuring smooth and responsive communication for real-time applications like video conferencing or VoIP calls.

Future-Ready Infrastructure

Gigabit Ethernet is a future-ready technology that provides a solid foundation for your network infrastructure. As demands for higher bandwidth continue to grow, Gigabit connectivity ensures that your network can handle the increasing data traffic without requiring costly upgrades or replacements. By investing in a Gigabit switch like the Cisco SG500-52MP-K9, you're future-proofing your network and ensuring its compatibility with emerging technologies and applications.

Compatibility with Existing Devices

One of the significant advantages of Gigabit Ethernet is its backward compatibility with existing devices. The Cisco SG500-52MP-K9 Ethernet Switch supports both Gigabit and Fast Ethernet devices, allowing for seamless integration with your current network infrastructure. This compatibility ensures that you can gradually upgrade your network components without disrupting operations or incurring additional expenses.

Energy Efficiency

Despite its impressive speed capabilities, Gigabit Ethernet technology is designed to be energy-efficient. The Cisco SG500-52MP-K9 Ethernet Switch incorporates advanced power-saving features that automatically adjust power consumption based on network utilization and cable length. This results in reduced energy costs and environmental impact without compromising performance. By deploying a Gigabit switch, you can contribute to sustainability efforts while enjoying the benefits of high-speed networking.

In conclusion, the Cisco SG500-52MP-K9 Ethernet Switch's 52 ports, combo ports, and Gigabit capabilities offer numerous benefits for businesses. The extensive port capacity allows for improved scalability, seamless collaboration, reduced network congestion, enhanced security, and Power over Ethernet support. The combo ports provide versatility and flexibility in connectivity options while the Gigabit Ethernet technology ensures lightning-fast data transfer, improved network performance, future-readiness, compatibility with existing devices, and energy efficiency. With its comprehensive features, the Cisco SG500-52MP-K9 Ethernet Switch is an excellent choice for organizations seeking a reliable and high-performance network infrastructure solution.
