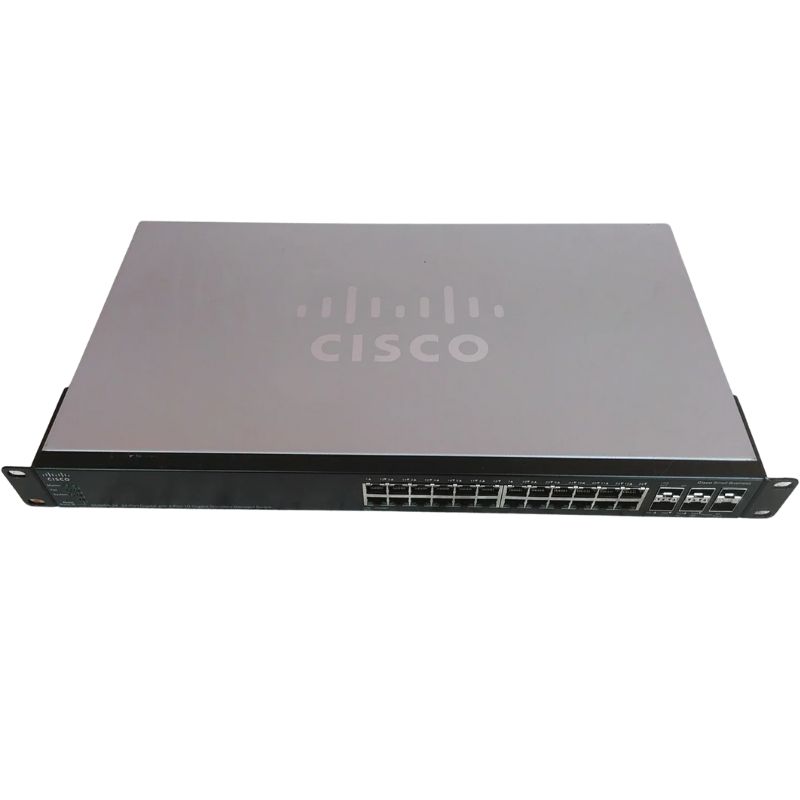

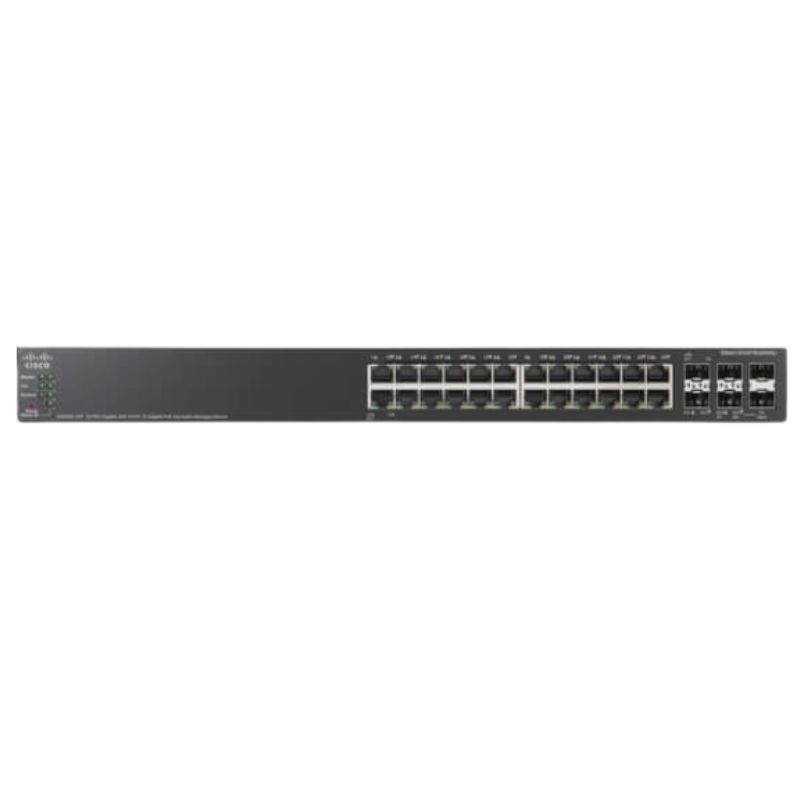

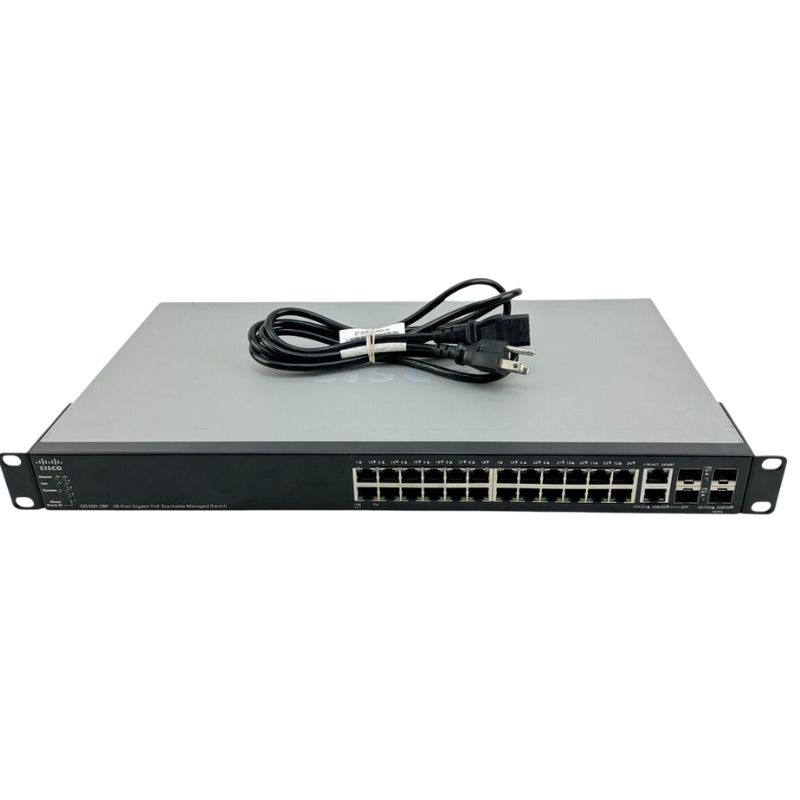

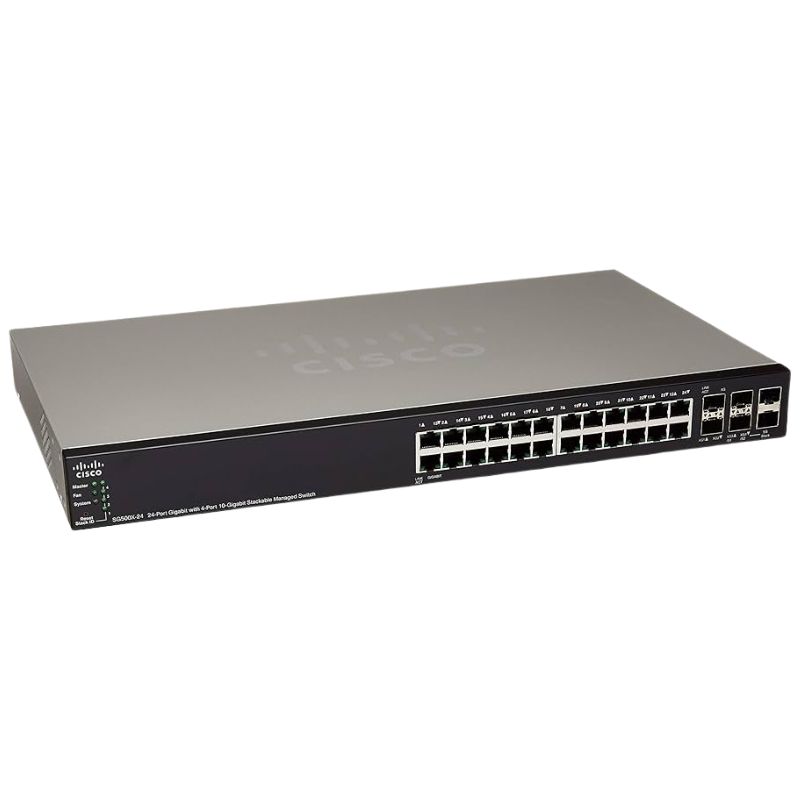

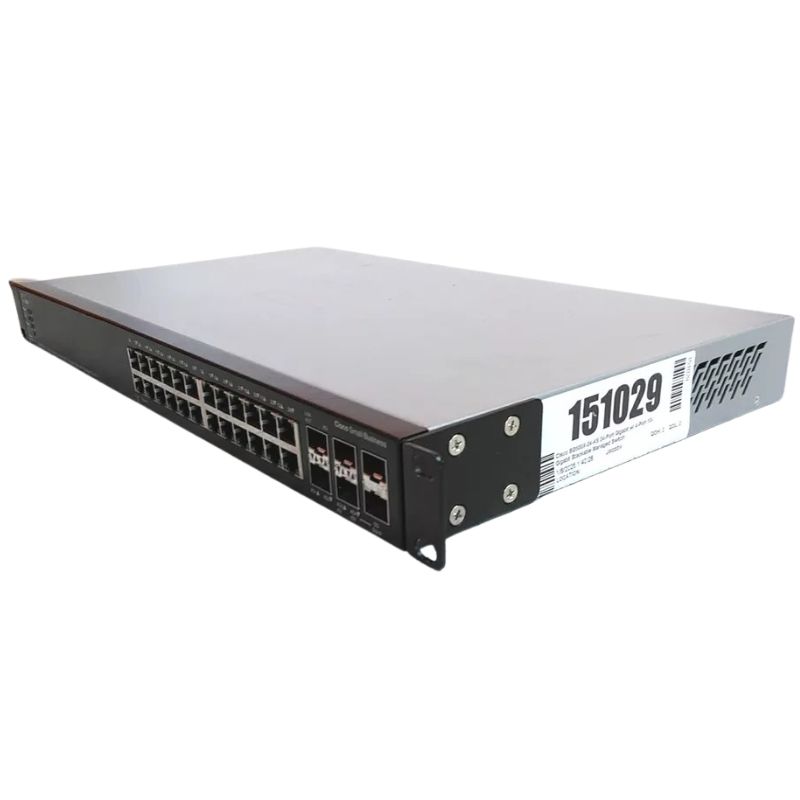

Cisco SG500X-24-K9-NA Small Business 24-Port Ethernet Switch SFP+

Ports

The Cisco SG500X-24-K9-NA Ethernet Switch is equipped with 24 ports, making it an ideal choice for businesses that require a high number of network connections. These ports allow users to connect multiple devices such as computers, printers, servers, and IP cameras to the network.

Product Overview

The Cisco SG500X-24-K9-NA is a high-performance Layer 3 switch designed for robust networking needs. It provides versatile management and connectivity features, making it a reliable choice for medium to large-scale networks.

General Specifications

• Manufacturer: Cisco
• Part Number: SG500X-24-K9-NA
• Series: 500
• Product Type: Layer 3 Switch

Port Configuration

• Total Ports: 24
• Token Ring Port: Not available
• LRE Port: Not included
• Uplink Port: Not present
• Bypass: Not supported
• Modular Design: No
• Management Port: Yes
• USB Ports: Absent
• Stacking Capability: Yes
• Network Ports (RJ-45): 24

Performance and Media Support

• Supported Media Type: Twisted Pair
• Cable Standard: Category 5
• Ethernet Technologies: Fast Ethernet, Gigabit Ethernet
• Network Technology: 10/100/1000Base-T

Expansion Capabilities

• Total Expansion Slots: 4
• SFP+ Slots: 4

Networking Features

• Layer Supported: Layer 3

Management and Protocols

• Manageable: Yes
• Management Features: VLAN, QoS, GUI, CLI, DHCP, SNMP

Memory Specifications

• Standard Memory: 256 MB
• Flash Memory: 32 MB

Power and Voltage

• PoE (RJ-45) Port: Not available
• Input Voltage: 110 V AC, 220 V AC
• Power Source: Power Supply

Increased Connectivity

One of the key benefits of the Cisco SG500X-24-K9-NA Ethernet Switch's 24 ports is the increased connectivity it offers. With a larger number of ports, businesses can easily connect a greater number of devices to the network without worrying about running out of available connections. This is particularly important for growing businesses that may need to add more devices to their network in the future.

Flexibility

Having 24 ports on the Cisco SG500X-24-K9-NA Ethernet Switch provides users with more flexibility in configuring their network. With a larger number of ports, businesses can easily set up different VLANs (Virtual Local Area Networks) to segregate traffic and improve network efficiency. Additionally, businesses can allocate specific ports for certain devices or departments, allowing for better organization and management of network resources.

Scalability

The 24 ports on the Cisco SG500X-24-K9-NA Ethernet Switch also make it a scalable solution for businesses. As the business grows and more devices need to be connected to the network, there is no need to invest in additional networking equipment. The switch's 24 ports provide ample room for expansion, ensuring that businesses can easily accommodate their increasing connectivity needs without any hassle.

Cost-Efficiency

Another advantage of having 24 ports on the Cisco SG500X-24-K9-NA Ethernet Switch is the cost-efficiency it offers. By providing a high number of ports in a single device, businesses can save on the cost of purchasing multiple switches or networking equipment. This not only reduces upfront costs but also lowers ongoing maintenance and management expenses.

Streamlined Network Management

With 24 ports, the Cisco SG500X-24-K9-NA Ethernet Switch simplifies network management. Administrators can easily monitor and control the connected devices from a central location, reducing the complexity of managing multiple switches or networking equipment. This streamlined network management saves time and effort, allowing IT professionals to focus on other critical tasks.

Interface

The Cisco SG500X-24-K9-NA Ethernet Switch features SFP+ (Small Form-Factor Pluggable Plus) interfaces, providing users with enhanced connectivity options and performance capabilities. This interface is specifically designed for high-speed data transmission over fiber optic cables.

High-Speed Data Transmission

One of the key benefits of the SFP+ interface on the Cisco SG500X-24-K9-NA Ethernet Switch is its ability to support high-speed data transmission. With this interface, businesses can achieve network speeds of up to 10 Gigabits per second (Gbps), allowing for fast and efficient data transfer between devices. This is particularly crucial for bandwidth-intensive applications such as video streaming, large file transfers, and data backups.

Future-Proofing

By featuring SFP+ interfaces, the Cisco SG500X-24-K9-NA Ethernet Switch offers future-proofing capabilities for businesses. As technology continues to advance and demand for faster network speeds increases, the switch's SFP+ interfaces ensure that businesses can easily upgrade their network infrastructure without replacing the entire switch. This scalability allows businesses to stay ahead in the ever-evolving digital landscape.

Long-Distance Connectivity

The SFP+ interface also enables long-distance connectivity over fiber optic cables. Unlike traditional copper cables, fiber optic cables can transmit data over much longer distances without experiencing signal degradation. This makes the Cisco SG500X-24-K9-NA Ethernet Switch suitable for businesses that require connectivity between different buildings or locations within their premises.

Flexibility in Network Design

With SFP+ interfaces, businesses can design their network infrastructure to meet their specific needs. The Cisco SG500X-24-K9-NA Ethernet Switch supports a wide range of SFP+ transceiver modules, allowing businesses to choose the appropriate modules based on their requirements. This flexibility enables businesses to customize their network design, ensuring optimal performance and compatibility with existing infrastructure.

Reliability and Performance

The SFP+ interface on the Cisco SG500X-24-K9-NA Ethernet Switch offers enhanced reliability and performance compared to traditional interfaces. Fiber optic cables are immune to electromagnetic interference, ensuring a stable and consistent data transmission. Additionally, the high-speed capabilities of the SFP+ interface enable businesses to handle large data volumes and bandwidth-intensive applications with ease.

In conclusion, the Cisco SG500X-24-K9-NA Ethernet Switch's 24 ports provide increased connectivity, flexibility, scalability, cost-efficiency, and streamlined network management. The SFP+ interface offers high-speed data transmission, future-proofing capabilities, long-distance connectivity, flexibility in network design, and enhanced reliability and performance. These features make the Cisco SG500X-24-K9-NA Ethernet Switch an excellent choice for businesses looking for a reliable and efficient networking solution.
