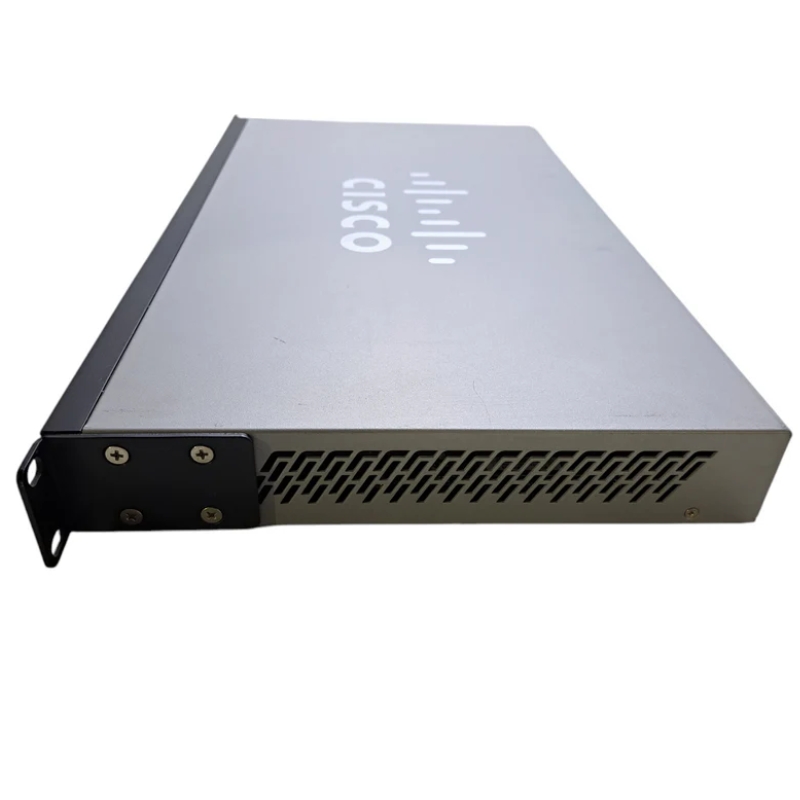

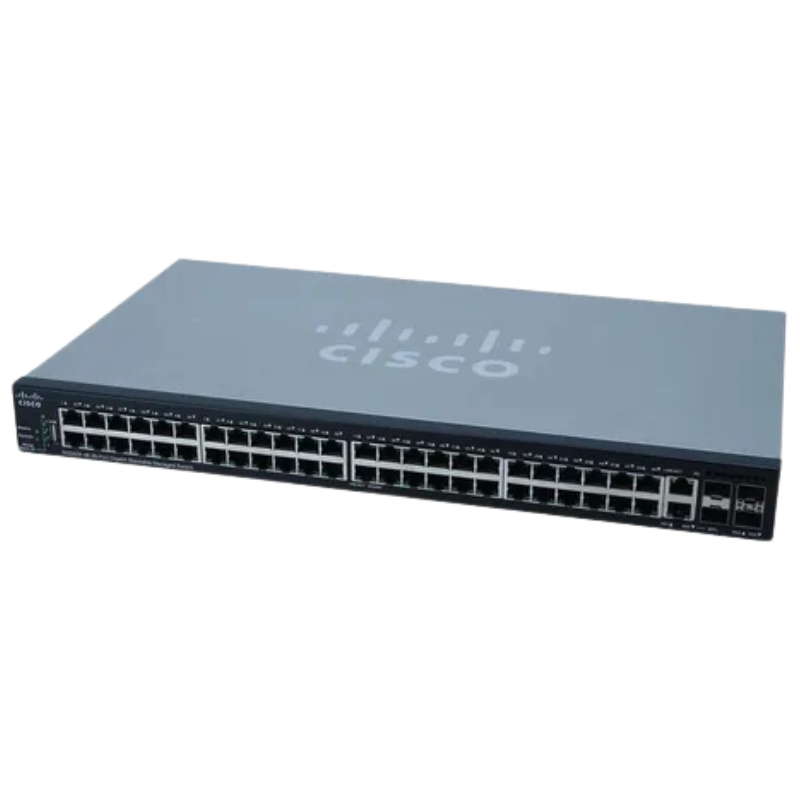

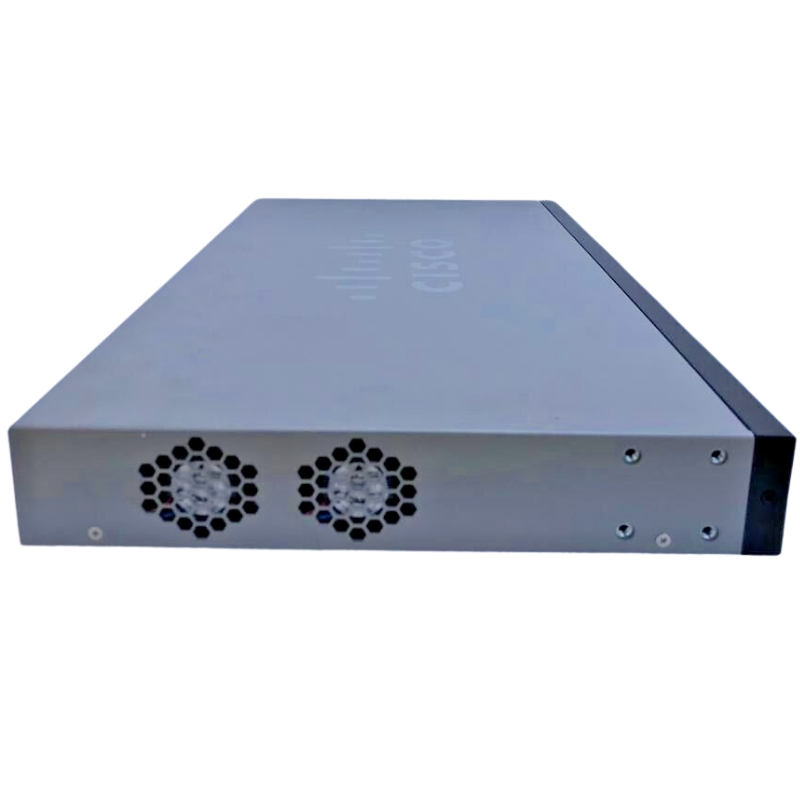

Cisco SG500X-48MP-K9 Layer 3 Switch

Cisco SG500X-48MP-K9 Layer 3 Switch Overview

• Part Number: SG500X-48MP-K9
• Manufacturer: Cisco
• Product Series: 500 Series
• Type: Layer 3 Networking Switch

Interfaces and Ports

Network Ports

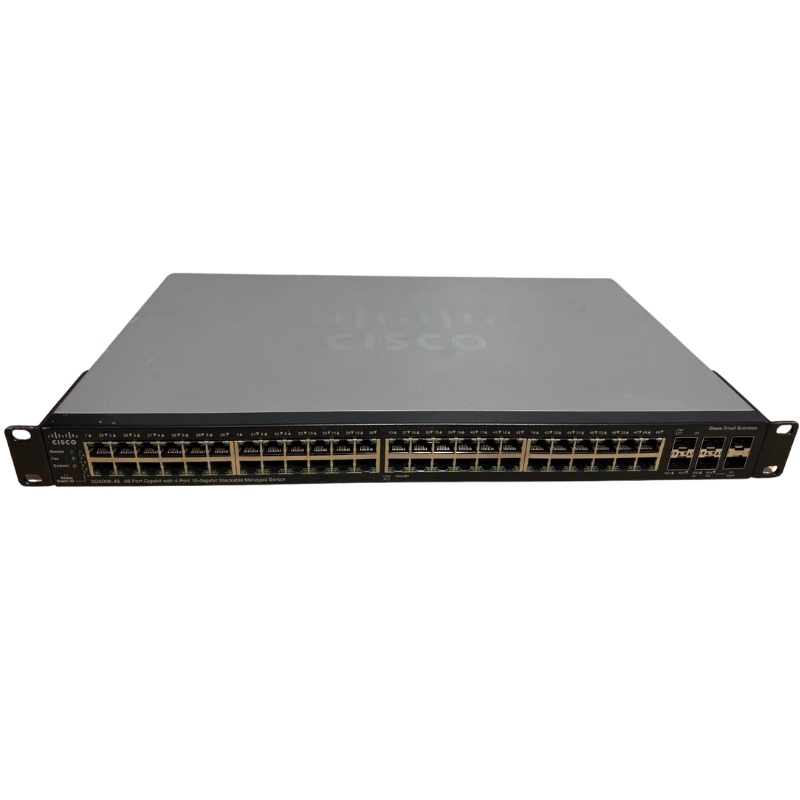

• Total Ports: 48 Gigabit Ethernet Ports
• PoE+ (RJ-45) Ports: 48
• Management Port: Yes
• Stacking Port: Available

Port and Expansion Slot Details

• 48 x Gigabit Ethernet
• 4 x 10 Gigabit Ethernet (Expansion Slots)

Performance and Form Factor

• Compatible Rack Unit: 1U
• Form Factor: Rack-mountable or desktop
• Media Support: Twisted Pair (Cat 5)
• Ethernet Technology: Supports 10 Gigabit Ethernet, Gigabit Ethernet
• Network Technology: 10/100/1000Base-T, 10GBase-X
• MTBF: 307,978 Hours

I/O Expansions

• Total Expansion Slots: 4
• Slot Type: SFP+ (Small Form-factor Pluggable)
• Shared SFP Slot: Yes

Environmental Specifications

Operating Conditions

• Min Operating Temperature: 32 °F (0 °C)
• Max Operating Temperature: 122 °F (50 °C)
• Operating Humidity: 10% – 90% (non-condensing)

Storage Conditions

• Min Storage Temperature: -4 °F (-20 °C)
• Max Storage Temperature: 158 °F (70 °C)
• Storage Humidity: 10% – 90% (non-condensing)

Network and Communication Capabilities

• Layer Support: Layer 3

Supported Protocols

• Routing Protocols: RIP-2, VRRP, static IPv4/IPv6 routing, CIDR
• Remote Management Protocols: SNMP v1/v2c/v3, RMON (1, 2, 3, 9), Telnet, HTTP, HTTPS, SSH, CLI

Memory

• Standard Memory: 256 MB
• Flash Memory: 32 MB

Compliance and Standards

• IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q
• IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x
• IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
• IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

Advanced Features

• Layer 2 and Layer 3 switching
• VLAN and IGMP Snooping
• Support for BOOTP, DoS Prevention, Syslog, and Port Mirroring
• Broadcast, Multicast, and Unicast Storm Control
• Spanning Tree Protocol (STP) and its variants (RSTP, MSTP)
• Access Control List (ACL) and Quality of Service (QoS) features
• Support for Jumbo Frames, Dynamic VLAN (GVRP), DHCP Snooping, and SNTP
• Energy Efficient Ethernet (EEE), IP-MAC Binding, and TFTP Support
• DHCP Relay and Security Features like STP Root Guard and Uni-Directional Link Detection (UDLD)

Power Specifications

• PoE (RJ-45) Ports: Yes, Power over Ethernet supported
• Input Voltage: 120/230 V AC
• Redundant Power Supply: No

Number Of Ports

The Cisco SG500X-48MP-K9 Layer 3 Manageable Switch is equipped with an impressive 48 ports, making it an ideal choice for businesses and organizations that require a high-performance network infrastructure. With this extensive number of ports, users can easily connect multiple devices such as computers, servers, printers, and IP phones to the network without the need for additional equipment.

Scalability

The 48 ports on the Cisco SG500X-48MP-K9 switch provide ample room for expansion. As businesses grow and their networking needs evolve, having additional ports readily available allows for seamless scalability. Users can effortlessly add new devices or expand their network infrastructure without worrying about running out of available ports.

Flexibility

The large number of ports on the SG500X-48MP-K9 switch offers unparalleled flexibility. It caters to various network setups, whether it's a small office environment or a large enterprise network. Users can connect devices from different departments or areas of their organization, ensuring smooth communication and data transfer across the entire network.

Enhanced Productivity

The 48 ports on this switch contribute to enhanced productivity by providing reliable connectivity to all connected devices. Users can seamlessly access shared resources, collaborate with colleagues, and transfer data without experiencing any bottlenecks or interruptions. This ultimately translates to improved efficiency and streamlined workflows.

Power Over Ethernet Support

The Cisco SG500X-48MP-K9 Layer 3 Manageable Switch offers Power over Ethernet (PoE) support, which is an essential feature for businesses that rely on network-powered devices. With a PoE-capable switch like the SG500X-48MP-K9, users can conveniently power compatible devices directly through the Ethernet cable, eliminating the need for separate power cords or adapters.

Simplified Deployment

Power over Ethernet support simplifies the deployment of network-powered devices such as IP phones, wireless access points, and IP cameras. Without the need for additional power outlets or wiring, users can easily install these devices in any location with an Ethernet connection. This flexibility saves time and effort during installation and reduces the overall cost of deploying network infrastructure.

Cost Efficiency

By utilizing PoE, businesses can significantly reduce their energy costs. Instead of powering each device individually with a separate power source, a PoE switch allows for centralized power distribution. This eliminates the need for multiple power adapters and reduces energy consumption, resulting in cost savings over time.

Reliable Power Supply

With PoE support, devices connected to the Cisco SG500X-48MP-K9 switch receive a reliable power supply. The switch actively manages and monitors the power delivery to ensure optimal performance and prevent power fluctuations. This ensures that critical network-powered devices remain operational even during power outages or fluctuations, enhancing overall network reliability.

Flexibility and Future-Proofing

The inclusion of PoE support in the SG500X-48MP-K9 switch future-proofs your network infrastructure. As technology advances and new network-powered devices emerge, having a PoE-capable switch ensures compatibility and flexibility. Users can easily integrate new devices into their network without worrying about power requirements, allowing for seamless expansion and adaptation to evolving business needs.

Manageable

The Cisco SG500X-48MP-K9 Layer 3 Manageable Switch offers extensive manageability features, empowering users with greater control and flexibility over their network infrastructure. With its comprehensive management capabilities, users can optimize network performance, troubleshoot issues, and ensure a secure and reliable network environment.

Centralized Network Management

The SG500X-48MP-K9 switch provides a centralized management interface that allows users to configure and monitor the entire network from a single location. This streamlines network administration tasks, saving time and effort. Users can easily set up VLANs, manage Quality of Service (QoS) settings, and implement security policies across the network, ensuring consistent performance and security.

Advanced Security

With its manageable features, the SG500X-48MP-K9 switch enables robust network security. Users can implement access control policies, configure virtual private networks (VPNs), and enable advanced security features such as port security and IP Source Guard. These measures protect against unauthorized access, prevent data breaches, and ensure the confidentiality and integrity of sensitive information.

Performance Optimization

The manageability features of the SG500X-48MP-K9 switch allow users to optimize network performance. Through Quality of Service (QoS) settings, users can prioritize network traffic based on specific applications or services. This ensures that critical applications, such as VoIP or video conferencing, receive sufficient bandwidth and low latency, guaranteeing a smooth user experience.

Network Monitoring and Troubleshooting

By providing detailed monitoring and troubleshooting capabilities, the SG500X-48MP-K9 switch enables proactive network management. Users can monitor network traffic, identify bottlenecks, and troubleshoot issues in real-time. The switch's management interface provides comprehensive statistics and logs, allowing users to quickly diagnose and resolve network problems, minimizing downtime and maximizing productivity.

In conclusion, the Cisco SG500X-48MP-K9 Layer 3 Manageable Switch offers an extensive range of features and benefits that cater to the needs of businesses and organizations. With its 48 ports, Power over Ethernet support, and comprehensive manageability features, this switch provides enhanced connectivity, flexibility, cost efficiency, and network control. Whether it's for small office environments or large enterprise networks, the SG500X-48MP-K9 switch is a reliable and scalable solution that empowers users to build a robust and efficient network infrastructure.
