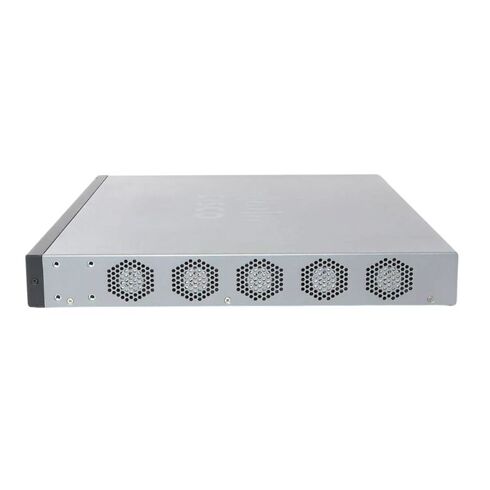

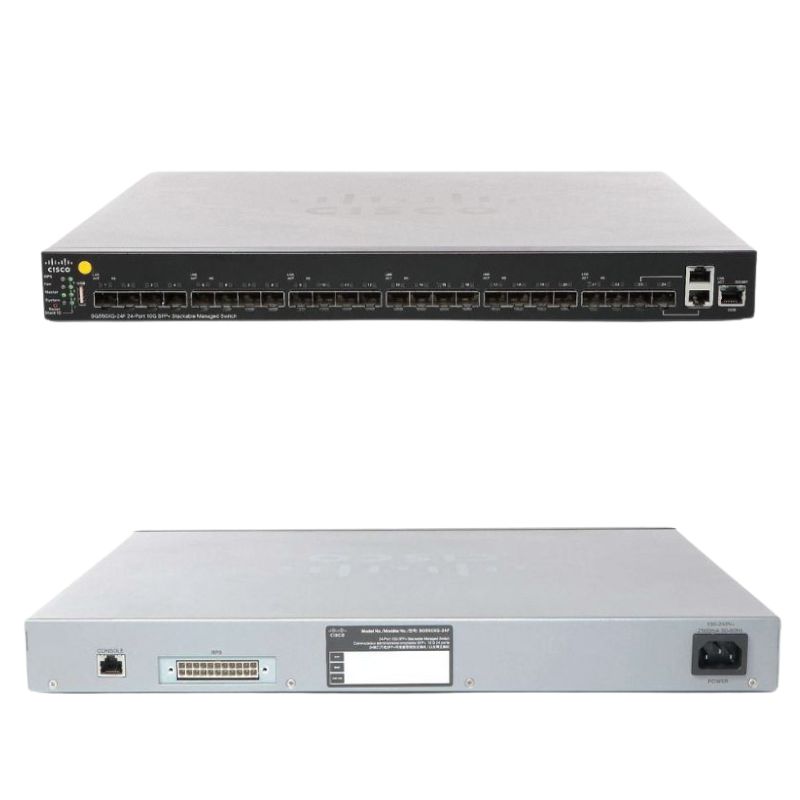

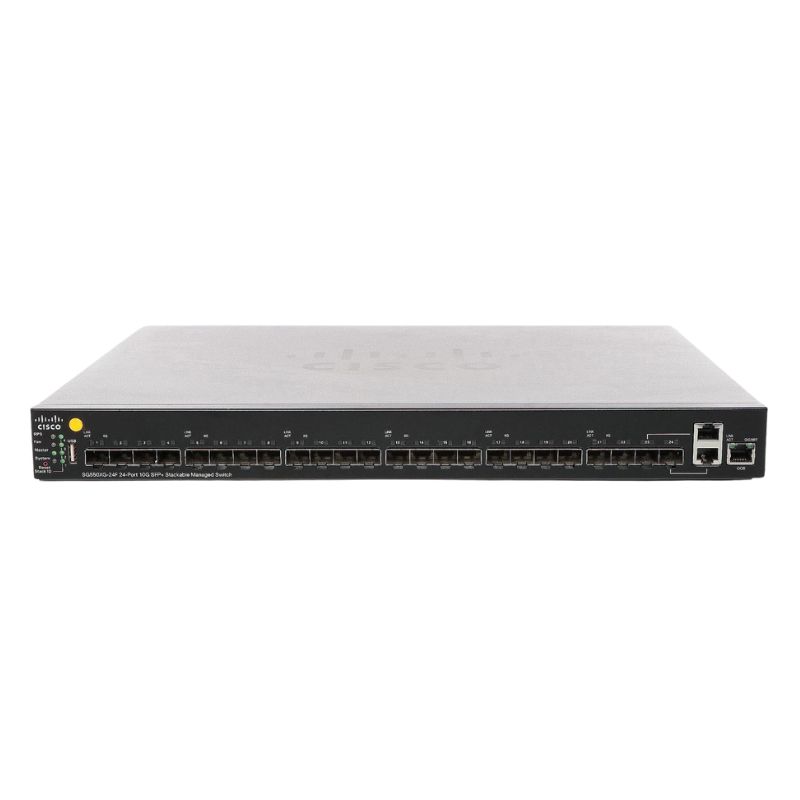

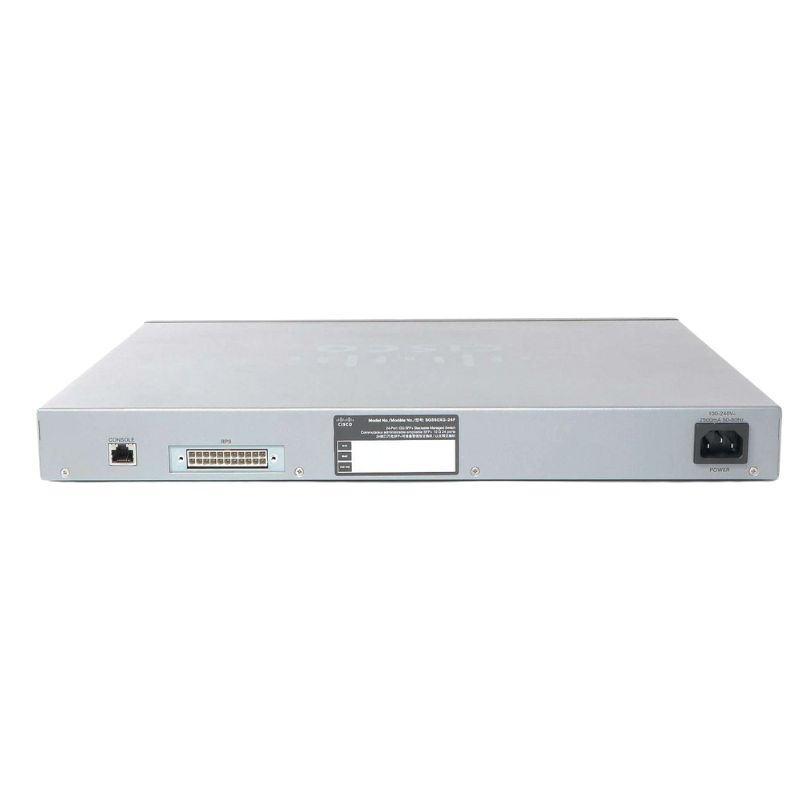

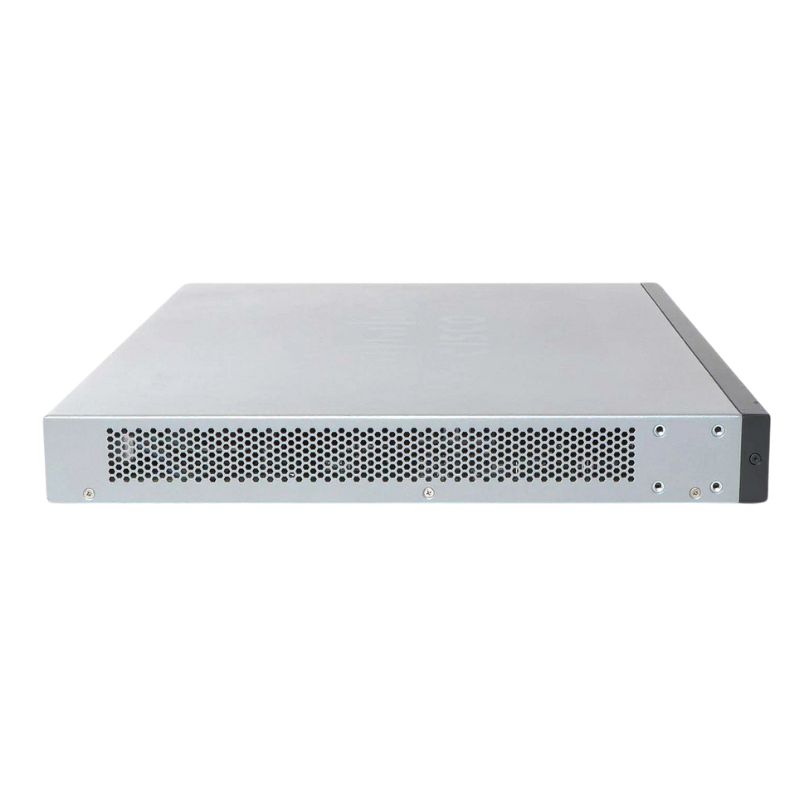

Cisco SG550XG-24F-K9 24-Port Managed Fiber Switch Rack-mountable

Ports

The Cisco SG550XG-24F-K9 Managed Switch is equipped with 24 ports, making it an ideal choice for businesses that require a high-performance network solution. With these 24 ports, users can connect multiple devices and ensure seamless data transfer and communication within their network infrastructure.

Device Overview of SG550XG-24F-K9

The SG550XG-24F-K9 is a sophisticated 24-port switch designed for high-performance networking solutions. This device is managed, stackable, and equipped to handle a range of advanced networking needs.

Physical Characteristics

• Enclosure Type: Rack-mountable
• Dimensions: 17.3 inches (W) x 13.8 inches (D) x 1.7 inches (H)
• Weight: 9.17 pounds

Connectivity Features

• Ports: 22 x 10 Gigabit SFP+ and 2 x Combo 10GBASE-T
• Interfaces:
  • 24 x 10GBASE-X SFP+
  • 2 x 10GBASE-T RJ-45
  • 1 x Management (Gigabit LAN) RJ-45
  • 1 x Console RJ-45
  • 1 x USB Type A

Performance Metrics

• Forwarding Performance: 357.12 Mpps (64-byte packet size)
• Switching Capacity: 480 Gbps
• Jumbo Frame Support: 9000 bytes

Capacity and Protocols

Network Capacity

• VLANs Supported: 4094
• IPv4 Routes (Static): 8000
• IPv6 Routes (Static): 4000
• ACL Rules: 2000
• QoS Hardware Queues: 8
• MAC Address Table Size: 64k entries

Routing Protocols

• RIP
• IGMPv2
• IGMP
• VRRP
• IGMPv3
• Static IPv4 Routing
• Static IPv6 Routing
• MLDv2
• MLD
• CIDR

Management and Remote Access

• Management Protocols: SNMP v1, RMON, SNMP v3, SNMP v2c, HTTP, HTTPS, TFTP, SSH, CLI, SCP

Power and Electrical Specifications

• Power Supply: Internal
• Voltage Required: AC 120/230V (50 - 60 Hz)

Increased Connectivity

Having 24 ports on the Cisco SG550XG-24F-K9 allows users to connect a wide range of devices, including computers, servers, printers, and network storage devices. This increased connectivity enables businesses to expand their network infrastructure and accommodate more devices without compromising on performance.

Efficient Data Transfer

Each of the 24 ports on this managed switch supports high-speed data transfer rates. This means that users can experience faster file transfers, smoother multimedia streaming, and improved overall network performance. Whether it's transferring large files or accessing data from network-attached storage (NAS) devices, the Cisco SG550XG-24F-K9 ensures that data is transferred efficiently.

VLAN Support

Virtual Local Area Networks (VLANs) provide enhanced network security and segmentation. The Cisco SG550XG-24F-K9 supports VLANs, allowing users to create separate networks within their organization. This feature is particularly useful for businesses that want to isolate sensitive data or separate different departments for enhanced security and improved network management.

Link Aggregation

Link Aggregation Control Protocol (LACP) is supported by the Cisco SG550XG-24F-K9, enabling users to combine multiple physical links into a single logical link. This feature enhances network redundancy and increases bandwidth availability, ensuring uninterrupted connectivity and improved performance.

Scalability

The 24 ports on the Cisco SG550XG-24F-K9 provide scalability for growing businesses. As your organization expands and requires additional network connections, this managed switch can accommodate the increased demand without the need for additional hardware investments. This scalability ensures that your network can evolve with your business needs.

Interface

The Cisco SG550XG-24F-K9 Managed Switch features an optical fiber interface, making it an ideal choice for businesses that require high-speed and reliable network connectivity over long distances. The optical fiber interface offers several benefits and is crucial for organizations that prioritize performance and data security.

High-Speed Data Transmission

Optical fiber interfaces provide significantly higher data transmission speeds compared to traditional copper-based interfaces. With the Cisco SG550XG-24F-K9's optical fiber interface, users can enjoy faster data transfer rates, reduced latency, and improved overall network performance. This is particularly important for businesses that rely on bandwidth-intensive applications or handle large amounts of data.

Long-Distance Connectivity

Optical fiber interfaces have the advantage of long-distance connectivity without signal degradation. Unlike copper-based interfaces that are limited in their transmission distance, optical fiber interfaces can transmit data over much greater distances without loss of quality. This makes the Cisco SG550XG-24F-K9 an excellent choice for organizations with expansive office spaces or multiple locations.

Data Security

Optical fiber interfaces provide enhanced data security compared to traditional copper-based interfaces. Fiber optic cables are immune to electromagnetic interference, making them less susceptible to unauthorized access or data interception. By utilizing the Cisco SG550XG-24F-K9's optical fiber interface, businesses can ensure that their sensitive data remains secure and protected from potential threats.

Future-Proofing

Investing in a managed switch with an optical fiber interface like the Cisco SG550XG-24F-K9 ensures future-proofing your network infrastructure. As technology continues to advance, optical fiber interfaces are expected to become the standard for high-speed and long-distance network connectivity. By choosing a switch with an optical fiber interface, businesses can stay ahead of the curve and be prepared for future network requirements.

Mounting

The Cisco SG550XG-24F-K9 Managed Switch is rack-mountable, providing users with a convenient and organized solution for deploying and managing their network infrastructure. The rack-mountable feature offers several benefits that are essential for businesses seeking efficient network management and space optimization.

Space Optimization

Rack-mountable switches allow businesses to consolidate their networking equipment in a single location. This eliminates the need for multiple standalone switches, resulting in a more organized and space-efficient setup. By mounting the Cisco SG550XG-24F-K9 in a rack, businesses can effectively utilize their available space and reduce clutter.

Easy Installation and Maintenance

Rack-mounted switches simplify the installation and maintenance processes. They can be easily mounted in standard server racks or cabinets, providing a structured and easily accessible environment for managing network equipment. This makes it convenient for IT teams to install, configure, and troubleshoot the Cisco SG550XG-24F-K9 without the need for complex cabling or excessive physical space.

Simplified Cable Management

Rack-mountable switches offer improved cable management capabilities. With neatly organized cables running through the rack, businesses can mitigate the risk of cable damage or accidental disconnections. This not only enhances network reliability but also simplifies troubleshooting by providing clear visibility of cable connections.

Scalability and Flexibility

Rack-mounted switches allow for easy scalability. As businesses grow and their network requirements change, additional switches can be conveniently added to the rack, minimizing downtime and reducing installation complexities. This flexibility ensures that the Cisco SG550XG-24F-K9 can adapt to the evolving needs of your organization.

Improved Cooling and Maintenance

Rack-mounted switches often come with built-in cooling mechanisms, such as fans or vents, to prevent overheating. This is especially important for high-performance switches like the Cisco SG550XG-24F-K9, which generate significant heat during operation. Additionally, rack-mounted switches offer easy access for maintenance tasks such as cleaning or replacing components, ensuring optimal performance and longevity.

In conclusion, the Cisco SG550XG-24F-K9 Managed Switch offers significant benefits through its 24 ports, optical fiber interface, and rack-mountable design. The 24 ports enable increased connectivity, efficient data transfer, VLAN support, and link aggregation. The optical fiber interface provides high-speed data transmission, long-distance connectivity, enhanced data security, and future-proofing capabilities. The rack-mountable feature optimizes space, simplifies installation and maintenance, improves cable management, and allows for scalability and flexibility. By choosing the Cisco SG550XG-24F-K9, businesses can enhance their network performance, security, and management efficiency.
