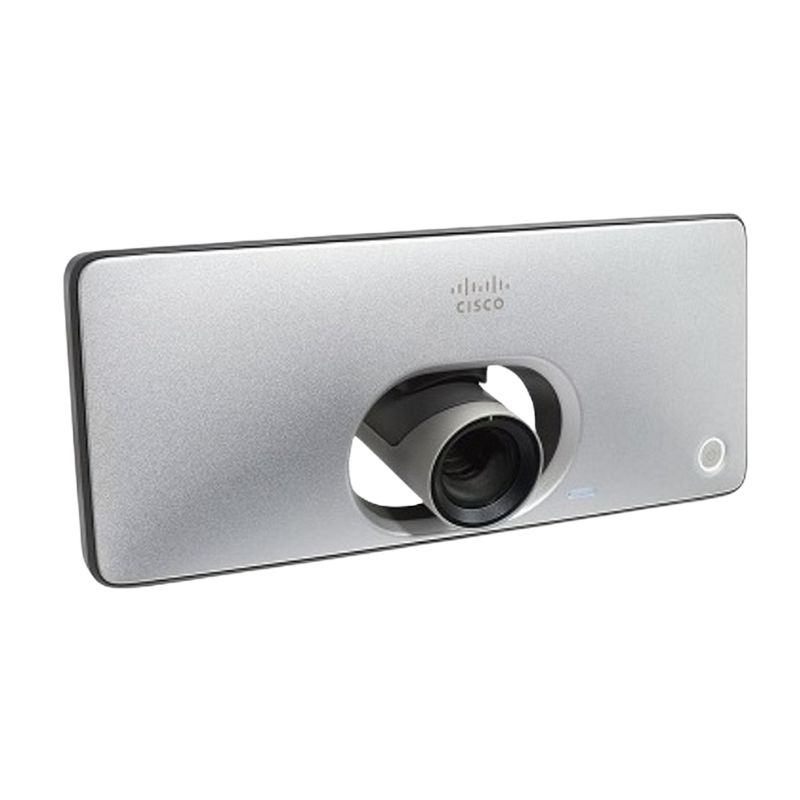

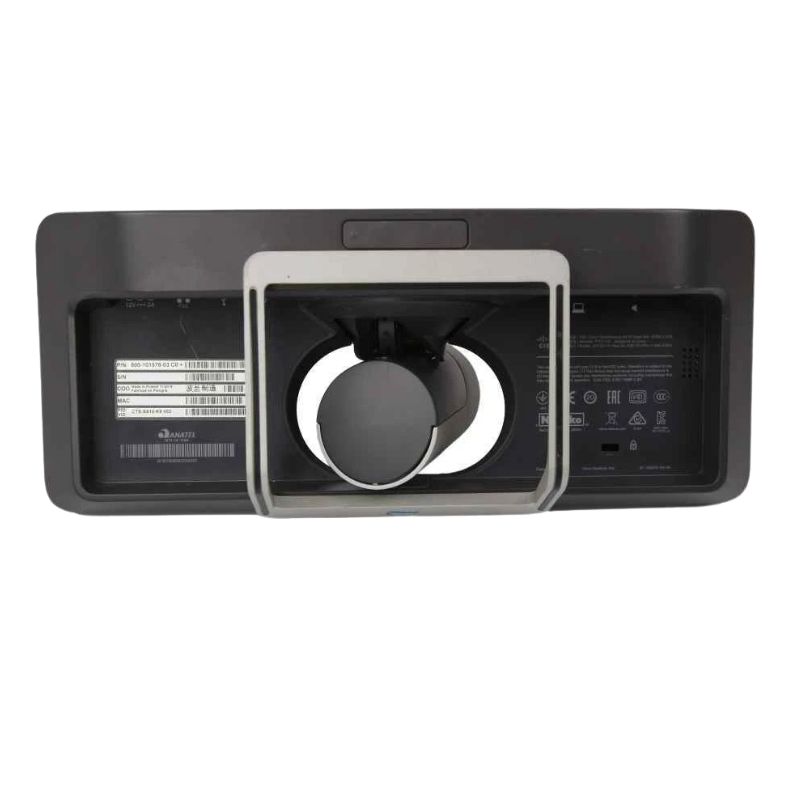

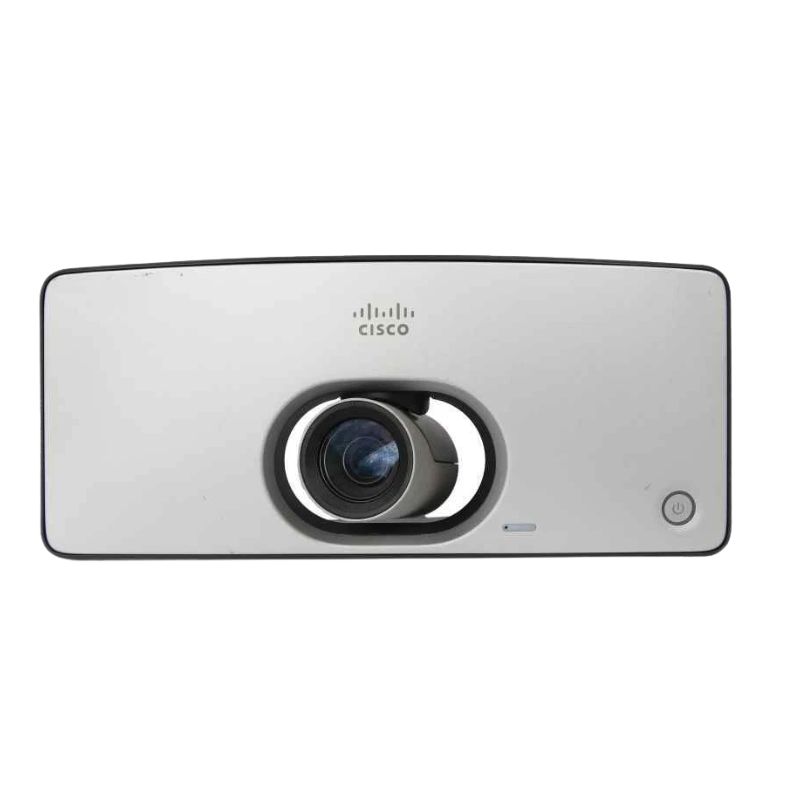

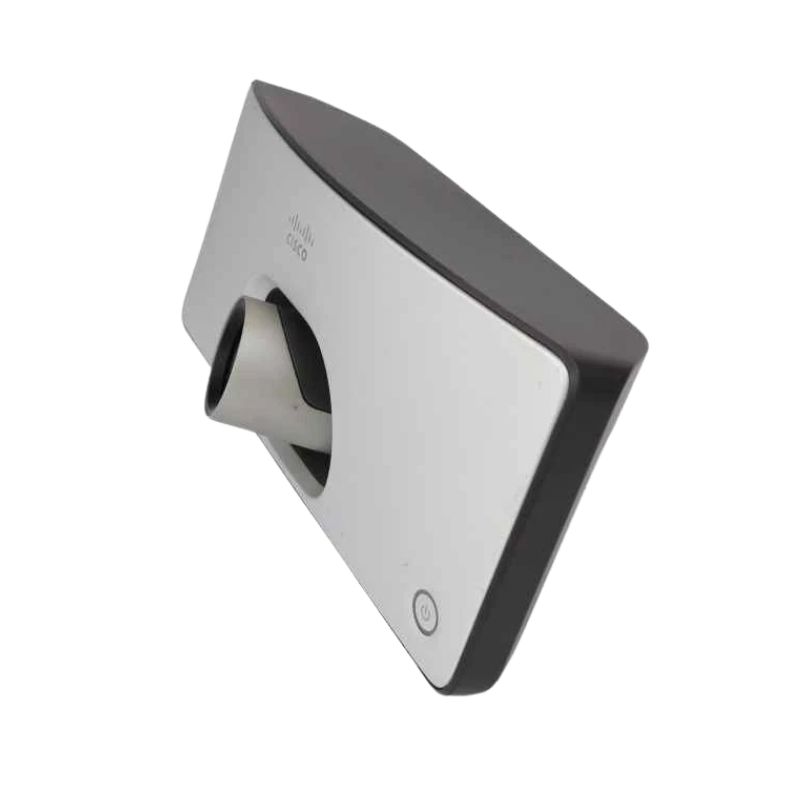

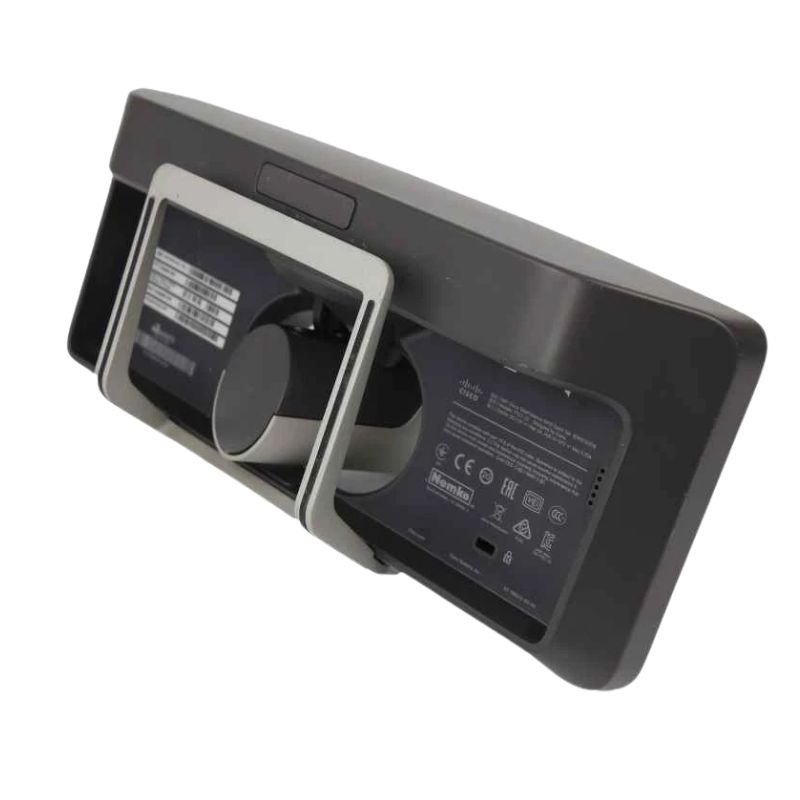

Cisco SX10 HD Video Conferencing Device (CTS-SX10CODEC)

Key Specifications of Cisco TelePresence SX10 HD

• Manufacturer: Cisco
• Model Number (SKU#): CTS-SX10CODEC
• Product Name: Cisco TelePresence
• Product Type: Network Adapter
• Supported VoIP Protocols: SIP

Technical Details

Audio and Video Codecs

• Supported Voice Codecs: G.711, G.722, G.729, G.729ab, G.711a, G.722.1
• Supported Video Codecs: H.263, H.263+, H.264

Quality of Service (QoS) Standards

• QoS Protocols: IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p

Network Protocols Supported

• Networking Protocols: HTTP, HTTPS

Data Transmission and Compression

Max Transfer Rate

• Data Transfer Speed: Up to 3 Mbps

Compression Protocols

• Supported Compression: G.711, G.722, G.729, G.729AB, H.263, H.263+, H.264, G.722.1, H.350

Additional Features

• Auto gain control
• Echo cancellation

Video and Audio Input/Output

Video Input Specifications

• Video Input Type: Integrated digital color video camera
• Capture Resolution: 1920 x 1080 (Full HD)

Video Output Specifications

• Output Type: Codec board
• Max Resolution Supported: 1920 x 1080
• Supported Video Standards: VGA, SVGA, XGA, HDTV, and more
• Digital Video Standard: HDMI

Audio Input Specifications

• Audio Input Type: Integrated microphone

Input Devices

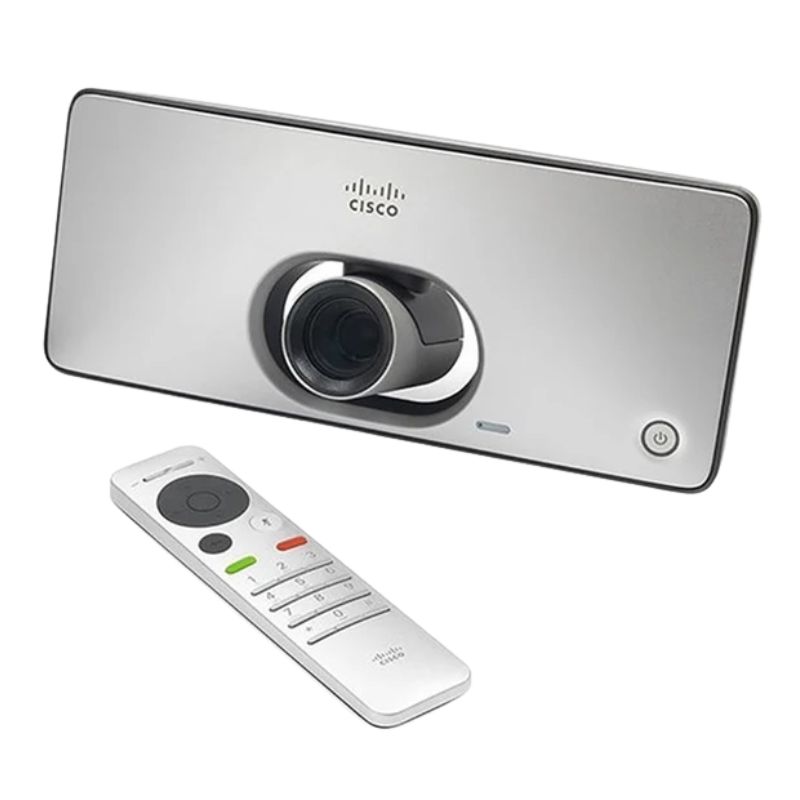

• Device Type: Wireless remote control

Networking Capabilities

• Adapter Type: Wired Network Adapter
• Supported Data Link Protocols: Ethernet, Fast Ethernet

Supported Network Protocols

• Protocols: TCP/IP, NTP, DHCP, DNS

Network Features

• Flow control
• Power over Ethernet (PoE)
• VLAN and DiffServ support
• IPv4/IPv6 compatibility
• LDAP, SSH, QoS, CoS, and SCP support

Compliance Standards

• IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x

Connectivity Options for Cisco CTS-SX10CODEC

• 1 x Ethernet 10Base-T/100Base-TX (PoE) – RJ-45
• 1 x USB port
• 1 x HDMI input (19-pin Type A)
• 1 x HDMI output (19-pin Type A)
• 1 x VGA (15-pin HD D-Sub)
• 1 x microphone input (3.5mm, 4-pole)
• 1 x stereo line-out (3.5mm)

Power and Environmental Specifications

Power Requirements

• Power Supply: Internal
• Required Voltage: 120/230 V AC (50/60 Hz)
• Operational Power Consumption: 12 Watts

Environmental Operating Conditions

• Operating Temperature Range: 32°F to 104°F
• Humidity Range: 10% to 90%

Included Cables

• 1 x HDMI cable
• 1 x network cable

Compliance Certifications

• EN 61000-3-2, EN 61000-3-3, EN55024
• FCC CFR47 Part 15, UL 60950-1
• IEC60950-1, Directive 2004/108/EC
• CSA C22.2 No. 60950-1-07

Cisco TelePresence Video Conferencing Device

Enhanced Video Conferencing Experience

The Cisco TelePresence SX10 HD is a state-of-the-art video conferencing device that revolutionizes the way businesses communicate. With its high-definition video capabilities, this device brings a lifelike and immersive meeting experience to users. Whether you are in a small conference room or a huddle space, the SX10 HD delivers exceptional video quality that makes you feel like you are in the same room with your remote colleagues.

Crystal Clear Audio

In addition to its impressive video capabilities, the Cisco TelePresence SX10 HD also offers exceptional audio quality. Its integrated microphone and speaker system ensure that every participant can be heard clearly, eliminating the need for external audio equipment. This feature is particularly beneficial in large conference rooms where multiple participants are present. The SX10 HD ensures that everyone's voice is heard, facilitating effective communication and collaboration.

Easy Setup and Installation

Setting up the Cisco TelePresence SX10 HD is a breeze. With its plug-and-play functionality, users can quickly connect the device to their existing display and network infrastructure. The device comes with all necessary cables and accessories, making installation hassle-free. This ease of setup saves valuable time and resources, allowing businesses to start video conferencing immediately without any technical difficulties.

User-Friendly Interface

The SX10 HD features a user-friendly interface that is intuitive and easy to navigate. The device comes with a remote control that allows users to control all aspects of their video conferencing experience. From adjusting camera settings to managing audio levels, users have full control over their meeting environment. This user-friendly interface ensures that even non-technical users can operate the device effortlessly, enhancing productivity and efficiency in meetings.

Seamless Integration

One of the key benefits of the Cisco TelePresence SX10 HD is its ability to seamlessly integrate with other Cisco collaboration products. Whether you are using Cisco Webex, Cisco Jabber, or any other Cisco collaboration tool, the SX10 HD ensures a seamless and unified experience. This integration allows users to easily schedule and join video conferences, share content, and collaborate in real-time, regardless of their location. The SX10 HD truly enables seamless collaboration and enhances productivity across teams.

Sku: CTS-SX10CODEC

Compact and Space-Saving Design

The CTS-SX10CODEC is designed with space efficiency in mind. Its compact form factor allows it to fit seamlessly into any conference room or huddle space without occupying valuable real estate. This compact design is particularly beneficial for businesses with limited office space, enabling them to create dedicated collaboration areas without sacrificing workspace.

Flexible Mounting Options

The CTS-SX10CODEC offers flexible mounting options to suit various room configurations. Whether you prefer to mount it on a wall or place it on a stand, this device adapts to your specific needs. This versatility ensures that the device can be positioned optimally for capturing the best video and audio quality, enhancing the overall meeting experience.

High-Quality Video Resolution

Despite its small size, the CTS-SX10CODEC delivers exceptional video resolution. It supports high-definition video, ensuring that every detail is captured with clarity and precision. This high-quality video resolution enhances visual communication and makes participants feel as if they are physically present in the meeting room. Whether you are presenting important visuals or analyzing complex data, the CTS-SX10CODEC ensures that every detail is visible and easily discernible.

Network Security and Encryption

Security is a top priority when it comes to video conferencing. The CTS-SX10CODEC incorporates advanced security features to protect sensitive information shared during meetings. It supports encryption protocols that safeguard data transmission, ensuring that confidential discussions remain private. Additionally, the device integrates seamlessly with Cisco's comprehensive security solutions, providing an added layer of protection against potential threats.

Cost-Effective Solution

The CTS-SX10CODEC offers a cost-effective solution for businesses looking to implement video conferencing capabilities. Its affordable price point and low maintenance requirements make it an ideal choice for organizations of all sizes. By investing in the CTS-SX10CODEC, businesses can significantly reduce their travel expenses and improve communication and collaboration among remote teams. This cost-effective solution provides a high return on investment while enhancing productivity and efficiency.

In conclusion, the Cisco TelePresence SX10 HD and CTS-SX10CODEC offer a range of features and benefits that enhance the video conferencing experience for users. From exceptional video and audio quality to easy setup and seamless integration, these devices enable effective communication and collaboration across teams. With their compact designs, flexible mounting options, and advanced security features, the SX10 HD and CTS-SX10CODEC provide cost-effective solutions for businesses seeking to optimize their meeting environments.
