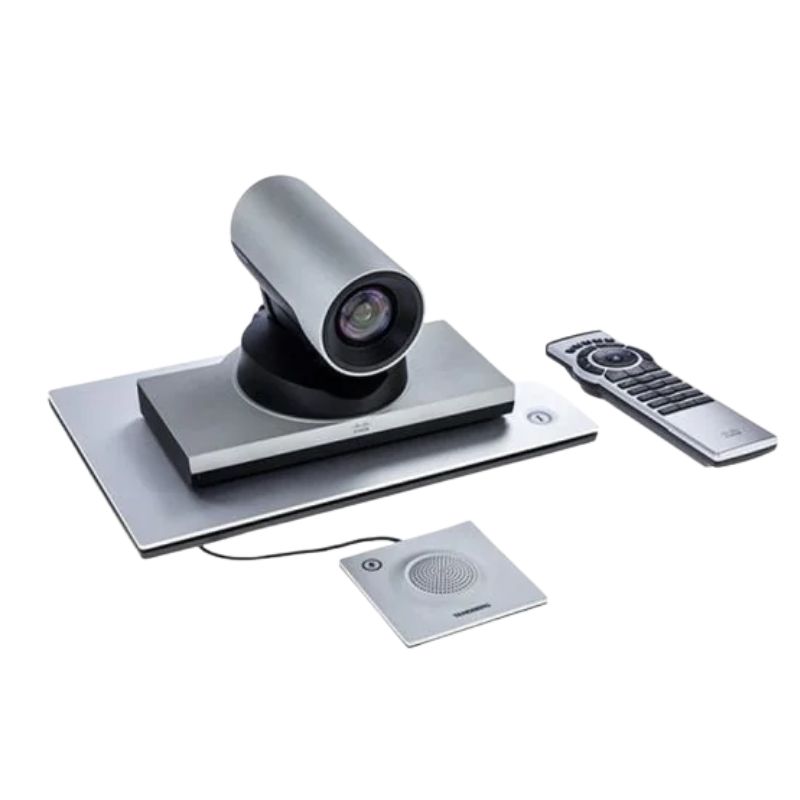

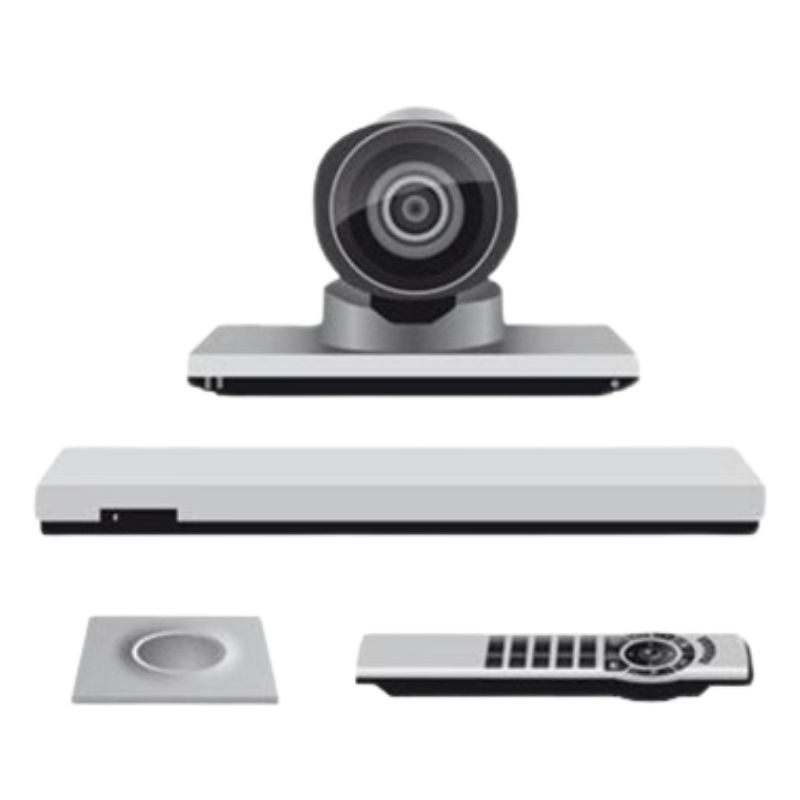

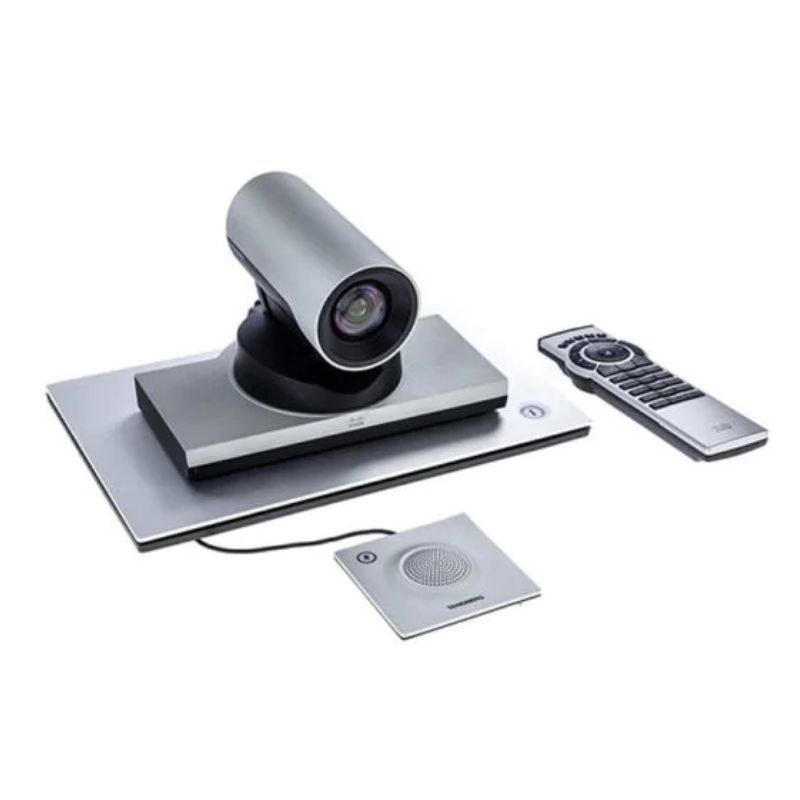

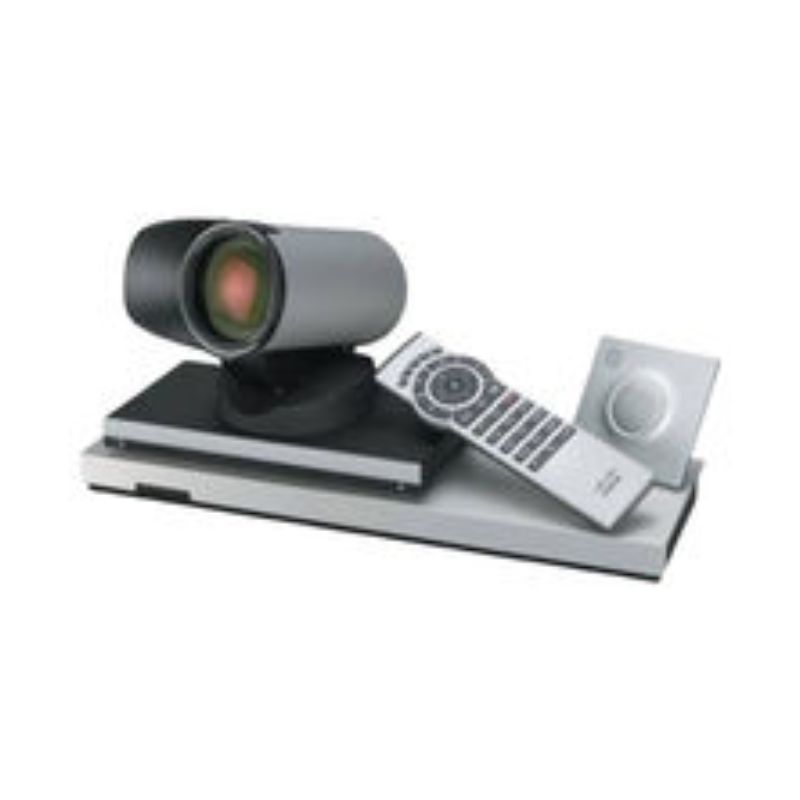

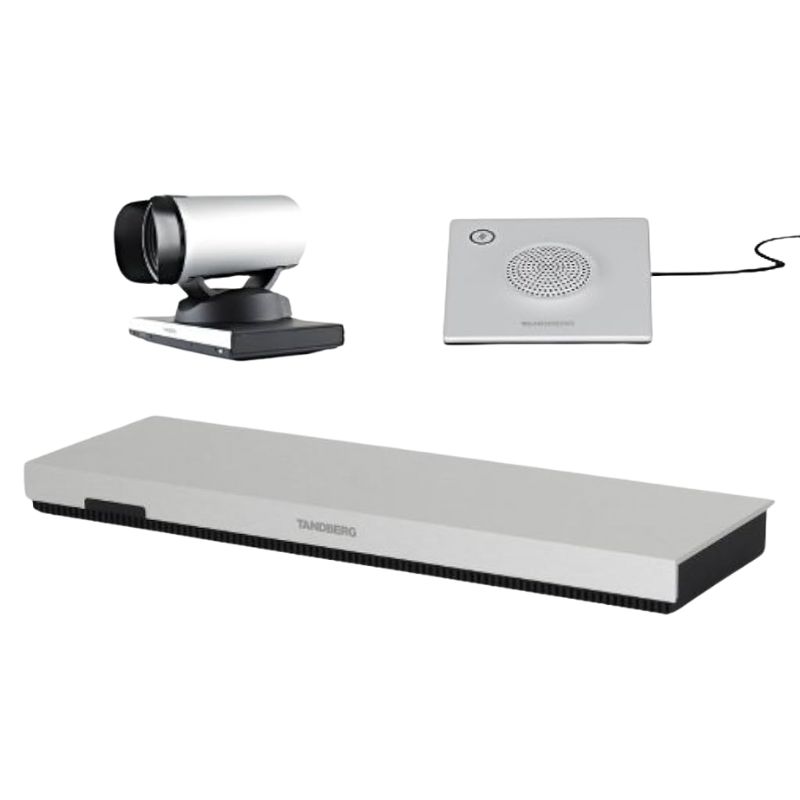

Cisco TelePresence Codec C40 Integrator Pack - CTS-INTP-C40-W4-K9

TelePresence Codec C40 Integrator Pack Web Conference Appliance - Overview

Product Details

• Manufacturer: Cisco Systems, Inc.
• Model Number: CTS-INTP-C40-W4-K9
• Product Line: TelePresence
• Product Name: Codec C40 Integrator Pack
• Product Type: Web Conference Appliance

Technical Specifications

Video Features

• Supported ITU-T Standards: H.323
• Maximum Resolution: 1920 x 1200 (WUXGA)
• Frame Rate: 60 fps
• Supported Video Formats: NTSC/PAL
• Video Codecs: H.261, H.263, H.263+, H.264, H.239
• Graphics Modes: WUXGA

Camera and Video Bridging

• Camera Sensor Type: CMOS
• Sensor Size: 1/3 inch
• Zoom Capability: 4x Zoom Camera
• Bridging Type: Point-to-Point Video Bridging

Audio Features

• Audio Codecs: G.711, G.722, G.722.1
• Audio Quality: CD-Quality (20KHz Mono and Stereo)
• Echo Cancellation: Dual Acoustic Echo Cancellers
• Audio Mixer: 2-port mixer
• Additional Features: Automatic Gain Control (AGC), Noise Reduction, Active Lip Sync

Connectivity and Ports

Network and Communication

• Ethernet Technology: Gigabit Ethernet
• RJ-45 Ports: 2
• Other Network Features: URI Dialing, TCP/IP, DHCP, 802.1x Authentication

Interfaces and Ports

• S-Video In: 1
• DVI In/Out: 1 In, 1 Out
• HDMI In/Out: 3 In, 2 Out
• Audio Line In/Out: 4 In, 2 Out
• USB Ports: Yes
• Serial Port: Yes

Additional Features

Multisite Capabilities

• Supports 4-way SIP/H.323 MultiSite with resolutions up to w576p30
• Full audio and video transcoding for individual layouts
• Dual stream support for H.264 with encryption
• Conference rates up to 10 Mbps

IP Network Features

• Dynamic bandwidth management with IP adaptive controls
• Support for Differentiated Services (QoS)
• Auto gatekeeper discovery
• IP downspeeding based on packet loss

Regulatory Compliance and Certifications

• Complies with Low-Voltage Directive 2006/95/EC (EN 60950-1)
• EMC Directive 2004/108/EC compliant (EN 55022, EN 55024)
• UL 60950-1 and CSA 60950-1-07 approved
• Meets FCC 15B Class B standards

In the Box

• TelePresence Codec C40 Integrator Pack
• Wireless Remote Control
• Rack Mounting Ears
• LAN Cable
• Power Cable

Features

Integrator Pack

The Cisco TelePresence CTS-INTP-C40-W4-K9 Web Conference Equipment comes with an incredible feature known as the Integrator Pack. This pack includes the powerful Codec C40, which enhances the overall performance and functionality of the device. With its advanced capabilities, the Integrator Pack provides users with a seamless and immersive web conferencing experience.

Enhanced Video Quality

One of the key benefits of the Codec C40 included in the Integrator Pack is its ability to deliver exceptional video quality. Whether you are participating in a one-on-one video call or a multi-party conference, this feature ensures that your video feed is crystal clear and sharp. This enhanced video quality allows for better communication and collaboration, as participants can clearly see each other's facial expressions and gestures, making interactions more natural and engaging.

High-Quality Audio

In addition to its top-notch video capabilities, the Integrator Pack with Codec C40 also offers high-quality audio. The advanced audio technology ensures that every word spoken during a conference call is transmitted with utmost clarity. With this feature, users can enjoy seamless communication without any distortion or background noise interference. Whether you are discussing important business matters or conducting training sessions, the high-quality audio provided by this equipment guarantees that every participant can hear and be heard effectively.

Flexible Connectivity Options

The Integrator Pack with Codec C40 offers flexible connectivity options, allowing users to connect their web conference equipment to various devices seamlessly. Whether you prefer to connect via Ethernet, Wi-Fi, or Bluetooth, this feature ensures that you can easily integrate your web conferencing system into your existing network infrastructure. This flexibility is particularly beneficial for organizations that have diverse IT setups or remote teams spread across different locations.

Advanced Collaboration Features

The Integrator Pack with Codec C40 is equipped with a range of advanced collaboration features that enhance productivity and streamline workflows. For instance, it supports content sharing, allowing participants to share presentations, documents, or multimedia files during a web conference. This feature promotes effective collaboration and enables participants to work together on projects in real-time, regardless of their physical location.

Secure and Encrypted Communication

Security is of utmost importance in today's digital era, and the Integrator Pack with Codec C40 understands that. It provides users with secure and encrypted communication channels, ensuring that sensitive information shared during web conferences remains confidential. This feature is particularly important for organizations that deal with sensitive data or have strict compliance requirements. With the secure communication offered by this equipment, users can have peace of mind knowing that their conversations are protected from unauthorized access.

Easy Setup and User-Friendly Interface

Setting up and using the Cisco TelePresence CTS-INTP-C40-W4-K9 Web Conference Equipment is a breeze, thanks to its user-friendly interface. The Integrator Pack with Codec C40 simplifies the entire setup process, allowing users to quickly get started with their web conferencing sessions. The intuitive interface ensures that even inexperienced users can navigate through the system effortlessly. This ease of use reduces the learning curve and ensures maximum utilization of the equipment's advanced features.

Scalability and Expansion Possibilities

The Integrator Pack with Codec C40 offers scalability and expansion possibilities to cater to growing business needs. As your organization expands or your conferencing requirements increase, you can easily scale up your web conference equipment by adding additional components or integrating it with other Cisco TelePresence solutions. This flexibility ensures that your investment remains future-proof and adaptable to evolving technological advancements.

In conclusion, the Cisco TelePresence CTS-INTP-C40-W4-K9 Web Conference Equipment's Integrator Pack, featuring the Codec C40, offers a range of benefits and advantages to users. From enhanced video and audio quality to flexible connectivity options and advanced collaboration features, this feature-packed equipment ensures a seamless and immersive web conferencing experience. Moreover, the secure communication channels, user-friendly interface, and scalability make it a valuable tool for organizations of all sizes. With the Cisco TelePresence CTS-INTP-C40-W4-K9 Web Conference Equipment and its Integrator Pack, you can take your web conferences to the next level and revolutionize the way your organization collaborates.
